Part Search

Torque Converter | Toyota | 2 & 3 Speed, Corolla 8-1/2" (241mm)/Corona 9-3/4" (248mm), '65-'76

Ill.# Image Description Specification Part #
Rivet COROLLA 8-1/2'' (216) DIA
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12L
Rivet FX-12L
& COROLLA 8-1/2'' (216) DIA
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
Rivet Turbine shaft to turbine. Use 6. CORONA etc, 9-3/4" (24mm) Dia
  • Length: .44"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.25"
  • Rivet Head Dia: 0.5"
 TX-12L
Rivet TX-12L
Turbine shaft to turbine. Use 6. & CORONA etc, 9-3/4" (24mm) Dia
  • Length: .44"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.25"
  • Rivet Head Dia: 0.5"

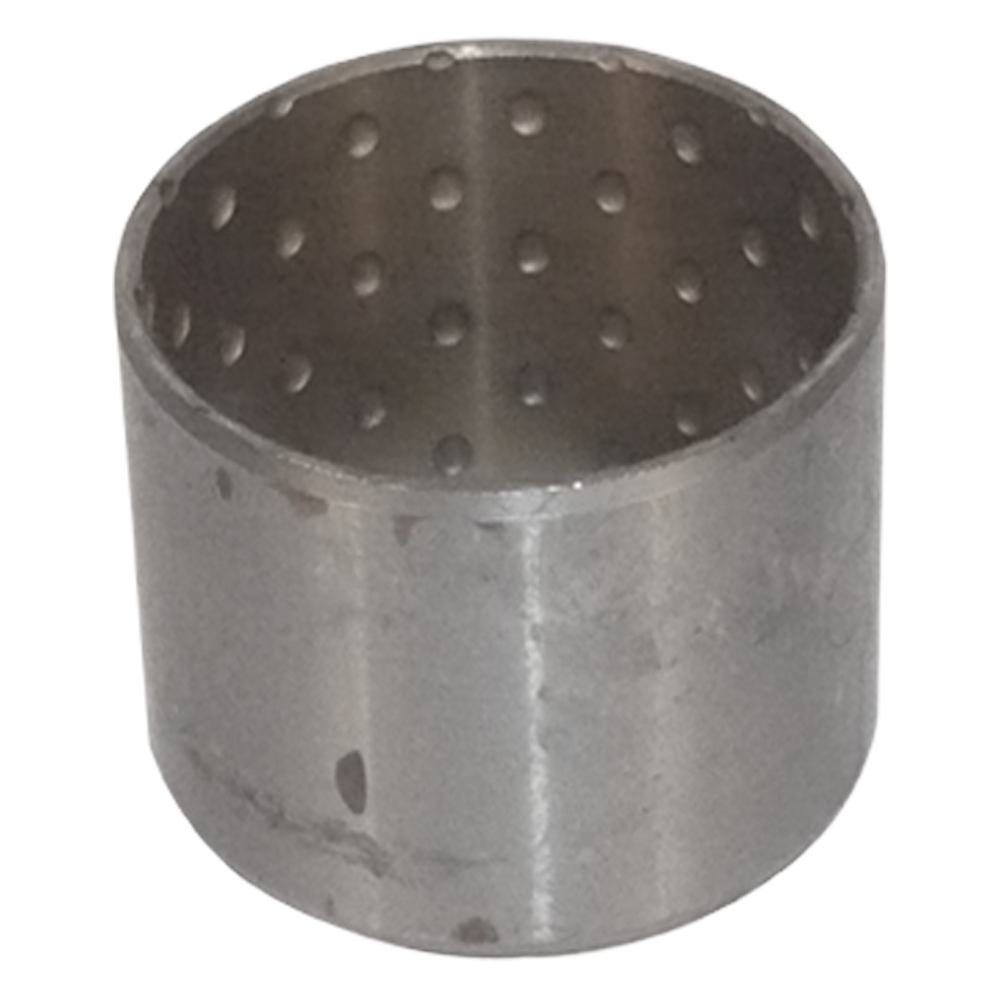

Bushing Hub CORONA etc, 9-3/4" (24mm) Dia YB-18
Bushing YB-18
Hub & CORONA etc, 9-3/4" (24mm) Dia

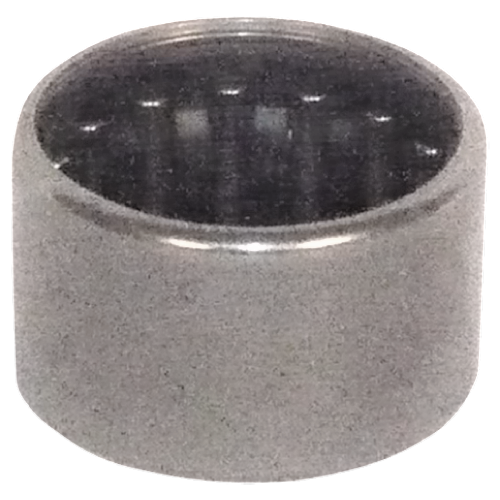

Bearing Needle CORONA etc, 9-3/4" (24mm) Dia YB-18N
Bearing YB-18N
Needle & CORONA etc, 9-3/4" (24mm) Dia

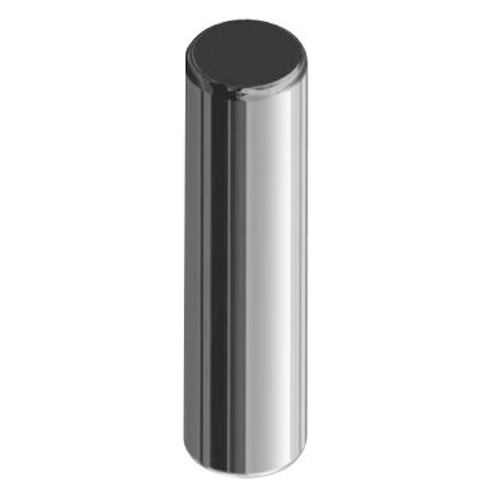

Roller CORONA etc, 9-3/4" (24mm) Dia
  • Dia: 0.275"
  • Length: 0.856"
 YR-7
Roller YR-7
& CORONA etc, 9-3/4" (24mm) Dia
  • Dia: 0.275"
  • Length: 0.856"
Roller COROLLA 8-1/2'' (216) DIA
  • Dia: 0.235"
  • Length: 0.785"
 YR-7-1
Roller YR-7-1
& COROLLA 8-1/2'' (216) DIA
  • Dia: 0.235"
  • Length: 0.785"

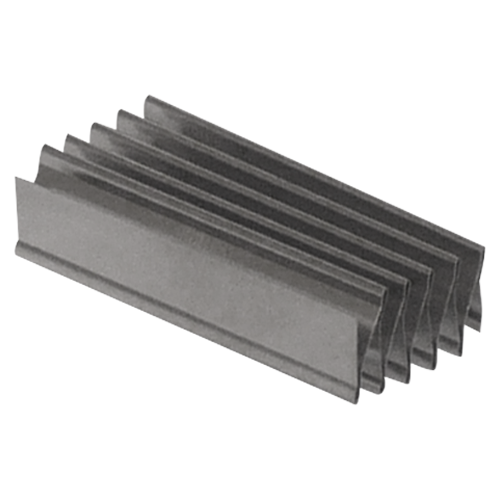

Accordion Spring CORONA etc, 9-3/4" (24mm) Dia
  • Width: 0.85"
  • Relaxed Length: 0.44"
  • Folds: 5
  • Relaxed Height: 0.23"
 YS-6
Accordion Spring YS-6
& CORONA etc, 9-3/4" (24mm) Dia
  • Width: 0.85"
  • Relaxed Length: 0.44"
  • Folds: 5
  • Relaxed Height: 0.23"
Accordion Spring COROLLA 8-1/2'' (216) DIA
  • Width: 0.68"
  • Relaxed Length: 0.42"
  • Folds: 5
  • Relaxed Height: 0.19"
 YS-6-1
Accordion Spring YS-6-1
& COROLLA 8-1/2'' (216) DIA
  • Width: 0.68"
  • Relaxed Length: 0.42"
  • Folds: 5
  • Relaxed Height: 0.19"
Washer COROLLA 8-1/2'' (216) DIA
  • Material: Aluminum
  • Outside Dia: 2.42"
  • Inside Dia: 1.32"
 YW-4-1
Washer YW-4-1
& COROLLA 8-1/2'' (216) DIA
  • Material: Aluminum
  • Outside Dia: 2.42"
  • Inside Dia: 1.32"

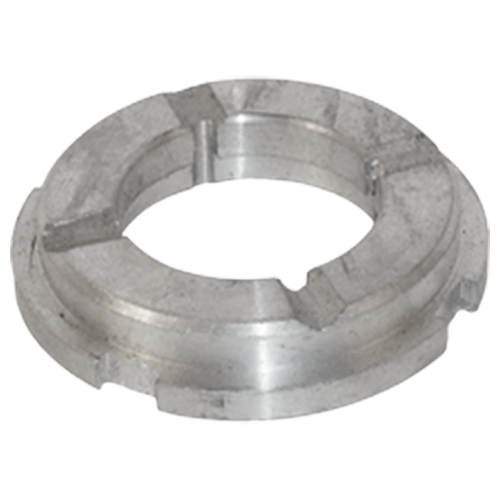

Washer COROLLA 8-1/2'' (216) DIA. MUST BE USED WITH YX-14-1 (INNER RACE)
  • Material: Aluminum
  • Outside Dia: 2.42"
  • Inside Dia: 1.32"
 YW-4-1X
Washer YW-4-1X
& COROLLA 8-1/2'' (216) DIA. MUST BE USED WITH YX-14-1 (INNER RACE)
  • Material: Aluminum
  • Outside Dia: 2.42"
  • Inside Dia: 1.32"

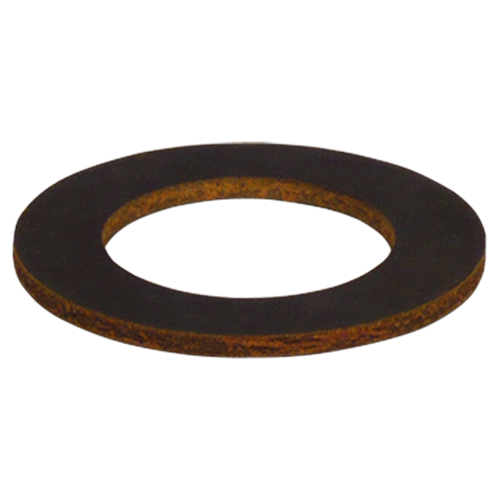

Washer COROLLA 8-1/2'' (216) DIA
  • Material: Fiber
  • Outside Dia: 1.68"
  • Inside Dia: 1.02"
 YW-9-1A
Washer YW-9-1A
& COROLLA 8-1/2'' (216) DIA
  • Material: Fiber
  • Outside Dia: 1.68"
  • Inside Dia: 1.02"

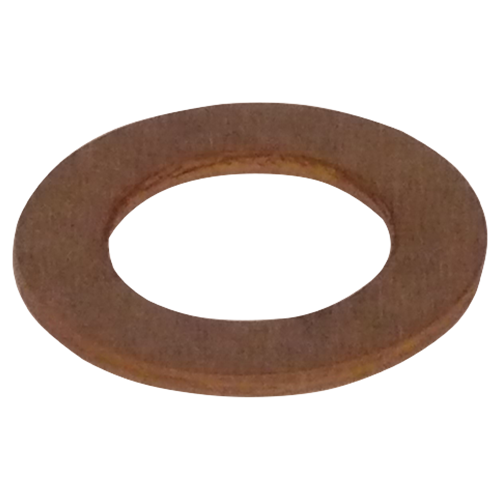

Turbine Washer COROLLA 8-1/2'' (216) DIA
  • Material: Fiber
  • Outside Dia: 1.68"
  • Inside Dia: 1.02"
 YW-9-1B
Turbine Washer YW-9-1B
& COROLLA 8-1/2'' (216) DIA
  • Material: Fiber
  • Outside Dia: 1.68"
  • Inside Dia: 1.02"
Turbine Washer
  • Thickness: 0.075"
  • Material: Fiber
  • Outside Dia: 2.03"
  • Inside Dia: 1.31"
 YW-9A
Turbine Washer YW-9A
&
  • Thickness: 0.075"
  • Material: Fiber
  • Outside Dia: 2.03"
  • Inside Dia: 1.31"
Turbine Washer CORONA etc, 9-3/4" (24mm) Dia
  • Thickness: 0.094"
  • Material: Fiber
  • Outside Dia: 2.03"
  • Inside Dia: 1.31"
 YW-9B
Turbine Washer YW-9B
& CORONA etc, 9-3/4" (24mm) Dia
  • Thickness: 0.094"
  • Material: Fiber
  • Outside Dia: 2.03"
  • Inside Dia: 1.31"
Turbine Washer Special CORONA etc, 9-3/4" (24mm) Dia
  • Thickness: 0.080"
  • Outside Dia: 2.04"
  • Inside Dia: 1.24"
 YW-9C
Turbine Washer YW-9C
Special & CORONA etc, 9-3/4" (24mm) Dia
  • Thickness: 0.080"
  • Outside Dia: 2.04"
  • Inside Dia: 1.24"
Turbine Hub COROLLA 8-1/2'' (216) DIA
  • Internal Teeth: 26
  • Outside Dia: 4.33"
 YX-13-1
Turbine Hub YX-13-1
& COROLLA 8-1/2'' (216) DIA
  • Internal Teeth: 26
  • Outside Dia: 4.33"
Turbine Hub
  • Internal Teeth: 26
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.33"
 YX-13-1HT
Turbine Hub YX-13-1HT
&
  • Internal Teeth: 26
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.33"
Insert Corona, Core Saver CORONA etc, 9-3/4" (24mm) Dia, CONVERT EARLY 2-SPEED MODELS TO LATE 3-SPEED BY USING THIS INSERT AND YH-1 HUB"
  • Height: 0.800
  • Internal Teeth: 23
  • Outside Dia: 0.96"
 YX-13-23X
Insert YX-13-23X
Corona, Core Saver & CORONA etc, 9-3/4" (24mm) Dia, CONVERT EARLY 2-SPEED MODELS TO LATE 3-SPEED BY USING THIS INSERT AND YH-1 HUB"
  • Height: 0.800
  • Internal Teeth: 23
  • Outside Dia: 0.96"
Inner Race Stator COROLLA 8-1/2'' (216) DIA
  • Height: 1.280"
  • Internal Teeth: 23 (4 Removed)
  • Outside Dia: 1.420"
 YX-14-1
Inner Race YX-14-1
Stator & COROLLA 8-1/2'' (216) DIA
  • Height: 1.280"
  • Internal Teeth: 23 (4 Removed)
  • Outside Dia: 1.420"
Hub Front Cover COROLLA 8-1/2'' (216) DIA
  • Installed Height: 0.900"
  • Material: Hardened Steel
  • Outside Dia: 3.860"
  • Inside Dia: 0.788"
  • Bearing Pocket ID: 0.985"
 YX-22-1
Hub YX-22-1
Front Cover & COROLLA 8-1/2'' (216) DIA
  • Installed Height: 0.900"
  • Material: Hardened Steel
  • Outside Dia: 3.860"
  • Inside Dia: 0.788"
  • Bearing Pocket ID: 0.985"

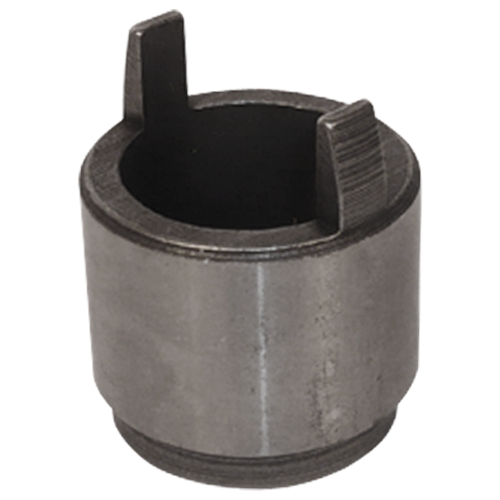

Impeller Hub COROLLA 8-1/2'' (216) DIA
  • Journal Dia: 1.652"
  • Installed Height: 1.660"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs
 YH-1-2G
Impeller Hub YH-1-2G
& COROLLA 8-1/2'' (216) DIA
  • Journal Dia: 1.652"
  • Installed Height: 1.660"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs

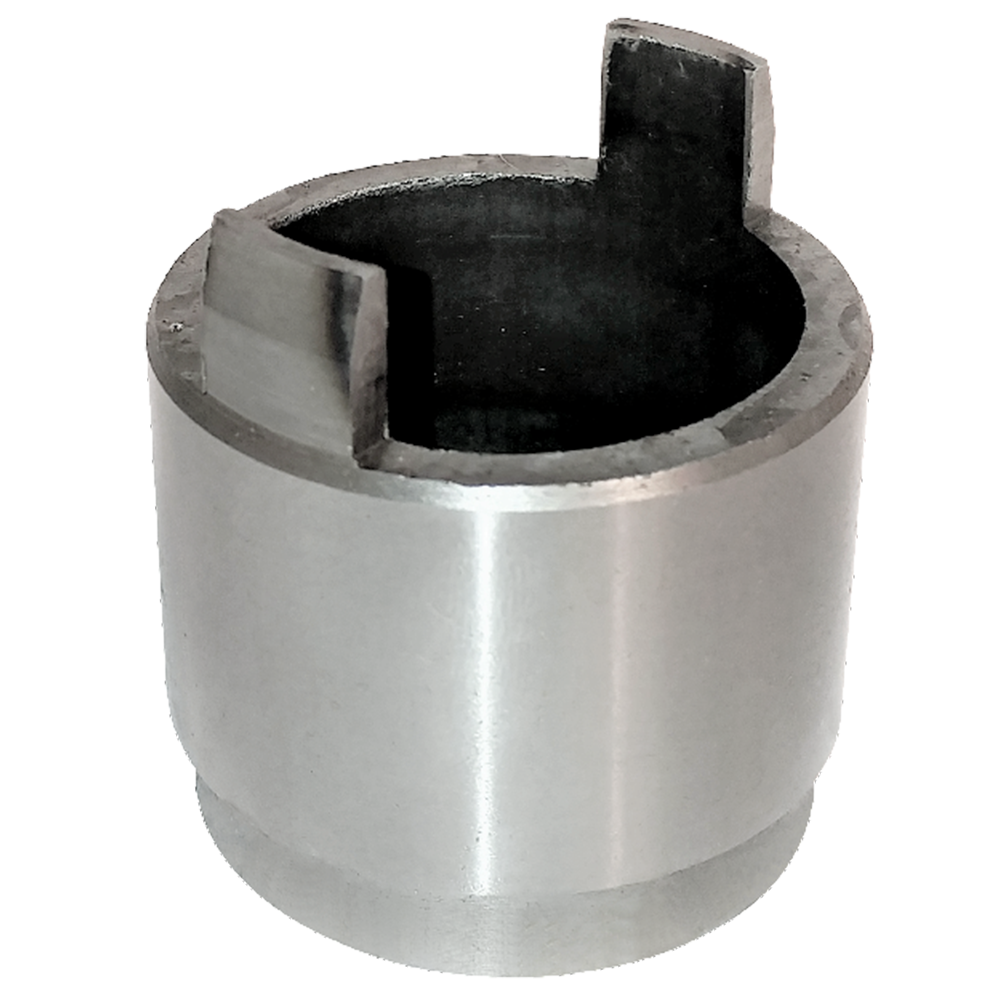

Impeller Hub CORONA etc, 9-3/4" (24mm) Dia
  • Journal Dia: 1.652"
  • Installed Height: 1.56"
  • Height: 1.875"
  • Hub Mount: Thru
  • Pump Drive Type: 2 Lugs
 YH-1G
Impeller Hub YH-1G
& CORONA etc, 9-3/4" (24mm) Dia
  • Journal Dia: 1.652"
  • Installed Height: 1.56"
  • Height: 1.875"
  • Hub Mount: Thru
  • Pump Drive Type: 2 Lugs

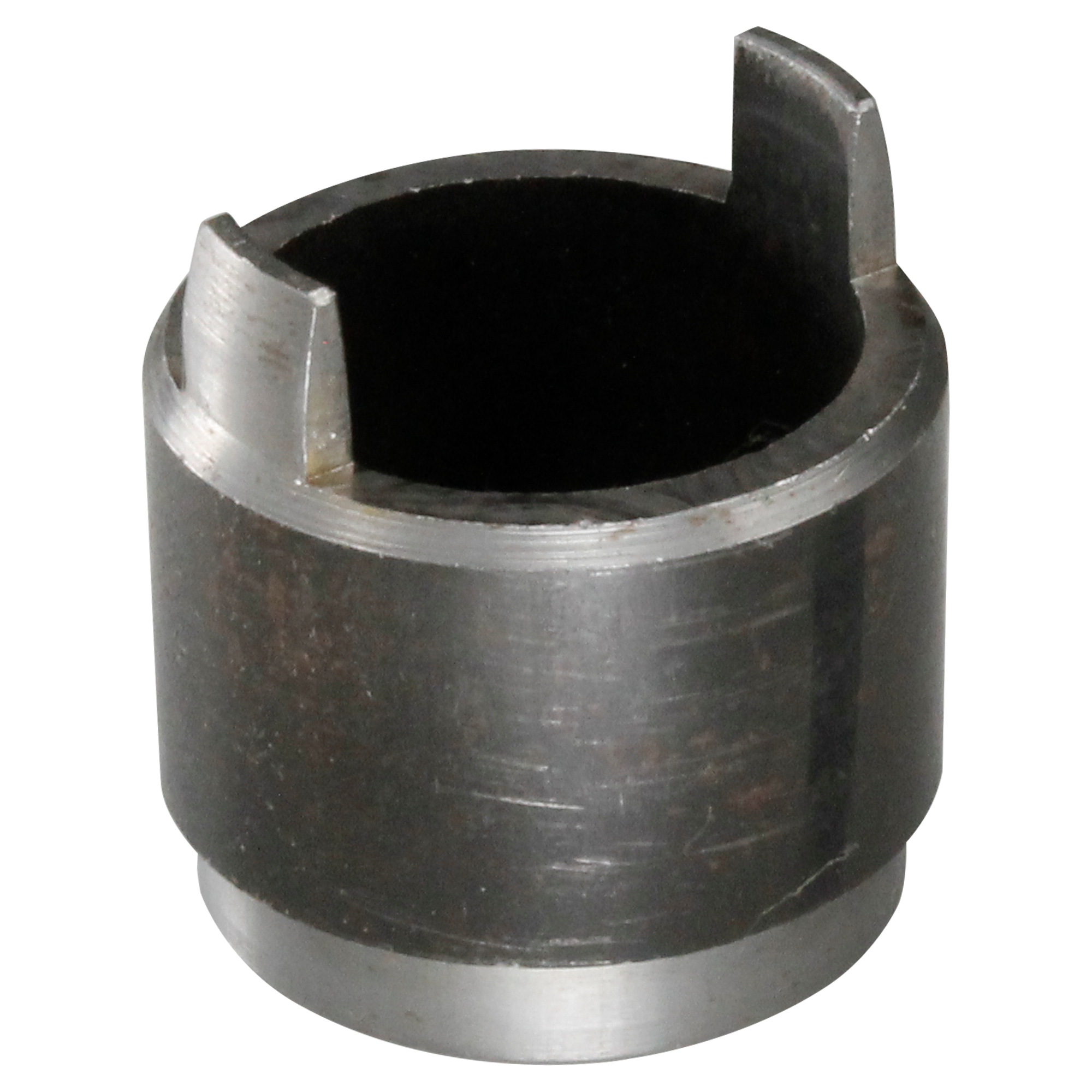

Impeller Hub Unfinished CORONA etc, 9-3/4" (24mm) Dia
  • Journal Dia: 1.652"
  • Installed Height: 1.56"
  • Height: 1.875"
  • Hub Mount: Thru
  • Pump Drive Type: 2 Lugs
 YH-1
Impeller Hub YH-1
Unfinished & CORONA etc, 9-3/4" (24mm) Dia
  • Journal Dia: 1.652"
  • Installed Height: 1.56"
  • Height: 1.875"
  • Hub Mount: Thru
  • Pump Drive Type: 2 Lugs

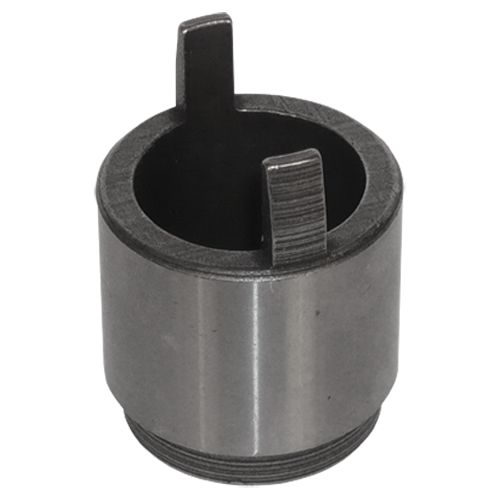

Impeller Hub COROLLA 8-1/2'' (216) DIA
  • Journal Dia: 1.652"
  • Installed Height: 1.660"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs
  • Hardness: Rc 32-36
 YH-1-2GRC
Impeller Hub YH-1-2GRC
& COROLLA 8-1/2'' (216) DIA
  • Journal Dia: 1.652"
  • Installed Height: 1.660"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs
  • Hardness: Rc 32-36
Impeller Hub CORONA etc, 9-3/4" (24mm) Dia
  • Journal Dia: 1.770"
  • Installed Height: 1.560"
  • Pump Drive Type: Lugs
 YH-1-1G
Impeller Hub YH-1-1G
& CORONA etc, 9-3/4" (24mm) Dia
  • Journal Dia: 1.770"
  • Installed Height: 1.560"
  • Pump Drive Type: Lugs
