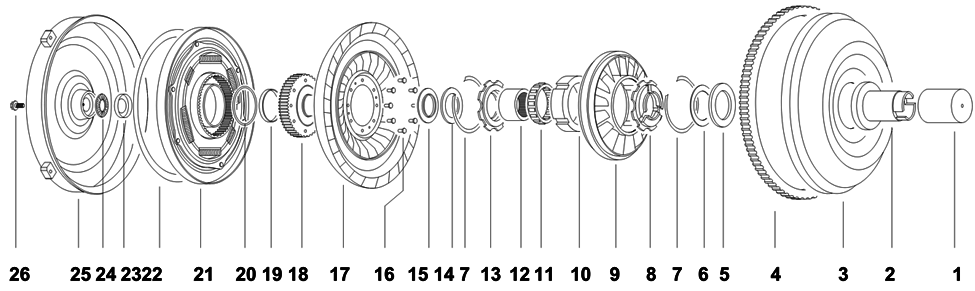

Torque Converter | Subaru | SU-11 | SU11

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
 MHC-YB
Hubcap MHC-YB
Fits 1-7/8" (47.6mm). Length: 1" &
  • Color: Yellow
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-Y
Hubcap MHC-Y
Fits 1-7/8" (47.6mm). Length: 1-3/4" &
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)

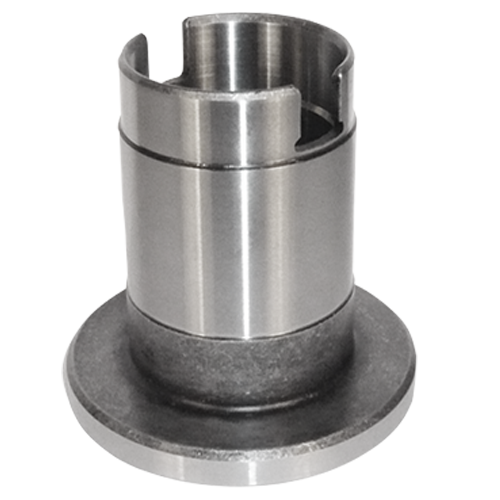

2 Impeller Hub
  • Journal Dia: 1.960"
  • Installed Height: 3.000"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 JH-1-26GRC
Impeller Hub JH-1-26GRC
&
  • Journal Dia: 1.960"
  • Installed Height: 3.000"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.960"
  • Height: 2.700"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 JH-1-11GRC
Impeller Hub JH-1-11GRC
&
  • Journal Dia: 1.960"
  • Height: 2.700"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
3 Impeller NPN-11-2-3
Impeller NPN-11-2-3
&

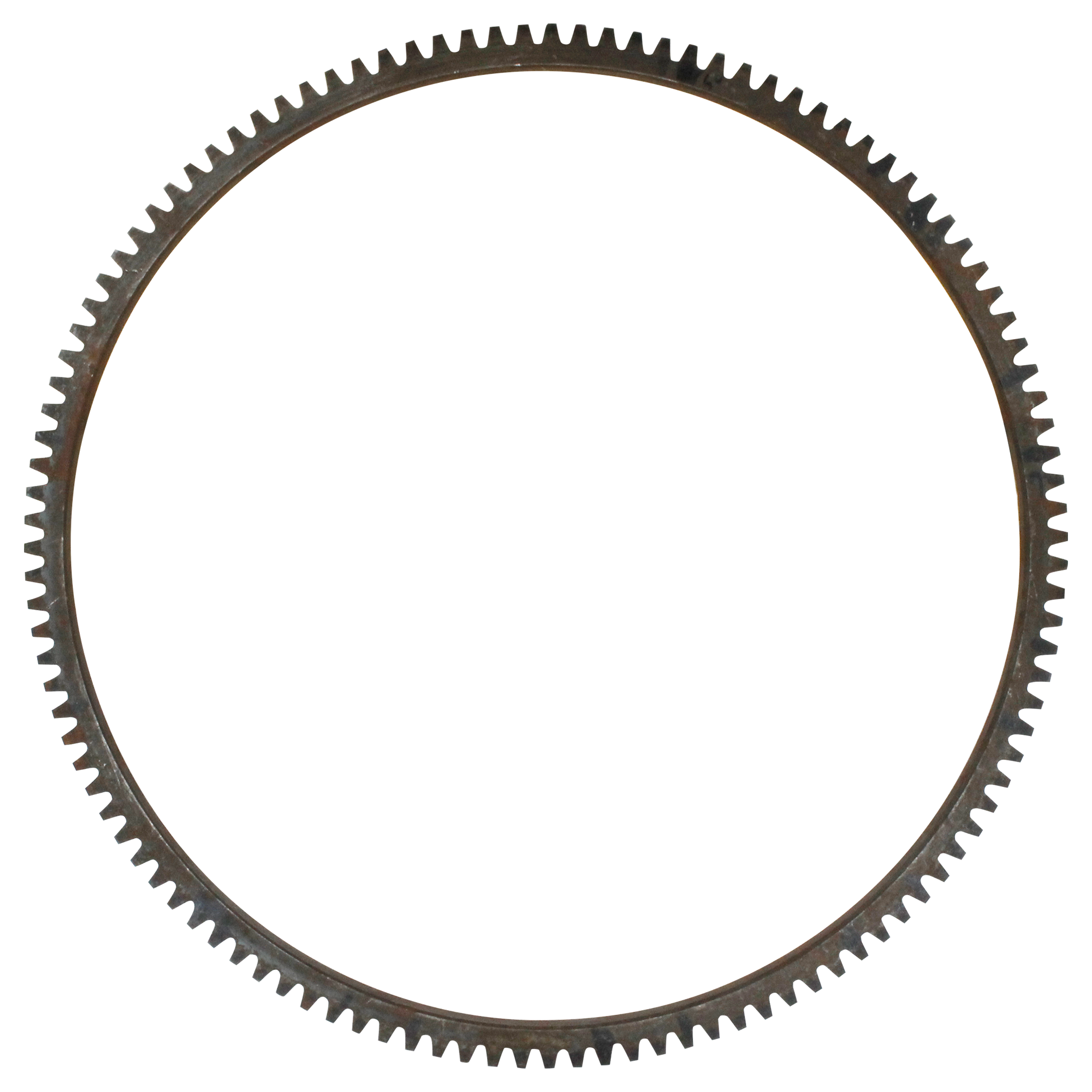

4 Ring Gear
  • External Teeth: 115
  • Outside Dia: 11.46"
  • Inside Dia: 10.52"
 RG-115S
Ring Gear RG-115S
&
  • External Teeth: 115
  • Outside Dia: 11.46"
  • Inside Dia: 10.52"
5 Bearing
  • Thickness: 0.157"
  • Thickness metric: 4.06
  • Bearing type: Exposed
  • Outside Dia: 2.547"
  • Inside Dia: 1.775"
  • Outside Dia Metric: 65.02
  • Inside Dia metric: 44.96
  • 26 Rollers. Race: FW-2-4, TRA-2840
 NW-2
Bearing NW-2
&
  • Thickness: 0.157"
  • Thickness metric: 4.06
  • Bearing type: Exposed
  • Outside Dia: 2.547"
  • Inside Dia: 1.775"
  • Outside Dia Metric: 65.02
  • Inside Dia metric: 44.96
  • 26 Rollers. Race: FW-2-4, TRA-2840
5 Roller Repair Kit
  • Outside Dia: 2.547"
  • Inside Dia: 1.775"
  • For NW-2, 26 Rollers, 4mm x 6mm
 NW-2-26K
Roller Repair Kit NW-2-26K
&
  • Outside Dia: 2.547"
  • Inside Dia: 1.775"
  • For NW-2, 26 Rollers, 4mm x 6mm
5 Bearing
  • Thickness: 0.22
  • Thickness metric: 5.59
  • Bearing type: Semi- Enclosed
  • Outside Dia: 2.55
  • Inside Dia: 1.728
  • Outside Dia Metric: 64.77
  • Inside Dia metric: 43.89
  • Race: TW-2-13
 TW-2-12
Bearing TW-2-12
&
  • Thickness: 0.22
  • Thickness metric: 5.59
  • Bearing type: Semi- Enclosed
  • Outside Dia: 2.55
  • Inside Dia: 1.728
  • Outside Dia Metric: 64.77
  • Inside Dia metric: 43.89
  • Race: TW-2-13
5 Bearing Race
  • Thickness: .080"
  • Outside Dia: 2.55
  • Inside Dia: 1.728
  • For OE Style Bearing
 TW-2-12A
Bearing Race TW-2-12A
&
  • Thickness: .080"
  • Outside Dia: 2.55
  • Inside Dia: 1.728
  • For OE Style Bearing
5 Bearing & Race Kit CT-13, CT-15
  • Outside Dia: 2.55"
  • Inside Dia: 1.73"
 TW-2-12BK
Bearing & Race Kit TW-2-12BK
CT-13, CT-15 &
  • Outside Dia: 2.55"
  • Inside Dia: 1.73"
5 Bearing & Race Kit
  • Thickness: .26"
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.55"
  • Inside Dia: 1.73"
 TW-2-12K
Bearing & Race Kit TW-2-12K
&
  • Thickness: .26"
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.55"
  • Inside Dia: 1.73"
6 Bearing Race
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.42"
  • Inside Dia: 1.7"
 PW-2-3
Bearing Race PW-2-3
&
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.42"
  • Inside Dia: 1.7"
7 Snap Ring NPN-11-2-7
Snap Ring NPN-11-2-7
&
8 Stator Cap
  • Thickness: .64"
  • Material: Aluminum
  • Outside Dia: 3.15"
  • Inside Dia: 1.47"
 NPN-11-2-8
Stator Cap NPN-11-2-8
&
  • Thickness: .64"
  • Material: Aluminum
  • Outside Dia: 3.15"
  • Inside Dia: 1.47"
9 Stator NPN-11-2-9
Stator NPN-11-2-9
&
10 Cam NPN-11-2-10
Cam NPN-11-2-10
&
11 Sprag
  • Thickness: 0.51"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.45"
  • Inner Race Outside Dia: 1.87"
  • Cam part-ID: S-315.
 YC-6
Sprag YC-6
&
  • Thickness: 0.51"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.45"
  • Inner Race Outside Dia: 1.87"
  • Cam part-ID: S-315.
12 Inner Race
  • Internal Teeth: 33
 NPN-11-2-12
Inner Race NPN-11-2-12
&
  • Internal Teeth: 33
13 Stator Cap Bearing Adapter
  • Thickness: 1.4"
  • Material: Aluminum
  • Outside Dia: 3.15"
  • Inside Dia: 1.41"
 NPN-11-2-13
Stator Cap NPN-11-2-13
Bearing Adapter &
  • Thickness: 1.4"
  • Material: Aluminum
  • Outside Dia: 3.15"
  • Inside Dia: 1.41"
14 Bearing
  • Thickness: 0.16"
  • Bearing type: Partially Enclosed
  • Outside Dia: 2.08"
  • Inside Dia: 1.40"
 NPN-11-2-14
Bearing NPN-11-2-14
&
  • Thickness: 0.16"
  • Bearing type: Partially Enclosed
  • Outside Dia: 2.08"
  • Inside Dia: 1.40"
15 Bearing Race Lipped
  • Thickness: 0.03"
  • Outside Dia: 1.97"
  • Inside Dia: 1.30"
 NPN-11-2-15
Bearing Race NPN-11-2-15
Lipped &
  • Thickness: 0.03"
  • Outside Dia: 1.97"
  • Inside Dia: 1.30"
16 Rivet 8 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12LS
Rivet FX-12LS
& 8 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
17 Turbine 246mm NPN-11-2-17
Turbine NPN-11-2-17
246mm &
18 Turbine Hub
  • Internal Teeth: 22
  • External Teeth: 46
  • Outside Dia: 3.72"
 JX-13-16
Turbine Hub JX-13-16
&
  • Internal Teeth: 22
  • External Teeth: 46
  • Outside Dia: 3.72"
18 Turbine Hub
  • Internal Teeth: 22
  • External Teeth: 46
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.72"
 JX-13-16HT
Turbine Hub JX-13-16HT
&
  • Internal Teeth: 22
  • External Teeth: 46
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.72"
18 Insert
  • Height: 1.210
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 1.22"
 JX-13-22HT
Insert JX-13-22HT
&
  • Height: 1.210
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 1.22"

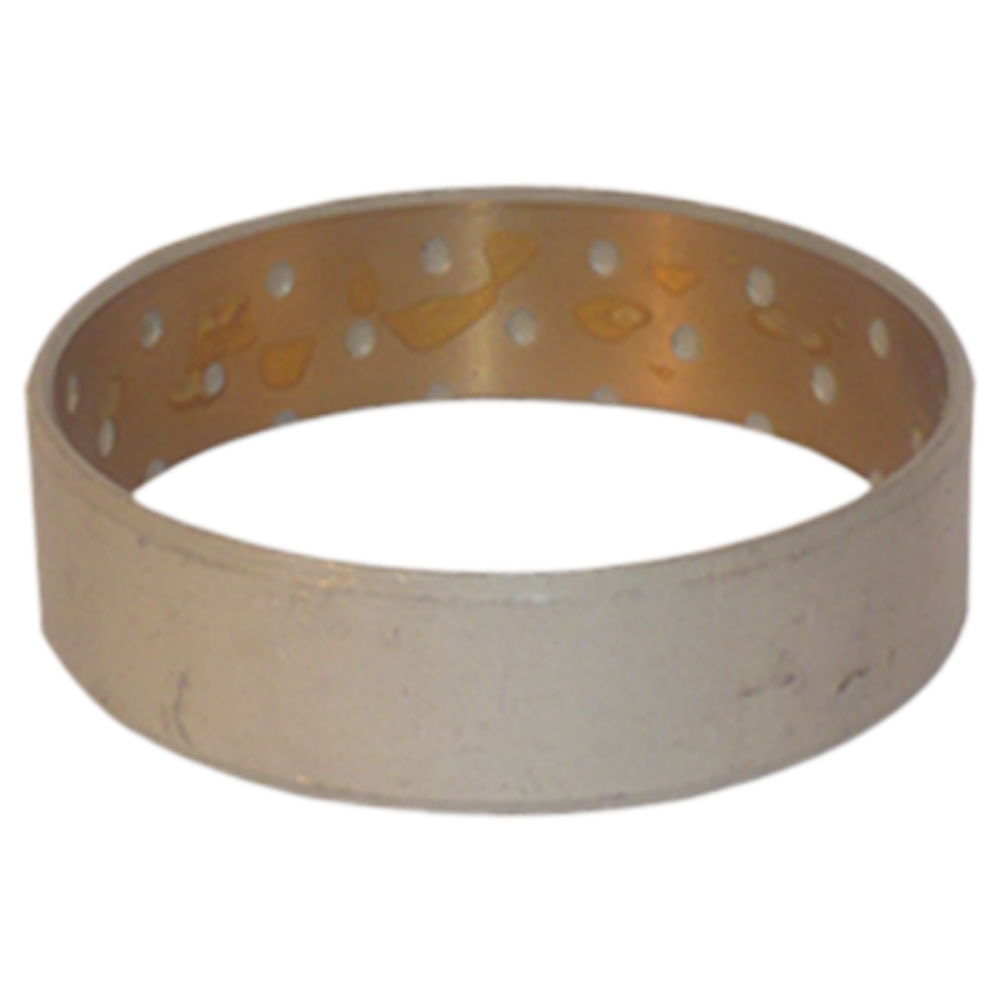

19 Bushing
  • Thickness: 0.354"
  • Housing Bore Dia: 1.89"
  • Shaft Dia: 1.772"
  • Material: Babbit
 49003
Bushing 49003
&
  • Thickness: 0.354"
  • Housing Bore Dia: 1.89"
  • Shaft Dia: 1.772"
  • Material: Babbit

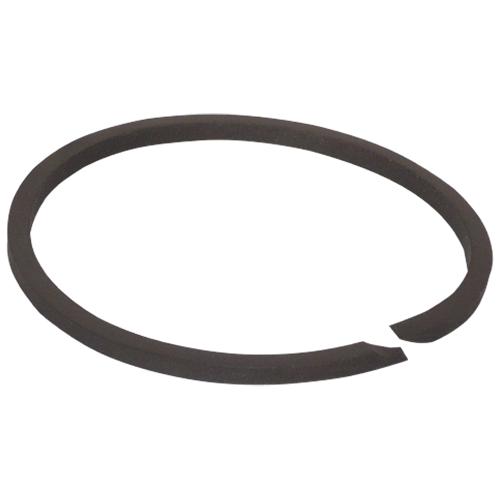

20 Seal Ring Scarf Cut
  • Height: 0.105
  • Width: 0.096"
  • Material: PTFE
  • Height Metric: 2.667
  • Seal Type: Scarf Cut
  • Outside Dia: 2.28
  • Outside Dia Metric: 57.912
 JO-25-7
Seal Ring JO-25-7
Scarf Cut &
  • Height: 0.105
  • Width: 0.096"
  • Material: PTFE
  • Height Metric: 2.667
  • Seal Type: Scarf Cut
  • Outside Dia: 2.28
  • Outside Dia Metric: 57.912

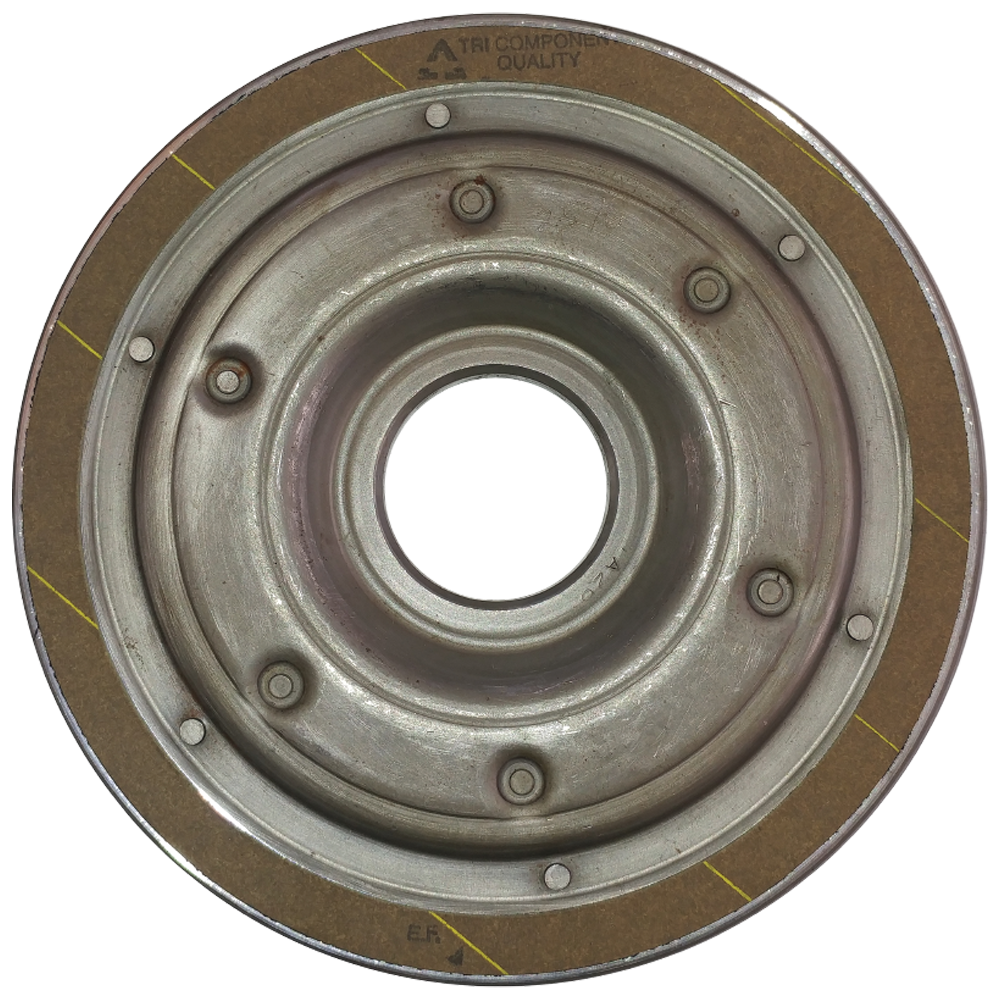

21 Clutch Plate Assembly JX-23-25
Clutch Plate Assembly JX-23-25
&
22 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.24"
  • Inside Dia: 8.313"
 JX-23-20
Lining (Friction Ring,Wafer) JX-23-20
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.24"
  • Inside Dia: 8.313"
23 Bearing Race
  • Thickness: 0.05"
  • Outside Dia: 1.29"
  • Inside Dia: 0.79"
 NPN-11-2-23
Bearing Race NPN-11-2-23
&
  • Thickness: 0.05"
  • Outside Dia: 1.29"
  • Inside Dia: 0.79"
24 Bearing
  • Thickness: 0.13"
  • Bearing type: Semi-Enclosed
  • Outside Dia: 1.37"
  • Inside Dia: 0.80"
 NPN-11-2-24
Bearing NPN-11-2-24
&
  • Thickness: 0.13"
  • Bearing type: Semi-Enclosed
  • Outside Dia: 1.37"
  • Inside Dia: 0.80"
25 Front Cover
  • Outside Dia: 10-5/8"
 NPN-11-2-25
Front Cover NPN-11-2-25
&
  • Outside Dia: 10-5/8"
26 Bolt NPN-11-2-26
Bolt NPN-11-2-26
&
