Torque Converter | Subaru | Lockup And Non-Lockup (Antique), Smooth Impeller (SU-2...),Ribbed Impeller (SU-1), Centrifugal Clutch (SU-4/5/7/8)

Ill.# Image Description Specification Part #
Sprag Centrifugal Clutch (SU-4/5/7/8), Smooth Impeller (SU-2 etc...)
  • Thickness: 0.530"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.281"
  • Inner Race Outside Dia: 1.625"
  • Cam part-ID: F-315, 2 Inside Strips
 BC-6
Sprag BC-6
& Centrifugal Clutch (SU-4/5/7/8), Smooth Impeller (SU-2 etc...)
  • Thickness: 0.530"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.281"
  • Inner Race Outside Dia: 1.625"
  • Cam part-ID: F-315, 2 Inside Strips
Sprag
  • Thickness: 0.875"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
  • Clip Count: 5; Drag Strip Count: 3
 BC-6HD
Sprag BC-6HD
&
  • Thickness: 0.875"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
  • Clip Count: 5; Drag Strip Count: 3
Sprag
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
 BC-6HDA
Sprag BC-6HDA
&
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
Roller Ribbed Impeller (SU-1)
  • Dia: 0.313"
  • Length: .90"
 FR-7
Roller FR-7
& Ribbed Impeller (SU-1)
  • Dia: 0.313"
  • Length: .90"
Accordion Spring Ribbed Impeller (SU-1)
  • Width: 0.93"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"
 FS-6-2
Accordion Spring FS-6-2
& Ribbed Impeller (SU-1)
  • Width: 0.93"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"

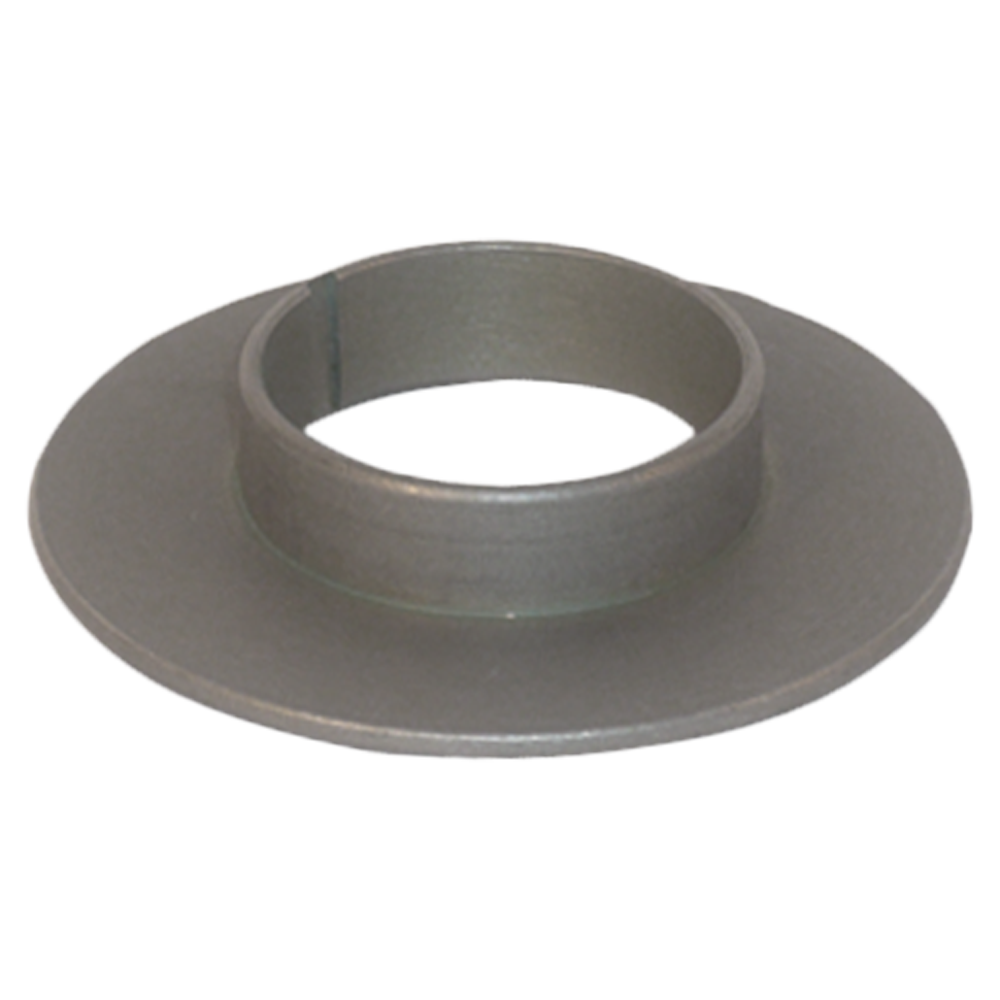

Bushing Ribbed Impeller (SU-1)
  • Thickness: 0.39"
  • Housing Bore Dia: 1.302"
  • Shaft Dia: 1.18"
  • Material: Babbit
 JB-18
Bushing JB-18
& Ribbed Impeller (SU-1)
  • Thickness: 0.39"
  • Housing Bore Dia: 1.302"
  • Shaft Dia: 1.18"
  • Material: Babbit

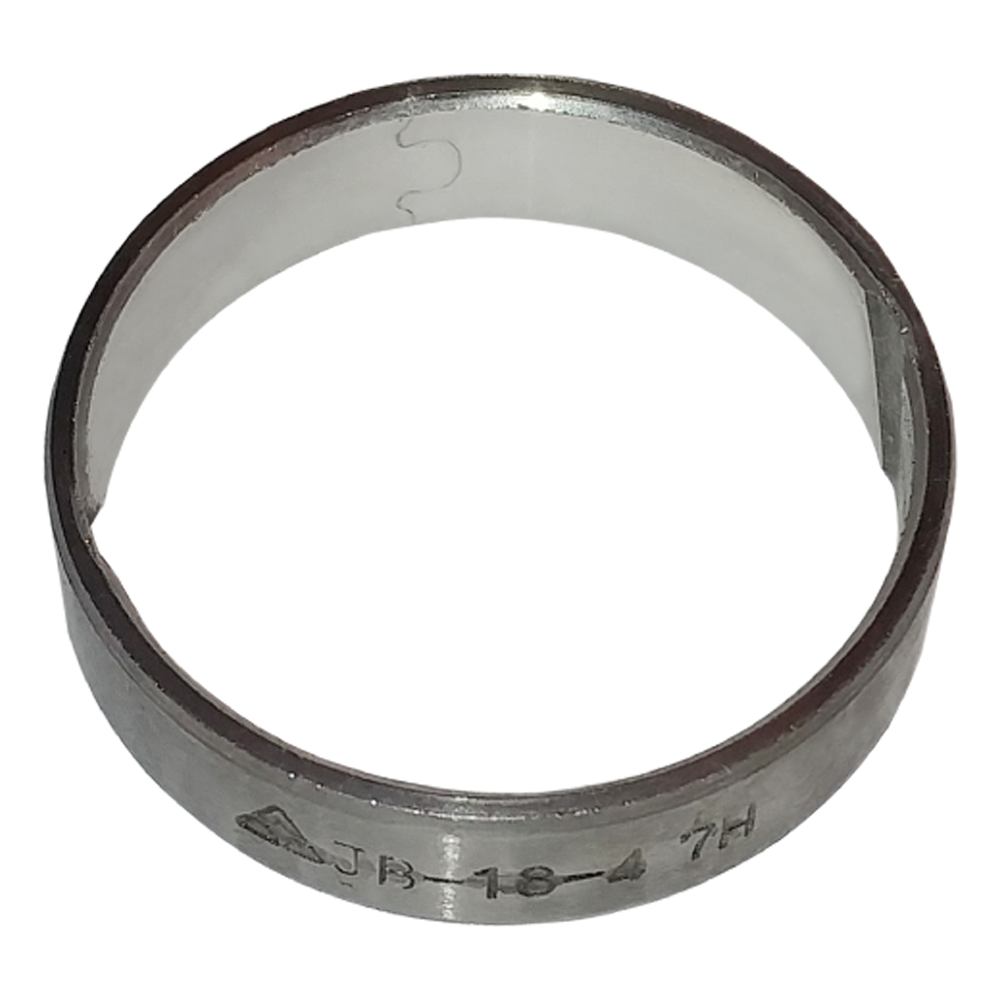

Bushing Centrifugal Clutch (SU-4/5/7/8)
  • Thickness: 0.312"
  • Housing Bore Dia: 1.246"
  • Shaft Dia: 1.125"
  • Material: Babbit
 JB-18-4
Bushing JB-18-4
& Centrifugal Clutch (SU-4/5/7/8)
  • Thickness: 0.312"
  • Housing Bore Dia: 1.246"
  • Shaft Dia: 1.125"
  • Material: Babbit

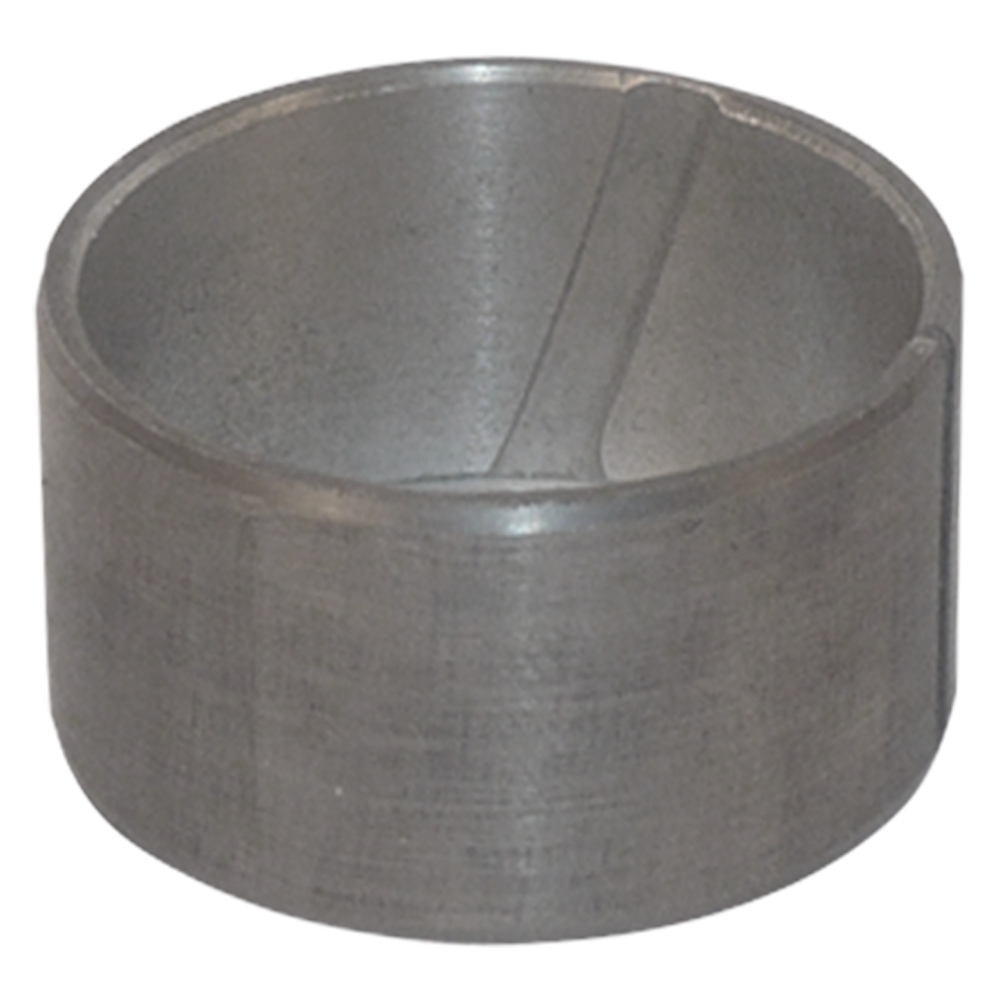

Bushing Centrifugal Clutch (SU-4/5/7/8)
  • Thickness: 0.625"
  • Housing Bore Dia: 1.246"
  • Shaft Dia: 1.125"
  • Material: Babbit
 JB-18-5
Bushing JB-18-5
& Centrifugal Clutch (SU-4/5/7/8)
  • Thickness: 0.625"
  • Housing Bore Dia: 1.246"
  • Shaft Dia: 1.125"
  • Material: Babbit

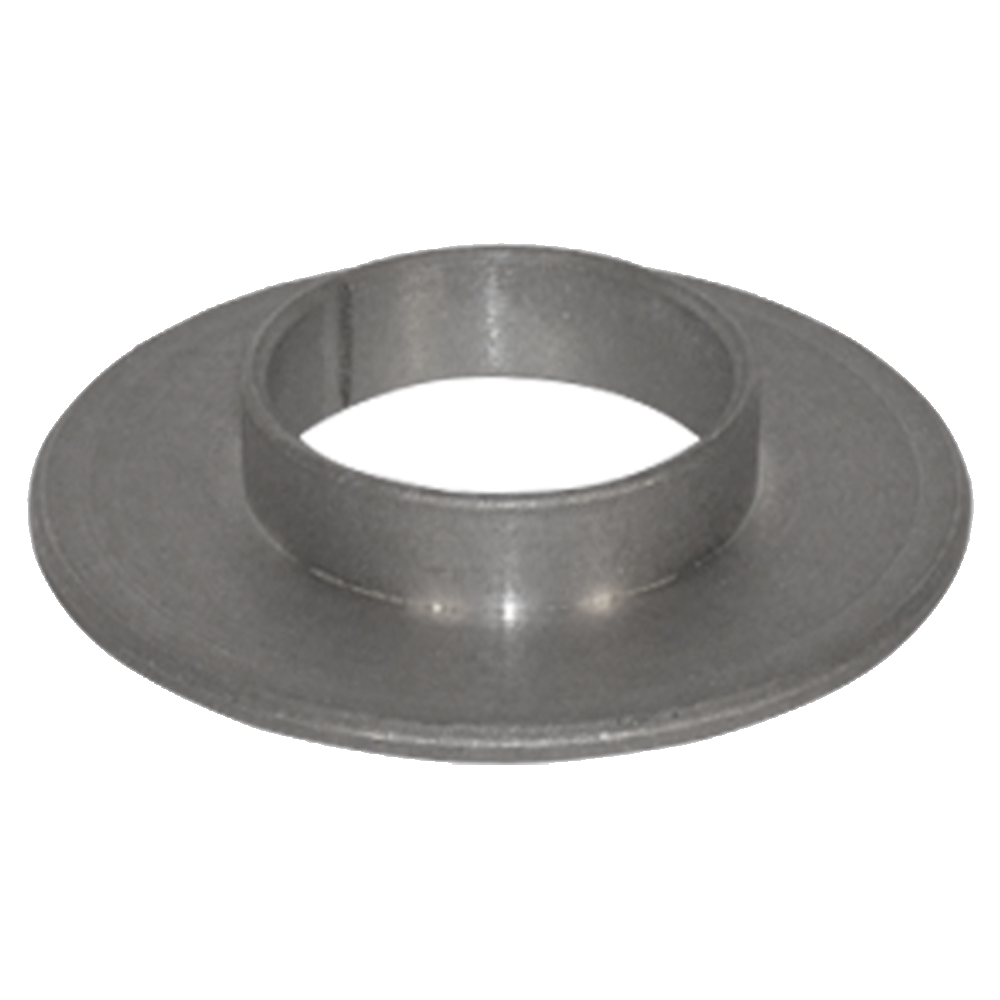

Bushing Flanged,O.S. Ribbed Impeller (SU-1)
  • Thickness: 0.39"
  • Housing Bore Dia: 1.302"
  • Shaft Dia: 1.18"
 JB-18X
Bushing JB-18X
Flanged,O.S. & Ribbed Impeller (SU-1)
  • Thickness: 0.39"
  • Housing Bore Dia: 1.302"
  • Shaft Dia: 1.18"
Bearing Race Smooth Impeller (SU-2 etc...), Ribbed Impeller (SU-1), Centrifugal Clutch (SU-4/5/7/8)
  • Thickness: .08"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5
Bearing Race JW-2-5
& Smooth Impeller (SU-2 etc...), Ribbed Impeller (SU-1), Centrifugal Clutch (SU-4/5/7/8)
  • Thickness: .08"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
Bearing Race
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5T
Bearing Race JW-2-5T
&
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
Bearing Race Ribbed Impeller (SU-1), Centrifugal Clutch (SU-4/5/7/8), Smooth Impeller (SU-2 etc...)
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5TT
Bearing Race JW-2-5TT
& Ribbed Impeller (SU-1), Centrifugal Clutch (SU-4/5/7/8), Smooth Impeller (SU-2 etc...)
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
Bearing Race Smooth Impeller (SU-2 etc...)
  • Thickness: 0.030"
  • Bearing type: Outside & Inside Lips
  • Outside Dia: 2.370"
  • Inside Dia: 1.376"
 JW-2-6
Bearing Race JW-2-6
& Smooth Impeller (SU-2 etc...)
  • Thickness: 0.030"
  • Bearing type: Outside & Inside Lips
  • Outside Dia: 2.370"
  • Inside Dia: 1.376"
Bearing Smooth Impeller (SU-2 etc...)
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
Bearing JW-2N
& Smooth Impeller (SU-2 etc...)
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
Bearing
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
Bearing JW-2ND
&
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
Stator Cap Smooth Impeller (SU-2 etc...) 2 Pieces Required.
  • Thickness: .340"
  • Material: Phenolic
  • Outside Dia: 2.825"
  • Inside Dia: 1.410"
 JW-4-1
Stator Cap JW-4-1
& Smooth Impeller (SU-2 etc...) 2 Pieces Required.
  • Thickness: .340"
  • Material: Phenolic
  • Outside Dia: 2.825"
  • Inside Dia: 1.410"
Stator Cap 2 Pieces Required.
  • Thickness: .35"
  • Material: Phenolic or Aluminum
  • Outside Dia: 2.83"
  • Inside Dia: 1.42"
 JW-4-3
Stator Cap JW-4-3
& 2 Pieces Required.
  • Thickness: .35"
  • Material: Phenolic or Aluminum
  • Outside Dia: 2.83"
  • Inside Dia: 1.42"
Stator Cap Ribbed Impeller (SU-1) 2 Pieces Required.
  • Material: Aluminum
  • Outside Dia: 2.92"
  • Inside Dia: 1.56"
  • Replaces Plastic
 JW-4-4
Stator Cap JW-4-4
& Ribbed Impeller (SU-1) 2 Pieces Required.
  • Material: Aluminum
  • Outside Dia: 2.92"
  • Inside Dia: 1.56"
  • Replaces Plastic
Bearing Smooth Impeller (SU-2 etc...), Centrifugal Clutch (SU-4/5/7/8)
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 1.74
  • Inside Dia: 1.13
  • Outside Dia Metric: 44.2
  • Inside Dia metric: 28.7
  • Race: TRA-1828, TRB-1828
 JW-9-3
Bearing JW-9-3
& Smooth Impeller (SU-2 etc...), Centrifugal Clutch (SU-4/5/7/8)
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 1.74
  • Inside Dia: 1.13
  • Outside Dia Metric: 44.2
  • Inside Dia metric: 28.7
  • Race: TRA-1828, TRB-1828

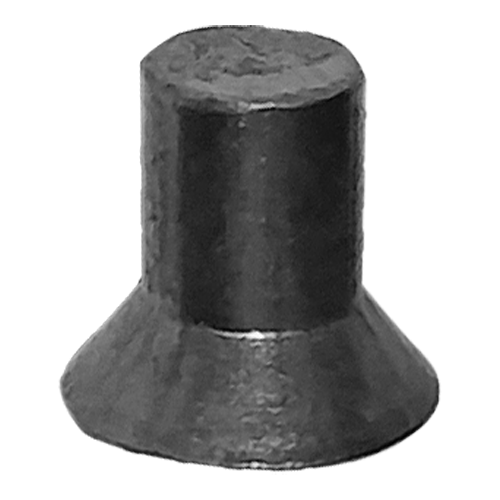

Rivet Centrifugal Clutch (SU-4/5/7/8) 14 Pieces Required.
  • Length: 0.322"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.343"
 JX-12-4
Rivet JX-12-4
& Centrifugal Clutch (SU-4/5/7/8) 14 Pieces Required.
  • Length: 0.322"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.343"

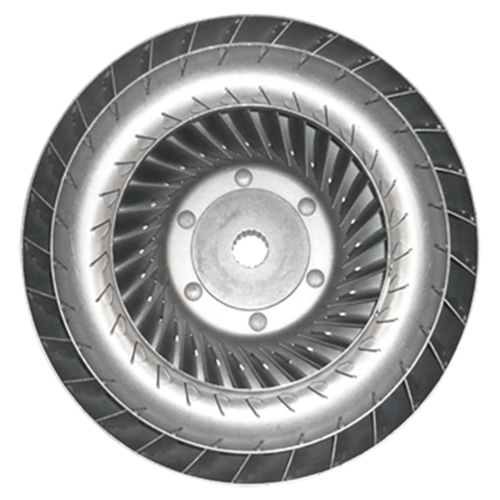

Turbine Hub Ribbed Impeller (SU-1) JX-13
Turbine Hub JX-13
& Ribbed Impeller (SU-1)
Spline Insert Pump Drive Smooth Impeller (SU-2 etc...)
  • Height: 0.880
  • External Teeth: 18
 JX-13-18X
Spline Insert JX-13-18X
Pump Drive & Smooth Impeller (SU-2 etc...)
  • Height: 0.880
  • External Teeth: 18
Turbine Hub Centrifugal Clutch (SU-4/5/7/8)
  • Internal Teeth: 18
  • Outside Dia: 3.67"
 JX-13-9
Turbine Hub JX-13-9
& Centrifugal Clutch (SU-4/5/7/8)
  • Internal Teeth: 18
  • Outside Dia: 3.67"
Turbine Hub
  • Internal Teeth: 18
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.67"
 JX-13-9HT
Turbine Hub JX-13-9HT
&
  • Internal Teeth: 18
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.67"
Spline Insert Pump Drive Ribbed Impeller (SU-1)
  • Height: 0.625"
  • External Teeth: 12
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 0.64"
 JX-22-100
Spline Insert JX-22-100
Pump Drive & Ribbed Impeller (SU-1)
  • Height: 0.625"
  • External Teeth: 12
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 0.64"
Brake Shoe With Lining Centrifugal Clutch (SU-4/5/7/8) 8 Pieces Required. JX-23-211R
Brake Shoe JX-23-211R
With Lining & Centrifugal Clutch (SU-4/5/7/8) 8 Pieces Required.
Lining, Brake Shoe Centrifugal Clutch (SU-4/5/7/8) 8 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
 JX-23-211RL
Lining, Brake Shoe JX-23-211RL
& Centrifugal Clutch (SU-4/5/7/8) 8 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
Bearing
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 1.75
  • Inside Dia: 1.125
  • Outside Dia Metric: 44.45
  • Inside Dia metric: 28.58
  • Race: TRA-1828, TRB-1828
 NTA-1828
Bearing NTA-1828
&
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 1.75
  • Inside Dia: 1.125
  • Outside Dia Metric: 44.45
  • Inside Dia metric: 28.58
  • Race: TRA-1828, TRB-1828
Ring Gear Smooth Impeller (SU-2 etc...)
  • External Teeth: 115
  • Outside Dia: 11.46"
  • Inside Dia: 10.52"
 RG-115S
Ring Gear RG-115S
& Smooth Impeller (SU-2 etc...)
  • External Teeth: 115
  • Outside Dia: 11.46"
  • Inside Dia: 10.52"
Rivet Ribbed Impeller (SU-1)
  • Length: 0.31"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12A
Rivet WX-12A
& Ribbed Impeller (SU-1)
  • Length: 0.31"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"

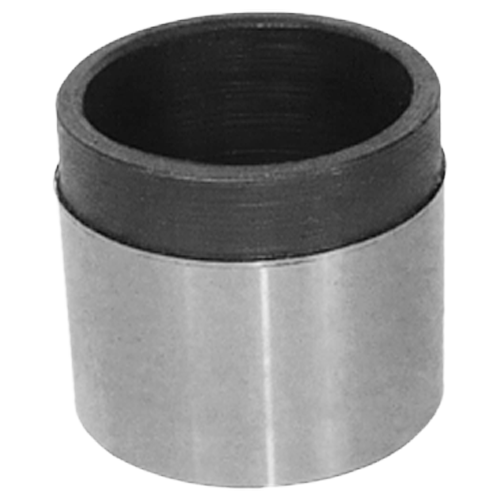

Impeller Hub Smooth Impeller (SU-2 etc...). Centrifugal Clutch (SU-4/5/7/8)
  • Journal Dia: 1.651"
  • Installed Height: 0.98"
  • Hub Mount: Thru
  • Hardness: Rc 32-36
 JH-1-3GRC
Impeller Hub JH-1-3GRC
& Smooth Impeller (SU-2 etc...). Centrifugal Clutch (SU-4/5/7/8)
  • Journal Dia: 1.651"
  • Installed Height: 0.98"
  • Hub Mount: Thru
  • Hardness: Rc 32-36
