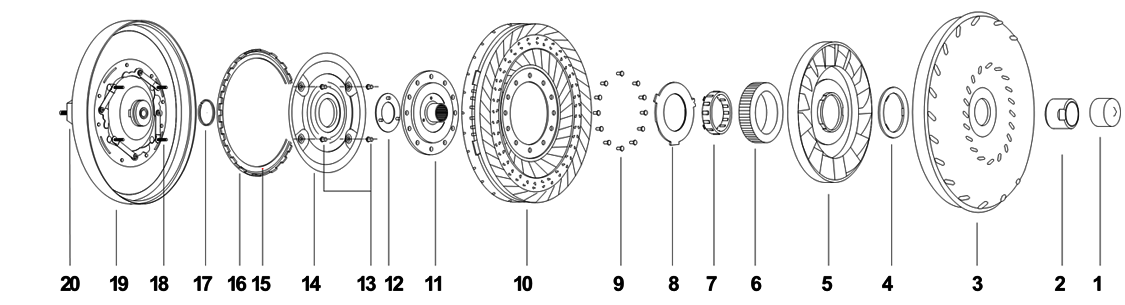

Ill.# | Image | Description | Specification | Part # | |
---|---|---|---|---|---|
0 | Bushing | Pump, DPO AL4 | 120001 | ||
0 | Impeller Hub | Flanged |
|
RH-1-2FLG | |
1 | Hubcap | Fits 2" (50.8mm). Length: 1-1/2" |
|
MHC-R | |
2 | Impeller Hub |
|
RH-1-1GRC | ||
3 | Impeller | NPN-10-2-3 | |||
4 | Bearing |
|
RW-2-1 | ||
4 | Bearing & Race Kit |
|
RW-2-1K | ||
5 | Stator | NPN-10-2-5 | |||
6 | Cam | NPN-10-2-6 | |||
7 | Cam Kit (Sprag Element) | Sprag, 16 Cams | MF-240-16K | ||
7 | Sprag |
|
RC-6-1 | ||
8 | Stator Cap |
|
RW-4-1 | ||
9 | Rivet | 12 Pieces Required. |
|
PX-12 | |
9 | Rivet | 12 Pieces Required. |
|
PX-12-1L | |
9 | Rivet | 12 Pieces Required. |
|
RX-12 | |
9 | Rivet | 10 Pieces Required. |
|
TX-12-7 | |
10 | Turbine & Plate | Assembly | NPN-10-2-10 | ||
11 | Turbine Hub |
|
RX-13-1HT | ||
12 | Washer |
|
RW-9-1 | ||
13 | Fastener | 4 Pieces Required. |
|
RX-22-1 | |
14 | Plate | NPN-10-2-14 | |||
15 | Lining (Friction Ring,Wafer) | AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 2 Pieces Required. |
|
RX-23-1 | |
16 | Friction Plate | With Linings |
|
RX-26-1 | |

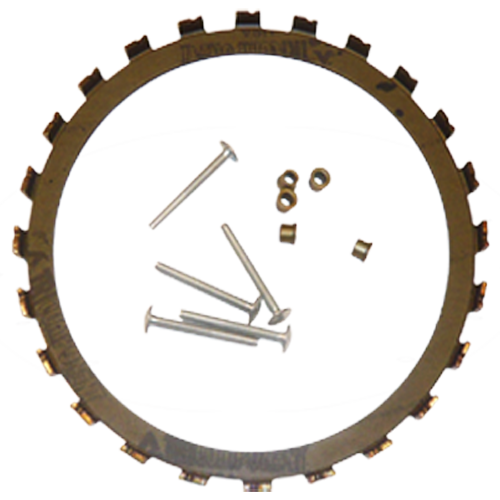

16_N.I. | Clutch Plate Kit |
|
RX-26-1K | ||
17 | Seal Ring |
|
RO-25-1 | ||
17_N.I. | Repair Sleeve | For Cover | RX-22-2 | ||
18 | Rivet | Magna Grip 4 Pieces Required. |
|
RX-22-3 | |
19 | Cover | Assembly | NPN-10-2-19 | ||
20 | Stud | NPN-10-2-20 | |||
20_N.I. | Studcap | Plastic Stud Protector 3 Pieces Required. |
|
MHC-STD | |
20_N.I. | Studcap | 3 Pieces Required. |
|
MHC-STE |
