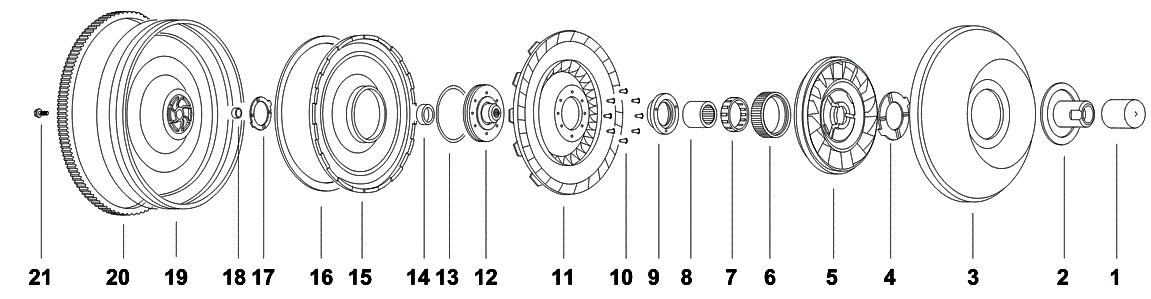

Torque Converter | Mitsubishi | KM-175 Lockup, CT-7, CT-9 | KM7, KM8

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 Impeller Hub
  • Journal Dia: 1.690"
  • Installed Height: 1.820"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-21GRC
Impeller Hub TH-1-21GRC
&
  • Journal Dia: 1.690"
  • Installed Height: 1.820"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.690"
  • Installed Height: 1.750"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-13GRC
Impeller Hub TH-1-13GRC
&
  • Journal Dia: 1.690"
  • Installed Height: 1.750"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
3 Impeller NPN-9-4-3
Impeller NPN-9-4-3
&
4 Washer Stator, 2 Lugs, External
  • Material: Bronze
  • Outside Dia: 2.86"
  • Inside Dia: 1.83"
 TW-3-5
Washer TW-3-5
Stator, 2 Lugs, External &
  • Material: Bronze
  • Outside Dia: 2.86"
  • Inside Dia: 1.83"
4 Washer Stator
  • Thickness: 0.125"
  • Material: Plastic
  • Lug Count: 2 Round Lugs
  • Outside Dia: 2.87"
  • Inside Dia: 1.82"
 TW-3-6
Washer TW-3-6
Stator &
  • Thickness: 0.125"
  • Material: Plastic
  • Lug Count: 2 Round Lugs
  • Outside Dia: 2.87"
  • Inside Dia: 1.82"
5 Stator NPN-9-4-5
Stator NPN-9-4-5
&
6 Cam NPN-9-4-6
Cam NPN-9-4-6
&
7 Sprag
  • Thickness: 0.530"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.281"
  • Inner Race Outside Dia: 1.625"
  • Cam part-ID: F-315, 2 Inside Strips
 BC-6
Sprag BC-6
&
  • Thickness: 0.530"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.281"
  • Inner Race Outside Dia: 1.625"
  • Cam part-ID: F-315, 2 Inside Strips
7 Sprag
  • Thickness: 0.875"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
  • Clip Count: 5; Drag Strip Count: 3
 BC-6HD
Sprag BC-6HD
&
  • Thickness: 0.875"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
  • Clip Count: 5; Drag Strip Count: 3
7 Sprag
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
 BC-6HDA
Sprag BC-6HDA
&
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
7 Cam Kit (Sprag Element) Cam Kit
  • Includes: 14 Cams (S-316)
 MS-316-14K
Cam Kit (Sprag Element) MS-316-14K
Cam Kit &
  • Includes: 14 Cams (S-316)
8 Inner Race Stator
  • Height: 0.755"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 1.625"
 TX-14-10
Inner Race TX-14-10
Stator &
  • Height: 0.755"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 1.625"
8 Inner Race Stator
  • Height: 0.780"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 1.625"
 YX-14-5
Inner Race YX-14-5
Stator &
  • Height: 0.780"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 1.625"
9 Stator Cap
  • Thickness: 0.30"
  • Material: Aluminum
  • Outside Dia: 2.6"
  • Inside Dia: 1.3"
 TW-4-6
Stator Cap TW-4-6
&
  • Thickness: 0.30"
  • Material: Aluminum
  • Outside Dia: 2.6"
  • Inside Dia: 1.3"
9 Washer
  • Material: Aluminum
  • Outside Dia: 2.600"
  • Inside Dia: 1.310"
 TW-4-15
Washer TW-4-15
&
  • Material: Aluminum
  • Outside Dia: 2.600"
  • Inside Dia: 1.310"
9 Bearing Adapter Kit Heavy Duty
  • Material: Aluminum & Steel
  • Functional Thickness: 0.290"
  • Outside Dia: 2.600"
  • Inside Dia: 1.310"
 TW-4-15K
Bearing Adapter Kit TW-4-15K
Heavy Duty &
  • Material: Aluminum & Steel
  • Functional Thickness: 0.290"
  • Outside Dia: 2.600"
  • Inside Dia: 1.310"
10 Rivet 8 Pieces Required.
  • Length: 0.285"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.224"
  • Rivet Head Dia: 0.356"
 TX-12-4
Rivet TX-12-4
& 8 Pieces Required.
  • Length: 0.285"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.224"
  • Rivet Head Dia: 0.356"
11 Turbine
  • Outside Dia: 240mm
 NPN-9-4-11
Turbine NPN-9-4-11
&
  • Outside Dia: 240mm
12 Turbine Hub
  • Internal Teeth: 24
  • Outside Dia: 3.22"
 TX-13-11
Turbine Hub TX-13-11
&
  • Internal Teeth: 24
  • Outside Dia: 3.22"
12 Turbine Hub
  • Internal Teeth: 24
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.22"
 TX-13-11HT
Turbine Hub TX-13-11HT
&
  • Internal Teeth: 24
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.22"
12_N.I. Insert Ez Weld™
  • Height: 0.620
  • Internal Teeth: 24
  • Outside Dia: 1"
 TX-13-24M
Insert TX-13-24M
Ez Weld™ &
  • Height: 0.620
  • Internal Teeth: 24
  • Outside Dia: 1"
13 O-Ring
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
  • Inside Dia metric: 74.803
 PO-25-8
O-Ring PO-25-8
&
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
  • Inside Dia metric: 74.803
13 O-Ring
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
  • Inside Dia metric: 73.9902
  • High Temp.
 TO-25-4
O-Ring TO-25-4
&
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
  • Inside Dia metric: 73.9902
  • High Temp.
13 O-Ring
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
 TO-25-4A
O-Ring TO-25-4A
&
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
13 O-Ring
  • Thickness: 0.106
  • Thickness metric: 2.6924
  • Inside Dia: 2.913"
  • Inside Dia metric: 73.9902
  • Oversized
 TO-25-4X
O-Ring TO-25-4X
&
  • Thickness: 0.106
  • Thickness metric: 2.6924
  • Inside Dia: 2.913"
  • Inside Dia metric: 73.9902
  • Oversized
14 Metal Clad Seal
  • Housing Bore Dia: 0.984
  • Housing Bore Dia Metric: 25
  • Shaft Dia metric: 16.81
  • Shaft Dia: 0.669
  • Material: Fluorocarbon
 TO-25-5
Metal Clad Seal TO-25-5
&
  • Housing Bore Dia: 0.984
  • Housing Bore Dia Metric: 25
  • Shaft Dia metric: 16.81
  • Shaft Dia: 0.669
  • Material: Fluorocarbon
15 Lockup Clutch
  • Without Springs
 TX-26-8
Lockup Clutch TX-26-8
&
  • Without Springs
16 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9"
  • Inside Dia: 7.75"
 SX-23-13
Lining (Friction Ring,Wafer) SX-23-13
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9"
  • Inside Dia: 7.75"
16 Floating Ring
  • Thickness: .070"
  • Outside Dia: 9.250
  • Inside Dia: 7.875
 TX-26-7
Floating Ring TX-26-7
&
  • Thickness: .070"
  • Outside Dia: 9.250
  • Inside Dia: 7.875

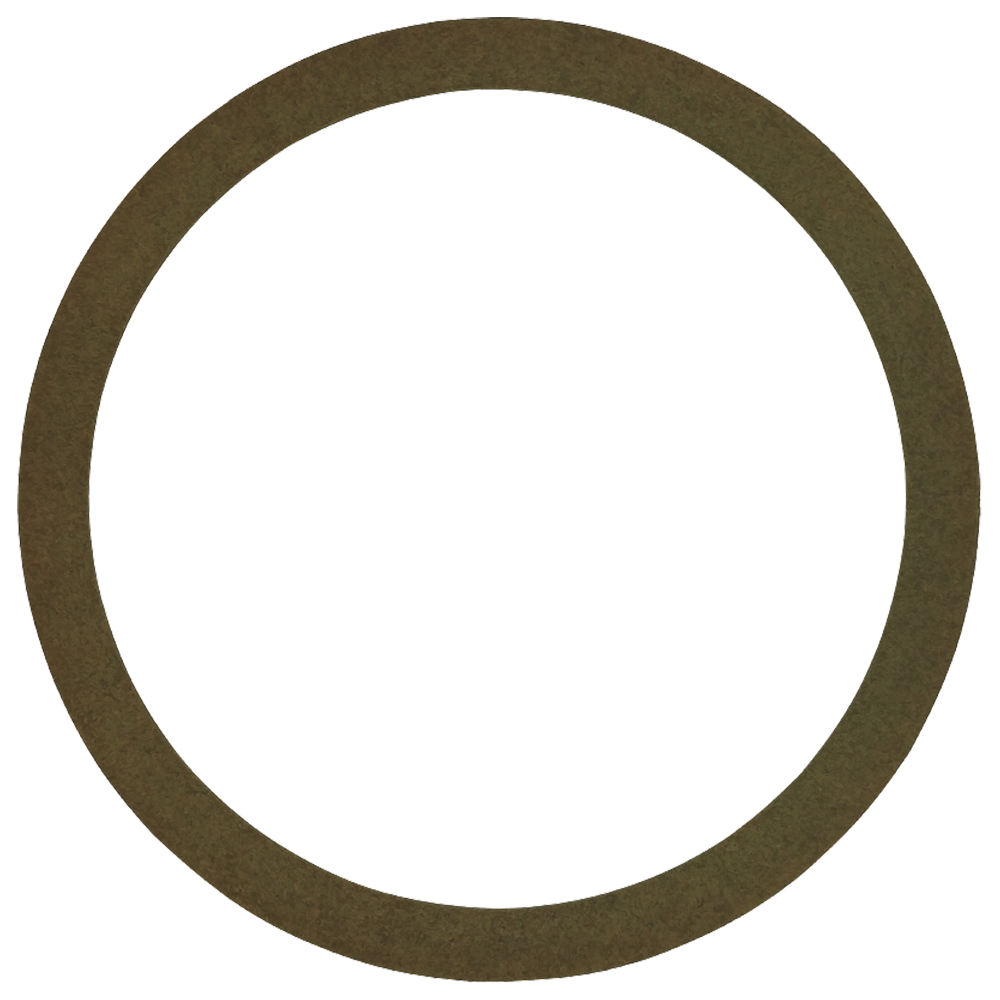

16 Floating Ring Kevlar®
  • Material: Kevlar®
  • Outside Dia: 9.250
  • Inside Dia: 7.875
 TX-26-7K
Floating Ring TX-26-7K
Kevlar® &
  • Material: Kevlar®
  • Outside Dia: 9.250
  • Inside Dia: 7.875
16 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9
  • Inside Dia: 8
 TX-23-6
Lining (Friction Ring,Wafer) TX-23-6
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9
  • Inside Dia: 8
17 Turbine Washer
  • Material: Bronze
  • Outside Dia: 2"
  • Inside Dia: 1.07"
 TW-9-11
Turbine Washer TW-9-11
&
  • Material: Bronze
  • Outside Dia: 2"
  • Inside Dia: 1.07"
18 Bushing Cover
  • Thickness: 0.437"
  • Housing Bore Dia: 0.788"
  • Shaft Dia: 0.671"
  • Material: Babbit
 TB-18-12
Bushing TB-18-12
Cover &
  • Thickness: 0.437"
  • Housing Bore Dia: 0.788"
  • Shaft Dia: 0.671"
  • Material: Babbit
19 Front Cover NPN-9-4-19
Front Cover NPN-9-4-19
&
20 Ring Gear Mitsubishi KM-175/176/177 Hyundai, Colt, Excel
  • Thickness: 0.325"
  • External Teeth: 106
  • Outside Dia: 10.67"
  • Inside Dia: 9.66"
 RG-106KM
Ring Gear RG-106KM
& Mitsubishi KM-175/176/177 Hyundai, Colt, Excel
  • Thickness: 0.325"
  • External Teeth: 106
  • Outside Dia: 10.67"
  • Inside Dia: 9.66"
21 Bolt 3 Pieces Required.
  • Dimensions: M10 x 1.5mm
  • Length: 11mm
 B-41
Bolt B-41
& 3 Pieces Required.
  • Dimensions: M10 x 1.5mm
  • Length: 11mm
