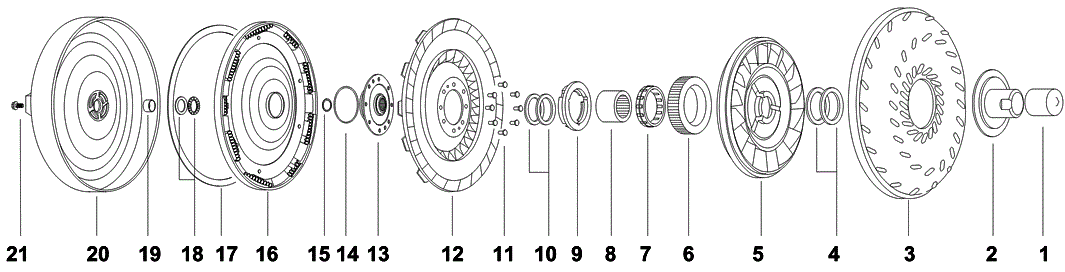

Torque Converter | Mitsubishi | KM-175 & KM-176 LOCKUP, CT-15 , ‘92 Diamante, Mitsubishi 3000

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 2.50"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-28GRC
Impeller Hub TH-1-28GRC
&
  • Journal Dia: 1.498"
  • Installed Height: 2.50"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.690"
  • Installed Height: 1.750"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-13GRC
Impeller Hub TH-1-13GRC
&
  • Journal Dia: 1.690"
  • Installed Height: 1.750"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
3 Impeller NPN-9-18-3
Impeller NPN-9-18-3
&

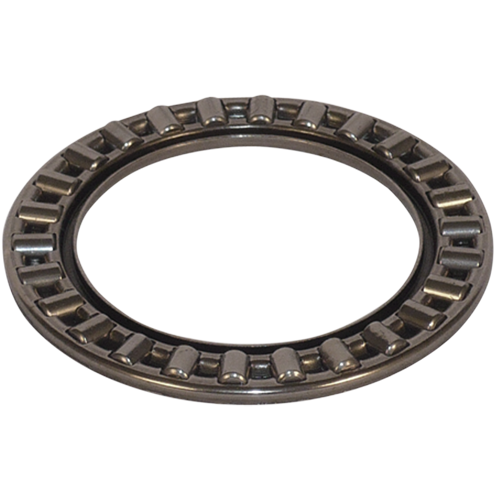

4 Bearing
  • Thickness: 0.157"
  • Thickness metric: 4.06
  • Bearing type: Exposed
  • Outside Dia: 2.547"
  • Inside Dia: 1.775"
  • Outside Dia Metric: 65.02
  • Inside Dia metric: 44.96
  • 26 Rollers. Race: FW-2-4, TRA-2840
 NW-2
Bearing NW-2
&
  • Thickness: 0.157"
  • Thickness metric: 4.06
  • Bearing type: Exposed
  • Outside Dia: 2.547"
  • Inside Dia: 1.775"
  • Outside Dia Metric: 65.02
  • Inside Dia metric: 44.96
  • 26 Rollers. Race: FW-2-4, TRA-2840
4 Roller Repair Kit
  • Outside Dia: 2.547"
  • Inside Dia: 1.775"
  • For NW-2, 26 Rollers, 4mm x 6mm
 NW-2-26K
Roller Repair Kit NW-2-26K
&
  • Outside Dia: 2.547"
  • Inside Dia: 1.775"
  • For NW-2, 26 Rollers, 4mm x 6mm

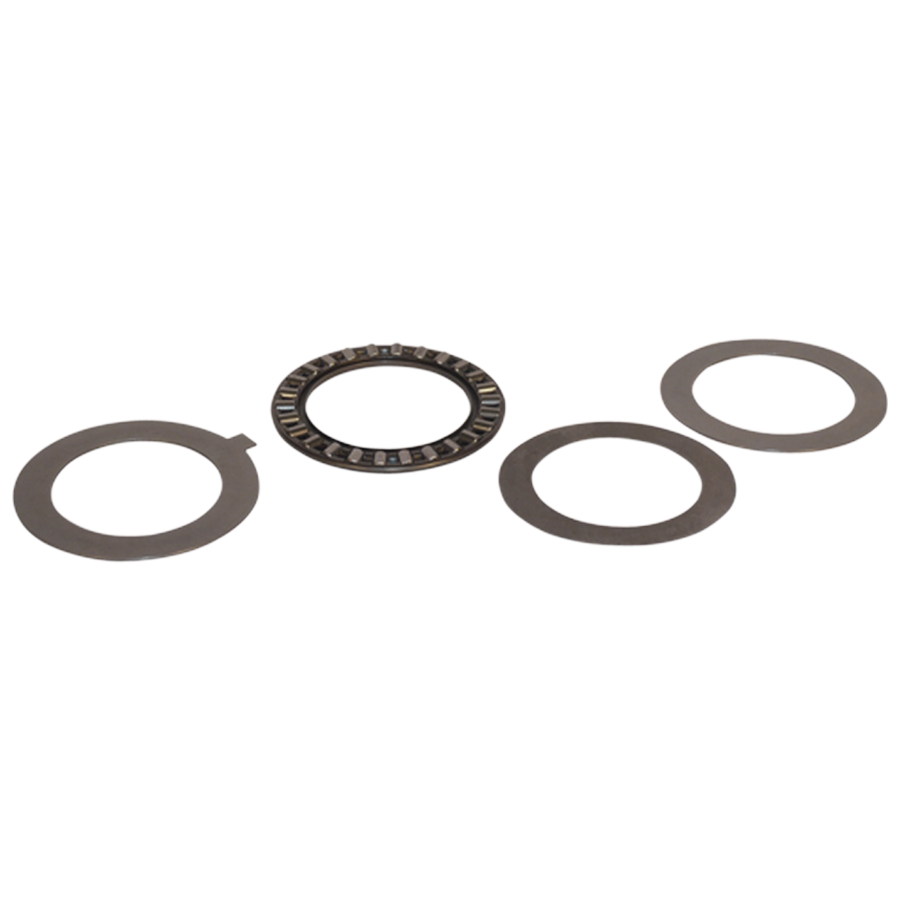

4 Bearing & Race Kit CT-13, CT-15
  • Outside Dia: 2.55"
  • Inside Dia: 1.73"
 TW-2-12BK
Bearing & Race Kit TW-2-12BK
CT-13, CT-15 &
  • Outside Dia: 2.55"
  • Inside Dia: 1.73"
4 Bearing & Race Kit
  • Thickness: .26"
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.55"
  • Inside Dia: 1.73"
 TW-2-12K
Bearing & Race Kit TW-2-12K
&
  • Thickness: .26"
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.55"
  • Inside Dia: 1.73"
4_N.I. Bearing
  • Thickness: 0.22
  • Thickness metric: 5.59
  • Bearing type: Semi- Enclosed
  • Outside Dia: 2.55
  • Inside Dia: 1.728
  • Outside Dia Metric: 64.77
  • Inside Dia metric: 43.89
  • Race: TW-2-13
 TW-2-12
Bearing TW-2-12
&
  • Thickness: 0.22
  • Thickness metric: 5.59
  • Bearing type: Semi- Enclosed
  • Outside Dia: 2.55
  • Inside Dia: 1.728
  • Outside Dia Metric: 64.77
  • Inside Dia metric: 43.89
  • Race: TW-2-13

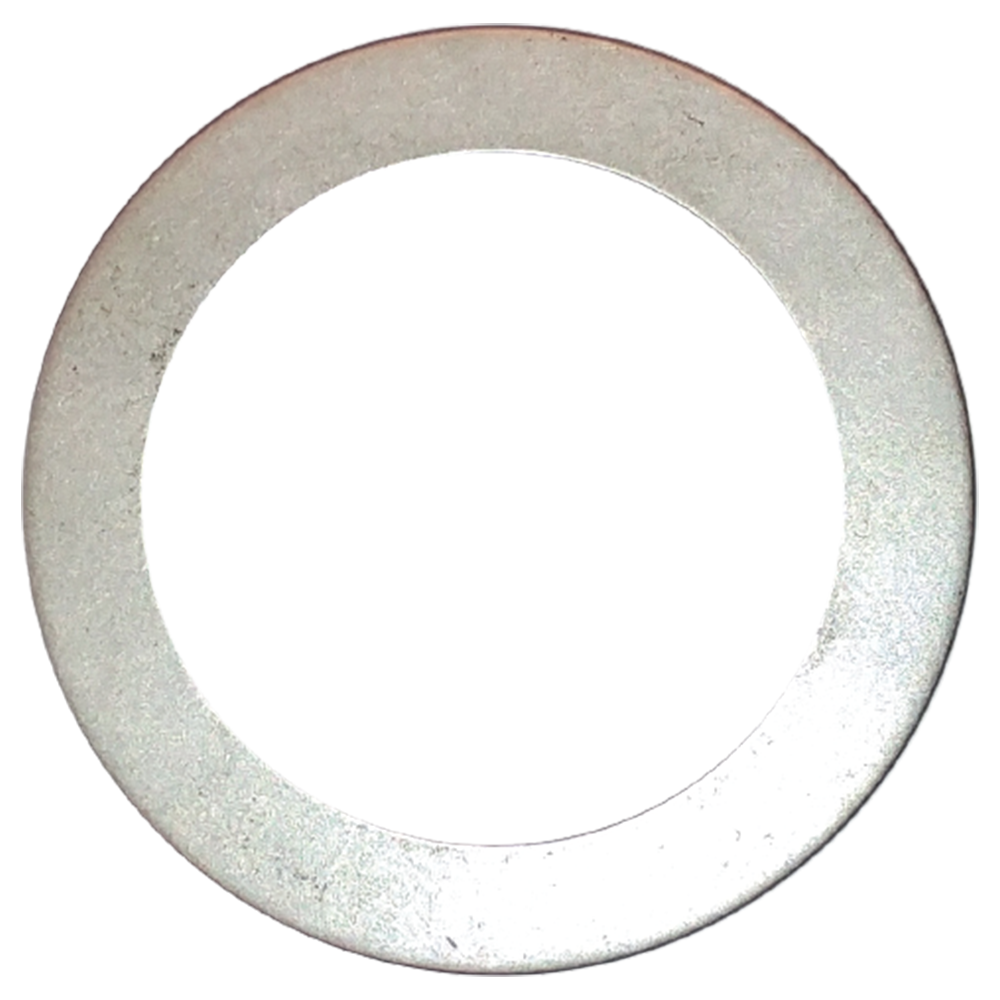

4_N.I. Bearing Race
  • Thickness: .080"
  • Outside Dia: 2.55
  • Inside Dia: 1.728
  • For OE Style Bearing
 TW-2-12A
Bearing Race TW-2-12A
&
  • Thickness: .080"
  • Outside Dia: 2.55
  • Inside Dia: 1.728
  • For OE Style Bearing
5 Stator NPN-9-18-5
Stator NPN-9-18-5
&
6 Cam NPN-9-18-6
Cam NPN-9-18-6
&
7 Cam NPN-9-18-7A
Cam NPN-9-18-7A
&
7 Sprag NPN-9-18-7B
Sprag NPN-9-18-7B
&
8 Inner Race Stator
  • Height: 0.840"
  • Internal Teeth: 38
  • Outside Dia: 1.560"
  • Inside Dia: 1.150"
 TX-14-12
Inner Race TX-14-12
Stator &
  • Height: 0.840"
  • Internal Teeth: 38
  • Outside Dia: 1.560"
  • Inside Dia: 1.150"
9 Stator Cap NPN-9-18-9
Stator Cap NPN-9-18-9
&
10 Bearing
  • Thickness: 0.134
  • Thickness metric: 3.4
  • Bearing type: Semi- Enclosed
  • Outside Dia: 2.24
  • Inside Dia: 1.39
  • Outside Dia Metric: 56.9
  • Inside Dia metric: 35.31
  • Race: TW-2-15
 TW-2-14
Bearing TW-2-14
&
  • Thickness: 0.134
  • Thickness metric: 3.4
  • Bearing type: Semi- Enclosed
  • Outside Dia: 2.24
  • Inside Dia: 1.39
  • Outside Dia Metric: 56.9
  • Inside Dia metric: 35.31
  • Race: TW-2-15
10 Bearing & Race Kit
  • Thickness: 0.21"
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.24"
  • Inside Dia: 1.39"
 TW-2-14K
Bearing & Race Kit TW-2-14K
&
  • Thickness: 0.21"
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.24"
  • Inside Dia: 1.39"
10 Bearing Race
  • Thickness: 0.078"
  • Material: Steel
  • Outside Dia: 2.28"
  • Inside Dia: 1.43"
 TW-2-15
Bearing Race TW-2-15
&
  • Thickness: 0.078"
  • Material: Steel
  • Outside Dia: 2.28"
  • Inside Dia: 1.43"
11 Rivet 8 Pieces Required.
  • Length: 0.285"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.224"
  • Rivet Head Dia: 0.356"
 TX-12-4
Rivet TX-12-4
& 8 Pieces Required.
  • Length: 0.285"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.224"
  • Rivet Head Dia: 0.356"
12 Turbine NPN-9-18-12
Turbine NPN-9-18-12
&

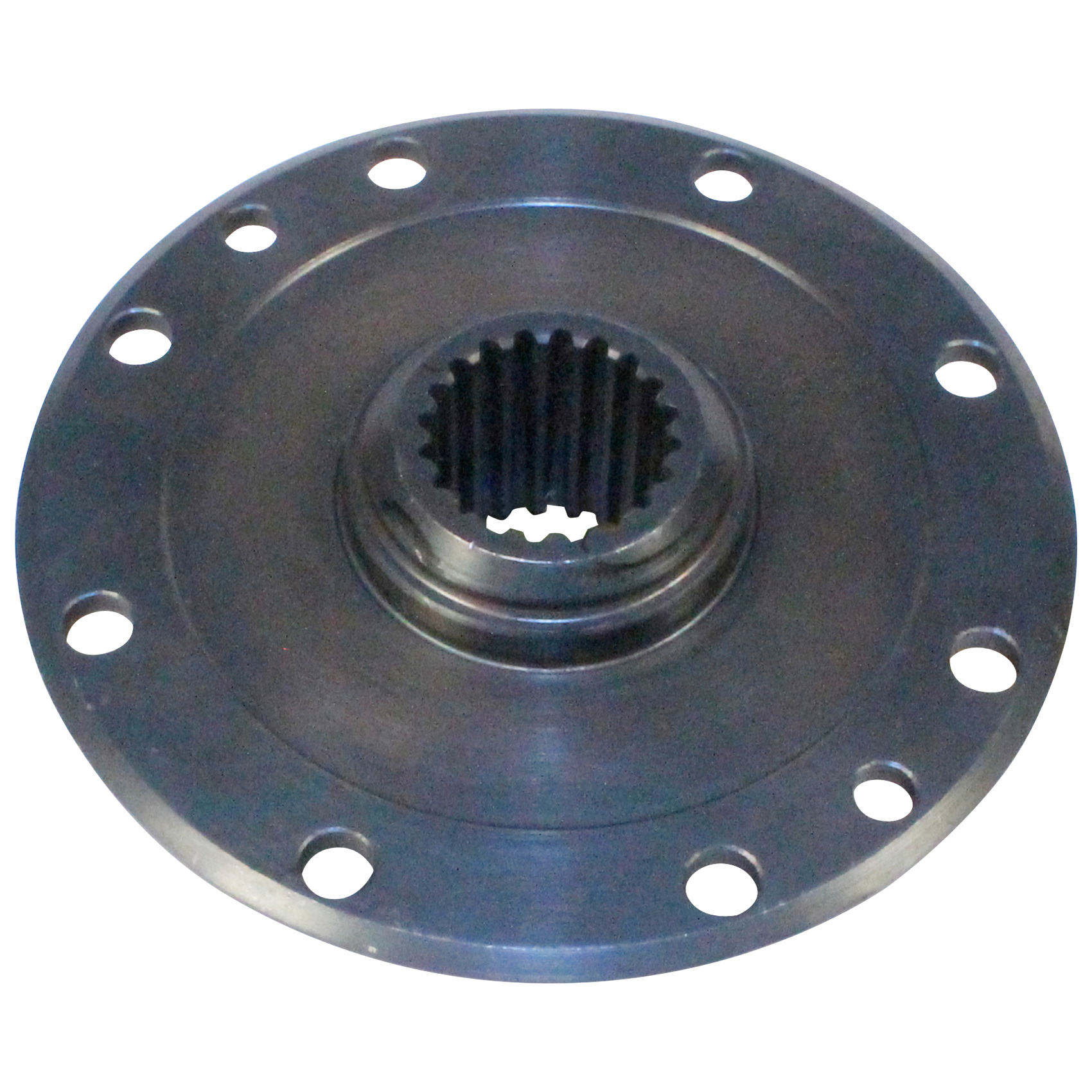

13 Turbine Hub
  • Height: 1.123
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.62"
 TX-13-18HT
Turbine Hub TX-13-18HT
&
  • Height: 1.123
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.62"
14 D-Ring Seal "Late"
  • Height: 0.13
  • Width: 0.08
  • Material: Fluorocarbon
  • Height Metric: 3.302
  • Seal Type: D-Ring
  • Inside Dia: 2.02
  • Inside Dia metric: 51.308
 TO-25-9
D-Ring Seal TO-25-9
& "Late"
  • Height: 0.13
  • Width: 0.08
  • Material: Fluorocarbon
  • Height Metric: 3.302
  • Seal Type: D-Ring
  • Inside Dia: 2.02
  • Inside Dia metric: 51.308
15 Metal Clad Seal
  • Housing Bore Dia: 0.984
  • Housing Bore Dia Metric: 25
  • Shaft Dia metric: 16.81
  • Shaft Dia: 0.669
  • Material: Fluorocarbon
 TO-25-5
Metal Clad Seal TO-25-5
&
  • Housing Bore Dia: 0.984
  • Housing Bore Dia Metric: 25
  • Shaft Dia metric: 16.81
  • Shaft Dia: 0.669
  • Material: Fluorocarbon

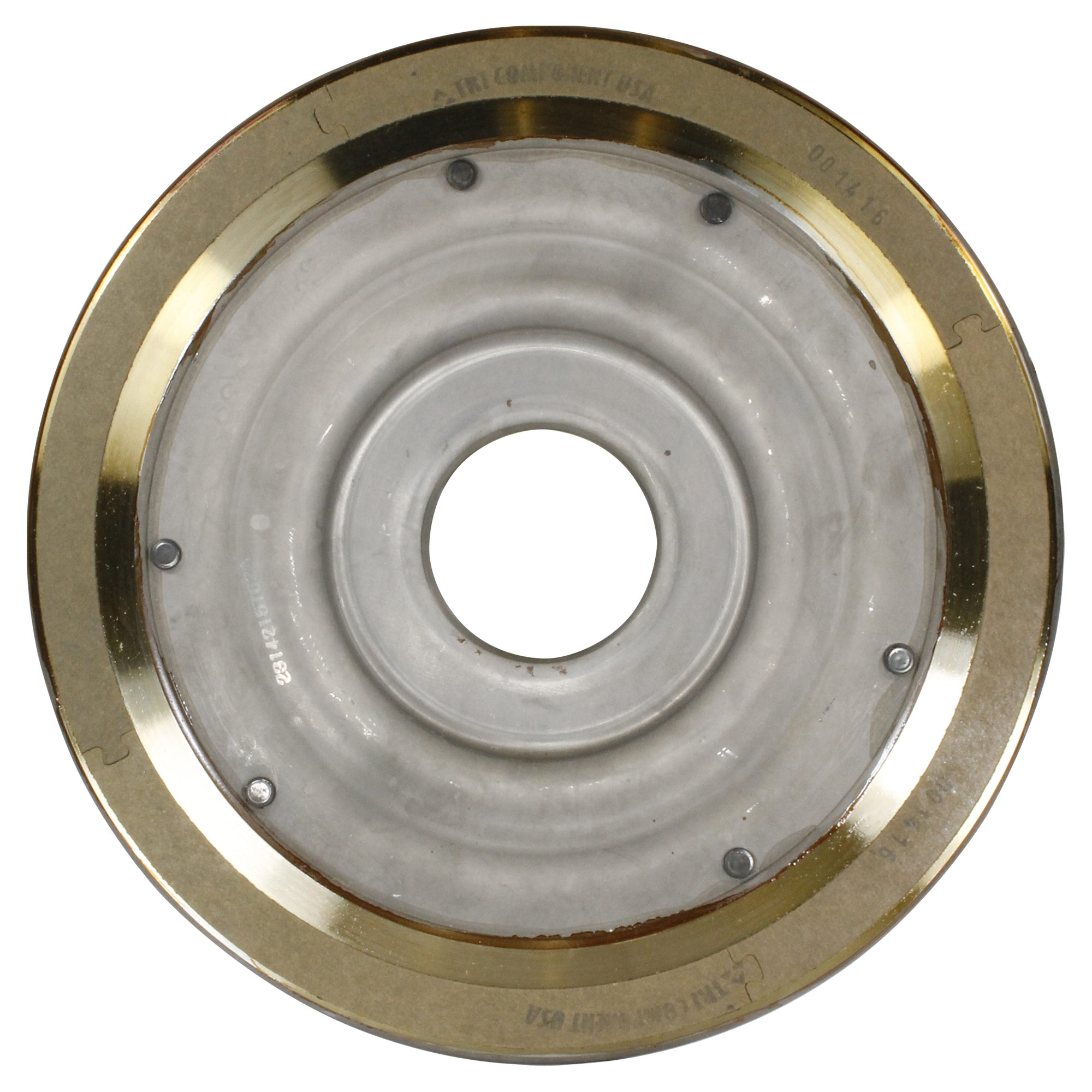

16 Clutch Plate Assembly With 9 Springs
  • With 9 Springs
 TX-26-15
Clutch Plate Assembly TX-26-15
With 9 Springs &
  • With 9 Springs
17 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.875
  • Inside Dia: 8.75
 JX-23-22
Lining (Friction Ring,Wafer) JX-23-22
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.875
  • Inside Dia: 8.75
18 Bearing
  • Thickness: 0.109
  • Thickness metric: 2.77
  • Bearing type: Semi- Enclosed
  • Outside Dia: 1.882
  • Inside Dia: 1.357
  • Outside Dia Metric: 47.8
  • Inside Dia metric: 34.47
  • Race: TW-2-6
 TW-2-5
Bearing TW-2-5
&
  • Thickness: 0.109
  • Thickness metric: 2.77
  • Bearing type: Semi- Enclosed
  • Outside Dia: 1.882
  • Inside Dia: 1.357
  • Outside Dia Metric: 47.8
  • Inside Dia metric: 34.47
  • Race: TW-2-6
18 Bearing & Race Kit
  • Thickness: 0.19"
  • Outside Dia: 1.882
  • Inside Dia: 1.357
  • Includes TW-2-5, TW-2-6
 TW-2-5K
Bearing & Race Kit TW-2-5K
&
  • Thickness: 0.19"
  • Outside Dia: 1.882
  • Inside Dia: 1.357
  • Includes TW-2-5, TW-2-6
19 Bushing Cover
  • Thickness: 0.437"
  • Housing Bore Dia: 0.788"
  • Shaft Dia: 0.671"
  • Material: Babbit
 TB-18-12
Bushing TB-18-12
Cover &
  • Thickness: 0.437"
  • Housing Bore Dia: 0.788"
  • Shaft Dia: 0.671"
  • Material: Babbit
20 Front Cover NPN-9-18-20
Front Cover NPN-9-18-20
&
20.1 Ring Gear F4A33, "Late"
  • Thickness: 0.300"
  • External Teeth: 110
  • Outside Dia: 11.06"
  • Inside Dia: 9.62"
 RG-110KM
Ring Gear RG-110KM
& F4A33, "Late"
  • Thickness: 0.300"
  • External Teeth: 110
  • Outside Dia: 11.06"
  • Inside Dia: 9.62"
21 Bolt 4 Pieces Required.
  • Dimensions: M10 x 1.5mm
  • Length: 11mm
 B-41
Bolt B-41
& 4 Pieces Required.
  • Dimensions: M10 x 1.5mm
  • Length: 11mm
