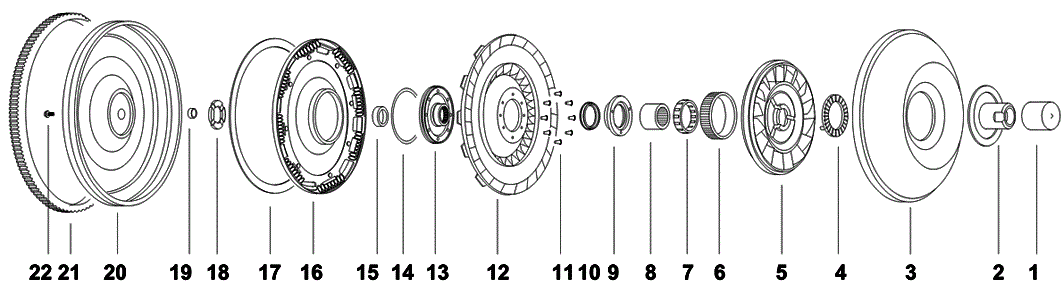

Torque Converter | Mitsubishi | KM-175-5, KM-177 Lockup, F4A43, CT-12-1, CT- 18, Late | 42-10, 42-11

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 Impeller Hub
  • Journal Dia: 1.690"
  • Installed Height: 1.506"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-26GRC
Impeller Hub TH-1-26GRC
&
  • Journal Dia: 1.690"
  • Installed Height: 1.506"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.690"
  • Installed Height: 1.750"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-13GRC
Impeller Hub TH-1-13GRC
&
  • Journal Dia: 1.690"
  • Installed Height: 1.750"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
3 Impeller NPN-9-12-3
Impeller NPN-9-12-3
&
4 Washer Stator, 2 Lugs, External
  • Material: Bronze
  • Outside Dia: 2.86"
  • Inside Dia: 1.83"
 TW-3-5
Washer TW-3-5
Stator, 2 Lugs, External &
  • Material: Bronze
  • Outside Dia: 2.86"
  • Inside Dia: 1.83"
4 Washer Stator
  • Thickness: 0.125"
  • Material: Plastic
  • Lug Count: 2 Round Lugs
  • Outside Dia: 2.87"
  • Inside Dia: 1.82"
 TW-3-6
Washer TW-3-6
Stator &
  • Thickness: 0.125"
  • Material: Plastic
  • Lug Count: 2 Round Lugs
  • Outside Dia: 2.87"
  • Inside Dia: 1.82"
5 Stator NPN-9-12-5
Stator NPN-9-12-5
&
6 Cam NPN-9-12-6
Cam NPN-9-12-6
&
7 Sprag
  • Thickness: 0.530"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.281"
  • Inner Race Outside Dia: 1.625"
  • Cam part-ID: F-315, 2 Inside Strips
 BC-6
Sprag BC-6
&
  • Thickness: 0.530"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.281"
  • Inner Race Outside Dia: 1.625"
  • Cam part-ID: F-315, 2 Inside Strips
7 Sprag
  • Thickness: 0.875"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
  • Clip Count: 5; Drag Strip Count: 3
 BC-6HD
Sprag BC-6HD
&
  • Thickness: 0.875"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
  • Clip Count: 5; Drag Strip Count: 3
7 Sprag
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
 BC-6HDA
Sprag BC-6HDA
&
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
7 Cam Kit (Sprag Element) Cam Kit
  • Includes: 14 Cams (S-316)
 MS-316-14K
Cam Kit (Sprag Element) MS-316-14K
Cam Kit &
  • Includes: 14 Cams (S-316)
8 Inner Race Stator
  • Height: 0.755"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 1.625"
 TX-14-10
Inner Race TX-14-10
Stator &
  • Height: 0.755"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 1.625"
8 Inner Race Stator
  • Height: 0.780"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 1.625"
 YX-14-5
Inner Race YX-14-5
Stator &
  • Height: 0.780"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 1.625"
9 Stator Cap
  • Material: Aluminum
 NPN-9-12-9
Stator Cap NPN-9-12-9
&
  • Material: Aluminum
10 Bearing
  • Thickness: 0.231
  • Thickness metric: 5.87
  • Bearing type: Enclosed
  • Outside Dia: 1.928
  • Inside Dia: 1.204
  • Outside Dia Metric: 48.97
  • Inside Dia metric: 30.58
 TW-2-17
Bearing TW-2-17
&
  • Thickness: 0.231
  • Thickness metric: 5.87
  • Bearing type: Enclosed
  • Outside Dia: 1.928
  • Inside Dia: 1.204
  • Outside Dia Metric: 48.97
  • Inside Dia metric: 30.58
11 Rivet 8 Pieces Required.
  • Length: 0.285"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.224"
  • Rivet Head Dia: 0.356"
 TX-12-4
Rivet TX-12-4
& 8 Pieces Required.
  • Length: 0.285"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.224"
  • Rivet Head Dia: 0.356"
11 Rivet 8 Pieces Required.
  • Length: 0.343"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.226"
  • Rivet Head Dia: 0.352"
  • Rivet Head: Flat
 TX-12-4L
Rivet TX-12-4L
& 8 Pieces Required.
  • Length: 0.343"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.226"
  • Rivet Head Dia: 0.352"
  • Rivet Head: Flat
12 Turbine 230mm NPN-9-12-12
Turbine NPN-9-12-12
230mm &

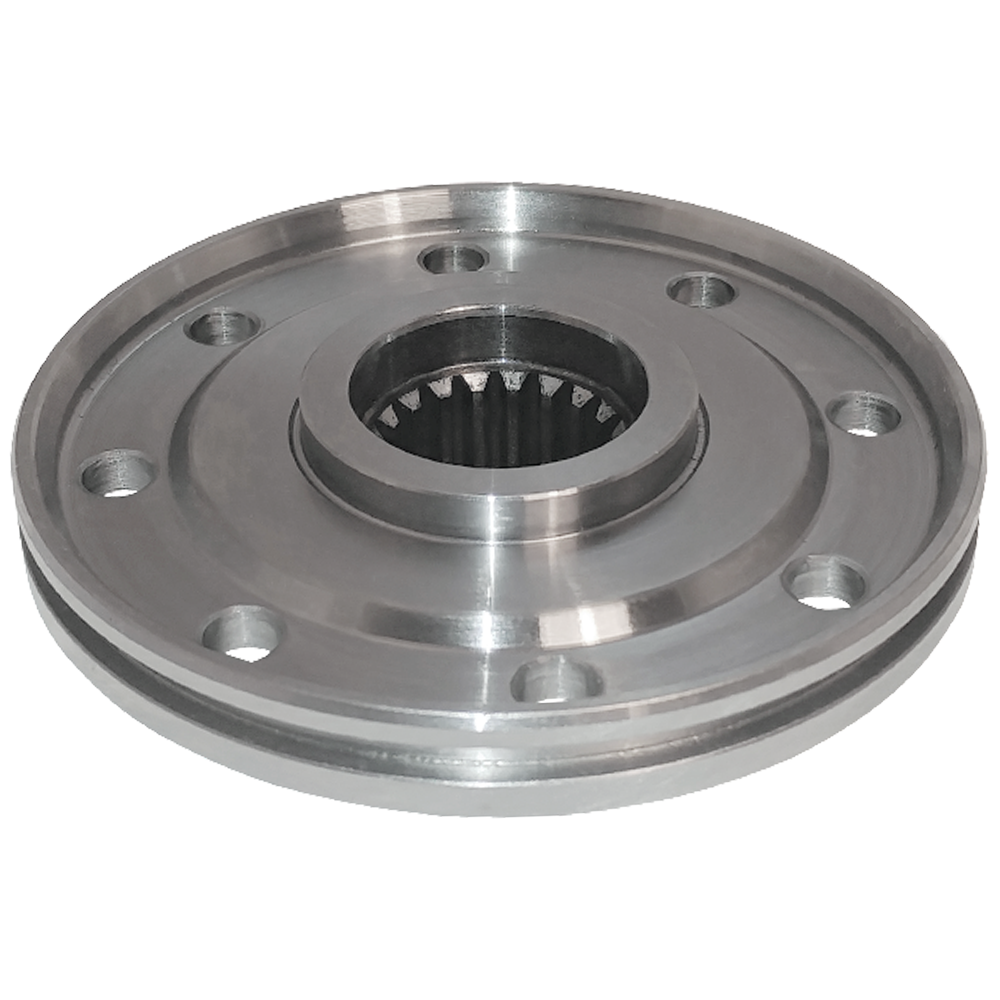

13 Turbine Hub ‘94 Galant
  • Height: 0.850
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.22"
 TX-13-32HT
Turbine Hub TX-13-32HT
& ‘94 Galant
  • Height: 0.850
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.22"
13 Turbine Hub ‘98 Galant
  • Height: 1.135
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.09"
 TX-13-37HT
Turbine Hub TX-13-37HT
& ‘98 Galant
  • Height: 1.135
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.09"
13 Turbine Hub
  • Height: 1.140
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.09"
  • Uses 16 Rivets (Use YO-25-6 Metal Clad Seal)
 YX-13-9HT
Turbine Hub YX-13-9HT
&
  • Height: 1.140
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.09"
  • Uses 16 Rivets (Use YO-25-6 Metal Clad Seal)
13 Turbine Hub
  • Internal Teeth: 20
  • Outside Dia: 3.48"
 TX-13-35
Turbine Hub TX-13-35
&
  • Internal Teeth: 20
  • Outside Dia: 3.48"
13 Turbine Hub ‘99 Galant
  • Height: 0.843
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.48"
 TX-13-35HT
Turbine Hub TX-13-35HT
& ‘99 Galant
  • Height: 0.843
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.48"
13.1 Metal Clad Seal Used with turbine hub YX-13-9HT
  • Housing Bore Dia: 0.969
  • Housing Bore Dia Metric: 24.75
  • Shaft Dia metric: 16
  • Shaft Dia: 0.63
  • Material: Fluorocarbon
 YO-25-6
Metal Clad Seal YO-25-6
& Used with turbine hub YX-13-9HT
  • Housing Bore Dia: 0.969
  • Housing Bore Dia Metric: 24.75
  • Shaft Dia metric: 16
  • Shaft Dia: 0.63
  • Material: Fluorocarbon
14 O-Ring
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
  • Inside Dia metric: 74.803
 PO-25-8
O-Ring PO-25-8
&
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
  • Inside Dia metric: 74.803
14 O-Ring For TX-13-32HT
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
  • Inside Dia metric: 73.9902
  • High Temp.
 TO-25-4
O-Ring TO-25-4
& For TX-13-32HT
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
  • Inside Dia metric: 73.9902
  • High Temp.
14 O-Ring For TX-13-32HT
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
 TO-25-4A
O-Ring TO-25-4A
& For TX-13-32HT
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
14 O-Ring
  • Thickness: 0.106
  • Thickness metric: 2.6924
  • Inside Dia: 2.913"
  • Inside Dia metric: 73.9902
  • Oversized
 TO-25-4X
O-Ring TO-25-4X
&
  • Thickness: 0.106
  • Thickness metric: 2.6924
  • Inside Dia: 2.913"
  • Inside Dia metric: 73.9902
  • Oversized
15 Metal Clad Seal Use w/TX-13-32HT & TX-13-35HT
  • Housing Bore Dia: 0.984
  • Housing Bore Dia Metric: 25
  • Shaft Dia metric: 16.81
  • Shaft Dia: 0.669
  • Material: Fluorocarbon
 TO-25-5
Metal Clad Seal TO-25-5
& Use w/TX-13-32HT & TX-13-35HT
  • Housing Bore Dia: 0.984
  • Housing Bore Dia Metric: 25
  • Shaft Dia metric: 16.81
  • Shaft Dia: 0.669
  • Material: Fluorocarbon
15 Metal Clad Seal Use with TX-13-37HT
  • Housing Bore Dia: 0.969
  • Housing Bore Dia Metric: 24.75
  • Shaft Dia metric: 16
  • Shaft Dia: 0.63
  • Material: Fluorocarbon
 TO-25-13
Metal Clad Seal TO-25-13
& Use with TX-13-37HT
  • Housing Bore Dia: 0.969
  • Housing Bore Dia Metric: 24.75
  • Shaft Dia metric: 16
  • Shaft Dia: 0.63
  • Material: Fluorocarbon
16 Lockup Clutch 8 Springs
  • Uses 8 Springs, 9 -11/16" O.D., Center Hole 3-1/4"
 TX-26-12
Lockup Clutch TX-26-12
8 Springs &
  • Uses 8 Springs, 9 -11/16" O.D., Center Hole 3-1/4"
17 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.25"
  • Inside Dia: 8.125"
  • 9 Springs, 6 Deep Dimples
 FX-23-6
Lining (Friction Ring,Wafer) FX-23-6
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.25"
  • Inside Dia: 8.125"
  • 9 Springs, 6 Deep Dimples
17 Floating Ring
  • Thickness: .070"
  • Outside Dia: 9.250
  • Inside Dia: 7.875
 TX-26-7
Floating Ring TX-26-7
&
  • Thickness: .070"
  • Outside Dia: 9.250
  • Inside Dia: 7.875
17 Floating Ring Kevlar®
  • Material: Kevlar®
  • Outside Dia: 9.250
  • Inside Dia: 7.875
 TX-26-7K
Floating Ring TX-26-7K
Kevlar® &
  • Material: Kevlar®
  • Outside Dia: 9.250
  • Inside Dia: 7.875
18 Turbine Washer
  • Thickness: .24"
  • Material: Plastic
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
 TW-9-17
Turbine Washer TW-9-17
&
  • Thickness: .24"
  • Material: Plastic
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
18 Turbine Washer
  • Material: Bronze
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
 TW-9-17B
Turbine Washer TW-9-17B
&
  • Material: Bronze
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
19 Bushing Cover
  • Thickness: 0.437"
  • Housing Bore Dia: 0.788"
  • Shaft Dia: 0.671"
  • Material: Babbit
 TB-18-12
Bushing TB-18-12
Cover &
  • Thickness: 0.437"
  • Housing Bore Dia: 0.788"
  • Shaft Dia: 0.671"
  • Material: Babbit
20 Front Cover NPN-9-12-20
Front Cover NPN-9-12-20
&
21 Ring Gear Mitsubishi KM-175/176/177 Hyundai, Colt, Excel
  • Thickness: 0.325"
  • External Teeth: 106
  • Outside Dia: 10.67"
  • Inside Dia: 9.66"
 RG-106KM
Ring Gear RG-106KM
& Mitsubishi KM-175/176/177 Hyundai, Colt, Excel
  • Thickness: 0.325"
  • External Teeth: 106
  • Outside Dia: 10.67"
  • Inside Dia: 9.66"
21 Ring Gear ST-18
  • Thickness: 0.300"
  • External Teeth: 110
  • Outside Dia: 11.06"
  • Inside Dia: 9.62"
 RG-110KM
Ring Gear RG-110KM
& ST-18
  • Thickness: 0.300"
  • External Teeth: 110
  • Outside Dia: 11.06"
  • Inside Dia: 9.62"
22 Bolt 3 Pieces Required.
  • Dimensions: M10 x 1.3mm
  • Length: 11mm
 B-42
Bolt B-42
& 3 Pieces Required.
  • Dimensions: M10 x 1.3mm
  • Length: 11mm
