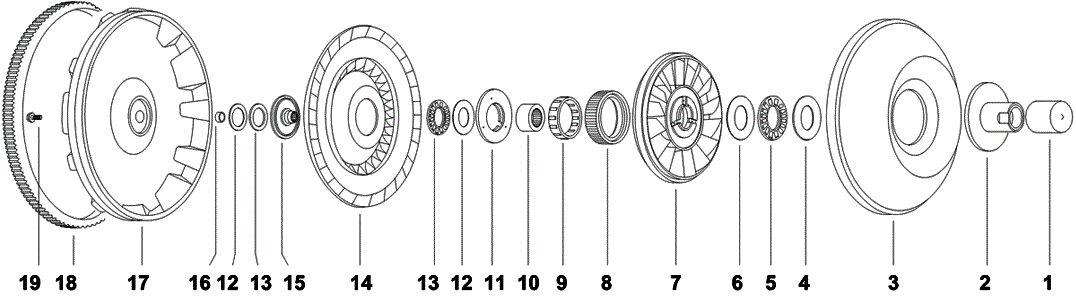

Torque Converter | Mitsubishi | KM 175 & 177 Non-Lockup, CT-9 | KM9

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
2 Impeller Hub
  • Journal Dia: 1.690"
  • Installed Height: 1.750"
  • Hub Mount: Butt
  • Pump Drive Type: flats
 TH-1-13G
2 Impeller Hub
  • Journal Dia: 1.690"
  • Installed Height: 1.750"
  • Hub Mount: Butt
  • Pump Drive Type: flats
  • Hardness: Rc 32-36
 TH-1-13GRC
2 Impeller Hub
  • Journal Dia: 1.690"
  • Installed Height: 1.730"
  • Hub Mount: Flanged
  • Pump Drive Type: flats
  • Hardness: Rc 32-36
 TH-1-22GRC
3 Impeller NPN-9-6-3
4 Bearing Race
  • Outer Dia: 2.75"
  • Inner Dia: 2.00"
  • Thickness: .03"
 TRA-3244
5 Bearing Use with Race TRA-3244 Or TRB-3244
  • Outer Dia: 2.75
  • Inner Dia: 2
  • Thickness: 0.078
  • Outer Dia Metric: 69.85
  • Inner Dia metric: 50.8
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Race: TRA-3244, TRB-3244
 NTA-3244
6 Bearing Race
  • Outer Dia: 2.75"
  • Inner Dia: 2.00"
  • Thickness: .06"
 TRB-3244
7 Stator NPN-9-6-7
8 Cam NPN-9-6-8
9 Sprag NPN-9-6-9
10 Inner Race Stator
  • Height: 0.755"
  • Outer Dia: 1.625"
  • Internal Teeth: 38 (12 Removed)
 TX-14-10
10 Inner Race Stator
  • Height: 0.780"
  • Outer Dia: 1.625"
  • Internal Teeth: 38 (12 Removed)
 YX-14-5
11 Stator Cap
  • Outer Dia: 2.595"
  • Inner Dia: 1.300"
  • Thickness: .260"
  • Material: Aluminum
 TW-4-5
12 Bearing Race 2 Pieces Required.
  • Outer Dia: 1.925"
  • Inner Dia: 1.420"
  • Thickness: 0.080"
  • Hardened
 TW-2-6
13 Bearing 2 Pieces Required.
  • Outer Dia: 1.882
  • Inner Dia: 1.357
  • Thickness: 0.109
  • Outer Dia Metric: 47.8
  • Inner Dia metric: 34.47
  • Thickness metric: 2.77
  • Bearing type: Semi- Enclosed
  • Race: TW-2-6
 TW-2-5
13_N.I. Bearing & Race Kit
  • Outer Dia: 1.882
  • Inner Dia: 1.357
  • Thickness: 0.19"
  • Contains TW-2-5, TW-2-6
 TW-2-5K
14 Turbine NPN-9-6-14
15 Turbine Hub
  • Internal Teeth: 20
 TX-13-17
15 Turbine Hub
  • Outer Dia: 2.75"
  • Internal Teeth: 20
  • Hardness: Heat Treated
 TX-13-17HT

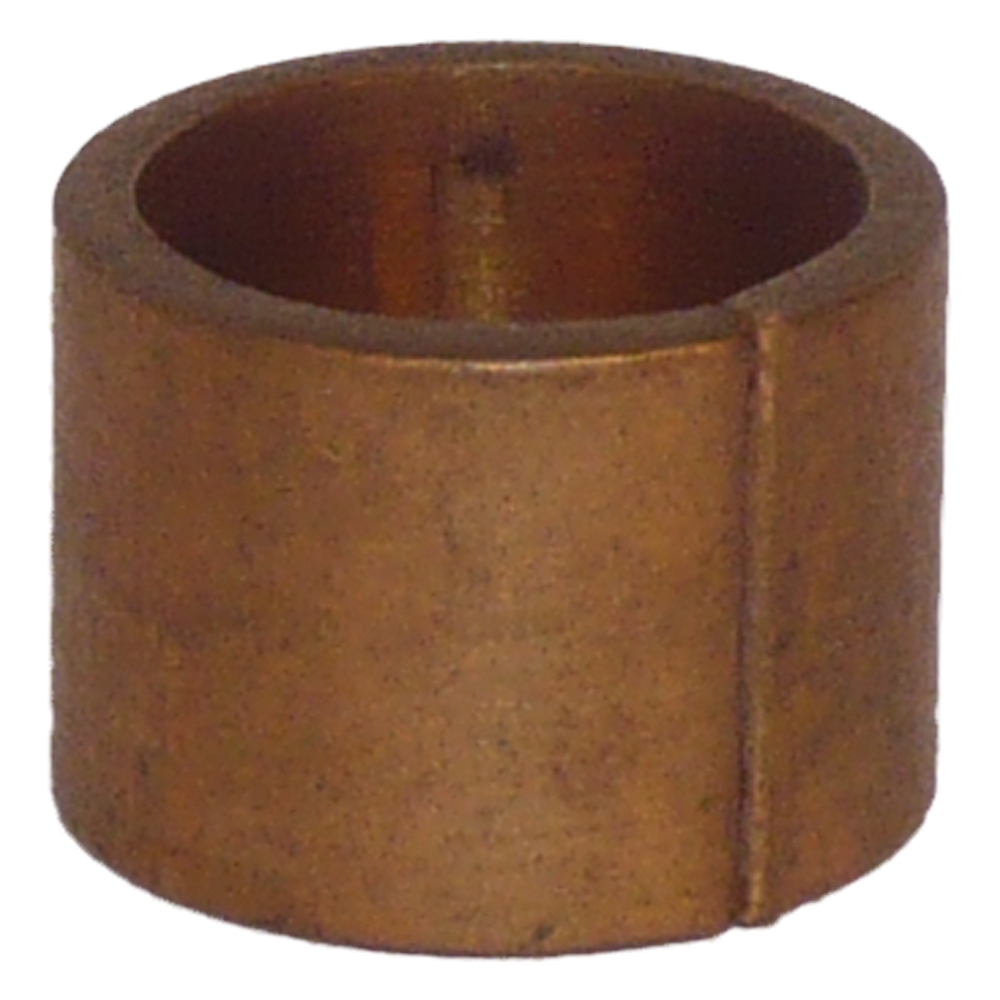

16 Bushing Cover
  • Outer Dia: 0.591
  • Inner Dia: 0.4720
  • Width: 0.437
  • housing bore dia: 0.591
  • Shaft Dia: 0.472
  • Material: Babbit
 TB-18-11
17 Front Cover NPN-9-6-17
18 Ring Gear Mitsubishi KM-175/176/177 Hyundai, Colt, Excel
  • Outer Dia: 10.67"
  • Inner Dia: 9.66"
  • Thickness: 0.325"
 RG-106KM
19 Bolt 3 Pieces Required.
  • Dimensions: M10 x 1.3mm
  • Length: 11mm
 B-42
