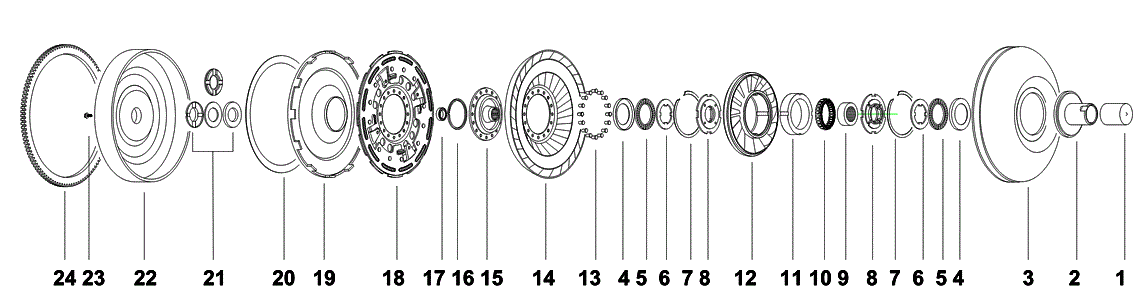

Ill.# | Image | Description | Specification | Part # | |
---|---|---|---|---|---|
1 | Hubcap | Fits 1-5/8" (41.3mm). Length: 1-3/8" |
|
MHC-B | |
2 | Impeller Hub |
|
NPN-9-16-2 | ||
3 | Impeller | NPN-9-16-3 | |||
4 | Bearing Race | Cupped 2 Pieces Required. |
|
YW-2-4 | |
4 | Bearing & Race Kit |
|
YW-2-4K | ||
5 | Bearing |
|
JW-2N | ||
5 | Bearing | 2 Pieces Required. |
|
JW-2ND | |
5 | Bearing |
|
PW-2-12 | ||
5 | Bearing |
|
YW-2-16 | ||

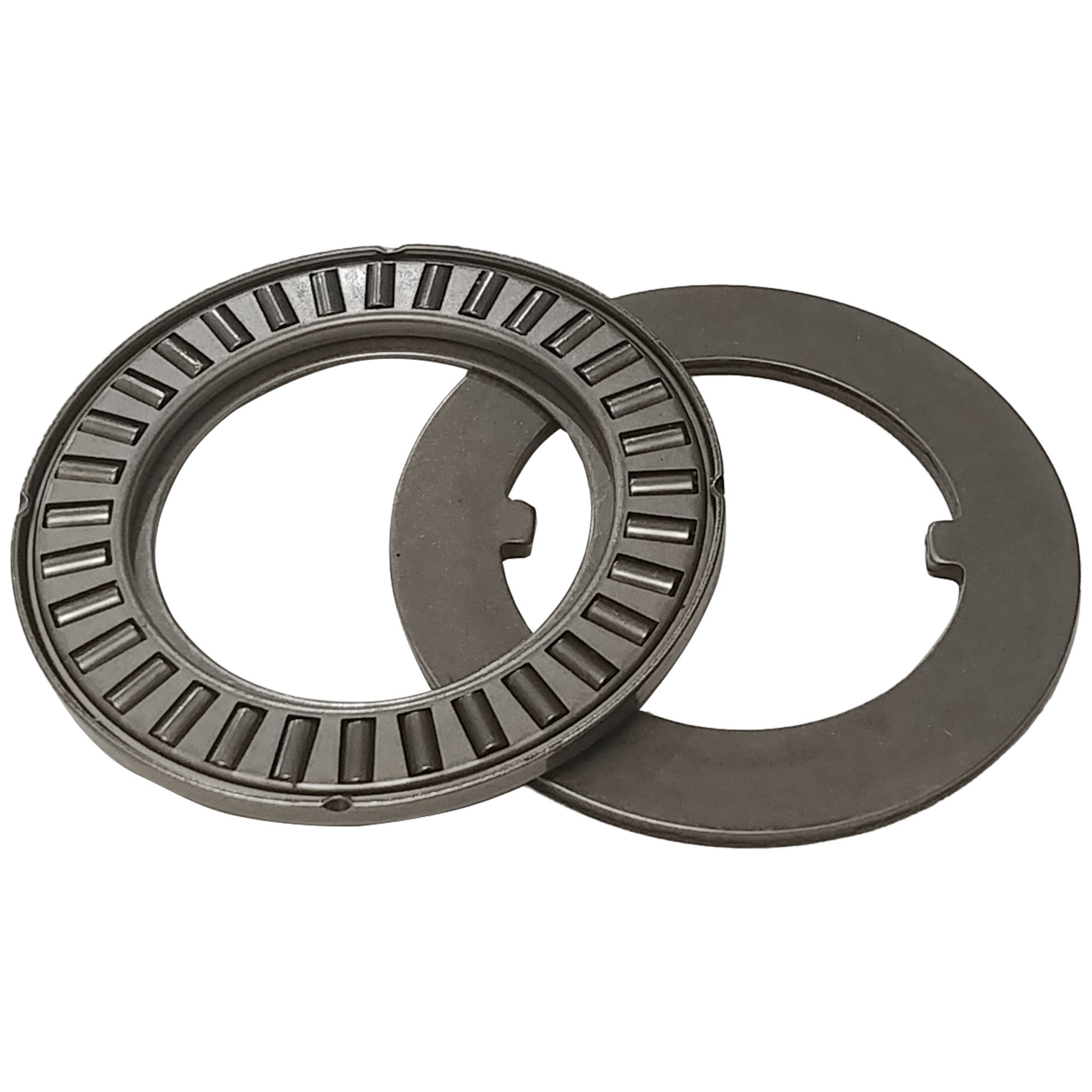

5 | Bearing & Race Kit |
|
YW-2-16K | ||

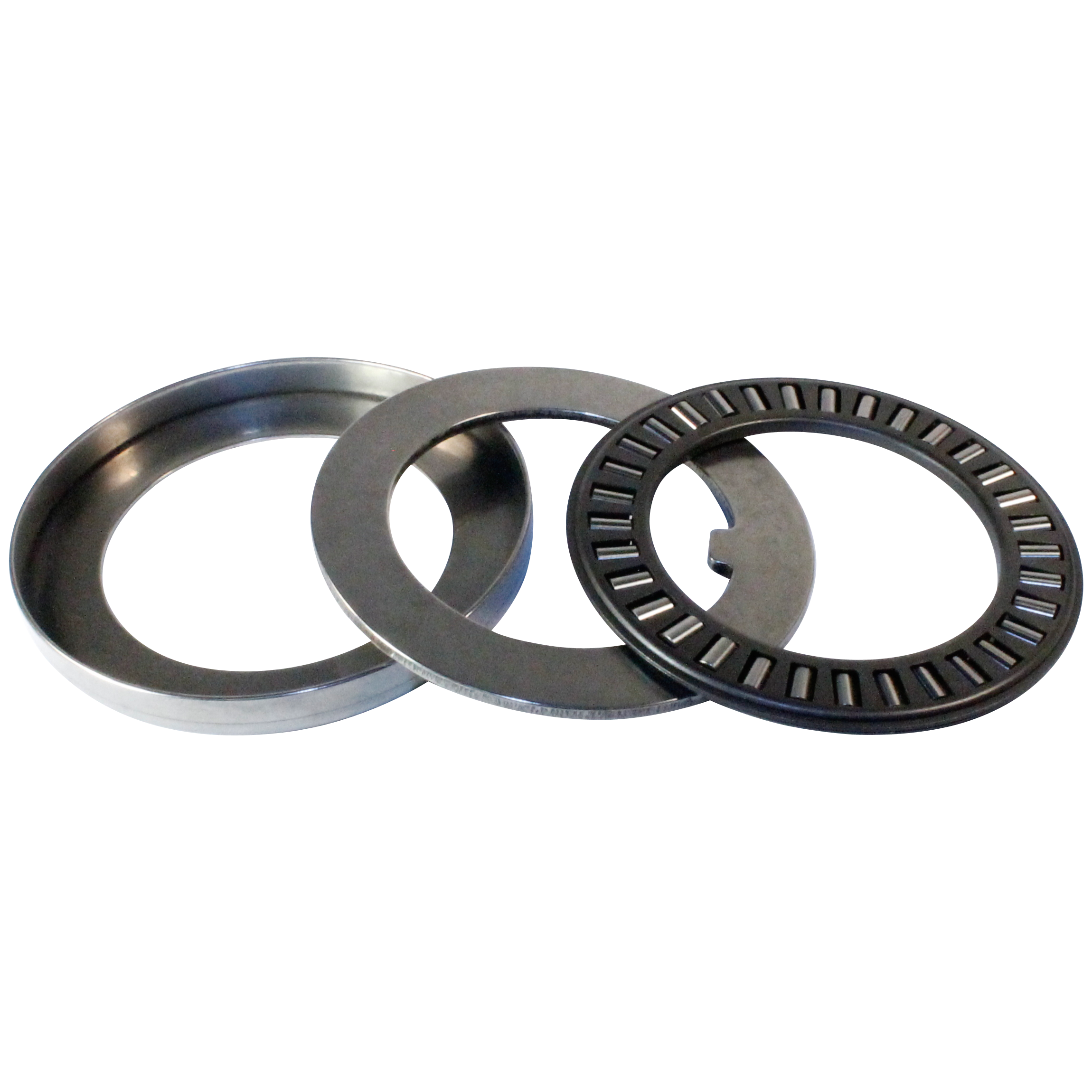

5_N.I. | Bearing & Race Kit | Alt# TB010012 | YW-2-4KD | ||
5_N.I. | Bearing & Race Kit |
|
YW-2BK | ||
6 | Bearing Race | Optional 2 Pieces Required. |
|
YW-2 | |
7 | Snap Ring | NPN-9-16-7 | |||
8 | Stator Cap | 2 Pieces Required. |
|
YW-4-13 | |
9 | Stator | NPN-9-16-9 | |||
10 | Race Outer | NPN-9-16-10 | |||
11 | Sprag |
|
NPN-9-16-11 | ||
12 | Inner Race |
|
NPN-9-16-12 | ||
13 | Rivet | NPN-9-16-13 | |||
13 | Rivet | 16 Pieces Required. |
|
TX-12-5 | |
14 | Turbine | NPN-9-16-14 | |||
15 | Turbine Hub |
|
TX-13-37HT | ||
15 | Turbine Hub |
|
YX-13-9HT | ||

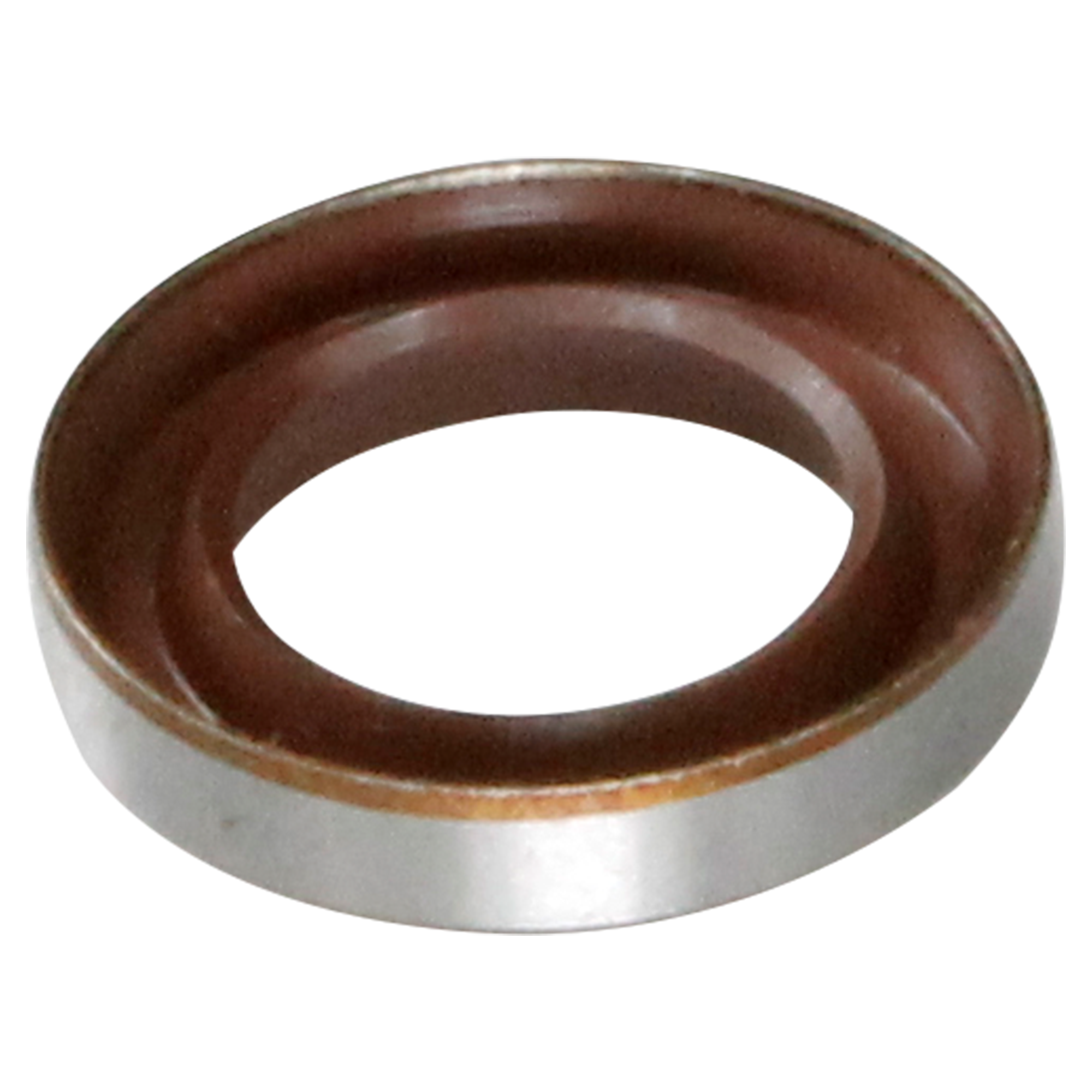

15.1 | Seal | Metal Clad Used with turbine hub YX-13-9HT | YO-25-6 | ||
16 | Seal Ring | Scarf Cut |
|
YO-25-1 | |
17 | Metal Clad Seal |
|
TO-25-13 | ||
18 | Damper Assembly | NPN-9-16-18 | |||
19 | Lockup Clutch | NPN-9-16-19 | |||
21 | Bearing & Race Kit | Alternate: Use YW-9-6 Bearing & YW-9-7 Race |
|
YW-9-4K | |
21 | Turbine Washer |
|
YW-9-4B | ||
22 | Front Cover | NPN-9-16-22 | |||
23 | Ring Gear |
|
NPN-9-16-23 | ||
24 | Bolt |
|
B-42 |
