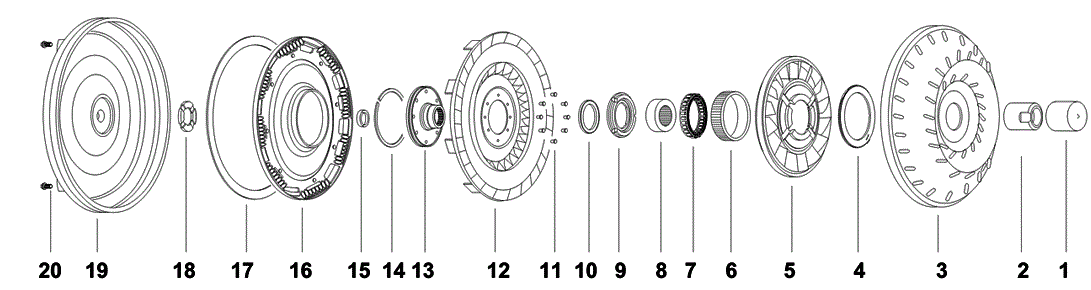

Torque Converter | Mitsubishi | F4A42, GALANT '99, CT-26; F4A41, F4A52 CT-27 | marked 2C

Ill.# Image Description Specification Part #
Turbine Hub
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
 TX-13-36HT
Turbine Hub TX-13-36HT
&
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
1 Hubcap NPN-9-20-1
Hubcap NPN-9-20-1
&
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 Impeller Hub
  • Journal Dia: 1.573"
  • Installed Height: 1.41"
  • Height: 1.53
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.265"
 TH-1-36GRC
Impeller Hub TH-1-36GRC
&
  • Journal Dia: 1.573"
  • Installed Height: 1.41"
  • Height: 1.53
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.265"
2 Impeller Hub
  • Journal Dia: 1.692"
  • Installed Height: 1.49"
  • Hub Mount: Thru
  • Hardness: Rc 32-36

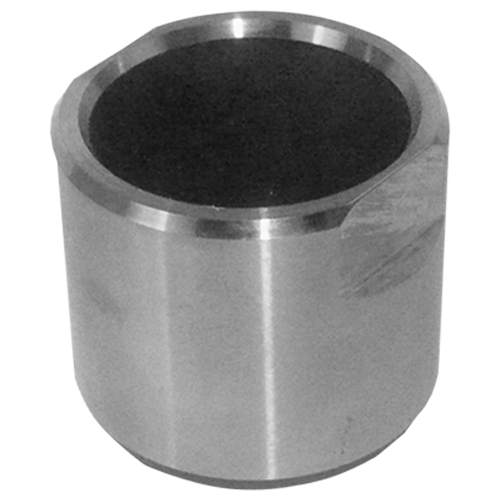

 TH-1-37GRC
Impeller Hub TH-1-37GRC
&
  • Journal Dia: 1.692"
  • Installed Height: 1.49"
  • Hub Mount: Thru
  • Hardness: Rc 32-36
3 Impeller NPN-9-20-3
Impeller NPN-9-20-3
&
4 Bearing
  • Thickness: 0.19
  • Thickness metric: 4.83
  • Bearing type: Enclosed
  • Outside Dia: 3.33
  • Inside Dia: 2.56
  • Outside Dia Metric: 84.58
  • Inside Dia metric: 65.02

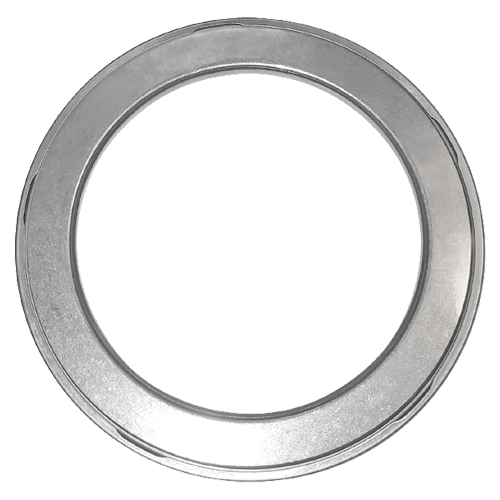

 JW-2-24
Bearing JW-2-24
&
  • Thickness: 0.19
  • Thickness metric: 4.83
  • Bearing type: Enclosed
  • Outside Dia: 3.33
  • Inside Dia: 2.56
  • Outside Dia Metric: 84.58
  • Inside Dia metric: 65.02
5 Stator NPN-9-20-5
Stator NPN-9-20-5
&
6 Cam NPN-9-20-6
Cam NPN-9-20-6
&
7 Sprag Assembly NPN-9-20-7
Sprag NPN-9-20-7
Assembly &
7 Cam Kit (Sprag Element) Sprag, 20 Cams CT-27 MS-240-20K
Cam Kit (Sprag Element) MS-240-20K
Sprag, 20 Cams & CT-27
7 Cam Kit (Sprag Element) Sprag, 24 Cams CT-26 MS-240-24K
Cam Kit (Sprag Element) MS-240-24K
Sprag, 24 Cams & CT-26
8 Inner Race Stator
  • Height: 0.750"
  • Internal Teeth: 38
  • Outside Dia: 2.090"
  • Inside Dia: 1.150"
 TX-14-13
Inner Race TX-14-13
Stator &
  • Height: 0.750"
  • Internal Teeth: 38
  • Outside Dia: 2.090"
  • Inside Dia: 1.150"
9 Stator Cap
  • Height: .23"
  • Outside Dia: 3.05"
  • Inside Dia: 1.43"
 NPN-9-20-9
Stator Cap NPN-9-20-9
&
  • Height: .23"
  • Outside Dia: 3.05"
  • Inside Dia: 1.43"
10 Bearing
  • Thickness: 0.228
  • Thickness metric: 5.79
  • Bearing type: Enclosed
  • Outside Dia: 2.244
  • Inside Dia: 1.3
  • Outside Dia Metric: 57
  • Inside Dia metric: 33.02

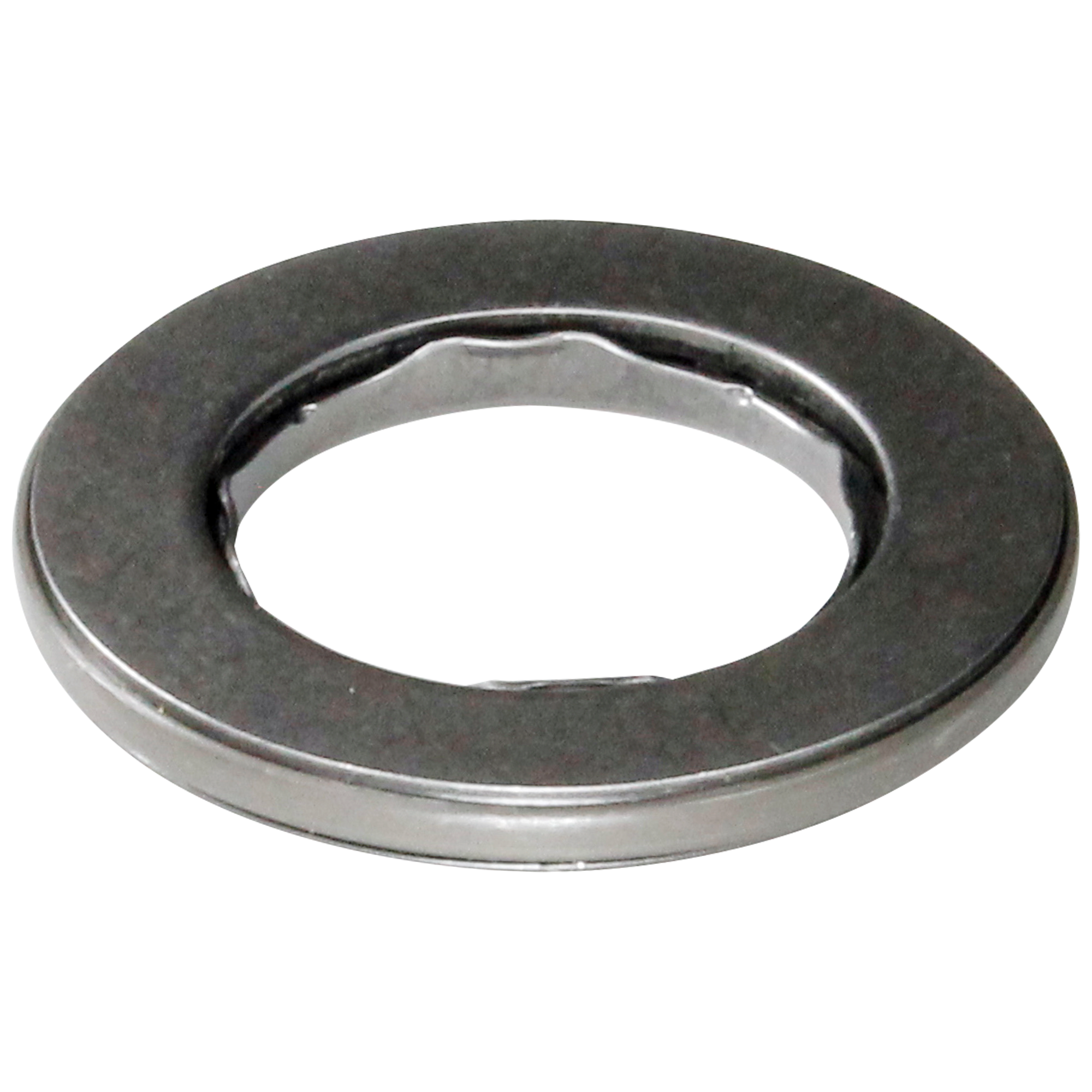

 TW-2-21
Bearing TW-2-21
&
  • Thickness: 0.228
  • Thickness metric: 5.79
  • Bearing type: Enclosed
  • Outside Dia: 2.244
  • Inside Dia: 1.3
  • Outside Dia Metric: 57
  • Inside Dia metric: 33.02
10 Bearing
  • Thickness: 0.226
  • Thickness metric: 5.74
  • Bearing type: Enclosed
  • Outside Dia: 2.237
  • Inside Dia: 1.307
  • Outside Dia Metric: 56.82
  • Inside Dia metric: 33.2
 TW-2-25
Bearing TW-2-25
&
  • Thickness: 0.226
  • Thickness metric: 5.74
  • Bearing type: Enclosed
  • Outside Dia: 2.237
  • Inside Dia: 1.307
  • Outside Dia Metric: 56.82
  • Inside Dia metric: 33.2
11 Rivet 8 Pieces Required.
  • Length: 0.285"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.224"
  • Rivet Head Dia: 0.356"
 TX-12-4
Rivet TX-12-4
& 8 Pieces Required.
  • Length: 0.285"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.224"
  • Rivet Head Dia: 0.356"
11 Rivet 8 Pieces Required.
  • Length: 0.343"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.226"
  • Rivet Head Dia: 0.352"
  • Rivet Head: Flat
 TX-12-4L
Rivet TX-12-4L
& 8 Pieces Required.
  • Length: 0.343"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.226"
  • Rivet Head Dia: 0.352"
  • Rivet Head: Flat
12 Turbine NPN-9-20-12
Turbine NPN-9-20-12
&
13 Turbine Hub
  • Internal Teeth: 16
 TX-13-34
Turbine Hub TX-13-34
&
  • Internal Teeth: 16
13 Turbine Hub CT-27
  • Internal Teeth: 16
  • Hardness: Heat-Treated (hardened)
 TX-13-34HT
Turbine Hub TX-13-34HT
& CT-27
  • Internal Teeth: 16
  • Hardness: Heat-Treated (hardened)
13 Turbine Hub
  • Internal Teeth: 20
  • Outside Dia: 3.48"
 TX-13-35
Turbine Hub TX-13-35
&
  • Internal Teeth: 20
  • Outside Dia: 3.48"
13 Turbine Hub CT-26
  • Height: 0.843
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.48"

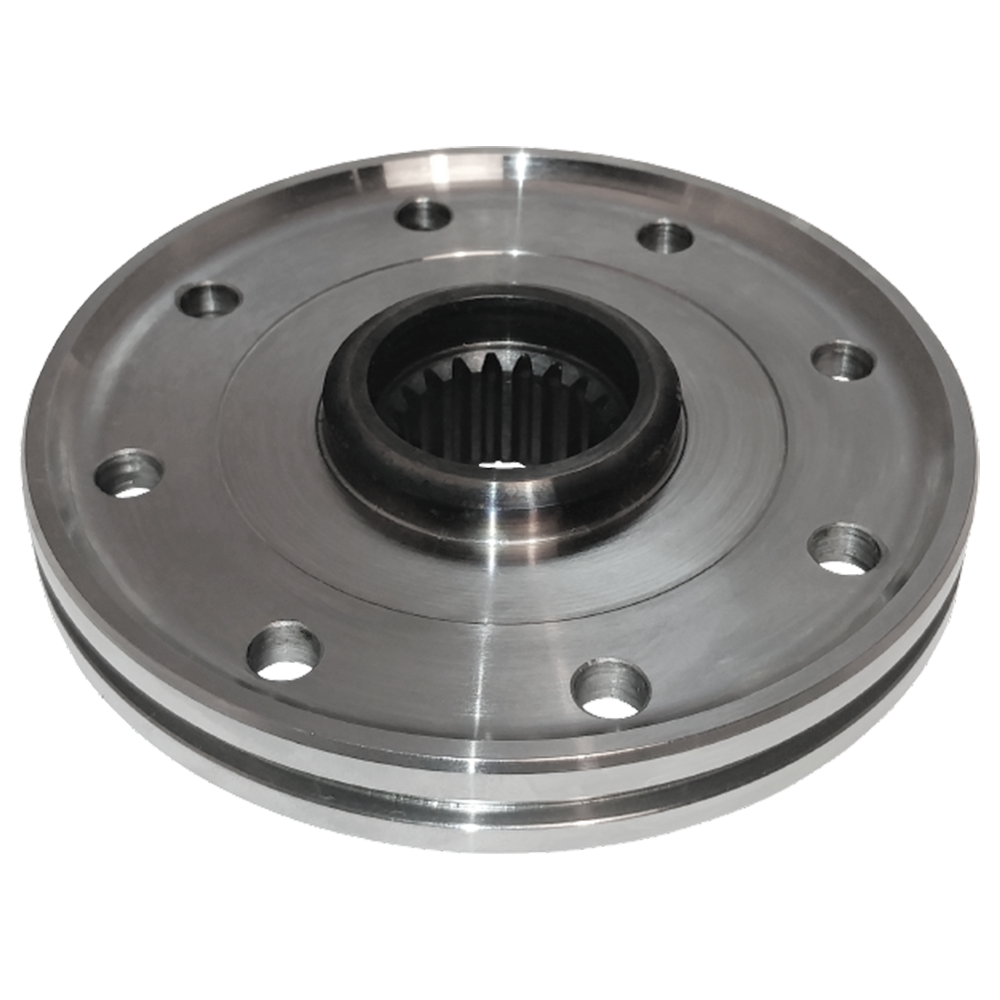

 TX-13-35HT
Turbine Hub TX-13-35HT
& CT-26
  • Height: 0.843
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.48"
14 O-Ring Galant
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 3.237
  • Inside Dia metric: 82.2198
 TO-25-25
O-Ring TO-25-25
& Galant
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 3.237
  • Inside Dia metric: 82.2198
14 Seal Ring CT-27
  • Height: 0.113
  • Width: 0.094
  • Material: PTFE
  • Height Metric: 2.8702
  • Seal Type: Square-Cut
  • Outside Dia: 3.499
  • Outside Dia Metric: 88.8746
 TO-25-11
Seal Ring TO-25-11
& CT-27
  • Height: 0.113
  • Width: 0.094
  • Material: PTFE
  • Height Metric: 2.8702
  • Seal Type: Square-Cut
  • Outside Dia: 3.499
  • Outside Dia Metric: 88.8746
14 O-Ring CT-26
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 3.24
  • Inside Dia metric: 82.296
 TO-25-14
O-Ring TO-25-14
& CT-26
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 3.24
  • Inside Dia metric: 82.296
14 O-Ring CT-26
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 3.236"
  • Inside Dia metric: 82.1944
  • Oversized
 VO-25-1
O-Ring VO-25-1
& CT-26
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 3.236"
  • Inside Dia metric: 82.1944
  • Oversized
14 O-Ring
  • Material: Fluorocarbon
  • Inside Dia: 3.236"
 VO-25-1A
O-Ring VO-25-1A
&
  • Material: Fluorocarbon
  • Inside Dia: 3.236"
15 Metal Clad Seal CT-27
  • Housing Bore Dia: 0.906
  • Housing Bore Dia Metric: 23
  • Shaft Dia metric: 15
  • Shaft Dia: 0.59
  • Material: Fluorocarbon
 TO-25-12
Metal Clad Seal TO-25-12
& CT-27
  • Housing Bore Dia: 0.906
  • Housing Bore Dia Metric: 23
  • Shaft Dia metric: 15
  • Shaft Dia: 0.59
  • Material: Fluorocarbon
15 Metal Clad Seal CT-26
  • Housing Bore Dia: 0.984
  • Housing Bore Dia Metric: 25
  • Shaft Dia metric: 16.81
  • Shaft Dia: 0.669
  • Material: Fluorocarbon
 TO-25-5
Metal Clad Seal TO-25-5
& CT-26
  • Housing Bore Dia: 0.984
  • Housing Bore Dia Metric: 25
  • Shaft Dia metric: 16.81
  • Shaft Dia: 0.669
  • Material: Fluorocarbon
16 Clutch Plate Assembly 8 Springs
  • 8 Springs
 TX-26-13
Clutch Plate Assembly TX-26-13
8 Springs &
  • 8 Springs
17 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.25"
  • Inside Dia: 8.125"
  • 9 Springs, 6 Deep Dimples
 FX-23-6
Lining (Friction Ring,Wafer) FX-23-6
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.25"
  • Inside Dia: 8.125"
  • 9 Springs, 6 Deep Dimples
18 Turbine Washer
  • Thickness: .24"
  • Material: Plastic
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
 TW-9-17
Turbine Washer TW-9-17
&
  • Thickness: .24"
  • Material: Plastic
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
18 Turbine Washer
  • Material: Bronze
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
 TW-9-17B
Turbine Washer TW-9-17B
&
  • Material: Bronze
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
19 Front Cover NPN-9-20-19
Front Cover NPN-9-20-19
&
20 Bolt CT-26. 4 Pieces Required.
  • Dimensions: M10 x 1.3mm
  • Length: 11mm
 B-42
Bolt B-42
& CT-26. 4 Pieces Required.
  • Dimensions: M10 x 1.3mm
  • Length: 11mm
20 Stud CT-27. 4 Pieces Required. NPN-9-20-20
Stud NPN-9-20-20
& CT-27. 4 Pieces Required.
