Torque Converter | Miscellaneous/General Purpose | General purpose

Ill.# Image Description Specification Part #

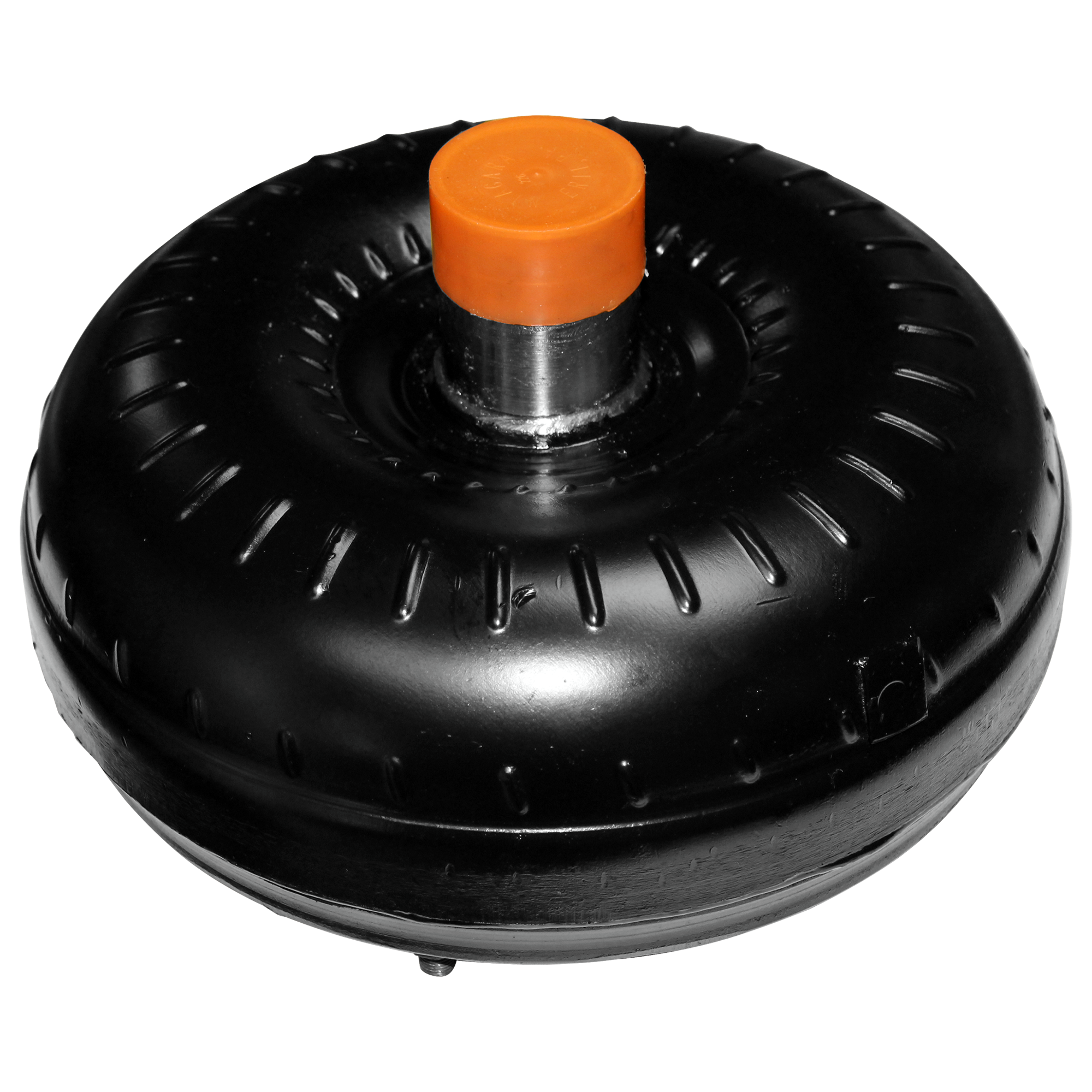

Torque Converter 10943792

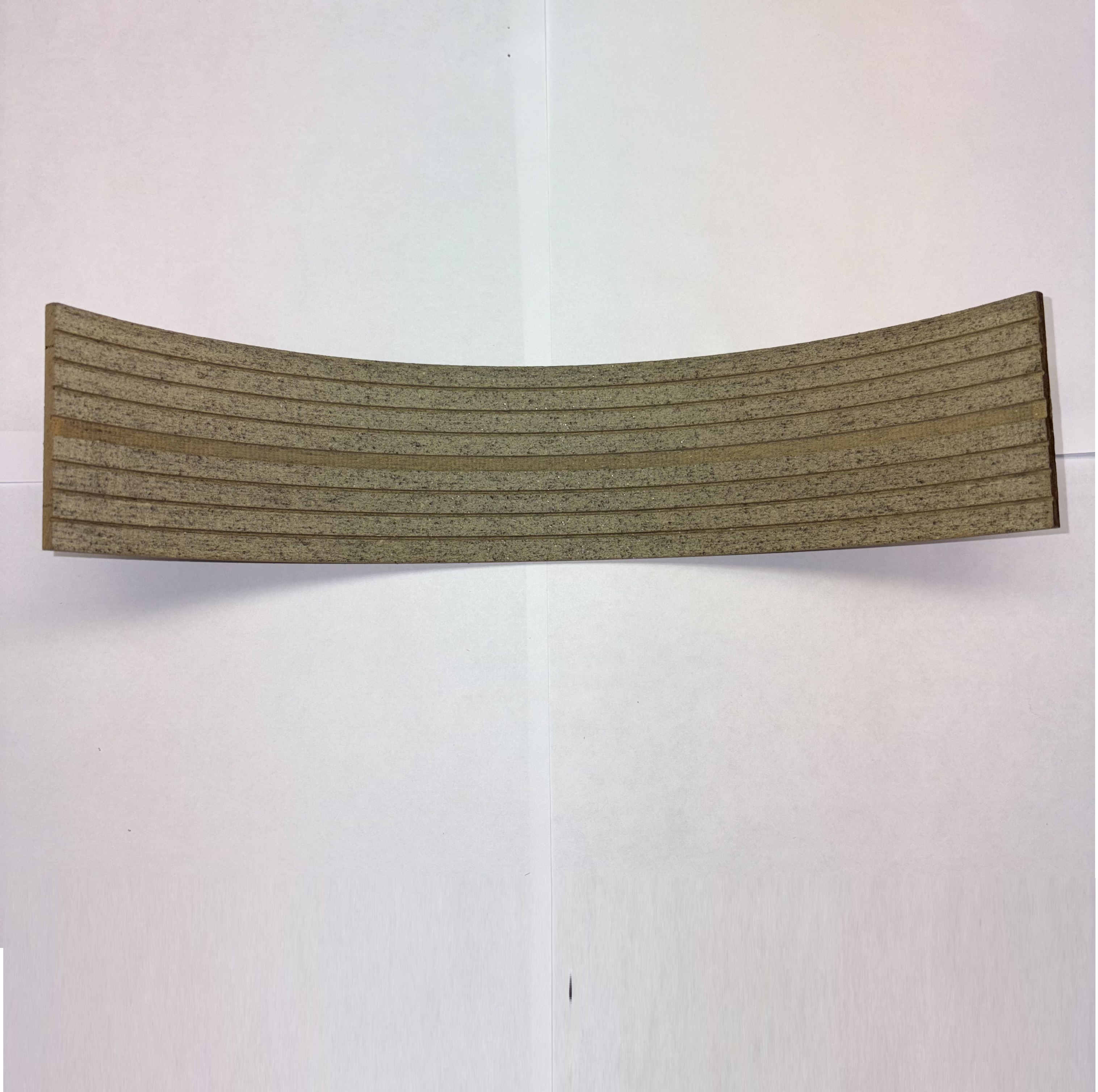

Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
 11650089
Lining (Friction Ring,Wafer) Master Ring
  • Thickness: 0.070"
  • Material: High Carbon
  • Outside Dia: 12"
  • Inside Dia: 7"
 12-7RX70HC

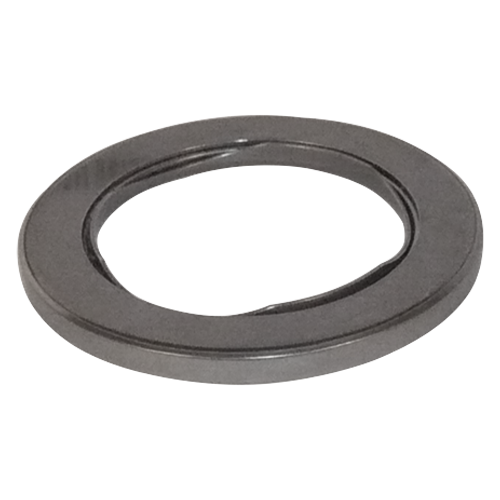

Bearing
  • Thickness: 0.16
  • Thickness metric: 4.06
  • Bearing type: Enclosed
  • Outside Dia: 2.64
  • Inside Dia: 1.76
  • Outside Dia Metric: 67.06
  • Inside Dia metric: 44.7
 35403B

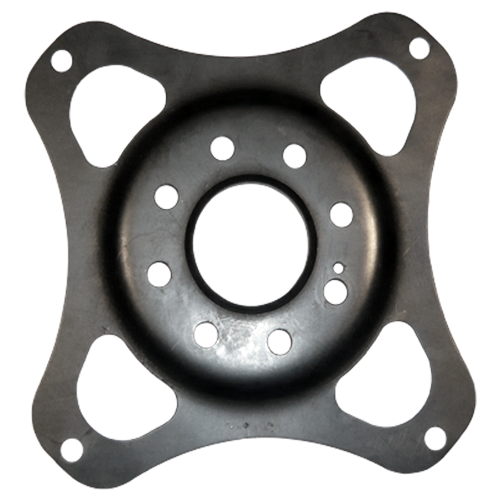

Flexplate 93000035

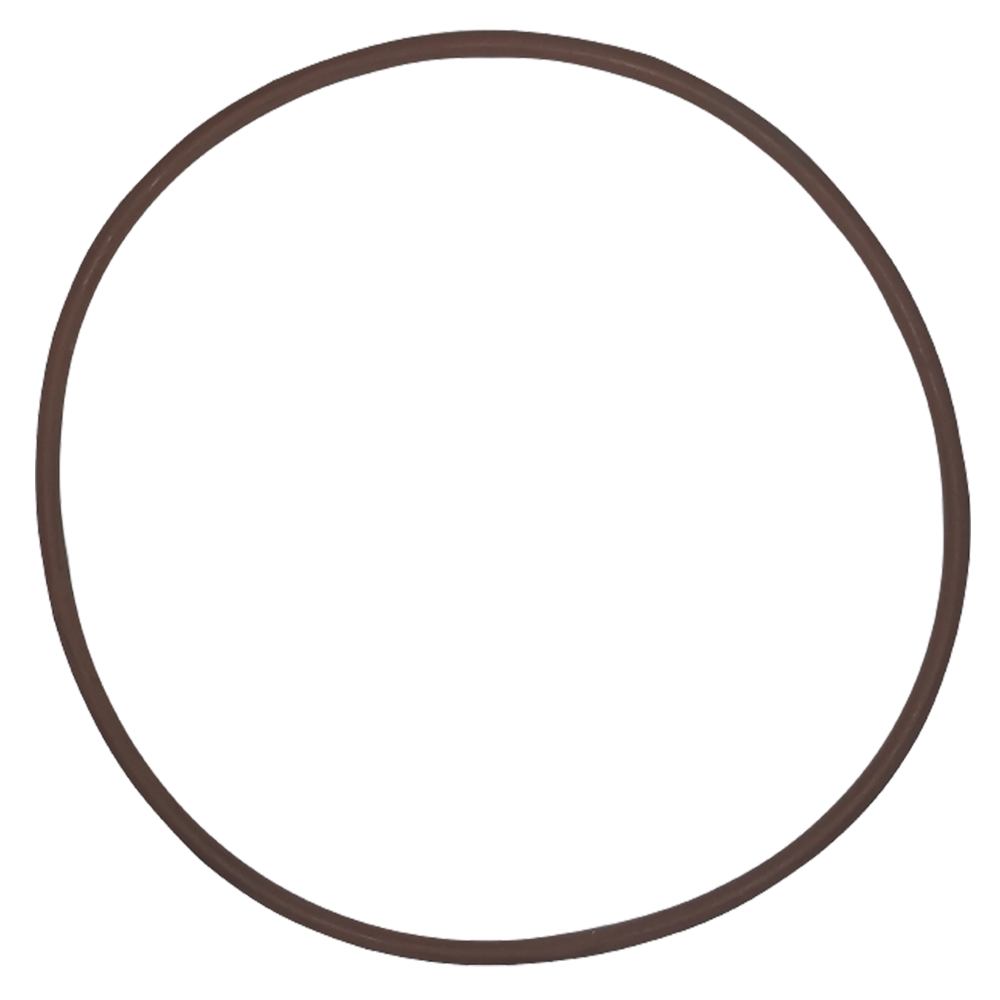

O-Ring
  • Thickness: 0.103"
  • Material: Fluorocarbon
  • Outside Dia: 3.487"
 ARP-153
Lining (Friction Ring,Wafer)
  • Thickness: 0.040"
  • Material: Red
  • Outside Dia: 12.5"
  • Inside Dia: 10.75"
 AX-23-40
Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.040"
  • Material: Red
  • Outside Dia: 11.875"
  • Inside Dia: 10.125"
 AX-23-40KRL
Lining (Friction Ring,Wafer)
  • Thickness: 0.040"
  • Material: Red
  • Outside Dia: 11.875"
  • Inside Dia: 10.125"
 AX-23-40RL

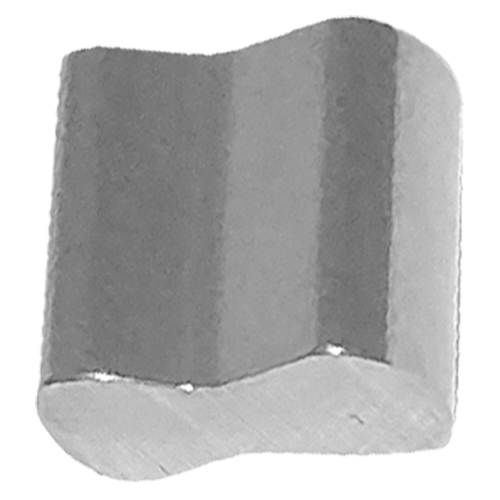

Cam (Sprag Element) F-295

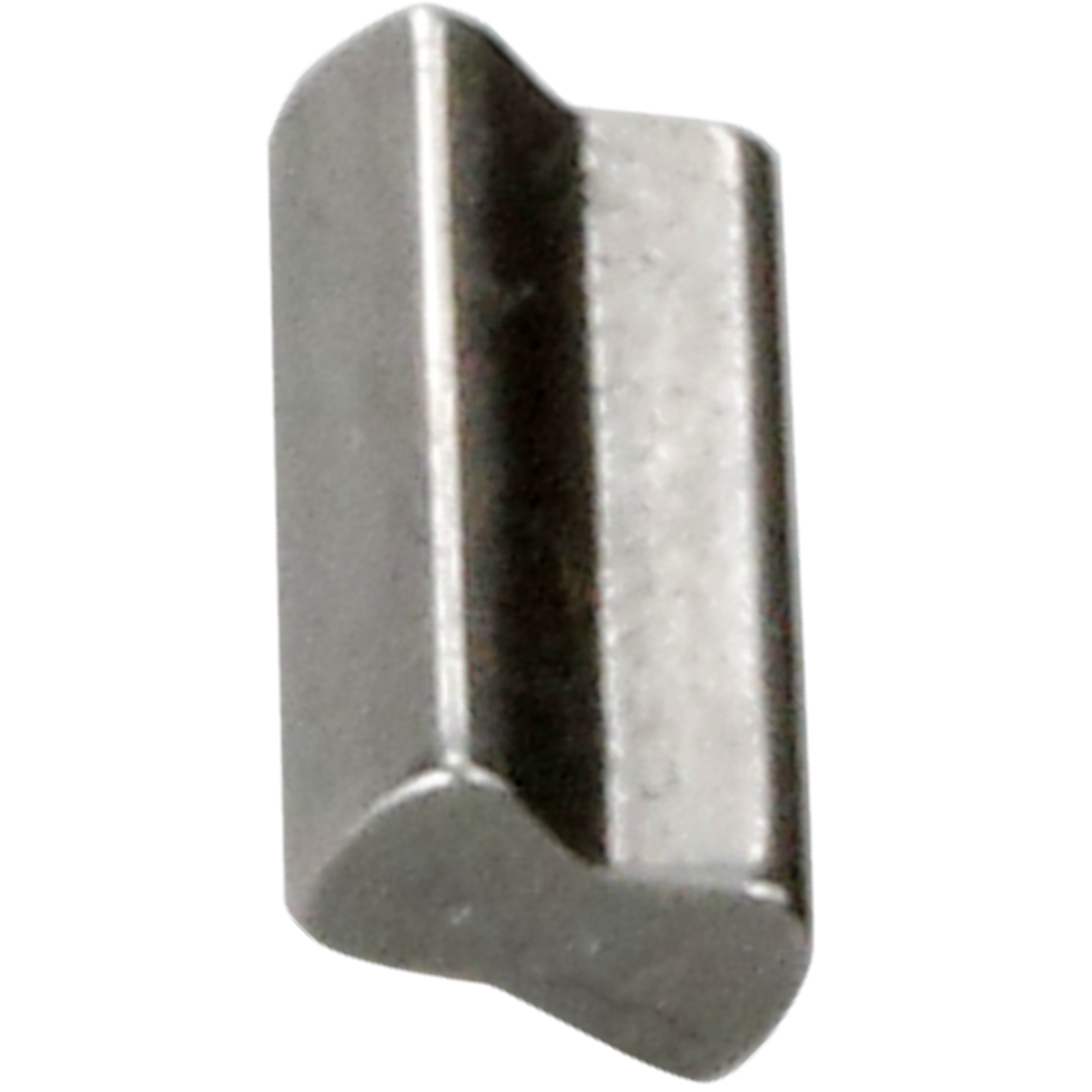

Cam (Sprag Element) F-630

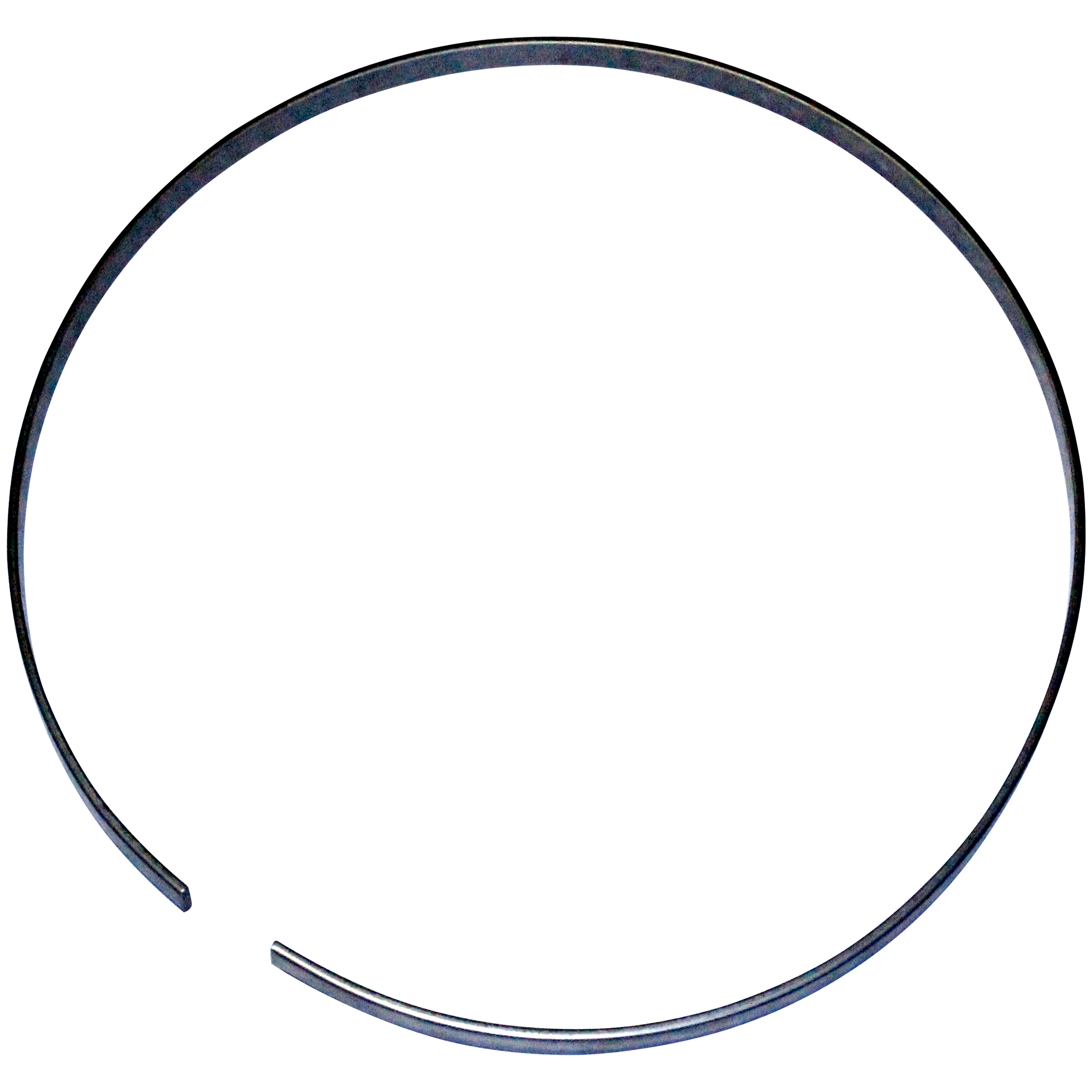

Salvage Ring™
  • Width: 0.375"
  • Outside Dia: 10.86"
 FX-21-846
Salvage Ring™
  • Width: 0.250"
  • Outside Dia: 10.86"
 FX-21-846NR
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.854"
  • Inside Dia: 7.591"
 FX-23-69
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.854"
  • Inside Dia: 7.591"
 FX-23-85
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.250"
  • Inside Dia: 9.700"
 FX-23-86

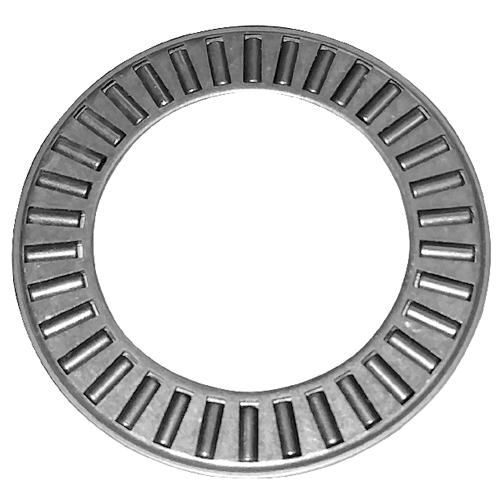

Bearing
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 1.74
  • Inside Dia: 1.13
  • Outside Dia Metric: 44.2
  • Inside Dia metric: 28.7
  • Race: TRA-1828, TRB-1828
 JW-9-3
Washer
  • Outside Dia: 1.75"
  • Inside Dia: 1.13"
 JW-9-4

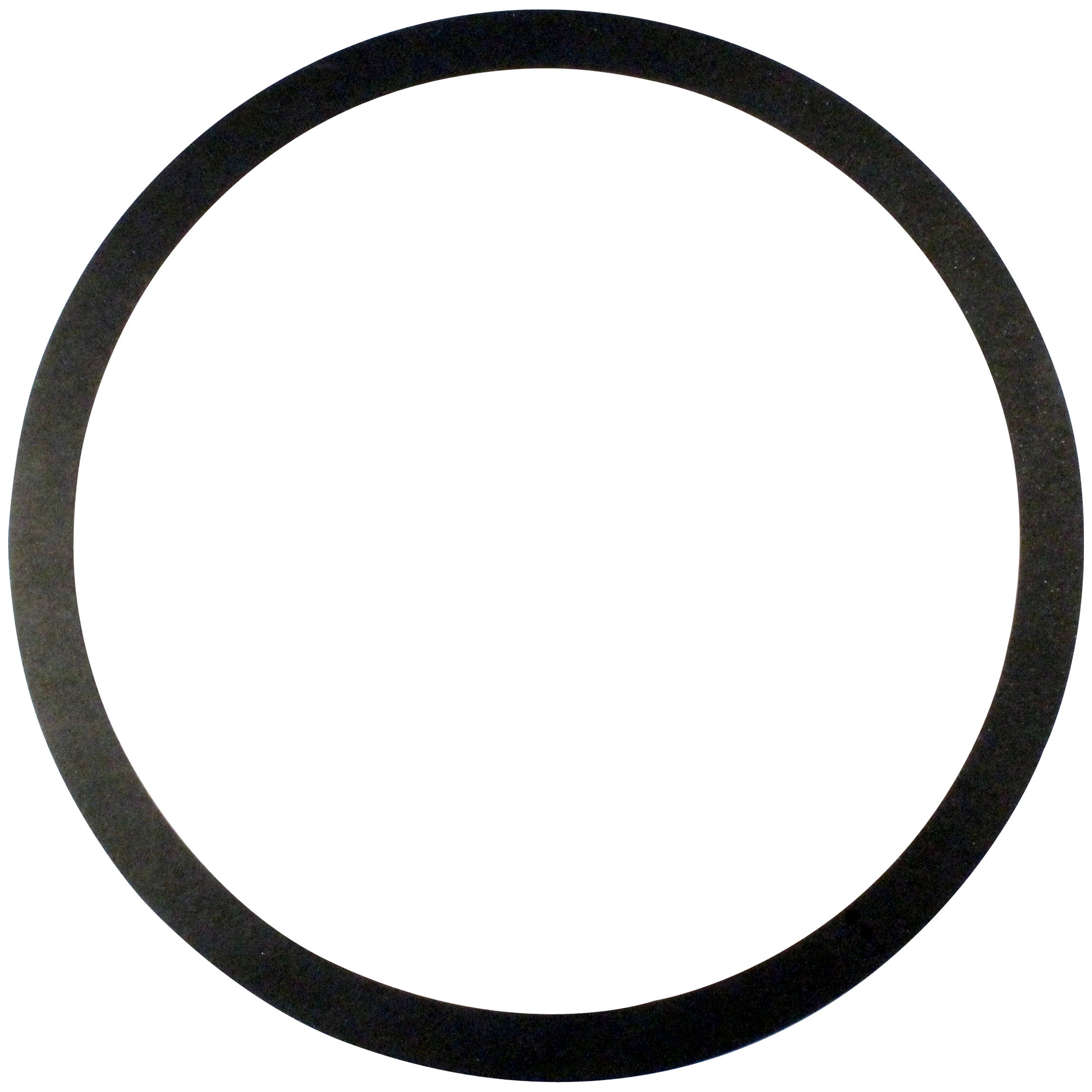

Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Carbon
 LINING-C
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: High Carbon
 LINING-HC
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Kevlar®™
 LINING-K

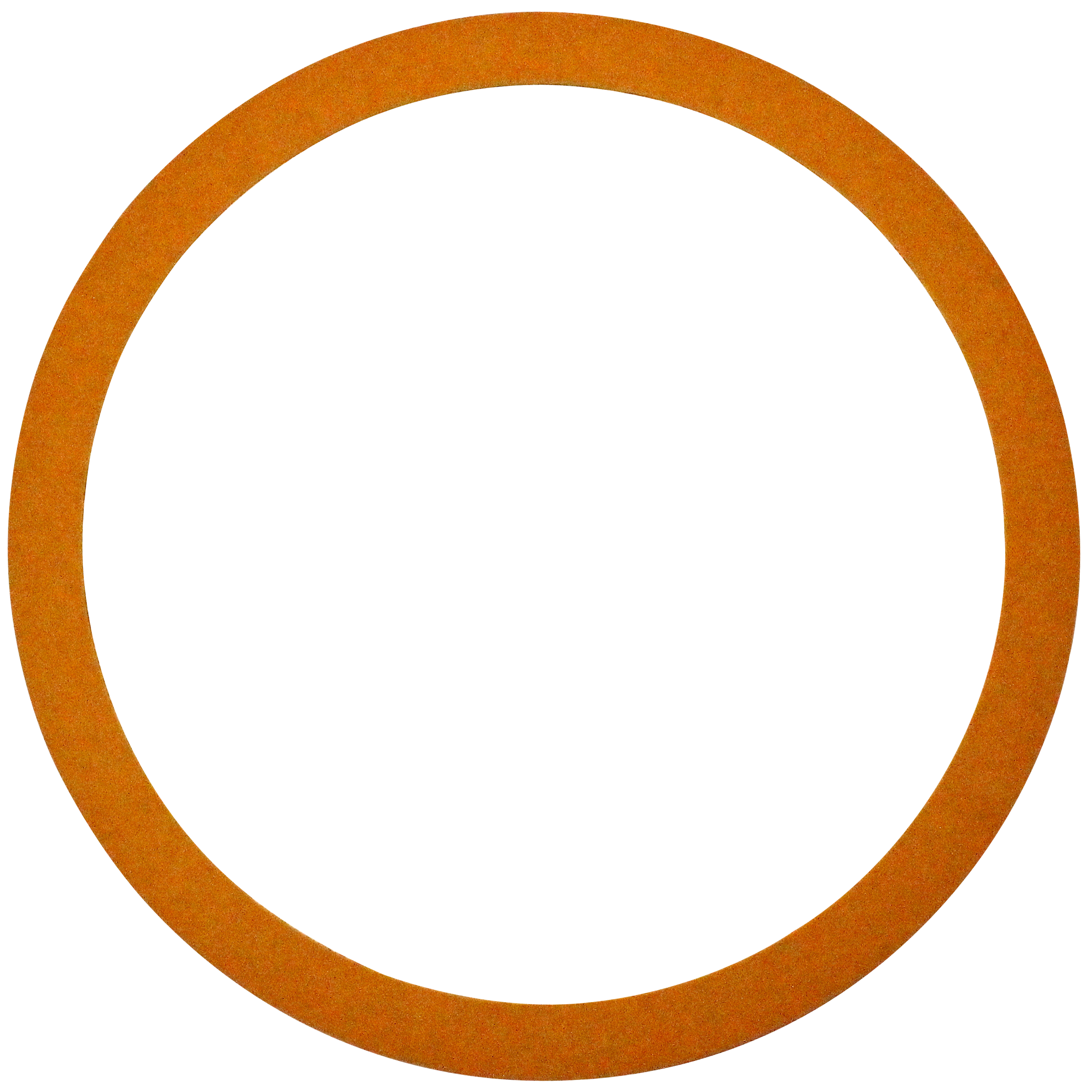

Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Tan
 LINING-T
Lining (Friction Ring,Wafer)
  • Thickness: 0.070"
  • Material: Red
 LINING-X70
Lining (Friction Ring,Wafer)
  • Thickness: 0.070"
  • Material: Carbon
 LINING-X70C
Lining (Friction Ring,Wafer) Embossed
  • Thickness: 0.070"
  • Material: Embossed (Modulated),High Carbon
 LINING-X70EHC
Lining (Friction Ring,Wafer)
  • Thickness: 0.070"
  • Material: High Carbon
 LINING-X70HC
Lining (Friction Ring,Wafer)
  • Thickness: 0.070"
  • Material: Kevlar®™
 LINING-X70K
Lining (Friction Ring,Wafer) GROOVED,KEVLAR,.070
  • Thickness: 0.070"
  • Material: Grooved (Modulated),Kevlar®
 LINING-X70MK
Lining (Friction Ring,Wafer)
  • Thickness: 0.070"
  • Material: Tan
 LINING-X70T
Label "CAUTION! Use proper bolt" ML-1
Label "CAUTION! For proper engagement..." ML-3
Label Timing Sticker ML-TS1
Shim
  • Thickness: 0.05"
  • Material: Steel
  • Outside Dia: 3.75"
  • Inside Dia: 2.0"
  • (non heat-treated. Can not be used for bearing race)
 MW-2-2
Bearing
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 1.75
  • Inside Dia: 1.125
  • Outside Dia Metric: 44.45
  • Inside Dia metric: 28.58
  • Race: TRA-1828, TRB-1828
 NTA-1828

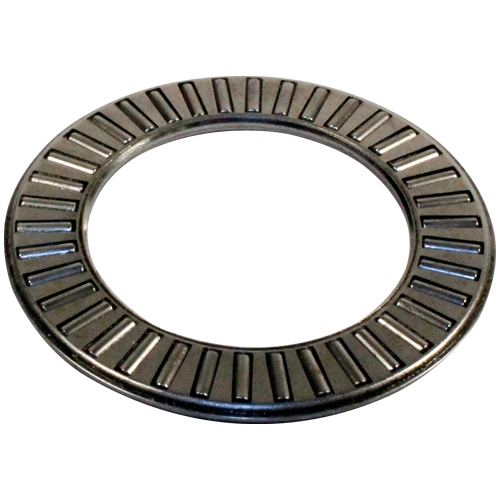

Bearing
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 1.938
  • Inside Dia: 1.250
  • Outside Dia Metric: 49.23
  • Inside Dia metric: 31.75
  • Race: TRA-2031, TRB-2031, TRA-1821 Or TRB-1821
 NTA-2031
Bearing
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 2.062
  • Inside Dia: 1.375
  • Outside Dia Metric: 52.37
  • Inside Dia metric: 34.93
  • Race: TRA-2233, TRB-2233
 NTA-2233
Bearing
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 2.17
  • Inside Dia: 1.5
  • Outside Dia Metric: 55.12
  • Inside Dia metric: 38.1
  • Race: TRA-2435 (SW-2-30) .030" thick, Race: TRB-2435 (SW-2-60) .060" thick .
 NTA-2435
Bearing
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 2.5
  • Inside Dia: 1.75
  • Outside Dia Metric: 63.5
  • Inside Dia metric: 44.45
  • Race: TRA-2840,TRB-2840
 NTA-2840

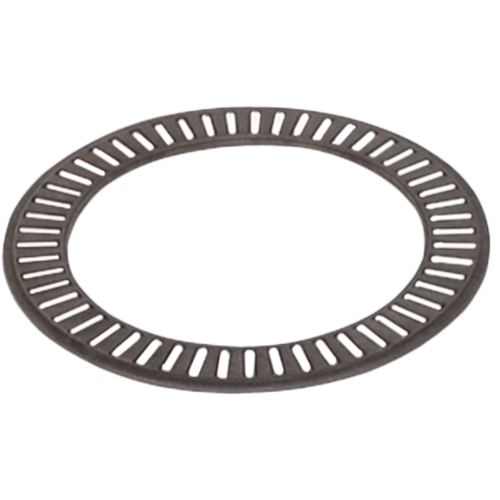

Bearing
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 2.75
  • Inside Dia: 2
  • Outside Dia Metric: 69.85
  • Inside Dia metric: 50.8
  • Race: TRA-3244, TRB-3244
 NTA-3244

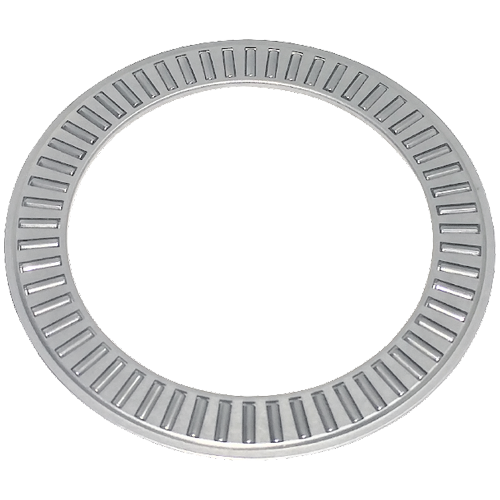

Bearing
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 2.88
  • Inside Dia: 2.13
  • Outside Dia Metric: 73.15
  • Inside Dia metric: 54.1
  • Race: TRA-3446, TRB-3446
 NTA-3446
Bearing
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 3.725
  • Inside Dia: 3
  • Outside Dia Metric: 94.62
  • Inside Dia metric: 76.2
  • Race: TRA-4860, TRB-4860
 NTA-4860
Bearing
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 2.037
  • Inside Dia: 1.384
  • Outside Dia Metric: 51.74
  • Inside Dia metric: 35.15
  • Race: PW-2-8, PW-2-9
 PW-2-7
Bearing Race
  • Thickness: 0.030"
  • Outside Dia: 2.12"
  • Inside Dia: 1.38"
 PW-2-9
Ring Gear
  • External Teeth: 121
  • Outside Dia: 12.32"
  • Inside Dia: 11.15"
 RG-121B

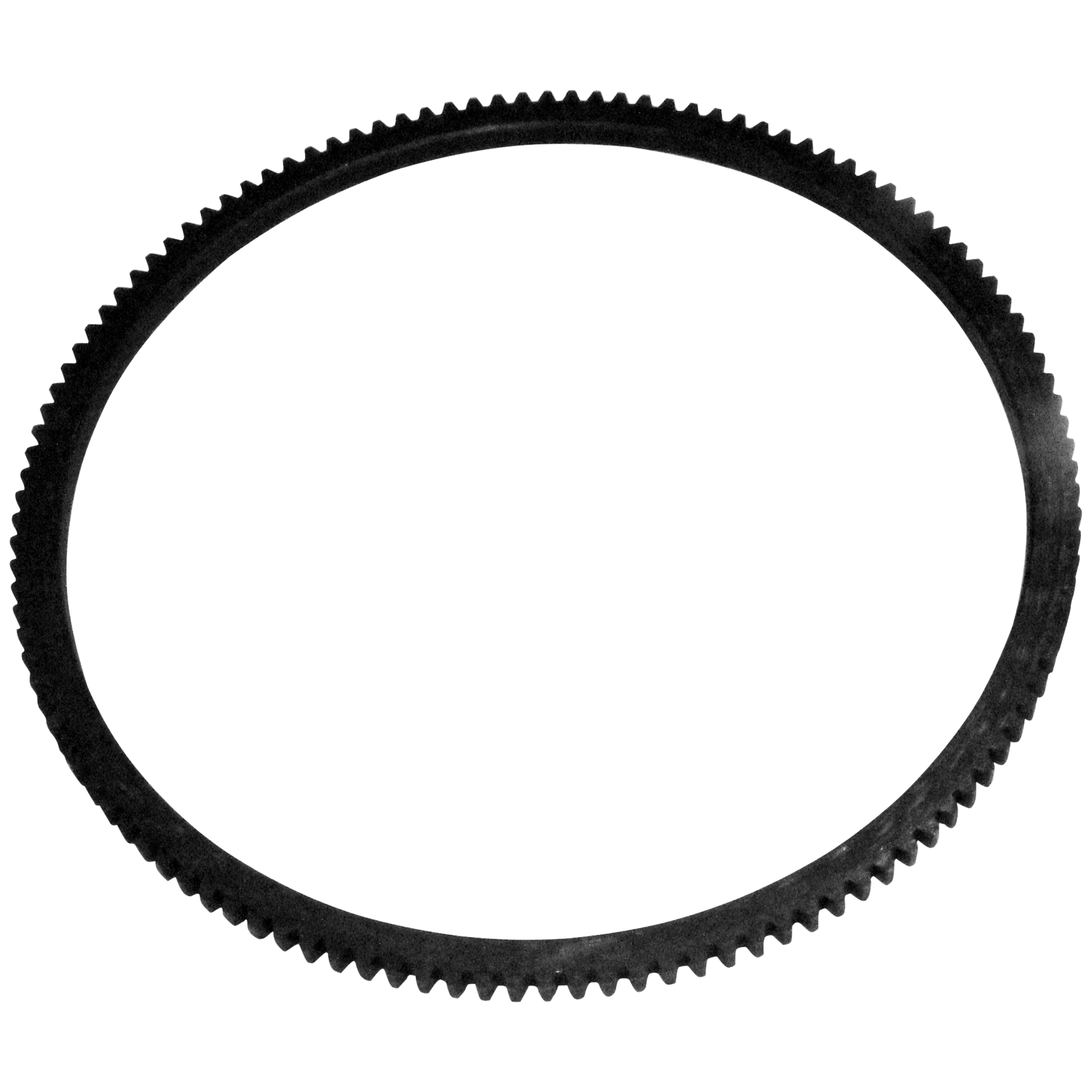

Ring Gear
  • External Teeth: 121
  • Outside Dia: 12.32"
  • Inside Dia: 11.15"
 RG-121BT

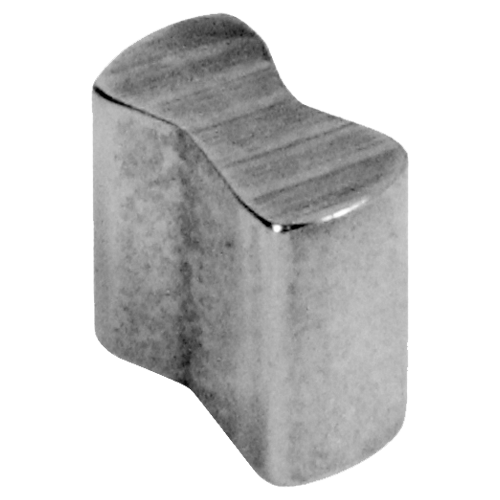

Cam (Sprag Element) S-315

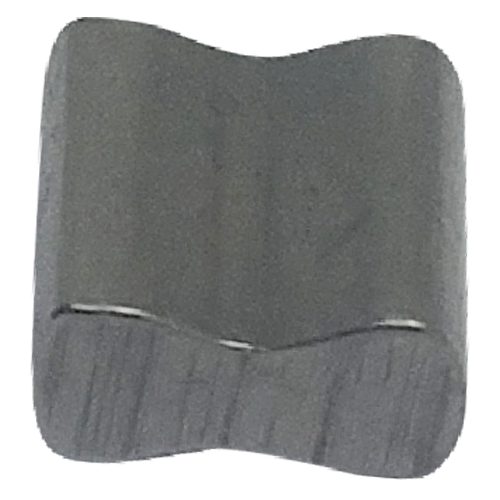

Cam (Sprag Element) S-316

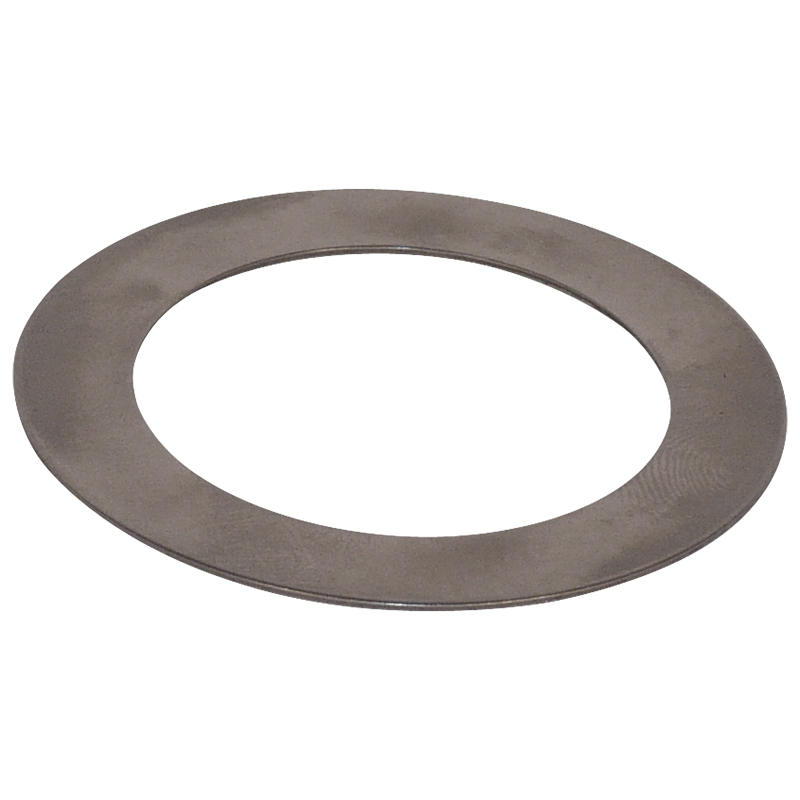

Washer Steel
  • Thickness: .030"
  • Hardness: Rc 32-36
  • Outside Dia: 2.175"
  • Inside Dia: 1.51"
 SW-2-30

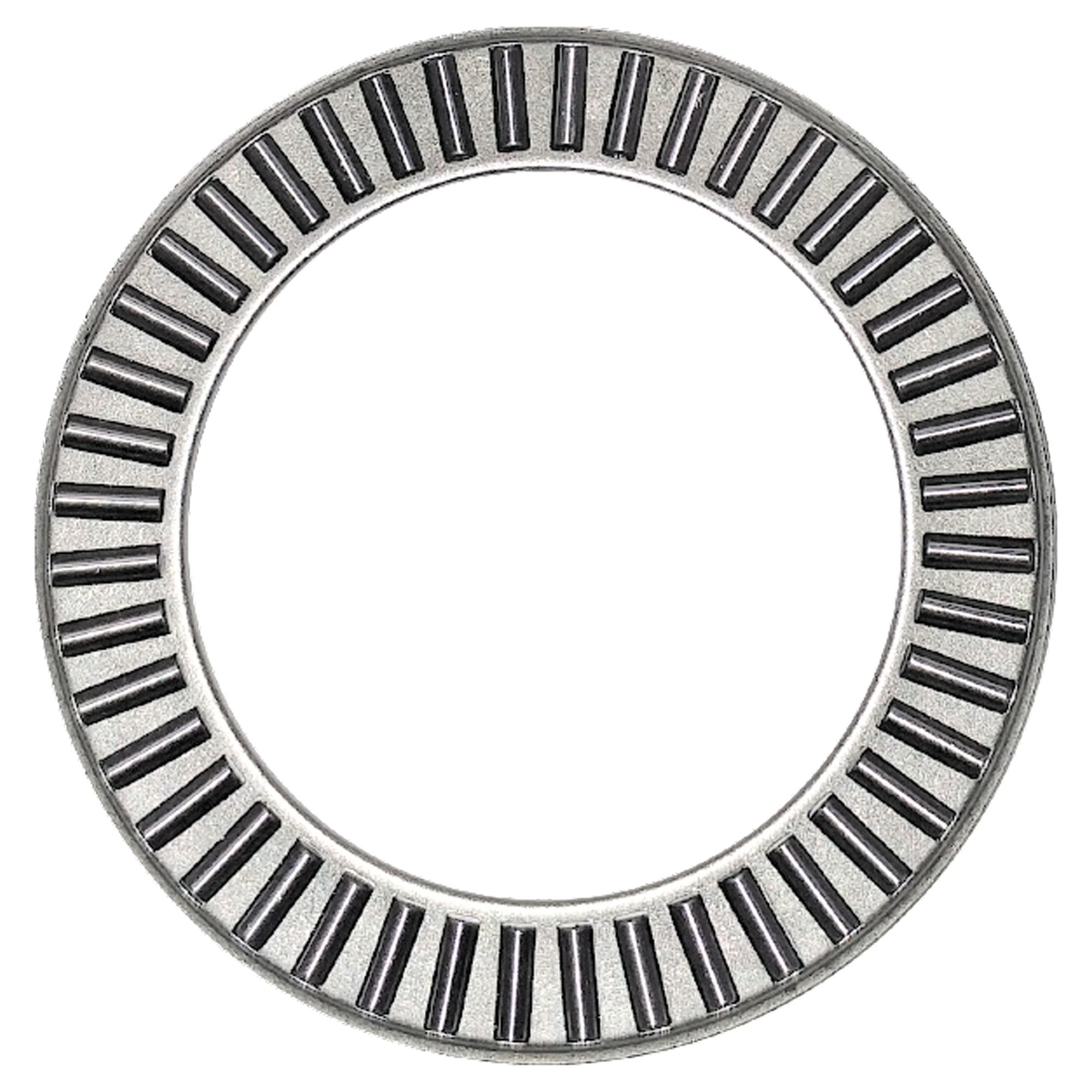

Bearing
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 2.17
  • Inside Dia: 1.5
  • Outside Dia Metric: 55.12
  • Inside Dia metric: 38.1
  • Race: JW-9-8, JW-9-9, SW-2-30, SW-2-60, SW-2-4, SW-2-6
 SW-2D
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.10"
  • Inside Dia: 7.50"
 SX-23-55
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.750"
  • Inside Dia: 10.250"
 SX-23-66

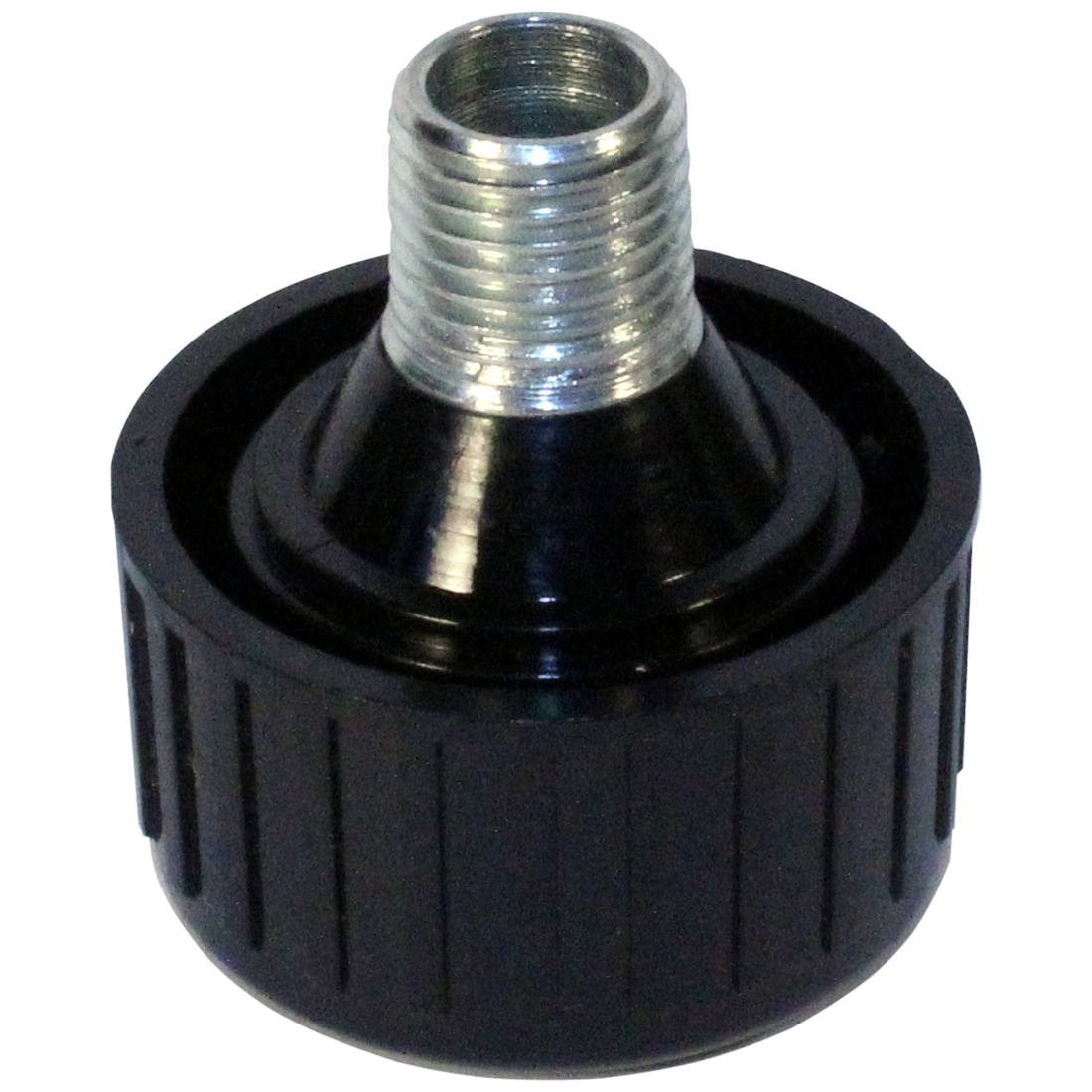

Breather T9N1597
Bearing Race
  • Thickness: 0.030"
  • Outside Dia: 1.75"
  • Inside Dia: 1.13"
 TRA-1828

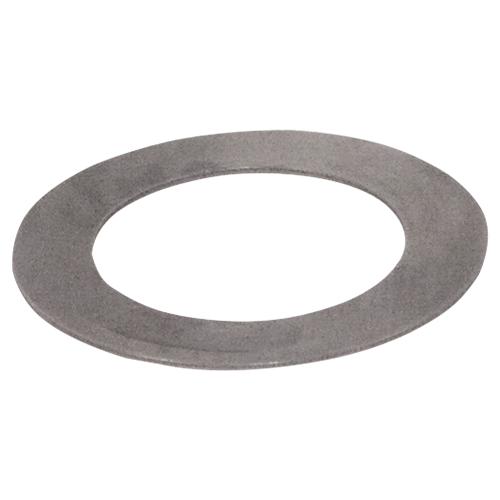

Bearing Race
  • Thickness: 0.030"
  • Outside Dia: 1.920"
  • Inside Dia: 1.25"
 TRA-2031
Bearing Race
  • Thickness: 0.030"
  • Outside Dia: 2.06"
  • Inside Dia: 1.380
 TRA-2233
Washer Bearing Race
  • Thickness: .030"
  • Hardness: Rc 32-36
  • Material: Steel
  • Outside Dia: 2.175"
  • Inside Dia: 1.51"
 TRA-2435

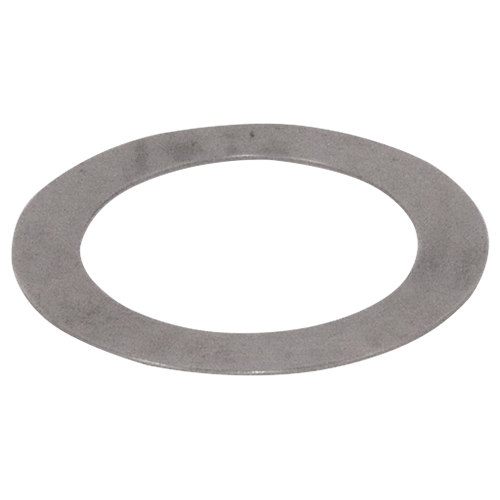

Bearing Race
  • Thickness: 0.030"
  • Outside Dia: 2.50"
  • Inside Dia: 1.75"
 TRA-2840

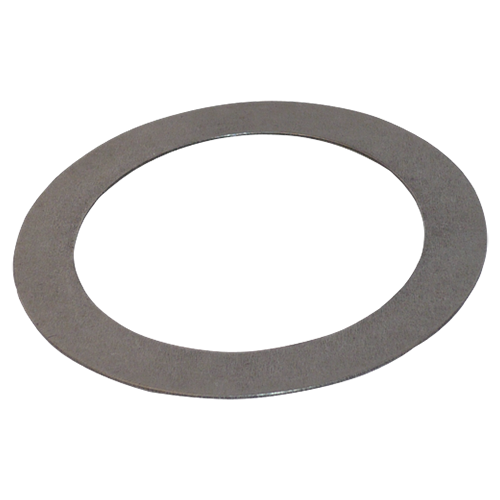

Bearing Race
  • Thickness: .03"
  • Outside Dia: 2.75"
  • Inside Dia: 2.00"
 TRA-3244

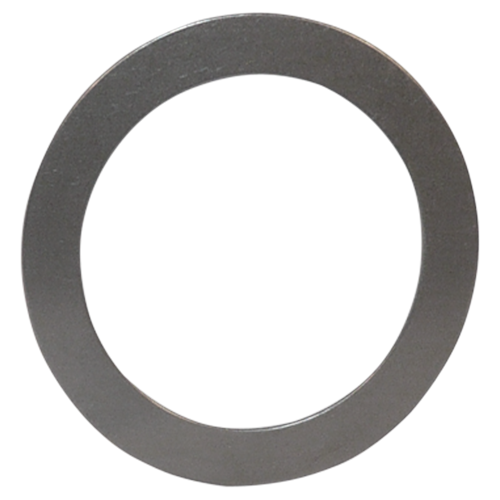

Bearing Race
  • Thickness: 0.030"
  • Outside Dia: 2.88"
  • Inside Dia: 2.13"
 TRA-3446

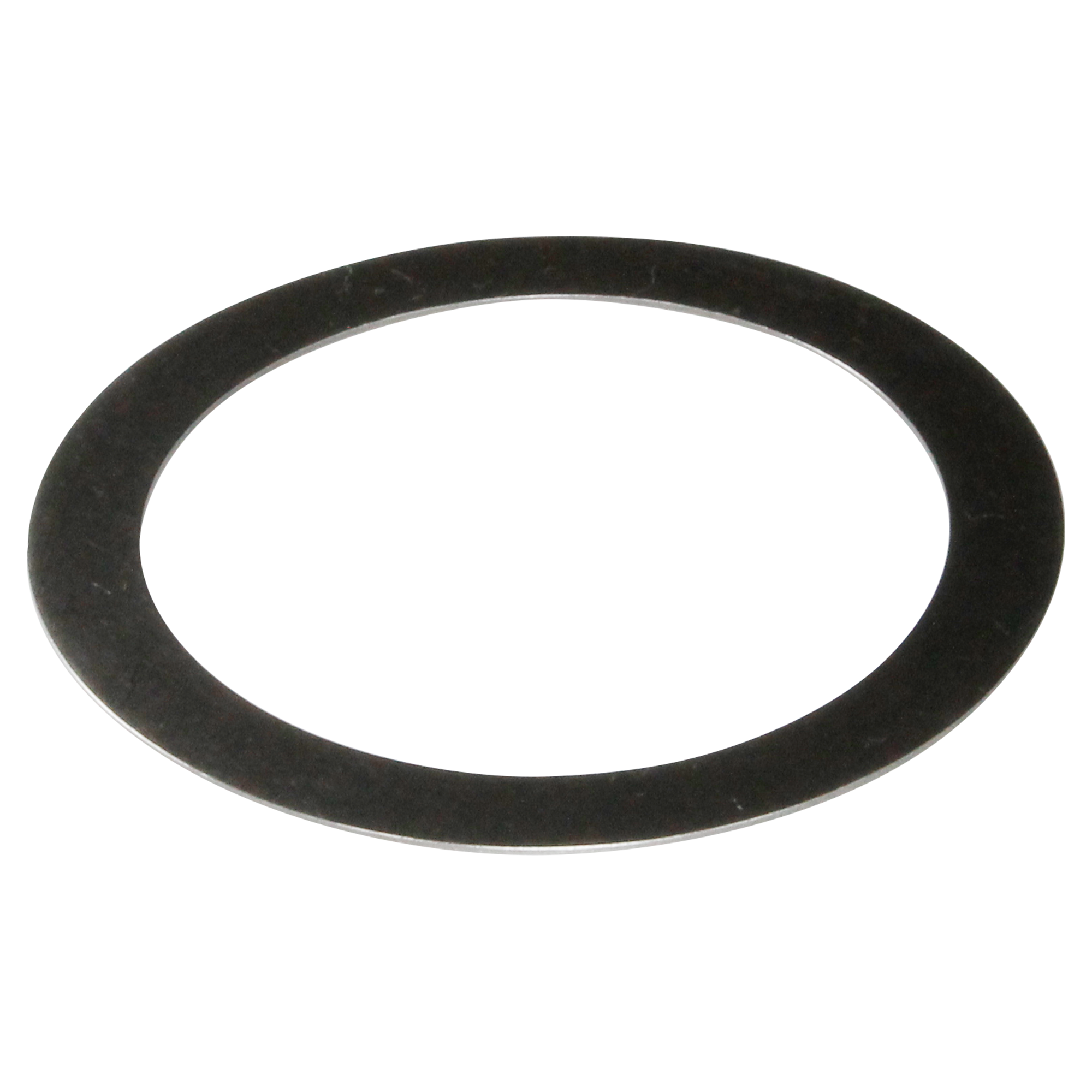

Bearing Race
  • Thickness: 0.030"
  • Outside Dia: 3.25
  • Inside Dia: 2.5"
 TRA-4052
Bearing Race
  • Thickness: 0.030"
  • Outside Dia: 3.73"
  • Inside Dia: 3.00"
 TRA-4860

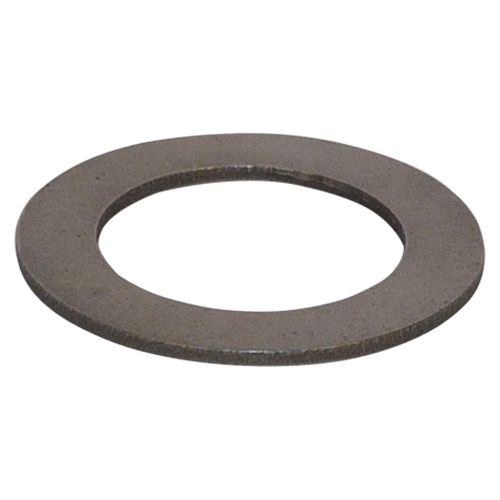

Washer
  • Outside Dia: 1.75"
  • Inside Dia: 1.13"
 TRB-1828
Bearing Race
  • Thickness: 0.06"
  • Outside Dia: 1.925"
  • Inside Dia: 1.25"
 TRB-2031
Bearing Race
  • Thickness: 0.062"
  • Outside Dia: 2.062"
  • Inside Dia: 1.375"
 TRB-2233
Bearing Race Kit 0.060" (replaces TRB-2233)
  • Outside Dia: 2.062"
  • Inside Dia: 1.375"
 TRB-2233K
Washer Bearing Race
  • Thickness: .063"
  • Hardness: Rc 32-36
  • Material: Steel
  • Outside Dia: 2.188"
  • Inside Dia: 1.51
 TRB-2435
Bearing Race
  • Thickness: 0.060"
  • Outside Dia: 2.50"
  • Inside Dia: 1.75"
 TRB-2840

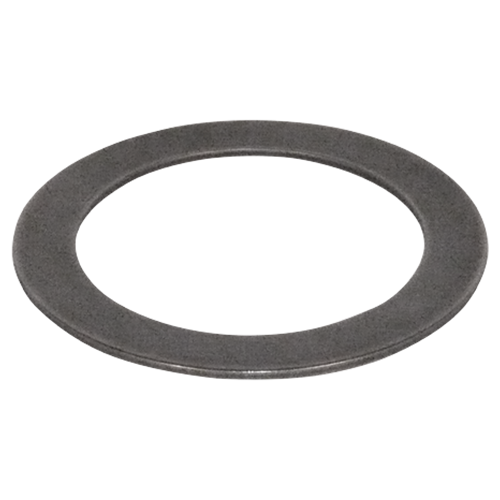

Bearing Race
  • Thickness: .06"
  • Outside Dia: 2.75"
  • Inside Dia: 2.00"
 TRB-3244
Washer Bearing Race
  • Thickness: 0.063"
  • Hardness: Rc 32-36
  • Material: Steel
  • Outside Dia: 2.875
  • Inside Dia: 2.125"
 TRB-3446

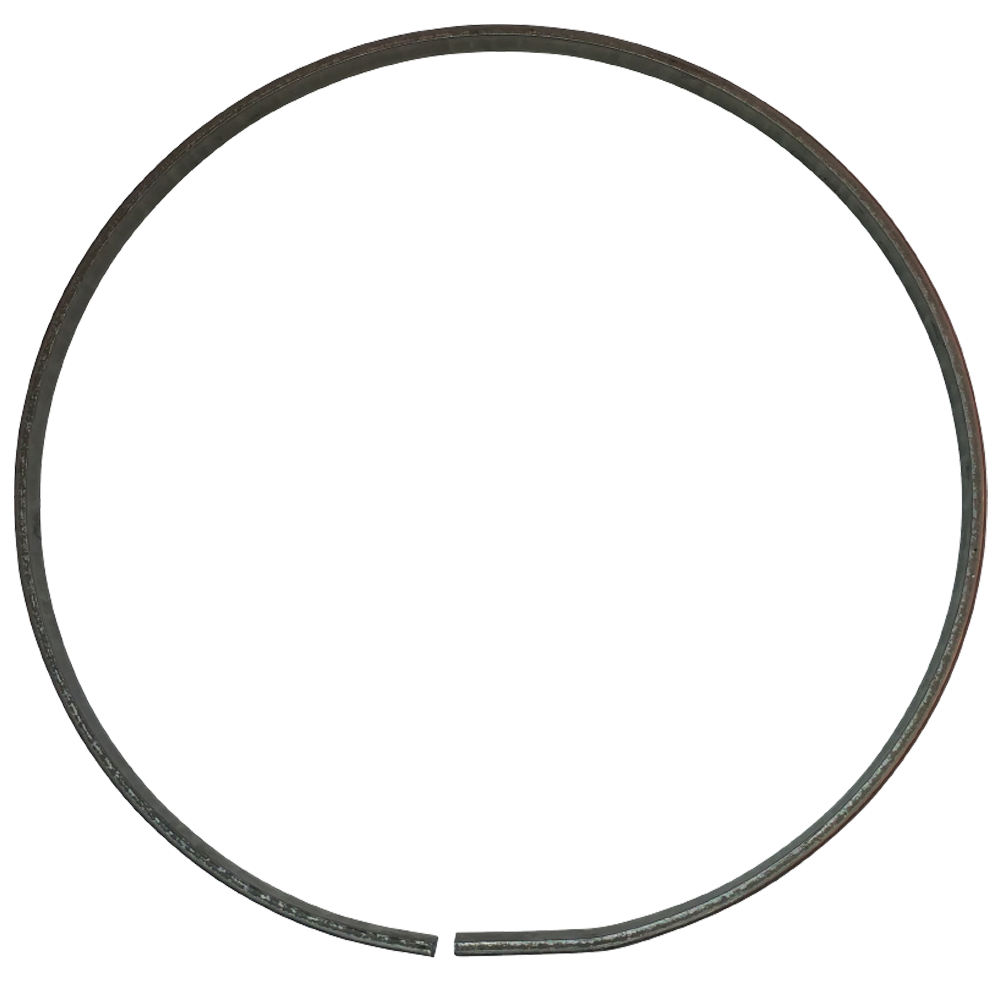

Salvage Ring™ TX-22-599

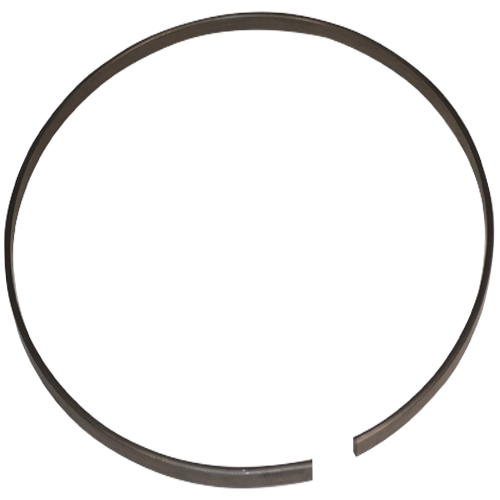

Salvage Ring™
  • Width: 0.375"
  • Outside Dia: 9.04"
 TX-22-7015

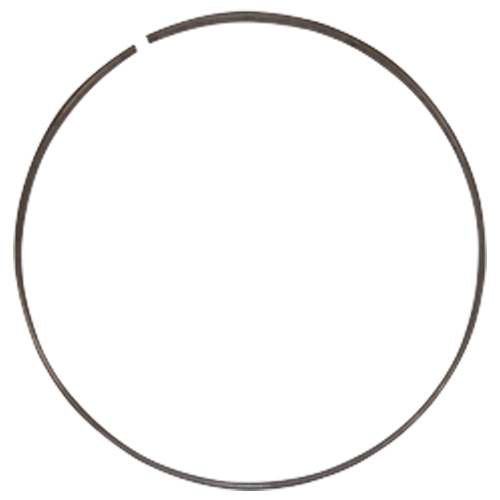

Salvage Ring™
  • Width: 0.250"
  • Outside Dia: 9.04"
 TX-22-7015NR

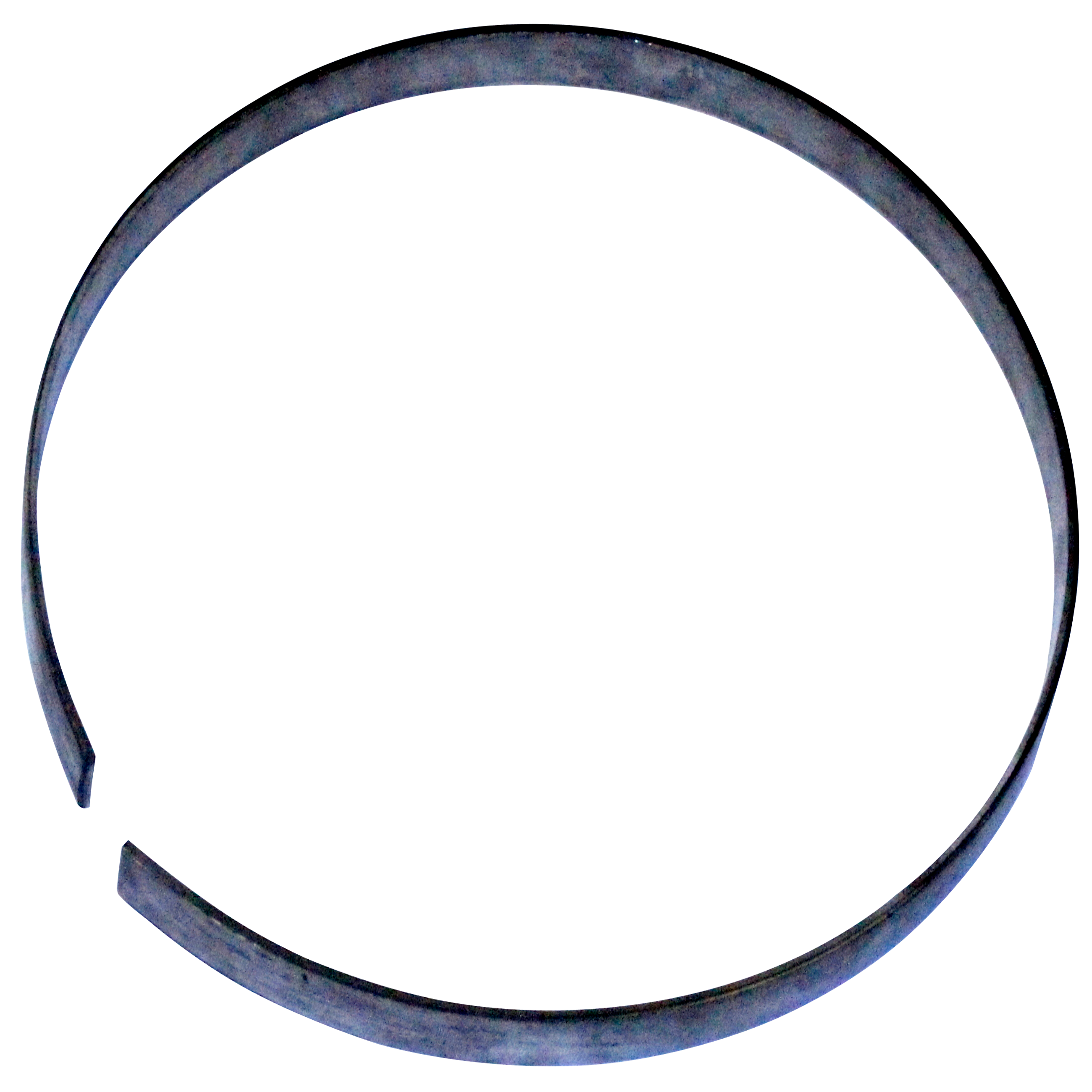

Ring Salvage, 9.75 TX-22-RR-8
Lining (Friction Ring,Wafer) PWM torque converter systems
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 4.938"
  • Inside Dia: 4.38"
 TX-23-20
