1 |
|
Impeller Hub |
Unfinished
Bolted Converter
|
- Journal Dia: 1.378"
- Installed Height: 1.880"
- Hub Mount: Thru
- For Bolted Units
|
HH-1E
|
1 |
|
Impeller Hub |
Fluid Coupling
|
- Journal Dia: 1.100"
- Installed Height: 1.545"
- Inner Dia: 1.34"
- Flange Dia: 1.34"
|
HH-1L
|

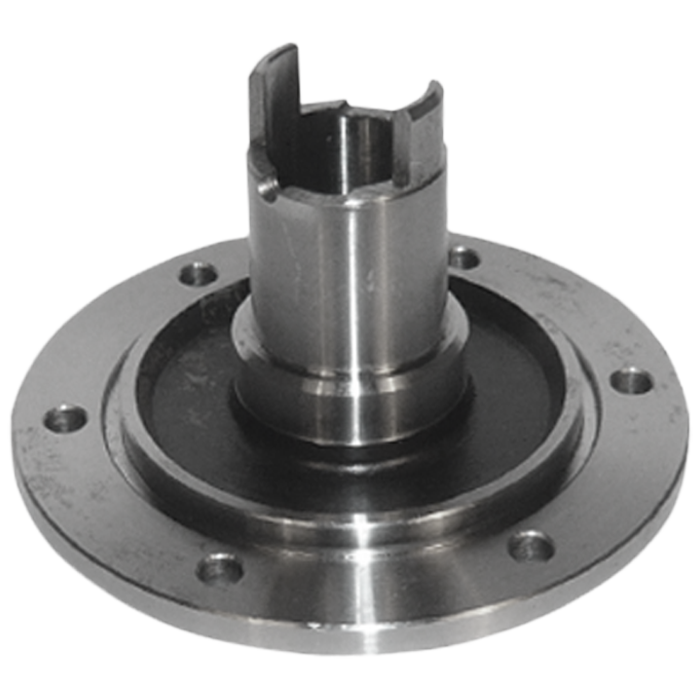

1 |
|
Impeller Hub |
Riveted
Fluid Coupling
|
- Journal Dia: 1.100"
- Installed Height: 2.120"
- Inner Dia: 1.34"
- Hub Mount: Flanged
- Pump Drive Type: 2 Lugs
- Hardness: Rc 32-36
- Fluid Coupling, Riveted
|
HH-1LC
|
1 |
|
Impeller Hub |
Flanged, OEM Type, Riveted
Fluid Coupling
|
- Journal Dia: 1.100"
- Installed Height: 2.120"
- Hub Mount: Flanged
- Pump Drive Type: 2 Slots
- Hardness: Rc 32-36
- Fluid Coupling, Riveted
|
HH-1SC
|
1 |
|
Impeller Hub |
Welded
Fluid Coupling
|
- Journal Dia: 1.100"
- Installed Height: 2.140"
- Hub Mount: Flanged
- Pump Drive Type: 2 Slots,
- Hardness: Rc 32-36
- Fluid Coupling, Welded
|
HH-1SW
|
1 |
|
Impeller Hub |
Converter
|
- Journal Dia: 1.732"
- Installed Height: 1.760"
- Hub Mount: Flanged
- Pump Drive Type: 2 Lugs
- Hardness: Rc 32-36
|
HH-1-2C
|
1 |
|
Impeller Hub |
Converter 1980 - Up
|
- Journal Dia: 1.695"
- Installed Height: 1.820"
- Hub Mount: Flanged
- Pump Drive Type: 2 Slots
- Hardness: Rc 32-36
|
HH-1-3C
|
1 |
|
Impeller Hub |
Converter
|
- Journal Dia: 1.695"
- Installed Height: 1.750"
- Pump Drive Type: 2 Slots
|
HH-1-3G
|
1 |
|
Impeller Hub |
Converter
|
- Journal Dia: 1.695"
- Height: 2.000"
- Hub Mount: Butt
- Pump Drive Type: slots
- Hardness: Rc 32-36
|
HH-1-5GRC
|
1 |
|
Impeller Hub |
Converter, Model 190
|
- Journal Dia: 1.378"
- Installed Height: 1.800"
- Hub Mount: Flanged
- Pump Drive Type: 2 Slots
|
HH-1-4C
|
1 |
|
Impeller Hub |
Converter, Model 190
|
- Journal Dia: 1.378"
- Installed Height: 1.800"
- Hub Mount: Flanged
- Hardness: Rc 32-36
|
HH-1-6C
|
1.2 |
|

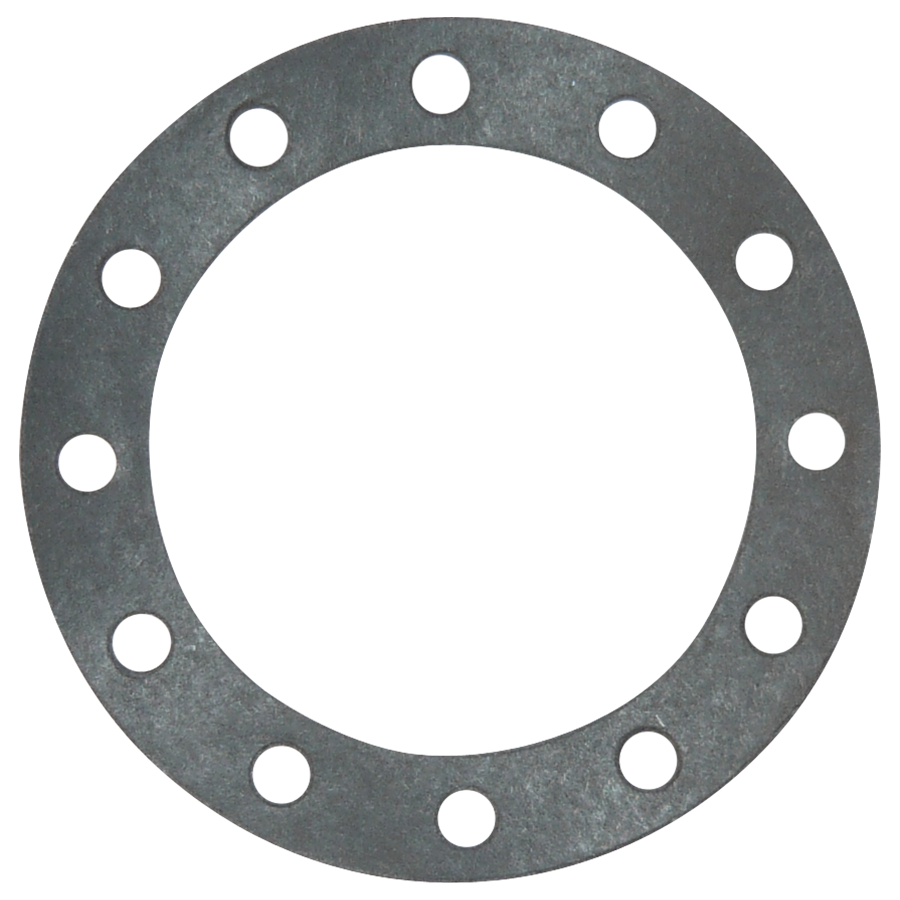

Gasket |
Hub, 12 Holes
Fluid Coupling
|
|
HG-1-12
|
1.3 |
|
Washer |
METAL
|
|
85008
|
1.3 |
|

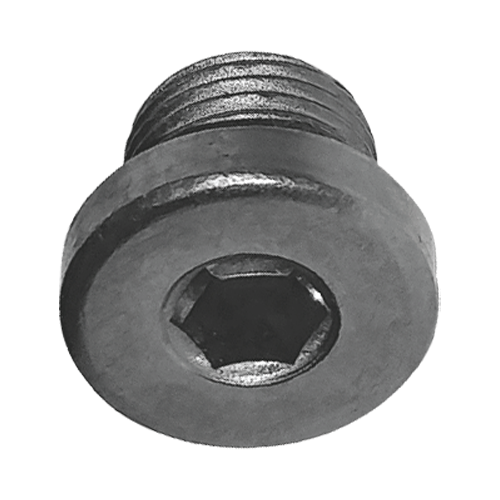

Drain Plug |
Steel, M10X1.00X8mm
Fits Converter & Fluid Coupling. Used with HX-11G Gasket
|
|
HX-11
|
1.3 |
|

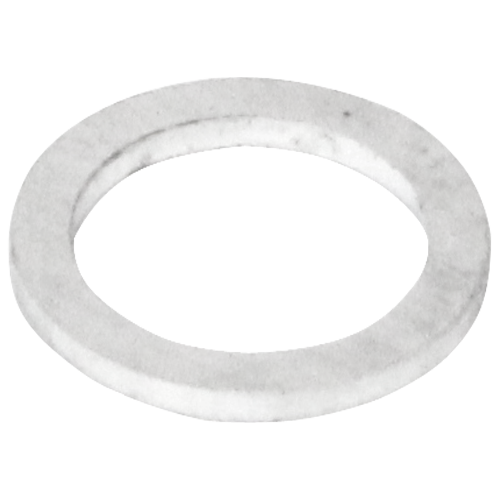

Gasket |
Metal
Fits Converter & Fluid Coupling. Used with HX-11 Drain Plug
|
|
HX-11G
|
2 |
|
O-Ring |
For Steel Fluid Coupling, Hub
|
- Outer Dia: 2.83"
- Inner Dia: 2.68"
- Thickness: .08"
- For Steel Fluid Drive Hubs
|
HO-1
|
3 |
|
Stator Cap |
Converter, modification package
|
- Thickness: 0.217"
- Outer Dia Metric: 79,5mm
- Inner Dia metric: 34.5mm
- Material: Aluminum
|
HW-4
|
3 |
|
Stator Cap Repair Kit |
Converter
|
- for Adaptation (With Bearing TW-9-13 and Machined HW-4)
|
HW-4K
|
4 |
|

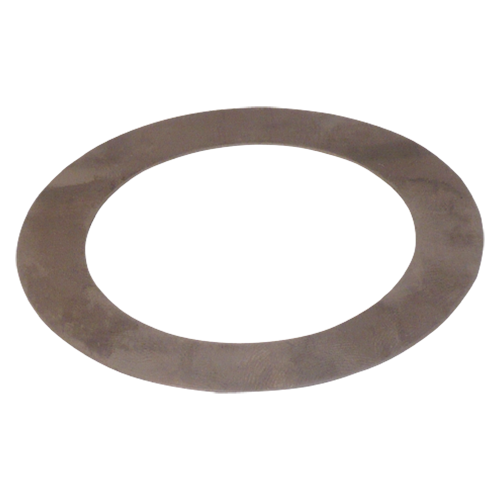

Shim |
End Play
Converter
|
- Outer Dia: 2.41"
- Inner Dia: 1.7"
- Thickness: .010"
|
HW-2-10
|
5 |
|
Bearing Race |
Converter
|
- Outer Dia: 2.345"
- Inner Dia: 1.585"
- Thickness: .08"
|
JW-2-5
|
6 |
|
Bearing |
Converter
|
- Outer Dia: 2.362
- Inner Dia: 1.574
- Thickness: 0.118
- Outer Dia Metric: 59.94
- Inner Dia metric: 39.88
- Thickness metric: 3
- Bearing type: Exposed
- Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
|
JW-2N
|
6 |
|
Bearing |
Converter
|
- Outer Dia: 2.36
- Inner Dia: 1.57
- Thickness: 0.125
- Outer Dia Metric: 59.94
- Inner Dia metric: 39.88
- Thickness metric: 3.18
- Bearing type: Exposed
- Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
|
JW-2ND
|
6_N.I. |
|

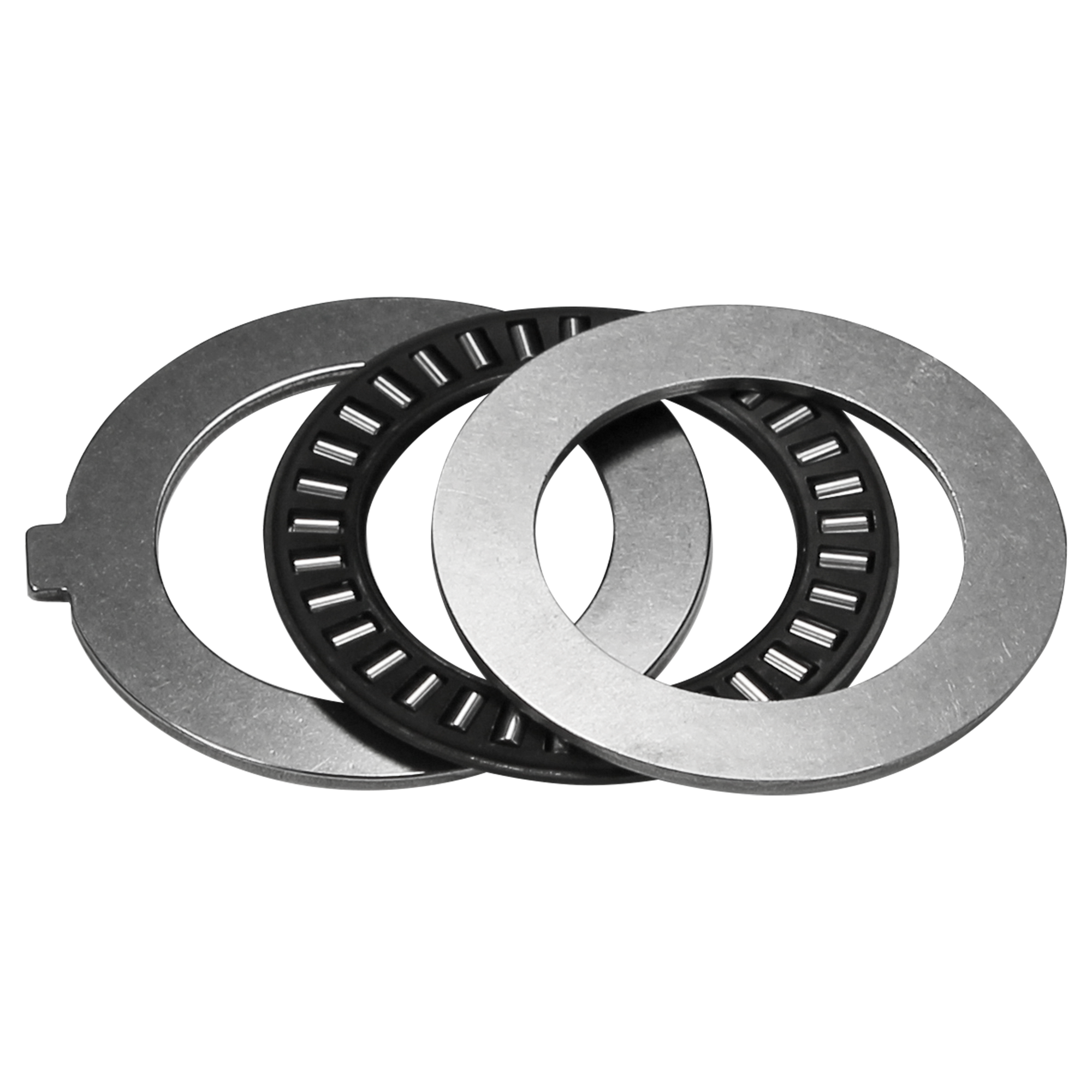

Bearing & Race Kit |
Converter
|
- Contains: JW-2-5, JW-2ND, PW-2-3
|
HW-2BK
|
7 |
|
Bearing Race |
Converter
|
- Outer Dia: 2.42"
- Inner Dia: 1.7"
- Thickness: 0.08"
- 1 Lug
|
PW-2-3
|
8 |
|
Turbine Washer |
Special Design
Converter, Use SW-9 Series Fibre Washer As Shims
|
- Outer Dia: 2.83"
- Inner Dia: 1.21"
- Thickness: .08"
- Material: Bronze
- Special Design
|
HW-9
|
8 |
|
Turbine Washer |
Converter
|
- Outer Dia: 2.74"
- Inner Dia: 1.45"
- Thickness: .12"
- Material: Fiber
|
PW-9-1
|
8 |
|
Turbine Washer |
Converter, Shim for HW-9 Turbine Washer
|
- Outer Dia: 2.750"
- Inner Dia: 1.450"
- Thickness: .118"
- Material: Plastic
|
SW-9
|
8 |
|
Turbine Washer |
Converter
|
- Outer Dia: 2.750"
- Inner Dia: 1.450"
- Thickness: .132"
- Material: Plastic
|
SW-9-1
|
8 |
|
Turbine Washer |
Converter
|
- Outer Dia: 2.75"
- Inner Dia: 1.45"
- Thickness: 0.125"
- Material: Nylon
|
SW-9-1F
|
8 |
|
Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.45"
- Thickness: .160"
|
SW-9-3
|
8 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.45"
- Thickness: 0.160"
- Material: Fiber
|
SW-9-3F
|
8 |
|
Turbine Washer |
Converter
|
- Outer Dia: 2.750"
- Inner Dia: 1.450"
- Thickness: 0.118"
- Material: Fiber
|
SW-9F
|
8 |
|
Turbine Washer |
Converter
|
- Outer Dia: 2.75"
- Inner Dia: 1.45"
- Thickness: .130"
- Material: Plastic
|
TW-9-5C
|
8 |
|
Turbine Washer |
Converter
|
- Outer Dia: 2.75"
- Inner Dia: 1.45"
- Material: Fiber
|
TW-9-5CF
|
8 |
|
Turbine Washer |
Converter
|
- Outer Dia: 2.80"
- Inner Dia: 1.20"
- Thickness: 0.18"
- Material: Aluminum
- OE Design, First Type
|
HW-9-000
|
8 |
|
Turbine Washer |
Converter
|
- Outer Dia: 2.32"
- Inner Dia: 1.1"
- Thickness: 0.18"
- Material: Aluminum
- Casting #123-257-0152
|
HW-9-123
|
8 |
|
Washer |
Converter
|
- Outer Dia: 2.84"
- Inner Dia: 1.15"
- Thickness: .175"
- Material: Aluminum
- Casting #123-257-0552, 126-257-0552
|
HW-9-126
|
9 |
|
Rivet |
Fluid Coupling
|
- Length: .475"
- Rivet solid or tubular: Solid
- Rivet Shank Dia: .233"
- Material: Aluminum
|
HX-12A
|
9 |
|
Rivet |
Fluid Coupling, Hub
|
- Length: .710"
- Rivet solid or tubular: Solid
- Rivet Shank Dia: .233"
- Material: Aluminum
|
HX-12LA
|
9 |
|
Rivet |
Fluid Coupling, Hub
|
- Length: .475"
- Rivet solid or tubular: Solid
- Rivet Shank Dia: .233"
- Material: Steel
|
HX-12S
|
9 |
|
Rivet |
Fluid Coupling, Hub
|
- Length: .710"
- Rivet solid or tubular: Solid
- Rivet Shank Dia: .233"
- Material: Steel
|
HX-12LS
|
10 |
|

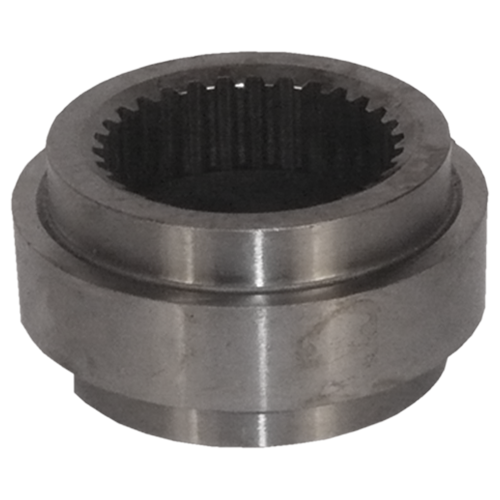

Inner Race |
Stator
Converter
|
- Height: 1.100"
- Outer Dia: 1.960"
- Internal Teeth: 30
- 2 Shoulders
|
HX-14
|
10 |
|

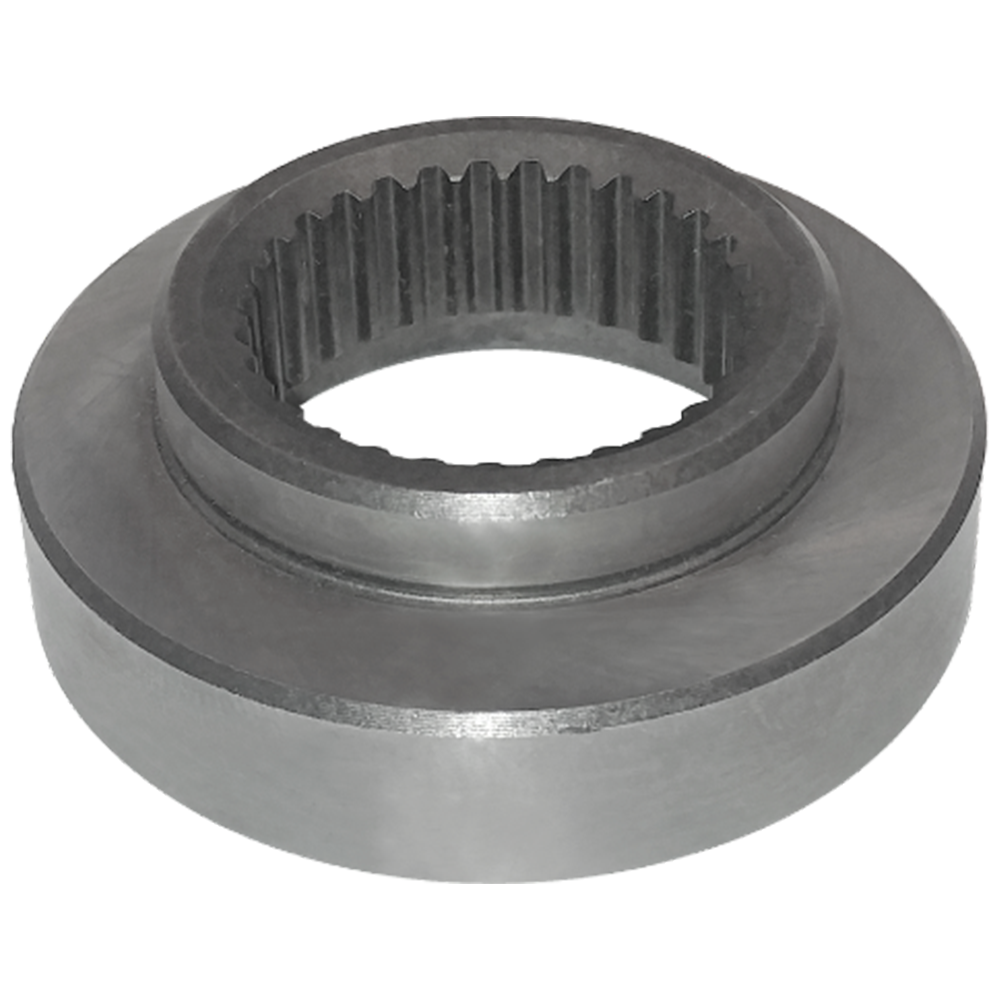

Inner Race |
Stator
Converter
|
- Height: 0.780"
- Outer Dia: 2.360"
- Internal Teeth: 30
- 1 Shoulder
|
HX-14-1
|
11 |
|

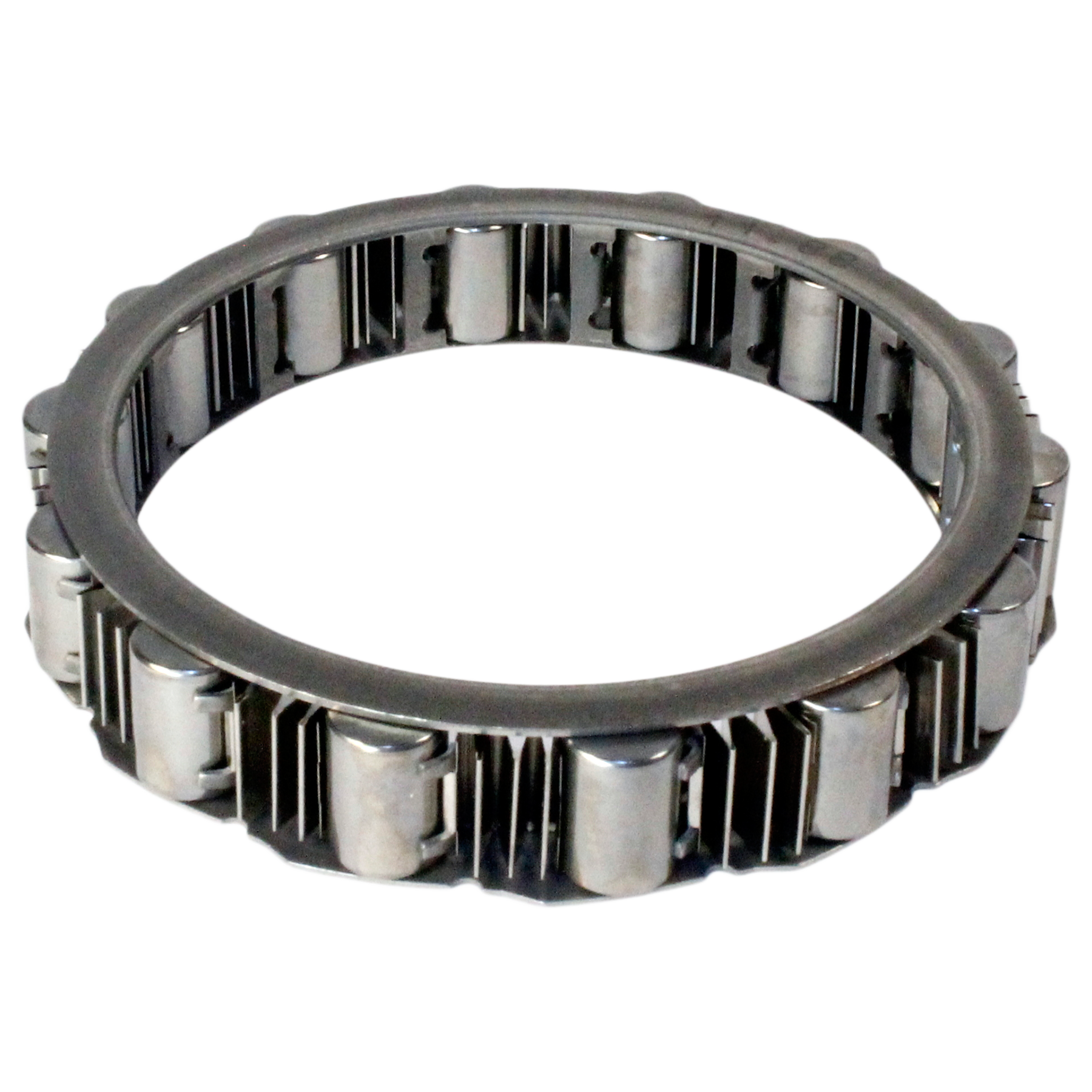

Roller Clutch (Sprag) |
Converter
|
- OE # 0002500931, 14 Rollers (.315"x.433")
|
HC-6
|
11 |
|
Outer Race (Cam) |
Stator
Converter, Eliminates Roller Clutch Use WC-6 Sprag And Remachine Old Inner Race)
|
- Improved design eliminates roller clutch. Use with WC-6 sprag and re-machine old inner race.
|
HX-15
|

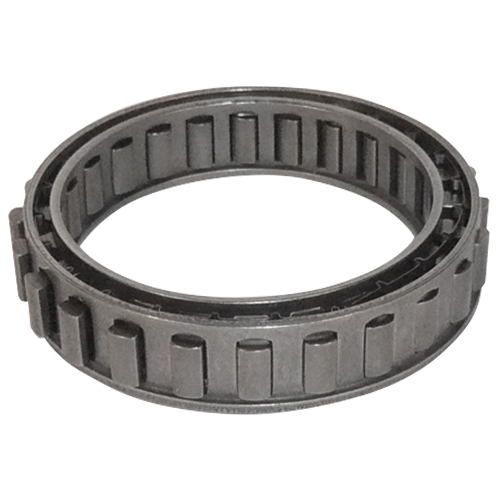

13 |
|
Sprag |
Narrow Type, 1/2" High
Converter, Used with HX-15 outer race
|
|
WC-6
|
