Torque Converter | Mercedes | 725.0, 9G-Tronic

Ill.# Image Description Specification Part #
1 Hubcap Fits 2" (50.8mm). Length: 1-1/2"
  • Color: Red
  • Fits 2" (50.8mm)
 MHC-R
Hubcap MHC-R
Fits 2" (50.8mm). Length: 1-1/2" &
  • Color: Red
  • Fits 2" (50.8mm)
2 Friction Plate 3 Pieces Required.
  • Thickness: .109"
  • External Teeth: 40
  • Segment Count: 72
  • Outside Dia: 7.716"
  • Inside Dia: 6.102"
 HX-23-16
Friction Plate HX-23-16
& 3 Pieces Required.
  • Thickness: .109"
  • External Teeth: 40
  • Segment Count: 72
  • Outside Dia: 7.716"
  • Inside Dia: 6.102"
2 Friction Plate Carbon 3 Pieces Required.
  • Thickness: .109"
  • Outside Dia: 7.716"
  • Inside Dia: 6.102"
 HX-23-16CBN
Friction Plate HX-23-16CBN
Carbon & 3 Pieces Required.
  • Thickness: .109"
  • Outside Dia: 7.716"
  • Inside Dia: 6.102"
2 Friction Plate High-Carbon, 40 Outside Teeth 3 Pieces Required.
  • Thickness: .109"
  • Outside Dia: 7.716"
  • Inside Dia: 6.102"
 HX-23-16HC
Friction Plate HX-23-16HC
High-Carbon, 40 Outside Teeth & 3 Pieces Required.
  • Thickness: .109"
  • Outside Dia: 7.716"
  • Inside Dia: 6.102"
2 Friction Plate With Kevlar
  • Outside Dia: 7.716"
  • Inside Dia: 6.102"
 HX-23-16KV
Friction Plate HX-23-16KV
With Kevlar &
  • Outside Dia: 7.716"
  • Inside Dia: 6.102"

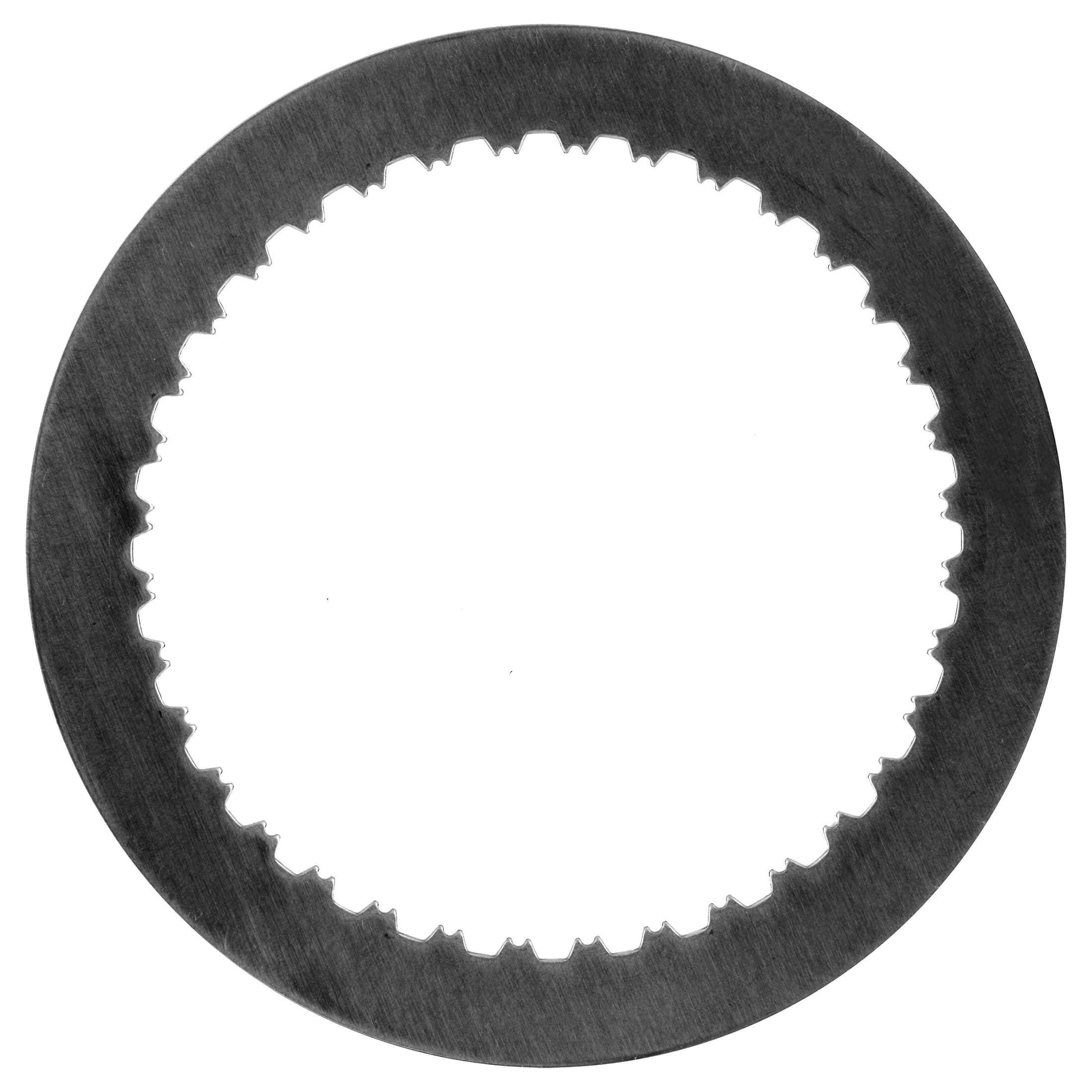

3 Steel Clutch-Plate 2 Pieces Required.
  • Thickness: 0.071"
  • Internal Teeth: 36
  • Outside Dia: 7.400"
  • Inside Dia: 5.585"
 HX-23-21
Steel Clutch-Plate HX-23-21
& 2 Pieces Required.
  • Thickness: 0.071"
  • Internal Teeth: 36
  • Outside Dia: 7.400"
  • Inside Dia: 5.585"
4 Steel Clutch-Plate 1 Pieces Required.
  • Thickness: 0.078"
  • Internal Teeth: 36
  • Outside Dia: 7.400"
  • Inside Dia: 5.585"
 HX-23-22
Steel Clutch-Plate HX-23-22
& 1 Pieces Required.
  • Thickness: 0.078"
  • Internal Teeth: 36
  • Outside Dia: 7.400"
  • Inside Dia: 5.585"
5 Roller Clutch (Sprag)
  • Thickness: 0.531"
  • Inside Dia: 2.362"
  • 14 Rollers (0.314"/ 8mm Dia.). OE# A140 250 0031
 HC-6-1
Roller Clutch (Sprag) HC-6-1
&
  • Thickness: 0.531"
  • Inside Dia: 2.362"
  • 14 Rollers (0.314"/ 8mm Dia.). OE# A140 250 0031
6 D-Ring Seal Pressure Plate, Outside
  • Height: 0.112
  • Width: 0.078
  • Material: Fluorocarbon
  • Height Metric: 2.8448
  • Seal Type: D-Ring
  • Inside Dia: 6.785
  • Inside Dia metric: 172.339
 HO-25-8
D-Ring Seal HO-25-8
& Pressure Plate, Outside
  • Height: 0.112
  • Width: 0.078
  • Material: Fluorocarbon
  • Height Metric: 2.8448
  • Seal Type: D-Ring
  • Inside Dia: 6.785
  • Inside Dia metric: 172.339
7 D-Ring Seal Pressure Plate, Inside
  • Height: 0.112"
  • Width: 0.075"
  • Material: Fluorocarbon
  • Inside Dia: 3.790"
 HO-25-16
D-Ring Seal HO-25-16
& Pressure Plate, Inside
  • Height: 0.112"
  • Width: 0.075"
  • Material: Fluorocarbon
  • Inside Dia: 3.790"
8 Seal Ring Turbine Shaft, Square-Cut Front Cover Hub, Inside
  • Height: 0.093
  • Width: 0.095
  • Material: Fluorocarbon
  • Outside Dia: 0.815
  • Outside Dia Metric: 20.701
  • Height Metric: 2.4mm This seal is designed for models: A222 250 02 02 and A222 250 05 02, which have a wider groove and require 2.5mm wide seal, unlike a similar seal HO-25-3, which is 2mm wide, and is used in other models of 722.9 Late torque converters.
 HO-25-14
Seal Ring HO-25-14
Turbine Shaft, Square-Cut & Front Cover Hub, Inside
  • Height: 0.093
  • Width: 0.095
  • Material: Fluorocarbon
  • Outside Dia: 0.815
  • Outside Dia Metric: 20.701
  • Height Metric: 2.4mm This seal is designed for models: A222 250 02 02 and A222 250 05 02, which have a wider groove and require 2.5mm wide seal, unlike a similar seal HO-25-3, which is 2mm wide, and is used in other models of 722.9 Late torque converters.
9 Metal Clad Seal Top of Turbine Hub
  • Housing Bore Dia: 1.516
  • Housing Bore Dia Metric: 38.5
  • Shaft Dia metric: 30
  • Shaft Dia: 1.181
  • Optimum elastomeric rubber designed to overcome brittleness in OE design.
 HO-25-13
Metal Clad Seal HO-25-13
& Top of Turbine Hub
  • Housing Bore Dia: 1.516
  • Housing Bore Dia Metric: 38.5
  • Shaft Dia metric: 30
  • Shaft Dia: 1.181
  • Optimum elastomeric rubber designed to overcome brittleness in OE design.
10 Seal Ring With a Slip Joint, Thermoset material Turbine Hub, Outside
  • Height: 0.087"
  • Width: 0.084"
  • Material: Polyimide
  • Height Metric: 2.5908
  • Seal Type: Slip-Joint
  • Outside Dia: 1.489
  • Outside Dia Metric: 37.8206
 HO-25-11
Seal Ring HO-25-11
With a Slip Joint, Thermoset material & Turbine Hub, Outside
  • Height: 0.087"
  • Width: 0.084"
  • Material: Polyimide
  • Height Metric: 2.5908
  • Seal Type: Slip-Joint
  • Outside Dia: 1.489
  • Outside Dia Metric: 37.8206
11 Bearing Piston
  • Thickness: 0.185"
  • Bearing type: Enclosed
  • Outside Dia: 2.275"
  • Inside Dia: 1.505"
 HW-2-8
Bearing HW-2-8
& Piston
  • Thickness: 0.185"
  • Bearing type: Enclosed
  • Outside Dia: 2.275"
  • Inside Dia: 1.505"
12 Bearing Impeller side
  • Thickness: 0.198"
  • Bearing type: Enclosed
  • Outside Dia: 2.995"
 HW-2-9
Bearing HW-2-9
& Impeller side
  • Thickness: 0.198"
  • Bearing type: Enclosed
  • Outside Dia: 2.995"
13 Bearing Turbine side
  • Thickness: 0.275"
  • Bearing type: Enclosed
  • Outside Dia: 2.808"
  • Inside Dia: 1.580
 HW-2-11
Bearing HW-2-11
& Turbine side
  • Thickness: 0.275"
  • Bearing type: Enclosed
  • Outside Dia: 2.808"
  • Inside Dia: 1.580
