Part Search

Torque Converter | Mercedes | 722.8 FWD, 7 Speed A-Class, B-CLASS

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
2 Impeller Hub
  • Journal Dia: 1.695"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Slots
  • Hardness: Rc 32-36
 HH-1-8GRC
4 Bearing
  • Outer Dia: 2.32
  • Inner Dia: 1.58
  • Thickness: 0.21
  • Outer Dia Metric: 58.93
  • Inner Dia metric: 40.13
  • Thickness metric: 5.33
  • Bearing type: Enclosed
 HW-2-5
6 Roller Clutch (Sprag)
  • Inner Dia: 1.79
  • Thickness: .54"
  • Contains rollers VR-7
 HC-6-2

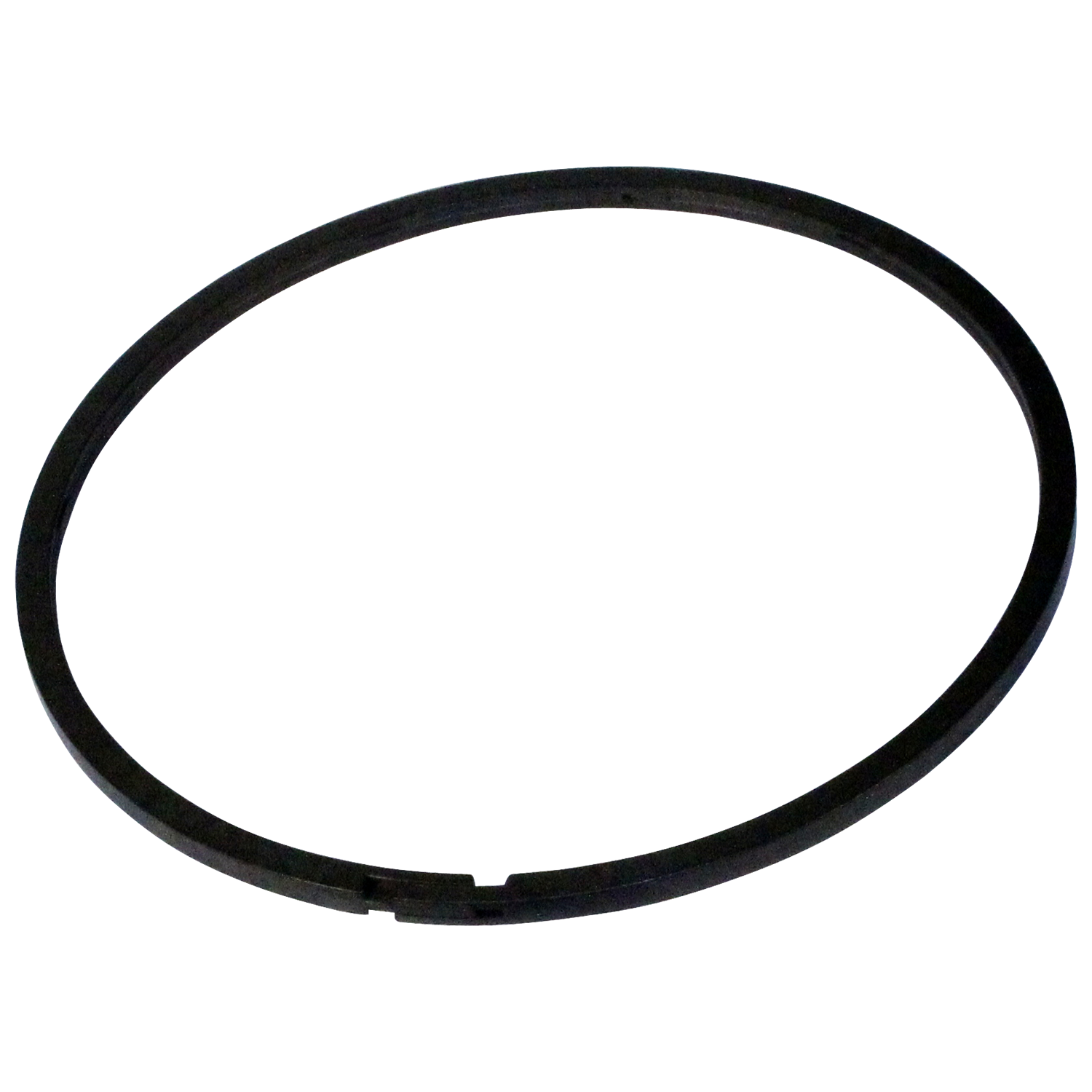

10 Seal Ring OE, Slip-joint
  • Height: 0.083
  • Outer Dia: 2.742
  • Width: 0.099"
  • Outer Dia Metric: 69.6
  • Material: Polyimide
  • Height Metric: 2.1082
 HO-25-6

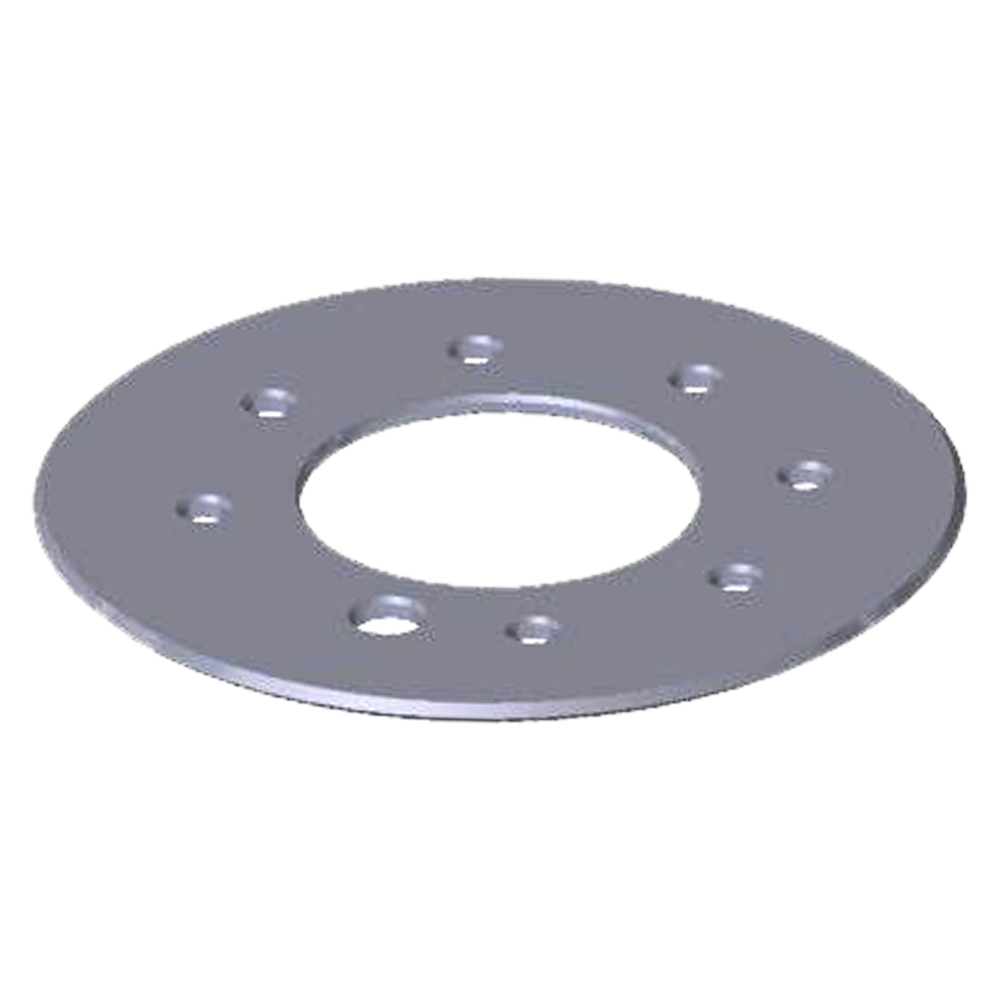

11 Thrust Plate 8 Holes
  • Outer Dia: 3.24"
  • Inner Dia: 1.38"
  • Thickness: .07"
 HW-4-3

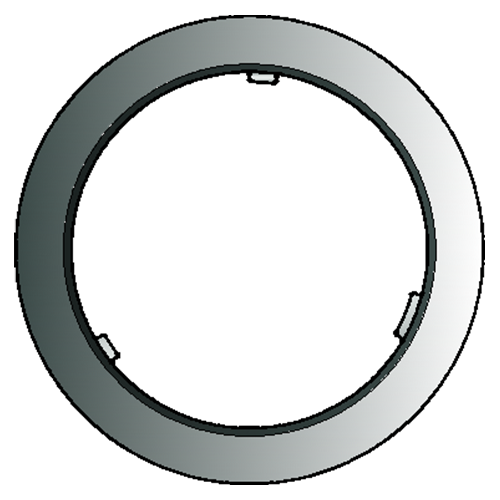

12 Bearing 3 Inside Lugs
  • Outer Dia: 3.1
  • Inner Dia: 2.36
  • Thickness: 0.138
  • Outer Dia Metric: 78.74
  • Inner Dia metric: 59.94
  • Thickness metric: 3.51
  • Bearing type: Enclosed
 HW-2-4
13 Metal Clad Seal
  • housing bore dia: 0.87
  • housing bore dia metric: 22.1
  • Shaft Dia metric: 13
  • Shaft Dia: 0.512
  • Material: Fluorocarbon
 HO-25-5
20 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Outer Dia: 9.43"
  • Inner Dia: 8.22"
  • Thickness: 0.045"
  • Material: Red
 HX-23-10
20 Lining (Friction Ring,Wafer)
  • Outer Dia: 9.43"
  • Inner Dia: 8.22"
  • Thickness: 0.045"
  • Material: High Carbon
 HX-23-10HC
