Part Search

Torque Converter | Mercedes | 722.7 FWD, 5 Speed, A140, A 160, A170, A190, ‘97-UP

Ill.# Image Description Specification Part #
Roller Clutch (Sprag)
  • Thickness: .54"
  • Inside Dia: 1.79
  • Includes rollers VR-7
 HC-6-2
Roller Clutch (Sprag) HC-6-2
&
  • Thickness: .54"
  • Inside Dia: 1.79
  • Includes rollers VR-7
D-Ring Seal
  • Height: 0.115
  • Width: 0.083
  • Color: Green
  • Material: Fluorocarbon
  • Height Metric: 2.921
  • Seal Type: D-Ring
  • Inside Dia: 6.528
  • Inside Dia metric: 165.354
 HO-25-1
D-Ring Seal HO-25-1
&
  • Height: 0.115
  • Width: 0.083
  • Color: Green
  • Material: Fluorocarbon
  • Height Metric: 2.921
  • Seal Type: D-Ring
  • Inside Dia: 6.528
  • Inside Dia metric: 165.354
D-Ring Seal Piston
  • Height: 0.125
  • Width: 0.08
  • Material: Fluorocarbon
  • Height Metric: 3.175
  • Seal Type: D-Ring
  • Inside Dia: 6.528
  • Inside Dia metric: 165.8112
 HO-25-12
D-Ring Seal HO-25-12
Piston &
  • Height: 0.125
  • Width: 0.08
  • Material: Fluorocarbon
  • Height Metric: 3.175
  • Seal Type: D-Ring
  • Inside Dia: 6.528
  • Inside Dia metric: 165.8112
D-Ring Seal Mercedes, Black
  • Inside Dia: 6.528
 HO-25-1X
D-Ring Seal HO-25-1X
Mercedes, Black &
  • Inside Dia: 6.528

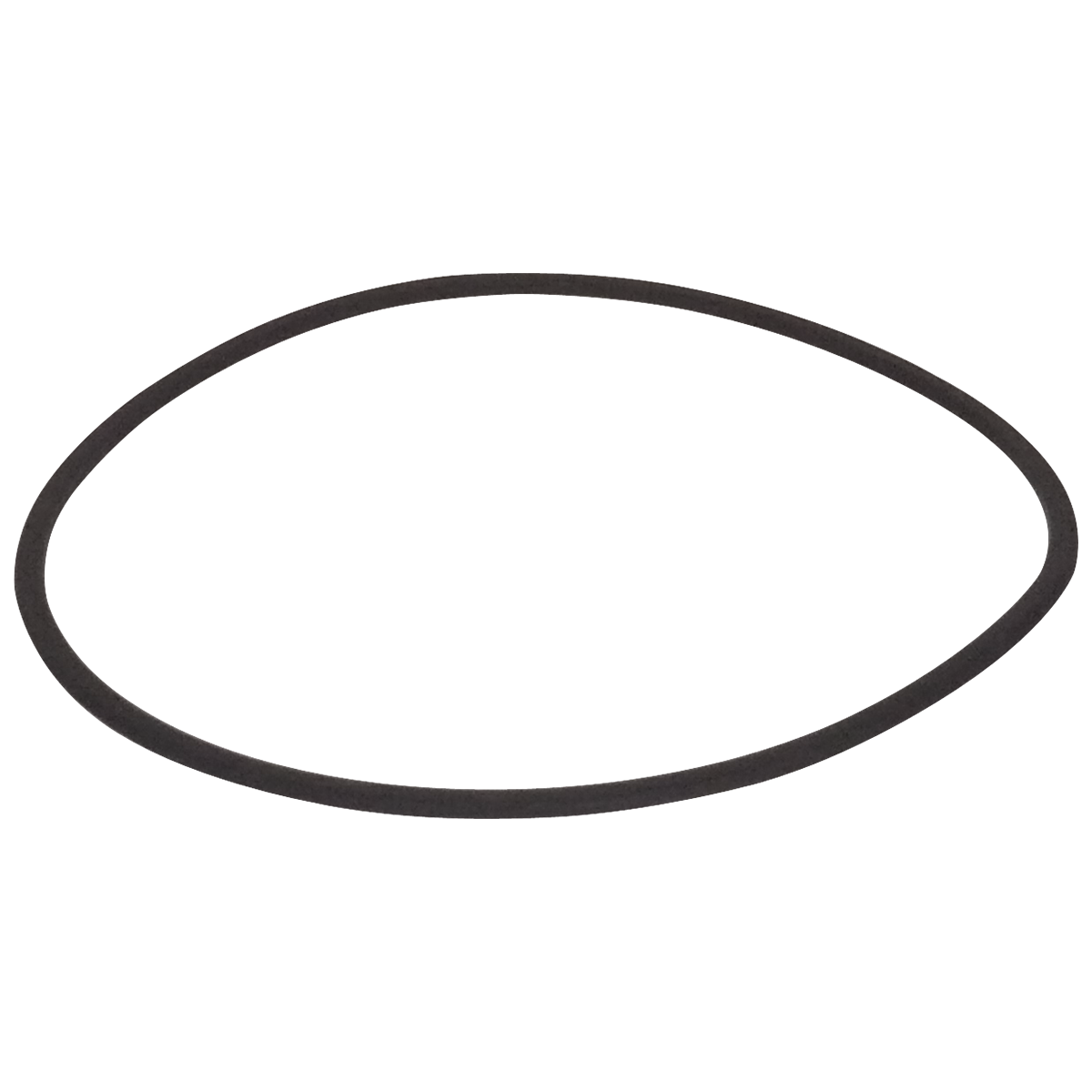

D-Ring Seal
  • Height: 0.114
  • Width: 0.078
  • Material: Fluorocarbon
  • Height Metric: 2.8956
  • Seal Type: D-Ring
  • Inside Dia: 3.84
  • Inside Dia metric: 97.536
 HO-25-4
D-Ring Seal HO-25-4
&
  • Height: 0.114
  • Width: 0.078
  • Material: Fluorocarbon
  • Height Metric: 2.8956
  • Seal Type: D-Ring
  • Inside Dia: 3.84
  • Inside Dia metric: 97.536
Bearing
  • Thickness: 0.161
  • Thickness metric: 4.06
  • Bearing type: Enclosed
  • Outside Dia: 2.020
  • Inside Dia: 1.311
  • Outside Dia Metric: 51.31
  • Inside Dia metric: 33.27
 HW-2-1
Bearing HW-2-1
&
  • Thickness: 0.161
  • Thickness metric: 4.06
  • Bearing type: Enclosed
  • Outside Dia: 2.020
  • Inside Dia: 1.311
  • Outside Dia Metric: 51.31
  • Inside Dia metric: 33.27
Bearing 3 Inside Lugs
  • Thickness: 0.138
  • Thickness metric: 3.51
  • Bearing type: Enclosed
  • Outside Dia: 3.1
  • Inside Dia: 2.36
  • Outside Dia Metric: 78.74
  • Inside Dia metric: 59.94
 HW-2-4
Bearing HW-2-4
3 Inside Lugs &
  • Thickness: 0.138
  • Thickness metric: 3.51
  • Bearing type: Enclosed
  • Outside Dia: 3.1
  • Inside Dia: 2.36
  • Outside Dia Metric: 78.74
  • Inside Dia metric: 59.94
Steel Clutch-Plate 2 Pieces Required.
  • Thickness: 0.070"
  • External Teeth: 20
  • Outside Dia: 7.28"
  • Inside Dia: 5.63"
 HX-23-1
Steel Clutch-Plate HX-23-1
& 2 Pieces Required.
  • Thickness: 0.070"
  • External Teeth: 20
  • Outside Dia: 7.28"
  • Inside Dia: 5.63"

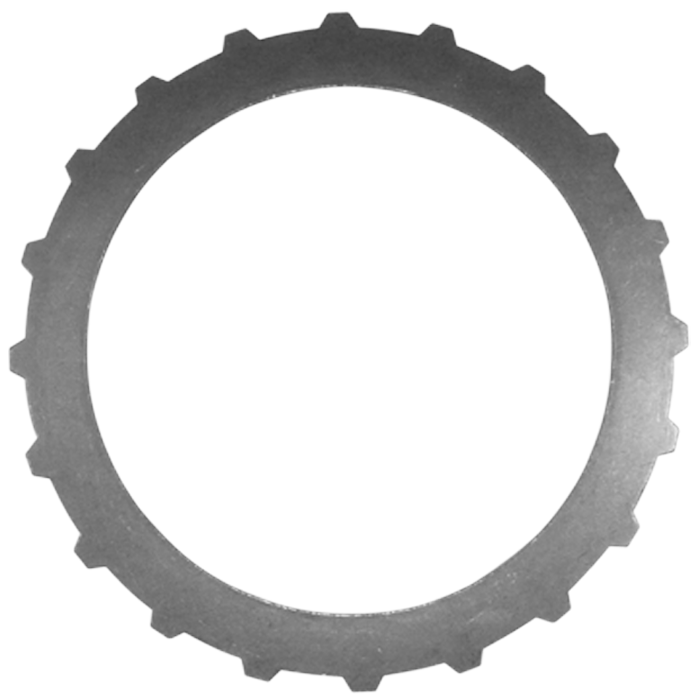

Steel Clutch-Plate 2 Pieces Required.
  • Thickness: 0.080"
  • External Teeth: 20
  • Outside Dia: 7.28"
  • Inside Dia: 5.63"
  • Compensates For Ring Groove Wear
 HX-23-1A
Steel Clutch-Plate HX-23-1A
& 2 Pieces Required.
  • Thickness: 0.080"
  • External Teeth: 20
  • Outside Dia: 7.28"
  • Inside Dia: 5.63"
  • Compensates For Ring Groove Wear
Clutch Plate Kit 2 Steels
  • Thickness: 0.070"
  • External Teeth: 20
  • Outside Dia: 7.28"
  • Inside Dia: 5.63"
  • Kit Includes 2 Steel Plates (HX-23-1), Each plate is 0.070" thick.
 HX-23-1K
Clutch Plate Kit HX-23-1K
2 Steels &
  • Thickness: 0.070"
  • External Teeth: 20
  • Outside Dia: 7.28"
  • Inside Dia: 5.63"
  • Kit Includes 2 Steel Plates (HX-23-1), Each plate is 0.070" thick.

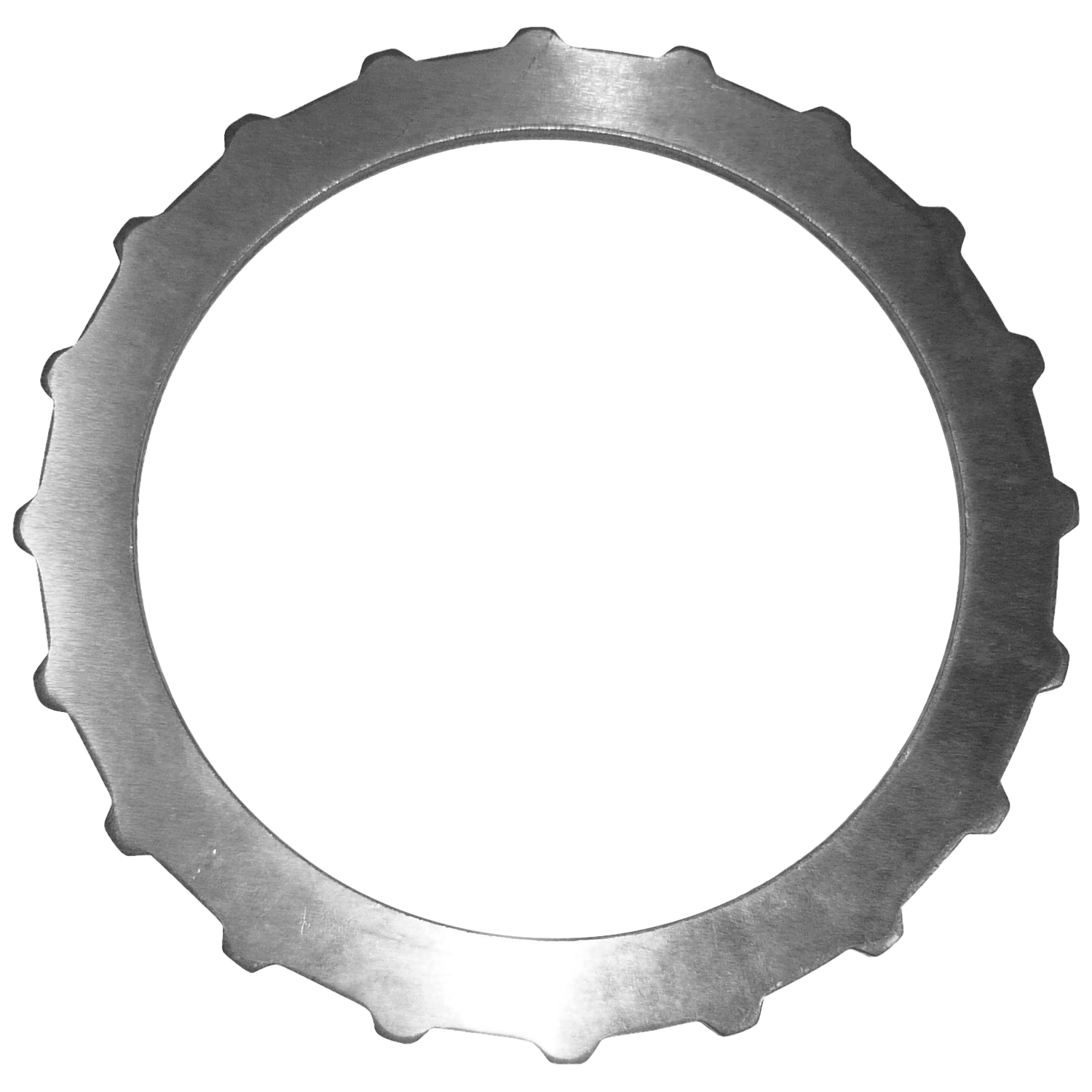

Steel Clutch-Plate
  • Thickness: .197"
  • External Teeth: 20
  • Outside Dia: 7.28"
  • Inside Dia: 5.63"
 HX-23-3
Steel Clutch-Plate HX-23-3
&
  • Thickness: .197"
  • External Teeth: 20
  • Outside Dia: 7.28"
  • Inside Dia: 5.63"
Impeller Hub
  • Journal Dia: 1.378"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Slots
  • Hardness: Rc 32-36
 HH-1-7GRC
Impeller Hub HH-1-7GRC
&
  • Journal Dia: 1.378"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Slots
  • Hardness: Rc 32-36

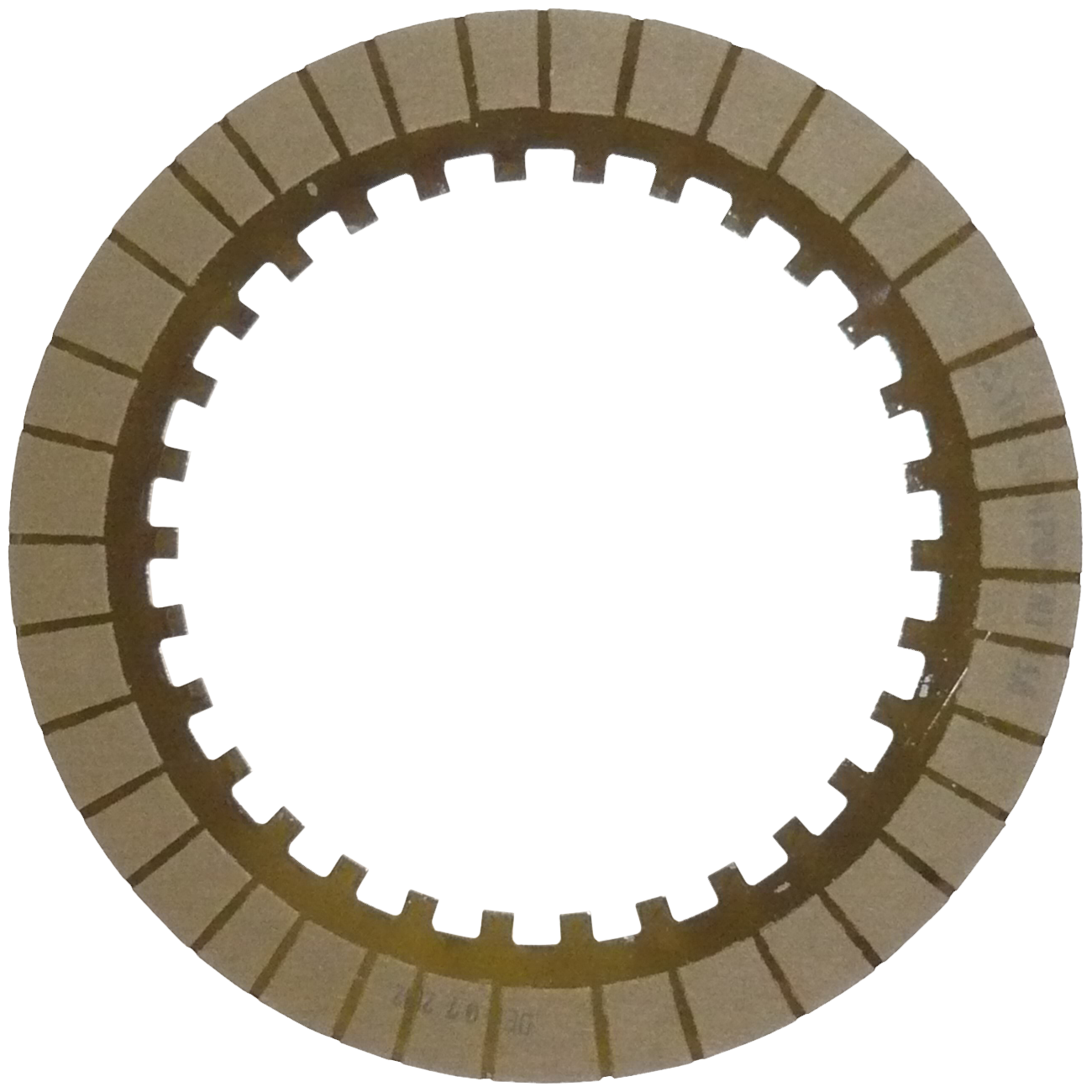

Friction Plate 2 Pieces Required.
  • Thickness: .107"
  • Internal Teeth: 30
  • Segment Count: OE Duplicate. 36 Discrete Segments, High Flow™
  • Outside Dia: 6.93"
  • Inside Dia: 4.72"
 HX-23-7
Friction Plate HX-23-7
& 2 Pieces Required.
  • Thickness: .107"
  • Internal Teeth: 30
  • Segment Count: OE Duplicate. 36 Discrete Segments, High Flow™
  • Outside Dia: 6.93"
  • Inside Dia: 4.72"
