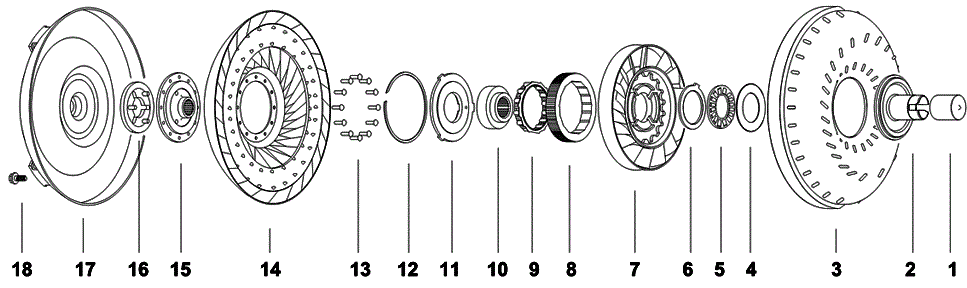

Torque Converter | Mercedes | 722.4, 3.0L, W4A-020, MC-15 | MC-15

Ill.# Image Description Specification Part #
1 Hubcap For 1.378" diameter Hubs NPN-8-4-1
1 Impeller Hub
  • Journal Dia: 1.378"
  • Installed Height: 1.800"
  • Hub Mount: Flanged
  • Hardness: Rc 32-36
 HH-1-6C
3 Impeller NPN-8-4-3
13 Bearing Race
  • Outer Dia: 2.345"
  • Inner Dia: 1.585"
  • Thickness: 0.04"
 JW-2-5T
13 Bearing Race
  • Outer Dia: 2.345"
  • Inner Dia: 1.585"
  • Thickness: .03"
 JW-2-5TT
6 Bearing Race
  • Outer Dia: 2.42"
  • Inner Dia: 1.7"
  • Thickness: 0.08"
  • 1 Lug
 PW-2-3
5 Bearing
  • Outer Dia: 2.362
  • Inner Dia: 1.574
  • Thickness: 0.118
  • Outer Dia Metric: 59.94
  • Inner Dia metric: 39.88
  • Thickness metric: 3
  • Bearing type: Exposed
 JW-2N
5 Bearing
  • Outer Dia: 2.36
  • Inner Dia: 1.57
  • Thickness: 0.125
  • Outer Dia Metric: 59.94
  • Inner Dia metric: 39.88
  • Thickness metric: 3.18
  • Bearing type: Exposed
 JW-2ND
6 Bearing Race
  • Outer Dia: 2.42"
  • Inner Dia: 1.70"
  • Thickness: .08"
 PW-2-5
7 Stator
  • OE # 126 257 10 07
 NPN-8-4-7
8 Cam NPN-8-4-8
11 Roller Clutch (Sprag)
  • OE # 0002500931, 14 Rollers (.315"x.433")
 HC-6
10 Inner Race
  • Internal Teeth: 26
 NPN-8-4-10
11 Stator Cap
  • Outer Dia: 3.79"
  • Thickness: .35"
  • Material: Aluminum
 HW-4-1
12 Snap Ring NPN-8-4-12
13 Rivet NPN-8-4-13
14 Turbine NPN-8-4-14
15 Turbine Hub
  • Outer Dia: 3.86"
  • Internal Teeth: 19
 NPN-8-4-15
8 Thrust Washer
  • Outer Dia: 2.84"
  • Inner Dia: 1.15"
  • Thickness: .175"
  • Material: Aluminum
  • Casting #123-257-0552, 126-257-0552
 HW-9-126
17 Front Cover NPN-8-4-17
18 Bolt Hex Head, M8X1.25 NPN-8-4-18
