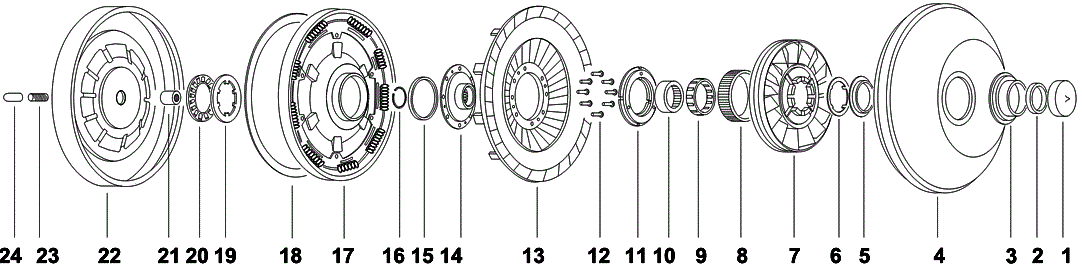

Torque Converter | Mazda | G4A-HL, DA-17 | DA17

Ill.# Image Description Specification Part #
1 Hubcap Fits 2-5/8" (66.7mm). Length: 1/2"
  • Color: Orange
  • Fits 2-5/8" (66.7mm)
 MHC-RN
Hubcap MHC-RN
Fits 2-5/8" (66.7mm). Length: 1/2" &
  • Color: Orange
  • Fits 2-5/8" (66.7mm)
2 Bushing
  • Thickness: 0.472"
  • Housing Bore Dia: 2.24"
  • Shaft Dia: 2.088"
  • Material: Bronze
  • Inside Dia: 2.0940
  • Type: Precision
 JB-18-9
Bushing JB-18-9
&
  • Thickness: 0.472"
  • Housing Bore Dia: 2.24"
  • Shaft Dia: 2.088"
  • Material: Bronze
  • Inside Dia: 2.0940
  • Type: Precision
2 Bushing
  • Thickness: 0.472"
  • Housing Bore Dia: 2.245"
  • Shaft Dia: 2.088"
  • Material: Bronze
  • Inside Dia: 2.0940
  • Type: Precision
  • Replaces Babbit
 JB-18-8B
Bushing JB-18-8B
&
  • Thickness: 0.472"
  • Housing Bore Dia: 2.245"
  • Shaft Dia: 2.088"
  • Material: Bronze
  • Inside Dia: 2.0940
  • Type: Precision
  • Replaces Babbit
2 Bushing
  • Thickness: 0.472"
  • Housing Bore Dia: 2.243
  • Material: Bi-metal
  • Inside Dia: 2.0940
  • Type: Unfinished
 JB-18-8X
Bushing JB-18-8X
&
  • Thickness: 0.472"
  • Housing Bore Dia: 2.243
  • Material: Bi-metal
  • Inside Dia: 2.0940
  • Type: Unfinished
2 Bushing
  • Thickness: 0.472"
  • Housing Bore Dia: 2.245"
  • Shaft Dia: 2.088"
  • Material: Bronze (Replaces Babbit)
  • Bushing Type: Bore In Place
  • Inside Dia: 2.0940
  • Type: undersized I.D
 JB-18-8BX
Bushing JB-18-8BX
&
  • Thickness: 0.472"
  • Housing Bore Dia: 2.245"
  • Shaft Dia: 2.088"
  • Material: Bronze (Replaces Babbit)
  • Bushing Type: Bore In Place
  • Inside Dia: 2.0940
  • Type: undersized I.D
3 Impeller Hub
  • Journal Dia: 2.670"
  • Installed Height: .610"
  • Hub Mount: Flanged
  • Hardness: Rc 32-36
 JH-1-20FLGRC
Impeller Hub JH-1-20FLGRC
&
  • Journal Dia: 2.670"
  • Installed Height: .610"
  • Hub Mount: Flanged
  • Hardness: Rc 32-36
3 Impeller Hub Use With JW-2-12 Bearing
  • Journal Dia: 2.670"
  • Installed Height: .748"
  • Hub Mount: Flanged
  • Hardness: Rc 32-36
  • Inside Dia: 2.24"
 JH-1-19FLGRC
Impeller Hub JH-1-19FLGRC
& Use With JW-2-12 Bearing
  • Journal Dia: 2.670"
  • Installed Height: .748"
  • Hub Mount: Flanged
  • Hardness: Rc 32-36
  • Inside Dia: 2.24"
3 Impeller Hub Use With JW-2-13 Bearing
  • Journal Dia: 2.670"
  • Height: 0.56"
  • Hub Mount: Butt
  • Hardness: Rc 32-36
  • Inside Dia: 2.24"
 JH-1-12GRC
Impeller Hub JH-1-12GRC
& Use With JW-2-13 Bearing
  • Journal Dia: 2.670"
  • Height: 0.56"
  • Hub Mount: Butt
  • Hardness: Rc 32-36
  • Inside Dia: 2.24"
4 Impeller NPN-7-6-4
Impeller NPN-7-6-4
&
5 Bearing Inside Lip
  • Thickness: 0.11
  • Thickness metric: 2.79
  • Bearing type: Semi- Enclosed
  • Outside Dia: 3.228
  • Inside Dia: 2.393
  • Outside Dia Metric: 82
  • Inside Dia metric: 60.78
  • Race: JW-2-7, JW-2-10
 JW-2-13
Bearing JW-2-13
Inside Lip &
  • Thickness: 0.11
  • Thickness metric: 2.79
  • Bearing type: Semi- Enclosed
  • Outside Dia: 3.228
  • Inside Dia: 2.393
  • Outside Dia Metric: 82
  • Inside Dia metric: 60.78
  • Race: JW-2-7, JW-2-10
5 Bearing
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Semi- Enclosed
  • Outside Dia: 3.22
  • Inside Dia: 2.445
  • Outside Dia Metric: 81.79
  • Inside Dia metric: 62.1
  • Race: JW-2-10
 JW-2-12
Bearing JW-2-12
&
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Semi- Enclosed
  • Outside Dia: 3.22
  • Inside Dia: 2.445
  • Outside Dia Metric: 81.79
  • Inside Dia metric: 62.1
  • Race: JW-2-10
5 Bearing
  • Outside Dia: 3.220"
  • Inside Dia: 2.445"
 JW-2-13A
Bearing JW-2-13A
&
  • Outside Dia: 3.220"
  • Inside Dia: 2.445"
6 Bearing Race
  • Thickness: 0.08"
  • Lug Count: 4
  • Outside Dia: 3"
  • Inside Dia: 2.53"
 JW-2-10
Bearing Race JW-2-10
&
  • Thickness: 0.08"
  • Lug Count: 4
  • Outside Dia: 3"
  • Inside Dia: 2.53"
7 Stator NPN-7-6-7
Stator NPN-7-6-7
&
8 Cam NPN-7-6-8
Cam NPN-7-6-8
&
9 Cam (Sprag Element) 24 Pieces Required. F-240
Cam (Sprag Element) F-240
& 24 Pieces Required.
9 Sprag
  • Thickness: 0.450"
  • Cam Count: 26 elements
  • Outer Race Inside Dia: 2.820"
  • Inner Race Outside Dia: 2.410"
  • Cam part-ID: F-240 or S-240
 JC-6-2
Sprag JC-6-2
&
  • Thickness: 0.450"
  • Cam Count: 26 elements
  • Outer Race Inside Dia: 2.820"
  • Inner Race Outside Dia: 2.410"
  • Cam part-ID: F-240 or S-240
10 Inner Race Stator
  • Height: 0.787"
  • Internal Teeth: 31
  • Outside Dia: 2.275"
 JX-14-7
Inner Race JX-14-7
Stator &
  • Height: 0.787"
  • Internal Teeth: 31
  • Outside Dia: 2.275"
11 Washer Upgrade
  • Thickness: 0.78"
  • Material: Bronze
  • Outside Dia: 2.81"
  • Inside Dia: 1.99"
 JW-3
Washer JW-3
Upgrade &
  • Thickness: 0.78"
  • Material: Bronze
  • Outside Dia: 2.81"
  • Inside Dia: 1.99"
11 Stator Cap
  • Thickness: 0.295"
  • Material: Aluminum
  • Outside Dia: 3.362"
  • Inside Dia: 2.025"
  • Outer Notch Count: 4 Total Thickness: 0.305"
 JW-4-12B
Stator Cap JW-4-12B
&
  • Thickness: 0.295"
  • Material: Aluminum
  • Outside Dia: 3.362"
  • Inside Dia: 2.025"
  • Outer Notch Count: 4 Total Thickness: 0.305"
11 Stator Cap
  • Thickness: 0.3"
  • Outside Dia: 3.36"
  • Inside Dia: 2.77"
  • Bearing Adapter For TW-2-4 Bearing, (Machine .065" From Turbine Hub)
 JW-4-20
Stator Cap JW-4-20
&
  • Thickness: 0.3"
  • Outside Dia: 3.36"
  • Inside Dia: 2.77"
  • Bearing Adapter For TW-2-4 Bearing, (Machine .065" From Turbine Hub)
11 Washer Kit
  • Outside Dia: 3.36"
  • Inside Dia: 2.02"
 JW-4-12BK
Washer Kit JW-4-12BK
&
  • Outside Dia: 3.36"
  • Inside Dia: 2.02"
11 Stator Cap
  • Material: Aluminum
  • Outside Dia: 3.36"
  • Inside Dia: 2.02"
  • To Adapt To JW-3 Bronze Washer
 JW-4-19
Stator Cap JW-4-19
&
  • Material: Aluminum
  • Outside Dia: 3.36"
  • Inside Dia: 2.02"
  • To Adapt To JW-3 Bronze Washer
12 Rivet 8 Required for early-type, 6 required for late-type 6/8 Pieces Required.
  • Length: 0.44"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.22"
  • Rivet Head Dia: 0.315"
 FX-12-6
Rivet FX-12-6
& 8 Required for early-type, 6 required for late-type 6/8 Pieces Required.
  • Length: 0.44"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.22"
  • Rivet Head Dia: 0.315"
12 Rivet 8 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12L
Rivet FX-12L
& 8 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
13 Turbine
  • Outside Dia Metric: 237mm
 NPN-7-6-13
Turbine NPN-7-6-13
&
  • Outside Dia Metric: 237mm
14 Turbine Hub Mazda/Probe
  • Internal Teeth: 21
 JX-13-12
Turbine Hub JX-13-12
Mazda/Probe &
  • Internal Teeth: 21
14 Turbine Hub
  • Internal Teeth: 21
  • Hardness: Heat-Treated (hardened)
 JX-13-12HT
Turbine Hub JX-13-12HT
&
  • Internal Teeth: 21
  • Hardness: Heat-Treated (hardened)
14 Turbine Hub
  • Internal Teeth: 21
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.86"
  • (Modified For JW-4-20 Bearing Adapter)
 JX-13-36HT
Turbine Hub JX-13-36HT
&
  • Internal Teeth: 21
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.86"
  • (Modified For JW-4-20 Bearing Adapter)
14_N.I. Spline Insert Pump Drive
  • Height: 1.140
  • External Teeth: 21
 JX-13-21
Spline Insert JX-13-21
Pump Drive &
  • Height: 1.140
  • External Teeth: 21
15 Seal Ring Heavy Duty, Scarf Cut
  • Height: 0.116"
  • Width: 0.094"
  • Material: PTFE
  • Height Metric: 2.5908
  • Seal Type: Scarf Cut
  • Outside Dia: 2.377"
  • Outside Dia Metric: 59.8932
 JO-25-5
Seal Ring JO-25-5
Heavy Duty, Scarf Cut &
  • Height: 0.116"
  • Width: 0.094"
  • Material: PTFE
  • Height Metric: 2.5908
  • Seal Type: Scarf Cut
  • Outside Dia: 2.377"
  • Outside Dia Metric: 59.8932
16 Snap Ring NPN-7-6-16
Snap Ring NPN-7-6-16
&
17 Clutch Plate Assembly 9 Springs, 6 Dimples
  • 9 Springs, 6 Dimples
 JX-23-18
Clutch Plate Assembly JX-23-18
9 Springs, 6 Dimples &
  • 9 Springs, 6 Dimples
18 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.25"
  • Inside Dia: 8.125"
  • 9 Springs, 6 Deep Dimples
 FX-23-6
Lining (Friction Ring,Wafer) FX-23-6
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.25"
  • Inside Dia: 8.125"
  • 9 Springs, 6 Deep Dimples
19 Bearing Race
  • Thickness: 0.08"
  • Lug Count: 6
  • Outside Dia: 2.09"
  • Inside Dia: 1.39"
 JW-9-9
Bearing Race JW-9-9
&
  • Thickness: 0.08"
  • Lug Count: 6
  • Outside Dia: 2.09"
  • Inside Dia: 1.39"
20 Bearing Race
  • Thickness: 0.39"
  • Outside Dia: 2.27"
  • Inside Dia: 0.86"
  • Outside & Inside Lips
 JW-9-8
Bearing Race JW-9-8
&
  • Thickness: 0.39"
  • Outside Dia: 2.27"
  • Inside Dia: 0.86"
  • Outside & Inside Lips
20 Bearing Race Improved,Mazda
  • Outside Dia: 2.27"
  • Inside Dia: 0.86"
 JW-9-8D
Bearing Race JW-9-8D
Improved,Mazda &
  • Outside Dia: 2.27"
  • Inside Dia: 0.86"

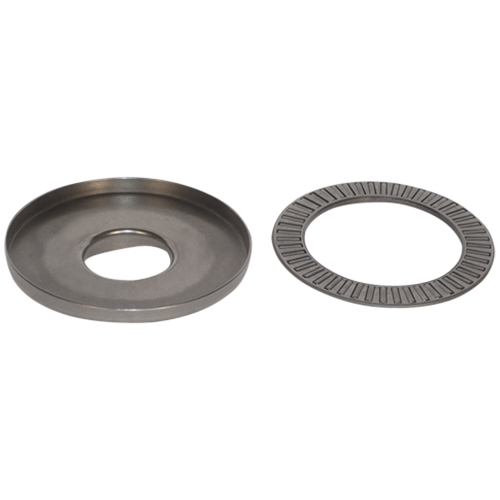

20 Bearing & Race Kit Cover / Turbine
  • Outside Dia: 2.27"
  • Inside Dia: 0.86"
 JW-9-8K
Bearing & Race Kit JW-9-8K
Cover / Turbine &
  • Outside Dia: 2.27"
  • Inside Dia: 0.86"
20 Bearing & Race Kit Improved,Mazda
  • Outside Dia: 2.27"
  • Inside Dia: 0.86"
 JW-9-8KD
Bearing & Race Kit JW-9-8KD
Improved,Mazda &
  • Outside Dia: 2.27"
  • Inside Dia: 0.86"
21 Spline Insert Pump Drive
  • Height: 0.82"
  • Internal Teeth: 12
  • Outside Dia: 0.64"
 JX-22-102
Spline Insert JX-22-102
Pump Drive &
  • Height: 0.82"
  • Internal Teeth: 12
  • Outside Dia: 0.64"
22 Front Cover NPN-7-6-22
Front Cover NPN-7-6-22
&
23 Stud Threaded, " T" Head 4 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
 FX-10-13
Stud FX-10-13
Threaded, " T" Head & 4 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
23 Stud 4 Pieces Required.
  • Length: 16mm
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 0.77"
  • Bolt Head Thickness: 0.16"
 FX-10-9
Stud FX-10-9
& 4 Pieces Required.
  • Length: 16mm
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 0.77"
  • Bolt Head Thickness: 0.16"
24 Studcap Plastic Stud Protector 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
 MHC-STD
Studcap MHC-STD
Plastic Stud Protector & 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
24 Studcap 4 Pieces Required.
  • Inside Dia: 0.375
 MHC-STE
Studcap MHC-STE
& 4 Pieces Required.
  • Inside Dia: 0.375
24_N.I. Salvage Ring™ Core Saver™
  • Width: 0.375"
  • Outside Dia: 10.17"
 TX-22-7915
Salvage Ring™ TX-22-7915
Core Saver™ &
  • Width: 0.375"
  • Outside Dia: 10.17"
24_N.I. Salvage Ring™
  • Width: 0.250"
  • Outside Dia: 10.17"
 TX-22-7915NR
Salvage Ring™ TX-22-7915NR
&
  • Width: 0.250"
  • Outside Dia: 10.17"
