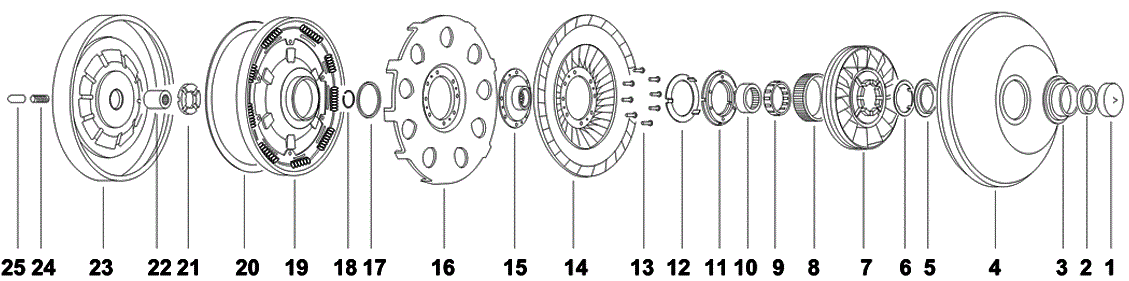

Torque Converter | Mazda | G4A, Ford 4EAT, DA-24 | DA18

Ill.# Image Description Specification Part #
1 Hubcap Fits 2-5/8" (66.7mm). Length: 1/2"
  • Color: Orange
  • Fits 2-5/8" (66.7mm)
 MHC-RN
Hubcap MHC-RN
Fits 2-5/8" (66.7mm). Length: 1/2" &
  • Color: Orange
  • Fits 2-5/8" (66.7mm)
2 Bushing
  • Thickness: 0.472"
  • Housing Bore Dia: 2.245"
  • Shaft Dia: 2.088"
  • Material: Bronze
  • Inside Dia: 2.0940
  • Type: Precision
  • Replaces Babbit
 JB-18-8B
Bushing JB-18-8B
&
  • Thickness: 0.472"
  • Housing Bore Dia: 2.245"
  • Shaft Dia: 2.088"
  • Material: Bronze
  • Inside Dia: 2.0940
  • Type: Precision
  • Replaces Babbit
2 Bushing
  • Thickness: 0.472"
  • Housing Bore Dia: 2.243
  • Material: Bi-metal
  • Inside Dia: 2.0940
  • Type: Unfinished
 JB-18-8X
Bushing JB-18-8X
&
  • Thickness: 0.472"
  • Housing Bore Dia: 2.243
  • Material: Bi-metal
  • Inside Dia: 2.0940
  • Type: Unfinished
2 Bushing
  • Thickness: 0.472"
  • Housing Bore Dia: 2.24"
  • Shaft Dia: 2.088"
  • Material: Bronze
  • Inside Dia: 2.0940
  • Type: Precision
 JB-18-9
Bushing JB-18-9
&
  • Thickness: 0.472"
  • Housing Bore Dia: 2.24"
  • Shaft Dia: 2.088"
  • Material: Bronze
  • Inside Dia: 2.0940
  • Type: Precision
2 Bushing
  • Thickness: 0.472"
  • Housing Bore Dia: 2.245"
  • Shaft Dia: 2.088"
  • Material: Bronze (Replaces Babbit)
  • Bushing Type: Bore In Place
  • Inside Dia: 2.0940
  • Type: undersized I.D
 JB-18-8BX
Bushing JB-18-8BX
&
  • Thickness: 0.472"
  • Housing Bore Dia: 2.245"
  • Shaft Dia: 2.088"
  • Material: Bronze (Replaces Babbit)
  • Bushing Type: Bore In Place
  • Inside Dia: 2.0940
  • Type: undersized I.D
3 Impeller Hub Use With JW-2-13 Bearing
  • Journal Dia: 2.670"
  • Height: 0.56"
  • Hub Mount: Butt
  • Hardness: Rc 32-36
  • Inside Dia: 2.24"
 JH-1-12GRC
Impeller Hub JH-1-12GRC
& Use With JW-2-13 Bearing
  • Journal Dia: 2.670"
  • Height: 0.56"
  • Hub Mount: Butt
  • Hardness: Rc 32-36
  • Inside Dia: 2.24"
3 Impeller Hub Use With JW-2-12 Bearing
  • Journal Dia: 2.670"
  • Installed Height: .748"
  • Hub Mount: Flanged
  • Hardness: Rc 32-36
  • Inside Dia: 2.24"
 JH-1-19FLGRC
Impeller Hub JH-1-19FLGRC
& Use With JW-2-12 Bearing
  • Journal Dia: 2.670"
  • Installed Height: .748"
  • Hub Mount: Flanged
  • Hardness: Rc 32-36
  • Inside Dia: 2.24"
4 Impeller NPN-7-8-4
Impeller NPN-7-8-4
&
5 Bearing Inside Lip
  • Thickness: 0.11
  • Thickness metric: 2.79
  • Bearing type: Semi- Enclosed
  • Outside Dia: 3.228
  • Inside Dia: 2.393
  • Outside Dia Metric: 82
  • Inside Dia metric: 60.78
  • Race: JW-2-7, JW-2-10
 JW-2-13
Bearing JW-2-13
Inside Lip &
  • Thickness: 0.11
  • Thickness metric: 2.79
  • Bearing type: Semi- Enclosed
  • Outside Dia: 3.228
  • Inside Dia: 2.393
  • Outside Dia Metric: 82
  • Inside Dia metric: 60.78
  • Race: JW-2-7, JW-2-10
5 Bearing
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Semi- Enclosed
  • Outside Dia: 3.22
  • Inside Dia: 2.445
  • Outside Dia Metric: 81.79
  • Inside Dia metric: 62.1
  • Race: JW-2-10
 JW-2-12
Bearing JW-2-12
&
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Semi- Enclosed
  • Outside Dia: 3.22
  • Inside Dia: 2.445
  • Outside Dia Metric: 81.79
  • Inside Dia metric: 62.1
  • Race: JW-2-10
5 Bearing
  • Outside Dia: 3.220"
  • Inside Dia: 2.445"
 JW-2-13A
Bearing JW-2-13A
&
  • Outside Dia: 3.220"
  • Inside Dia: 2.445"
6 Bearing Race MAZDA
  • Thickness: 0.08"
  • Lug Count: 4
  • Outside Dia: 3"
  • Inside Dia: 2.53"
 JW-2-10
Bearing Race JW-2-10
& MAZDA
  • Thickness: 0.08"
  • Lug Count: 4
  • Outside Dia: 3"
  • Inside Dia: 2.53"
7 Stator NPN-7-8-7
Stator NPN-7-8-7
&
8 Cam NPN-7-8-8
Cam NPN-7-8-8
&

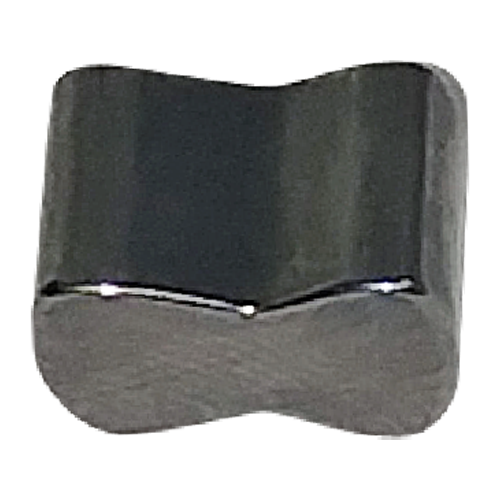

9 Cam (Sprag Element) 24 Pieces Required. F-240
Cam (Sprag Element) F-240
& 24 Pieces Required.

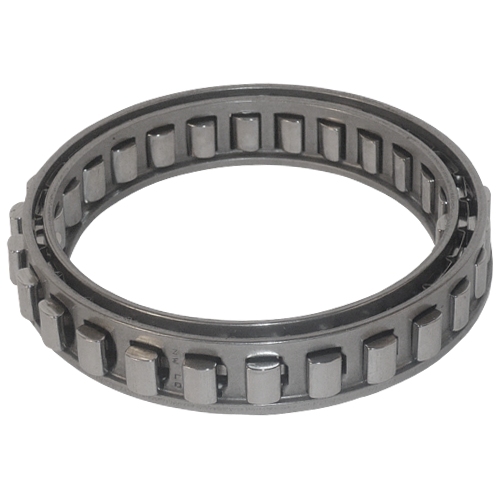

9 Sprag
  • Thickness: 0.450"
  • Cam Count: 26 elements
  • Outer Race Inside Dia: 2.820"
  • Inner Race Outside Dia: 2.410"
  • Cam part-ID: F-240 or S-240
 JC-6-2
Sprag JC-6-2
&
  • Thickness: 0.450"
  • Cam Count: 26 elements
  • Outer Race Inside Dia: 2.820"
  • Inner Race Outside Dia: 2.410"
  • Cam part-ID: F-240 or S-240

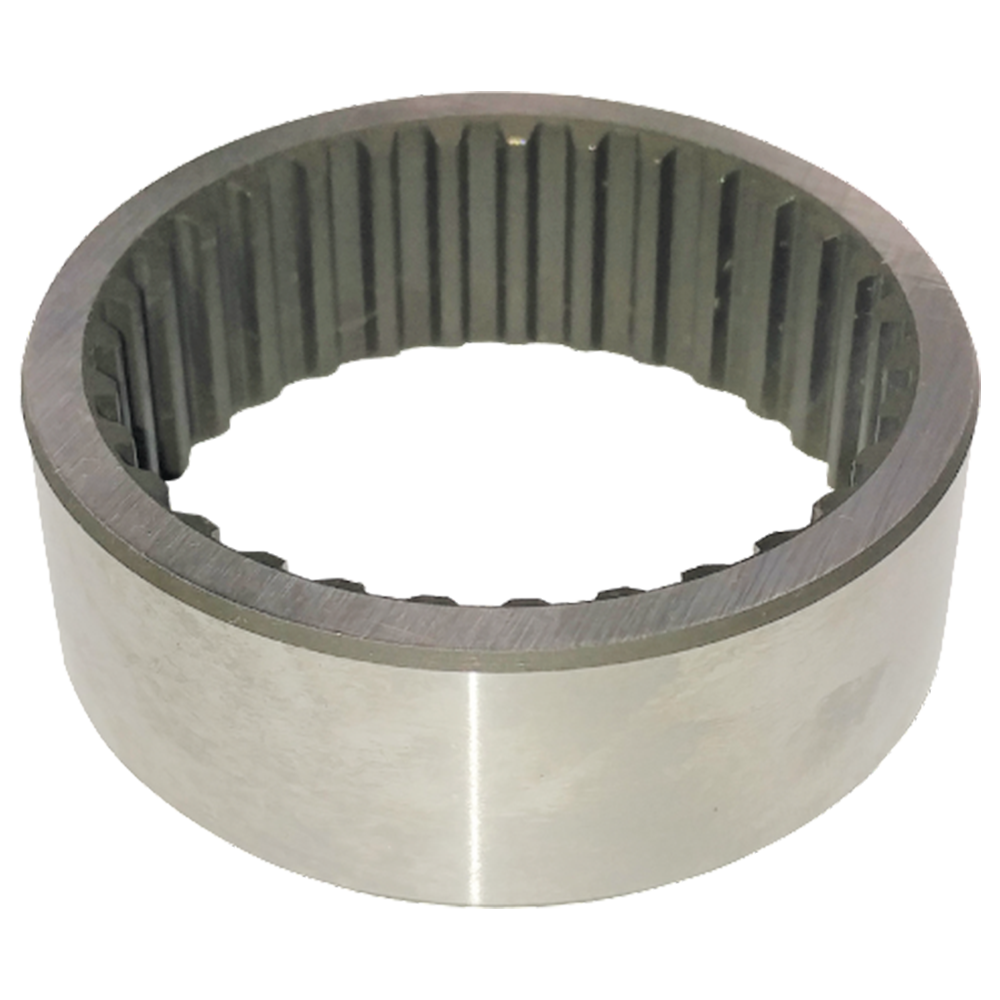

10 Inner Race Stator
  • Height: 0.787"
  • Internal Teeth: 31
  • Outside Dia: 2.275"
 JX-14-7
Inner Race JX-14-7
Stator &
  • Height: 0.787"
  • Internal Teeth: 31
  • Outside Dia: 2.275"

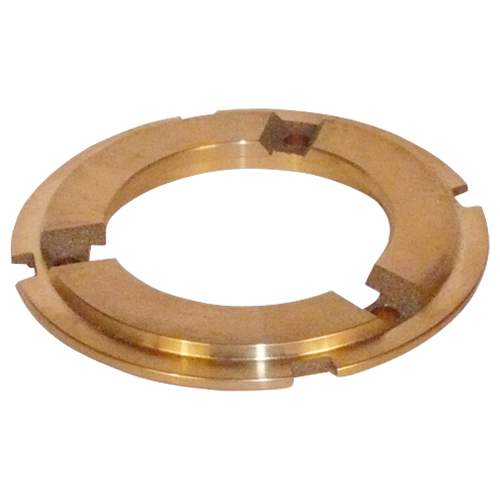

11 Stator Cap
  • Thickness: 0.295"
  • Material: Aluminum
  • Outside Dia: 3.362"
  • Inside Dia: 2.025"
  • Outer Notch Count: 4 Total Thickness: 0.305"
 JW-4-12B
Stator Cap JW-4-12B
&
  • Thickness: 0.295"
  • Material: Aluminum
  • Outside Dia: 3.362"
  • Inside Dia: 2.025"
  • Outer Notch Count: 4 Total Thickness: 0.305"

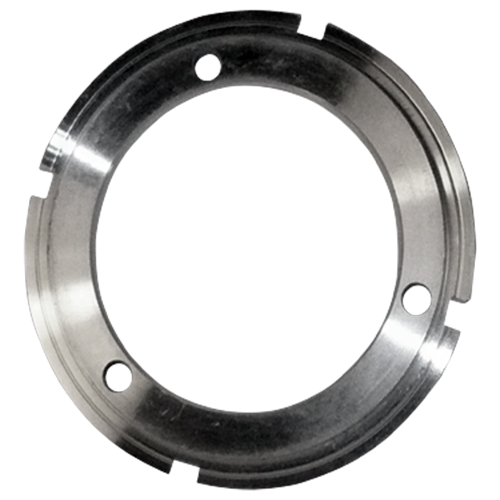

11 Stator Cap
  • Thickness: 0.3"
  • Outside Dia: 3.36"
  • Inside Dia: 2.77"
  • Bearing Adapter For TW-2-4 Bearing, (Machine .065" From Turbine Hub)
 JW-4-20
Stator Cap JW-4-20
&
  • Thickness: 0.3"
  • Outside Dia: 3.36"
  • Inside Dia: 2.77"
  • Bearing Adapter For TW-2-4 Bearing, (Machine .065" From Turbine Hub)

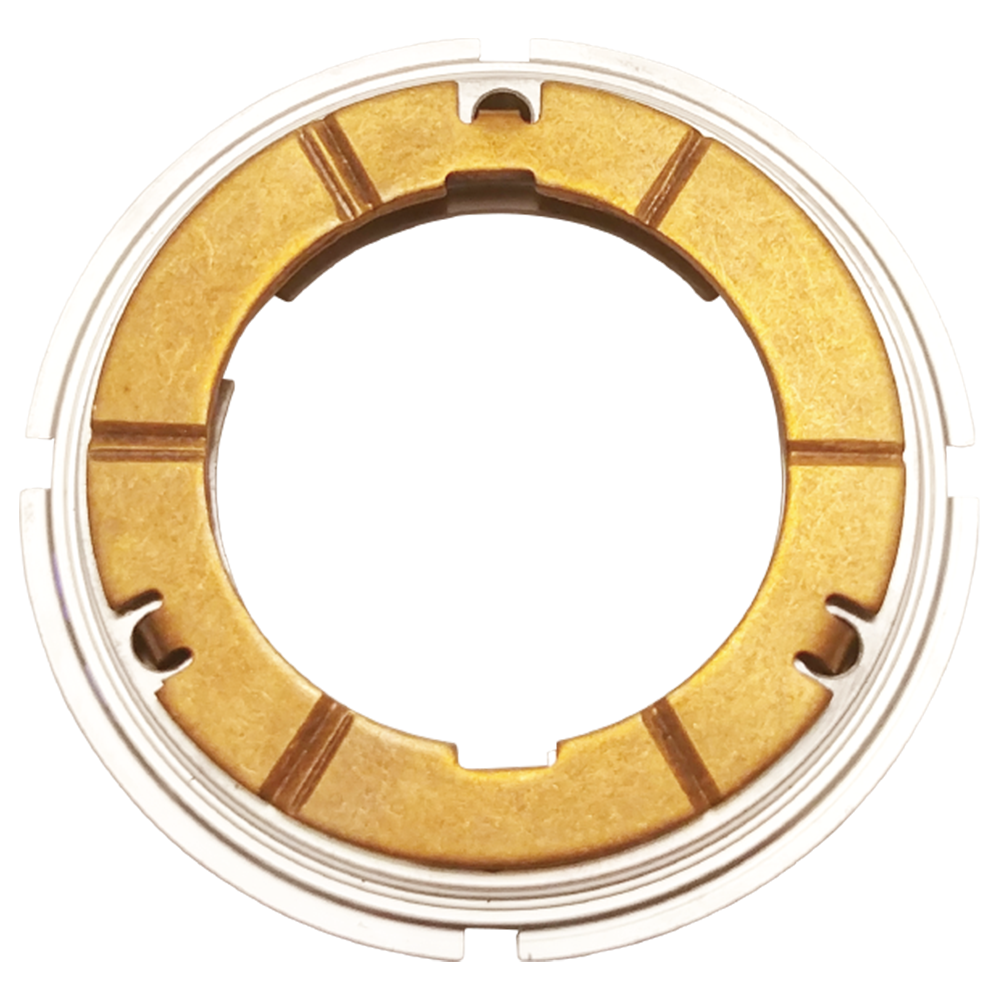

11 Washer Kit Late, O.E. Style, Use With JW-2-21 Race, JW-2-22 Bearing
  • Outside Dia: 3.36"
  • Inside Dia: 2.02"
 JW-4-12BK
Washer Kit JW-4-12BK
& Late, O.E. Style, Use With JW-2-21 Race, JW-2-22 Bearing
  • Outside Dia: 3.36"
  • Inside Dia: 2.02"

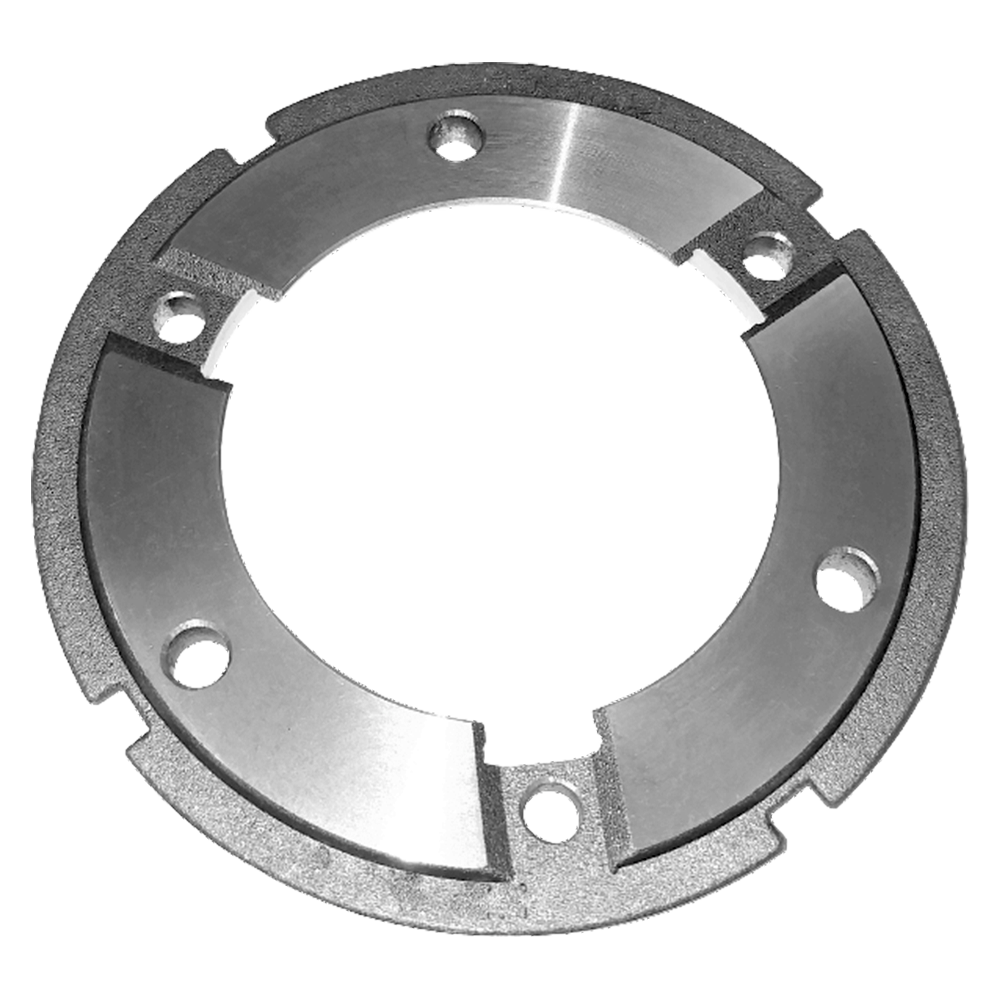

11 Stator Cap Late, O.E. Style, Use With JW-2-21 Race, JW-2-22 Bearing
  • Material: Aluminum
  • Outside Dia: 3.36"
  • Inside Dia: 2.02"
  • To Adapt To JW-3 Bronze Washer
 JW-4-19
Stator Cap JW-4-19
& Late, O.E. Style, Use With JW-2-21 Race, JW-2-22 Bearing
  • Material: Aluminum
  • Outside Dia: 3.36"
  • Inside Dia: 2.02"
  • To Adapt To JW-3 Bronze Washer
12 Washer Upgrade
  • Thickness: 0.78"
  • Material: Bronze
  • Outside Dia: 2.81"
  • Inside Dia: 1.99"
 JW-3
Washer JW-3
Upgrade &
  • Thickness: 0.78"
  • Material: Bronze
  • Outside Dia: 2.81"
  • Inside Dia: 1.99"
12_N.I. Bearing Race O.E. Style Late
  • Thickness: 0.1"
  • Material: Steel
  • Outside Dia: 2.75"
  • Inside Dia: 2.01"
 JW-2-21
Bearing Race JW-2-21
O.E. Style & Late
  • Thickness: 0.1"
  • Material: Steel
  • Outside Dia: 2.75"
  • Inside Dia: 2.01"
13 Rivet 6 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12L
Rivet FX-12L
& 6 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"

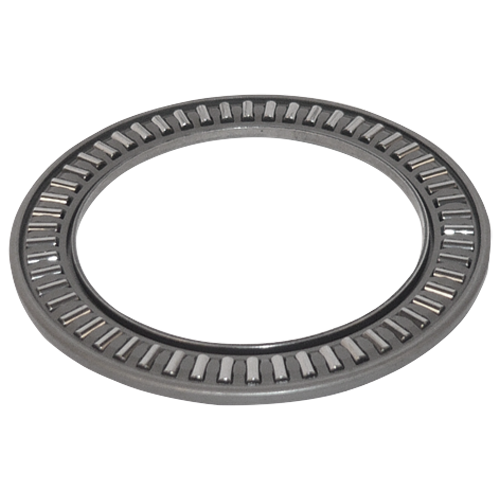

13_N.I. Bearing O.E. Style Late
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Semi- Enclosed
  • Outside Dia: 2.638
  • Inside Dia: 1.89
  • Outside Dia Metric: 67.01
  • Inside Dia metric: 48.01
  • Race: JW-2-21
 JW-2-22
Bearing JW-2-22
O.E. Style & Late
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Semi- Enclosed
  • Outside Dia: 2.638
  • Inside Dia: 1.89
  • Outside Dia Metric: 67.01
  • Inside Dia metric: 48.01
  • Race: JW-2-21
14 Turbine
  • Outside Dia Metric: 237mm
 NPN-7-8-14
Turbine NPN-7-8-14
&
  • Outside Dia Metric: 237mm

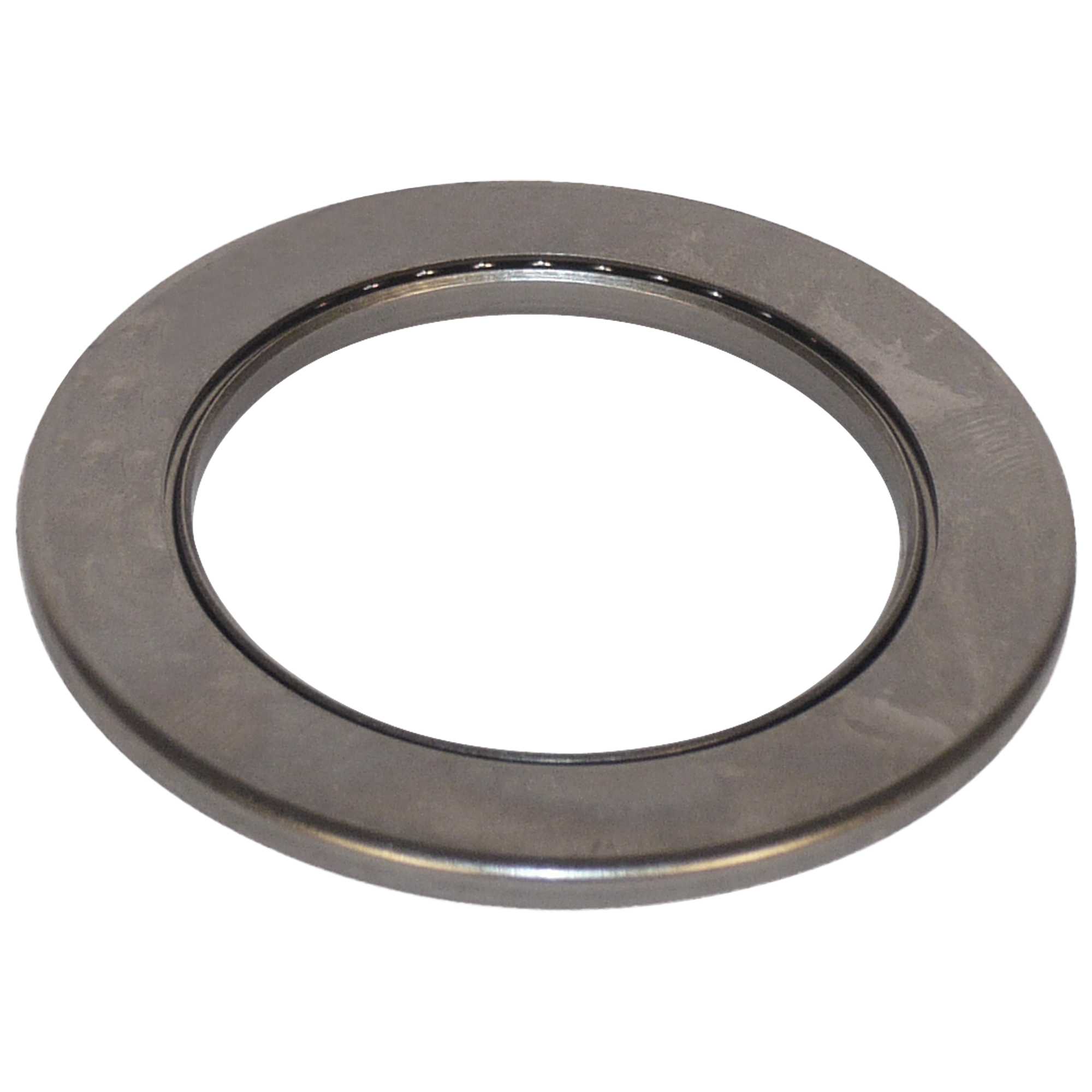

14_N.I. Bearing Alternate, Use with Bearing Adapter JW-4-20 or JX-13-43 Turbine Hub
  • Thickness: 0.181
  • Thickness metric: 4.6
  • Bearing type: Enclosed
  • Outside Dia: 2.82
  • Inside Dia: 1.898
  • Outside Dia Metric: 71.63
  • Inside Dia metric: 48.21
 TW-2-4
Bearing TW-2-4
& Alternate, Use with Bearing Adapter JW-4-20 or JX-13-43 Turbine Hub
  • Thickness: 0.181
  • Thickness metric: 4.6
  • Bearing type: Enclosed
  • Outside Dia: 2.82
  • Inside Dia: 1.898
  • Outside Dia Metric: 71.63
  • Inside Dia metric: 48.21
14_N.I. Bearing Alternate, Use with Bearing Adapter JW-4-20 or JX-13-43 Turbine Hub
  • Thickness: 0.181"
  • Bearing type: Enclosed
  • Outside Dia: 2.82"
  • Inside Dia: 1.9"
 TW-2-4NA
Bearing TW-2-4NA
& Alternate, Use with Bearing Adapter JW-4-20 or JX-13-43 Turbine Hub
  • Thickness: 0.181"
  • Bearing type: Enclosed
  • Outside Dia: 2.82"
  • Inside Dia: 1.9"

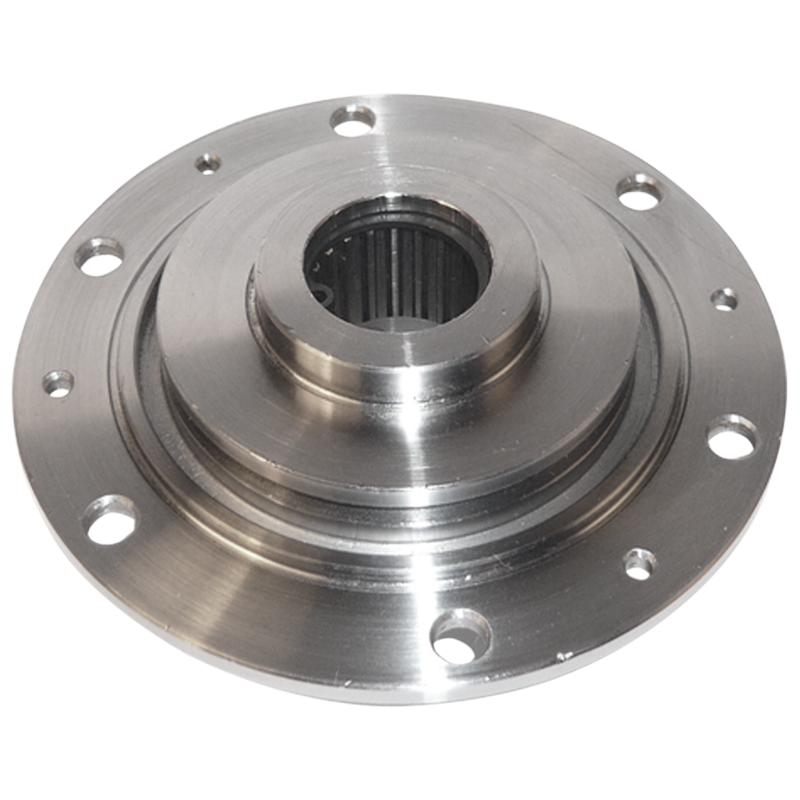

15 Turbine Hub
  • Internal Teeth: 21
  • Outside Dia: 3.86"
  • Use With JW-3 Bronze Washer
 JX-13-13
Turbine Hub JX-13-13
&
  • Internal Teeth: 21
  • Outside Dia: 3.86"
  • Use With JW-3 Bronze Washer

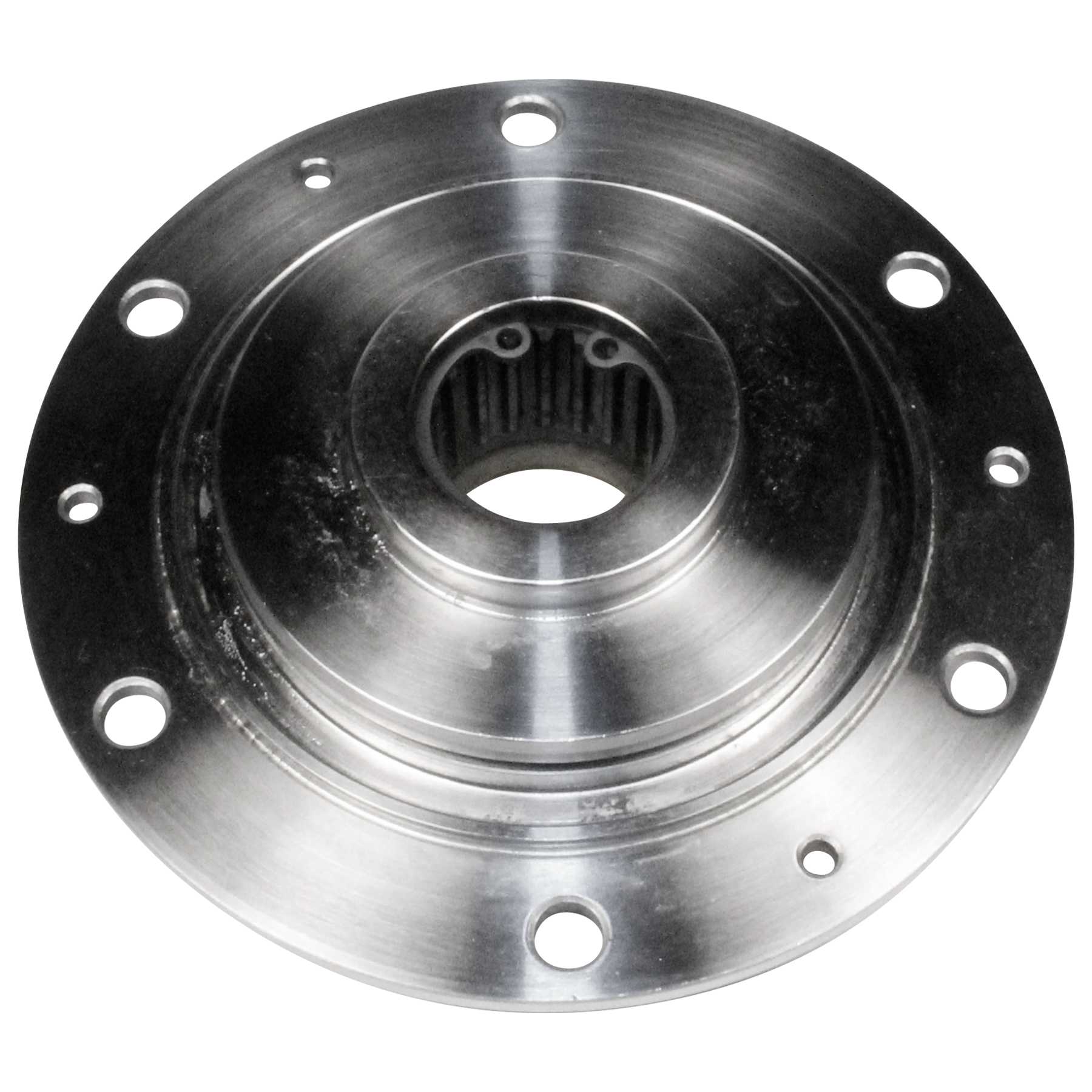

15 Turbine Hub
  • Internal Teeth: 21
  • Outside Dia: 3.86"
 JX-13-13HT
Turbine Hub JX-13-13HT
&
  • Internal Teeth: 21
  • Outside Dia: 3.86"
15 Turbine Hub
  • Internal Teeth: 21
  • Outside Dia: 3.86"
 JX-13-43
Turbine Hub JX-13-43
&
  • Internal Teeth: 21
  • Outside Dia: 3.86"

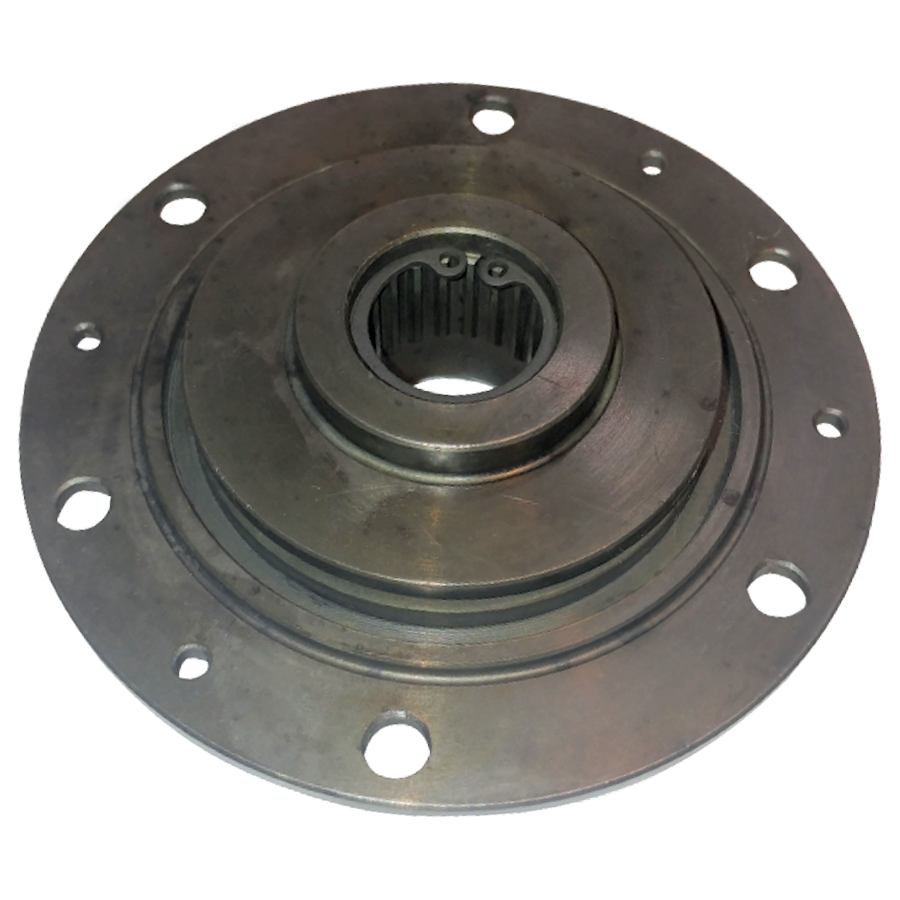

15 Turbine Hub
  • Internal Teeth: 21
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.86"
  • Use With TW-2-4 Bearing & JW-9-14 Turbine-Washer
 JX-13-43HT
Turbine Hub JX-13-43HT
&
  • Internal Teeth: 21
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.86"
  • Use With TW-2-4 Bearing & JW-9-14 Turbine-Washer
15 Turbine Hub
  • Internal Teeth: 21
  • Outside Dia: 3.86"
  • Uses Seal Ring
 JX-13-41
Turbine Hub JX-13-41
&
  • Internal Teeth: 21
  • Outside Dia: 3.86"
  • Uses Seal Ring
15 Turbine Hub DA-24 Late,Use With JW-2-21, JW-2-22
  • Internal Teeth: 21
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.86"
  • Uses Seal Ring
 JX-13-41HT
Turbine Hub JX-13-41HT
& DA-24 Late,Use With JW-2-21, JW-2-22
  • Internal Teeth: 21
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.86"
  • Uses Seal Ring
15 Turbine Hub
  • Internal Teeth: 21
  • Outside Dia: 3.86"
  • Uses Seal-Ring
 JX-13-46
Turbine Hub JX-13-46
&
  • Internal Teeth: 21
  • Outside Dia: 3.86"
  • Uses Seal-Ring
15 Turbine Hub DA-24 Late, Use With JW-2-21, JW-2-22
  • Internal Teeth: 21
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.86"
  • Uses Seal-Ring
 JX-13-46HT
Turbine Hub JX-13-46HT
& DA-24 Late, Use With JW-2-21, JW-2-22
  • Internal Teeth: 21
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.86"
  • Uses Seal-Ring

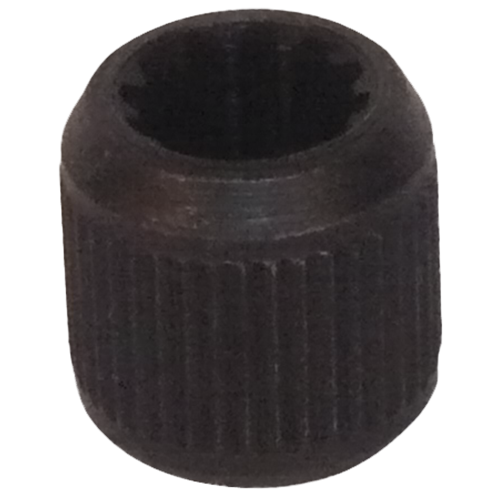

15_N.I. Spline Insert Pump Drive
  • Height: 1.140
  • External Teeth: 21
 JX-13-21
Spline Insert JX-13-21
Pump Drive &
  • Height: 1.140
  • External Teeth: 21
16 Coupling Plate NPN-7-8-16
Coupling Plate NPN-7-8-16
&
17 Seal Ring Heavy Duty, Scarf Cut
  • Height: 0.116"
  • Width: 0.094"
  • Material: PTFE
  • Height Metric: 2.5908
  • Seal Type: Scarf Cut
  • Outside Dia: 2.377"
  • Outside Dia Metric: 59.8932
 JO-25-5
Seal Ring JO-25-5
Heavy Duty, Scarf Cut &
  • Height: 0.116"
  • Width: 0.094"
  • Material: PTFE
  • Height Metric: 2.5908
  • Seal Type: Scarf Cut
  • Outside Dia: 2.377"
  • Outside Dia Metric: 59.8932
17 O-Ring for DA-24 Late, Use With JX-13-46
  • Thickness: 0.08
  • Thickness metric: 2.032
  • Material: Fluorocarbon
  • Inside Dia: 2.205
  • Inside Dia metric: 56.007
 JO-25-10
O-Ring JO-25-10
& for DA-24 Late, Use With JX-13-46
  • Thickness: 0.08
  • Thickness metric: 2.032
  • Material: Fluorocarbon
  • Inside Dia: 2.205
  • Inside Dia metric: 56.007
18 Snap Ring NPN-7-8-18
Snap Ring NPN-7-8-18
&

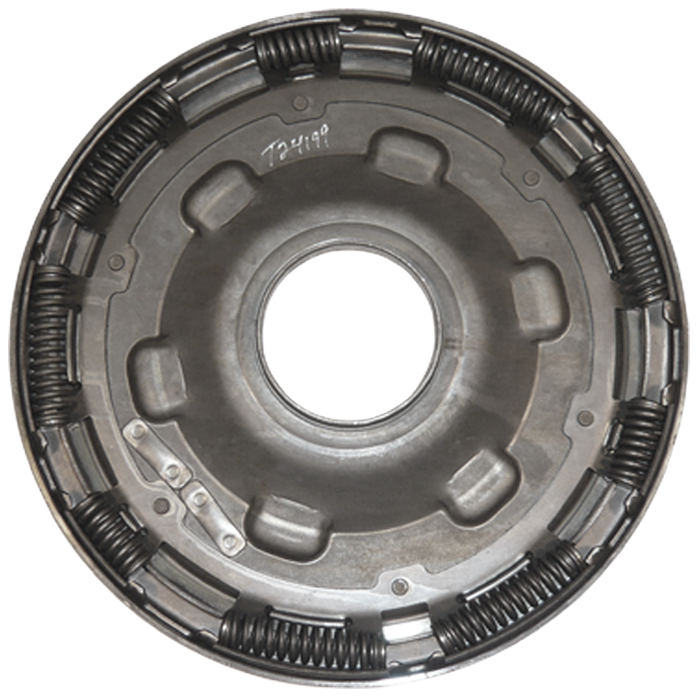

19 Clutch Plate Assembly 9 Springs, 6 Dimples
  • 9 Springs, 6 Dimples
 JX-23-18
Clutch Plate Assembly JX-23-18
9 Springs, 6 Dimples &
  • 9 Springs, 6 Dimples
20 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.25"
  • Inside Dia: 8.125"
  • 9 Springs, 6 Deep Dimples
 FX-23-6
Lining (Friction Ring,Wafer) FX-23-6
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.25"
  • Inside Dia: 8.125"
  • 9 Springs, 6 Deep Dimples
21 Washer
  • Thickness: .250"
  • Material: Phenolic
  • Outside Dia: 2.25"
  • Inside Dia: 1.37"
 JW-9-10
Washer JW-9-10
&
  • Thickness: .250"
  • Material: Phenolic
  • Outside Dia: 2.25"
  • Inside Dia: 1.37"
21 Washer
  • Thickness: .250"
  • Material: Bronze
  • Outside Dia: 2.25"
  • Inside Dia: 1.37"
 JW-9-10B
Washer JW-9-10B
&
  • Thickness: .250"
  • Material: Bronze
  • Outside Dia: 2.25"
  • Inside Dia: 1.37"
21 Washer DA-24 Late, Use With Turbine Hub JX-13-41
  • Thickness: .250"
  • Outside Dia: 2.05"
  • Inside Dia: 1.20"
 JW-9-14
Washer JW-9-14
& DA-24 Late, Use With Turbine Hub JX-13-41
  • Thickness: .250"
  • Outside Dia: 2.05"
  • Inside Dia: 1.20"
22 Spline Insert Pump Drive
  • Height: 0.625"
  • External Teeth: 12
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 0.64"
 JX-22-100
Spline Insert JX-22-100
Pump Drive &
  • Height: 0.625"
  • External Teeth: 12
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 0.64"
23 Front Cover NPN-7-8-23
Front Cover NPN-7-8-23
&
24 Stud Threaded, " T" Head 4 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
 FX-10-13
Stud FX-10-13
Threaded, " T" Head & 4 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
24 Stud 4 Pieces Required.
  • Length: 16mm
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 0.77"
  • Bolt Head Thickness: 0.16"
 FX-10-9
Stud FX-10-9
& 4 Pieces Required.
  • Length: 16mm
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 0.77"
  • Bolt Head Thickness: 0.16"
25 Studcap Plastic Stud Protector 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
 MHC-STD
Studcap MHC-STD
Plastic Stud Protector & 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
25 Studcap 4 Pieces Required.
  • Inside Dia: 0.375
 MHC-STE
Studcap MHC-STE
& 4 Pieces Required.
  • Inside Dia: 0.375

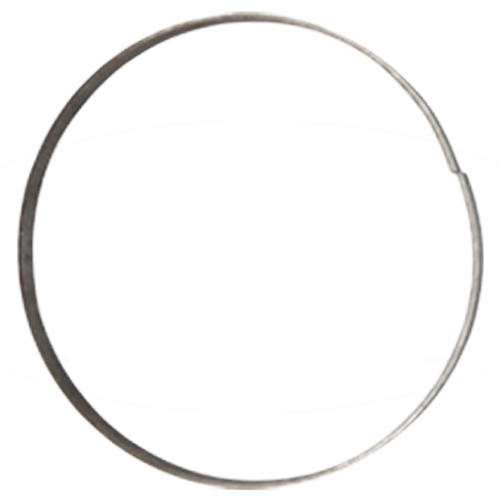

25_N.I. Salvage Ring™ Core Saver™
  • Width: 0.375"
  • Outside Dia: 10.17"
 TX-22-7915
Salvage Ring™ TX-22-7915
Core Saver™ &
  • Width: 0.375"
  • Outside Dia: 10.17"
25_N.I. Salvage Ring™
  • Width: 0.250"
  • Outside Dia: 10.17"
 TX-22-7915NR
Salvage Ring™ TX-22-7915NR
&
  • Width: 0.250"
  • Outside Dia: 10.17"
