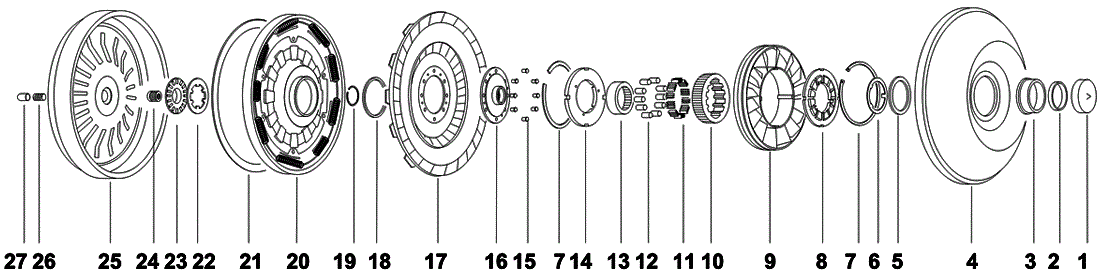

Torque Converter | Mazda | G4A, Ford 4EAT, DA-15,15L/S | DA15, DA15L/S

Ill.# Image Description Specification Part #
1 Hubcap Fits 2-5/8" (66.7mm). Length: 1/2"
  • Color: Orange
  • Fits 2-5/8" (66.7mm)
 MHC-RN
Hubcap MHC-RN
Fits 2-5/8" (66.7mm). Length: 1/2" &
  • Color: Orange
  • Fits 2-5/8" (66.7mm)
2 Bushing
  • Thickness: 0.461"
  • Housing Bore Dia: 2.402"
  • Shaft Dia: 2.243"
  • Material: Babbit
  • Type: Precision
  • Use With JH-1-10GRC
 JB-18-7
Bushing JB-18-7
&
  • Thickness: 0.461"
  • Housing Bore Dia: 2.402"
  • Shaft Dia: 2.243"
  • Material: Babbit
  • Type: Precision
  • Use With JH-1-10GRC
2 Bushing Use With JH-1-20FLGRC
  • Thickness: 0.472"
  • Housing Bore Dia: 2.245"
  • Shaft Dia: 2.088"
  • Material: Bronze
  • Inside Dia: 2.0940
  • Type: Precision
  • Replaces Babbit
 JB-18-8B
Bushing JB-18-8B
& Use With JH-1-20FLGRC
  • Thickness: 0.472"
  • Housing Bore Dia: 2.245"
  • Shaft Dia: 2.088"
  • Material: Bronze
  • Inside Dia: 2.0940
  • Type: Precision
  • Replaces Babbit
2 Bushing
  • Thickness: 0.472"
  • Housing Bore Dia: 2.245"
  • Shaft Dia: 2.088"
  • Material: Bronze (Replaces Babbit)
  • Bushing Type: Bore In Place
  • Inside Dia: 2.0940
  • Type: undersized I.D
 JB-18-8BX
Bushing JB-18-8BX
&
  • Thickness: 0.472"
  • Housing Bore Dia: 2.245"
  • Shaft Dia: 2.088"
  • Material: Bronze (Replaces Babbit)
  • Bushing Type: Bore In Place
  • Inside Dia: 2.0940
  • Type: undersized I.D
2 Bushing Use With JH-1-20FLGRC
  • Thickness: 0.472"
  • Housing Bore Dia: 2.243
  • Material: Bi-metal
  • Inside Dia: 2.0940
  • Type: Unfinished
 JB-18-8X
Bushing JB-18-8X
& Use With JH-1-20FLGRC
  • Thickness: 0.472"
  • Housing Bore Dia: 2.243
  • Material: Bi-metal
  • Inside Dia: 2.0940
  • Type: Unfinished
2 Bushing
  • Thickness: 0.472"
  • Housing Bore Dia: 2.24"
  • Shaft Dia: 2.088"
  • Material: Bronze
  • Inside Dia: 2.0940
  • Type: Precision
 JB-18-9
Bushing JB-18-9
&
  • Thickness: 0.472"
  • Housing Bore Dia: 2.24"
  • Shaft Dia: 2.088"
  • Material: Bronze
  • Inside Dia: 2.0940
  • Type: Precision
3 Impeller Hub Use With JW-2-12 Bearing
  • Journal Dia: 2.670"
  • Installed Height: .610"
  • Hub Mount: Flanged
  • Hardness: Rc 32-36
 JH-1-20FLGRC
Impeller Hub JH-1-20FLGRC
& Use With JW-2-12 Bearing
  • Journal Dia: 2.670"
  • Installed Height: .610"
  • Hub Mount: Flanged
  • Hardness: Rc 32-36
3 Impeller Hub Standard Use With JW-2-13Bearing
  • Journal Dia: 2.670"
  • Height: 0.56"
  • Hub Mount: Butt
  • Inside Dia: 2.40"

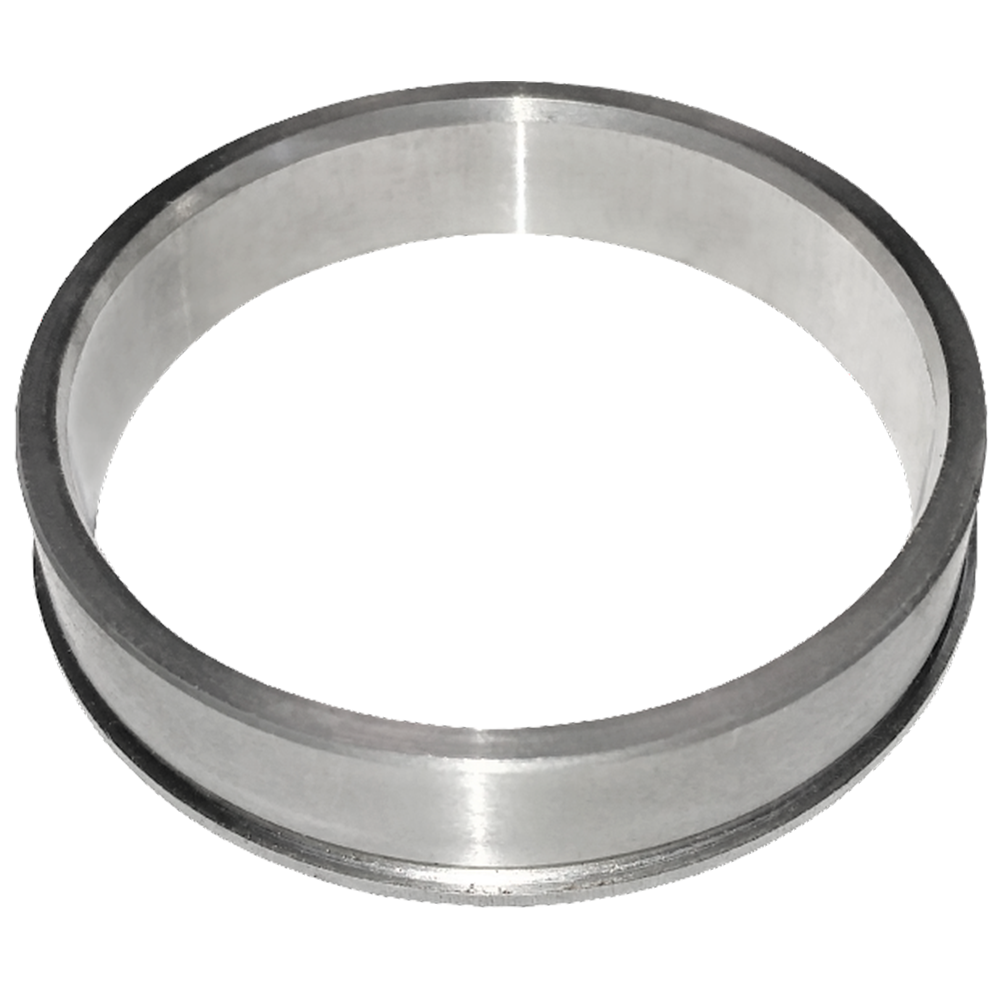

 JH-1-10G
Impeller Hub JH-1-10G
Standard & Use With JW-2-13Bearing
  • Journal Dia: 2.670"
  • Height: 0.56"
  • Hub Mount: Butt
  • Inside Dia: 2.40"
4 Impeller NPN-7-2-4
Impeller NPN-7-2-4
&
5 Bearing Inside Lip
  • Thickness: 0.11
  • Thickness metric: 2.79
  • Bearing type: Semi- Enclosed
  • Outside Dia: 3.228
  • Inside Dia: 2.393
  • Outside Dia Metric: 82
  • Inside Dia metric: 60.78
  • Race: JW-2-7, JW-2-10
 JW-2-13
Bearing JW-2-13
Inside Lip &
  • Thickness: 0.11
  • Thickness metric: 2.79
  • Bearing type: Semi- Enclosed
  • Outside Dia: 3.228
  • Inside Dia: 2.393
  • Outside Dia Metric: 82
  • Inside Dia metric: 60.78
  • Race: JW-2-7, JW-2-10
5 Bearing
  • Outside Dia: 3.220"
  • Inside Dia: 2.445"
 JW-2-13A
Bearing JW-2-13A
&
  • Outside Dia: 3.220"
  • Inside Dia: 2.445"
5 Bearing
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Semi- Enclosed
  • Outside Dia: 3.22
  • Inside Dia: 2.445
  • Outside Dia Metric: 81.79
  • Inside Dia metric: 62.1
  • Race: JW-2-10

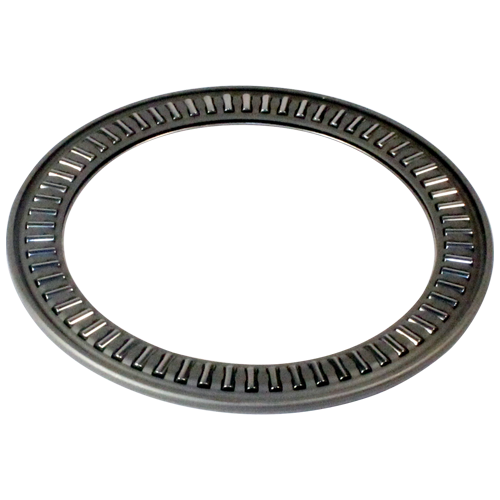

 JW-2-12
Bearing JW-2-12
&
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Semi- Enclosed
  • Outside Dia: 3.22
  • Inside Dia: 2.445
  • Outside Dia Metric: 81.79
  • Inside Dia metric: 62.1
  • Race: JW-2-10
6 Bearing Race
  • Thickness: 0.08"
  • Lug Count: 3
  • Outside Dia: 3"
  • Inside Dia: 2.53"
 JW-2-7
Bearing Race JW-2-7
&
  • Thickness: 0.08"
  • Lug Count: 3
  • Outside Dia: 3"
  • Inside Dia: 2.53"
7 Snap Ring NPN-7-2-7
Snap Ring NPN-7-2-7
&
8 Stator Cap
  • Material: Aluminum
  • OE Style, Use With Race JW-2-7
 NPN-7-2-8
Stator Cap NPN-7-2-8
&
  • Material: Aluminum
  • OE Style, Use With Race JW-2-7
8 Stator Cap Bearing Adapter
  • Thickness: 0.34"
  • Material: Aluminum
  • Outside Dia: 3.8"
  • Inside Dia: 2.290"
  • Used with bearing: SW-2-11
 JW-4-9
Stator Cap JW-4-9
Bearing Adapter &
  • Thickness: 0.34"
  • Material: Aluminum
  • Outside Dia: 3.8"
  • Inside Dia: 2.290"
  • Used with bearing: SW-2-11
9 Stator NPN-7-2-9
Stator NPN-7-2-9
&
10 Cam NPN-7-2-10
Cam NPN-7-2-10
&
11 Accordion Spring 10 Pieces Required.
  • Width: 0.53"
  • Relaxed Length: 0.34"
  • Folds: 4
  • Relaxed Height: 0.21"
 JS-6-1
Accordion Spring JS-6-1
& 10 Pieces Required.
  • Width: 0.53"
  • Relaxed Length: 0.34"
  • Folds: 4
  • Relaxed Height: 0.21"

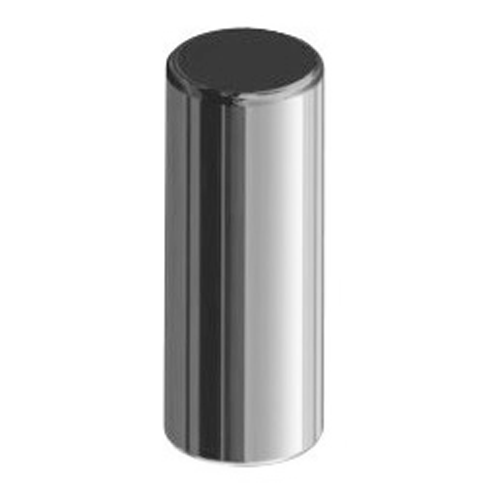

12 Roller 10 Pieces Required.
  • Dia: 0.235"
  • Length: 0.531"
 JR-7-1
Roller JR-7-1
& 10 Pieces Required.
  • Dia: 0.235"
  • Length: 0.531"
13 Inner Race Stator
  • Height: 0.540"
  • Internal Teeth: 35
  • Outside Dia: 2.606"
 JX-14-6
Inner Race JX-14-6
Stator &
  • Height: 0.540"
  • Internal Teeth: 35
  • Outside Dia: 2.606"
14 Stator Cap Front
  • Thickness: .27"
  • Material: Aluminum
  • Notch Count: 4 Outer
  • Outside Dia: 3.81"
  • Inside Dia: 1.66"
 JW-4-14
Stator Cap JW-4-14
Front &
  • Thickness: .27"
  • Material: Aluminum
  • Notch Count: 4 Outer
  • Outside Dia: 3.81"
  • Inside Dia: 1.66"
15 Rivet 8 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12L
Rivet FX-12L
& 8 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
16 Turbine Hub
  • Internal Teeth: 25
  • Outside Dia: 4.09"
 JX-13-11
Turbine Hub JX-13-11
&
  • Internal Teeth: 25
  • Outside Dia: 4.09"
16 Turbine Hub
  • Internal Teeth: 25
  • External Teeth: 40
  • Outside Dia: 4.11"
 JX-13-17
Turbine Hub JX-13-17
&
  • Internal Teeth: 25
  • External Teeth: 40
  • Outside Dia: 4.11"
16 Turbine Hub
  • Internal Teeth: 25
  • External Teeth: 40
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.11"

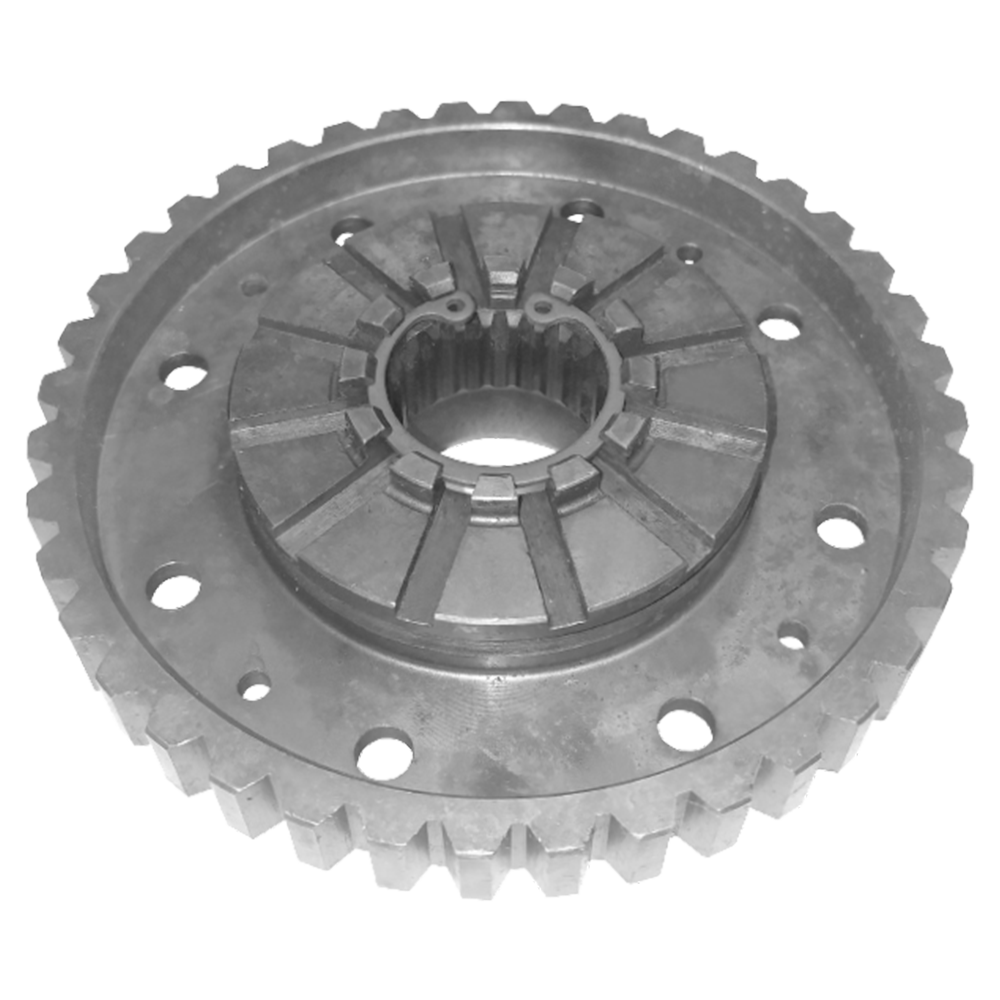

 JX-13-17HT
Turbine Hub JX-13-17HT
&
  • Internal Teeth: 25
  • External Teeth: 40
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.11"
16_N.I. Spline Insert Pump Drive
  • Height: 1.080
  • External Teeth: 25
 JX-13-25
Spline Insert JX-13-25
Pump Drive &
  • Height: 1.080
  • External Teeth: 25
17 Turbine
  • Outside Dia Metric: 254mm
 NPN-7-2-17
Turbine NPN-7-2-17
&
  • Outside Dia Metric: 254mm
18 Seal Ring Heavy Duty, Scarf Cut
  • Height: 0.116"
  • Width: 0.094"
  • Material: PTFE
  • Height Metric: 2.5908
  • Seal Type: Scarf Cut
  • Outside Dia: 2.377"
  • Outside Dia Metric: 59.8932
 JO-25-5
Seal Ring JO-25-5
Heavy Duty, Scarf Cut &
  • Height: 0.116"
  • Width: 0.094"
  • Material: PTFE
  • Height Metric: 2.5908
  • Seal Type: Scarf Cut
  • Outside Dia: 2.377"
  • Outside Dia Metric: 59.8932
19 Snap Ring NPN-7-2-19
Snap Ring NPN-7-2-19
&
20 Clutch Plate Assembly 9 Springs, 12 Dimples DA-15L/S
  • 9 Springs, 12 Dimples

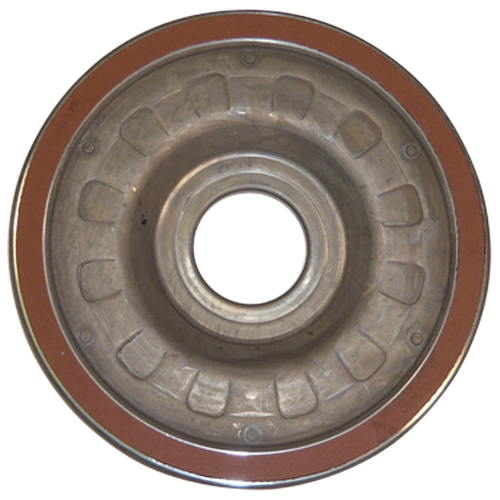

 JX-23-16
Clutch Plate Assembly JX-23-16
9 Springs, 12 Dimples & DA-15L/S
  • 9 Springs, 12 Dimples
20 Clutch Plate Assembly DA-15L/S
  • Internal Teeth: 40
  • 12 Springs, DA-15

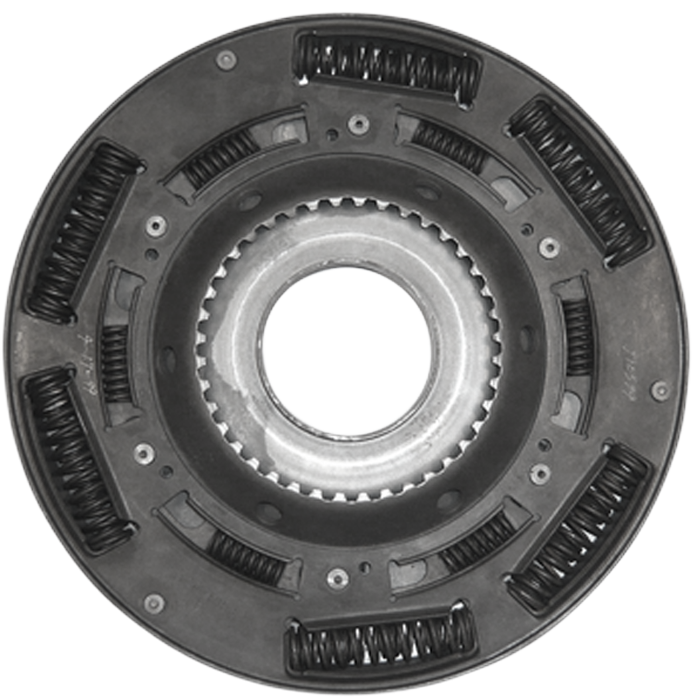

 JX-23-19
Clutch Plate Assembly JX-23-19
& DA-15L/S
  • Internal Teeth: 40
  • 12 Springs, DA-15
20 Lockup Clutch 12 Springs, 40 Teeth DA-15 NPN-7-2-20
Lockup Clutch NPN-7-2-20
12 Springs, 40 Teeth & DA-15
21 Lining (Friction Ring,Wafer) Use With JX-23-16
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.563"
  • Inside Dia: 8.625"
 JX-23-15
Lining (Friction Ring,Wafer) JX-23-15
& Use With JX-23-16
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.563"
  • Inside Dia: 8.625"
21 Lining (Friction Ring,Wafer) Alternate for DA-15L/S
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.5"
  • Inside Dia: 8.5"
 NX-23-2
Lining (Friction Ring,Wafer) NX-23-2
& Alternate for DA-15L/S
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.5"
  • Inside Dia: 8.5"
21 Lining (Friction Ring,Wafer) Use With JX-23-19
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.25"
  • Inside Dia: 7.875"
 JX-23-8
Lining (Friction Ring,Wafer) JX-23-8
& Use With JX-23-19
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.25"
  • Inside Dia: 7.875"
22 Bearing Race
  • Thickness: 0.08"
  • Lug Count: 6
  • Outside Dia: 2.09"
  • Inside Dia: 1.39"
 JW-9-9
Bearing Race JW-9-9
&
  • Thickness: 0.08"
  • Lug Count: 6
  • Outside Dia: 2.09"
  • Inside Dia: 1.39"

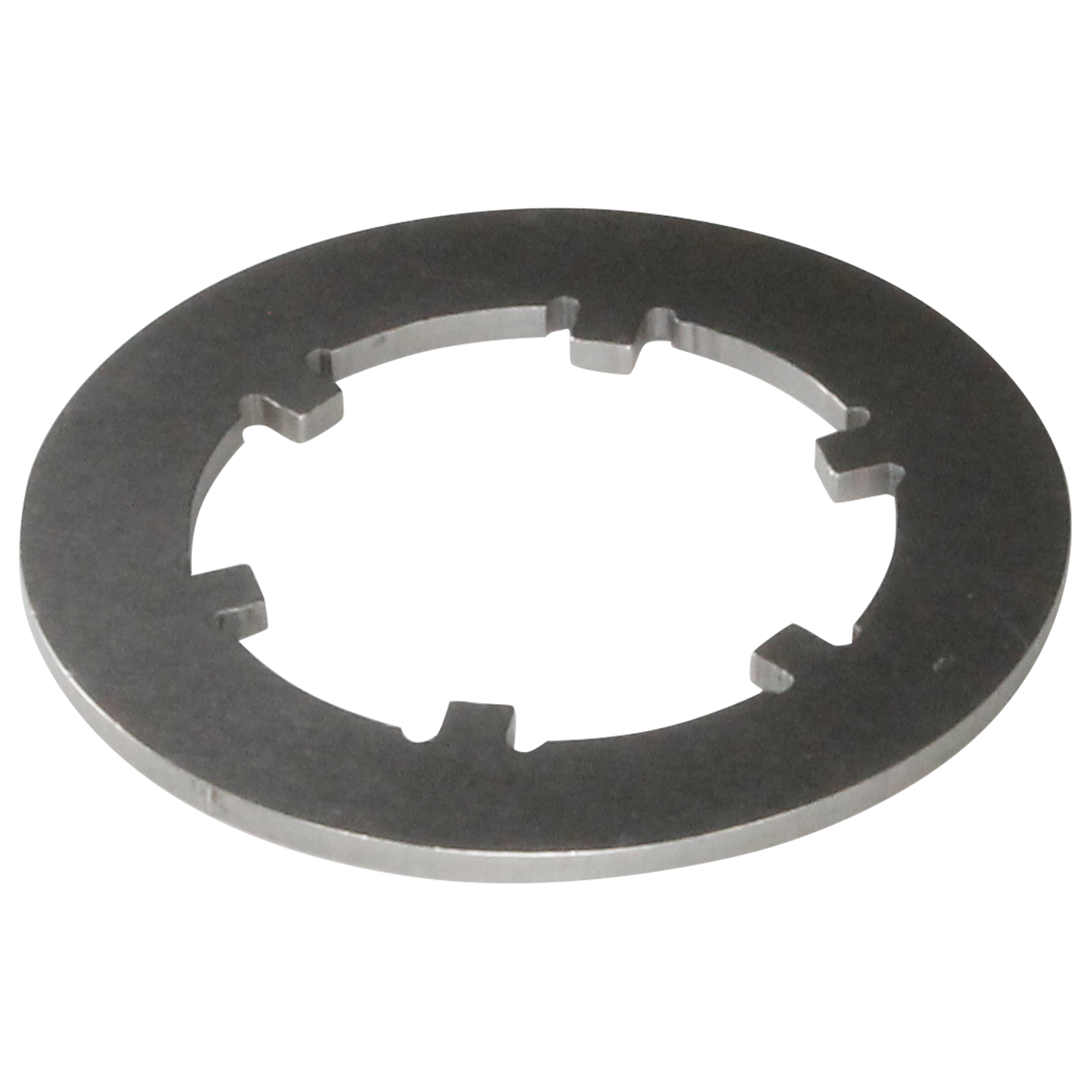

23 Bearing Race
  • Thickness: 0.39"
  • Outside Dia: 2.27"
  • Inside Dia: 0.86"
  • Outside & Inside Lips
 JW-9-8
Bearing Race JW-9-8
&
  • Thickness: 0.39"
  • Outside Dia: 2.27"
  • Inside Dia: 0.86"
  • Outside & Inside Lips
23 Bearing Race Improved,Mazda
  • Outside Dia: 2.27"
  • Inside Dia: 0.86"
 JW-9-8D
Bearing Race JW-9-8D
Improved,Mazda &
  • Outside Dia: 2.27"
  • Inside Dia: 0.86"
23 Bearing & Race Kit Cover / Turbine
  • Outside Dia: 2.27"
  • Inside Dia: 0.86"

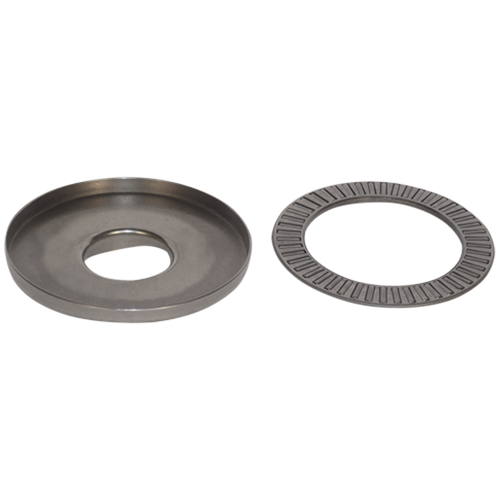

 JW-9-8K
Bearing & Race Kit JW-9-8K
Cover / Turbine &
  • Outside Dia: 2.27"
  • Inside Dia: 0.86"
23 Bearing & Race Kit Improved,Mazda
  • Outside Dia: 2.27"
  • Inside Dia: 0.86"

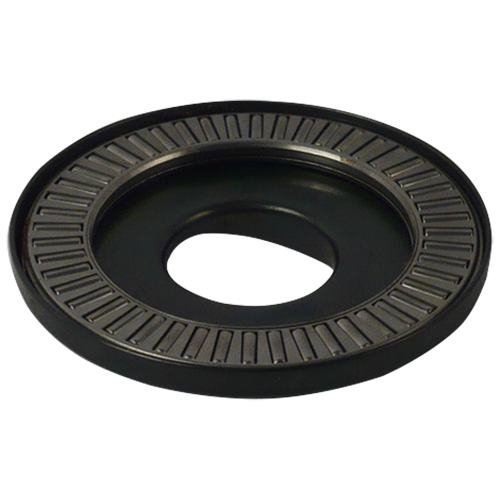

 JW-9-8KD
Bearing & Race Kit JW-9-8KD
Improved,Mazda &
  • Outside Dia: 2.27"
  • Inside Dia: 0.86"
24 Spline Insert Pump Drive
  • Height: 0.82"
  • Internal Teeth: 12
  • Outside Dia: 0.64"
 JX-22-102
Spline Insert JX-22-102
Pump Drive &
  • Height: 0.82"
  • Internal Teeth: 12
  • Outside Dia: 0.64"
25 Front Cover NPN-7-2-25
Front Cover NPN-7-2-25
&
26 Stud Threaded, " T" Head 4 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
 FX-10-13
Stud FX-10-13
Threaded, " T" Head & 4 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
26 Stud 4 Pieces Required.
  • Length: 16mm
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 0.77"
  • Bolt Head Thickness: 0.16"
 FX-10-9
Stud FX-10-9
& 4 Pieces Required.
  • Length: 16mm
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 0.77"
  • Bolt Head Thickness: 0.16"
27 Studcap Plastic Stud Protector 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
 MHC-STD
Studcap MHC-STD
Plastic Stud Protector & 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
27 Studcap 4 Pieces Required.
  • Inside Dia: 0.375
 MHC-STE
Studcap MHC-STE
& 4 Pieces Required.
  • Inside Dia: 0.375
27_N.I. Salvage Ring™ Core Saver™
  • Width: 0.375"
  • Outside Dia: 11.00"
 JX-22-855
Salvage Ring™ JX-22-855
Core Saver™ &
  • Width: 0.375"
  • Outside Dia: 11.00"
27_N.I. Salvage Ring™
  • Width: 0.250"
  • Outside Dia: 11.00"
 JX-22-855NR
Salvage Ring™ JX-22-855NR
&
  • Width: 0.250"
  • Outside Dia: 11.00"
