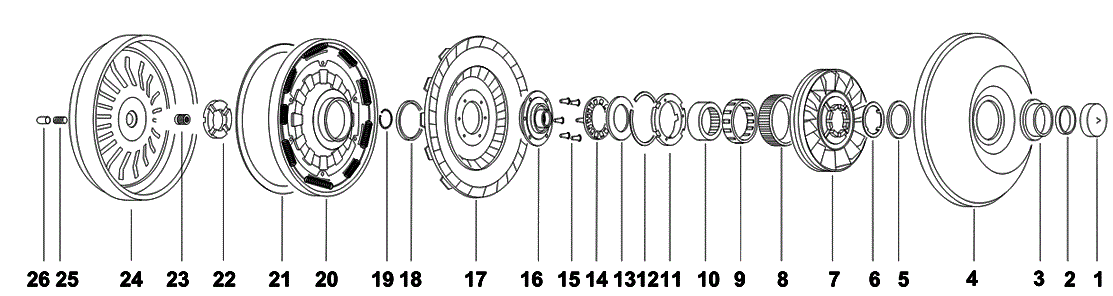

Torque Converter | Mazda | G4A-EL, Late, DA-29, DA-34 | FM86, KM85

Ill.# Image Description Specification Part #
0 Misc NPN-SPL
1 Hubcap Fits 2-5/8" (66.7mm). Length: 1/2"
  • Color: Orange
  • Fits 2-5/8" (66.7mm)
 MHC-RN
2 Bushing
  • Outer Dia: 2.243"
  • Inner Dia: 2.090"
  • Width: .472"
  • housing bore dia: 2.24
  • Shaft Dia: 2.088
  • Material: Bronze
 JB-18-9
2 Bushing Precision
  • Outer Dia: 2.247
  • Inner Dia: 2.0940
  • Width: 0.472
  • housing bore dia: 2.245
  • Shaft Dia: 2.088
  • Material: Bronze
  • Replaces Babbit
 JB-18-8B
2 Bushing Finish in Place
  • Outer Dia: 2.247
  • Inner Dia: 2.0940
  • Thickness: 0.472"
  • Material: Bi-metalic
 JB-18-8X
2 Bushing Finish in Place
  • Outer Dia: 2.247
  • Inner Dia: 2.0940
  • Width: 0.472
  • housing bore dia: 2.245
  • Shaft Dia: 2.088
  • Material: Bronze (Replaces Babbit)
  • Bore In Place
 JB-18-8BX
3 Impeller Hub
  • Journal Dia: 2.670"
  • Height: 0.56"
  • Inner Dia: 2.24"
  • Hub Mount: Butt
 JH-1-12G
3 Impeller Hub Use With JW-2-13 Bearing
  • Journal Dia: 2.670"
  • Height: 0.56"
  • Inner Dia: 2.24"
  • Hub Mount: Butt
  • Hardness: Rc 32-36
 JH-1-12GRC
3 Impeller Hub Use With JW-2-12 Bearing
  • Journal Dia: 2.670"
  • Installed Height: .748"
  • Inner Dia: 2.24"
  • Hub Mount: Flanged
  • Hardness: Rc 32-36
 JH-1-19FLGRC
4 Impeller NPN-7-10-4
5 Bearing
  • Outer Dia: 3.22
  • Inner Dia: 2.445
  • Thickness: 0.118
  • Outer Dia Metric: 81.79
  • Inner Dia metric: 62.1
  • Thickness metric: 3
  • Bearing type: Semi- Enclosed
  • 4 Lugs. Race: JW-2-10
 JW-2-12
5 Bearing
  • Outer Dia: 3.220"
  • Inner Dia: 2.445"
 JW-2-13A
5 Bearing Inside Lip
  • Outer Dia: 3.228
  • Inner Dia: 2.393
  • Thickness: 0.11
  • Outer Dia Metric: 82
  • Inner Dia metric: 60.78
  • Thickness metric: 2.79
  • Bearing type: Semi- Enclosed
  • Race: JW-2-7, JW-2-10
 JW-2-13
6 Bearing Race
  • Outer Dia: 3"
  • Inner Dia: 2.53"
  • Thickness: 0.08"
  • 4 Lugs
 JW-2-10
7 Stator NPN-7-10-7
8 Cam NPN-7-10-8
9 Cam (Sprag Element) 24 Pieces Required. F-240
9 Sprag
  • Outer Dia: 2.820"
  • Inner Dia: 2.410"
  • Thickness: 0.450"
  • 26 Cams (part-ID F-240 / S-240)
 JC-6-2
10 Inner Race Stator
  • Height: 0.787"
  • Outer Dia: 2.275"
  • Internal Teeth: 31
 JX-14-7
11 Stator Cap DA-34, Use with bearing TW-2-4
  • Outer Dia: 3.974"
  • Inner Dia: 2.047"
  • Thickness: 0.242"
  • Material: Aluminum
  • Functional Thickness: 0.242"
 JW-4-40
11 Stator Cap For DA-29 converters. Use with TW-2-4
  • Outer Dia: 3.366"
  • Inner Dia: 2.047"
  • Thickness: 0.248"
  • Material: Aluminum
  • Used with bearing: JW-2-15
 JW-4-41
12 Snap Ring NPN-7-10-12
13 Bearing Race O.E. Style Late
  • Outer Dia: 2.75"
  • Inner Dia: 2.01"
  • Thickness: 0.1"
  • Material: Steel
 JW-2-21
14 Bearing O.E. Style Late
  • Outer Dia: 2.638
  • Inner Dia: 1.89
  • Thickness: 0.118
  • Outer Dia Metric: 67.01
  • Inner Dia metric: 48.01
  • Thickness metric: 3
  • Bearing type: Semi- Enclosed
  • Race: JW-2-21
 JW-2-22
15 Rivet 6 Pieces Required.
  • Length: 0.44"
  • Rivet solid or tubular: S
  • Rivet Shank Dia: 0.22"
  • Rivet head dia: 0.315"
 FX-12-6
15 Rivet 6 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: T
  • Rivet Shank Dia: 0.214"
  • Rivet head dia: 0.312"
 FX-12L
16 Turbine Hub Snap Ring Installed DA-29
  • Outer Dia: 3.52"
  • Internal Teeth: 21
  • Snap Ring included
 JX-13-32
16 Turbine Hub DA-29
  • Outer Dia: 3.52"
  • Internal Teeth: 21
  • Hardness: Heat Treated
  • Snap Ring included
 JX-13-32HT
16 Turbine Hub
  • Outer Dia: 3.52"
  • Internal Teeth: 21
  • Snap Ring Installed
 JX-13-33
16 Turbine Hub DA-34
  • Outer Dia: 3.52"
  • Internal Teeth: 21
  • Hardness: Heat Treated
  • Snap Ring Installed
 JX-13-33HT
17 Turbine NPN-7-10-17
18 Seal Ring Heavy Duty, Scarf Cut
  • Height: 0.116"
  • Outer Dia: 2.377"
  • Width: 0.094"
  • Outer Dia Metric: 59.8932
  • Material: PTFE
  • Height Metric: 2.5908
 JO-25-5

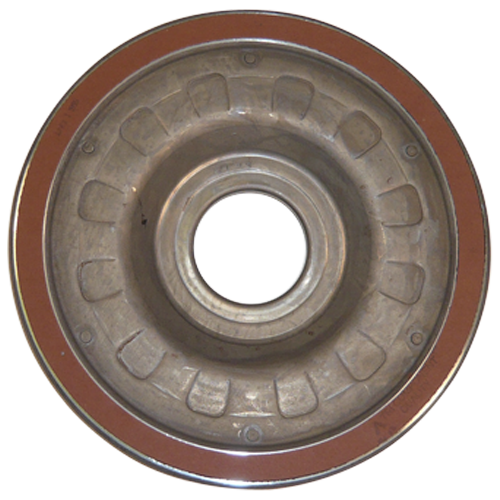

20 Clutch Plate Assembly 9 Springs, 12 Dimples
  • 9 Springs, 12 Dimples
 JX-23-16
21 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Outer Dia: 9.563"
  • Inner Dia: 8.625"
  • Thickness: 0.045"
  • Material: Red
 JX-23-15
21 Lining (Friction Ring,Wafer) Alternate
  • Outer Dia: 9.5"
  • Inner Dia: 8.5"
  • Thickness: 0.045"
  • Material: Red
 NX-23-2
22 Washer
  • Outer Dia: 2.25"
  • Inner Dia: 1.37"
  • Thickness: .250"
  • Material: Phenolic
 JW-9-10
22 Washer
  • Outer Dia: 2.25"
  • Inner Dia: 1.37"
  • Thickness: .250"
  • Material: Bronze
 JW-9-10B
23 Spline Insert Pump Drive
  • Height: 0.82"
  • Outer Dia: 0.64"
  • Internal Teeth: 12
 JX-22-102
24 Front Cover NPN-7-10-24
25 Stud Threaded, " T" Head 4 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
 FX-10-13
25 Stud
  • Length: 16mm
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 0.77"
  • Bolt Head Thickness: 0.16"
 FX-10-9
26 Studcap Plastic Stud Protector 4 Pieces Required.
  • Inner Dia: 0.375
  • Length: 0.50"
  • Color: Red
  • Fits 3/8" (9.5mm)
 MHC-STD
26 Studcap 4 Pieces Required.
  • Inner Dia: 0.375
 MHC-STE

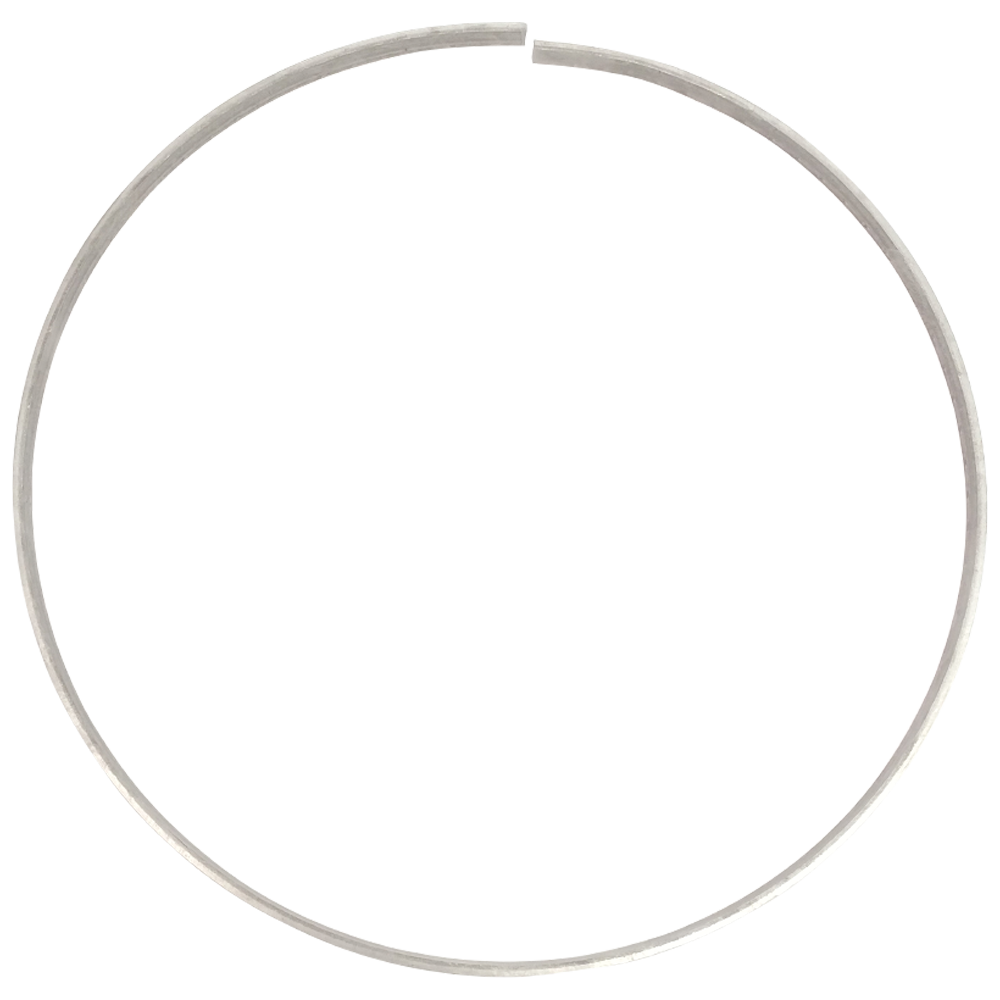

26_N.I. Salvage Ring™ Core Saver™
  • Outer Dia: 11.00"
  • Width: 0.375"
 JX-22-855
26_N.I. Salvage Ring™
  • Outer Dia: 11.00"
  • Width: 0.250"
 JX-22-855NR
