Torque Converter | Mazda | FN4A-EL

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 Misc NPN-SPL
Misc NPN-SPL
&

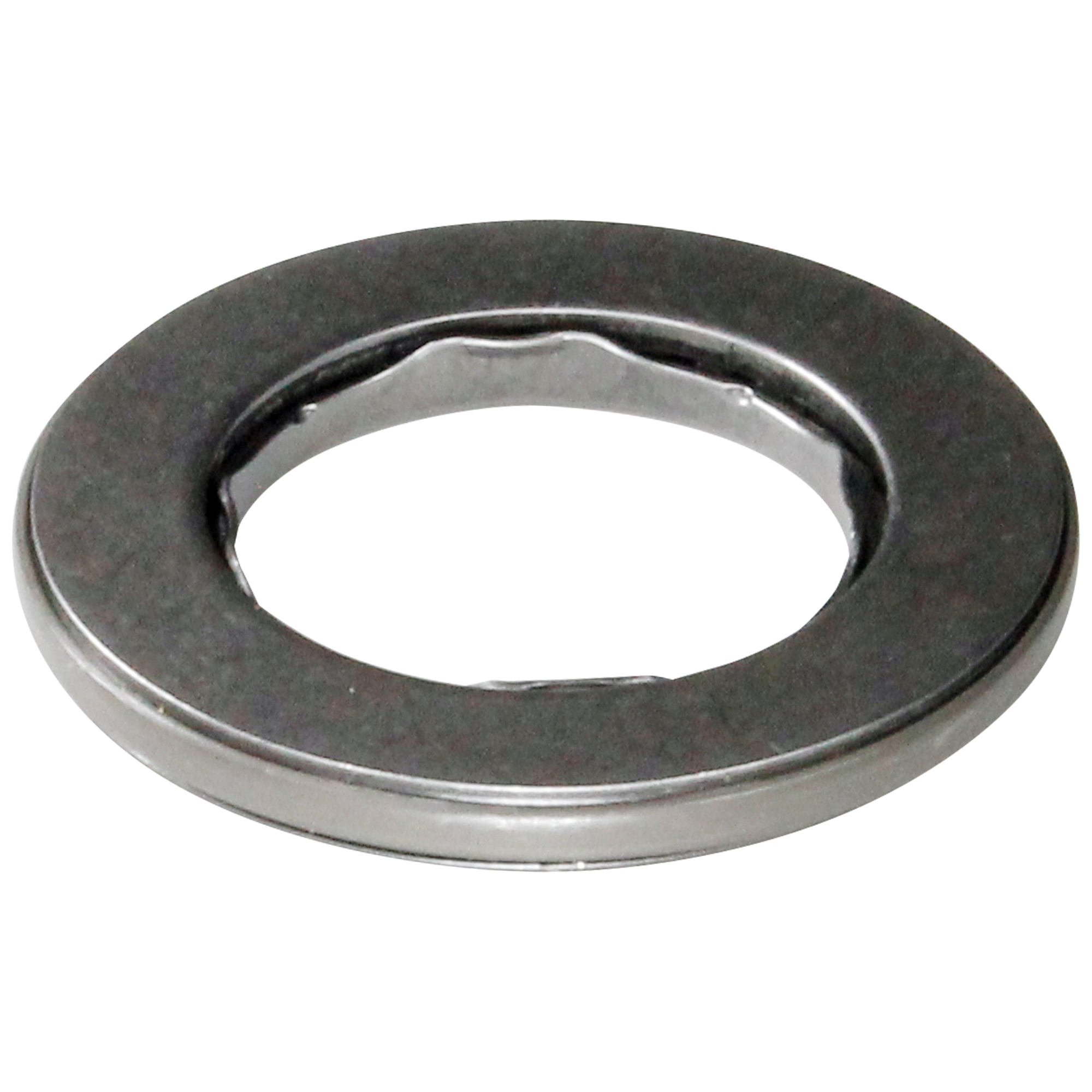

10 Bearing
  • Thickness: 0.228
  • Thickness metric: 5.79
  • Bearing type: Enclosed
  • Outside Dia: 2.244
  • Inside Dia: 1.3
  • Outside Dia Metric: 57
  • Inside Dia metric: 33.02
 TW-2-21
Bearing TW-2-21
&
  • Thickness: 0.228
  • Thickness metric: 5.79
  • Bearing type: Enclosed
  • Outside Dia: 2.244
  • Inside Dia: 1.3
  • Outside Dia Metric: 57
  • Inside Dia metric: 33.02
10 Bearing
  • Thickness: 0.226
  • Thickness metric: 5.74
  • Bearing type: Enclosed
  • Outside Dia: 2.237
  • Inside Dia: 1.307
  • Outside Dia Metric: 56.82
  • Inside Dia metric: 33.2
 TW-2-25
Bearing TW-2-25
&
  • Thickness: 0.226
  • Thickness metric: 5.74
  • Bearing type: Enclosed
  • Outside Dia: 2.237
  • Inside Dia: 1.307
  • Outside Dia Metric: 56.82
  • Inside Dia metric: 33.2
14 Seal Ring Scarf Cut
  • Height: 0.113
  • Width: 0.093"
  • Material: PTFE
  • Height Metric: 2.8702
  • Seal Type: Scarf Cut
  • Outside Dia: 3.493
  • Outside Dia Metric: 88.7222
 JO-25-20
Seal Ring JO-25-20
Scarf Cut &
  • Height: 0.113
  • Width: 0.093"
  • Material: PTFE
  • Height Metric: 2.8702
  • Seal Type: Scarf Cut
  • Outside Dia: 3.493
  • Outside Dia Metric: 88.7222
14 Seal Ring
  • Height: 0.113
  • Width: 0.094
  • Material: PTFE
  • Height Metric: 2.8702
  • Seal Type: Square-Cut
  • Outside Dia: 3.499
  • Outside Dia Metric: 88.8746
 TO-25-11
Seal Ring TO-25-11
&
  • Height: 0.113
  • Width: 0.094
  • Material: PTFE
  • Height Metric: 2.8702
  • Seal Type: Square-Cut
  • Outside Dia: 3.499
  • Outside Dia Metric: 88.8746
15 Metal Clad Seal
  • Housing Bore Dia: 0.906
  • Housing Bore Dia Metric: 23
  • Shaft Dia metric: 15
  • Shaft Dia: 0.59
  • Material: Fluorocarbon
 TO-25-12
Metal Clad Seal TO-25-12
&
  • Housing Bore Dia: 0.906
  • Housing Bore Dia Metric: 23
  • Shaft Dia metric: 15
  • Shaft Dia: 0.59
  • Material: Fluorocarbon
17 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.5"
  • Inside Dia: 8.5"
 NX-23-2
Lining (Friction Ring,Wafer) NX-23-2
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.5"
  • Inside Dia: 8.5"
18 Turbine Washer
  • Thickness: .24"
  • Material: Plastic
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
 TW-9-17
Turbine Washer TW-9-17
&
  • Thickness: .24"
  • Material: Plastic
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
18 Turbine Washer
  • Material: Bronze
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
 TW-9-17B
Turbine Washer TW-9-17B
&
  • Material: Bronze
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
