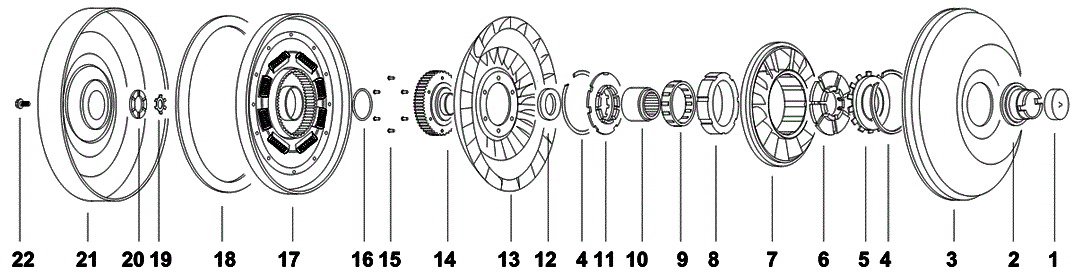

Torque Converter | Jatco, Nissan & Other Japanese | RL4F03A, DA-28 | 74-1

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)

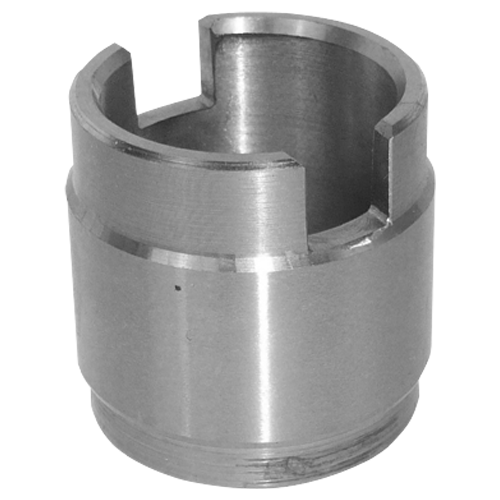

2 Impeller Hub
  • Journal Dia: 1.651"
  • Installed Height: 1.255"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 JH-1-29GRC
Impeller Hub JH-1-29GRC
&
  • Journal Dia: 1.651"
  • Installed Height: 1.255"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.651"
  • Installed Height: 1.390"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 JH-1-25GRC
Impeller Hub JH-1-25GRC
&
  • Journal Dia: 1.651"
  • Installed Height: 1.390"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
3 Impeller NPN-6-24-3
Impeller NPN-6-24-3
&
4 Snap Ring NPN-6-24-4
Snap Ring NPN-6-24-4
&

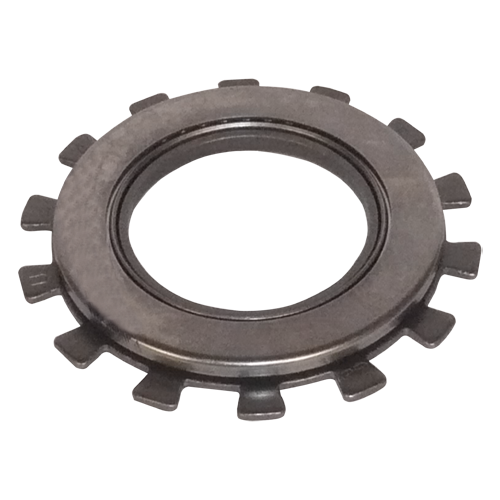

5 Bearing
  • Thickness: 0.236
  • Thickness metric: 6
  • Bearing type: Enclosed, 14 Tangs
  • Outside Dia: 3.027
  • Inside Dia: 2.047
  • Outside Dia Metric: 76.89
  • Inside Dia metric: 51.99
 JW-2-2
Bearing JW-2-2
&
  • Thickness: 0.236
  • Thickness metric: 6
  • Bearing type: Enclosed, 14 Tangs
  • Outside Dia: 3.027
  • Inside Dia: 2.047
  • Outside Dia Metric: 76.89
  • Inside Dia metric: 51.99
6 Stator Cap Aluminum, Use JW-4-15& TW-2-4 NPN-6-24-6
Stator Cap NPN-6-24-6
Aluminum, Use JW-4-15& TW-2-4 &

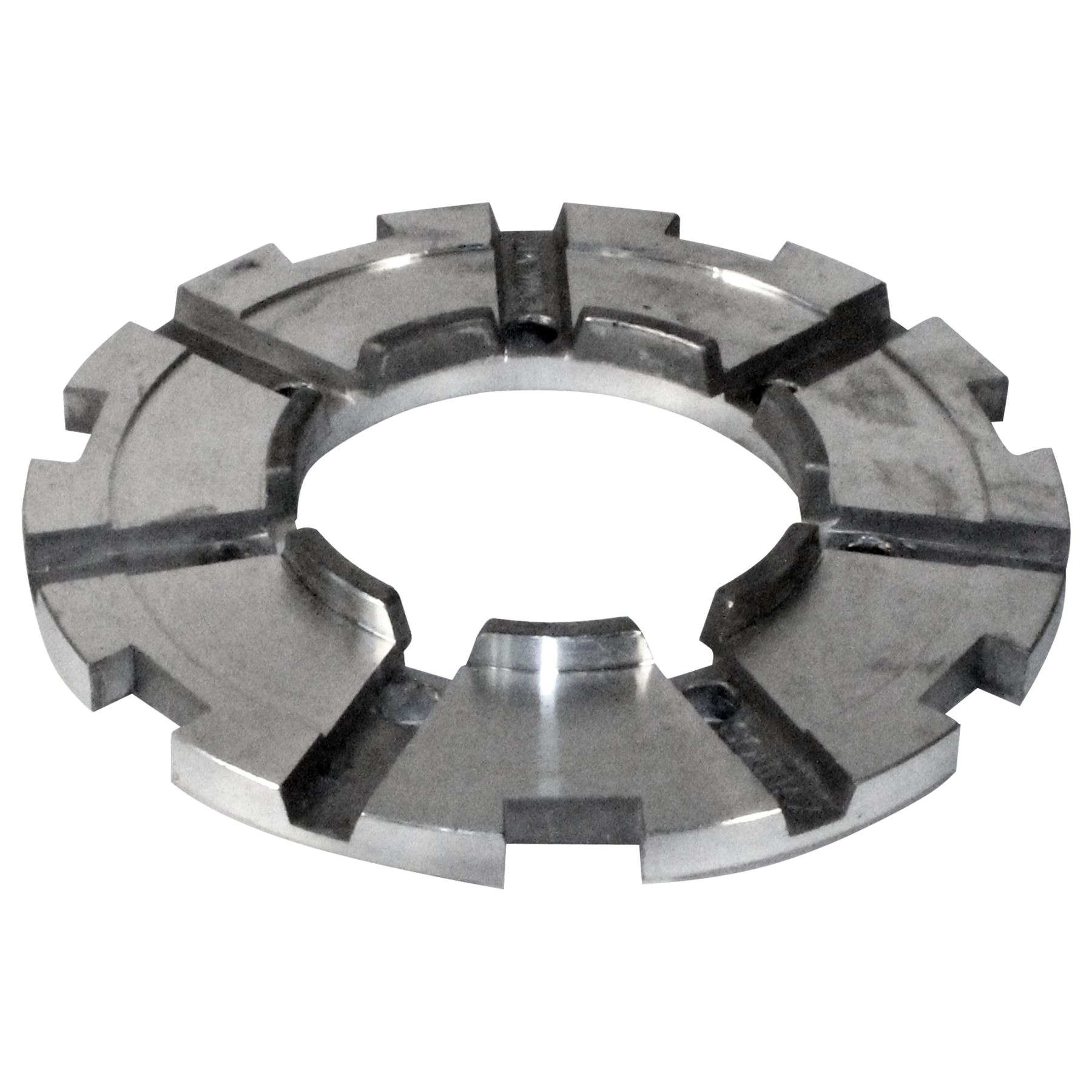

6 Stator Cap Use with bearing TW-2-4
  • Thickness: 0.38"
  • Material: Aluminum
  • Outside Dia: 3.54"
  • Inside Dia: 1.7"
  • Used with bearing: TW-2-4
 JW-4-15
Stator Cap JW-4-15
& Use with bearing TW-2-4
  • Thickness: 0.38"
  • Material: Aluminum
  • Outside Dia: 3.54"
  • Inside Dia: 1.7"
  • Used with bearing: TW-2-4
7 Stator NPN-6-24-7
Stator NPN-6-24-7
&
8 Cam NPN-6-24-8
Cam NPN-6-24-8
&

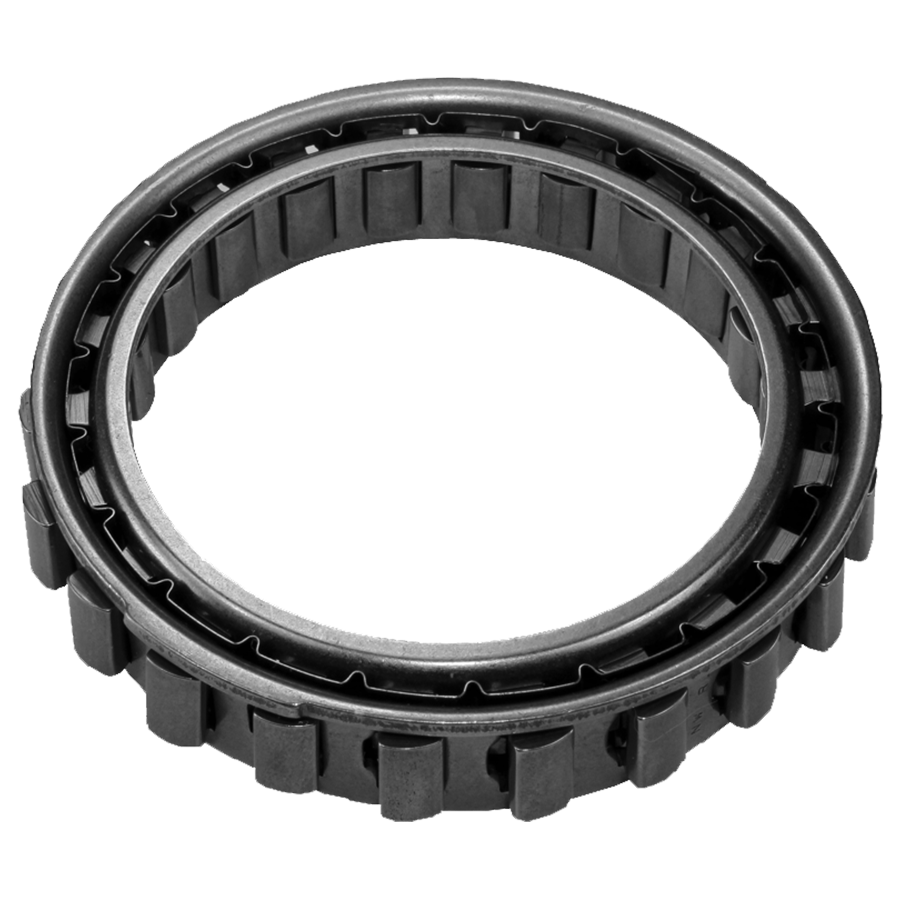

9 Sprag
  • Thickness: 0.51"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.45"
  • Inner Race Outside Dia: 1.87"
  • Cam part-ID: S-315.
 YC-6
Sprag YC-6
&
  • Thickness: 0.51"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.45"
  • Inner Race Outside Dia: 1.87"
  • Cam part-ID: S-315.
11 Stator Cap
  • Thickness: .22".
  • Material: Aluminum
  • Outside Dia: 3.54"
 JW-4-32
Stator Cap JW-4-32
&
  • Thickness: .22".
  • Material: Aluminum
  • Outside Dia: 3.54"

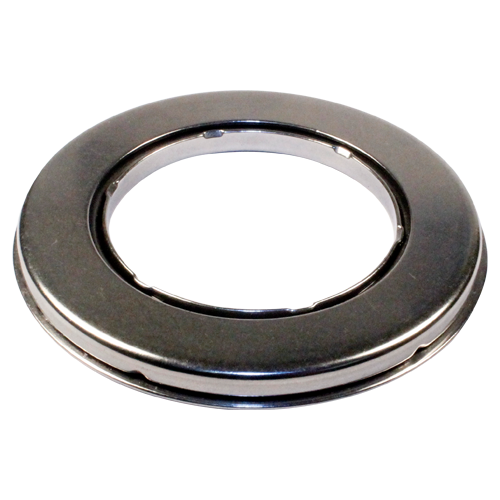

12 Bearing
  • Thickness: 0.197
  • Thickness metric: 5
  • Bearing type: Enclosed
  • Outside Dia: 2.441
  • Inside Dia: 1.496
  • Outside Dia Metric: 62
  • Inside Dia metric: 38
 JW-2-20
Bearing JW-2-20
&
  • Thickness: 0.197
  • Thickness metric: 5
  • Bearing type: Enclosed
  • Outside Dia: 2.441
  • Inside Dia: 1.496
  • Outside Dia Metric: 62
  • Inside Dia metric: 38
13 Turbine
  • Outside Dia Metric: 240mm
 NPN-6-24-13
Turbine NPN-6-24-13
&
  • Outside Dia Metric: 240mm
14 Turbine Hub
  • Internal Teeth: 18
  • External Teeth: 54
  • Outside Dia: 4.4"
 JX-13-30
Turbine Hub JX-13-30
&
  • Internal Teeth: 18
  • External Teeth: 54
  • Outside Dia: 4.4"
14 Turbine Hub
  • Internal Teeth: 18
  • External Teeth: 54
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.4"
 JX-13-30HT
Turbine Hub JX-13-30HT
&
  • Internal Teeth: 18
  • External Teeth: 54
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.4"
14_N.I. Spline Insert Pump Drive
  • Height: 0.880
  • External Teeth: 18
 JX-13-18X
Spline Insert JX-13-18X
Pump Drive &
  • Height: 0.880
  • External Teeth: 18
15 Rivet 6 Pieces Required.
  • Length: 0.44"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.22"
  • Rivet Head Dia: 0.315"
 FX-12-6
Rivet FX-12-6
& 6 Pieces Required.
  • Length: 0.44"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.22"
  • Rivet Head Dia: 0.315"
15 Rivet 6 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12L
Rivet FX-12L
& 6 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"

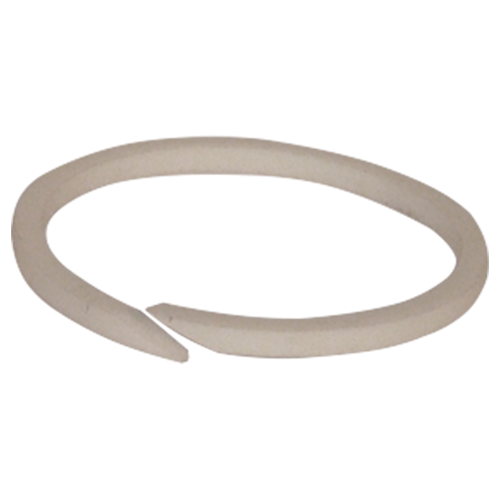

16 Seal Ring Scarf Cut
  • Height: 0.094"
  • Width: 0.088"
  • Material: PTFE
  • Height Metric: 2.3368
  • Seal Type: Scarf Cut
  • Outside Dia: 1.575"
  • Outside Dia Metric: 39.9034
 JO-25-8
Seal Ring JO-25-8
Scarf Cut &
  • Height: 0.094"
  • Width: 0.088"
  • Material: PTFE
  • Height Metric: 2.3368
  • Seal Type: Scarf Cut
  • Outside Dia: 1.575"
  • Outside Dia Metric: 39.9034
17 Lockup Clutch JX-23-26
Lockup Clutch JX-23-26
&
18 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.25"
  • Inside Dia: 8.125"
  • 9 Springs, 6 Deep Dimples
 FX-23-6
Lining (Friction Ring,Wafer) FX-23-6
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.25"
  • Inside Dia: 8.125"
  • 9 Springs, 6 Deep Dimples
19 Retainer NPN-6-24-19
Retainer NPN-6-24-19
&

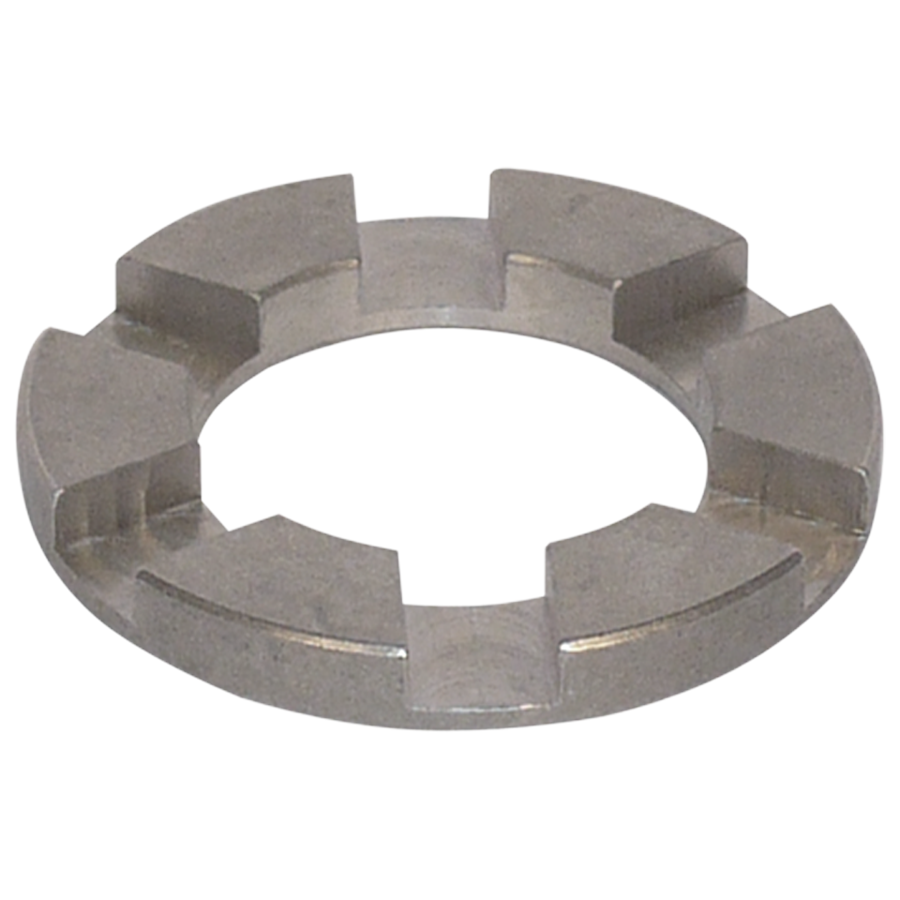

20 Turbine Washer
  • Material: Bronze
 JW-9-12
Turbine Washer JW-9-12
&
  • Material: Bronze
21 Front Cover NPN-6-24-21
Front Cover NPN-6-24-21
&
22 Bolt NPN-6-24-22
Bolt NPN-6-24-22
&
