Torque Converter | Jatco, Nissan & Other Japanese | RL4F02A, DA-11 | 93-1

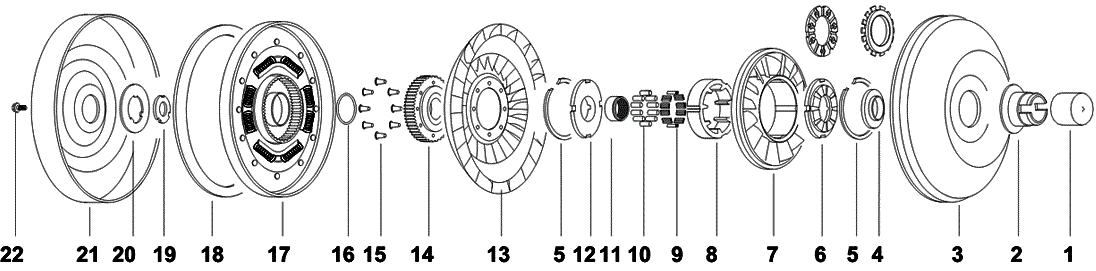

Ill.# Image Description Specification Part #
0 Lining (Friction Ring,Wafer)
  • Outer Dia: 9.812"
  • Inner Dia: 9.063"
  • Thickness: 0.045"
  • Material: Red
 FX-23-88
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
2 Impeller Hub Late
  • Journal Dia: 1.810"
  • Installed Height: 1.693"
  • Hub Mount: Flanged
  • Hardness: Rc 32-36
 JH-1-22GRC
2 Impeller Hub Flanged Late
  • Journal Dia: 1.810"
  • Height: 1.545"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 2.340"
  • Hardness: Rc 32-36
 JH-1-36GRC

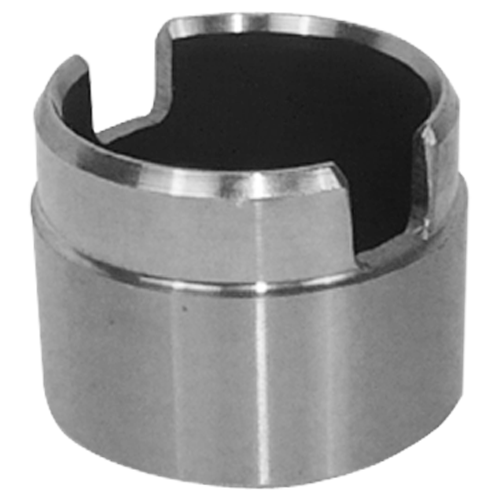

2 Impeller Hub
  • Journal Dia: 1.810"
  • Height: 1.37
  • Hub Mount: Butt
  • Pump Drive Type: 2 Slots
  • Hardness: Rc 32-36
 JH-1-9GRC

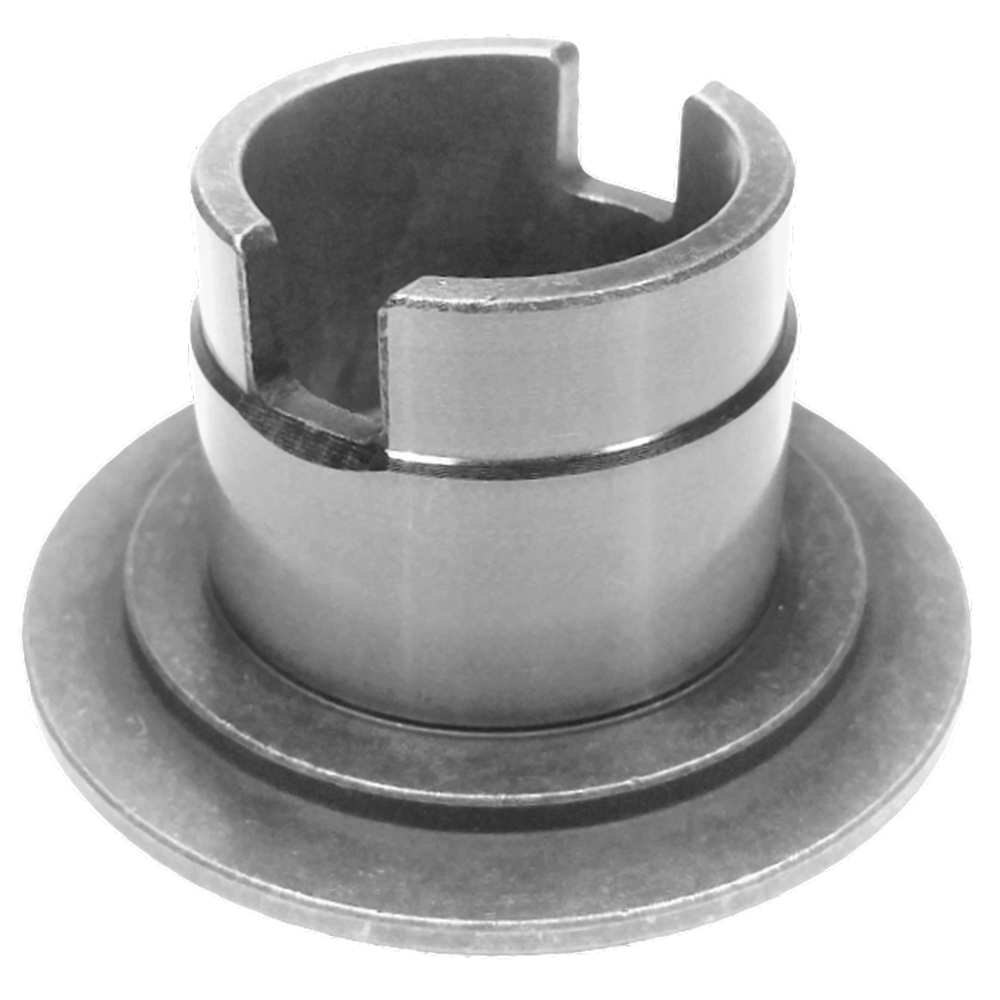

2 Impeller Hub Early
  • Journal Dia: 1.810"
  • Installed Height: 1.500"
  • Hub Mount: Flanged
  • Hardness: Rc 32-36
 JH-1-21GRC
3 Impeller NPN-6-12-3
4 Bearing Early
  • Bearing type: Semi-Enclosed
 NPN-6-12-4
4 Bearing Late
  • Outer Dia: 3.027
  • Inner Dia: 2.047
  • Thickness: 0.236
  • Outer Dia Metric: 76.89
  • Inner Dia metric: 51.99
  • Thickness metric: 6
  • Bearing type: Enclosed, 14 Tangs
 JW-2-2
5 Snap Ring NPN-6-12-5

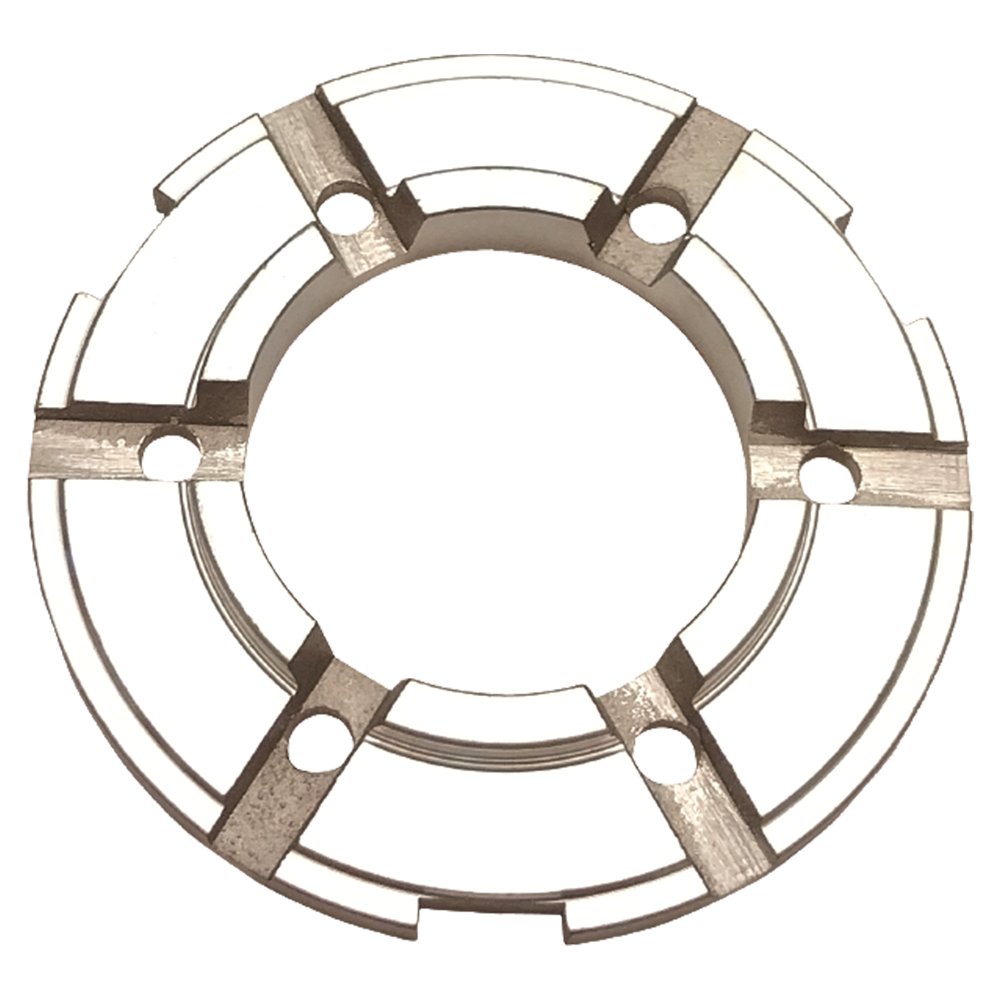

6 Stator Cap Use with bearing TW-2-4
  • Outer Dia: 2.91"
  • Inner Dia: 1.57"
  • Thickness: 0.32"
  • 3 notches. Used with bearing: TW-2-4
 JW-4-18
6 Stator Cap Use With Bearing JW-2-2
  • Outer Dia: 3.38"
  • Material: Aluminum
 JW-4-31
6 Stator Cap Use With TW-2-4 Bearing
  • Outer Dia: 3.38"
  • Inner Dia: 1.690"
  • Thickness: 0.357"
 JW-4-24

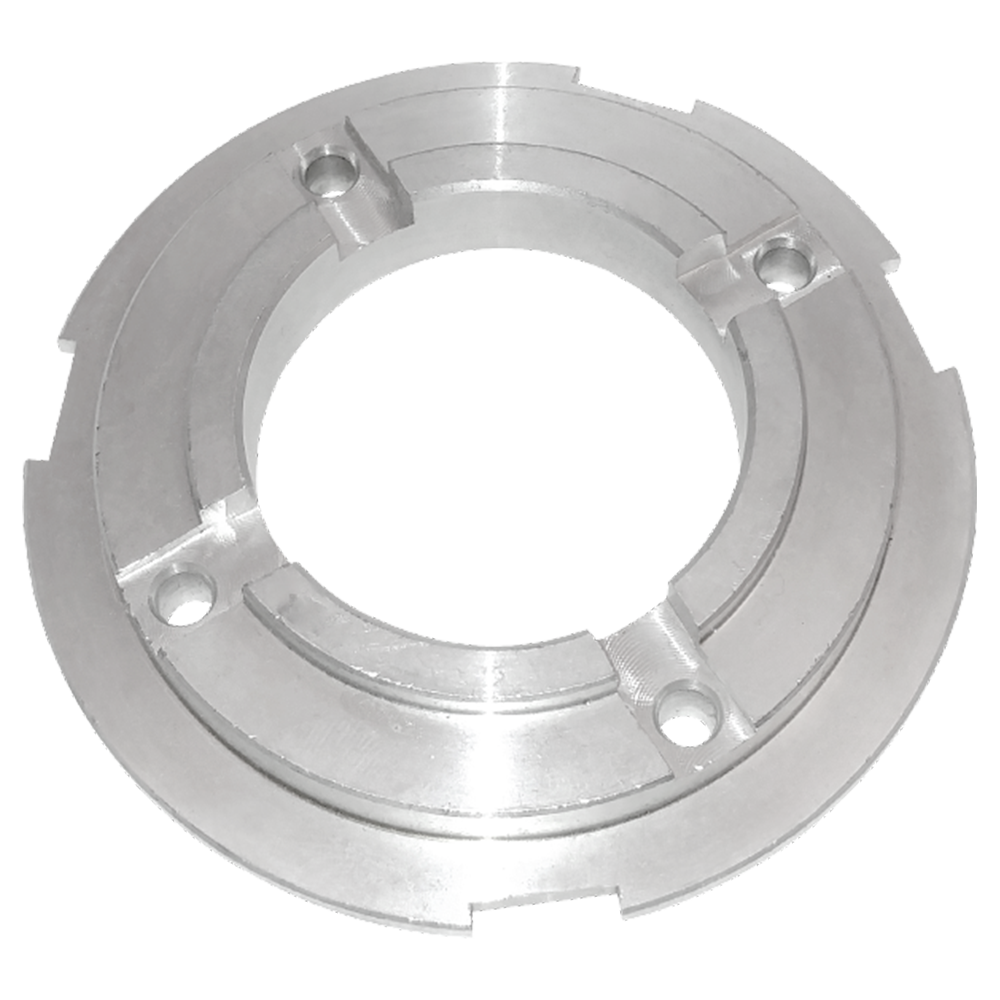

6 Stator Cap
  • Material: Aluminum
  • .51" assembled Height , Use With Bearing 35400C
 JW-4-24L
7 Stator NPN-6-12-7
8 Cam NPN-6-12-8
9 Accordion Spring 7 Pieces Required.
  • Height: 0.24"
  • Width: 0.765"
  • Folds: 4
 JS-6-4
10 Roller 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.75"
 TR-7-1
11 Inner Race
  • Internal Teeth: 34
 NPN-6-12-11
12 Washer Plastic NPN-6-12-12
13 Turbine
  • Outer Dia: 250mm
 NPN-6-12-13
14 Turbine Hub
  • Outer Dia: 3.72"
  • Inner Dia: 1.875"
  • Internal Teeth: 20
  • External teeth: 46
 JX-13-14
14 Turbine Hub
  • Outer Dia: 3.72"
  • Inner Dia: 1.75"
  • Internal Teeth: 20
  • External teeth: 46
  • Hardness: Heat-Treated (hardened)
 JX-13-14HT

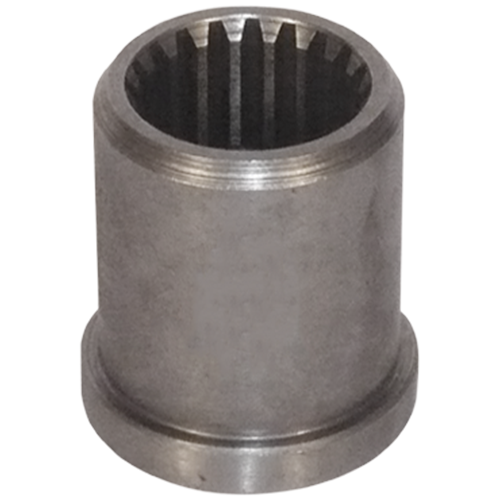

14 Spline Insert Pump Drive
  • Height: 1.250
  • External teeth: 20
 JX-13-20
15 Rivet 8 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet head dia: 0.312"
 WX-12B
15 Rivet 8 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet head dia: 0.312"
 WX-12BS
15 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet head dia: 0.312"
 JX-12
15 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet head dia: 0.312"
 JX-12S
15 Rivet 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet head dia: 0.300"
  • Rivet head Type: Flat
 SX-12-14
16 O-Ring Standard
  • Inner Dia: 1.417
  • Thickness: 0.079
  • Inner Dia metric: 35.9918
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
 JO-25-2
16 O-Ring Oversized
  • Inner Dia: 1.475
  • Thickness: 0.102
  • Inner Dia metric: 37.465
  • Thickness metric: 2.5908
  • Material: Fluorocarbon
  • Oversized
 JO-25-4

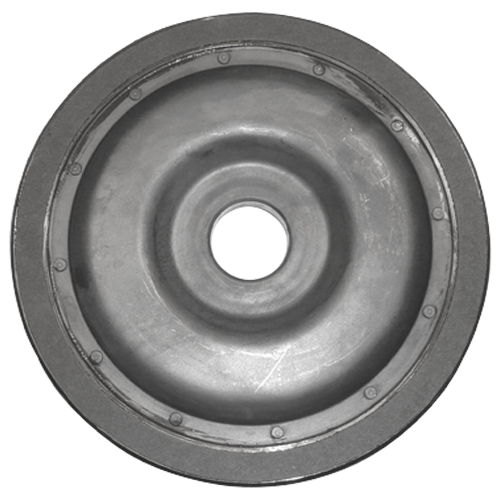

17 Clutch Plate Assembly JX-23-14
18 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Outer Dia: 9.938"
  • Inner Dia: 9"
  • Thickness: 0.045"
  • Material: Red
 JX-23-10
18 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Outer Dia: 9.75"
  • Inner Dia: 9"
  • Thickness: 0.045"
  • Material: Red
 JX-23-33
19 Turbine Washer
  • Material: Metal (Replaces Plastic)
 JW-9-5
20 Retainer
  • Outer Dia: 2.75"
  • Inner Dia: 1.47"
  • Thickness: .04"
  • Material: Steel
 JX-22-3
21 Front Cover NPN-6-12-21
22 Bolt NPN-6-12-22
