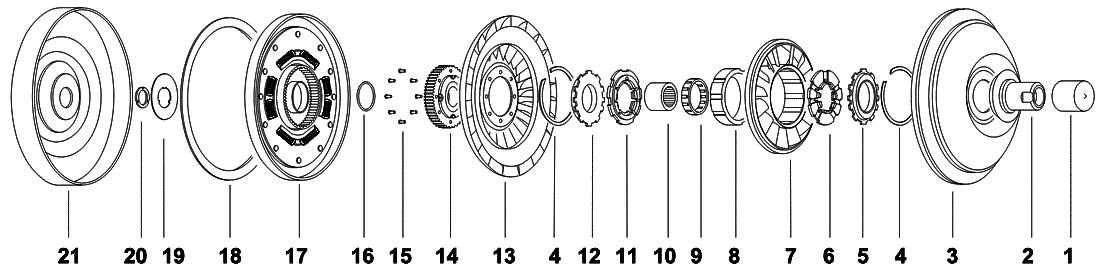

Torque Converter | Jatco, Nissan & Other Japanese | RE4R03A, DA-31, 250mm | 93-5

Ill.# Image Description Specification Part #
0 Lining (Friction Ring,Wafer)
  • Outer Dia: 11.625"
  • Inner Dia: 9.75"
  • Thickness: 0.045"
  • Material: Red
 FX-23-15
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
2 Impeller Hub
  • Journal Dia: 1.809"
  • Installed Height: 1.960"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 JH-1-30GRC
2 Impeller Hub
  • Journal Dia: 1.809"
  • Installed Height: 2.607"
  • Hub Mount: Flanged
  • Hardness: Rc 32-36
 JH-1-14GRC
2 Impeller Hub Standard
  • Journal Dia: 1.809"
  • Installed Height: 2.08"
  • Hub Mount: Thru
  • Hardness: Rc 32-36
 JH-1-13GRC
3 Impeller NPN-6-28-3
4 Snap Ring NPN-6-28-4
5 Bearing
  • Outer Dia: 3.027
  • Inner Dia: 2.047
  • Thickness: 0.236
  • Outer Dia Metric: 76.89
  • Inner Dia metric: 51.99
  • Thickness metric: 6
  • Bearing type: Enclosed, 14 Tangs
 JW-2-2

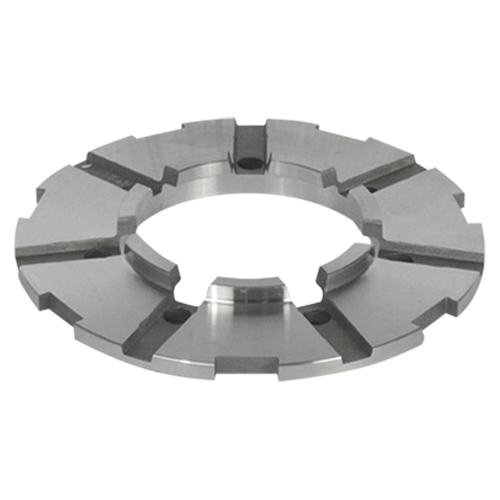

6 Stator Cap Use with Bearing JW-2-2
  • Outer Dia: 3.38"
  • Inner Dia: 1.61"
  • Thickness: 0.35"
  • Material: Aluminum
  • OE Replacement
 JW-4-25
6 Stator Cap Use with bearing TW-2-4
  • Outer Dia: 3.38"
  • Inner Dia: 1.7"
  • Thickness: 0.41"
  • 7 notches. Used with bearing: TW-2-4
 JW-4-17
7 Stator NPN-6-28-7
8 Cam NPN-6-28-8
9 Sprag
  • Outer Dia: 2.45"
  • Inner Dia: 1.87"
  • Thickness: 0.51"
  • 22 Cams (part-ID S-315)
 YC-6
10 Inner Race
  • Dimensions: 1.862" x .888"
  • Internal Teeth: 36
 NPN-6-28-10
11 Stator Cap Front
  • Outer Dia: 3.38"
  • Inner Dia: 1.61"
  • Thickness: 0.257"
  • Material: Aluminum
 JW-4-26
12 Bearing
  • Outer Dia: 2.713
  • Inner Dia: 1.654
  • Thickness: 0.276
  • Outer Dia Metric: 68.91
  • Inner Dia metric: 42.01
  • Thickness metric: 7.01
  • Bearing type: Enclosed, 14 Tangs
  • Tang O.D.: 3.37"
 JW-2-14
12 Bearing Alternate
  • Outer Dia: 2.713
  • Inner Dia: 1.654
  • Thickness: 0.276
  • Outer Dia Metric: 68.91
  • Inner Dia metric: 42.01
  • Thickness metric: 7.01
  • Bearing type: Enclosed, 7 Tangs
 JW-2-16
12 Stator Cap Use with bearing TW-2-4
  • Outer Dia: 3.38"
  • Inner Dia: 1.7"
  • Thickness: 0.08"
  • 14 tangs. Use With Stator Cap & Bearing TW-2-4
 JW-4-11
13 Turbine
  • Outer Dia Metric: 250mm
 NPN-6-28-13

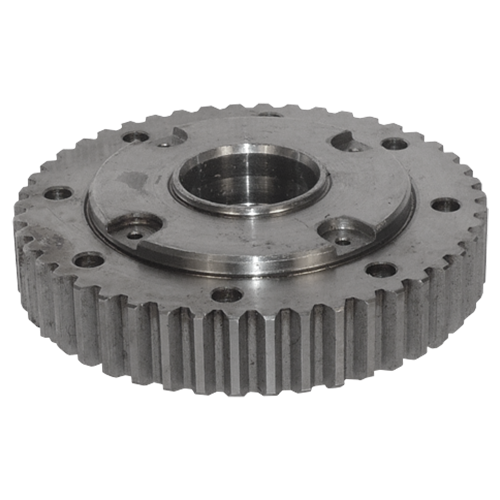

14 Turbine Hub
  • Outer Dia: 3.72"
  • Internal Teeth: 24
  • External teeth: 46
 JX-13-27
14 Turbine Hub
  • Outer Dia: 3.72"
 JX-13-27HT
15 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet head dia: 0.312"
 JX-12
15 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet head dia: 0.312"
 JX-12S
15 Rivet 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet head dia: 0.300"
  • Rivet head Type: Flat
 SX-12-14
16 O-Ring Standard
  • Inner Dia: 1.417
  • Thickness: 0.079
  • Inner Dia metric: 35.9918
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
 JO-25-2
16 O-Ring Oversized
  • Inner Dia: 1.475
  • Thickness: 0.102
  • Inner Dia metric: 37.465
  • Thickness metric: 2.5908
  • Material: Fluorocarbon
  • Oversized
 JO-25-4
17 Clutch Plate Assembly JX-23-28
18 Misc NPN-SPL
18 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Outer Dia: 10.563"
  • Inner Dia: 9.25"
  • Thickness: 0.045"
  • Material: Red
 TX-22X
19 Retainer
  • Outer Dia: 2.75"
  • Inner Dia: 1.47"
  • Thickness: .04"
  • Material: Steel
 JX-22-3
20 Turbine Washer
  • Material: Metal (Replaces Plastic)
 JW-9-5
21 Front Cover NPN-6-28-21
