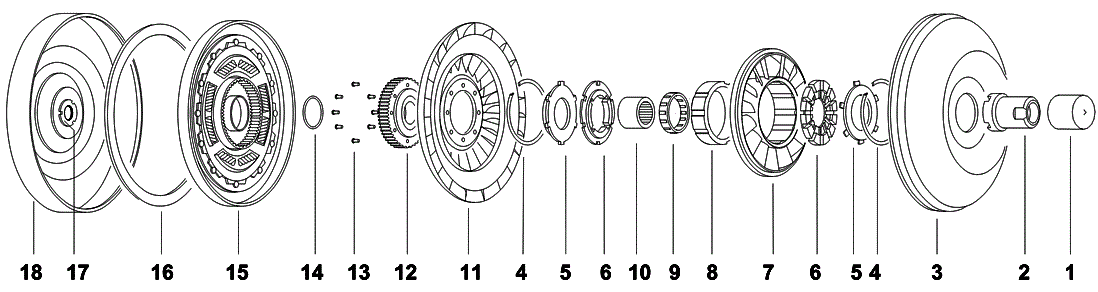

Torque Converter | Jatco, Nissan & Other Japanese | RE4R03A, DA-30, 280mm | 69-12

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
Hubcap MHC-BU
Fits 1-3/4" (44.4mm). Length: 1-1/2" &
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
2 Impeller Hub
  • Journal Dia: 1.809"
  • Installed Height: 2.607"
  • Hub Mount: Flanged
  • Hardness: Rc 32-36
 JH-1-14GRC
Impeller Hub JH-1-14GRC
&
  • Journal Dia: 1.809"
  • Installed Height: 2.607"
  • Hub Mount: Flanged
  • Hardness: Rc 32-36

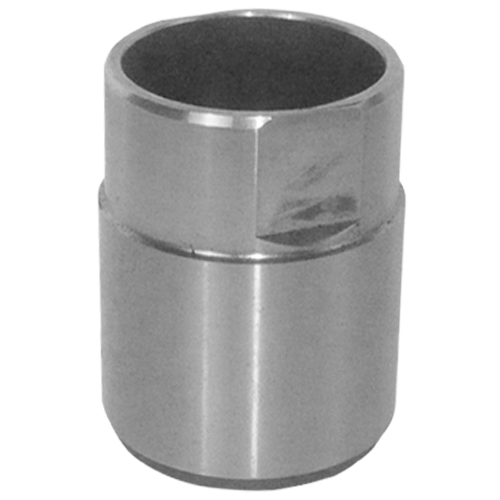

2 Impeller Hub Standard
  • Journal Dia: 1.809"
  • Installed Height: 2.08"
  • Hub Mount: Thru
  • Hardness: Rc 32-36
 JH-1-13GRC
Impeller Hub JH-1-13GRC
Standard &
  • Journal Dia: 1.809"
  • Installed Height: 2.08"
  • Hub Mount: Thru
  • Hardness: Rc 32-36
3 Impeller NPN-6-26-3
Impeller NPN-6-26-3
&
4 Snap Ring NPN-6-26-4
Snap Ring NPN-6-26-4
&

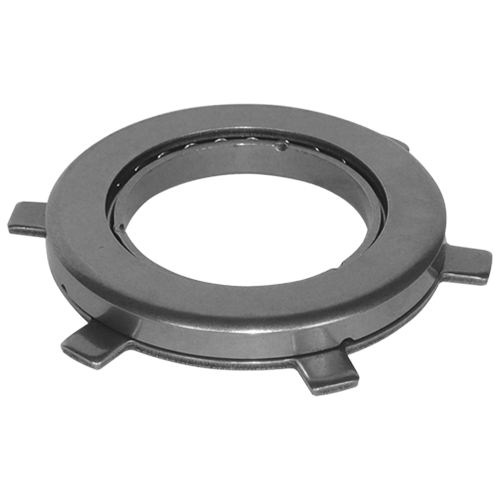

5 Bearing 2 Pieces Required.
  • Thickness: 0.315
  • Thickness metric: 8
  • Bearing type: Enclosed, 6 Tangs
  • Outside Dia: 2.598
  • Inside Dia: 1.614
  • Outside Dia Metric: 68.53
  • Inside Dia metric: 41
 JW-2-17
Bearing JW-2-17
& 2 Pieces Required.
  • Thickness: 0.315
  • Thickness metric: 8
  • Bearing type: Enclosed, 6 Tangs
  • Outside Dia: 2.598
  • Inside Dia: 1.614
  • Outside Dia Metric: 68.53
  • Inside Dia metric: 41
6 Stator Cap 2 Pieces Required.
  • Material: Aluminum
 JW-4-33
Stator Cap JW-4-33
& 2 Pieces Required.
  • Material: Aluminum
7 Stator NPN-6-26-7
Stator NPN-6-26-7
&
8 Cam NPN-6-26-8
Cam NPN-6-26-8
&
9 Sprag
  • Thickness: 0.750"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.614"
  • Inner Race Outside Dia: 1.958"
  • Cam Part ID S-352, 11 Outside Clips
 MC-4
Sprag MC-4
&
  • Thickness: 0.750"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.614"
  • Inner Race Outside Dia: 1.958"
  • Cam Part ID S-352, 11 Outside Clips
9 Cam (Sprag Element) 0.532" Skinny S-532
Cam (Sprag Element) S-532
0.532" Skinny &
10 Inner Race
  • Internal Teeth: 36
 NPN-6-26-10
Inner Race NPN-6-26-10
&
  • Internal Teeth: 36
11 Turbine
  • Outside Dia Metric: 280mm
 NPN-6-26-11
Turbine NPN-6-26-11
&
  • Outside Dia Metric: 280mm
12 Turbine Hub
  • Internal Teeth: 24
  • External Teeth: 46
  • Outside Dia: 3.72"
 JX-13-26
Turbine Hub JX-13-26
&
  • Internal Teeth: 24
  • External Teeth: 46
  • Outside Dia: 3.72"
12 Turbine Hub
  • Internal Teeth: 24
  • External Teeth: 46
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.72"
 JX-13-26HT
Turbine Hub JX-13-26HT
&
  • Internal Teeth: 24
  • External Teeth: 46
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.72"
13 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12
Rivet JX-12
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
13 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12S
Rivet JX-12S
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
13 Rivet 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
 SX-12-14
Rivet SX-12-14
& 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
14 O-Ring Standard
  • Thickness: 0.079
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
  • Inside Dia: 1.417
  • Inside Dia metric: 35.9918
 JO-25-2
O-Ring JO-25-2
Standard &
  • Thickness: 0.079
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
  • Inside Dia: 1.417
  • Inside Dia metric: 35.9918
14 O-Ring Oversized
  • Thickness: 0.102
  • Thickness metric: 2.5908
  • Material: Fluorocarbon
  • Inside Dia: 1.475
  • Inside Dia metric: 37.465
  • Oversized
 JO-25-4
O-Ring JO-25-4
Oversized &
  • Thickness: 0.102
  • Thickness metric: 2.5908
  • Material: Fluorocarbon
  • Inside Dia: 1.475
  • Inside Dia metric: 37.465
  • Oversized

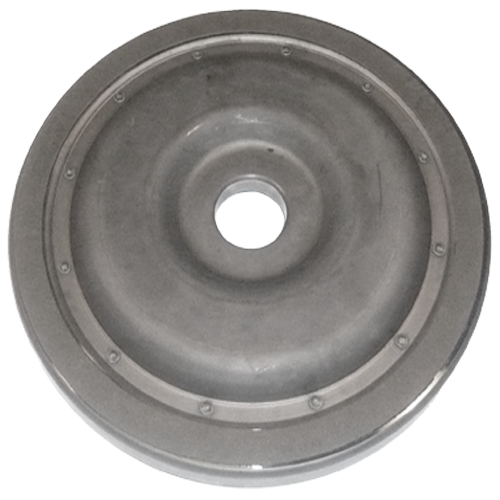

15 Clutch Plate Assembly JX-23-29
Clutch Plate Assembly JX-23-29
&
16 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.75"
  • Inside Dia: 9.5"
 JX-23-23
Lining (Friction Ring,Wafer) JX-23-23
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.75"
  • Inside Dia: 9.5"
17 Retainer
  • Thickness: .04"
  • Material: Steel
  • Outside Dia: 2.75"
  • Inside Dia: 1.47"
 JX-22-3
Retainer JX-22-3
&
  • Thickness: .04"
  • Material: Steel
  • Outside Dia: 2.75"
  • Inside Dia: 1.47"
17 Turbine Washer
  • Material: Metal (Replaces Plastic)
 JW-9-5
Turbine Washer JW-9-5
&
  • Material: Metal (Replaces Plastic)
18 Front Cover NPN-6-26-18
Front Cover NPN-6-26-18
&
