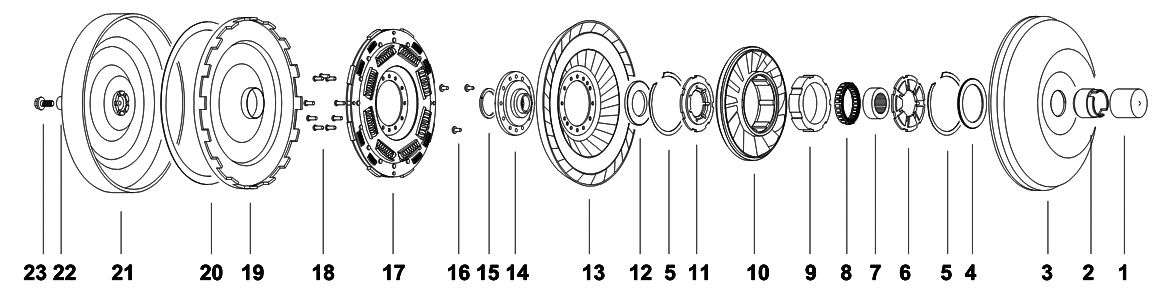

Torque Converter | Jatco, Nissan & Other Japanese | RE4F04 A/V, DA-39 | 74-2

Ill.# Image Description Specification Part #
Impeller Hub Flanged, RE4F04 JH-1-48FLG
Impeller Hub JH-1-48FLG
Flanged, RE4F04 &
Misc NPN-SPL
Misc NPN-SPL
&
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
Hubcap MHC-BU
Fits 1-3/4" (44.4mm). Length: 1-1/2" &
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
2 Impeller Hub Flanged Converts RE4F4A/V (DA-39) to Jatco JR403E (DA-51)
  • Journal Dia: 1.654"
  • Installed Height: 1.770"
  • Height: 1.96"
  • Hub Mount: Flanged
  • Flange Dia: 3.660"
  • Inside Dia: 3.660"
 JH-1-49FLG
Impeller Hub JH-1-49FLG
Flanged & Converts RE4F4A/V (DA-39) to Jatco JR403E (DA-51)
  • Journal Dia: 1.654"
  • Installed Height: 1.770"
  • Height: 1.96"
  • Hub Mount: Flanged
  • Flange Dia: 3.660"
  • Inside Dia: 3.660"

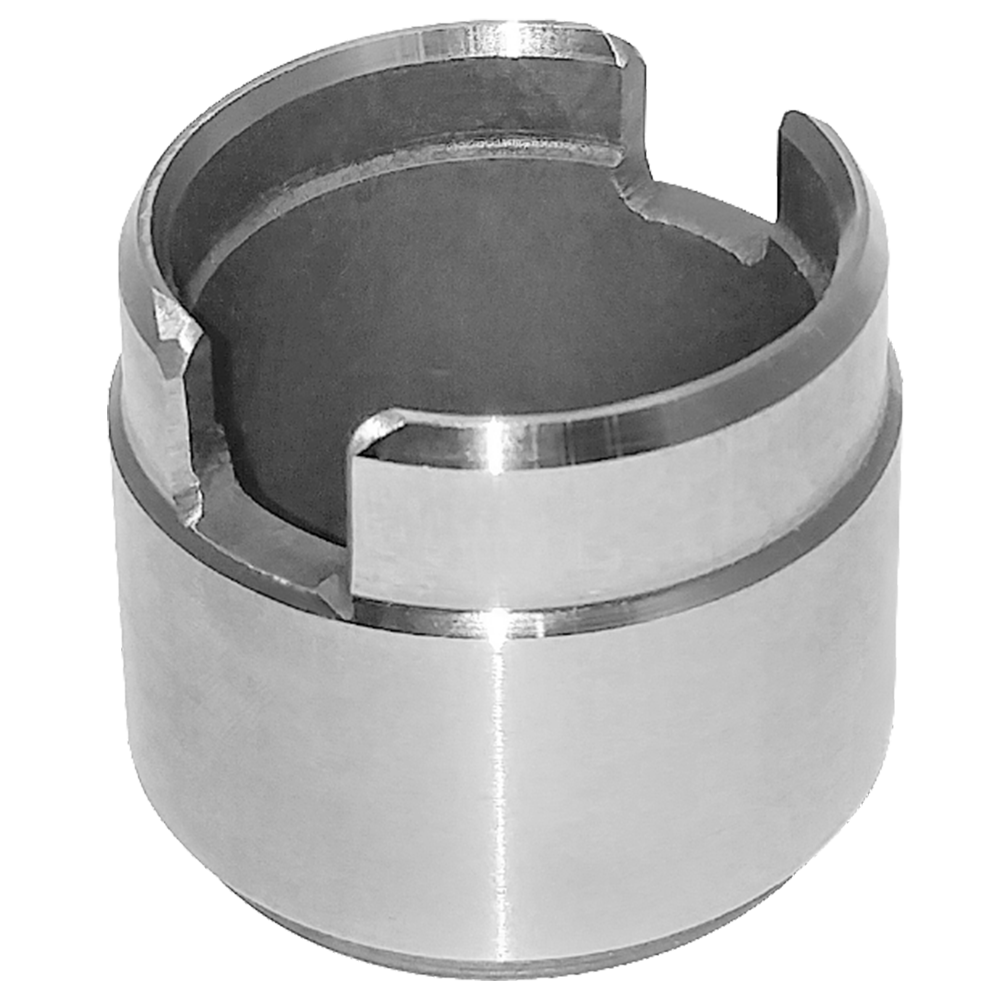

2 Impeller Hub
  • Journal Dia: 1.729"
  • Height: 1.30"
  • Hub Mount: Butt
  • Hardness: Rc 32-36
 JH-1-15GRC
Impeller Hub JH-1-15GRC
&
  • Journal Dia: 1.729"
  • Height: 1.30"
  • Hub Mount: Butt
  • Hardness: Rc 32-36
3 Impeller NPN-6-32-3
Impeller NPN-6-32-3
&
4 Bearing
  • Thickness: 0.237
  • Thickness metric: 6.02
  • Bearing type: Enclosed
  • Outside Dia: 3.025
  • Inside Dia: 2.042
  • Outside Dia Metric: 76.84
  • Inside Dia metric: 51.87
 JW-2-26
Bearing JW-2-26
&
  • Thickness: 0.237
  • Thickness metric: 6.02
  • Bearing type: Enclosed
  • Outside Dia: 3.025
  • Inside Dia: 2.042
  • Outside Dia Metric: 76.84
  • Inside Dia metric: 51.87
5 Snap Ring NPN-6-32-5
Snap Ring NPN-6-32-5
&
6 Stator Cap
  • Thickness: .28"
  • Material: Aluminum
  • Outside Dia: 3.38"
  • Inside Dia: 1.57"
 JW-4-43
Stator Cap JW-4-43
&
  • Thickness: .28"
  • Material: Aluminum
  • Outside Dia: 3.38"
  • Inside Dia: 1.57"
6 Stator Cap
  • Thickness: .28"
  • Material: Aluminum
  • Outside Dia: 3.38"
  • Inside Dia: 1.57"
 JW-4-44
Stator Cap JW-4-44
&
  • Thickness: .28"
  • Material: Aluminum
  • Outside Dia: 3.38"
  • Inside Dia: 1.57"
7 Inner Race
  • Height: 0.81"
  • Internal Teeth: 32
  • Outside Dia: 1.86"
 NPN-6-32-7
Inner Race NPN-6-32-7
&
  • Height: 0.81"
  • Internal Teeth: 32
  • Outside Dia: 1.86"
8 Sprag
  • Thickness: 0.51"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.45"
  • Inner Race Outside Dia: 1.87"
  • Cam part-ID: S-315.
 YC-6
Sprag YC-6
&
  • Thickness: 0.51"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.45"
  • Inner Race Outside Dia: 1.87"
  • Cam part-ID: S-315.
8 Cam Kit (Sprag Element) Sprag, 24 Cams MS-315-22K
Cam Kit (Sprag Element) MS-315-22K
Sprag, 24 Cams &
9 Cam NPN-6-32-9
Cam NPN-6-32-9
&
10 Stator NPN-6-32-10
Stator NPN-6-32-10
&
12 Bearing
  • Thickness: 0.195
  • Thickness metric: 4.95
  • Bearing type: Enclosed
  • Outside Dia: 2.633
  • Inside Dia: 1.737
  • Outside Dia Metric: 66.88
  • Inside Dia metric: 44.12
 JW-2-27
Bearing JW-2-27
&
  • Thickness: 0.195
  • Thickness metric: 4.95
  • Bearing type: Enclosed
  • Outside Dia: 2.633
  • Inside Dia: 1.737
  • Outside Dia Metric: 66.88
  • Inside Dia metric: 44.12
13 Turbine NPN-6-32-13
Turbine NPN-6-32-13
&
14 Turbine Hub
  • Height: 1.150
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.86
 JX-13-47HT
Turbine Hub JX-13-47HT
&
  • Height: 1.150
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.86
15 Seal Ring Scarf Cut
  • Height: 0.092"
  • Width: 0.092
  • Material: PTFE
  • Height Metric: 2.3368
  • Seal Type: Scarf Cut
  • Outside Dia: 1.689
  • Outside Dia Metric: 42.9006
 JO-25-9
Seal Ring JO-25-9
Scarf Cut &
  • Height: 0.092"
  • Width: 0.092
  • Material: PTFE
  • Height Metric: 2.3368
  • Seal Type: Scarf Cut
  • Outside Dia: 1.689
  • Outside Dia Metric: 42.9006
16 Rivet 3 Pieces Required.
  • Length: .40"
  • Rivet Shank Dia: .25"
 JX-12-5
Rivet JX-12-5
& 3 Pieces Required.
  • Length: .40"
  • Rivet Shank Dia: .25"
17 Lockup Clutch NPN-6-32-17
Lockup Clutch NPN-6-32-17
&
18 Rivet 9/12 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12
Rivet JX-12
& 9/12 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
18 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12S
Rivet JX-12S
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
18 Rivet 9/12 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
 SX-12-14
Rivet SX-12-14
& 9/12 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
19 Piston NPN-6-32-19
Piston NPN-6-32-19
&
20 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.813"
  • Inside Dia: 8.813"
 JX-23-32
Lining (Friction Ring,Wafer) JX-23-32
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.813"
  • Inside Dia: 8.813"
21 Front Cover NPN-6-32-21
Front Cover NPN-6-32-21
&
22 Mounting Pad
  • Dimensions: M10 x 1.25
 NPN-6-32-22
Mounting Pad NPN-6-32-22
&
  • Dimensions: M10 x 1.25
23 Bolt Hex Head
  • Dimensions: M10 x 1.25
 NPN-6-32-23
Bolt NPN-6-32-23
Hex Head &
  • Dimensions: M10 x 1.25
