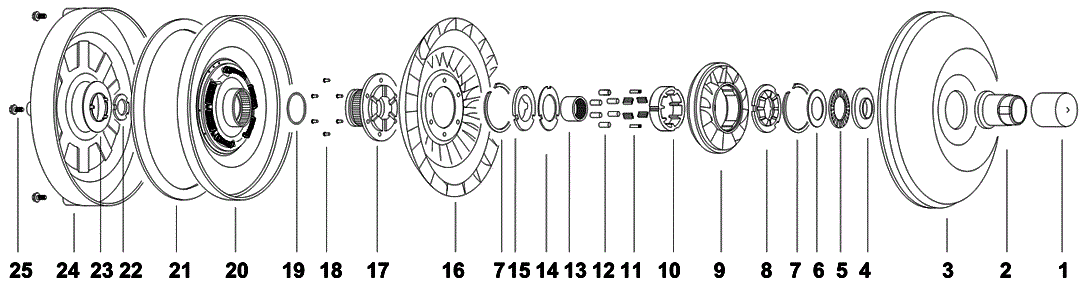

Torque Converter | Jatco, Nissan & Other Japanese | R4A-EL, DA-8-20 | 66-9

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 Impeller Hub
  • Journal Dia: 1.651"
  • Installed Height: 2.060"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
 JH-1-2G
Impeller Hub JH-1-2G
&
  • Journal Dia: 1.651"
  • Installed Height: 2.060"
  • Hub Mount: Thru
  • Pump Drive Type: Flats

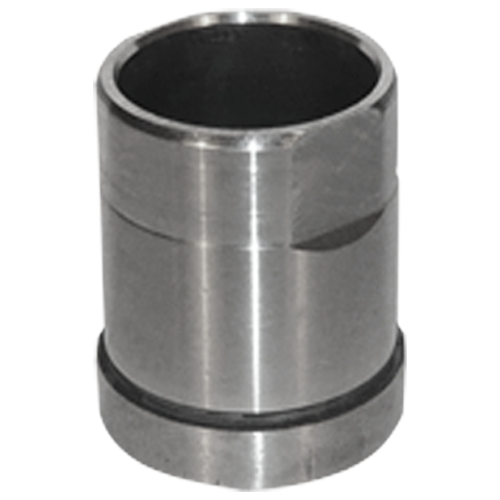

2 Impeller Hub
  • Journal Dia: 1.651"
  • Height: 1.940"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 JH-1-31GRC
Impeller Hub JH-1-31GRC
&
  • Journal Dia: 1.651"
  • Height: 1.940"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
3 Impeller NPN-6-8-3
Impeller NPN-6-8-3
&
4 Bearing Race
  • Thickness: 0.030"
  • Bearing type: Outside & Inside Lips
  • Outside Dia: 2.370"
  • Inside Dia: 1.376"
 JW-2-6
Bearing Race JW-2-6
&
  • Thickness: 0.030"
  • Bearing type: Outside & Inside Lips
  • Outside Dia: 2.370"
  • Inside Dia: 1.376"
5 Bearing
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
Bearing JW-2N
&
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
5 Bearing
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
Bearing JW-2ND
&
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
6 Bearing Race
  • Thickness: .08"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5
Bearing Race JW-2-5
&
  • Thickness: .08"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"

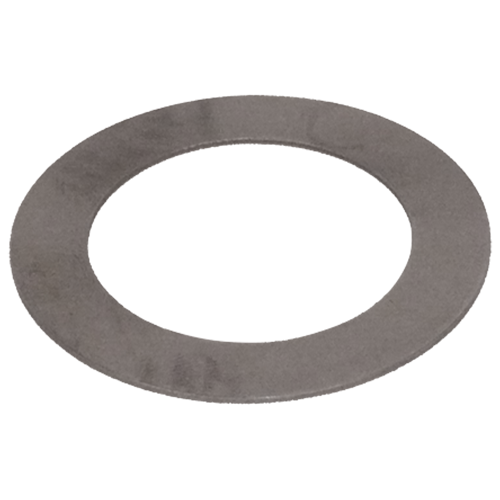

6 Bearing Race
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5T
Bearing Race JW-2-5T
&
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"

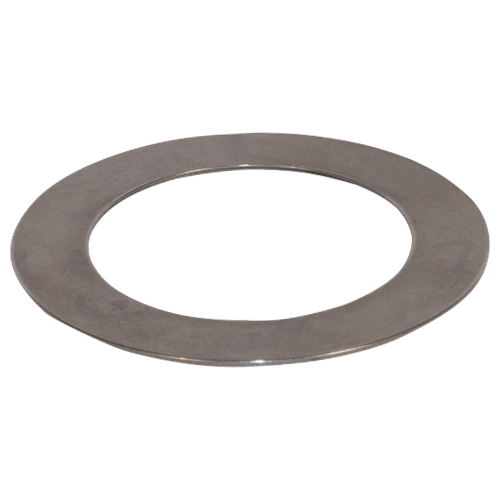

6 Bearing Race
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5TT
Bearing Race JW-2-5TT
&
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
6_N.I. Bearing & Race Kit
  • Includes JW-2-6, JW-2-5, JW-2ND
 JW-2BK
Bearing & Race Kit JW-2BK
&
  • Includes JW-2-6, JW-2-5, JW-2ND
7 Snap Ring NPN-6-8-7
Snap Ring NPN-6-8-7
&
8 Stator Cap
  • Material: Aluminum
 NPN-6-8-8
Stator Cap NPN-6-8-8
&
  • Material: Aluminum
9 Stator NPN-6-8-9
Stator NPN-6-8-9
&
10 Cam (Cam) NPN-6-8-10
Cam NPN-6-8-10
(Cam) &
11 Accordion Spring 6 Pieces Required.
  • Width: 0.944"
  • Relaxed Length: 0.472"
  • Folds: 4
  • Relaxed Height: 0.24"
 JS-6-3
Accordion Spring JS-6-3
& 6 Pieces Required.
  • Width: 0.944"
  • Relaxed Length: 0.472"
  • Folds: 4
  • Relaxed Height: 0.24"

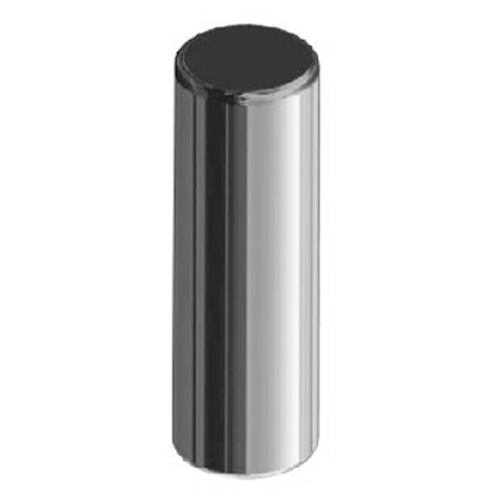

12 Roller 6 Pieces Required.
  • Dia: 0.314"
  • Length: 0.98"
 JR-7-3
Roller JR-7-3
& 6 Pieces Required.
  • Dia: 0.314"
  • Length: 0.98"
13 Inner Race Stator
  • Height: 1.020"
  • Internal Teeth: 30
  • Outside Dia: 1.610"
 JX-14-4
Inner Race JX-14-4
Stator &
  • Height: 1.020"
  • Internal Teeth: 30
  • Outside Dia: 1.610"
14 Wear Plate
  • Material: Bimetal
 NPN-6-8-14
Wear Plate NPN-6-8-14
&
  • Material: Bimetal
15 Bearing
  • Bearing type: Enclosed
 NPN-6-8-15
Bearing NPN-6-8-15
&
  • Bearing type: Enclosed
16 Turbine
  • Outside Dia Metric: 236mm
 NPN-6-8-16
Turbine NPN-6-8-16
&
  • Outside Dia Metric: 236mm

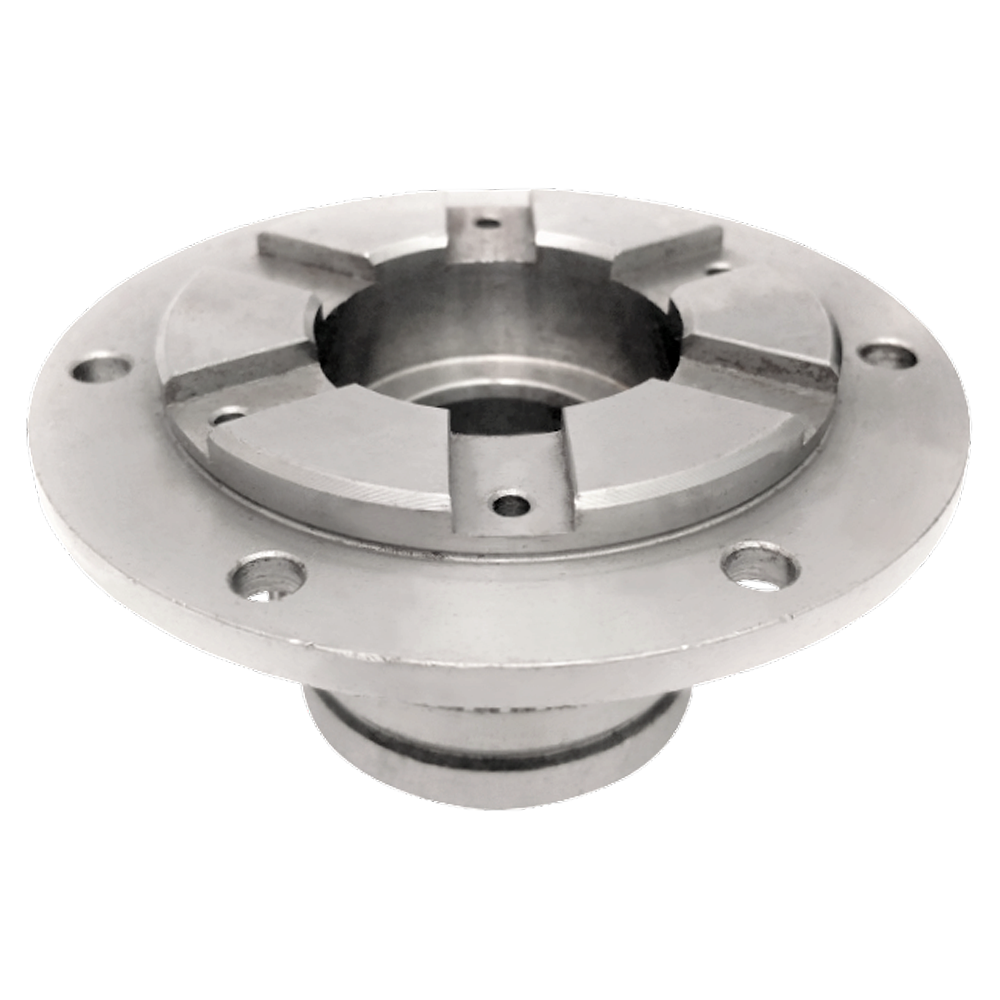

17 Turbine Hub
  • Internal Teeth: 20
  • External Teeth: 46
  • Outside Dia: 3.46"
 JX-13-28
Turbine Hub JX-13-28
&
  • Internal Teeth: 20
  • External Teeth: 46
  • Outside Dia: 3.46"
17 Turbine Hub
  • Internal Teeth: 20
  • External Teeth: 46
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.46"
 JX-13-28HT
Turbine Hub JX-13-28HT
&
  • Internal Teeth: 20
  • External Teeth: 46
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.46"

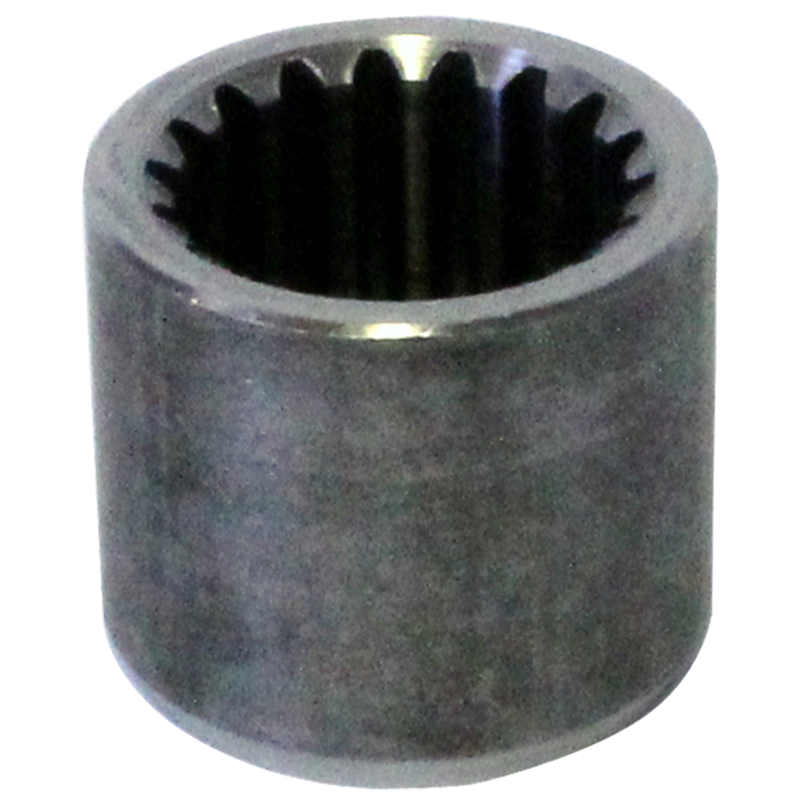

17 Spline Insert Pump Drive
  • Height: 0.880
  • External Teeth: 18
 JX-13-18X
Spline Insert JX-13-18X
Pump Drive &
  • Height: 0.880
  • External Teeth: 18
18 Rivet 6 Pieces Required.
  • Length: 0.312"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12
Rivet FX-12
& 6 Pieces Required.
  • Length: 0.312"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
18 Misc 6 Pieces Required. NPN-SPL
Misc NPN-SPL
& 6 Pieces Required.
19 O-Ring Standard
  • Thickness: 0.079
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
  • Inside Dia: 1.417
  • Inside Dia metric: 35.9918
 JO-25-2
O-Ring JO-25-2
Standard &
  • Thickness: 0.079
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
  • Inside Dia: 1.417
  • Inside Dia metric: 35.9918
19 O-Ring Oversized
  • Thickness: 0.102
  • Thickness metric: 2.5908
  • Material: Fluorocarbon
  • Inside Dia: 1.475
  • Inside Dia metric: 37.465
  • Oversized
 JO-25-4
O-Ring JO-25-4
Oversized &
  • Thickness: 0.102
  • Thickness metric: 2.5908
  • Material: Fluorocarbon
  • Inside Dia: 1.475
  • Inside Dia metric: 37.465
  • Oversized
20 Lockup Clutch JX-23-6
Lockup Clutch JX-23-6
&
21 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.875"
  • Inside Dia: 8"
 SX-23-31
Lining (Friction Ring,Wafer) SX-23-31
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.875"
  • Inside Dia: 8"

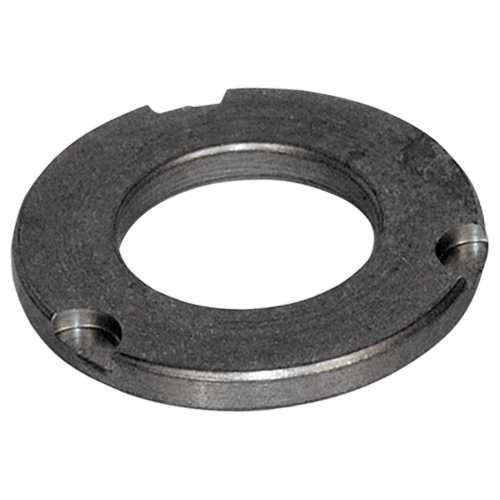

22 Turbine Washer
  • Thickness: .15"
  • Material: Metal (Replaces Plastic
  • Outside Dia: 1.60"
  • Inside Dia: .87"
 JW-9-6
Turbine Washer JW-9-6
&
  • Thickness: .15"
  • Material: Metal (Replaces Plastic
  • Outside Dia: 1.60"
  • Inside Dia: .87"
23 Retainer
  • Thickness: .04"
  • Material: Steel
  • Outside Dia: 2.75"
  • Inside Dia: 1.60"
 JX-22-2
Retainer JX-22-2
&
  • Thickness: .04"
  • Material: Steel
  • Outside Dia: 2.75"
  • Inside Dia: 1.60"
24 Front Cover NPN-6-8-24
Front Cover NPN-6-8-24
&
25 Bolt NPN-6-8-25
Bolt NPN-6-8-25
&
