Torque Converter | Jatco, Nissan & Other Japanese | L4N71B, DA-8 | 66-8L

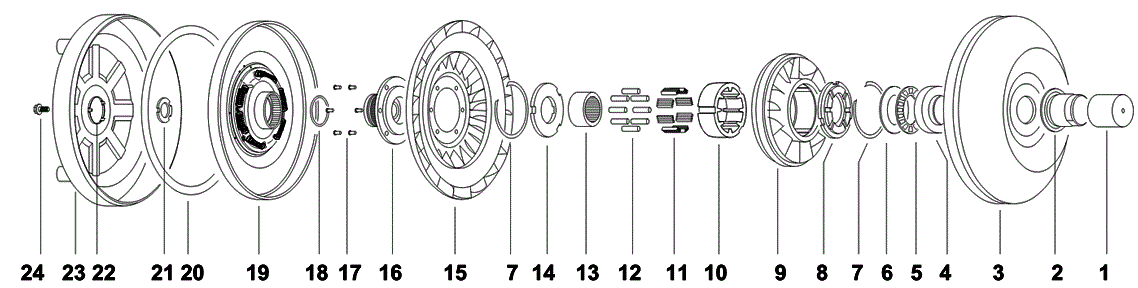

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B

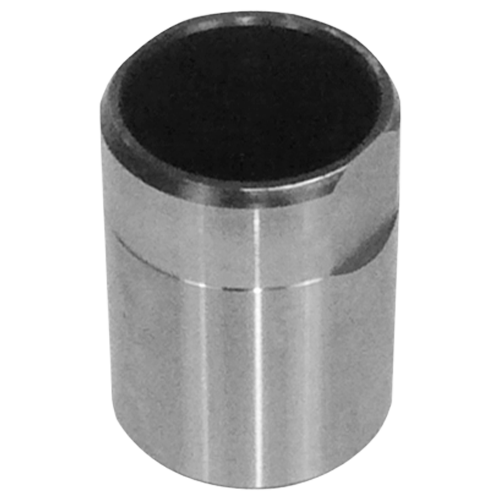

2 Impeller Hub
  • Journal Dia: 1.651"
  • Height: 1.985"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 JH-1-33GRC
2 Impeller Hub
  • Journal Dia: 1.651"
  • Installed Height: 2.060"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
 JH-1-2G
2 Impeller Hub
  • Journal Dia: 1.651"
  • Height: 1.940"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 JH-1-31GRC
2 Impeller Hub Flanged
  • Journal Dia: 1.651"
  • Installed Height: 1.928"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 JH-1-32FLGRC
3 Impeller NPN-6-6-3
4 Bearing Race
  • Thickness: 0.030"
  • Bearing type: Outside & Inside Lips
  • Outside Dia: 2.370"
  • Inside Dia: 1.376"
 JW-2-6
5 Bearing
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
5 Bearing
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
5_N.I. Bearing & Race Kit
  • Includes JW-2-6, JW-2-5, JW-2ND
 JW-2BK
6 Bearing Race
  • Thickness: .08"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5
6 Bearing Race
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5T
6 Bearing Race
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5TT
7 Snap Ring NPN-6-6-7
8 Stator Cap Early, Replaced by JW-4-1 With JW-2-5TT
  • Thickness: .35"
  • Material: Phenolic or Aluminum
  • Outside Dia: 2.83"
  • Inside Dia: 1.42"
 JW-4-3
8 Stator Cap Late
  • Thickness: 0.336"
  • Material: Aluminum
  • Outside Dia: 2.83"
  • Inside Dia: 1.382"
  • Replaced by JW-4-1 With JW-2-5T
 JW-4-27
9 Stator NPN-6-6-9
10 Outer Race (Cam) Stator JX-15-5
11 Accordion Spring Early. 8 Pieces Required.
  • Width: 0.944"
  • Relaxed Length: 0.472"
  • Folds: 4
  • Relaxed Height: 0.24"
 JS-6-3
11 Accordion Spring Late. 8 Pieces Required.
  • Width: 0.945"
  • Relaxed Length: 0.368"
  • Folds: 4
  • Relaxed Height: 0.185"
 JS-6-5

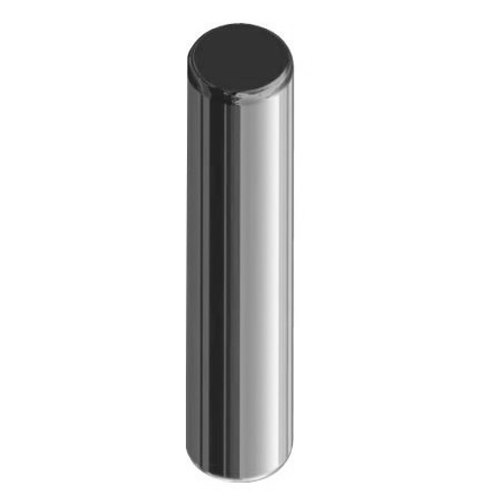

12 Roller Early. 8 Pieces Required.
  • Dia: 0.256"
  • Length: .984"
 JR-7-4
12 Roller Late. 8 Pieces Required.
  • Dia: 0.314"
  • Length: 0.98"
 JR-7-3
13 Inner Race Stator
  • Height: 1.020"
  • Internal Teeth: 30
  • Outside Dia: 1.610"
 JX-14-4
14 Stator Cap
  • Thickness: .340"
  • Material: Phenolic
  • Outside Dia: 2.825"
  • Inside Dia: 1.410"
 JW-4-1
15 Turbine
  • Outside Dia Metric: 236mm
 NPN-6-6-15
16 Turbine Hub
  • Internal Teeth: 18
  • External Teeth: 48
  • Outside Dia: 3.46"
 JX-13-6
16 Turbine Hub
  • Outside Dia: 3.46"
 JX-13-6HT
16 Spline Insert Pump Drive
  • Height: 0.880
  • External Teeth: 18
 JX-13-18X
17 Misc 6 Pieces Required. NPN-SPL
17 Rivet Early. 6 Pieces Required.
  • Length: 0.31"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12A
17 Rivet Late. 6 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12B
17 Rivet 10 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12BS
18 O-Ring Standard
  • Thickness: 0.079
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
  • Inside Dia: 1.417
  • Inside Dia metric: 35.9918
 JO-25-2
18 O-Ring Oversized
  • Thickness: 0.102
  • Thickness metric: 2.5908
  • Material: Fluorocarbon
  • Inside Dia: 1.475
  • Inside Dia metric: 37.465
  • Oversized
 JO-25-4
19 Lockup Clutch Early JX-23-6
19 Lockup Clutch Late JX-23-13
20 Lining (Friction Ring,Wafer) Early Model
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.875"
  • Inside Dia: 8"
 SX-23-31
20 Lining (Friction Ring,Wafer) Late Model
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9"
  • Inside Dia: 8.25"
 JX-23-3
20 Floating Ring
  • Thickness: .070"
  • Outside Dia: 9.625
  • Inside Dia: 8"
 JX-23-4

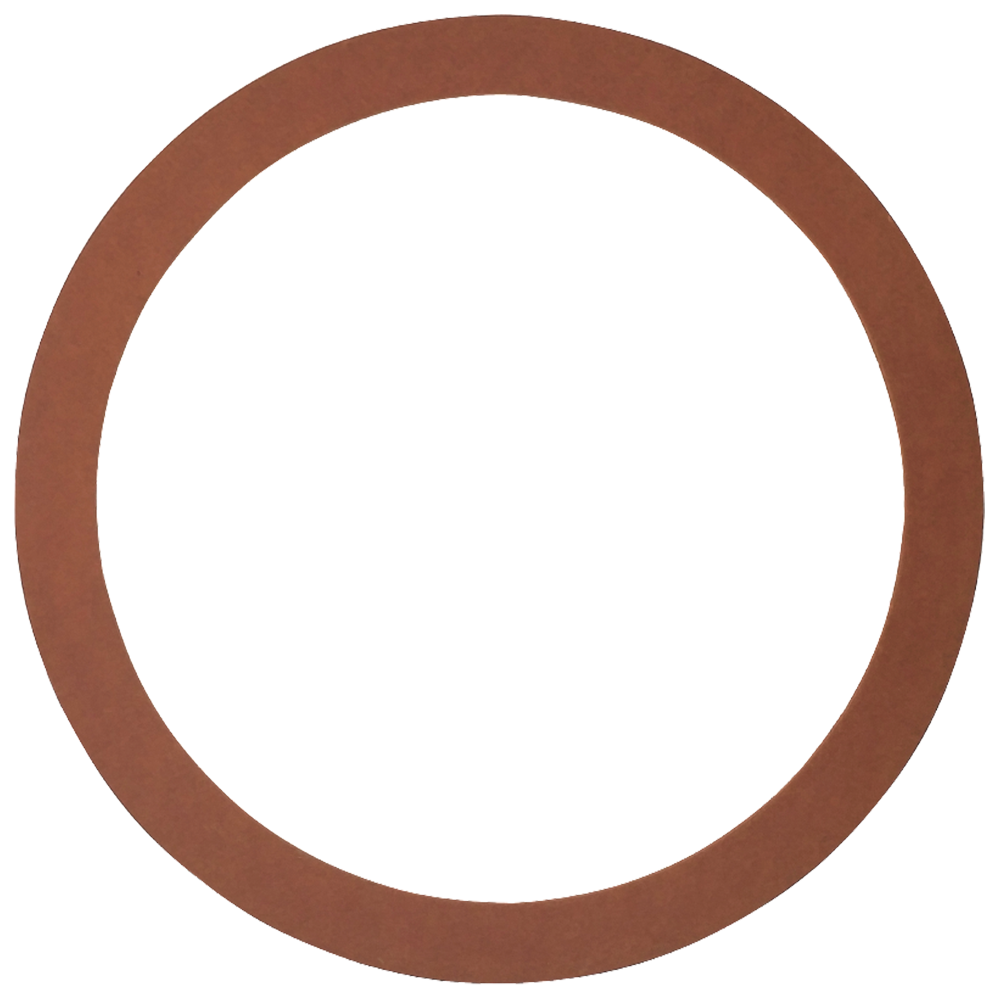

20 Floating Ring
  • Thickness: .070"
  • Outside Dia: 9.625
  • Inside Dia: 8"
 TX-26-9

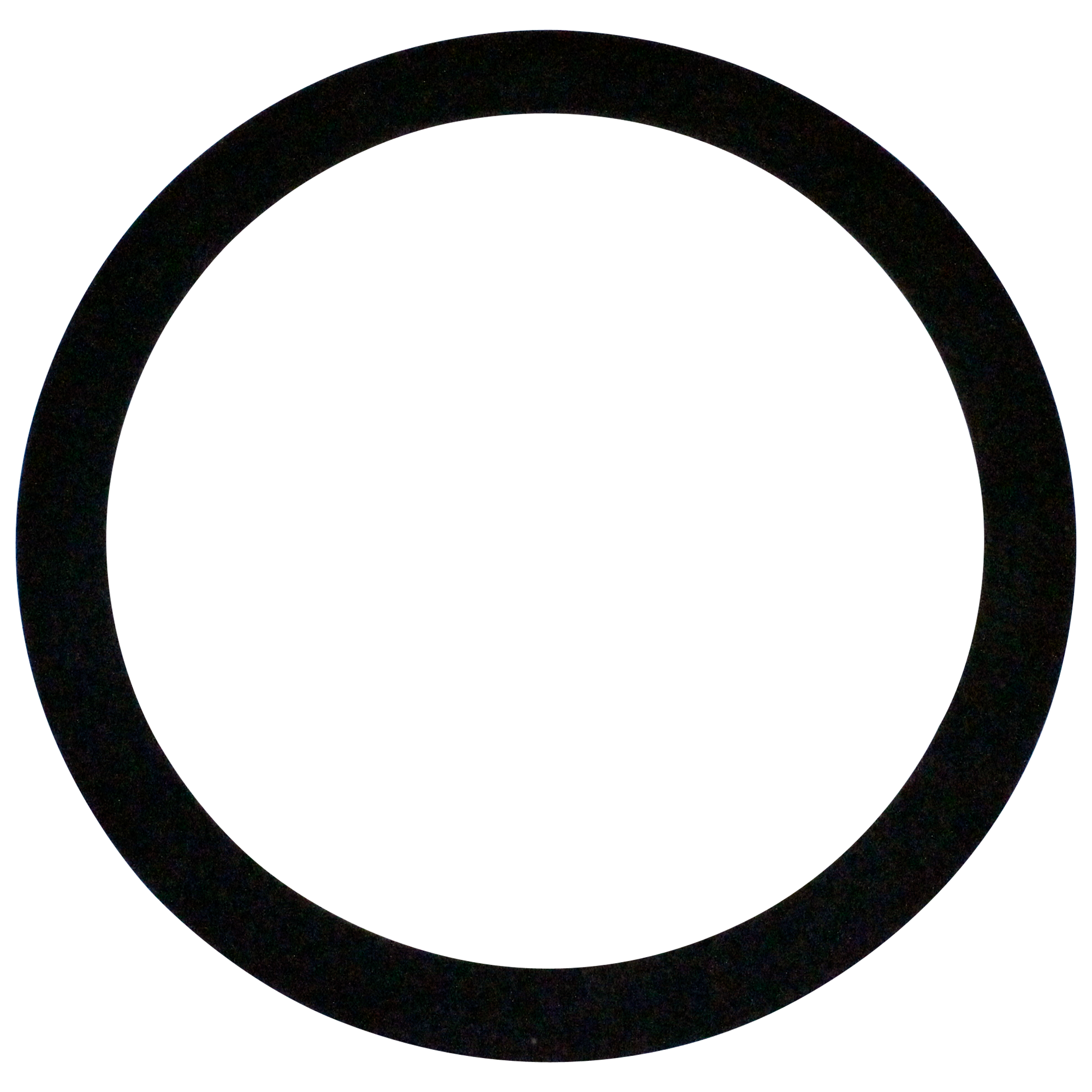

20 Floating Ring Kevlar®
  • Thickness: 0.045"
  • Material: Kevlar®™
  • Outside Dia: 9.625
  • Inside Dia: 8"
 TX-26-9K
20 Floating Ring
  • Outside Dia: 9.625
  • Inside Dia: 8"
 TX-26-9R

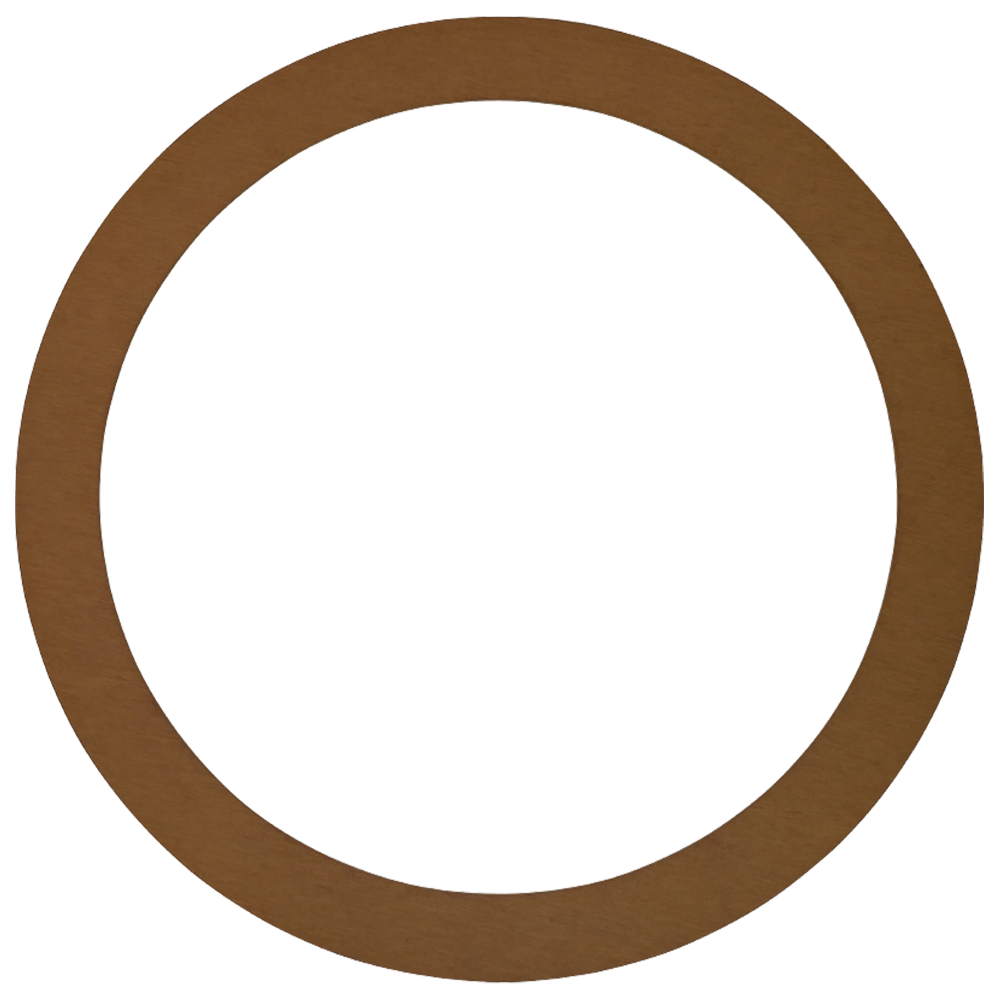

20 Floating Ring Raybestos
  • Thickness: .070"
  • Outside Dia: 9.625
  • Inside Dia: 8"
 TX-26-9RB
21 Turbine Washer
  • Thickness: .15"
  • Material: Metal (Replaces Plastic
  • Outside Dia: 1.60"
  • Inside Dia: .87"
 JW-9-6
22 Retainer
  • Thickness: .04"
  • Material: Steel
  • Outside Dia: 2.75"
  • Inside Dia: 1.60"
 JX-22-2
23 Front Cover NPN-6-6-23
24 Bolt NPN-6-6-24
