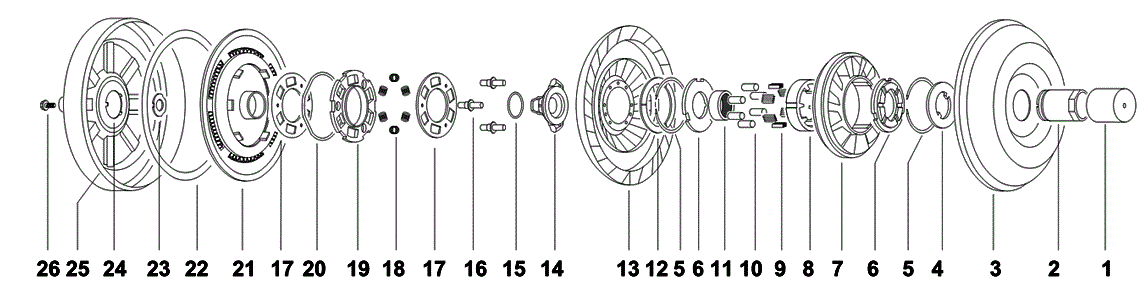

1 |
|
Hubcap |
Fits 1-5/8" (41.3mm). Length: 1-3/8"
|
- Color: Black
- Fits 1-5/8" (41.3mm)
|
MHC-B
|
2 |
|

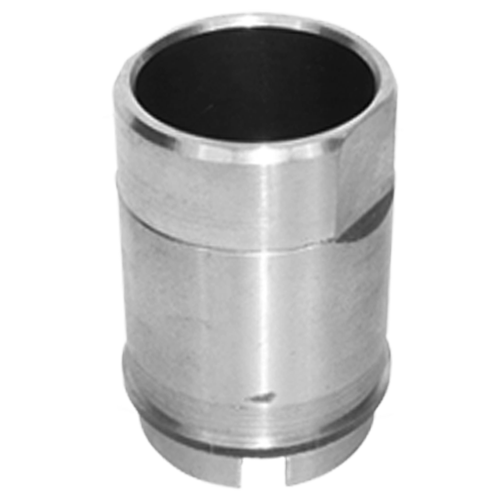

Impeller Hub |
|
- Journal Dia: 1.651"
- Installed Height: 1.940"
- Hub Mount: Thru
- Pump Drive Type: flats
|
JH-1-5G
|
2 |
|

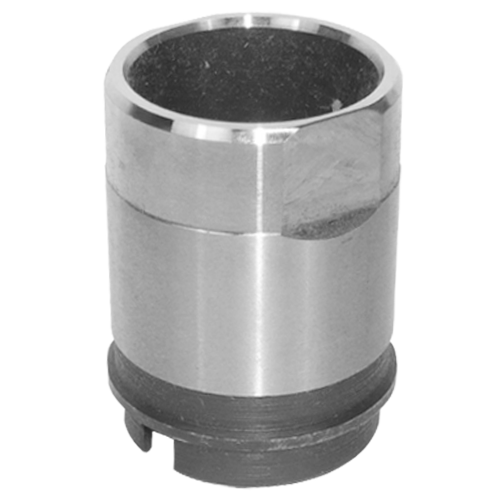

Impeller Hub |
|
- Journal Dia: 1.651"
- Installed Height: 1.940"
- Hub Mount: Thru
- Pump Drive Type: flats
- Hardness: Rc 32-36
|
JH-1-5GRC
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.651"
- Height: 1.940"
- Hub Mount: Butt
- Pump Drive Type: flats
|
JH-1-31G
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.651"
- Height: 1.940"
- Hub Mount: Butt
- Pump Drive Type: flats
- Hardness: Rc 32-36
|
JH-1-31GRC
|
3 |
|
Impeller |
|
|
NPN-6-2-3
|
4 |
|
Washer |
|
- Outer Dia: 2.46"
- Inner Dia: 1.54"
- Thickness: .09"
- Material: Steel
- 2 Lugs
|
JW-2-1
|
5 |
|
Snap Ring |
|
|
NPN-6-2-5
|
6 |
|
Stator Cap |
2 Pieces Required.
|
- Outer Dia: 2.825"
- Inner Dia: 1.410"
- Thickness: .340"
- Material: Phenolic
|
JW-4-1
|
6 |
|
Stator Cap |
2 Pieces Required.
|
- Outer Dia: 2.83"
- Inner Dia: 1.42"
- Thickness: .35"
- Material: Phenolic or Aluminum
|
JW-4-3
|
7 |
|
Stator |
|
|
NPN-6-2-7
|
8 |
|
Outer Race (Cam) |
Stator
|
|
JX-15-1
|
9 |
|
Accordion Spring |
6 Pieces Required.
|
- Height: 0.31"
- Width: 0.68"
- Folds: 4
|
TS-6-1
|
9 |
|

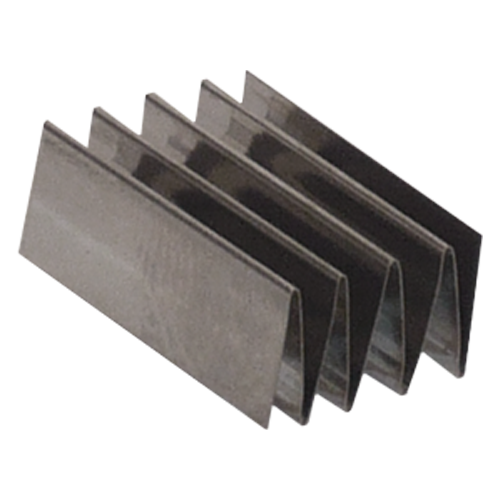

Accordion Spring |
|
- Height: 0.285"
- Width: 0.68"
- Folds: 4
- Special "Low" Spring To
|
TS-6-2
|
10 |
|
Roller |
6 Pieces Required.
|
- Dia: 0.312"
- Length: 0.705"
|
12960R
|
10 |
|
Roller |
8 Pieces Required.
|
|
FR-7-2
|
11 |
|
Inner Race |
Stator
|
- Height: 0.710"
- Outer Dia: 1.610"
- Internal Teeth: 30
|
JX-14-1
|
12 |
|
Ring |
Reinforcement
|
|
NPN-6-2-12
|
13 |
|
Turbine |
|
|
NPN-6-2-13
|
14 |
|
Turbine Hub |
|
|
JX-13-5
|
14 |
|
Turbine Hub |
|
- Outer Dia: 2.28"
- Internal Teeth: 18
- Hardness: Heat Treated
|
JX-13-5HT
|
14 |
|
Turbine Hub |
|
|
JX-13-8
|
14 |
|
Turbine Hub |
Non-Lockup, Pulsar
|
- Outer Dia: 3.55"
- Internal Teeth: 18
- Hardness: Heat Treated
|
JX-13-8HT
|
14_N.I. |
|
Spline Insert |
Pump Drive
|
- Height: 0.880
- External teeth: 18
|
JX-13-18X
|
15 |
|
O-Ring |
|
- Inner Dia: 1.327
- Thickness: 0.079
- Inner Dia metric: 32.004
- Thickness metric: 2.0066
- Material: Fluorocarbon
|
JO-25-1
|
15 |
|
O-Ring |
|
- Inner Dia: 1.327
- Thickness: 0.088
- Inner Dia metric: 33.7058
- Thickness metric: 2.2352
- Material: Fluorocarbon
- Oversized
|
JO-25-1X
|
15 |
|

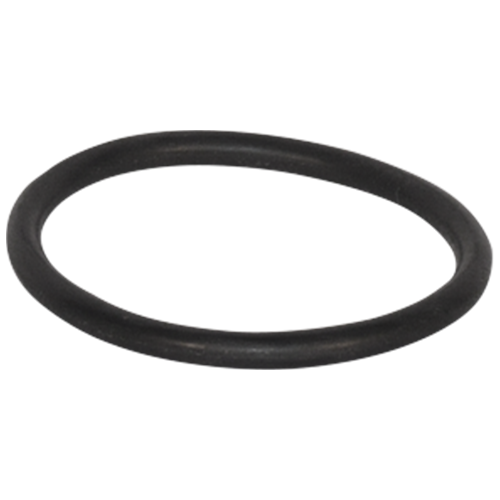

O-Ring |
|
- Inner Dia metric: 32mm
- Thickness metric: 2.6mm
- Material: Fluorocarbon
- Oversized
|
JO-25-3
|
16 |
|
Rivet |
3 Pieces Required.
|
- Length: 1.025.170/.545"
- Rivet solid or tubular: S
- Rivet Shank Dia: 0.238"
- Rivet head dia: 0.32"
|
JX-12-3
|
16 |
|
Rivet |
|
- Length: 1.156.590/.250"
- Rivet solid or tubular: S
- Rivet Shank Dia: 0.238"
- Rivet head dia: 0.32"
|
JX-12-3A
|
17 |
|
Plate |
Damper Cover
|
|
NPN-6-2-17
|
18 |
|
Damper Spring |
|
|
NPN-6-2-18
|
19 |
|
Ring |
Damper
|
|
NPN-6-2-19
|
20 |
|
Spring |
Wave
|
|
NPN-6-2-20
|
21 |
|
Lockup Clutch |
|
|
JX-23-5
|
22 |
|
Lining (Friction Ring,Wafer) |
AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
|
- Outer Dia: 8.375"
- Inner Dia: 7.5"
- Thickness: 0.045"
- Material: Red
|
JX-23-1
|
22 |
|
Lining (Friction Ring,Wafer) |
AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
|
- Outer Dia: 8.5"
- Inner Dia: 7.25"
- Thickness: 0.045"
- Material: Red
|
YX-23-19
|
22 |
|
Lining (Friction Ring,Wafer) |
AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
|
- Outer Dia: 8.25
- Inner Dia: 7.125
- Thickness: 0.045"
- Material: Red
|
JX-23-37
|
22 |
|
Lining (Friction Ring,Wafer) |
|
- Outer Dia: 8.25
- Inner Dia: 7.125
- Thickness: 0.070"
- Material: LockJoint™, Kevlar®
|
JX-23-37JX70K
|
23 |
|
Turbine Washer |
|
- Material: Metal (Replaces Plastic)
|
JW-9-5
|
24 |
|
Retainer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.47"
- Thickness: .04"
- Material: Steel
|
JX-22-3
|
25 |
|
Front Cover |
|
|
NPN-6-2-25
|
26 |
|
Bolt |
|
|
NPN-6-2-26
|
