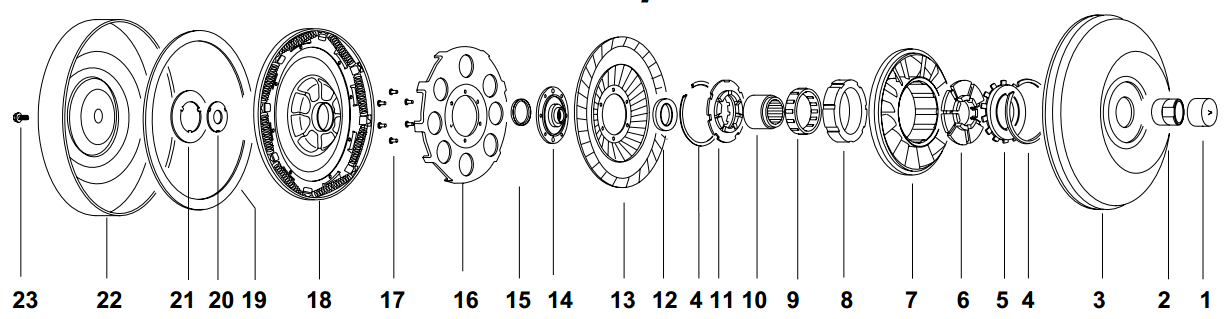

Ill.# | Image | Description | Specification | Part # | |
---|---|---|---|---|---|
1 | Hubcap | Fits 1-5/8" (41.3mm). Length: 1-3/8" |
|
MHC-B | |
2 | Impeller Hub |
|
JH-1-35GRC | ||
3 | Impeller | NPN-6-20-3 | |||
4 | Snap Ring | NPN-6-20-4 | |||
5 | Bearing | Thrust |
|
JW-2-19 | |
6 | Stator Cap | Use with bearing TW-2-4 |
|
JW-4-24 | |
6 | Bearing Adapter Washer |
|
NPN-6-20-6 | ||
7 | Stator | NPN-6-20-7 | |||
8 | Cam | NPN-6-20-8 | |||
9 | Sprag |
|
NPN-6-20-9 | ||
10 | Inner Race |
|
NPN-6-20-10 | ||
11 | Stator Cap |
|
JW-4-32 | ||
12 | Bearing |
|
JW-2-20 | ||
13 | Turbine | NPN-6-20-13 | |||
14 | Turbine Hub |
|
JX-13-31 | ||
14 | Turbine Hub |
|
JX-13-31HT | ||
15 | O-Ring |
|
JO-25-1 | ||

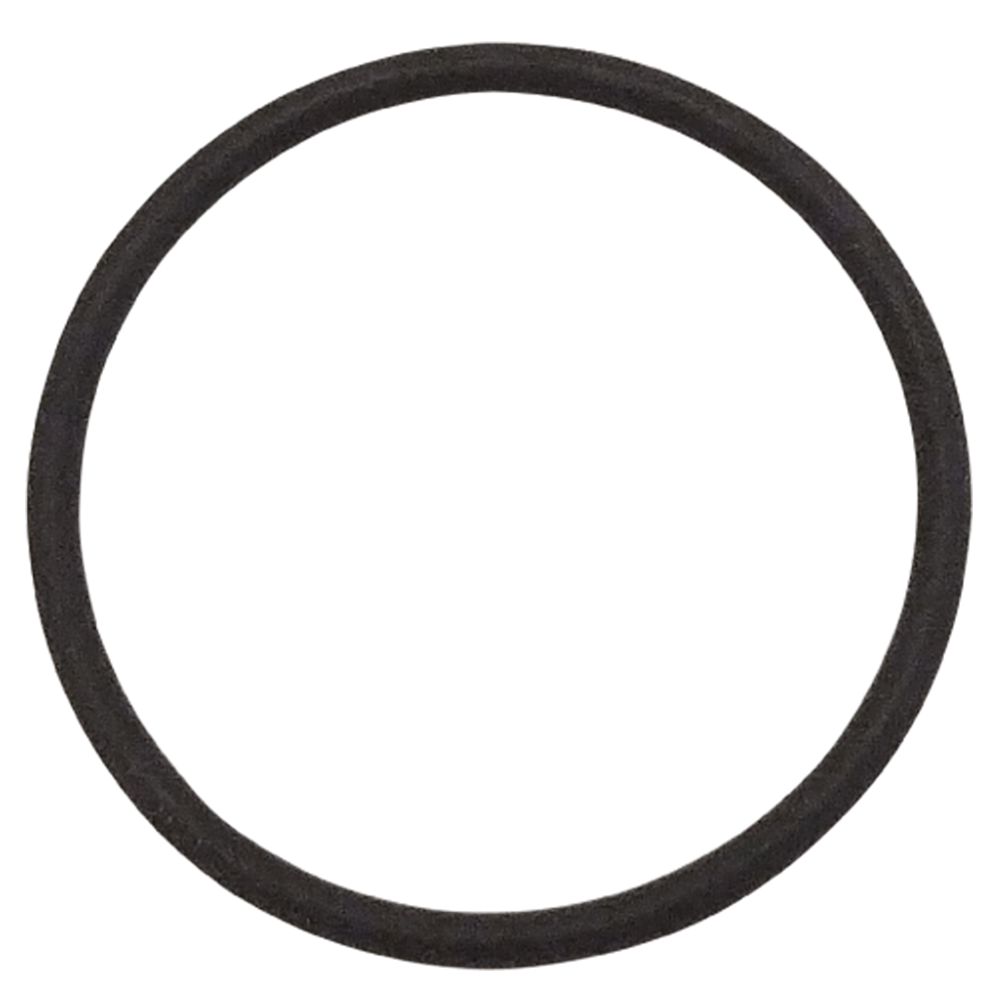

15 | O-Ring |
|
JO-25-1X | ||
16 | Plate | NPN-6-20-16 | |||
17 | Rivet | 6/12 Pieces Required. |
|
JX-12 | |
17 | Rivet | 8 Pieces Required. |
|
JX-12S | |
17 | Rivet |
|
SX-12-14 | ||
18 | Lockup Clutch | 8 Springs | NPN-6-20-18 | ||
19 | Lining (Friction Ring,Wafer) | AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. |
|
FX-23-6 | |

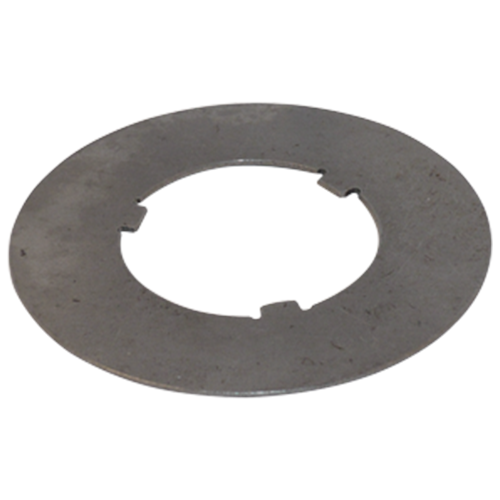

20 | Retainer |
|
JX-22-3 | ||

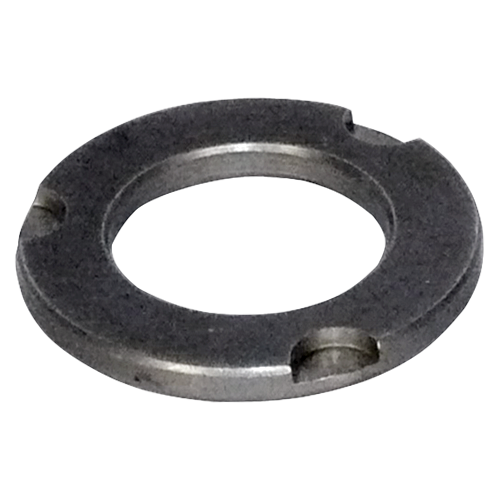

21 | Turbine Washer |
|
JW-9-5 | ||
22 | Front Cover | NPN-6-20-22 | |||
23 | Bolt | NPN-6-20-23 |
