Torque Converter | Jatco, Nissan & Other Japanese | JF011E (RE0F10A) Nissan

Ill.# Image Description Specification Part #
Misc NPN-SPL
1 Hubcap Fits 2" (50.8mm). Length: 1-1/2"
  • Color: Red
  • Fits 2" (50.8mm)
 MHC-R

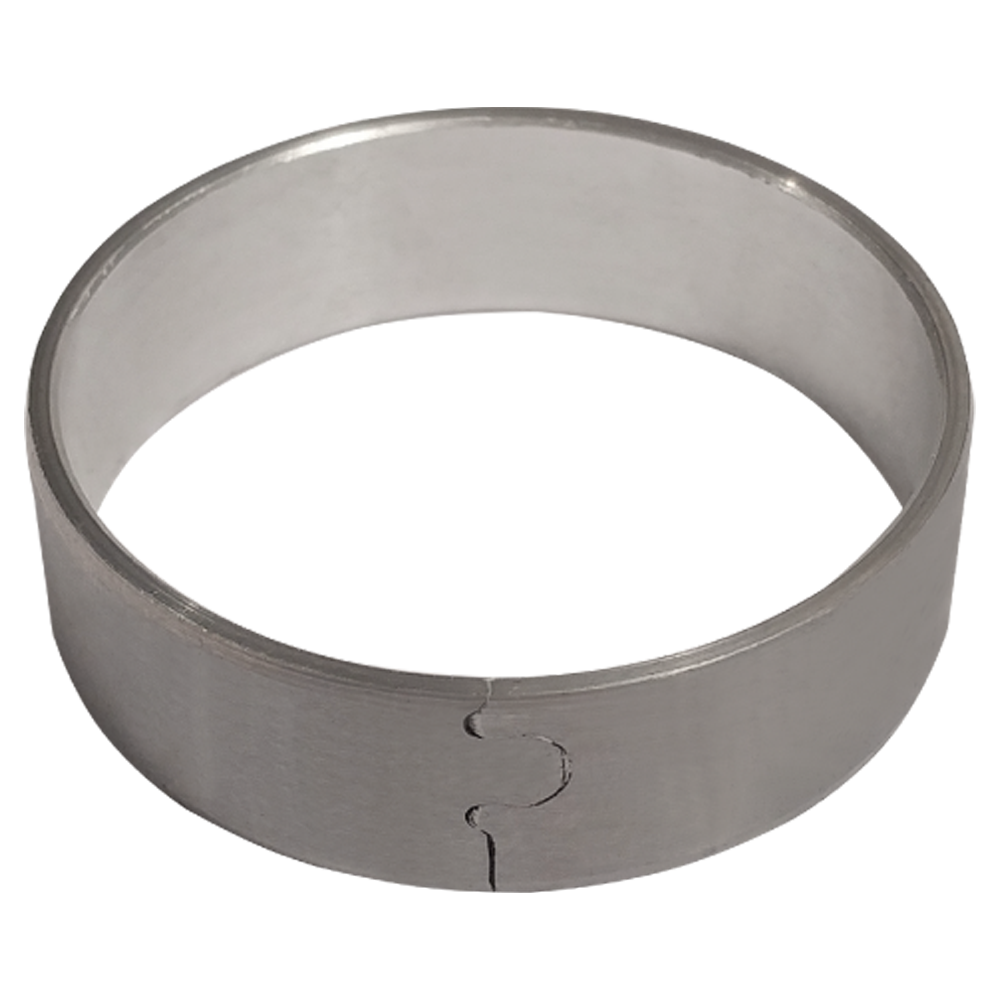

2 Bushing
  • Thickness: 0.438"
  • Housing Bore Dia: 1.559"
  • Shaft Dia: 1.439"
  • Material: Bi-metal
  • Type: Precision
 JB-18-10
3 Bearing Impeller-side
  • Thickness: 0.213
  • Thickness metric: 5.41
  • Bearing type: Enclosed
  • Lug Count: 4
  • Outside Dia: 3.15
  • Inside Dia: 2.126
  • Outside Dia Metric: 80.01
  • Inside Dia metric: 54
 JW-2-30
4 O-Ring Black Fits turbine hubs with 0.120" wide ring groove
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 1.5
  • Inside Dia metric: 38.1
 JO-25-19
5 Seal Ring Seal Style Scarf cut, Black For turbine hub with 0.100" groove
  • Height: 0.083
  • Width: 0.091
  • Material: PTFE
  • Height Metric: 2.1082
  • Seal Type: Scarf Cut
  • Outside Dia: 1.693
  • Outside Dia Metric: 43.0022
 JO-25-21
6 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.500
  • Inside Dia: 8.250
 PX-23-9
7 Turbine Washer
  • Thickness: 0.170"
  • Material: Bronze
  • Outside Dia: 1.650"
  • Inside Dia: 1.060"
 JW-9-15
