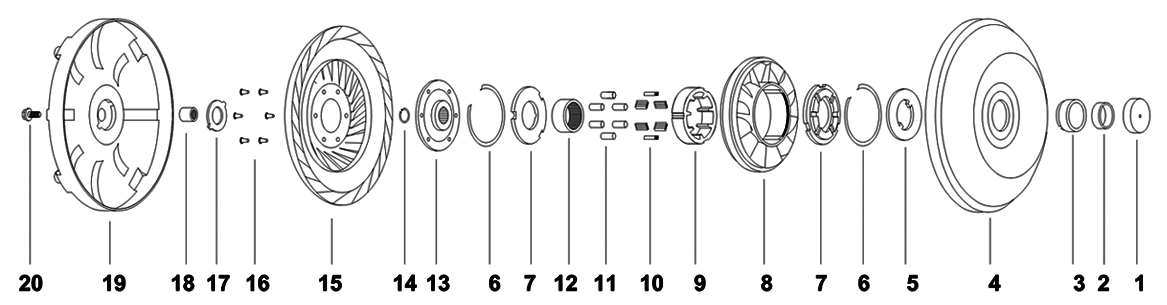

Torque Converter | Jatco, Nissan & Other Japanese | F3A FWD, DA-7 | 91-1

Ill.#		Description	Specification	Part #
1	Hubcap	Fits 1-3/4" (44.4mm)	Length: .75" Color: Gray Fits 1-3/4" (44.4mm)	MHC-P

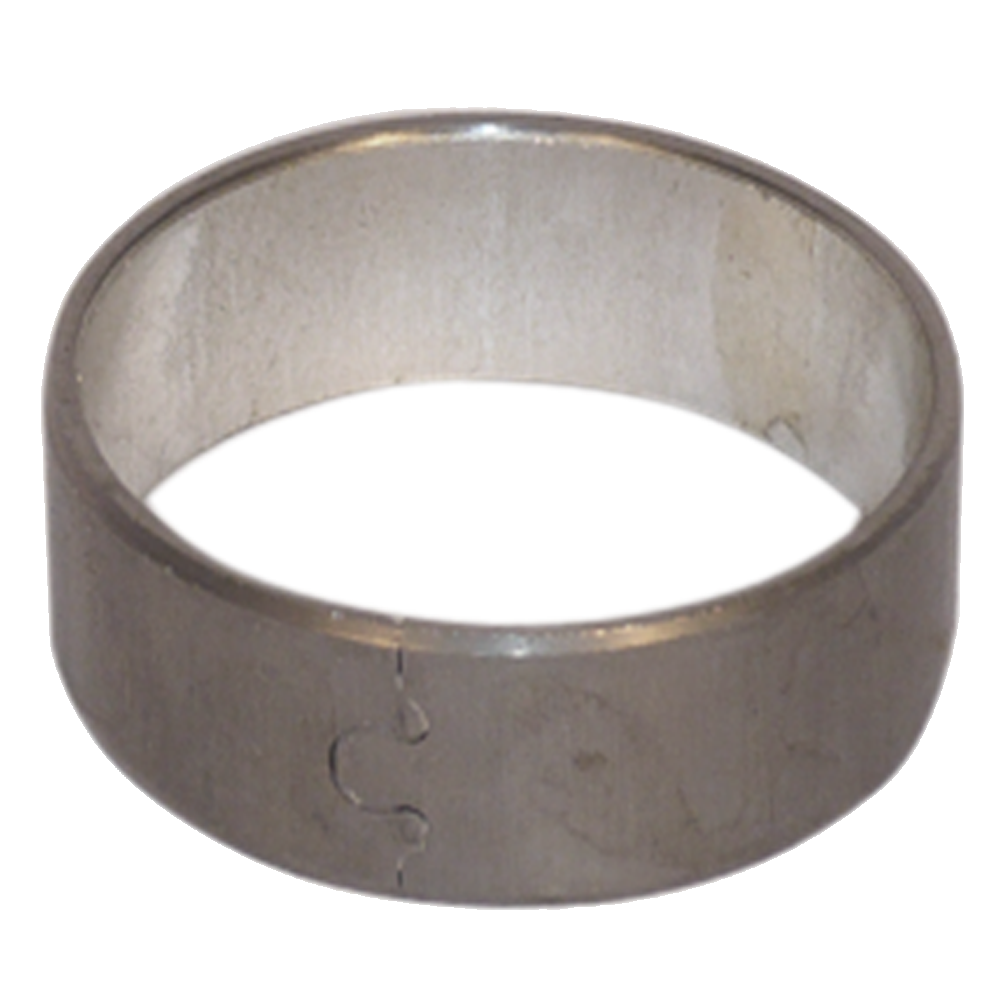

2	Bushing		Thickness: 0.465" Housing Bore Dia: 1.416" Shaft Dia: 1.296" Material: Babbit	JB-18-3

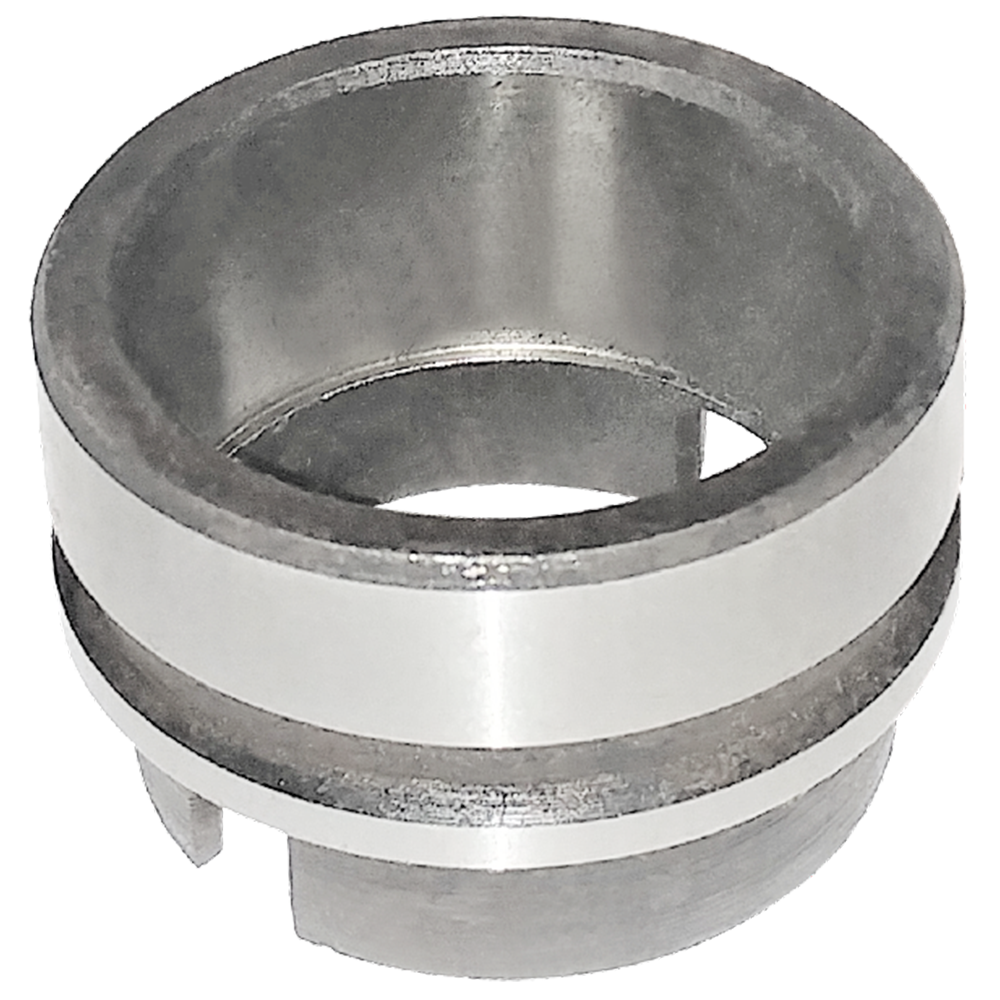

3	Impeller Hub		Journal Dia: 1.769" Installed Height: .71" Hardness: Rc 32-36	JH-1-6GRC
4	Impeller			NPN-6-4-4
5	Washer		Thickness: .09" Material: Steel Lug Count: 2 Outside Dia: 2.46" Inside Dia: 1.54"	JW-2-1
6	Snap Ring			NPN-6-4-6
7	Stator Cap		Thickness: .340" Material: Phenolic Outside Dia: 2.825" Inside Dia: 1.410"	JW-4-1
7	Stator Cap		Thickness: .35" Material: Phenolic or Aluminum Outside Dia: 2.83" Inside Dia: 1.42"	JW-4-3
8	Stator			NPN-6-4-8
9	Cam			NPN-6-4-9
10	Accordion Spring	6 Pieces Required.	Width: 0.68" Relaxed Length: 0.42" Folds: 4 Relaxed Height: 0.31"	TS-6-1
10	Accordion Spring	6 Pieces Required.	Width: 0.68" Relaxed Length: 0.42" Folds: 4 Relaxed Height: 0.285" Special "Low" Spring To	TS-6-2
11	Roller	6 Pieces Required.	Dia: 0.312" Length: 0.705"	12960R
11	Roller	8 Pieces Required.	Dia: 0.312" Length: 0.71"	FR-7-2
12	Inner Race	Stator	Height: 0.710" Internal Teeth: 30 Outside Dia: 1.610"	JX-14-1
13	Turbine Hub		Outside Dia: 3.31"	JX-13-1
13	Turbine Hub		Internal Teeth: 18 Hardness: Heat-Treated (hardened) Outside Dia: 3.31"	JX-13-1HT
13_N.I.	Spline Insert	Pump Drive	Height: 0.880 External Teeth: 18	JX-13-18X
14	Snap Ring	For Turbine Hub		NPN-6-4-14
15	Turbine		Outside Dia Metric: 244mm	NPN-6-4-15
16	Rivet	6 Pieces Required.	Length: 0.31" Rivet solid or tubular: Tubular Rivet Shank Dia: 0.193" Rivet Head Dia: 0.312"	WX-12A
17	Turbine Washer		Thickness: .10" Material: Plastic Outside Dia: 1.46" Inside Dia: .87"	JW-9
18	Spline Insert	Pump Drive	Height: 0.625" External Teeth: 12 Hardness: Heat-Treated (hardened) Outside Dia: 0.64"	JX-22-100
18	Spline Insert	Pump Drive	Height: 0.82" Internal Teeth: 12 Outside Dia: 0.64"	JX-22-102
19	Front Cover			NPN-6-4-19
20	Bolt			NPN-6-4-20

Showing 1 to 26 of 26 entries
