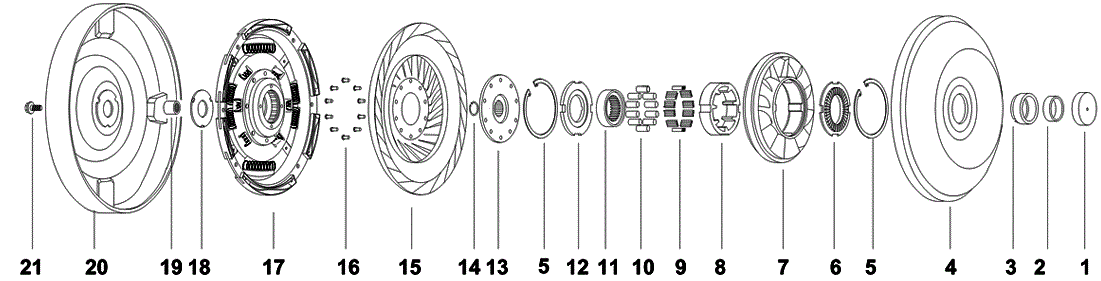

Torque Converter | Jatco, Nissan & Other Japanese | F3A, DA-12-TT | 91-3

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-3/4" (44.4mm)
  • Length: .75"
  • Color: Gray
  • Fits 1-3/4" (44.4mm)
 MHC-P
Hubcap MHC-P
Fits 1-3/4" (44.4mm) &
  • Length: .75"
  • Color: Gray
  • Fits 1-3/4" (44.4mm)
2 Bushing
  • Thickness: 0.475"
  • Housing Bore Dia: 1.456"
  • Shaft Dia: 1.298"
  • Material: Babbit
 JB-18-6
Bushing JB-18-6
&
  • Thickness: 0.475"
  • Housing Bore Dia: 1.456"
  • Shaft Dia: 1.298"
  • Material: Babbit
3 Impeller Hub
  • Journal Dia: 1.770"
  • Installed Height: .61"
  • Hub Mount: Thru
  • Hardness: Rc 32-36
 JH-1-8GRC
Impeller Hub JH-1-8GRC
&
  • Journal Dia: 1.770"
  • Installed Height: .61"
  • Hub Mount: Thru
  • Hardness: Rc 32-36
4 Impeller NPN-6-14-4
Impeller NPN-6-14-4
&
5 Snap Ring NPN-6-14-5
Snap Ring NPN-6-14-5
&
6 Stator Cap
  • Thickness: 0.243"
  • Material: Phenolic
  • Outside Dia: 3.8"
  • Inside Dia: 1.65"
 JW-4-10
Stator Cap JW-4-10
&
  • Thickness: 0.243"
  • Material: Phenolic
  • Outside Dia: 3.8"
  • Inside Dia: 1.65"
7 Stator NPN-6-14-7
Stator NPN-6-14-7
&
8 Cam NPN-6-14-8
Cam NPN-6-14-8
&
9 Accordion Spring 10 Pieces Required.
  • Width: 0.53"
  • Relaxed Length: 0.34"
  • Folds: 4
  • Relaxed Height: 0.21"
 JS-6-1
Accordion Spring JS-6-1
& 10 Pieces Required.
  • Width: 0.53"
  • Relaxed Length: 0.34"
  • Folds: 4
  • Relaxed Height: 0.21"
10 Roller 10 Pieces Required.
  • Dia: 0.235"
  • Length: 0.531"
 JR-7-1
Roller JR-7-1
& 10 Pieces Required.
  • Dia: 0.235"
  • Length: 0.531"
11 Inner Race
  • Internal Teeth: 30
 NPN-6-14-11
Inner Race NPN-6-14-11
&
  • Internal Teeth: 30
12 Washer
  • Material: Aluminum
 NPN-6-14-12
Washer NPN-6-14-12
&
  • Material: Aluminum
13 Turbine Hub
  • Internal Teeth: 18
  • Outside Dia: 3.67"
 JX-13-9
Turbine Hub JX-13-9
&
  • Internal Teeth: 18
  • Outside Dia: 3.67"
13 Turbine Hub
  • Internal Teeth: 18
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.67"
 JX-13-9HT
Turbine Hub JX-13-9HT
&
  • Internal Teeth: 18
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.67"
13 Spline Insert Pump Drive
  • Height: 0.880
  • External Teeth: 18
 JX-13-18X
Spline Insert JX-13-18X
Pump Drive &
  • Height: 0.880
  • External Teeth: 18
14 Snap Ring NPN-6-14-14
Snap Ring NPN-6-14-14
&
15 Turbine
  • Outside Dia Metric: 236mm
 NPN-6-14-15
Turbine NPN-6-14-15
&
  • Outside Dia Metric: 236mm
16 Rivet 8 Pieces Required.
  • Length: 0.44"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.22"
  • Rivet Head Dia: 0.315"
 FX-12-6
Rivet FX-12-6
& 8 Pieces Required.
  • Length: 0.44"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.22"
  • Rivet Head Dia: 0.315"
16 Rivet 8 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12L
Rivet FX-12L
& 8 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
17 Lock-Up Piston NPN-6-14-17
Lock-Up Piston NPN-6-14-17
&
17 Brake Shoe With Lining JX-23-211R
Brake Shoe JX-23-211R
With Lining &
17 Lining, Brake Shoe AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
 JX-23-211RL
Lining, Brake Shoe JX-23-211RL
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red

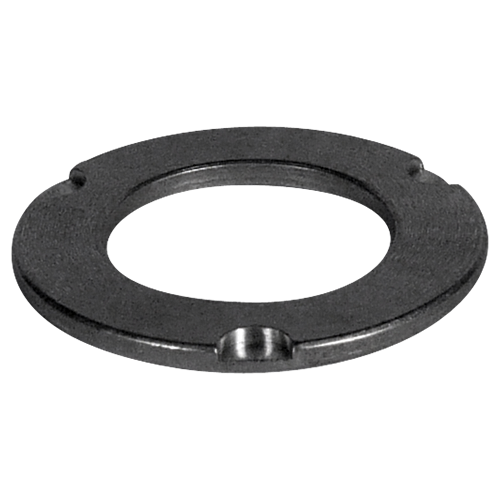

18 Turbine Washer
  • Material: Metal (Replaces Plastic)
 JW-9-11
Turbine Washer JW-9-11
&
  • Material: Metal (Replaces Plastic)
19 Spline Insert Pump Drive
  • Height: 0.625"
  • External Teeth: 12
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 0.64"
 JX-22-100
Spline Insert JX-22-100
Pump Drive &
  • Height: 0.625"
  • External Teeth: 12
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 0.64"
20 Front Cover NPN-6-14-20
Front Cover NPN-6-14-20
&
21 Bolt NPN-6-14-21
Bolt NPN-6-14-21
&
