Torque Converter | Industrial | Japanese Industrial

Sprags Are Economically Rebuildable By Tri Component. All Cores Should Be Saved For Rebuild

Ill.# Image Description Specification Part #
Bearing
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.755
  • Inside Dia: 1.968
  • Outside Dia Metric: 69.98
  • Inside Dia metric: 49.99
 AXK-5070
Cam (Sprag Element) 30 Pieces Required. F-585
Bearing
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Bearing
  • Outside Dia: 3.07
  • Inside Dia: 2.165
  • Outside Dia Metric: 77.98
  • Inside Dia metric: 54.99
 FNT-5578
Bearing
  • Thickness: 0.157
  • Thickness metric: 4
  • Bearing type: Exposed
  • Outside Dia: 3.937
  • Inside Dia: 2.953
  • Outside Dia Metric: 100
  • Inside Dia metric: 75.01
 FNT-75100
Bearing
  • Thickness: 0.787
  • Thickness metric: 20
  • Bearing type: Ball Bearing
  • Outside Dia: 2.283
  • Inside Dia: 1.968
  • Outside Dia Metric: 58
  • Inside Dia metric: 49.99
 HK-5020
Bearing 10 Balls
  • Thickness: 0.787
  • Thickness metric: 20
  • Bearing type: Ball Bearing
  • Outside Dia: 3.543
  • Inside Dia: 1.968
  • Outside Dia Metric: 90
  • Inside Dia metric: 49.99
 MB-6210
Bearing 7 Balls
  • Thickness: 0.591
  • Thickness metric: 15.01
  • Bearing type: Ball Bearing
  • Outside Dia: 2.047
  • Inside Dia: 0.787
  • Outside Dia Metric: 52
  • Inside Dia metric: 19.99
 MB-6304
Sprag
  • Thickness: 0.810"
  • Cam Count: 24 elements
  • Outside Dia: 2.804"
  • Inside Dia: 2.148"
  • Cam part-ID: S-532, 12 Outside Clips
 MC-1
Sprag
  • Thickness: 0.825"
  • Cam Count: 39 elements
  • Outside Dia: 3.499"
  • Inside Dia: 2.843"
  • Cam part-ID: F-585, 15 Outside Clips
 MC-2

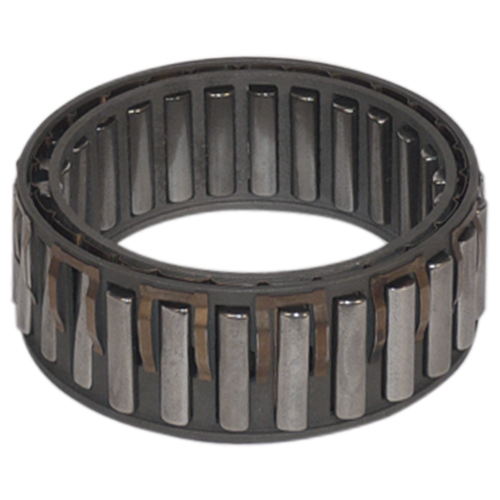

Sprag
  • Thickness: 1.000"
  • Cam Count: 26 elements
  • Outside Dia: 3.00"
  • Inside Dia: 2.344"
  • Cam part-ID: F-760, 13 Outside Clips
 MC-3
Sprag
  • Thickness: 0.750"
  • Cam Count: 22 elements
  • Outside Dia: 2.614"
  • Inside Dia: 1.958"
  • Cam Part ID S-352, 11 Outside Clips
 MC-4
Sprag
  • Thickness: 0.635"
  • Cam Count: 26 elements
  • Outside Dia: 2.930"
  • Inside Dia: 2.274"
  • Garter Spring Type, Replaced by Tri Component Upgrade MC-6, Cam part-ID: F-395), 13 Outside Clips, Double Cage
 MC-6
Inner Race Stator Komatstu
  • Height: 1.740"
  • Flange Dia: 3.06"
  • Internal Teeth: 18
  • Outside Dia: 2.150"
  • Inside Dia: 1.490"
 MX-14-3
Cam (Sprag Element) 0.532" Skinny S-532

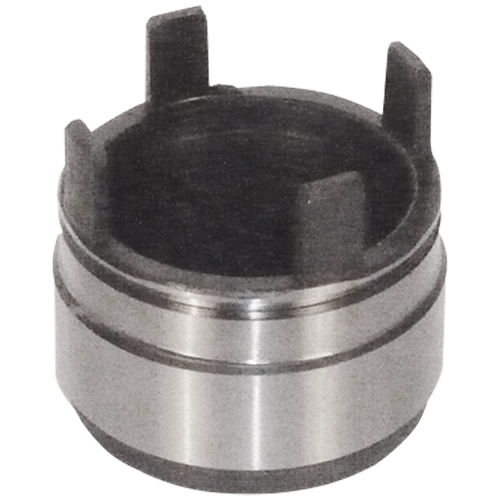

Impeller Hub Toyota
  • Journal Dia: 2.280"
  • Installed Height: 1.840"
  • Hub Mount: Thru
  • Pump Drive Type: 4 lugs (.39" Wide, .54" High)
  • Hardness: Rc 32-36
  • With Seal Groove
 MH-1-4GRC
