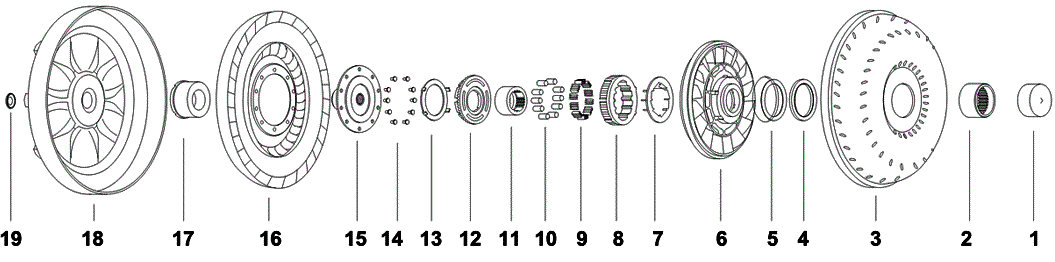

Torque Converter | Industrial | Borg Warner Industrial 310 mm, Lockup & Non-Lockup

Ill.# Image Description Specification Part #
1 Hubcap NPN-15-2-1
Hubcap NPN-15-2-1
&
2 Impeller Hub
  • Journal Dia: 2.500"
  • Installed Height: 1.163"
  • Hub Mount: Thru
  • Internal Teeth: 25
  • Hardness: Rc 32-36
 WH-1-22GRC
Impeller Hub WH-1-22GRC
&
  • Journal Dia: 2.500"
  • Installed Height: 1.163"
  • Hub Mount: Thru
  • Internal Teeth: 25
  • Hardness: Rc 32-36
3 Impeller NPN-15-2-3
Impeller NPN-15-2-3
&
4 Bearing
  • Thickness: 0.255
  • Thickness metric: 6.48
  • Bearing type: Enclosed
  • Outside Dia: 3.28
  • Inside Dia: 2.388
  • Outside Dia Metric: 83.31
  • Inside Dia metric: 60.66
 SW-2-12
Bearing SW-2-12
&
  • Thickness: 0.255
  • Thickness metric: 6.48
  • Bearing type: Enclosed
  • Outside Dia: 3.28
  • Inside Dia: 2.388
  • Outside Dia Metric: 83.31
  • Inside Dia metric: 60.66
4 Bearing Timken
  • Thickness: 0.25"
  • Bearing type: Enclosed
  • Outside Dia: 3.28"
  • Inside Dia: 2.39"
 SW-2-12T
Bearing SW-2-12T
Timken &
  • Thickness: 0.25"
  • Bearing type: Enclosed
  • Outside Dia: 3.28"
  • Inside Dia: 2.39"
4 Bearings BULK-PACK (1 BOX 200PCS) KOYO
  • Outside Dia: 3.28"
  • Inside Dia: 2.39"
 SW-2-12T-BOX200
Bearings SW-2-12T-BOX200
BULK-PACK (1 BOX 200PCS) KOYO &
  • Outside Dia: 3.28"
  • Inside Dia: 2.39"
5 Shim
  • Thickness: .02"
  • Outside Dia: 2.95"
  • Inside Dia: 2.4"
 SW-2-17
Shim SW-2-17
&
  • Thickness: .02"
  • Outside Dia: 2.95"
  • Inside Dia: 2.4"
5 Shim Use Under SW-2-12
  • Thickness: .010"
  • Outside Dia: 2.95"
  • Inside Dia: 2.40"
 SW-2-210
Shim SW-2-210
& Use Under SW-2-12
  • Thickness: .010"
  • Outside Dia: 2.95"
  • Inside Dia: 2.40"
5 Washer Hub Bearing Adapter
  • Outside Dia: 2.95"
  • Inside Dia: 2.4"
  • Use With SH-1-26GRC to Accept SW-2-14 Bearing
 SW-2-23
Washer SW-2-23
Hub Bearing Adapter &
  • Outside Dia: 2.95"
  • Inside Dia: 2.4"
  • Use With SH-1-26GRC to Accept SW-2-14 Bearing
5 Shim
  • Thickness: .020"
  • Outside Dia: 2.95"
  • Inside Dia: 2.40"
 SW-2-220
Shim SW-2-220
&
  • Thickness: .020"
  • Outside Dia: 2.95"
  • Inside Dia: 2.40"
5 Shim
  • Thickness: .030"
  • Outside Dia: 2.95"
  • Inside Dia: 2.40"
 SW-2-230
Shim SW-2-230
&
  • Thickness: .030"
  • Outside Dia: 2.95"
  • Inside Dia: 2.40"
6 Stator NPN-15-2-6
Stator NPN-15-2-6
&
7 Spring Retainer Stator
  • Height: 0.530"
  • Dimensions: 3.120" x 3.120"
  • Material: Steel
  • For .575" Long Rollers
 SX-15B
Spring Retainer SX-15B
Stator &
  • Height: 0.530"
  • Dimensions: 3.120" x 3.120"
  • Material: Steel
  • For .575" Long Rollers
8 Outer Race (Cam) Stator, 10 Pocket
  • Length: 0.591"
  • Outside Dia: 3.602"
 SX-15A
Outer Race (Cam) SX-15A
Stator, 10 Pocket &
  • Length: 0.591"
  • Outside Dia: 3.602"
9 Accordion Spring 10 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.438"
  • Folds: 3
  • Material: Steel
  • Relaxed Height: 0.22"
 SS-6
Accordion Spring SS-6
& 10 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.438"
  • Folds: 3
  • Material: Steel
  • Relaxed Height: 0.22"
9 Accordion Spring 10 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.43"
  • Folds: 5
  • Relaxed Height: 0.24"
 SS-6-6
Accordion Spring SS-6-6
& 10 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.43"
  • Folds: 5
  • Relaxed Height: 0.24"
10 Roller 10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
 SR-7
Roller SR-7
& 10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
11 Inner Race Stator
  • Height: 1.031"
  • Internal Teeth: 29 (10 Removed)
  • Outside Dia: 2.156"
 WX-14-1
Inner Race WX-14-1
Stator &
  • Height: 1.031"
  • Internal Teeth: 29 (10 Removed)
  • Outside Dia: 2.156"

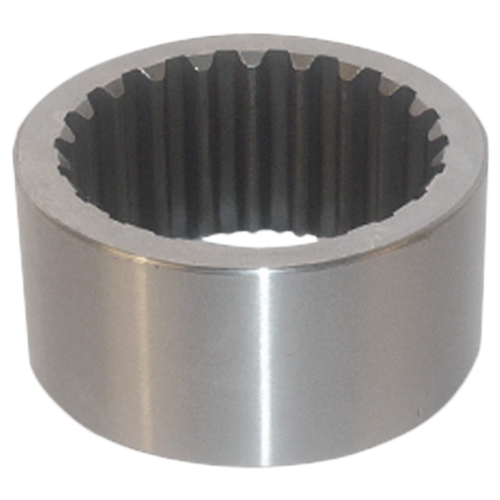

11 Inner Race Stator For Caterpillars. Contact Your Tri Pro for Any Inner Races Required
  • Height: 1.040"
  • Internal Teeth: 22
  • Outside Dia: 2.156"
 WX-14-8
Inner Race WX-14-8
Stator & For Caterpillars. Contact Your Tri Pro for Any Inner Races Required
  • Height: 1.040"
  • Internal Teeth: 22
  • Outside Dia: 2.156"
12 Stator Cap
  • Material: Phenolic
  • Outside Dia: 3.748"
  • Inside Dia: 1.870"
  • 252-10174, OE Design
 SW-4-19
Stator Cap SW-4-19
&
  • Material: Phenolic
  • Outside Dia: 3.748"
  • Inside Dia: 1.870"
  • 252-10174, OE Design
12 Stator Cap 5 Lug Design
  • Thickness: 0.490"
  • Material: Phenolic
  • Outside Dia: 3.748"
  • Inside Dia: 1.870"
  • (Alternate SW-4-19 w/o Lugs, SW-4-19B w/Lugs and TW-3-3 Bronze Washer)
 SW-4-19A
Stator Cap SW-4-19A
5 Lug Design &
  • Thickness: 0.490"
  • Material: Phenolic
  • Outside Dia: 3.748"
  • Inside Dia: 1.870"
  • (Alternate SW-4-19 w/o Lugs, SW-4-19B w/Lugs and TW-3-3 Bronze Washer)
12 Stator Cap Use With TW-3-3 Washer
  • Material: Phenolic
  • Lug Count: 5
  • Outside Dia: 3.748"
  • Inside Dia: 1.870"
  • 252-10097
 SW-4-19B
Stator Cap SW-4-19B
& Use With TW-3-3 Washer
  • Material: Phenolic
  • Lug Count: 5
  • Outside Dia: 3.748"
  • Inside Dia: 1.870"
  • 252-10097
12 Stator Cap Bearing Adapter, Use With Bearing SW-2-12 Alternate Use With Bearing SW-2-12
  • Thickness: 0.470"
  • Material: Aluminum
  • Outside Dia: 3.750"
  • Inside Dia: 1.710"
 WW-4-8
Stator Cap WW-4-8
Bearing Adapter, Use With Bearing SW-2-12 & Alternate Use With Bearing SW-2-12
  • Thickness: 0.470"
  • Material: Aluminum
  • Outside Dia: 3.750"
  • Inside Dia: 1.710"
13 Washer
  • Material: Bronze
  • Lug Count: 3
  • Outside Dia: 2.8"
  • Inside Dia: 1.6"
 TW-3
Washer TW-3
&
  • Material: Bronze
  • Lug Count: 3
  • Outside Dia: 2.8"
  • Inside Dia: 1.6"
13 Washer
  • Thickness: .06"
  • Material: Bronze
  • Lug Count: 4
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
 TW-3-3
Washer TW-3-3
&
  • Thickness: .06"
  • Material: Bronze
  • Lug Count: 4
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
13 Washer
  • Material: Bronze
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
 TW-3-3AT
Washer TW-3-3AT
&
  • Material: Bronze
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
13 Washer
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
 TW-3-3E
Washer TW-3-3E
&
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
14 Rivet 10 Pieces Required.
  • Length: 0.312"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12
Rivet FX-12
& 10 Pieces Required.
  • Length: 0.312"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
14 Rivet 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12L
Rivet FX-12L
& 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
15 Turbine Hub
  • Height: 1.280
  • Outside Dia: 5.15"
 WX-13-33
Turbine Hub WX-13-33
&
  • Height: 1.280
  • Outside Dia: 5.15"
15 Turbine Hub
  • Height: 1.280
  • Internal Teeth: 29
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 5.15"
 WX-13-33HT
Turbine Hub WX-13-33HT
&
  • Height: 1.280
  • Internal Teeth: 29
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 5.15"
16 Turbine NPN-15-2-16
Turbine NPN-15-2-16
&
17 Spacer Improved, Bulletproof™, Heavy Duty
  • Thickness: 1.46"
  • Outside Dia: 2.50"
  • Inside Dia: .75"
 WW-9-10
Spacer WW-9-10
Improved, Bulletproof™, Heavy Duty &
  • Thickness: 1.46"
  • Outside Dia: 2.50"
  • Inside Dia: .75"
17 Spacer Bulletproof™, With O-Ring Groove
  • Thickness: .55"
  • Outside Dia: 2.23"
  • Inside Dia: 0.75"
 WW-9-9
Spacer WW-9-9
Bulletproof™, With O-Ring Groove &
  • Thickness: .55"
  • Outside Dia: 2.23"
  • Inside Dia: 0.75"
18 Front Cover NPN-15-2-18
Front Cover NPN-15-2-18
&
19 Pilot
  • Outside Dia: 1.70"
  • Inside Dia: 0.88"
  • Button, Unfinished, OE Style
 SX-23
Pilot SX-23
&
  • Outside Dia: 1.70"
  • Inside Dia: 0.88"
  • Button, Unfinished, OE Style
19 Pilot Button, E-Z Weld™, Unfinished
  • Outside Dia: 1.70"
  • Inside Dia: 0.88"
 SX-23BX
Pilot SX-23BX
Button, E-Z Weld™, Unfinished &
  • Outside Dia: 1.70"
  • Inside Dia: 0.88"
19 Pilot Button
  • Thickness: 0.187"
  • Outside Dia: 1.70"
  • Inside Dia: 0.88"
  • Unfinished, But O.D. To Finish Size, OE Style
 SX-23F
Pilot SX-23F
Button &
  • Thickness: 0.187"
  • Outside Dia: 1.70"
  • Inside Dia: 0.88"
  • Unfinished, But O.D. To Finish Size, OE Style
19 Pilot Button, E-Z Weld™ Alternate
  • Thickness: 0.1875"
  • Outside Dia: 1.70"
  • Inside Dia: 0.88"
  • No Machining, Weld-On (Restores Pilot Diameter)
 SX-23B
Pilot SX-23B
Button, E-Z Weld™ & Alternate
  • Thickness: 0.1875"
  • Outside Dia: 1.70"
  • Inside Dia: 0.88"
  • No Machining, Weld-On (Restores Pilot Diameter)
19 Pilot Button, Self Centering
  • Thickness: 0.083"
  • Outside Dia: 1.703"
  • Inside Dia: 1.250"
 SX-23C
Pilot SX-23C
Button, Self Centering &
  • Thickness: 0.083"
  • Outside Dia: 1.703"
  • Inside Dia: 1.250"
