Torque Converter | Hyundai / Kia | A6MF2

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)

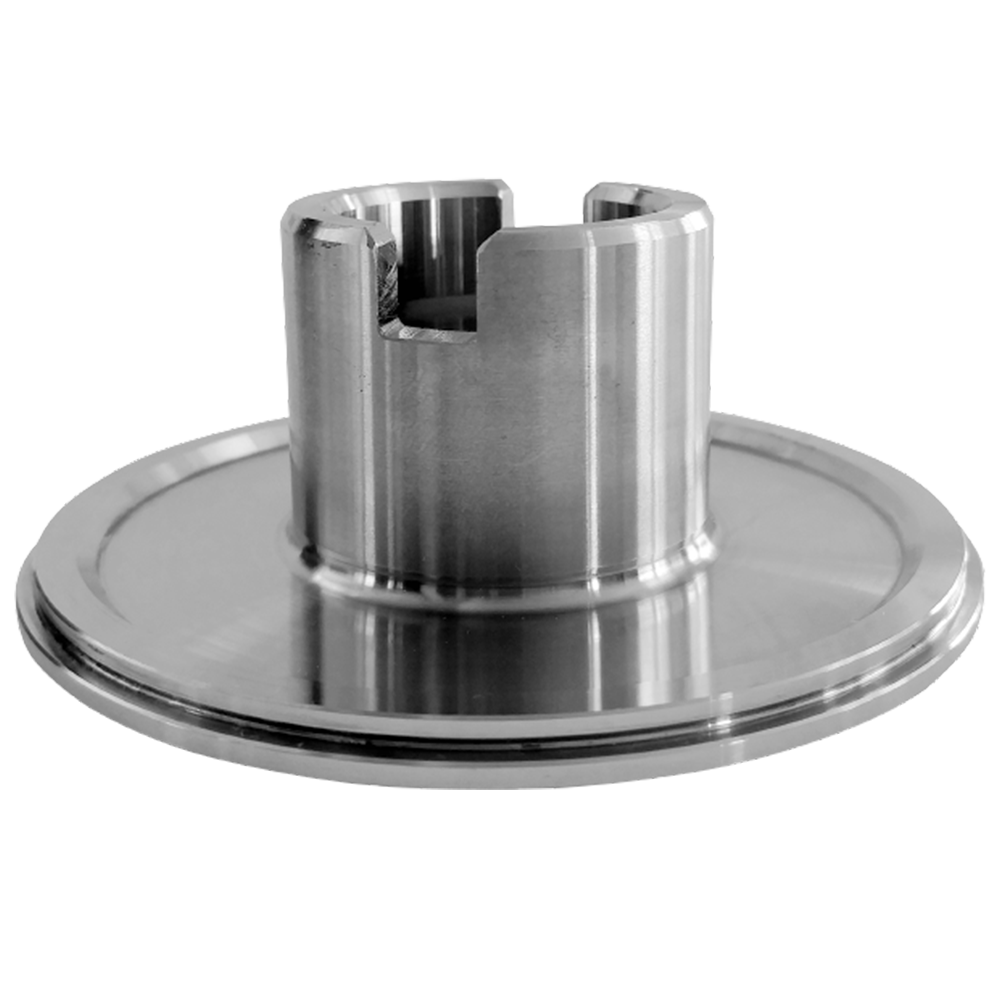

2 Impeller Hub Flanged
  • Journal Dia: 1.693"
  • Installed Height: 1.270"
  • Height: 1.488"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.807"
 KH-1-6FLG
Impeller Hub KH-1-6FLG
Flanged &
  • Journal Dia: 1.693"
  • Installed Height: 1.270"
  • Height: 1.488"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.807"
3 Misc NPN-SPL
Misc NPN-SPL
&
4 Bearing
  • Thickness: 0.213
  • Flange Dia: 3.405"
  • Thickness metric: 5.41
  • Bearing type: Enclosed
  • Outside Dia: 3.365
  • Inside Dia: 2.402
  • Outside Dia Metric: 85.47
  • Inside Dia metric: 61.01
 SW-2-34
Bearing SW-2-34
&
  • Thickness: 0.213
  • Flange Dia: 3.405"
  • Thickness metric: 5.41
  • Bearing type: Enclosed
  • Outside Dia: 3.365
  • Inside Dia: 2.402
  • Outside Dia Metric: 85.47
  • Inside Dia metric: 61.01

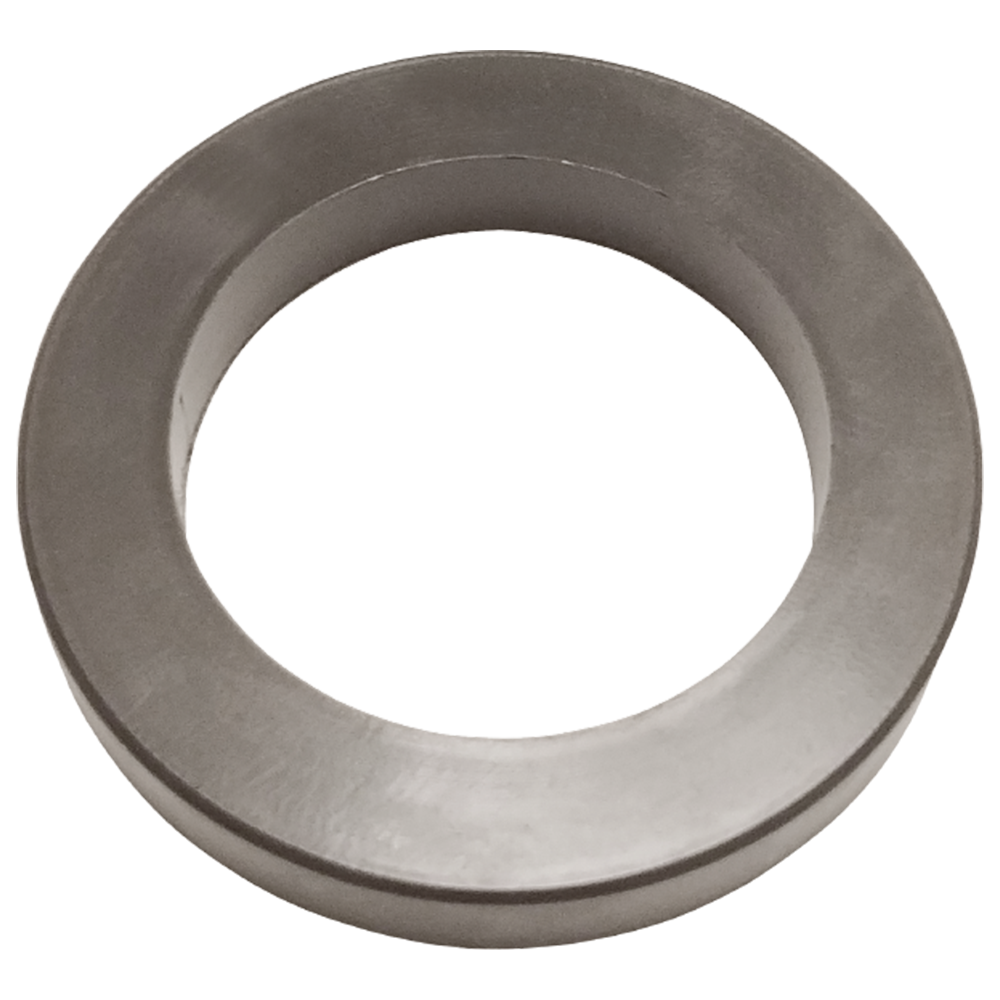

6 Sprag TF80SC, AF40-6
  • Thickness: 0.336"
  • Material: Steel
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.747
  • Inner Race Outside Dia: 2.087
 YC-6-3
Sprag YC-6-3
& TF80SC, AF40-6
  • Thickness: 0.336"
  • Material: Steel
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.747
  • Inner Race Outside Dia: 2.087
14 Seal Ring Scarf cut
  • Height: 0.077
  • Width: 0.087
  • Material: PTFE
  • Height Metric: 1.9558
  • Seal Type: Scarf Cut
  • Outside Dia: 1.559
  • Outside Dia Metric: 39.5986
 FO-25-19
Seal Ring FO-25-19
Scarf cut &
  • Height: 0.077
  • Width: 0.087
  • Material: PTFE
  • Height Metric: 1.9558
  • Seal Type: Scarf Cut
  • Outside Dia: 1.559
  • Outside Dia Metric: 39.5986
21 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.375"
  • Inside Dia: 8.125"
 FX-23-18
Lining (Friction Ring,Wafer) FX-23-18
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.375"
  • Inside Dia: 8.125"
22 Turbine Washer 8 Outer Notches
  • Thickness: 0.136"
  • Material: Plastic
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
 SW-9-19
Turbine Washer SW-9-19
8 Outer Notches &
  • Thickness: 0.136"
  • Material: Plastic
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
22 Turbine Washer 8 Outer Notches
  • Thickness: 0.136"
  • Material: Vespel®
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
 SW-9-20
Turbine Washer SW-9-20
8 Outer Notches &
  • Thickness: 0.136"
  • Material: Vespel®
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
22 Turbine Washer 8 Outer Notches
  • Thickness: 0.154"
  • Material: Vespel®
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
 SW-9-22
Turbine Washer SW-9-22
8 Outer Notches &
  • Thickness: 0.154"
  • Material: Vespel®
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"

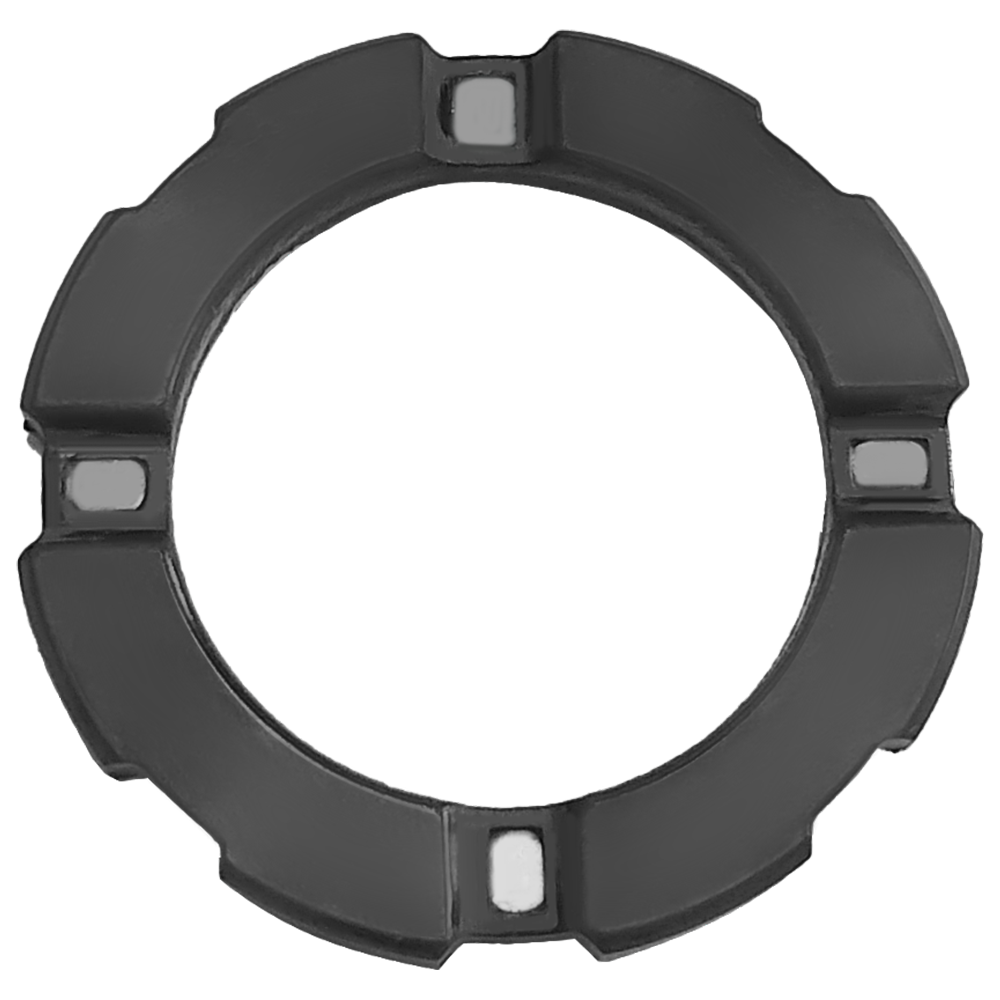

23 Turbine Washer 8 Outer Notches
  • Thickness: 0.154"
  • Material: Plastic
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
 SW-9-21
Turbine Washer SW-9-21
8 Outer Notches &
  • Thickness: 0.154"
  • Material: Plastic
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
