Part Search

Torque Converter | Honda / Acura | MT4A (MDX)

Ill.# Image Description Specification Part #
0 Clutch Plate Kit NX-26-1K
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
2 O-Ring Also fits Saturn VUE
  • Inner Dia: 1.438
  • Thickness: 0.079
  • Inner Dia metric: 36.5252
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
 NO-25-4
3 Misc Also fits Saturn VUE NPN-SPL

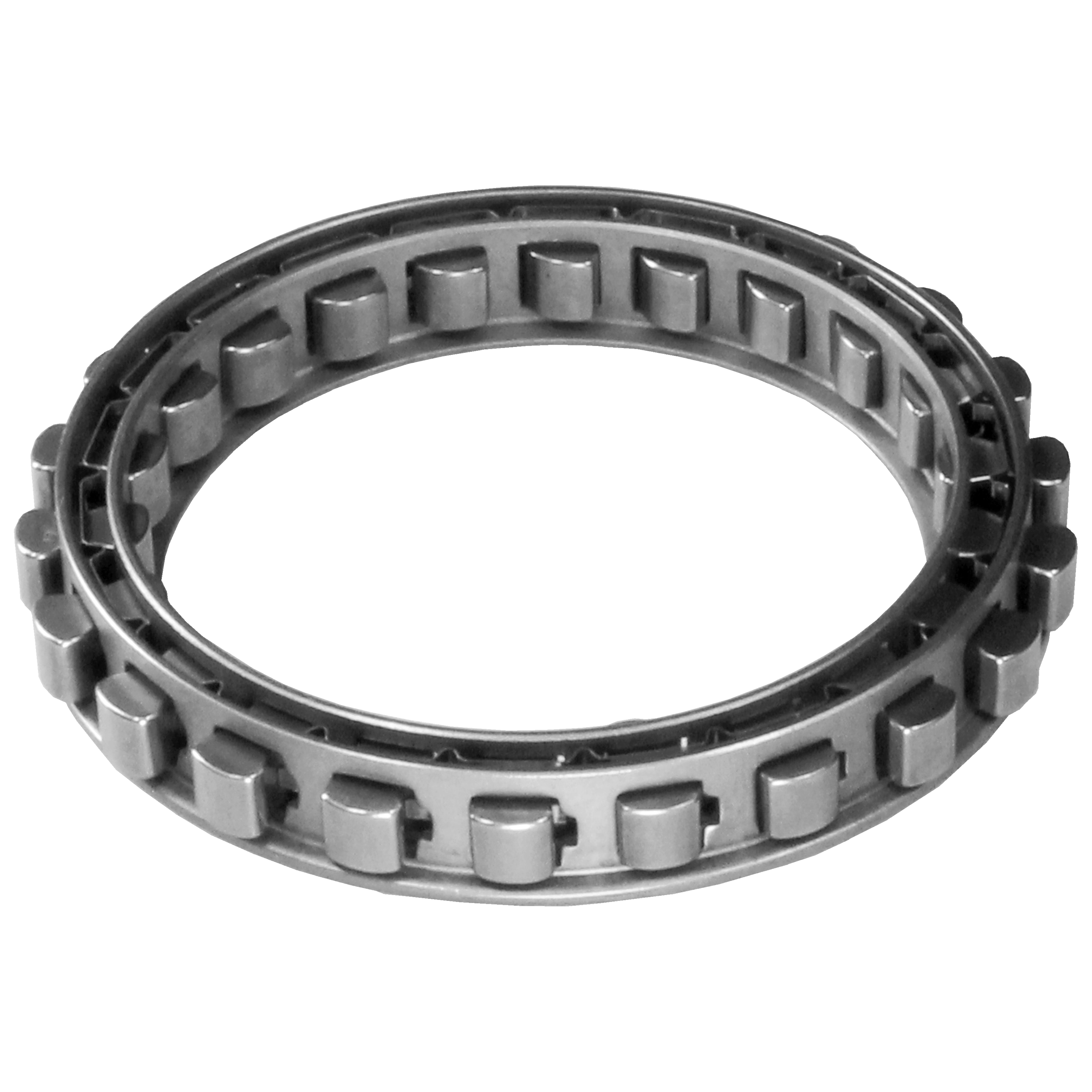

8 Sprag
  • Outer Dia: 2.522"
  • Inner Dia: 1.862"
  • Thickness: 0.347"
  • 22 cams (elements)
 MC-8

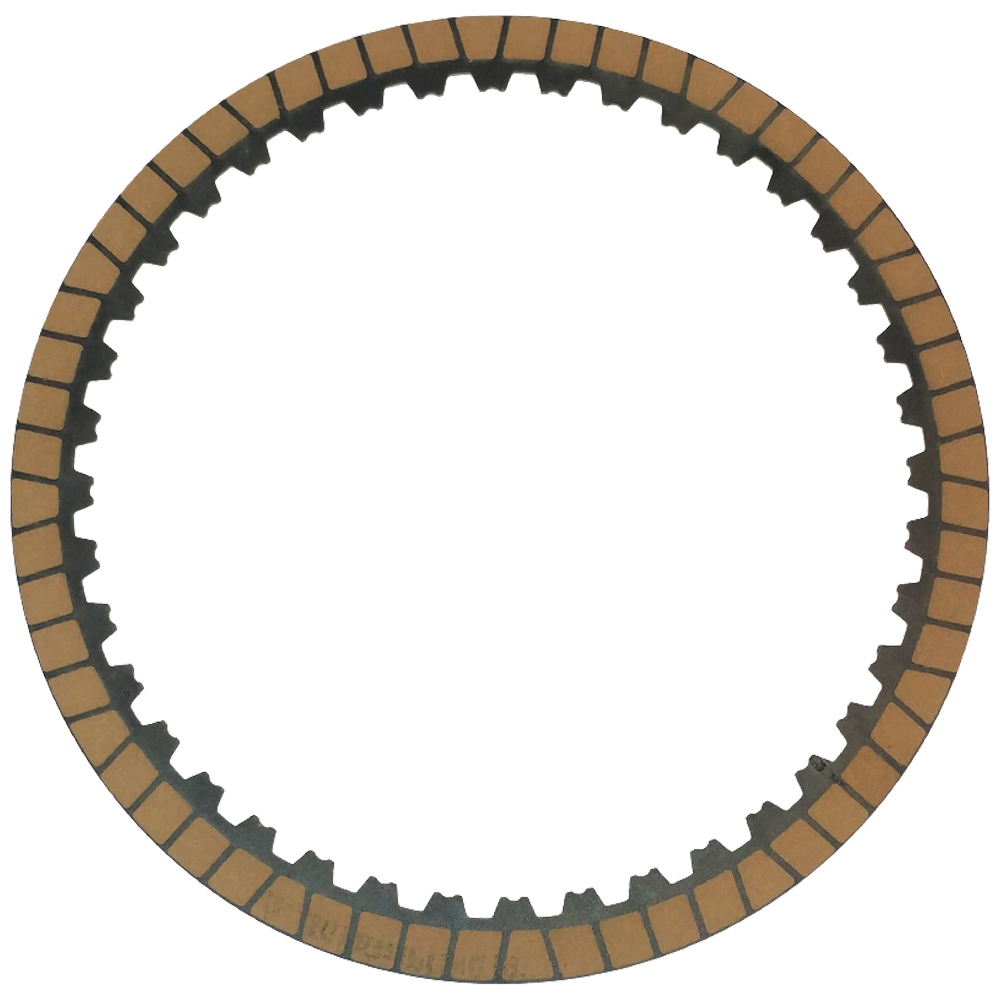

29 Friction Plate
  • Outer Dia: 8.183"
  • Thickness: 0.076"
  • Internal Teeth: 40
 NX-26-1
30 Clutch Plate Steel
  • Outer Dia: 8.630"
  • Inner Dia: 7.173"
  • Thickness: 0.047"
  • External teeth: 36
 NX-26-2
31 D-Ring Seal
  • Height: 0.114
  • Inner Dia: 7.796
  • Width: 0.07
  • Inner Dia metric: 198
  • Material: Fluorocarbon
  • Height Metric: 2.8956
 NO-25-2
34 D-Ring Seal
  • Height: 0.118
  • Inner Dia: 1.614
  • Width: 0.068
  • Inner Dia metric: 41
  • Material: Fluorocarbon
  • Height Metric: 2.9972
 NO-25-3
