Torque Converter | Honda / Acura | Honda Lockup

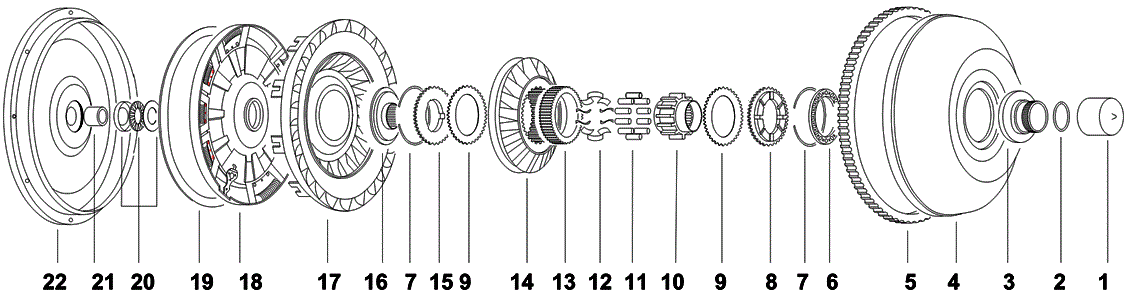

Ill.# Image Description Specification Part #
0 O-Ring Honda M3WC (CVT)
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 1.612
  • Inside Dia metric: 40.9448
 TO-25-15
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
2 O-Ring Hub
  • Thickness: 0.07
  • Thickness metric: 1.778
  • Material: Fluorocarbon
  • Inside Dia: 1.301
  • Inside Dia metric: 33.0454
 84048
3 Impeller Hub Flanged '83-'87 Accord, Prelude (HO-1)
  • Installed Height: 1.630"
  • Hub Mount: Flanged
  • Flange Dia: 2.360"
  • External teeth: 36
 NH-1
3 Impeller Hub MPYA (HO-14)
  • Journal Dia: 1.732"
  • Installed Height: 1.950"
  • Hub Mount: Flanged
  • External teeth: 39
  • Hardness: Rc 32-36
 NH-1-4

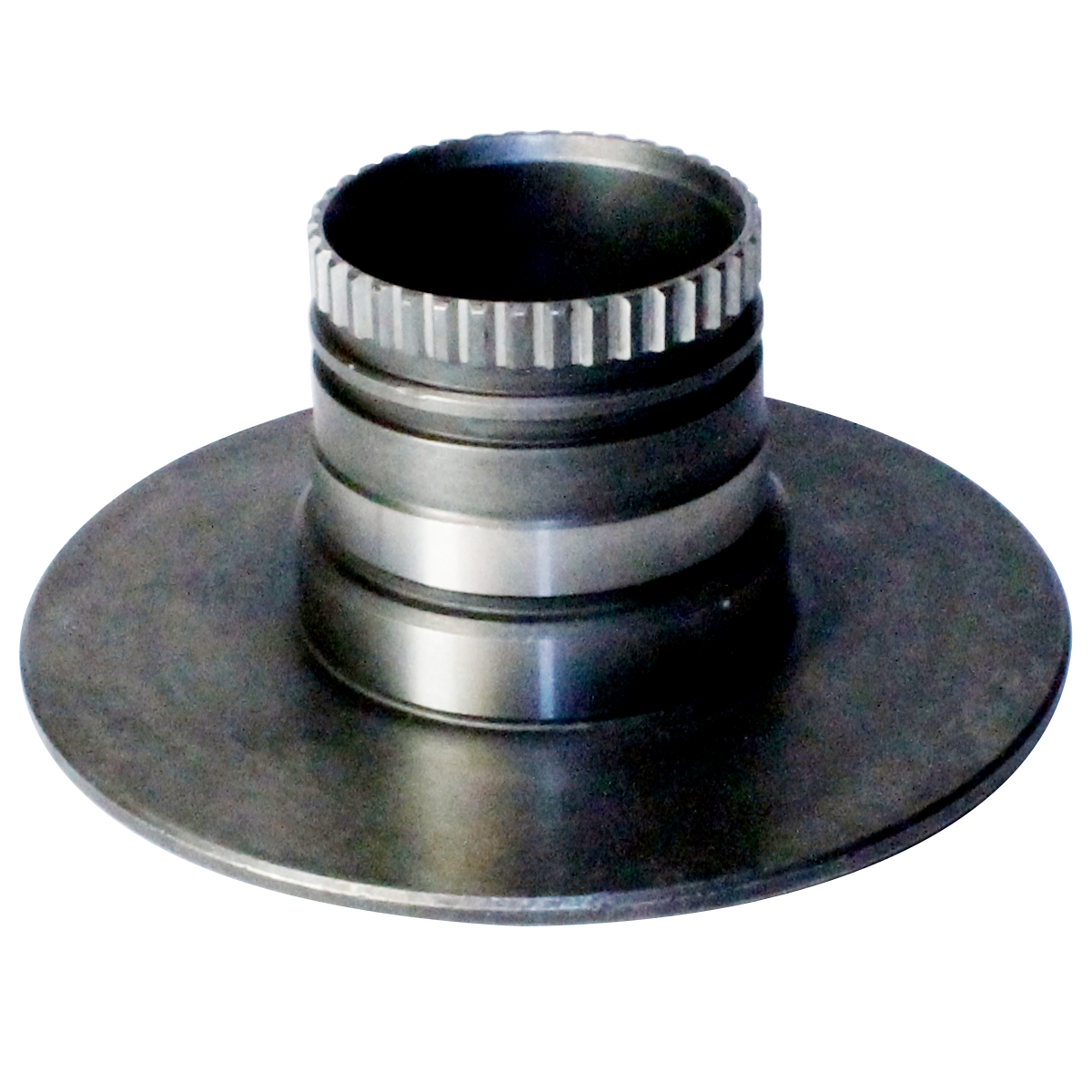

3 Impeller Hub G4, (HO-9, HO-15)
  • Installed Height: 1.590"
  • Hub Mount: Flanged
  • Flange Dia: 2.870
  • External teeth: 38
  • Hardness: Rc 32-36
 NH-1-1

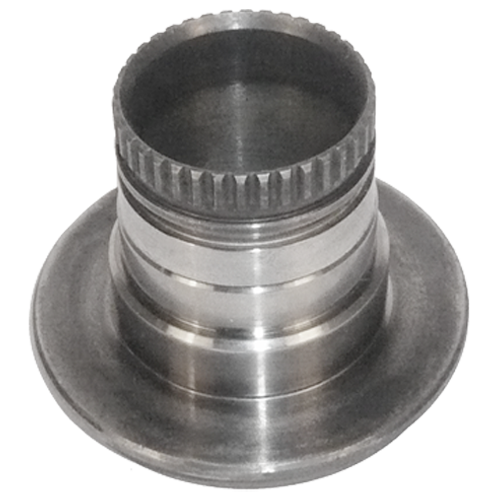

3 Impeller Hub Flanged F4, (HO-7)
  • Journal Dia: 1.732"
  • Installed Height: 1.630"
  • Hub Mount: Flanged
  • External teeth: 38
  • F4, (HO-7)
 NH-1-2A
3 Impeller Hub L5 & PL5X (HO-8)
  • Installed Height: 1.730"
  • Hub Mount: Flanged
  • Flange Dia: 2.870"
  • External teeth: 38
  • Hardness: Rc 32-36
 NH-1-3

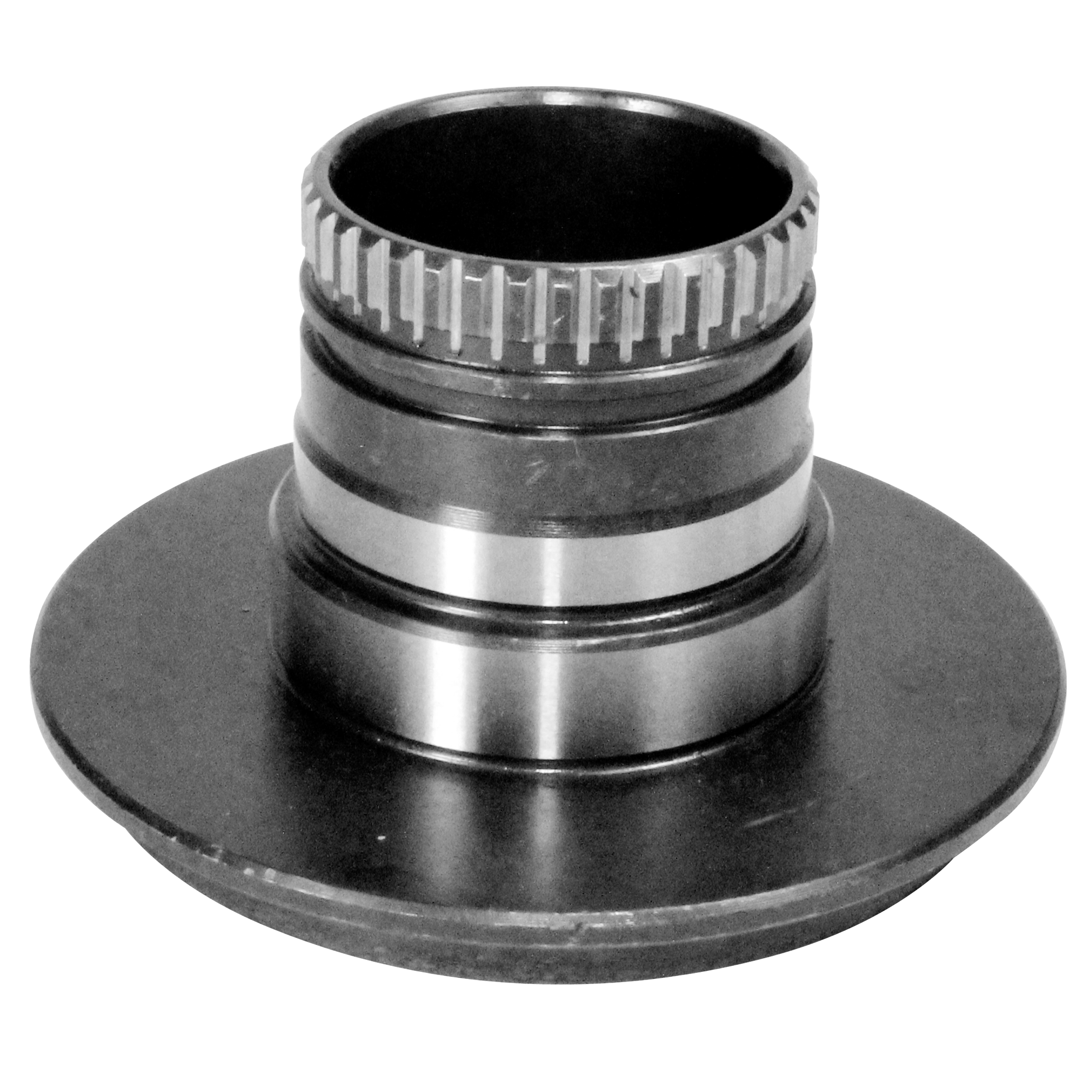

3 Impeller Hub K4, PY8A, & PX4B (HO-11 & HO-12)
  • Installed Height: 1.65"
  • Hub Mount: Flanged
  • Flange Dia: 2.870"
  • External teeth: 38
  • Hardness: Rc 32-36
 NH-1-5
3 Impeller Hub '86-'87 Civic, '86 Acura & CRX, '85 Prelude, (HO-2B)
  • Installed Height: 1.590"
  • Hub Mount: Flanged
  • Flange Dia: 2.520"
  • External teeth: 36
  • Hardness: Rc 32-36
 NH-1-6
3 Impeller Hub For Aluminum Converter
  • Installed Height: 2.180"
  • Hub Mount: Flanged
  • Flange Dia: 2.400"
  • External teeth: 36
  • Hardness: Rc 32-36
 NH-1-7
3 Impeller Hub HO-21, B7TA / B7UA
  • Installed Height: 1.80"
  • Height: 2.1
  • Hub Mount: Flanged
  • Pump Drive Type: Splines
  • Flange Dia: 3.70" & 2.91"
  • Hardness: Rc 32-36
 NH-1-8
4 Impeller NPN-5-2-4
5 Ring Gear
  • Thickness: 0.354"
  • External teeth: 103
  • Outside Dia: 10.48"
  • Inside Dia: 9.605"
 RG-103N
5 Ring Gear Bolted Converter
  • External teeth: 103
  • Outside Dia: 10.49"
  • Inside Dia: 7.512"
 RG-103NB
5 Ring Gear Honda L-15, L-16, S-16
  • Thickness: 0.355"
  • External teeth: 107
  • Outside Dia: 10.87"
  • Inside Dia: 9.617"
 RG-107N
5 Ring Gear
  • External teeth: 107
  • Outside Dia: 10.88"
  • Inside Dia: 10.05"
 RG-107NA
5 Ring Gear Narrow
  • External teeth: 109
  • Outside Dia: 11.08"
  • Inside Dia: 10.5"
 RG-109N
5 Ring Gear Wide
  • External teeth: 109
  • Outside Dia: 11.08"
  • Inside Dia: 9.6"
 RG-109NW
5 Ring Gear Narrow
  • Thickness: 0.375"
  • External teeth: 114
  • Outside Dia: 11.54"
  • Inside Dia: 10.478"
 RG-114N
5 Ring Gear
  • External teeth: 114
  • Outside Dia: 11.54"
  • Inside Dia: 10.036"
 RG-114NW
5 Ring Gear
  • External teeth: 114
  • Outside Dia: 11.54"
  • Inside Dia: 9.606"
 RG-114B
6 Bearing
  • Thickness: 0.157"
  • Thickness metric: 4.06
  • Bearing type: Exposed
  • Outside Dia: 2.547"
  • Inside Dia: 1.775"
  • Outside Dia Metric: 65.02
  • Inside Dia metric: 44.96
  • 26 Rollers. Race: FW-2-4, TRA-2840
 NW-2
6 Bearing
  • Thickness: 0.22
  • Thickness metric: 5.59
  • Bearing type: Semi- Enclosed
  • Outside Dia: 2.55
  • Inside Dia: 1.728
  • Outside Dia Metric: 64.77
  • Inside Dia metric: 43.89
  • Race: TW-2-13
 TW-2-12
6 Bearing Race
  • Thickness: .080"
  • Outside Dia: 2.55
  • Inside Dia: 1.728
  • For OE Style Bearing
 TW-2-12A
6 Bearing & Race Kit CT-13, CT-15
  • Outside Dia: 2.55"
  • Inside Dia: 1.73"
 TW-2-12BK
6 Bearing & Race Kit
  • Thickness: .26"
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.55"
  • Inside Dia: 1.73"
 TW-2-12K
6 Bearing
  • Thickness: 0.19
  • Thickness metric: 4.83
  • Bearing type: Exposed
  • Outside Dia: 2.56
  • Inside Dia: 1.7
  • Outside Dia Metric: 65.02
  • Inside Dia metric: 43.18
  • 18 Rollers
 NW-2-1
6 Bearing NW-2-2 Can Be Replaced by TW-2-4 With Small Amount of Machining
  • Thickness: 0.177
  • Thickness metric: 4.5
  • Bearing type: Exposed
  • Outside Dia: 2.846
  • Inside Dia: 1.972
  • Outside Dia Metric: 72.29
  • Inside Dia metric: 50.09
  • 24 Rollers
 NW-2-2

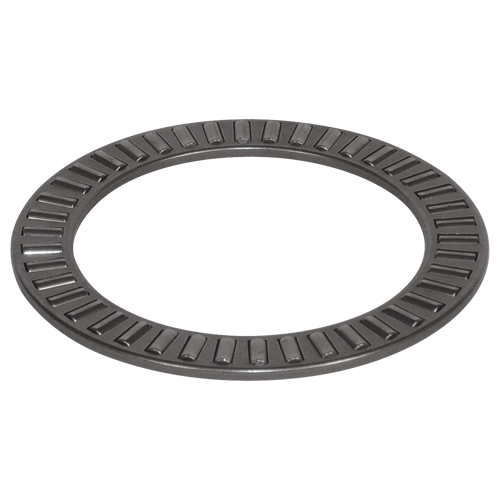

6 Bearing Full Flow HO-21, B7TA/B7VA / B7YA
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed, Double Cage
  • Outside Dia: 2.943
  • Inside Dia: 2.172
  • Outside Dia Metric: 74.75
  • Inside Dia metric: 55.17
  • 42 Rollers
 NW-2-3
6 Bearing Full Flow HO-21, B7TA/B7VA / B7YA
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed, Single Cage
  • Outside Dia: 2.943
  • Inside Dia: 2.172
  • Outside Dia Metric: 74.75
  • Inside Dia metric: 55.17
  • 42 Rollers
 NW-2-3A

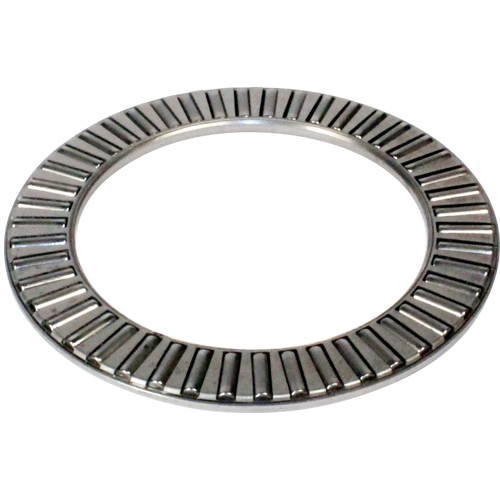

6 Bearing HO-21, B7TA / B7VA / B7YA
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Enclosed
  • Outside Dia: 3.061
  • Inside Dia: 2.165
  • Outside Dia Metric: 77.75
  • Inside Dia metric: 54.99
  • 46 Rollers
 NW-2-5

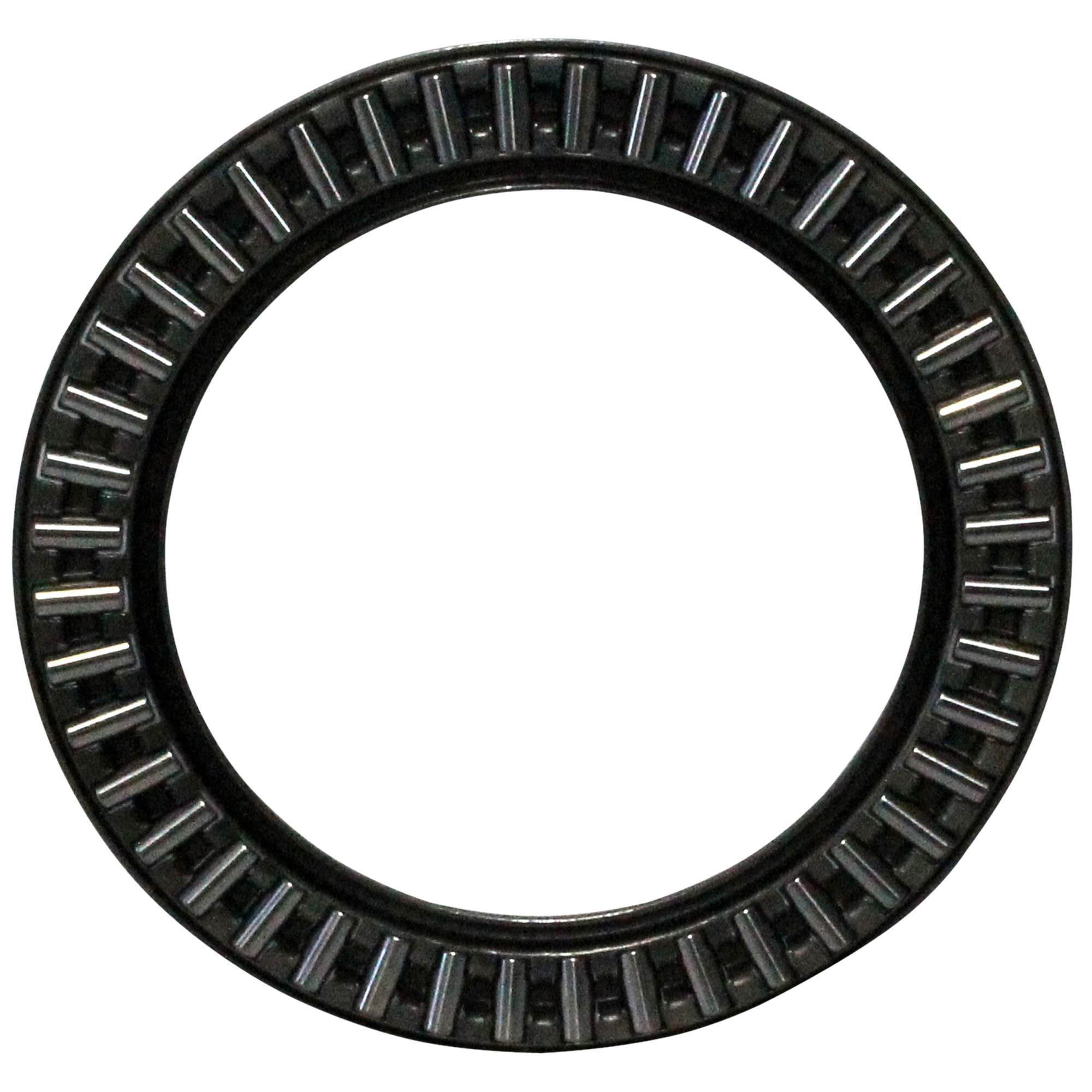

6 Bearing Turbine,Indust HO-21, B7TA / B7VA / B7YA
  • Thickness: 0.12
  • Thickness metric: 3.05
  • Bearing type: Exposed
  • Outside Dia: 3.03
  • Inside Dia: 2.16
  • Outside Dia Metric: 76.96
  • Inside Dia metric: 54.86
 PW-9-4
6 Roller Repair Kit
  • Outside Dia: 2.547"
  • Inside Dia: 1.775"
  • For NW-2, 26 Rollers, 4mm x 6mm
 NW-2-26K
6 Roller Repair Kit
  • For NW-2-1,18 Rollers, 5mm x 8.7mm
 NW-2-18K
6 Roller Repair Kit
  • For NW-2-2, 24 Rollers, 4.5mm x 8.7mm
 NW-2-24K
7 Snap Ring NPN-5-2-7

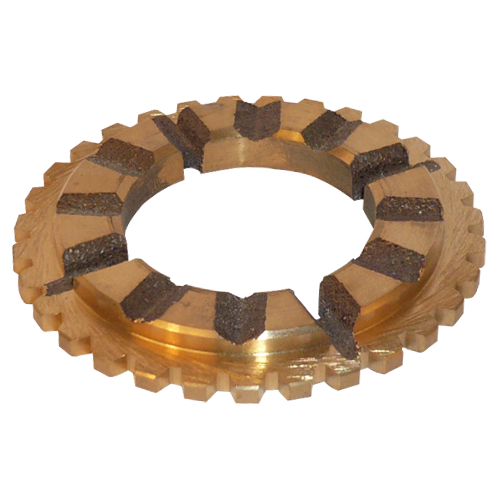

8 Stator Cap 2.12" Thrust Surface Diameter
  • Material: Bronze
  • Outside Dia: 2.59"
  • Inside Dia: 1.38"
 NW-4
9 Shim NPN-5-2-9
10 Inner Race
  • Internal Teeth: 29
 NPN-5-2-10
11 Roller 10 Pieces Required.
  • Dia: 0.235"
  • Length: 0.785"
 YR-7-1
12 Accordion Spring 10 Pieces Required.
  • Height: 0.19"
  • Width: 0.68"
  • Folds: 5 or 4
 YS-6-1
13 Cam Stator NPN-5-2-13
14 Stator NPN-5-2-14
15 Washer Thrust Surface
  • Thickness: 0.230"
  • Material: Bronze
  • Outside Dia: 2.590"
  • Inside Dia: 1.380"
 NW-4-1
16 Turbine Hub NPN-5-2-16
16_N.I. Seal Ring Scarf Cut G-4, MPYA
  • Height: 0.052
  • Width: 0.079
  • Material: PTFE
  • Height Metric: 1.3208
  • Seal Type: Scarf Cut
  • Outside Dia: 1.417
  • Outside Dia Metric: 35.9918
 NO-25

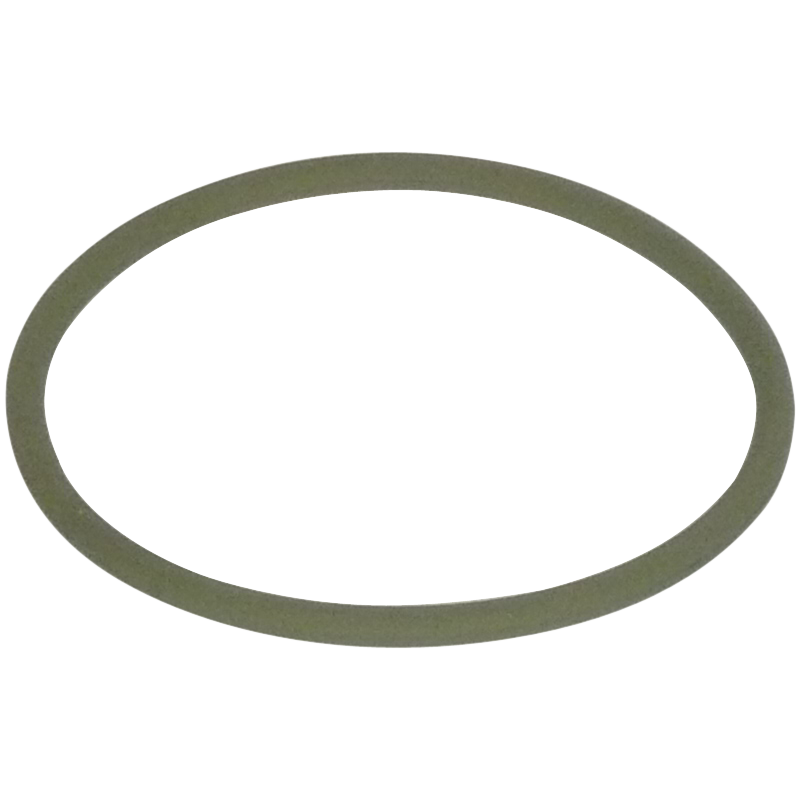

16_N.I. O-Ring 1996-Up, B7TA, B7VA, B7YA, F4
  • Thickness: 0.075
  • Thickness metric: 1.905
  • Material: Fluorocarbon
  • Inside Dia: 1.398
  • Inside Dia metric: 35.5092
 NO-25-1
17 Turbine NPN-5-2-17

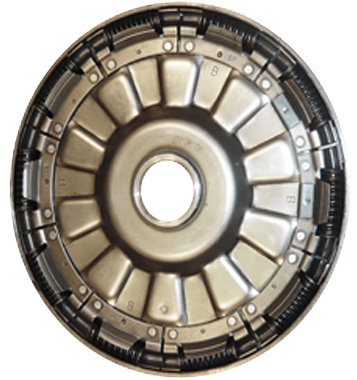

18 Clutch Plate Assembly Without Valve Civic, Accord
  • Outside Dia: 9.375
 NX-23

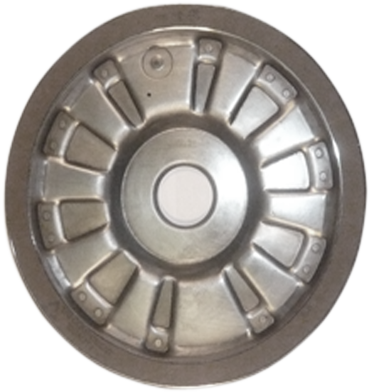

18 Clutch Plate Assembly NX-23L

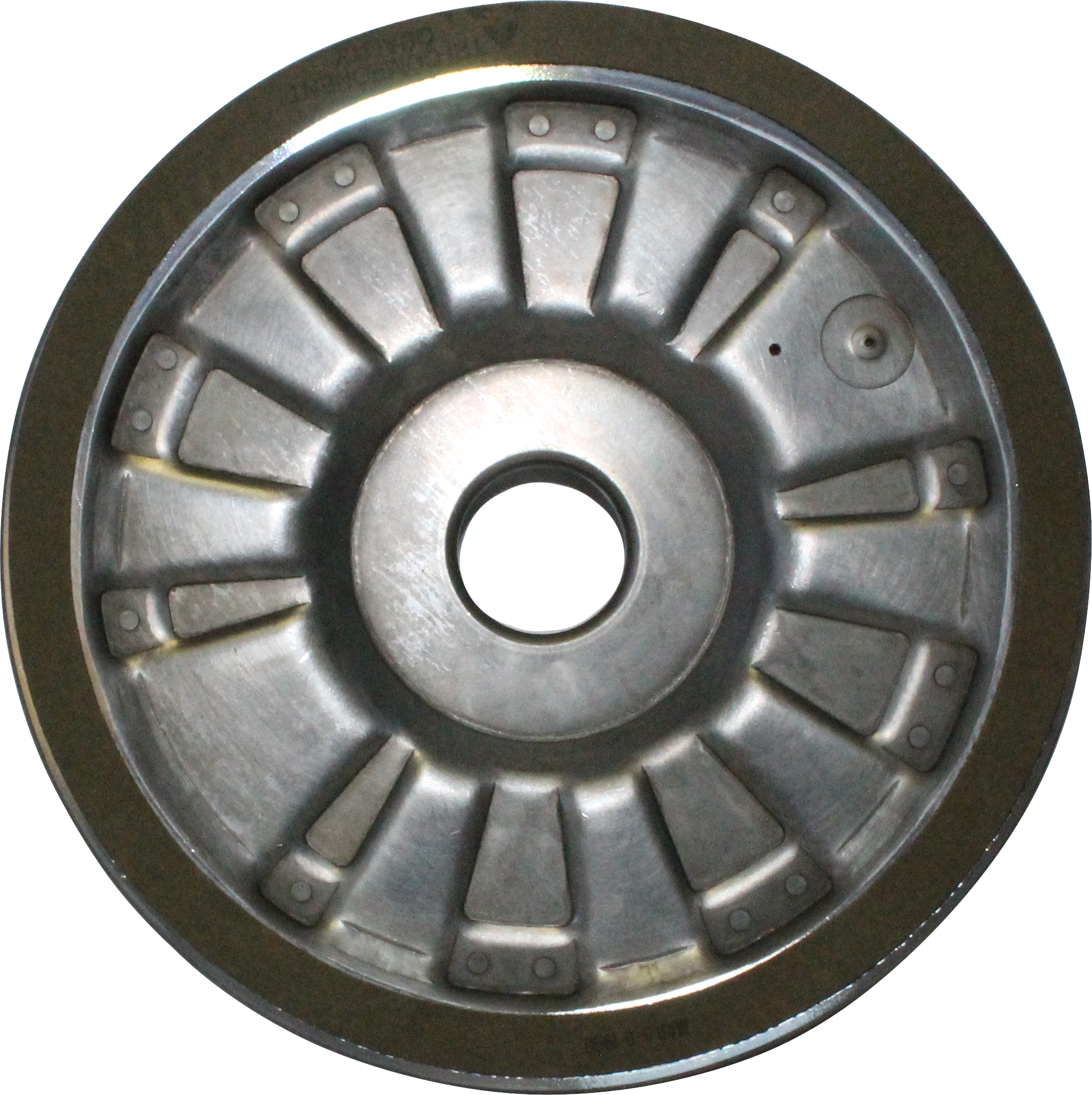

18 Clutch Plate Assembly With Valve Civic, Accord
  • Outside Dia: 9.375
 NX-23V

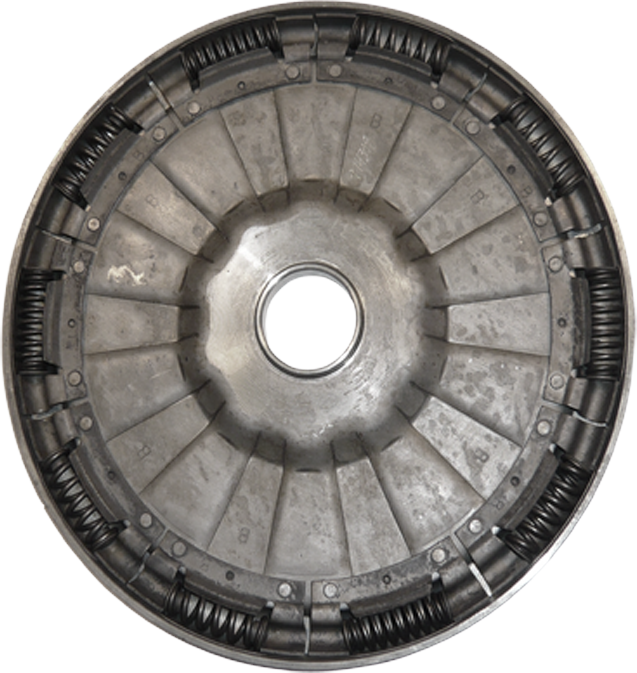

18 Clutch Plate Assembly Sterling, Etc.
  • Outside Dia: 9.875
 NX-23-3
19 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.375
  • Inside Dia: 9.25
 NX-23-11
19 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.750"
  • Inside Dia: 9.625"
 NX-23-13
19 Lining (Friction Ring,Wafer) AS, F4
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.75"
  • Inside Dia: 7.75"
 NX-23-1
19 Lining (Friction Ring,Wafer) Sterling
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.5"
  • Inside Dia: 8.5"
 NX-23-2
19 Lining (Friction Ring,Wafer) HO-14, MPYA
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10"
  • Inside Dia: 9"
 NX-23-7
19 Lining (Friction Ring,Wafer) G4, Acura Vigor
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.125"
  • Inside Dia: 9.125"
 NX-23-5
19 Lining (Friction Ring,Wafer) HO-12
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.125"
  • Inside Dia: 8.125"
 NX-23-6
19 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10"
  • Inside Dia: 8.75"
 TX-23-17
20 Washer
  • Thickness: 0.038"
  • Outside Dia: 1.450"
  • Inside Dia: 0.830"
  • Outside Lip
 NW-9B
20 Bearing & Race Kit Cover
  • Thickness: 0.18
  • Thickness metric: 4.57
  • Bearing type: Enclosed
  • Outside Dia: 1.45
  • Inside Dia: 0.8
  • Outside Dia Metric: 36.83
  • Inside Dia metric: 20.32
  • With 35mm Bearing O.D., 36.8mm Kit O.D.
 NW-9K

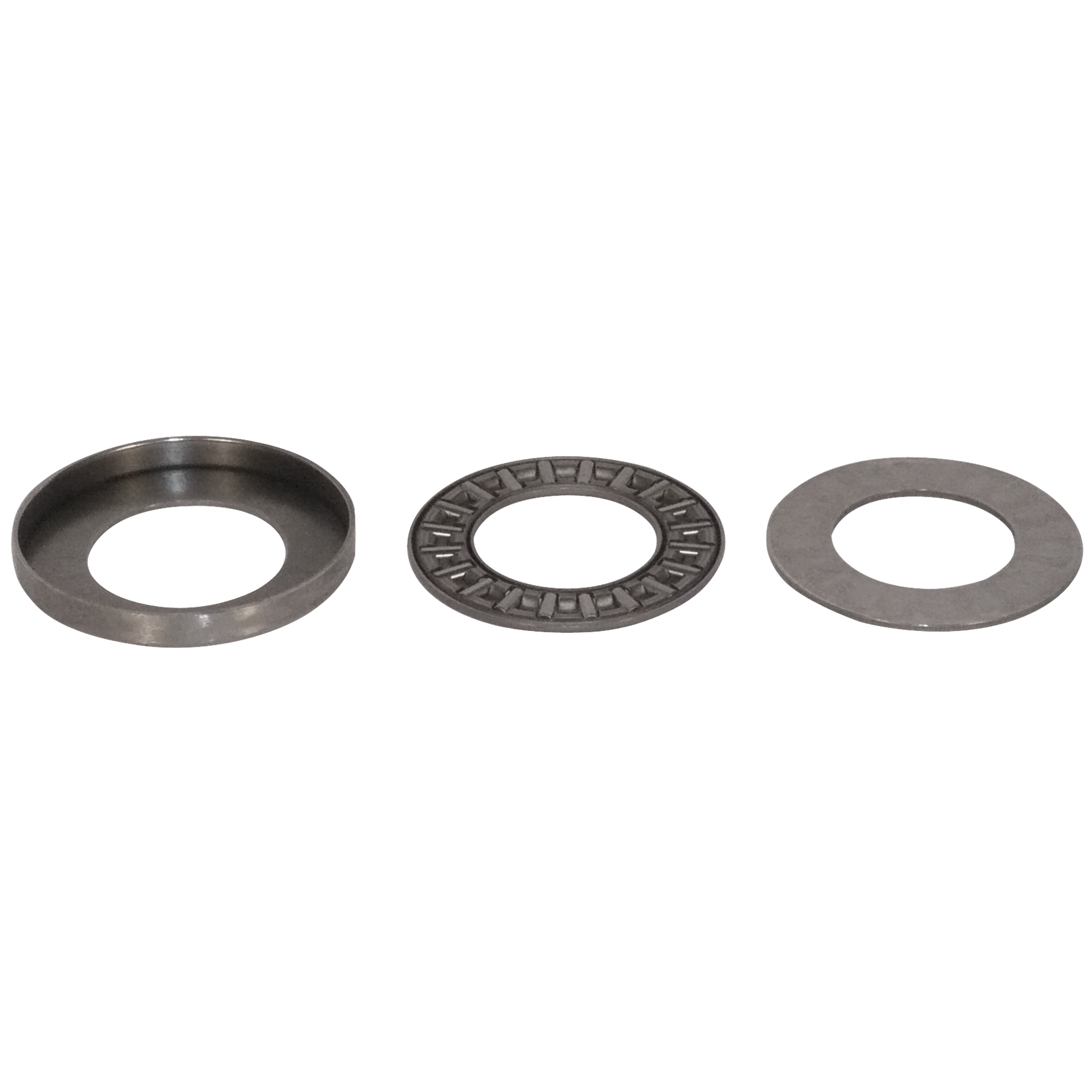

20 Bearing & Race Kit Cover
  • Outside Dia: 1.450"
  • Inside Dia: 0.830"
 NW-9KA

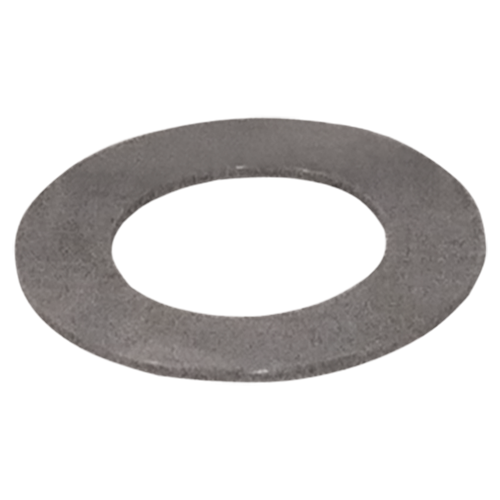

20 Bearing Race
  • Thickness: 0.039"
  • Outside Dia: 1.378"
  • Inside Dia: 0.787"
 NW-9W

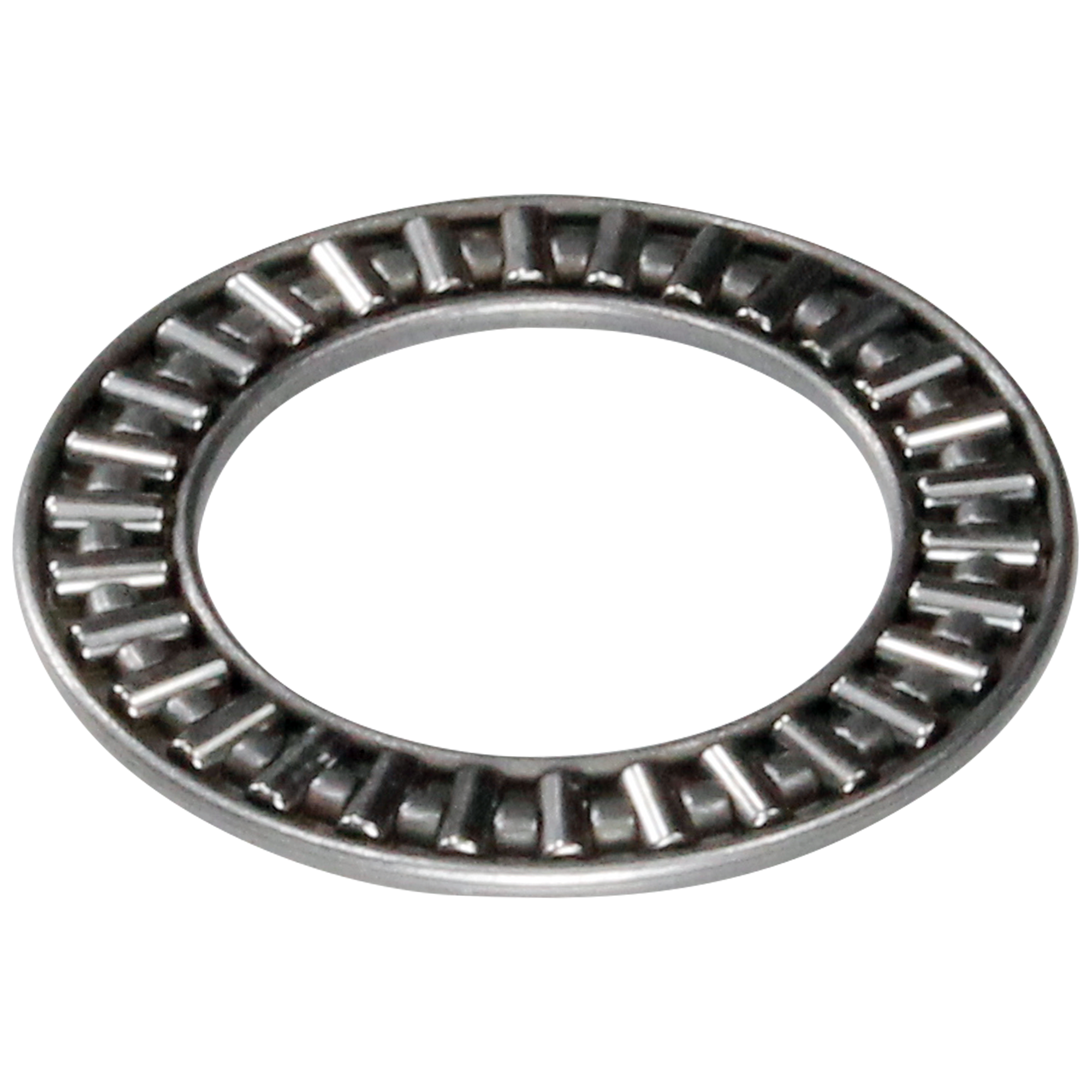

20 Bearing
  • Thickness: 0.078"
  • Outside Dia: 1.5625"
  • Inside Dia: 1.00"
 NTA-1625
20 Bearing
  • Thickness: 0.11
  • Thickness metric: 2.79
  • Bearing type: Semi- Enclosed
  • Outside Dia: 1.61
  • Inside Dia: 0.91
  • Outside Dia Metric: 40.89
  • Inside Dia metric: 23.11
  • Race: NW-9-1B
 NW-9-1
20 Bearing Race
  • Thickness: 0.039"
  • Outside Dia: 1.69"
  • Inside Dia: 0.95"
  • Outside Lip
 NW-9-1B
20 Bearing & Race Kit Cover
  • Thickness: 0.19
  • Thickness metric: 4.83
  • Bearing type: Enclosed
  • Outside Dia: 1.69
  • Inside Dia: 0.91
  • Outside Dia Metric: 42.93
  • Inside Dia metric: 23.11
  • With 40mm Bearing O.D., 42.9mm Kit O.D.
 NW-9-1K
21 Bushing Cover NPN-5-2-21
22 Front Cover NPN-5-2-22
22_N.I. O-Ring Cover, 220mm X 2.4mm, (Alum. Conv.) '73-'80, 2 Speed 84042
22_N.I. O-Ring Cover, 3 Speed, 229mm X 2.4mm, (Alum. Conv.) '80-'84 84052
