Part Search

Torque Converter | Honda / Acura | B7TA, B7VA, B7YA

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 O-Ring Hub
  • Thickness: 0.07
  • Thickness metric: 1.778
  • Material: Fluorocarbon
  • Inside Dia: 1.301
  • Inside Dia metric: 33.0454
 84048
O-Ring 84048
Hub &
  • Thickness: 0.07
  • Thickness metric: 1.778
  • Material: Fluorocarbon
  • Inside Dia: 1.301
  • Inside Dia metric: 33.0454
2 O-Ring 1996-'97 Accord L4, 1998 Odyssey, 1998-99 Prelude, 2001 Civic, B7TA, B7VA, B7YA (HO-21, HO80), F4 (HO-7, HO61)
  • Thickness: 0.075
  • Thickness metric: 1.905
  • Material: Fluorocarbon
  • Inside Dia: 1.398
  • Inside Dia metric: 35.5092
 NO-25-1
O-Ring NO-25-1
& 1996-'97 Accord L4, 1998 Odyssey, 1998-99 Prelude, 2001 Civic, B7TA, B7VA, B7YA (HO-21, HO80), F4 (HO-7, HO61)
  • Thickness: 0.075
  • Thickness metric: 1.905
  • Material: Fluorocarbon
  • Inside Dia: 1.398
  • Inside Dia metric: 35.5092
3 Impeller Hub Used with JW-2-28
  • Installed Height: 1.80"
  • Height: 2.1
  • Hub Mount: Flanged
  • Pump Drive Type: Splines
  • Flange Dia: 3.70" & 2.91"
  • Hardness: Rc 32-36
 NH-1-8
Impeller Hub NH-1-8
& Used with JW-2-28
  • Installed Height: 1.80"
  • Height: 2.1
  • Hub Mount: Flanged
  • Pump Drive Type: Splines
  • Flange Dia: 3.70" & 2.91"
  • Hardness: Rc 32-36
4 Misc NPN-SPL
Misc NPN-SPL
&
6 Bearing Full Flow 2 Pieces Required.
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed, Double Cage
  • Outside Dia: 2.943
  • Inside Dia: 2.172
  • Outside Dia Metric: 74.75
  • Inside Dia metric: 55.17
  • 42 Rollers
 NW-2-3
Bearing NW-2-3
Full Flow & 2 Pieces Required.
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed, Double Cage
  • Outside Dia: 2.943
  • Inside Dia: 2.172
  • Outside Dia Metric: 74.75
  • Inside Dia metric: 55.17
  • 42 Rollers

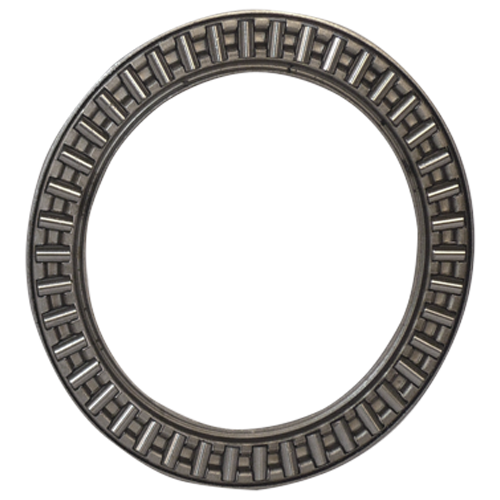

6 Bearing Full Flow 2 Pieces Required.
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed, Single Cage
  • Outside Dia: 2.943
  • Inside Dia: 2.172
  • Outside Dia Metric: 74.75
  • Inside Dia metric: 55.17
  • 42 Rollers
 NW-2-3A
Bearing NW-2-3A
Full Flow & 2 Pieces Required.
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed, Single Cage
  • Outside Dia: 2.943
  • Inside Dia: 2.172
  • Outside Dia Metric: 74.75
  • Inside Dia metric: 55.17
  • 42 Rollers
6.1 Bearing Replaces OE bearing & bearing race; requires stator bore modification, use with NH-1-8
  • Thickness: 0.236
  • Thickness metric: 6
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 3.228
  • Inside Dia: 2.213
  • Outside Dia Metric: 82
  • Inside Dia metric: 56.21
 JW-2-28
Bearing JW-2-28
& Replaces OE bearing & bearing race; requires stator bore modification, use with NH-1-8
  • Thickness: 0.236
  • Thickness metric: 6
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 3.228
  • Inside Dia: 2.213
  • Outside Dia Metric: 82
  • Inside Dia metric: 56.21
15 Seal Ring Scarf Cut
  • Height: 0.052
  • Width: 0.079
  • Material: PTFE
  • Height Metric: 1.3208
  • Seal Type: Scarf Cut
  • Outside Dia: 1.417
  • Outside Dia Metric: 35.9918
 NO-25
Seal Ring NO-25
Scarf Cut &
  • Height: 0.052
  • Width: 0.079
  • Material: PTFE
  • Height Metric: 1.3208
  • Seal Type: Scarf Cut
  • Outside Dia: 1.417
  • Outside Dia Metric: 35.9918
17 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.875
  • Inside Dia: 8.875
 NX-23-9
Lining (Friction Ring,Wafer) NX-23-9
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.875
  • Inside Dia: 8.875
17 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10"
  • Inside Dia: 8.75"
 TX-23-17
Lining (Friction Ring,Wafer) TX-23-17
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10"
  • Inside Dia: 8.75"
18 Bearing Race
  • Thickness: 0.039"
  • Outside Dia: 1.378"
  • Inside Dia: 0.787"
 NW-9W
Bearing Race NW-9W
&
  • Thickness: 0.039"
  • Outside Dia: 1.378"
  • Inside Dia: 0.787"
19 Bearing & Race Kit Cover
  • Thickness: 0.18
  • Thickness metric: 4.57
  • Bearing type: Enclosed
  • Outside Dia: 1.45
  • Inside Dia: 0.8
  • Outside Dia Metric: 36.83
  • Inside Dia metric: 20.32
  • With 35mm Bearing O.D., 36.8mm Kit O.D.
 NW-9K
Bearing & Race Kit NW-9K
Cover &
  • Thickness: 0.18
  • Thickness metric: 4.57
  • Bearing type: Enclosed
  • Outside Dia: 1.45
  • Inside Dia: 0.8
  • Outside Dia Metric: 36.83
  • Inside Dia metric: 20.32
  • With 35mm Bearing O.D., 36.8mm Kit O.D.
19 Bearing & Race Kit Cover
  • Outside Dia: 1.450"
  • Inside Dia: 0.830"
 NW-9KA
Bearing & Race Kit NW-9KA
Cover &
  • Outside Dia: 1.450"
  • Inside Dia: 0.830"
20 Bearing
  • Thickness: 0.079
  • Thickness metric: 2.01
  • Bearing type: Exposed
  • Outside Dia: 1.378
  • Inside Dia: 0.787
  • Outside Dia Metric: 35
  • Inside Dia metric: 19.99
  • Race: NW-9W, NW-9B
 AXK-2035
Bearing AXK-2035
&
  • Thickness: 0.079
  • Thickness metric: 2.01
  • Bearing type: Exposed
  • Outside Dia: 1.378
  • Inside Dia: 0.787
  • Outside Dia Metric: 35
  • Inside Dia metric: 19.99
  • Race: NW-9W, NW-9B
20 Washer
  • Thickness: 0.038"
  • Outside Dia: 1.450"
  • Inside Dia: 0.830"
  • Outside Lip
 NW-9B
Washer NW-9B
&
  • Thickness: 0.038"
  • Outside Dia: 1.450"
  • Inside Dia: 0.830"
  • Outside Lip
