Part Search

Torque Converter | High Performance | Miscellaneous/Multi-Purpose (HP)

Ill.# Image Description Specification Part #

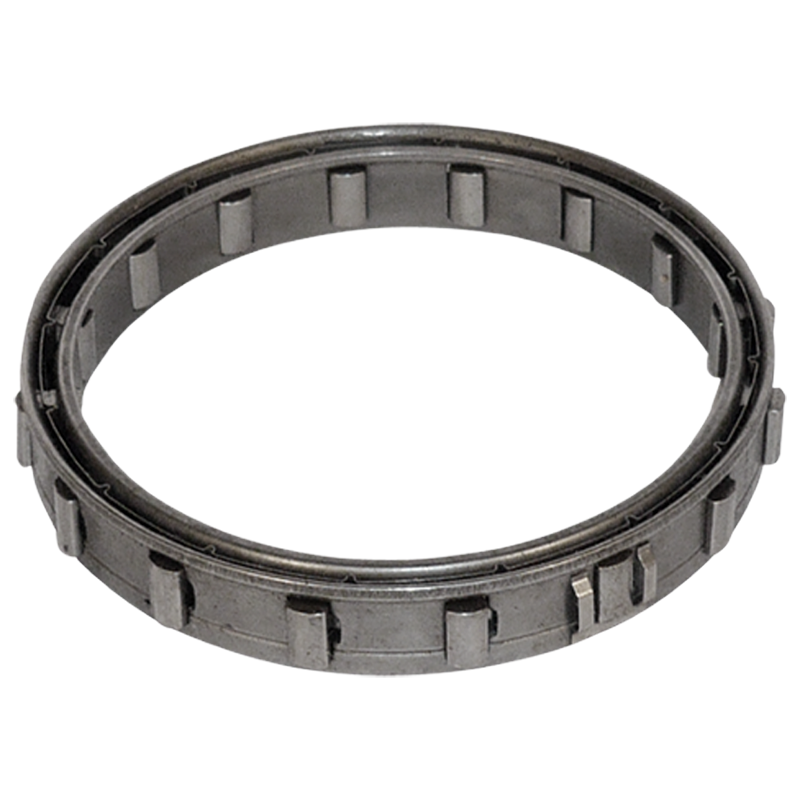

0 Sprag Intermediate, 16-element. 1964-Up 34418
0 Sprag Intermediate, HD, 34-element, 1964-Up 34418X

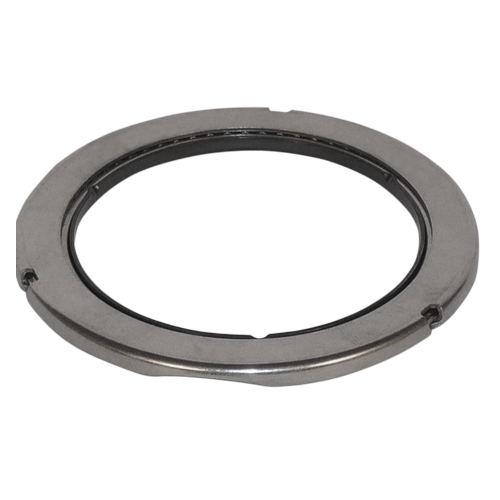

0 Bearing
  • Outer Dia: 2.89
  • Inner Dia: 2.138
  • Thickness: 0.141
  • Outer Dia Metric: 73.41
  • Inner Dia metric: 54.31
  • Thickness metric: 3.58
  • Bearing type: Enclosed
 35400C
0 Sprag
  • Outer Dia: 2.281"
  • Inner Dia: 1.625"
  • Thickness: 0.530"
  • 14 Cams(part-ID F-315), 2 Inside Strips
 BC-6
0 Sprag
  • Outer Dia: 2.406"
  • Inner Dia: 1.750"
  • Width: 0.875"
  • Cam Count: 20 Clip Count: 5; Drag Strip Count: 3
 BC-6HD
0 Sprag
  • Outer Dia: 2.406"
  • Inner Dia: 1.750"
 BC-6HDA
0 Balloon Plate Balloon plates are a necessity in building HP converters. They are placed around the impeller hub & welded to both the hub and the impeller. BP-1
0 Balloon Plate Balloon plates are a necessity in building HP converters. They are placed around the impeller hub & welded to both the hub and the impeller. BP-2

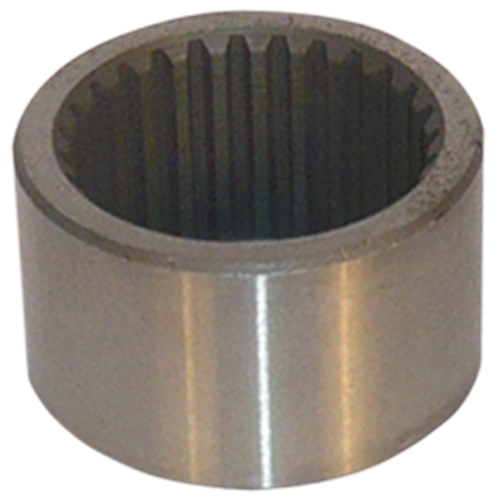

0 Inner Race For Opel Stators. Use with BC-6HD or BX-15HE Outer Race
  • Height: 1.025"
  • BE SURE INNER RACES ARE PROPERLY PILOTED IN END WASHERS AND RUNNING TRUE TO OUTER RACE
 BX-14HE

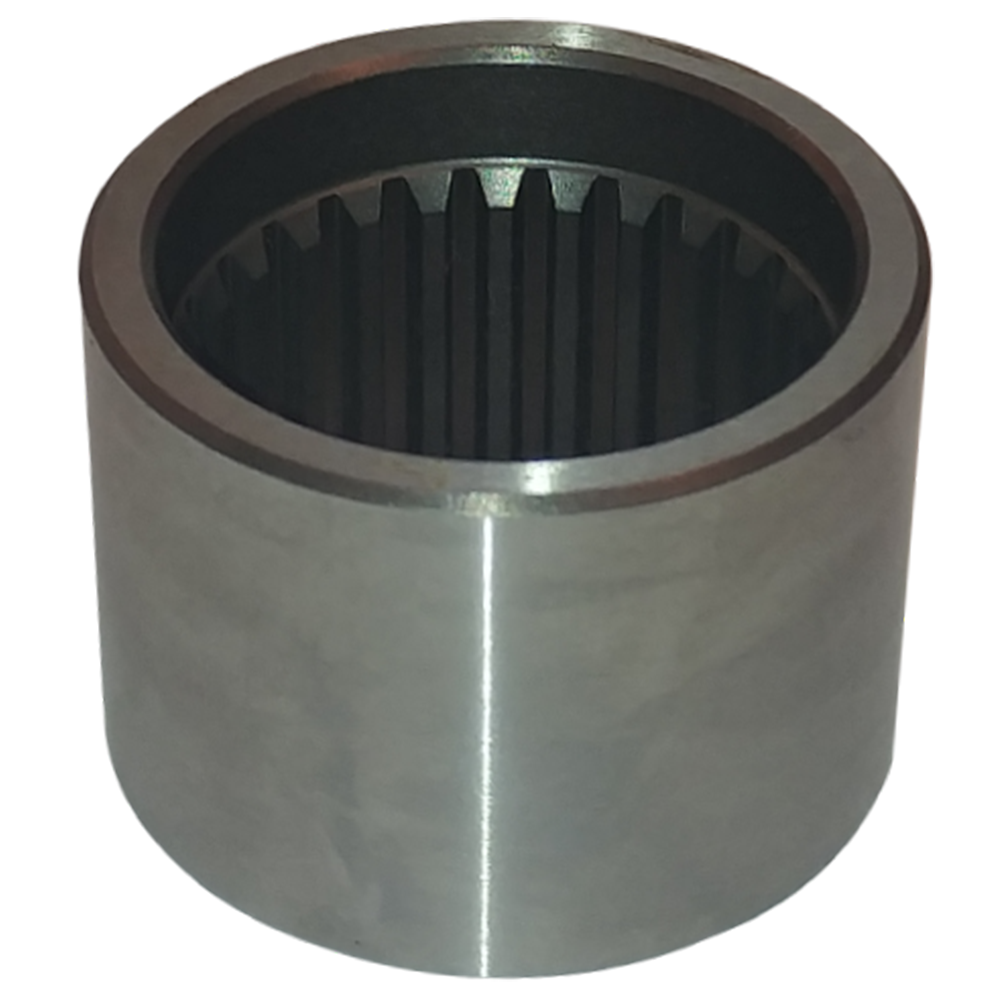

0 Inner Race For Opel Stators. Use with BC-6HD or BX-15HE Outer Race
  • Height: 1.240"
  • BE SURE INNER RACES ARE PROPERLY PILOTED IN END WASHERS AND RUNNING TRUE TO OUTER RACE
 BX-14X

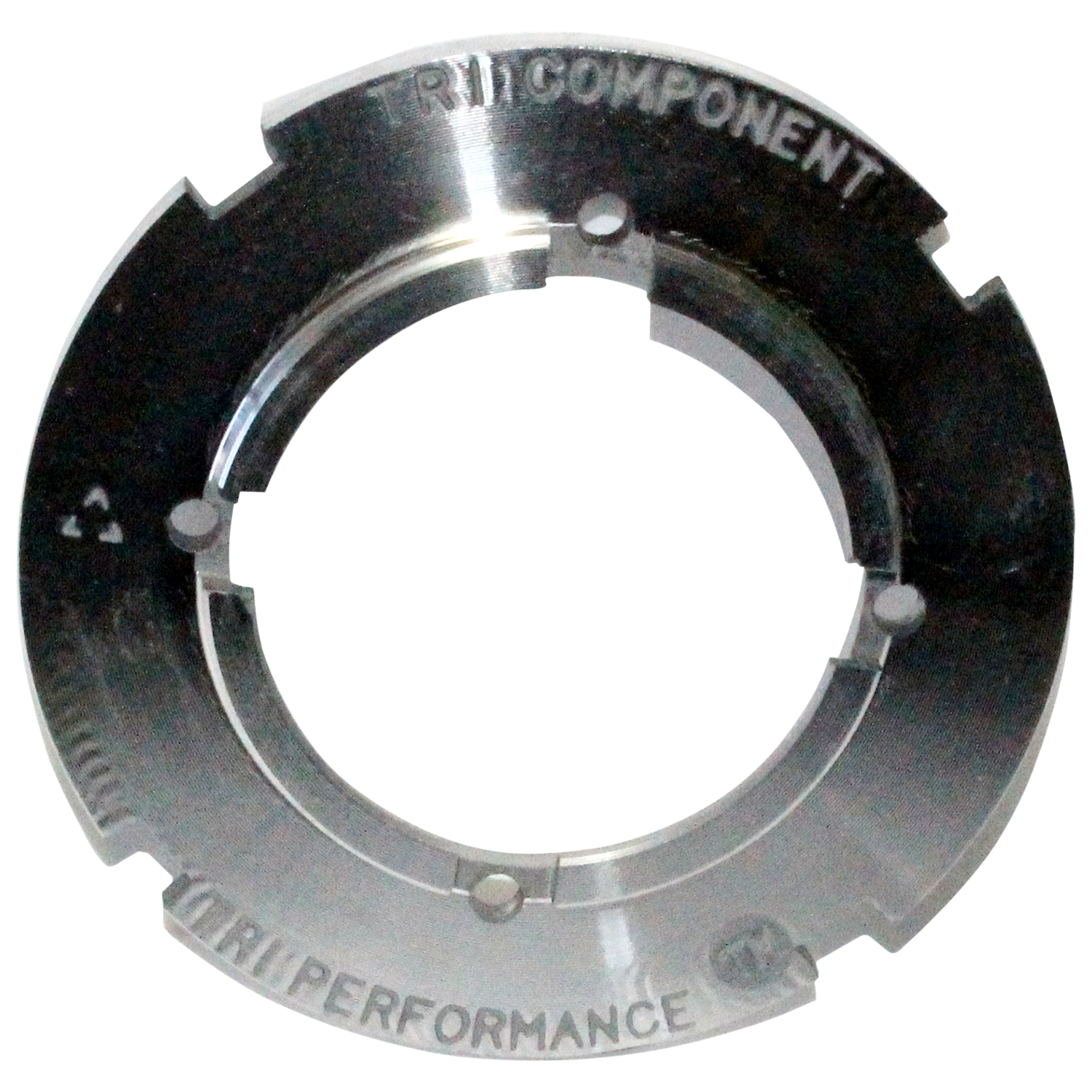

0 Stator Cap
  • Material: Aluminum
  • NOT FOR USE WITH BC-6HD BORG-WARNER SPRAG. COMPATIBLE WITH NTA-3446 BEARINGS AND TRA/TRB RACES. USE (2) VH-337 SNAP RINGS
 CW-4-1HD
0 Inner Race For Opel Stators Use With Powerglide Or 350 Chevy Cams
  • BE SURE INNER RACES ARE PROPERLY PILOTED IN END WASHERS AND RUNNING TRUE TO OUTER RACE
 CX-14-700
0 Inner Race For Opel Stators Spline or Chrysler A 904
  • Height: .792"
  • BE SURE INNER RACES ARE PROPERLY PILOTED IN END WASHERS AND RUNNING TRUE TO OUTER RACE
 CX-14CB

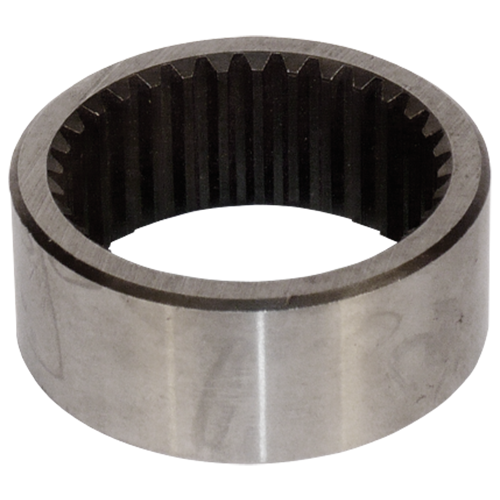

0 Inner Race For OPEL STATORS Use with SPECIAL HEAVY DUTY CAM
  • Height: 0.765"
  • BE SURE INNER RACES ARE PROPERLY PILOTED IN END WASHERS AND RUNNING TRUE TO OUTER RACE
 CX-14E
0 Inner Race For Opel Stators Use With Powerglide Or 350 Chevy Cams
  • BE SURE INNER RACES ARE PROPERLY PILOTED IN END WASHERS AND RUNNING TRUE TO OUTER RACE
 CX-14P

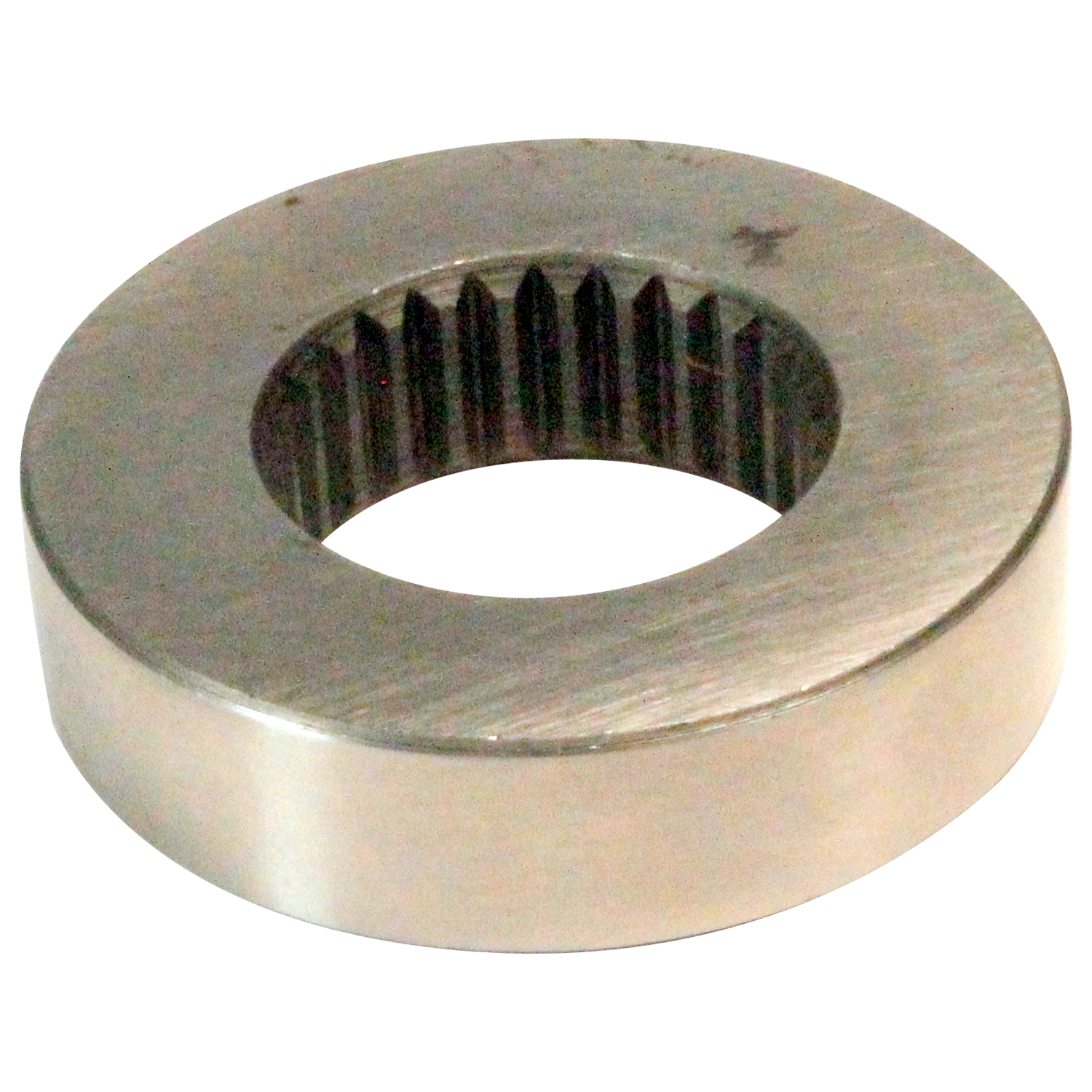

0 Inner Race For Opel Stators Spline or Chrysler A 904
  • Height: 0.560"
  • BE SURE INNER RACES ARE PROPERLY PILOTED IN END WASHERS AND RUNNING TRUE TO OUTER RACE
 CX-14T

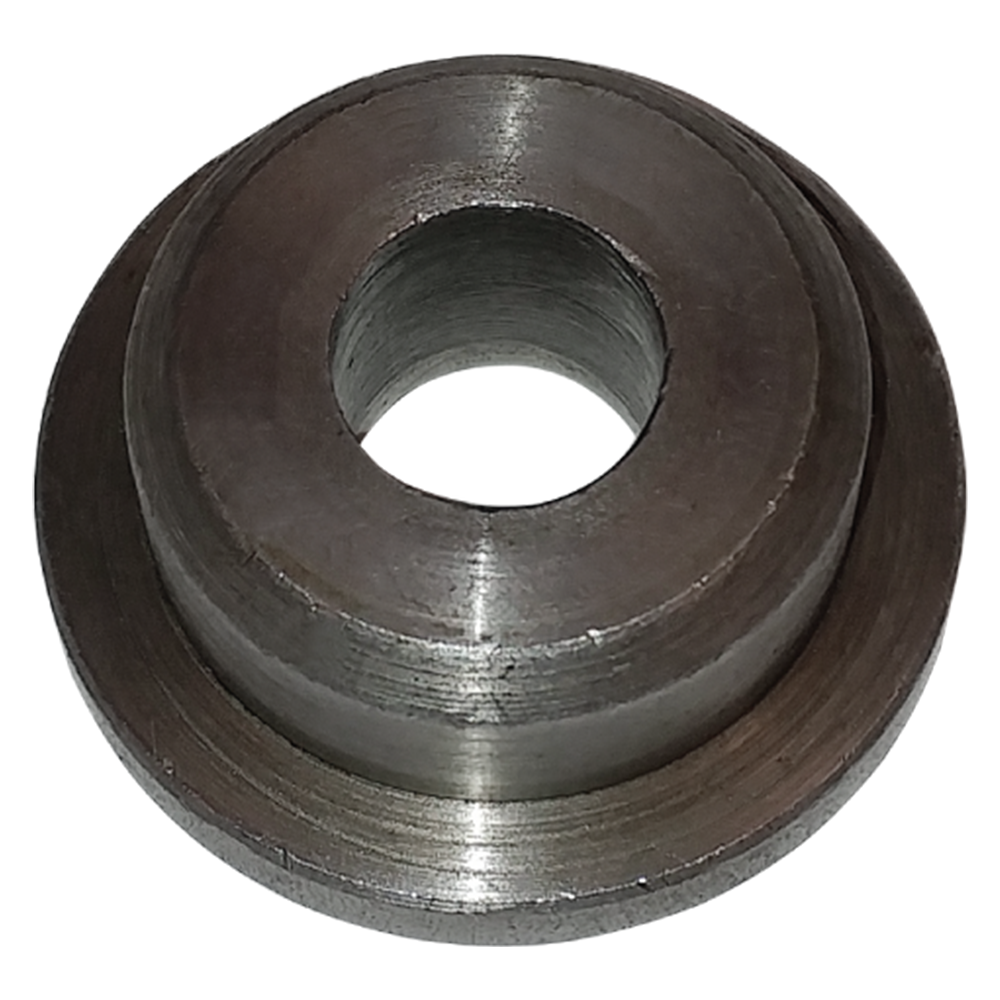

0 Pilot
  • Outer Dia: 1.150"
  • Inner Dia: 0.50"
  • Flange Dia: 1.50"
 CX-17-3
0 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 3.000"
  • Pump Drive Type: flats
 FH-1-300ELG
0 Impeller Hub
  • Journal Dia: 2.000"
  • Installed Height: 3.000"
  • Hub Mount: Butt Mount
  • Pump Drive Type: Flats
 FH-1-300ELGRC
0 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 5.500"
  • Pump Drive Type: flats
 FH-1-500G
0 Impeller Hub Ford, Direct-Drive
  • Journal Dia: 2.000"
  • Installed Height: 5.500"
  • Hub Mount: Through Mount
  • Pump Drive Type: Flats
 FH-1-500GRC
0 Turbine Washer Plastic, High Perfromance
  • Outer Dia: 2.750"
  • Inner Dia: 1.380"
  • Thickness: 0.173"
  • Material: Plastic
 FW-9-30

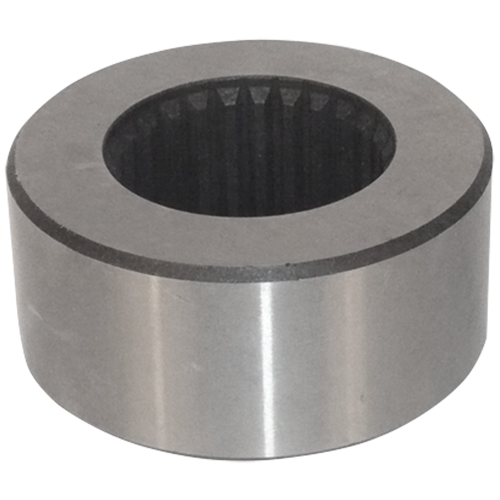

0 Inner Race Stator, Ford 11"
  • Height: 0.982"
  • BE SURE INNER RACES ARE PROPERLY PILOTED IN END WASHERS AND RUNNING TRUE TO OUTER RACE
 FX-14-27
0 Inner Race Stator, FORD 10"
  • Height: 1.045"
  • BE SURE INNER RACES ARE PROPERLY PILOTED IN END WASHERS AND RUNNING TRUE TO OUTER RACE
 FX-14CA

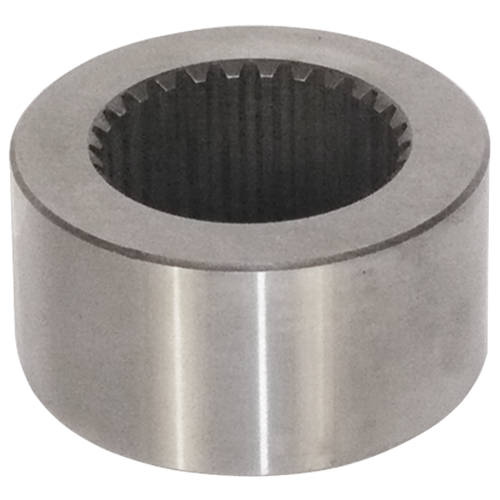

0 Inner Race StatorFORD 10"
  • Height: 0.985"
  • BE SURE INNER RACES ARE PROPERLY PILOTED IN END WASHERS AND RUNNING TRUE TO OUTER RACE
 FX-14CB
0 Inner Race Stator
  • Outer Dia: 2.100"
 FX-14CC
0 Pilot
  • TRI SUPPLIES PILOTS FOR ALL APPLICATIONS
 FX-17-7
0 Pilot Ford
  • Outer Dia: 1.375"
 FX-17-9HP
0 Pilot
  • TRI SUPPLIES PILOTS FOR ALL APPLICATIONS
 FX-17GM
0 Bearing
  • Outer Dia: 2.362
  • Inner Dia: 1.574
  • Thickness: 0.118
  • Outer Dia Metric: 59.94
  • Inner Dia metric: 39.88
  • Thickness metric: 3
  • Bearing type: Exposed
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
0 Bearing
  • Outer Dia: 2.36
  • Inner Dia: 1.57
  • Thickness: 0.125
  • Outer Dia Metric: 59.94
  • Inner Dia metric: 39.88
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
0 Bearing
  • Outer Dia: 1.74
  • Inner Dia: 1.13
  • Thickness: 0.078
  • Outer Dia Metric: 44.2
  • Inner Dia metric: 28.7
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Race: TRA-1828, TRB-1828
 JW-9-3
0 Sprag
  • Outer Dia: 2.614"
  • Inner Dia: 1.958"
  • Thickness: 0.732"
  • 22 Cams (S-352), 11 Outside Clips
 MC-4
0 Bearing
  • Outer Dia: 2.250
  • Inner Dia: 1.436
  • Thickness: 0.134
  • Outer Dia Metric: 57.15
  • Inner Dia metric: 36.47
  • Thickness metric: 3.4
  • Bearing type: Enclosed
 MW-2-1

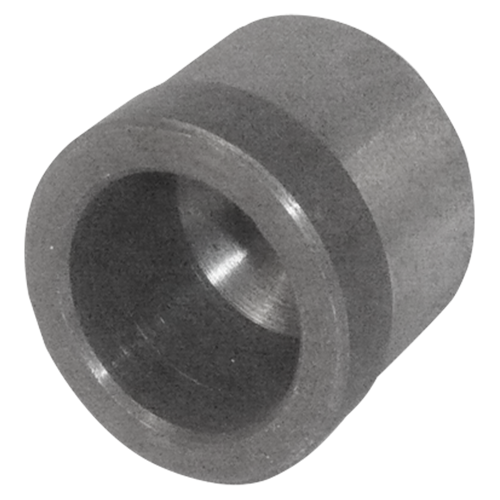

0 Pilot
  • Height: 1.65"
  • Outer Dia: 1.81"
  • Inner Dia: 1.328"
  • TRI SUPPLIES PILOTS FOR ALL APPLICATIONS
 MX-17F

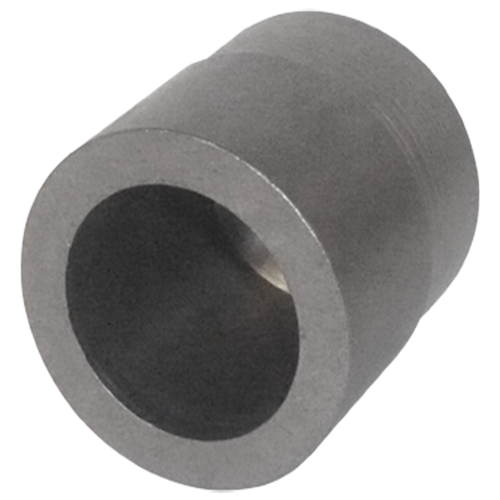

0 Pilot
  • TRI SUPPLIES PILOTS FOR ALL APPLICATIONS
 MX-17GM

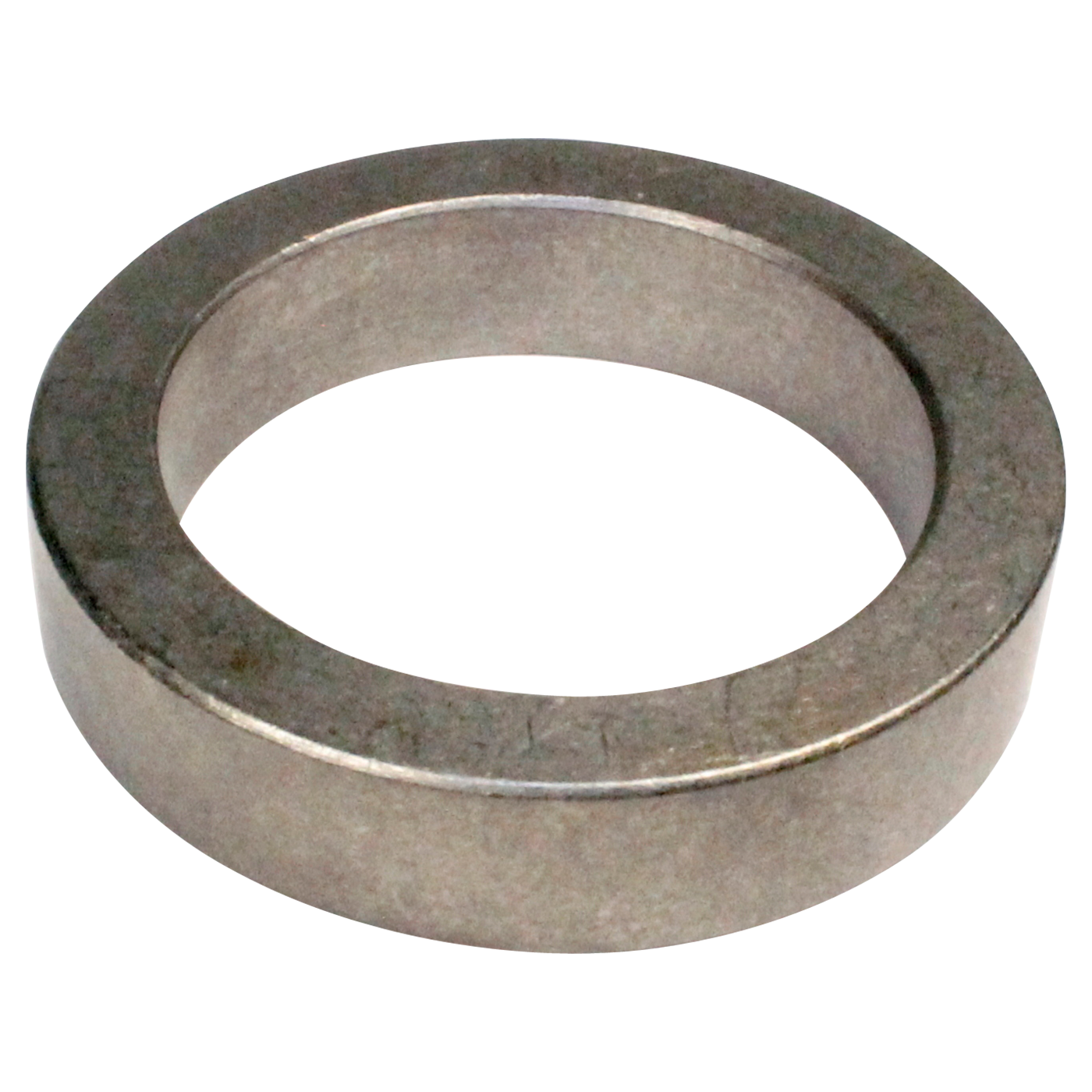

0 Pilot Adaptor Ring 1.846" O.D x 0.375" I.D x 1.376" Height
  • TRI SUPPLIES PILOTS FOR ALL APPLICATIONS
 MX-17PRFL
0 Pilot
  • TRI SUPPLIES PILOTS FOR ALL APPLICATIONS
 MX-17PRFS

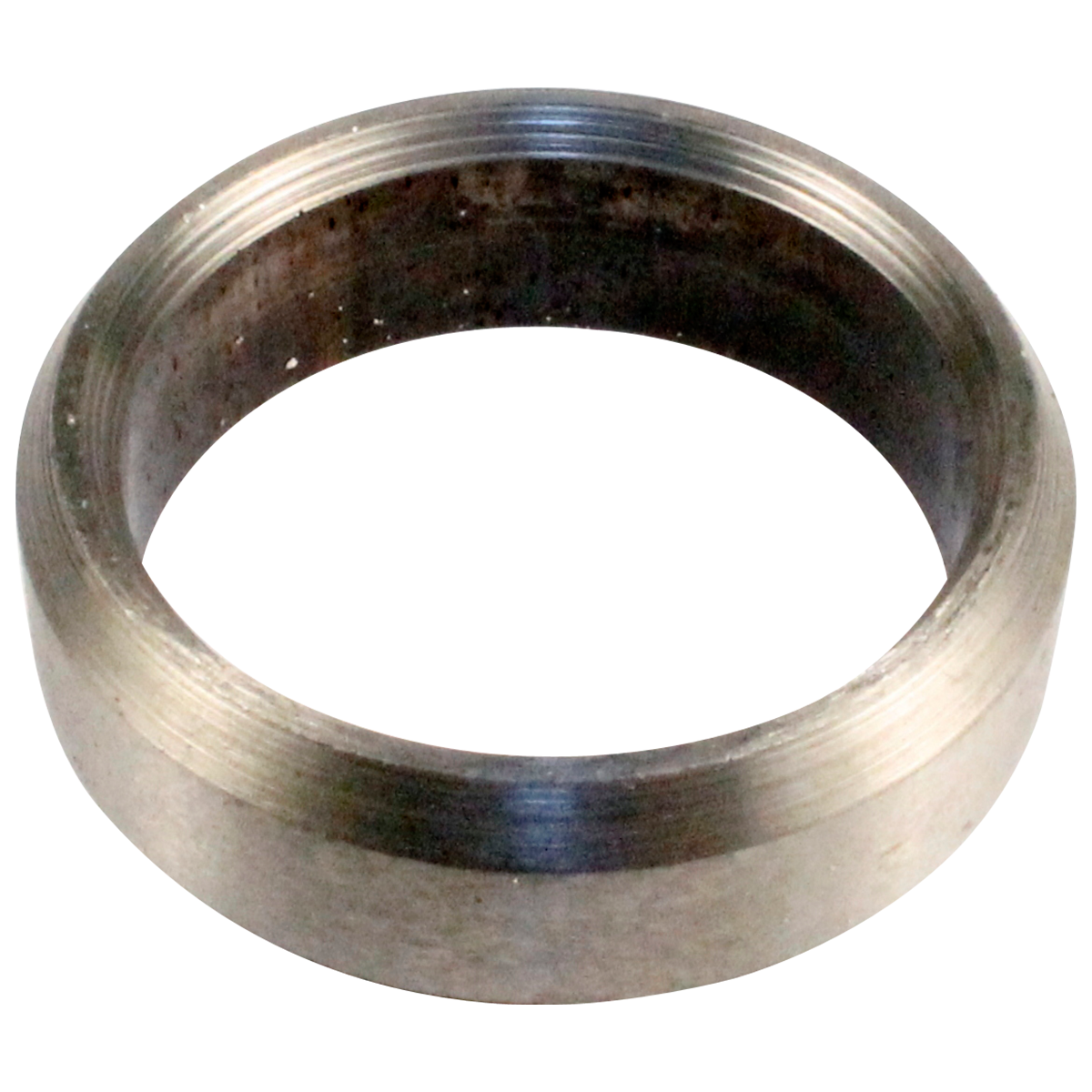

0 Pilot
  • TRI SUPPLIES PILOTS FOR ALL APPLICATIONS
 MX-17PRGM
0 Bearing Use With Race TRA-1828 Or TRB-1828
  • Outer Dia: 1.75
  • Inner Dia: 1.125
  • Thickness: 0.078
  • Outer Dia Metric: 44.45
  • Inner Dia metric: 28.58
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Race: TRA-1828, TRB-1828
 NTA-1828
0 Bearing Use with Race TRA-1821 Or TRB-1821
  • Outer Dia: 1.938
  • Inner Dia: 1.250
  • Thickness: 0.078
  • Outer Dia Metric: 49.23
  • Inner Dia metric: 31.75
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Race: TRA-2031, TRB-2031
 NTA-2031
0 Bearing Use with Race TRA-2333 Or TRB-2333
  • Outer Dia: 2.062
  • Inner Dia: 1.375
  • Thickness: 0.078
  • Outer Dia Metric: 52.37
  • Inner Dia metric: 34.93
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Race: TRA-2233, TRB-2233
 NTA-2233
0 Bearing
  • Outer Dia: 2.17
  • Inner Dia: 1.5
  • Thickness: 0.078
  • Outer Dia Metric: 55.12
  • Inner Dia metric: 38.1
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Race: TRA-2435 (SW-2-30) .030" thick, Race: TRB-2435 (SW-2-60) .060" thick .
 NTA-2435
0 Bearing Use With Race TRA-2840 Or TRB-2840
  • Outer Dia: 2.5
  • Inner Dia: 1.75
  • Thickness: 0.078
  • Outer Dia Metric: 63.5
  • Inner Dia metric: 44.45
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Race: TRA-2840,TRB-2840
 NTA-2840
0 Bearing Use with Race TRA-3244 Or TRB-3244
  • Outer Dia: 2.75
  • Inner Dia: 2
  • Thickness: 0.078
  • Outer Dia Metric: 69.85
  • Inner Dia metric: 50.8
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Race: TRA-3244, TRB-3244
 NTA-3244
0 Bearing Use with Race TRA-3446 Or TRB-3446
  • Outer Dia: 2.88
  • Inner Dia: 2.13
  • Thickness: 0.078
  • Outer Dia Metric: 73.15
  • Inner Dia metric: 54.1
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Race: TRA-3446, TRB-3446
 NTA-3446
0 Bearing Use With Race TRA-4860
  • Outer Dia: 3.725
  • Inner Dia: 3
  • Thickness: 0.078
  • Outer Dia Metric: 94.62
  • Inner Dia metric: 76.2
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Race: TRA-4860, TRB-4860
 NTA-4860

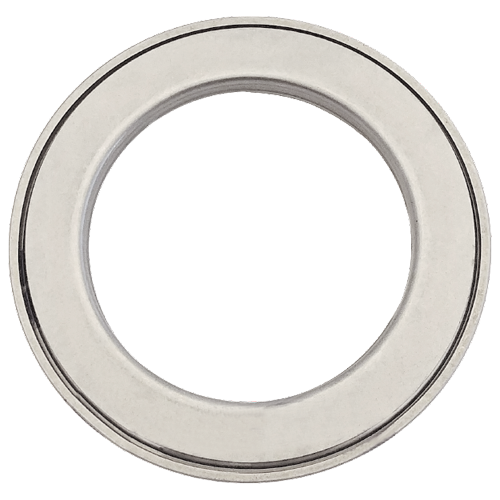

0 Bearing
  • Outer Dia: 3.226
  • Inner Dia: 2.182
  • Thickness: 0.188
  • Outer Dia Metric: 81.94
  • Inner Dia metric: 55.42
  • Thickness metric: 4.78
  • Bearing type: Enclosed
 NW-2-4
0 Bearing
  • Outer Dia: 2.037
  • Inner Dia: 1.384
  • Thickness: 0.078
  • Outer Dia Metric: 51.74
  • Inner Dia metric: 35.15
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Race: PW-2-8, PW-2-9
 PW-2-7
0 Bearing Race
  • Outer Dia: 2.12"
  • Inner Dia: 1.46"
  • Thickness: 0.04"
 PW-2-9

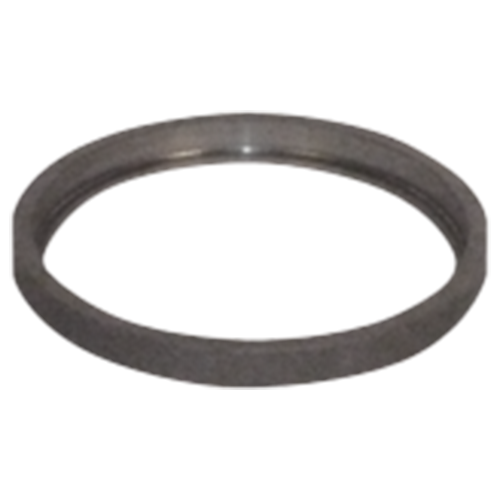

0 Bearing Adapter Washer HP, Use With Bearing NTA-2840 (.078" thick.)
  • Outer Dia: 2.75"
  • Inner Dia: 2.51"
  • Thickness: 0.27"
 R-2840

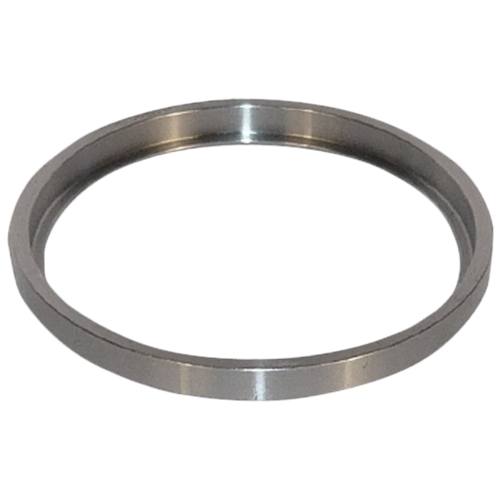

0 Bearing Adapter Washer HP, Use With Bearing NTA-3244 (.078" thick)
  • Outer Dia: 3"
  • Inner Dia: 2.78"
  • Thickness: 0.26"
 R-3244

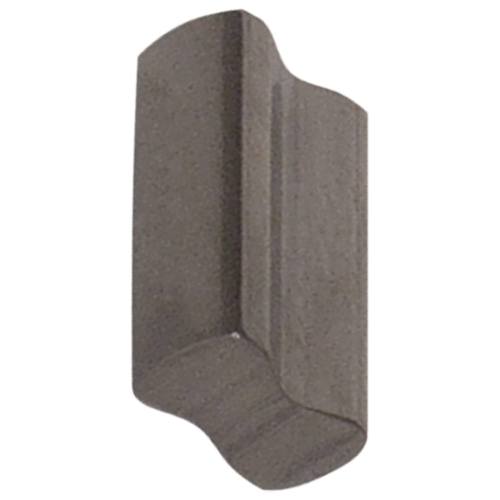

0 Cam (Sprag Element) .532 Skinny S-532
0 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 3.000"
  • Pump Drive Type: slots
 SH-1-300
0 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.875"
  • Pump Drive Type: slots
  • Hardness: Rc 32-36
 SH-1-300AGRC
0 Impeller Hub
  • Journal Dia: 1.874"
  • Height: 3.000"
  • Hub Mount: Butt
  • Pump Drive Type: slots
 SH-1-300G

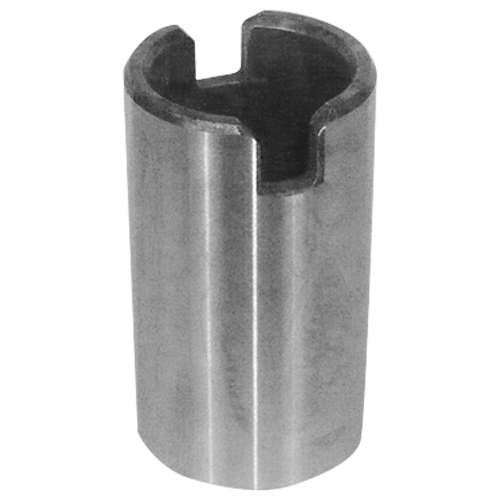

0 Impeller Hub Heat Treated GM Universal
  • Journal Dia: 1.874"
  • Height: 3.000"
  • Hub Mount: Butt
  • Pump Drive Type: slots
 SH-1-300GRC
0 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 5.520"
  • Pump Drive Type: slots
 SH-1-500G
0 Impeller Hub
  • Journal Dia: 1.750"
  • Installed Height: 5.250"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
 SH-1-500GRC
0 Bearing Adapter Washer Use With Bearing SW-2-11
  • Outer Dia: 3.63"
  • Inner Dia: 3.39"
  • Thickness: 0.14"
 SW-2-11R
0 Bearing Adapter Washer HP, Use With Bearing SW-2-12
  • Outer Dia: 3.54"
  • Inner Dia: 3.29"
  • Thickness: 0.15"
 SW-2-12R

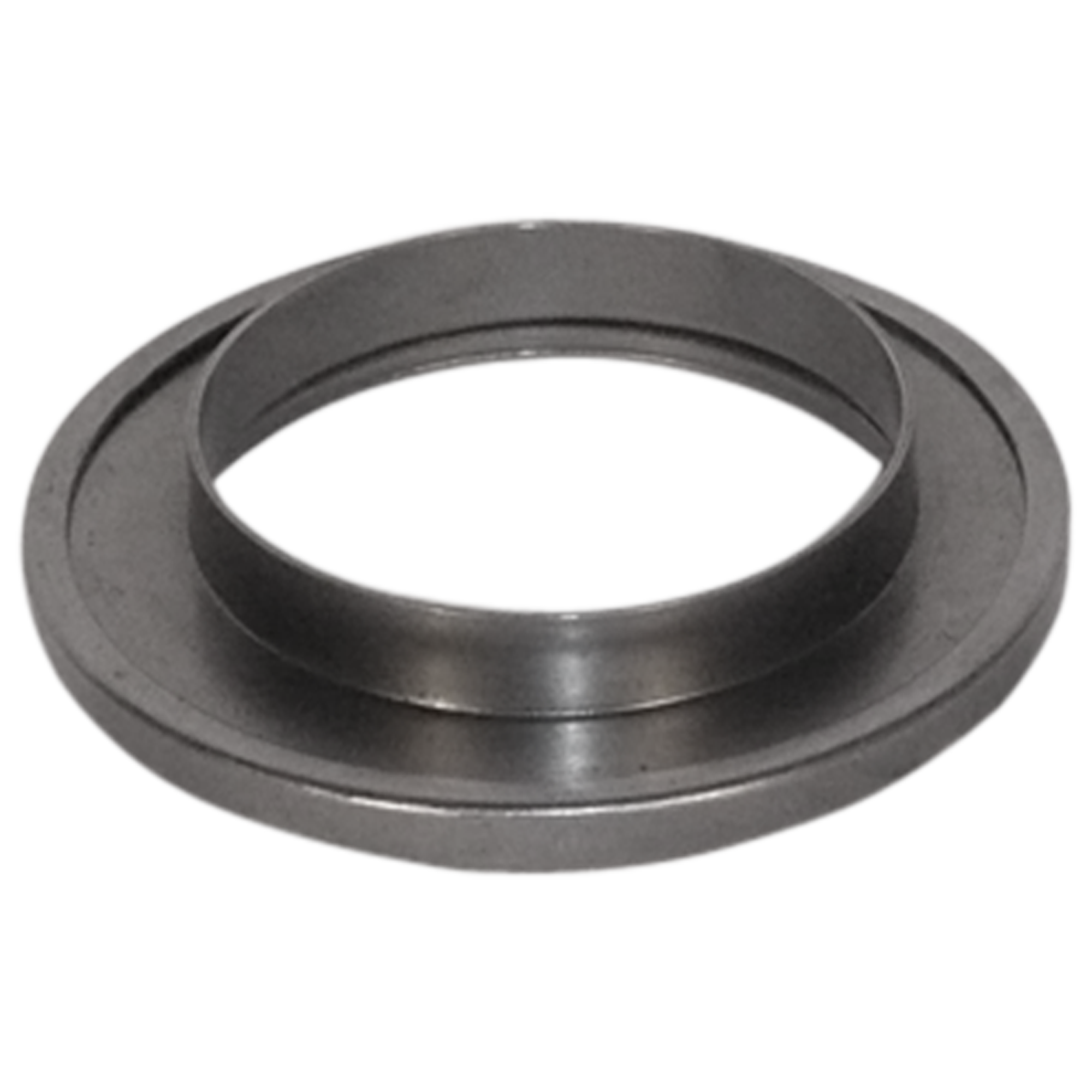

0 Bearing
  • Outer Dia: 2.5
  • Inner Dia: 1.66
  • Thickness: 0.175
  • Outer Dia Metric: 63.5
  • Inner Dia metric: 42.16
  • Thickness metric: 4.45
  • Bearing type: Enclosed, I.D. Lip
 SW-2-13
0 Bearing
  • Outer Dia: 3.082
  • Inner Dia: 1.77
  • Thickness: 0.394
  • Outer Dia Metric: 78.28
  • Inner Dia metric: 44.96
  • Thickness metric: 10.01
  • Bearing type: Semi- Enclosed
  • Race: SW-2-19
 SW-2-14

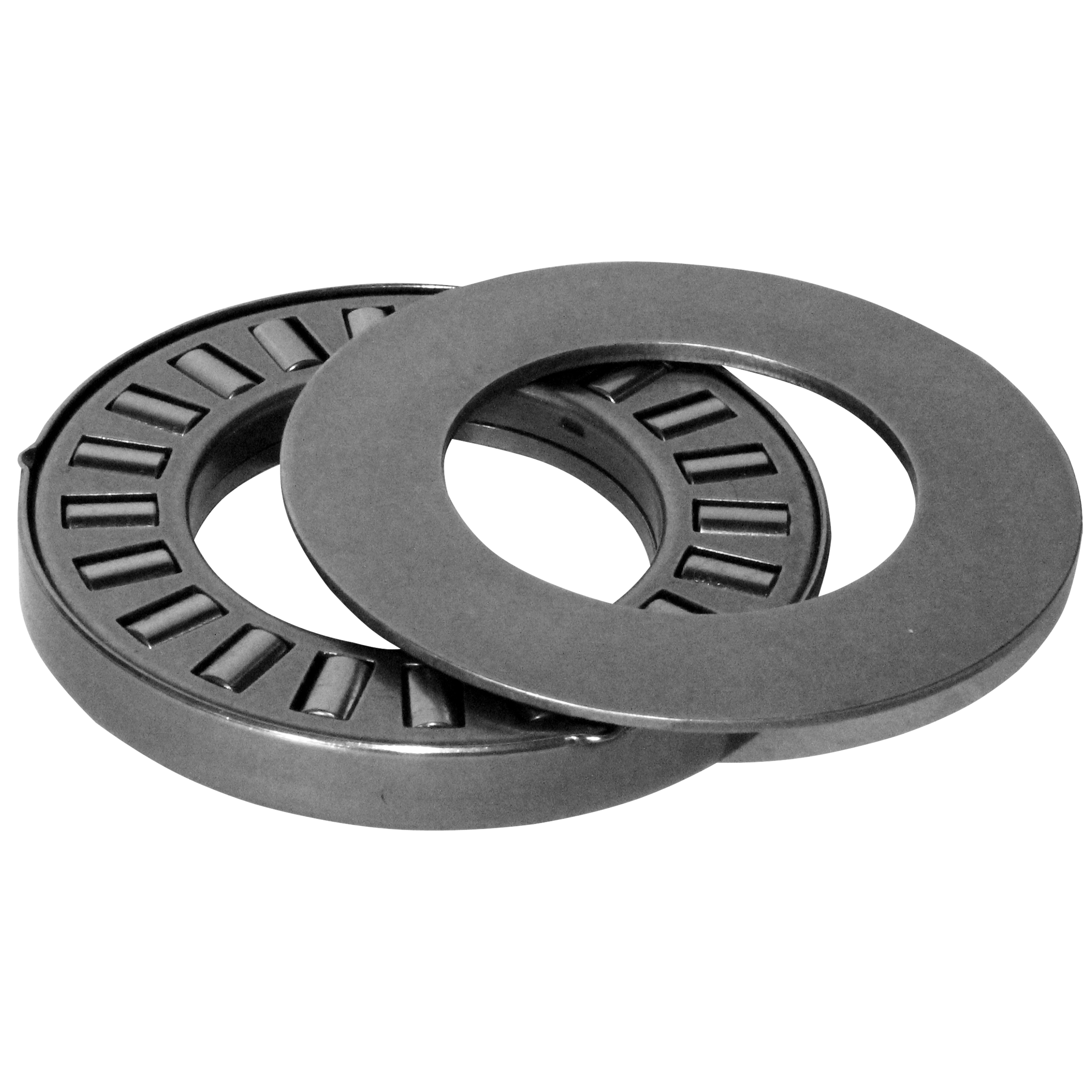

0 Bearing & Race Kit Allison
  • Outer Dia: 3.09"
  • Inner Dia: 1.77"
 SW-2-14K
0 Bearing
  • Outer Dia: 3.09"
  • Inner Dia: 1.77"
  • Thickness: 0.394
 SW-2-14T

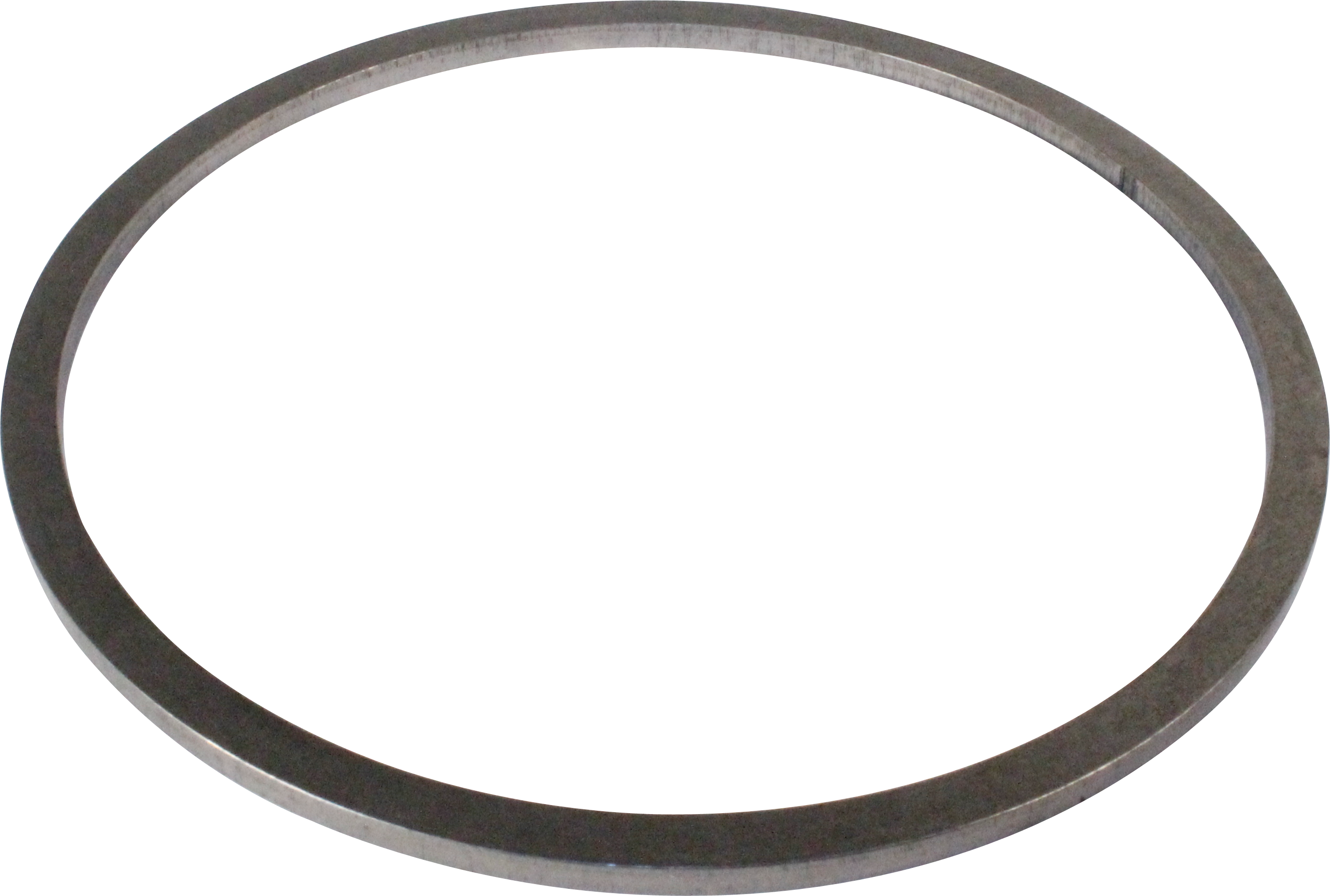

0 Bearing Adapter Washer Use With Bearing SW-2-18
  • Outer Dia: 4.22"
  • Inner Dia: 3.85"
  • Thickness: 0.13"
 SW-2-18R
0 Bearing Use with Race SW-2-30 Or SW-2-60
  • Outer Dia: 2.17
  • Inner Dia: 1.5
  • Thickness: 0.078
  • Outer Dia Metric: 55.12
  • Inner Dia metric: 38.1
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Race: JW-9-8, JW-9-9, SW-2-30, SW-2-60, SW-2-4, SW-2-6
 SW-2D

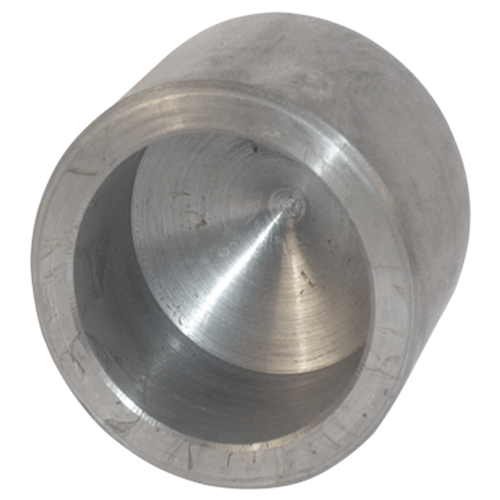

0 Pilot
  • TRI SUPPLIES PILOTS FOR ALL APPLICATIONS
 SX-23A
0 Pilot
  • TRI SUPPLIES PILOTS FOR ALL APPLICATIONS
 SX-23D
0 Pilot Precision Finished
  • TRI SUPPLIES PILOTS FOR ALL APPLICATIONS
 SX-23HP
0 Pilot
  • TRI SUPPLIES PILOTS FOR ALL APPLICATIONS
 SX-23HPA

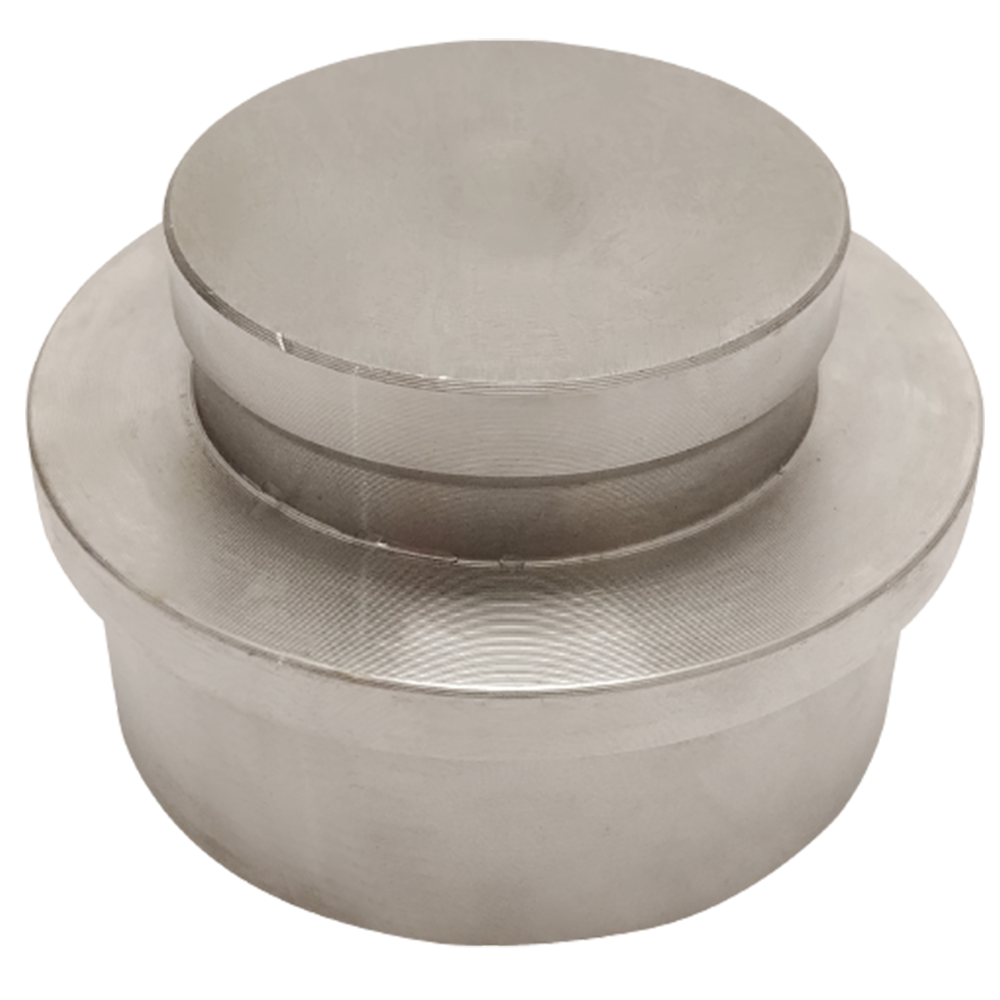

0 Pilot For GM 245mm. Used with SX-24-1HP
  • Outer Dia: 1.703"
 SX-23M
0 Ring
  • Inner Dia: 8.000"
  • Thickness: 0.375"
  • Bolt Circle Dia.: 10.75"
 SX-24-1HP
0 Stator "086" For Diode SX-5-10
0 Bearing Race
  • Outer Dia: 1.920"
  • Inner Dia: 1.25"
  • Thickness: 0.030"
 TRA-2031
0 Bearing Race
  • Outer Dia: 2.06"
  • Inner Dia: 1.380
  • Thickness: 0.030"
 TRA-2233
0 Bearing Race
  • Outer Dia: 2.50"
  • Inner Dia: 1.75"
  • Thickness: 0.030"
 TRA-2840
0 Bearing Race
  • Outer Dia: 2.75"
  • Inner Dia: 2.00"
  • Thickness: .03"
 TRA-3244
0 Bearing Race
  • Outer Dia: 2.88"
  • Inner Dia: 2.13"
  • Thickness: 0.030"
 TRA-3446
0 Bearing Race
  • Outer Dia: 1.925"
  • Inner Dia: 1.25"
  • Thickness: 0.06"
 TRB-2031

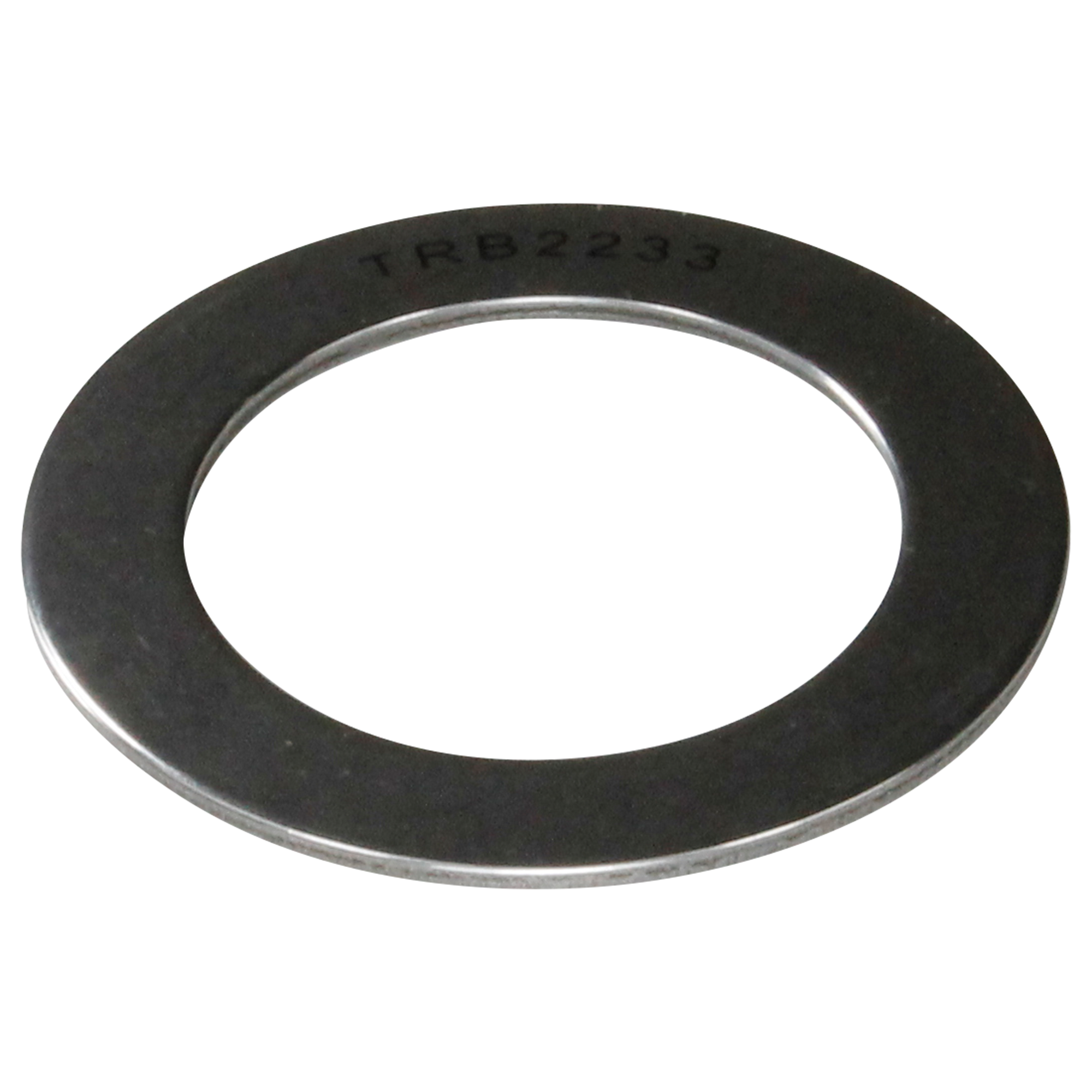

0 Bearing Race
  • Outer Dia: 2.062"
  • Inner Dia: 1.375"
  • Thickness: 0.062"
 TRB-2233
0 Bearing Race Kit 0.060" (replaces TRB-2233)
  • Outer Dia: 2.062"
  • Inner Dia: 1.375"
 TRB-2233K
0 Bearing Race
  • Outer Dia: 2.50"
  • Inner Dia: 1.75"
  • Thickness: 0.060"
 TRB-2840
0 Bearing Race
  • Outer Dia: 2.75"
  • Inner Dia: 2.00"
  • Thickness: .06"
 TRB-3244
0 Bearing Race
  • Outer Dia: 2.062"
  • Inner Dia: 1.375"
  • Thickness: 0.094"
 TRC-2233
0 Bearing Enclosed
  • Outer Dia: 2.82
  • Inner Dia: 1.898
  • Thickness: 0.181
  • Outer Dia Metric: 71.63
  • Inner Dia metric: 48.21
  • Thickness metric: 4.6
  • Bearing type: Enclosed
 TW-2-4
0 Bearing
  • Outer Dia: 2.82"
  • Inner Dia: 1.9"
  • Thickness: 0.181"
  • Bearing type: Enclosed
 TW-2-4NA
0 Bearing Adapter Washer HP, Use With Bearing TW-2-4
  • Outer Dia: 3.19"
  • Inner Dia: 2.93"
  • Thickness: 0.13"

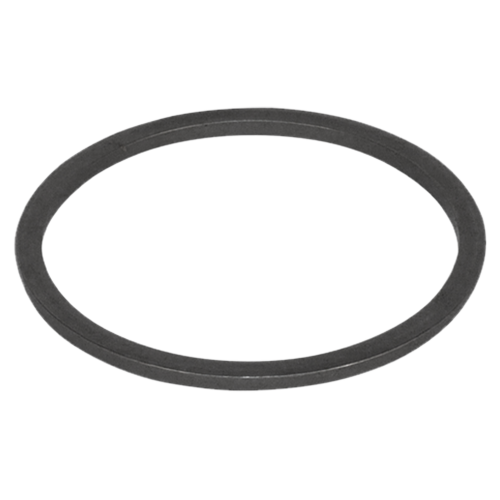

 TW-2-4R
0 Bearing Race
  • Outer Dia: 2.500"
  • Inner Dia: 1.750"
  • Thickness: 0.062"
 TWB-2840
0 Pilot
  • TRI SUPPLIES PILOTS FOR ALL APPLICATIONS
 TX-17-3
0 Pilot
  • TRI SUPPLIES PILOTS FOR ALL APPLICATIONS
 TX-23-1
0 Misc NPN-SPL
