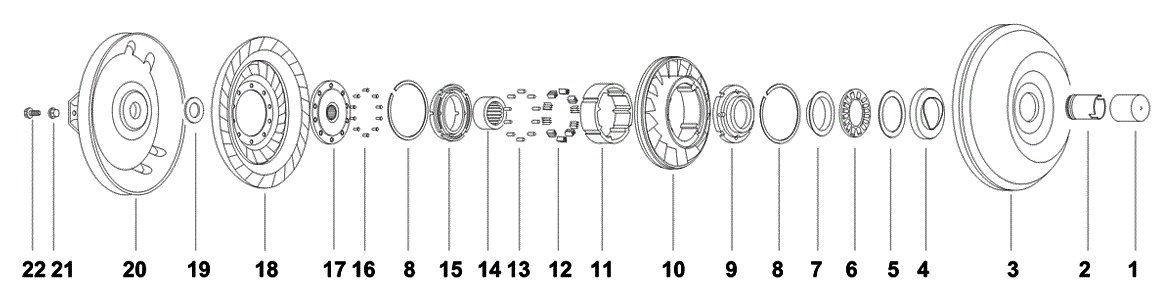

Torque Converter | GM | TH350 Chevrolet, TH250 (Vega) | General Motors | TH-350 Chevrolet, TH-250 (Vega)

Ill.# Image Description Specification Part #
0 Misc NPN-SPL
0 Bearing
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 2.17
  • Inside Dia: 1.5
  • Outside Dia Metric: 55.12
  • Inside Dia metric: 38.1
  • Race: TRA-2435 (SW-2-30) .030" thick, Race: TRB-2435 (SW-2-60) .060" thick .
 NTA-2435
0 Bearing
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 2.17
  • Inside Dia: 1.5
  • Outside Dia Metric: 55.12
  • Inside Dia metric: 38.1
  • Race: JW-9-8, JW-9-9, SW-2-30, SW-2-60, SW-2-4, SW-2-6
 SW-2D
0 Ring Kit Mount, TH350/TH400,10" HP SX-22-28KHP
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
 MHC-YB
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-Y
2 Impeller Hub TH250 (VEGA)
  • Journal Dia: 1.874"
  • Installed Height: 2.460"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 CH-1-10GRC
2 Impeller Hub TH350 CHEVROLET
  • Journal Dia: 1.874"
  • Height: 2.080"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-16GRC
2 Impeller Hub Heat Treated (Black), HD TH350 CHEVROLET
  • Journal Dia: 1.874"
  • Installed Height: 2.150"
  • Pump Drive Type: Slots
 SH-1-4B
2 Impeller Hub TH250 (VEGA)
  • Journal Dia: 1.874"
  • Height: 2.45"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 CH-1-10TGRC
2 Impeller Hub CH-1-10TG
2 Impeller Hub Without Groove
  • Journal Dia: 1.874"
  • Installed Height: 2.075"
  • Pump Drive Type: Slots
 SH-1-6G
2 Impeller Hub TH350 CHEVROLET
  • Journal Dia: 1.874"
  • Installed Height: 2.075"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-6GRC
2 Impeller Hub
  • Journal Dia: 1.874"
  • Height: 2.150"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • With Pilot Step
 SH-1G
2 Impeller Hub TH350 CHEVROLET
  • Journal Dia: 1.874"
  • Height: 2.150"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
  • With Pilot Step
 SH-1GRC
2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.460"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
 CH-1-10G
2 Impeller Hub TH350 CHEVROLET
  • Journal Dia: 1.874"
  • Installed Height: 2.150"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-4GRC
3 Impeller NPN-1-30-3
4 Bearing Race Outer
  • Thickness: .030"
  • Outside Dia: 2.25"
  • Inside Dia: 1.44"
 SW-2-4
5 Washer Steel
  • Thickness: .030"
  • Hardness: Rc 32-36
  • Outside Dia: 2.175"
  • Inside Dia: 1.51"
 SW-2-30
5 Washer Bearing Race
  • Thickness: .030"
  • Hardness: Rc 32-36
  • Material: Steel
  • Outside Dia: 2.175"
  • Inside Dia: 1.51"
 TRA-2435
5 Bearing Race
  • Thickness: 0.06"
  • Hardness: Rc 32-36
  • Outside Dia: 2.175"
  • Inside Dia: 1.51"
 SW-2-60
6 Bearing
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.175
  • Inside Dia: 1.506
  • Outside Dia Metric: 55.25
  • Inside Dia metric: 38.25
  • Race: SW-2-6, SW-2-4 WW-2-8
 SW-2-1
6 Bearing Heavy Duty
  • Thickness: 0.156
  • Thickness metric: 3.96
  • Bearing type: Exposed
  • Outside Dia: 2.175
  • Inside Dia: 1.506
  • Outside Dia Metric: 55.25
  • Inside Dia metric: 38.25
  • Race: SW-2-6, SW-2-4 WW-2-8
 SW-2-1HD
6_N.I. Bearing & Race Kit
  • Includes SW-2-4, SW-2-1, SW-2-6
 SW-2-3K
6_N.I. Bearing & Race Kit Heavy Duty
  • Includes: SW-2-4, SW-2-1HD, SW-2-6
 SW-2-3KHD
7 Bearing Race Inner
  • Thickness: .030"
  • Outside Dia: 2.07"
  • Inside Dia: 1.48"
  • Inside Lip
 SW-2-6
8 Snap Ring 2 Pieces Required.
  • Outside Dia: 3.40"
 CX-20
9 Stator Cap
  • Thickness: 0.500"
  • Material: Aluminum
  • Outside Dia: 3.245"
  • Inside Dia: 1.560"
  • Total Thickness: 0.500". Outer Notch Count: 4. Casting # 3924724
 CW-4-4
9 Stator Cap
  • Thickness: 0.560"
  • Material: Aluminum
  • Outside Dia: 3.447"
  • Inside Dia: 1.560"
  • OE# 3924723
 CW-4-5
10 Stator NPN-1-30-10
11 Outer Race (Cam) Stator
  • Outside Dia: 3.250"
 CX-15
11 Outer Race (Cam) Stator Vega
  • Thickness: 0.563
 CX-15-2
12 Accordion Spring 8 Pieces Required.
  • Height: 0.3"
  • Width: 0.812"
  • Folds: 4
 CS-6
12 Accordion Spring Vega. 8 Pieces Required.
  • Height: 0.28"
  • Width: 0.504"
  • Folds: 4
 CS-6-1
13 Roller stator 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.86"
 CR-7
13 Roller Vega 8 Pieces Required.
  • Dia: 0.314"
  • Length: 0.54"
 32960R
13 Roller Vega. 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.5"
 CR-7-1
14 Inner Race Stator, splined
  • Height: 0.938"
  • Internal Teeth: 27
  • Outside Dia: 2.188"
 CX-14
14 Inner Race Stator Vega
  • Height: 0.560"
  • Internal Teeth: 27
  • Outside Dia: 2.188"
  • Inside Dia: 1.310"
 CX-14-1
14 Inner Race Stator, Heavy Duty Material (52100)
  • Internal Teeth: 22
  • Extra Deep Hardening
 CX-14HD
15 Stator Cap
  • Thickness: .59"
  • Material: Phenolic
  • Outside Dia: 3.23"
  • Inside Dia: 1.78"
  • Casting# 3735785, 6264945
 CW-4P
15 Stator Cap
  • Thickness: 0.47"
  • Material: Aluminum
  • Outside Dia: 3.22"
  • Inside Dia: 1.87"
  • Casting # 3831525, 6264946. Use With CW-3 Bronze Washer
 CW-4-2
15 Stator Cap aluminum
  • Material: Aluminum
  • Outside Dia: 3.23"
  • Inside Dia: 1.75"
 CW-4
15 Stator Cap
  • Outside Dia: 3.23"
  • Inside Dia: 1.78"
 CW-4A
15 Stator Cap
  • Outside Dia: 3.4"
  • Inside Dia: 1.77"
 CW-4-3
15 Stator Cap Fits large diameter stator
  • Thickness: 0.59"
  • Material: Phenolic
  • Outside Dia: 3.4"
  • Inside Dia: 1.77"
  • Casting#: 6264946
 CW-4-3P
15 Stator Cap Vega
  • Thickness: 0.46"
  • Material: Phenolic
  • Outside Dia: 3.22"
  • Inside Dia: 1.87"
  • Use With CW-3 Bronze Washer. Casting#: 326504
 CW-4-6
16 Rivet 10 Pieces Required.
  • Length: 0.31"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet head dia: 0.312"
 WX-12A
17 Turbine Hub
  • Outside Dia: 4"
 CX-13-1

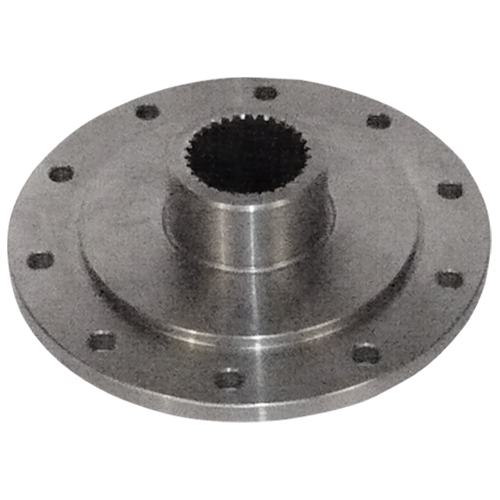

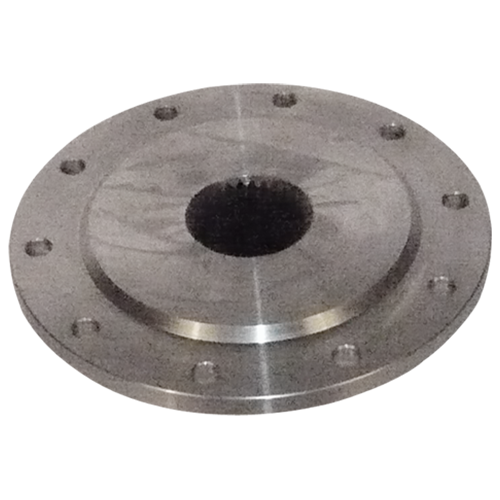

17 Turbine Hub
  • Height: 0.960"
  • Internal Teeth: 30
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4"
 CX-13-1HT
17 Turbine Hub
  • Internal Teeth: 30 (TH350)
  • Material: STEEL
 CX-13-1S
17 Component (For CX-13-1SMK)
  • Outside Dia: 4"
 CX-13-1SM
17 Turbine Hub Kit
  • Height: 4.000
  • Outside Dia: 4"
 CX-13-1SMK
17 Turbine Hub CX-13-4
17 Turbine Hub
  • Internal Teeth: 30
  • Hardness: Heat-Treated (hardened)
  • Material: Steel
 CX-13-4HT
18 Turbine
  • Internal Teeth: 30
  • Outside Dia: 11-7/8"
 NPN-1-30-18
19 Turbine Washer
  • Thickness: .045"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4T
19 Turbine Washer
  • Thickness: .045"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4TF
19 Turbine Washer
  • Thickness: .062
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4A
19 Turbine Washer
  • Thickness: .062
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4AF
19 Turbine Washer
  • Thickness: .070"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4B
19 Turbine Washer
  • Thickness: .070"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4BF
19 Turbine Washer
  • Thickness: .072"
  • Material: Plastic
  • Outside Dia: 2.76"
  • Inside Dia: 1.34"
 FW-9-4C
19 Turbine Washer
  • Thickness: .079"
  • Material: Fiber
  • Outside Dia: 2.76"
  • Inside Dia: 1.34"
 FW-9-4CF
19 Turbine Washer
  • Thickness: .087"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4D
19 Turbine Washer
  • Thickness: .087"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4DF
19 Turbine Washer
  • Thickness: .087"
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4DS
19 Turbine Washer
  • Thickness: .094
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4E
19 Turbine Washer
  • Thickness: .094
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4EF
19 Turbine Washer Add Suffix “F” For Fiber
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 CW-9-3

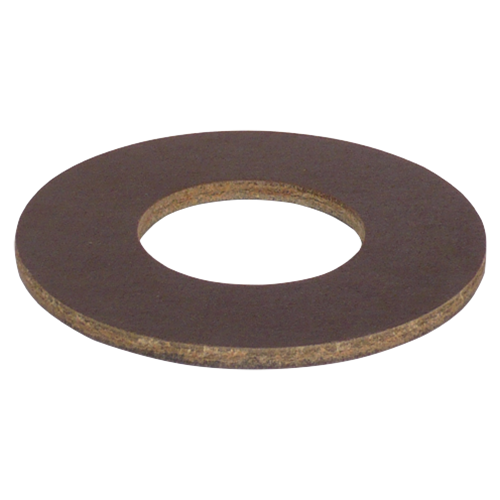

19 Turbine Washer Add Suffix “F” For Fiber
  • Thickness: .125"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 CW-9-3F
19 Turbine Washer
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 CW-9-3B

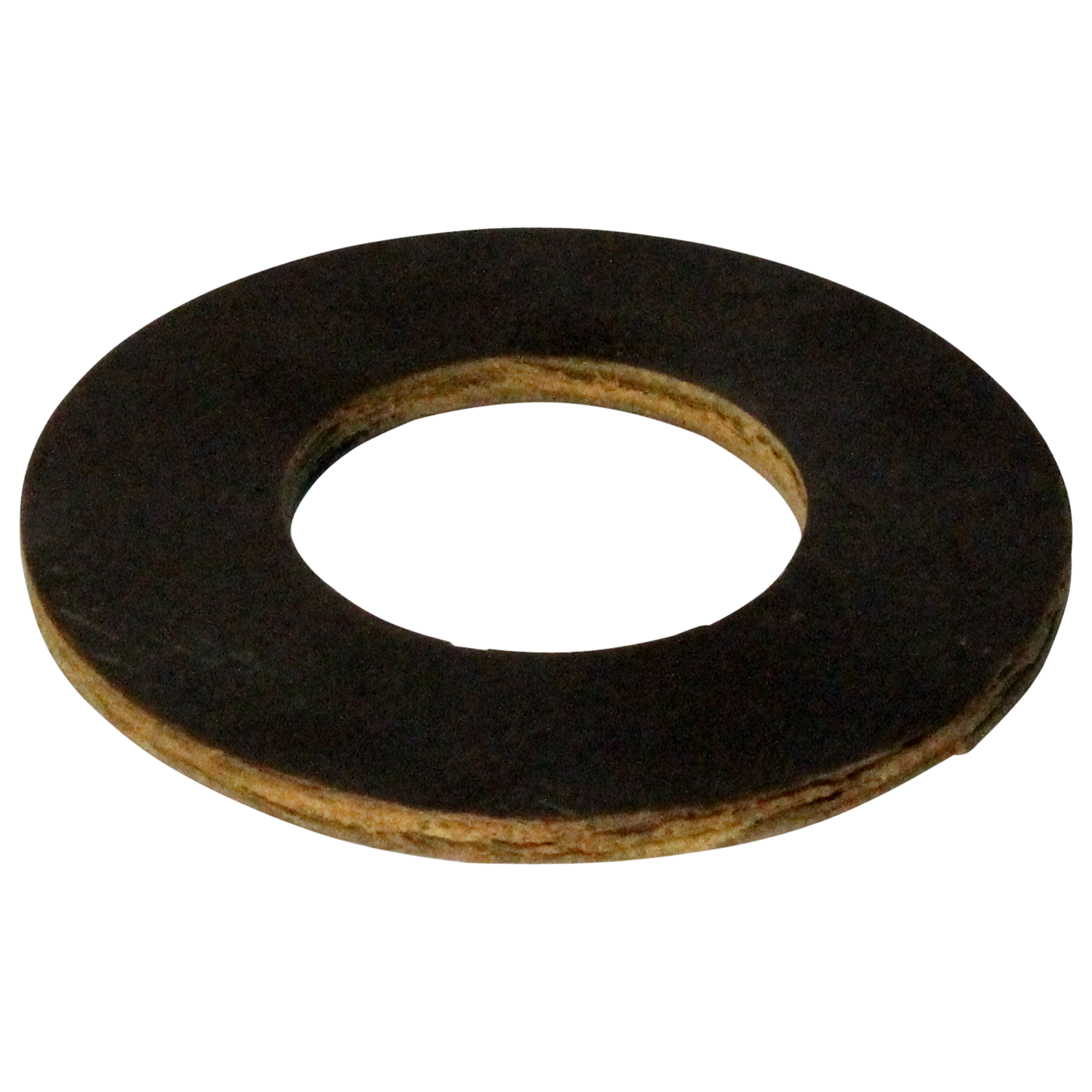

19 Turbine Washer
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 CW-9-3BF
19 Turbine Washer
  • Thickness: .106"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4F
19 Turbine Washer
  • Thickness: .106"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4FF
19 Turbine Washer
  • Thickness: .188"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4G
19 Turbine Washer
  • Thickness: .188"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4GF
20 Front Cover NPN-1-30-20
21 Nut Hex 3 Pieces Required.
  • Dimensions: 3/8"- 24
  • Length: 0.330"
 N-63
21 Nut Converter 6 Pieces Required. 26761
21 Nut Special Locking 6 Pieces Required.
  • Height: .34"
  • Dimensions: 3/8"-24
  • Length: 0.330"
 FX-10-7
21 Nut & Studcap Kit 4 Pieces Each FX-10-7K4STD
22 Bolt Hex Head 3 Pieces Required.
  • Dimensions: 3/8" x 24
  • Length: 9/16"
  • OE# 3799830
 B-63
