Torque Converter | GM | TH350 Buick, Oldsmobile, Pontiac (Includes TH300) | General Motors | TH-350 Buick, Oldsmobile, Pontiac (Includes TH-300)

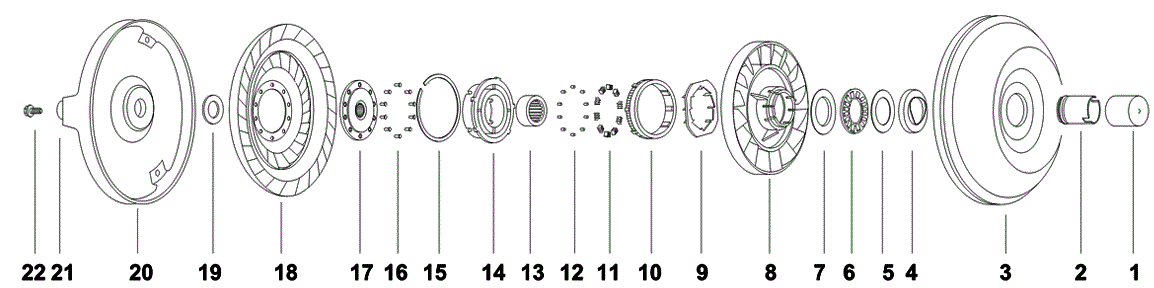

Ill.# Image Description Specification Part #
0 Misc NPN-SPL
0 Bearing
  • Outer Dia: 2.17
  • Inner Dia: 1.5
  • Thickness: 0.078
  • Outer Dia Metric: 55.12
  • Inner Dia metric: 38.1
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Race: TRA-2435 (SW-2-30) .030" thick, Race: TRB-2435 (SW-2-60) .060" thick .
NTA-2435
0 Shim Support
  • Outer Dia: 3.600"
  • Inner Dia: 2.350"
  • Thickness: 0.010"
  • Material: Steel
SW-2-44
0 Bearing Use with Race SW-2-30 Or SW-2-60
  • Outer Dia: 2.17
  • Inner Dia: 1.5
  • Thickness: 0.078
  • Outer Dia Metric: 55.12
  • Inner Dia metric: 38.1
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Race: JW-9-8, JW-9-9, SW-2-30, SW-2-60, SW-2-4, SW-2-6
SW-2D
0 Stator Cap Bearing Adapter
  • Outer Dia: 3.74"
  • Inner Dia: 1.690"
  • Thickness: 1.031"
  • Material: Aluminum
  • Use with SW-2-12 bearing
SW-4-34
0 Ring Kit Mount, TH350/TH400,10" HP SX-22-28KHP
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
MHC-Y
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
MHC-YA
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
MHC-YB
2 Impeller Hub
  • Journal Dia: 1.874"
  • Height: 2.150"
  • Hub Mount: Butt
  • Pump Drive Type: slots
  • With Pilot Step
SH-1G
2 Impeller Hub
  • Journal Dia: 1.874"
  • Height: 2.150"
  • Hub Mount: Butt
  • Pump Drive Type: slots
  • Hardness: Rc 32-36
  • With Pilot Step
SH-1GRC
2 Impeller Hub
  • Journal Dia: 1.874"
  • Height: 2.250"
  • Hub Mount: Butt
  • Pump Drive Type: slots
  • With Pilot Step
SH-1-47G
2 Impeller Hub
  • Journal Dia: 1.874"
  • Height: 2.250"
  • Hub Mount: Butt
  • Pump Drive Type: slots
  • Hardness: Rc 32-36
  • With Pilot Step
SH-1-47GRC
2 Impeller Hub Heat Treated (Black), HD
  • Journal Dia: 1.874"
  • Installed Height: 2.150"
SH-1-4B
2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.150"
  • Pump Drive Type: slots
SH-1-4G
2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.150"
  • Pump Drive Type: slots
  • Hardness: Rc 32-36
SH-1-4GRC
2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.200"
  • Hub Mount: Butt
  • Pump Drive Type: slots
SH-1-5G
2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.200"
  • Hub Mount: Butt
  • Pump Drive Type: slots
  • Hardness: Rc 32-36
SH-1-5GRC
2 Impeller Hub
  • Journal Dia: 1.874"
  • Height: 2.25"
  • Hub Mount: Butt
  • Hardness: Rc 32-36
SH-1-11GRC
2 Impeller Hub
  • Journal Dia: 1.874"
  • Height: 2.080"
  • Hub Mount: Butt
  • Pump Drive Type: slots
SH-1-16G
2 Impeller Hub
  • Journal Dia: 1.874"
  • Height: 2.080"
  • Hub Mount: Butt
  • Pump Drive Type: slots
  • Hardness: Rc 32-36
SH-1-16GRC
2 Impeller Hub Without Groove
  • Journal Dia: 1.874"
  • Installed Height: 2.075"
  • Pump Drive Type: slots
SH-1-6G
2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.075"
  • Hub Mount: Butt
  • Pump Drive Type: slots
SH-1-6GRC
3 Impeller NPN-1-32-3
4 Bearing Race Outer
  • Outer Dia: 2.25"
  • Inner Dia: 1.44"
  • Thickness: .030"
SW-2-4
5 Washer Steel
  • Outer Dia: 2.167"
  • Inner Dia: 1.51"
  • Thickness: .030"
  • Hardness: Rc 32-36
SW-2-30
5 Washer Bearing Race
  • Outer Dia: 2.175"
  • Inner Dia: 1.51"
  • Thickness: .030"
  • Hardness: Rc 32-36
  • Material: Steel
TRA-2435
5 Bearing Race
  • Outer Dia: 2.175"
  • Inner Dia: 1.51"
  • Thickness: 0.06"
  • Hardness: Rc 32-36
SW-2-60
6 Bearing
  • Outer Dia: 2.175
  • Inner Dia: 1.506
  • Thickness: 0.125
  • Outer Dia Metric: 55.25
  • Inner Dia metric: 38.25
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Race: SW-2-6, SW-2-4 WW-2-8
SW-2-1
6 Bearing Heavy Duty
  • Outer Dia: 2.175
  • Inner Dia: 1.506
  • Thickness: 0.156
  • Outer Dia Metric: 55.25
  • Inner Dia metric: 38.25
  • Thickness metric: 3.96
  • Bearing type: Exposed
  • Race: SW-2-6, SW-2-4 WW-2-8
SW-2-1HD
6_N.I. Bearing & Race Kit
  • Contains SW-2-4, SW-2-1, SW-2-6
SW-2-3K
6_N.I. Bearing & Race Kit Heavy Duty Contains SW-2-4, SW-2-1HD, SW-2-7
  • Contains: SW-2-4, SW-2-1HD, SW-2-6
SW-2-3KHD
7 Bearing Race Inner
  • Outer Dia: 2.07"
  • Inner Dia: 1.48"
  • Thickness: .030"
  • Inside Lip
SW-2-6
7 Bearing Race Inner, Outside Lip
  • Outer Dia: 2.110"
  • Inner Dia: 1.557"
  • Thickness: 0.030"
  • Hardness: Hardened
  • Outside Lip
SW-2-5

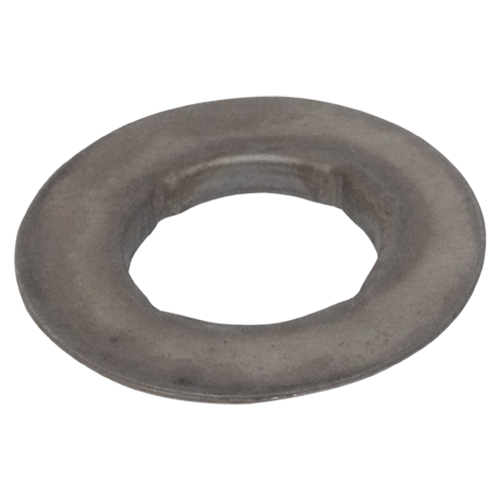

7_N.I. Washer Flanged (Pontiac)
  • Outer Dia: 2"
  • Inner Dia: 1.43"
  • Thickness: .030"
  • Material: Steel
SW-2-7
7_N.I. Washer converter sun gear (Pontiac)
  • Outer Dia: 2.55"
  • Inner Dia: 1.73"
  • Material: Bronze
  • 3 Tang
SW-3
8 Stator Fixed Pitch SX-5-3F
8_N.I. Bushing Stator, Variable Pitch 2 Pieces Required.
  • Outer Dia: 1.553
  • Inner Dia: 1.4340
  • Width: 0.438
  • housing bore dia: 1.55
  • Shaft Dia: 1.432
  • Material: Babbit
SB-18
9 Spring Retainer Stator
  • Height: 0.530"
  • Dimensions: 3.120" x 3.120"
  • Material: Steel
  • For .575" Long Rollers
SX-15B
9 Spring Retainer Stator
  • For .444" Long, Rollers
SX-15-2
10 Outer Race (Cam) Stator, 10 Pocket Converts for Chrysler BW 310mm LU (A618), TH-400 (3L80), AT-540 & Buick TH-350
  • Outer Dia: 3.602"
  • Length: 0.591"
SX-15A
10 Outer Race (Cam) Stator
  • For .444" Long Rollers
SX-15C
10 Spring Retainer Stator, HD SX-15-5
10.1 Shim Conversion Spacer converts BW 310mm LU (A618), GM 400 (3L80), AT-540 & Buick 350 to upgrade OE stator clutch assembly. Used with Outer-Race SX-15A
  • Outer Dia: 3.600"
  • Inner Dia: 2.350"
  • Thickness: 0.039"
SW-2-45
11 Accordion Spring 10 Pieces Required.
  • Height: Relaxed Height: 0.225"
  • Width: 0.560"
  • Folds: 3
  • Material: Steel
  • Relaxed Height: 0.225", Relaxed Length: 0.438"
SS-6
11 Accordion Spring 10 Pieces Required.
  • Height: 0.225"
  • Width: 0.43"
  • Folds: 3
SS-6-1
11 Accordion Spring 10 Pieces Required.
  • Height: 0.240"
  • Width: 0.560"
  • Folds: 5
SS-6-6
12 Roller 10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
SR-7
12 Roller
  • Dia: 0.31"
  • Length: 0.437"
35724R
12 Roller
  • Dia: 0.312"
  • Length: 0.432"
FR-7-1
12 Roller 10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.444"
SR-7-1
13 Inner Race Stator
  • Height: 1.040"
  • Outer Dia: 2.156"
  • External teeth: 27
SX-14
13 Inner Race Stator TX-14-3
14 Stator Cap
  • Outer Dia: 3.72"
  • Inner Dia: 1.72"
  • Thickness: 1.050"
  • Material: Aluminum
  • 8623015, 25210078
SW-4-2A
14 Stator Cap 5 Lugs
  • Outer Dia: 3.86"
  • Inner Dia: 1.72"
  • Thickness: 1.05"
  • Material: Phenolic
  • Shorter than SW-4-5. Casting#: 8624734.
SW-4-2
14 Washer Kit Contains: SW-4-17 and SW-2-12
  • Outer Dia: 3.86"
  • Inner Dia: 1.72"
SW-4-2K
14 Stator Cap With Ribs, No Lugs
  • Outer Dia: 3.75"
  • Inner Dia: 1.72"
  • Thickness: 1.05"
  • Material: Phenolic
  • Casting#: 8626167
SW-4-2B
14 Stator Cap With Ribs and 5 Lugs
  • Outer Dia: 3.75"
  • Inner Dia: 1.70"
  • Thickness: 1.055"
  • Material: Phenolic
SW-4-2C
14 Stator Cap With Ribs, No Lugs, With cavities (not solid) Late
  • Outer Dia: 3.740"
  • Inner Dia: 1.720"
  • Thickness: 1.190"
  • Material: Phenolic
  • Casting#: 8629512
SW-4-5

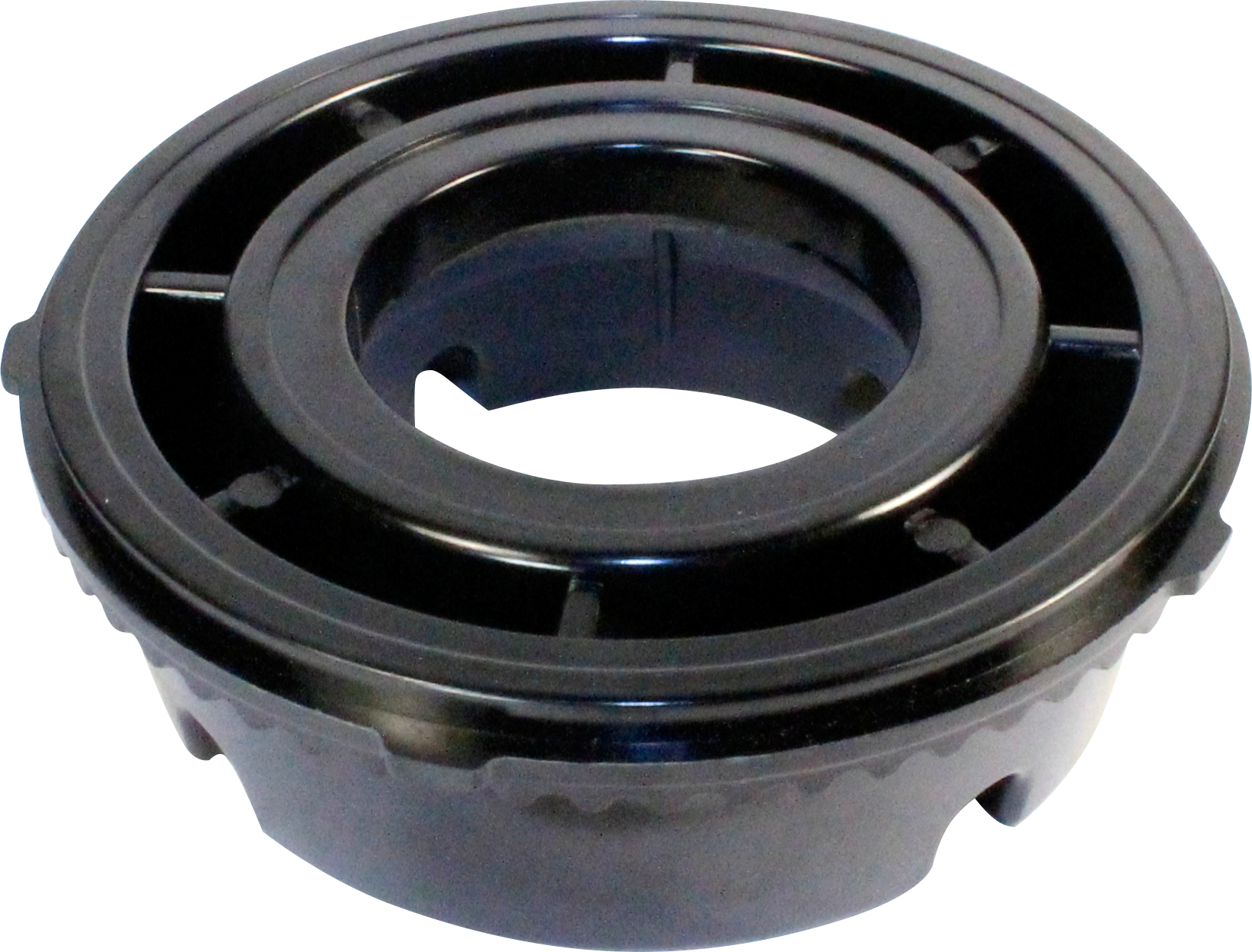

14 Stator Cap 5 Lug, With cavities (not solid) Late
  • Outer Dia: 3.75"
  • Inner Dia: 2.41"
  • Thickness: 1.19"
  • Material: Phenolic
  • 8629512
SW-4-5D
14 Stator Cap Bearing Adapter, 5 Lugs
  • Outer Dia: 3.75"
  • Inner Dia: 1.7"
  • Thickness: 1.03"
  • Material: Aluminum
  • Used With SW-2-12 Bearing, Replaces SW-4-2
SW-4-17
14 Stator Cap Bearing Adapter, For SW-2-12 Bearing, Replaces SW-4-5
  • Outer Dia: 3.74"
  • Inner Dia: 1.73"
  • Thickness: 1.12"
  • Material: Aluminum
SW-4-24
14 Stator Cap Conversion
  • Outer Dia: 3.235"
  • Inner Dia: 1.780"
  • Thickness: 1.200"
  • Material: Phenolic
  • Total Thickness: 1.200". Outer Notch Count: 4. Adapts Powerglide Stator To Fit TH350 Buick, Oldsmobile,-Pontiac TH350 Convertors
CW-4-300
14.1 Bearing
  • Outer Dia: 3.28
  • Inner Dia: 2.388
  • Thickness: 0.255
  • Outer Dia Metric: 83.31
  • Inner Dia metric: 60.66
  • Thickness metric: 6.48
  • Bearing type: Enclosed
SW-2-12
14.1 Bearing Timken
  • Outer Dia: 3.28"
  • Inner Dia: 2.39"
  • Thickness: 0.25"
  • Bearing type: Enclosed
SW-2-12T
15 Snap Ring
  • Inner Dia: 3.785"
FX-20-12
15 Snap Ring
  • Inner Dia: 3.785"
TX-20-1
16 Rivet 10 Pieces Required.
  • Length: 0.312"
  • Rivet solid or tubular: T
  • Rivet Shank Dia: 0.214"
  • Rivet head dia: 0.312"
FX-12
16 Rivet 10 Pieces Required.
  • Length: 0.438"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.218"
  • Rivet head Type: Flat
SX-12-17
17 Turbine Hub
  • Outer Dia: 4.24"
SX-13S
17 Turbine Hub Heavy Duty
  • Height: 0.960"
  • Outer Dia: 4.24"
  • Internal Teeth: 30
  • Hardness: Heat Treated
SX-13SHT
19 Turbine Washer
  • Outer Dia: 2.750"
  • Inner Dia: 1.450"
  • Thickness: .063"
  • Material: Plastic
TW-9-5A
19 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.45"
  • Thickness: .063"
  • Material: Fiber
TW-9-5AF
19 Turbine Washer
  • Outer Dia: 2.750"
  • Inner Dia: 1.450"
  • Thickness: .083"
  • Material: Plastic
TW-9-5B
19 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.45"
  • Thickness: .094"
  • Material: Fiber
TW-9-5BF
19 Turbine Washer
  • Outer Dia: 2.74"
  • Inner Dia: 1.45"
  • Thickness: .12"
  • Material: Fiber
PW-9-1
19 Turbine Washer
  • Outer Dia: 2.750"
  • Inner Dia: 1.450"
  • Thickness: .118"
  • Material: Plastic
SW-9
19 Turbine Washer
  • Outer Dia: 2.750"
  • Inner Dia: 1.450"
  • Thickness: 0.118"
  • Material: Fiber
SW-9F
19 Turbine Washer
  • Outer Dia: 2.750"
  • Inner Dia: 1.450"
  • Thickness: .132"
  • Material: Plastic
SW-9-1
19 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.45"
  • Thickness: .130"
  • Material: Plastic
TW-9-5C
19 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.45"
  • Material: Fiber
TW-9-5CF
19 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.45"
  • Thickness: 0.125"
  • Material: Nylon
SW-9-1F

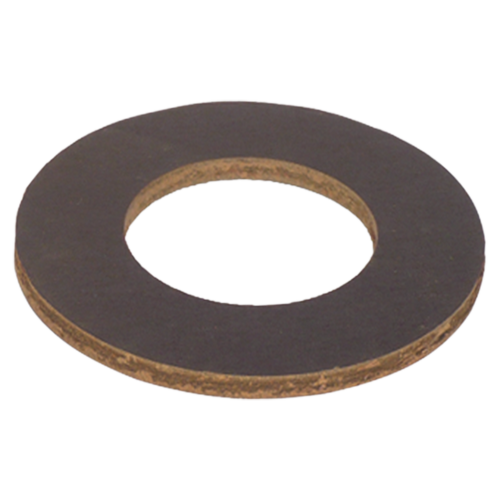

19 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.45"
  • Thickness: 0.146
  • Material: Fiber
SW-9-2F
19 Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.45"
  • Thickness: .160"
SW-9-3
19 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.45"
  • Thickness: 0.160"
  • Material: Fiber
SW-9-3F
19 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.45"
  • Thickness: .185"
SW-9-4
19 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.45"
  • Thickness: 0.185"
  • Material: Fiber
SW-9-4F
19 Turbine Washer
  • Outer Dia: 2.68"
  • Inner Dia: 1.46"
  • Thickness: 0.106"
  • Material: Fiber
SW-9-12
19 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.46"
  • Thickness: .205"
  • Material: Fiber
SW-9-13
20 Front Cover NPN-1-32-20
20_N.I. Pilot Spacer Pontiac SX-17-100

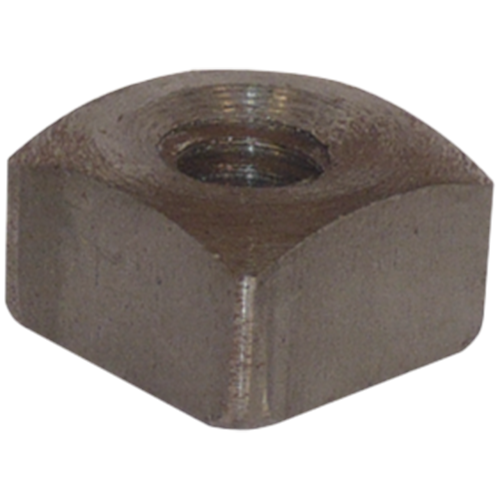

21 Mounting Pad 3 Pieces Required.
  • OE# 42437
SX-10-3
21 Mounting Pad 3 Pieces Required.
  • Dimensions: M10 x 1.5
SX-10-7
22 Bolt Hex 3 Pieces Required.
  • Dimensions: 3/8"-16 x .570"
  • O.E. #3987930
B-64
22 Bolt Hex Head, Flanged 3 Pieces Required.
  • Dimensions: M10-1.50 x 15mm
B-78
22_N.I. Salvage Ring™ Core Saver™, Restores Matching Step
  • Outer Dia: 12.45"
  • Width: 0.375"
SX-21-972
22_N.I. Salvage Ring™
  • Outer Dia: 12.45"
  • Width: 0.250"
SX-21-972NR
