Torque Converter | GM | TH200 | General Motors | TH-200

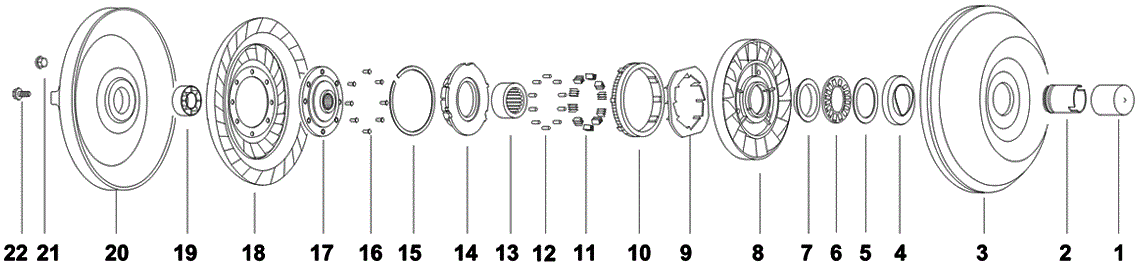

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
2 Impeller Hub SH-1-2

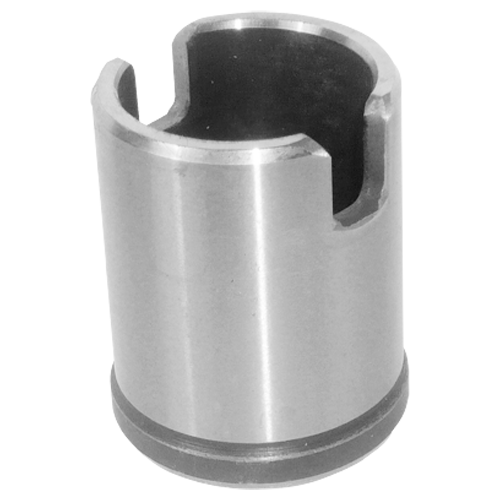

2 Impeller Hub
  • Hardness: Rc 32-36
 SH-1-2040GRC
2 Impeller Hub
  • Journal Dia: 1.748"
  • Installed Height: 2.000"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
  • Narrow Weld Groove
 SH-1-2GRC

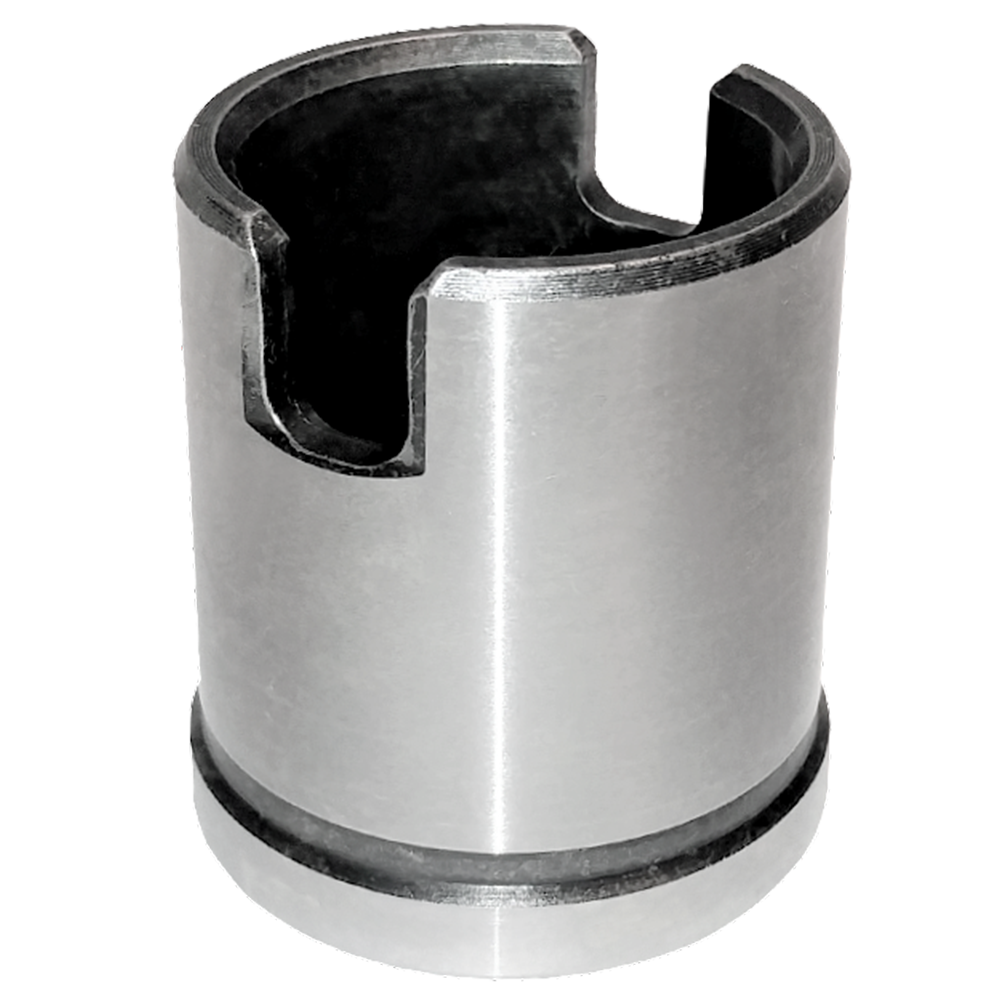

2 Impeller Hub
  • Journal Dia: 1.748"
  • Height: 2.000"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Wide Weld Groove
 SH-1-41G

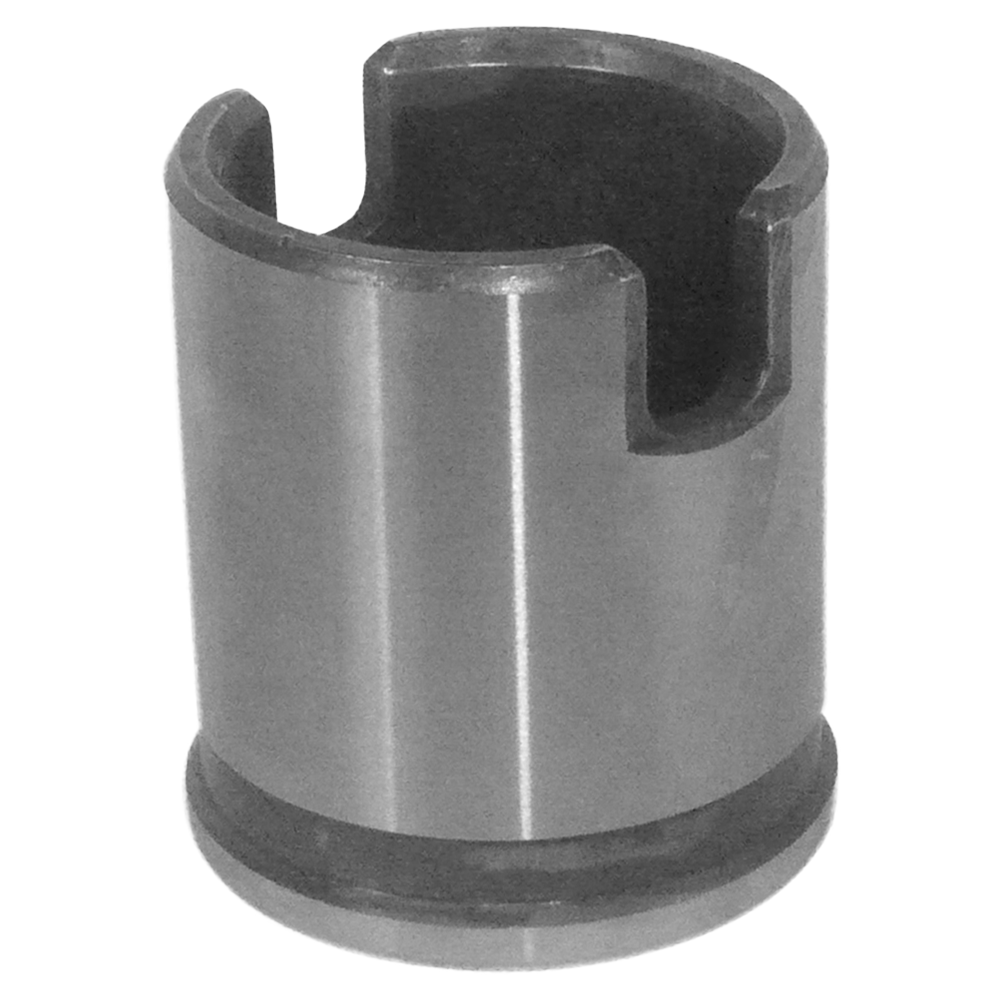

2 Impeller Hub
  • Journal Dia: 1.748"
  • Height: 2.000"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
  • Wide Weld Groove
 SH-1-41GRC
3 Impeller NPN-1-28-3
4 Bearing Race Outer
  • Thickness: .030"
  • Outside Dia: 2.25"
  • Inside Dia: 1.44"
 SW-2-4
5 Washer Steel
  • Thickness: .030"
  • Hardness: Rc 32-36
  • Outside Dia: 2.175"
  • Inside Dia: 1.51"
 SW-2-30
5 Washer Bearing Race
  • Thickness: .030"
  • Hardness: Rc 32-36
  • Material: Steel
  • Outside Dia: 2.175"
  • Inside Dia: 1.51"
 TRA-2435
5 Bearing Race
  • Thickness: 0.06"
  • Hardness: Rc 32-36
  • Outside Dia: 2.175"
  • Inside Dia: 1.51"
 SW-2-60
6 Bearing
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.175
  • Inside Dia: 1.506
  • Outside Dia Metric: 55.25
  • Inside Dia metric: 38.25
  • Race: SW-2-6, SW-2-4 WW-2-8
 SW-2-1
6 Bearing Heavy Duty
  • Thickness: 0.156
  • Thickness metric: 3.96
  • Bearing type: Exposed
  • Outside Dia: 2.175
  • Inside Dia: 1.506
  • Outside Dia Metric: 55.25
  • Inside Dia metric: 38.25
  • Race: SW-2-6, SW-2-4 WW-2-8
 SW-2-1HD
6_N.I. Bearing & Race Kit
  • Includes SW-2-4, SW-2-1, SW-2-6

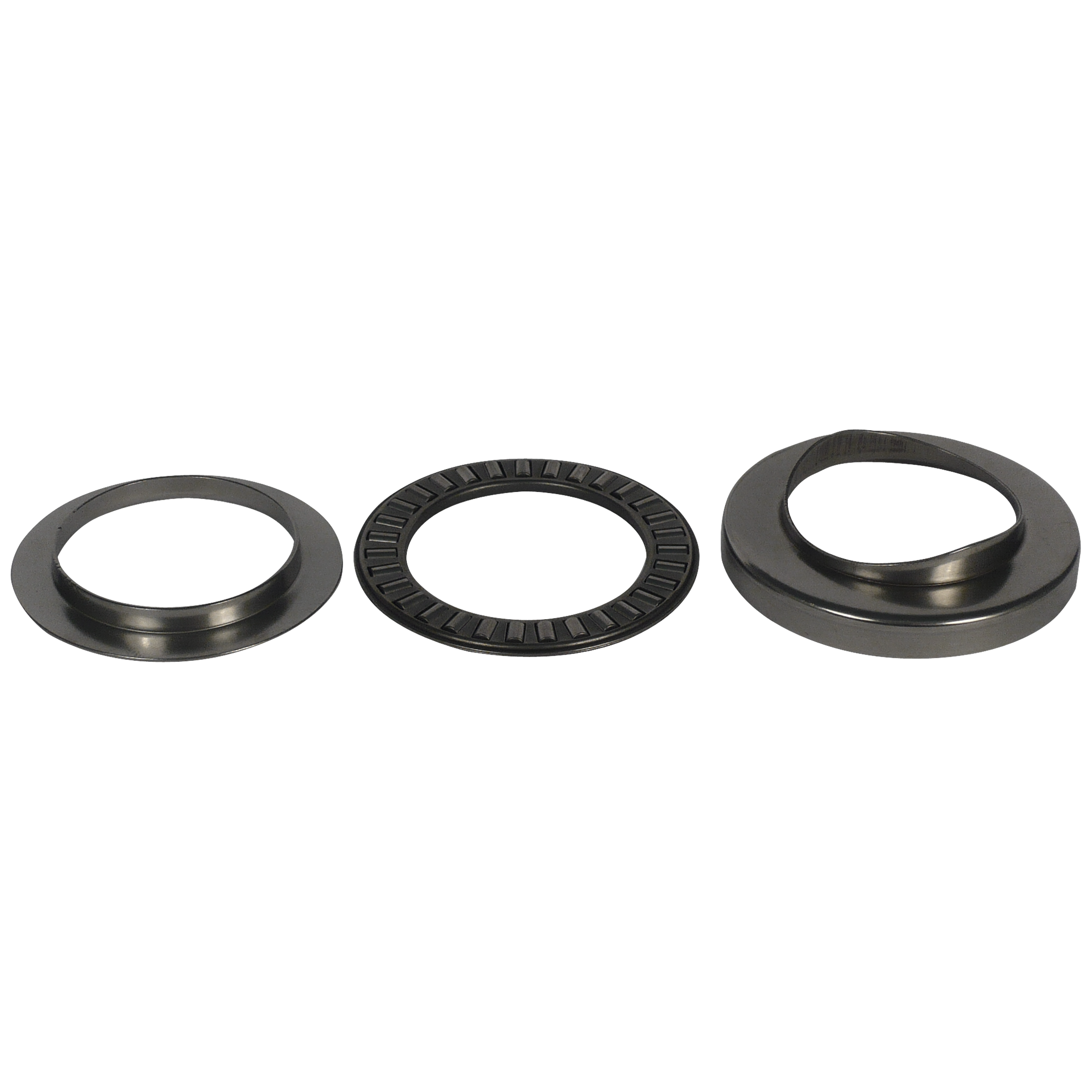

 SW-2-3K

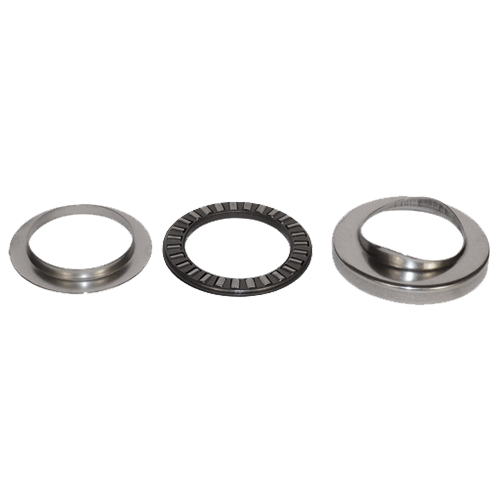

6_N.I. Bearing & Race Kit Heavy Duty
  • Includes: SW-2-4, SW-2-1HD, SW-2-6
 SW-2-3KHD
7 Bearing Race Inner
  • Thickness: .030"
  • Outside Dia: 2.07"
  • Inside Dia: 1.48"
  • Inside Lip
 SW-2-6
8 Stator NPN-1-28-8
9 Spring Retainer Stator
  • For .444" Long, Rollers
 SX-15-2
10 Outer Race (Cam) Stator SX-15-1
11 Accordion Spring 10 Pieces Required.
  • Height: 0.225"
  • Width: 0.43"
  • Folds: 3
 SS-6-1

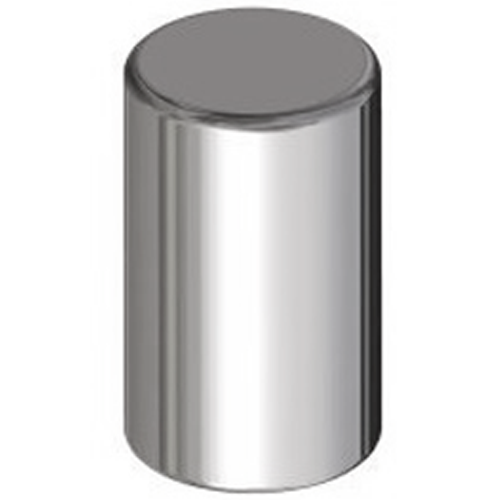

12 Roller 10 Pieces Required.
  • Dia: 0.31"
  • Length: 0.437"

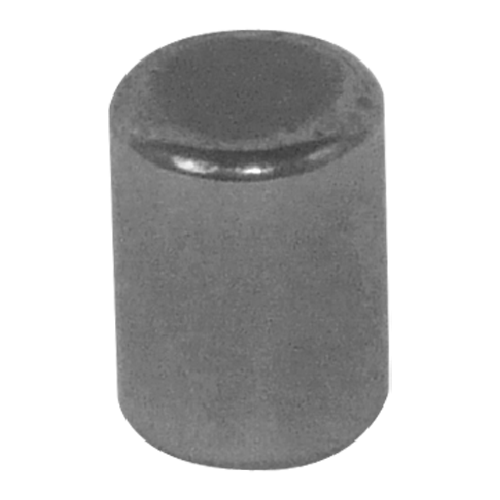

 35724R
12 Roller 10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.432"

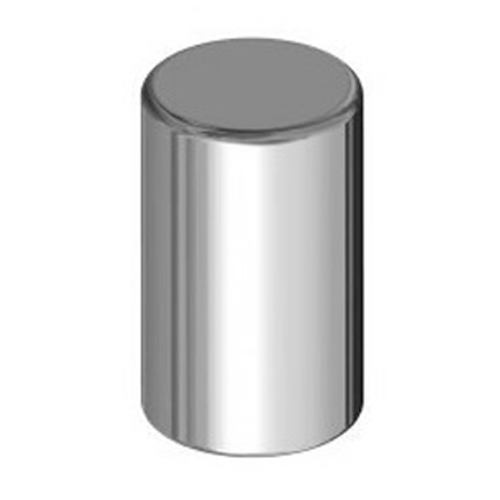

 FR-7-1
12 Roller 10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.444"
 SR-7-1
13 Inner Race Stator
  • Height: 0.875"
  • Internal Teeth: 27
  • Outside Dia: 2.156"
 SX-14-2
13 Inner Race Stator
  • Height: 0.875"
  • Internal Teeth: 27 (3 Removed)
  • Outside Dia: 2.156"
 SX-14-3
14 Stator Cap
  • Thickness: 0.53"
  • Material: Phenolic
  • Outside Dia: 3.75"
  • Inside Dia: 2.625
  • Casting#: 8628025
 SW-4-3
14 Washer Plastic
  • Outside Dia: 3.75"
  • Inside Dia: 2.625
 SW-4-3P
14 Washer
  • Outside Dia: 3.75"
  • Inside Dia: 2.625
 SW-4-3S

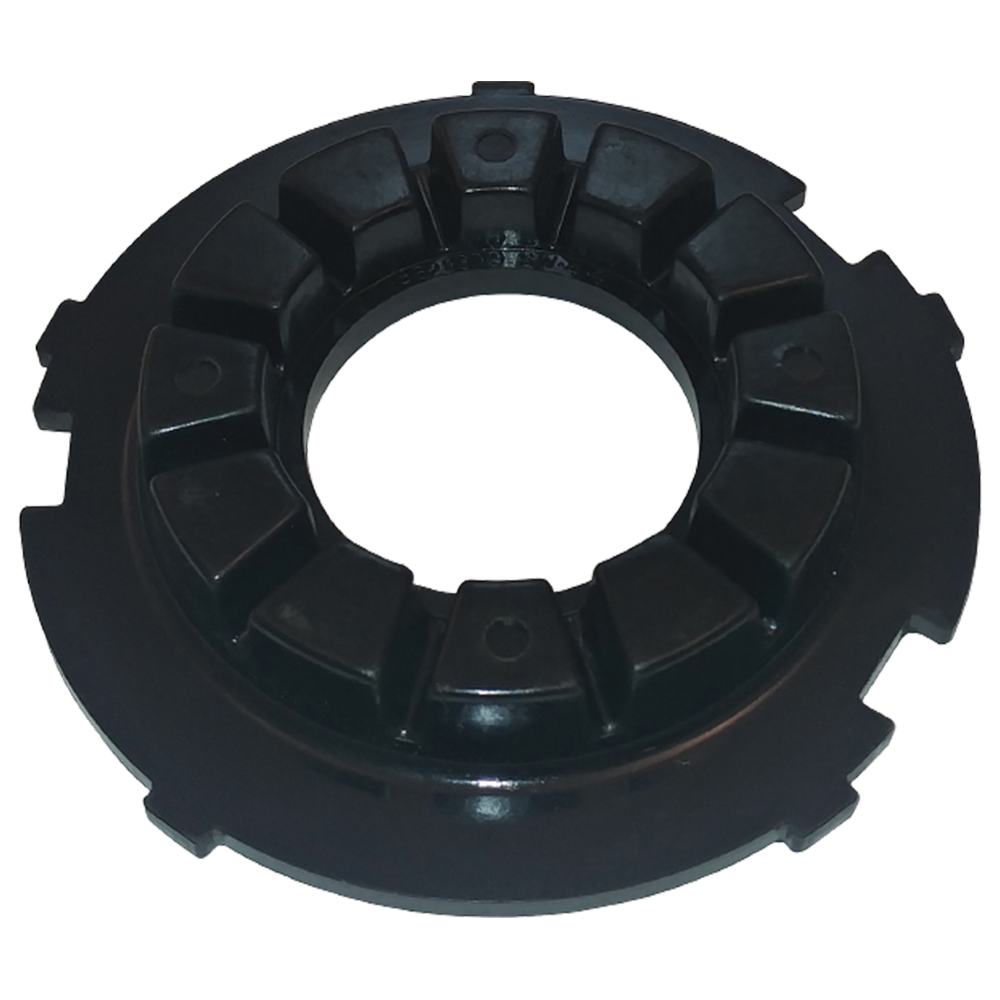

14 Stator Cap
  • Thickness: .61"
  • O.E. #8628609
 SW-4-4
15 Snap Ring
  • Outside Dia: 3.40"
 CX-20
16 Rivet 8 Pieces Required.
  • Length: 0.31"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet head dia: 0.312"
 WX-12A
16 Rivet 8 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet head dia: 0.312"
 FX-12L
16 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet head dia: 0.37"
 SX-12
17 Turbine Hub
  • Internal Teeth: 27
  • Outside Dia: 4.45"
 SX-13-2
17 Turbine Hub Relieves The Shortage Of TH350 Lockup Cores
  • Internal Teeth: 30
  • Outside Dia: 4.51"
  • Converts TH200 To TH350 Non-Lockup, Use With Fiber Or Plastic Washer
 SX-13-350
17 Turbine Hub Relieves The Shortage Of TH350 Lockup Cores
  • Internal Teeth: 30
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.51"
  • Converts TH200 To TH350 Non-Lockup, Use With Fiber Or Plastic Washer
 SX-13-350HT
17 Turbine Hub
  • Internal Teeth: 30
  • Lockup Eliminator, Uses FX-12 Rivets
 SX-13-7
17 Turbine Hub
  • Hardness: Heat-Treated (hardened)
  • Lockup Eliminator, , Uses FX-12 Rivets
 SX-13-7HT
18 Turbine NPN-1-28-18
19 Turbine Washer
  • Material: Plastic
 SW-9-200
19_N.I. Shim
  • Thickness: .010"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
 TW-9-010
19_N.I. Shim
  • Thickness: 0.012"
  • Outside Dia: 2.4"
  • Inside Dia: 1.45"
 TW-9-9
19_N.I. Shim
  • Thickness: .010"
  • Outside Dia: 2.38"
  • Inside Dia: 1.35"
 VW-9-2
19_N.I. Shim
  • Thickness: .020"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
 TW-9-020
19_N.I. Shim
  • Thickness: .030"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
 TW-9-030
20 Front Cover NPN-1-28-20
21 Nut Converter 6 Pieces Required. 26761
21 Nut Special Locking 6 Pieces Required.
  • Height: .34"
  • Dimensions: 3/8"-24
  • Length: 0.330"
 FX-10-7
21 Nut & Studcap Kit 4 Pieces Each FX-10-7K4STD
21 Nut Hex 3 Pieces Required.
  • Dimensions: 3/8"- 24
  • Length: 0.330"
 N-63

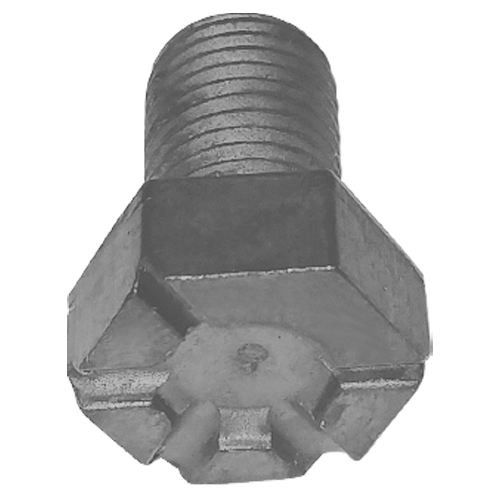

22 Bolt Hex Head 3 Pieces Required.
  • Dimensions: 3/8" x 24
  • Length: 9/16"
  • OE# 3799830
 B-63
