Torque Converter | GM | TH180 (3L30, Strasbourg, Trimatic, GM-3, Corvair, Tempest) | General Motors | TH-180

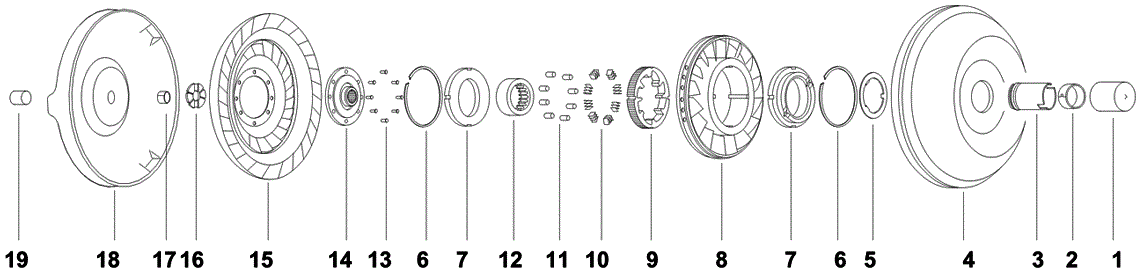

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
 MHC-YB
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-Y

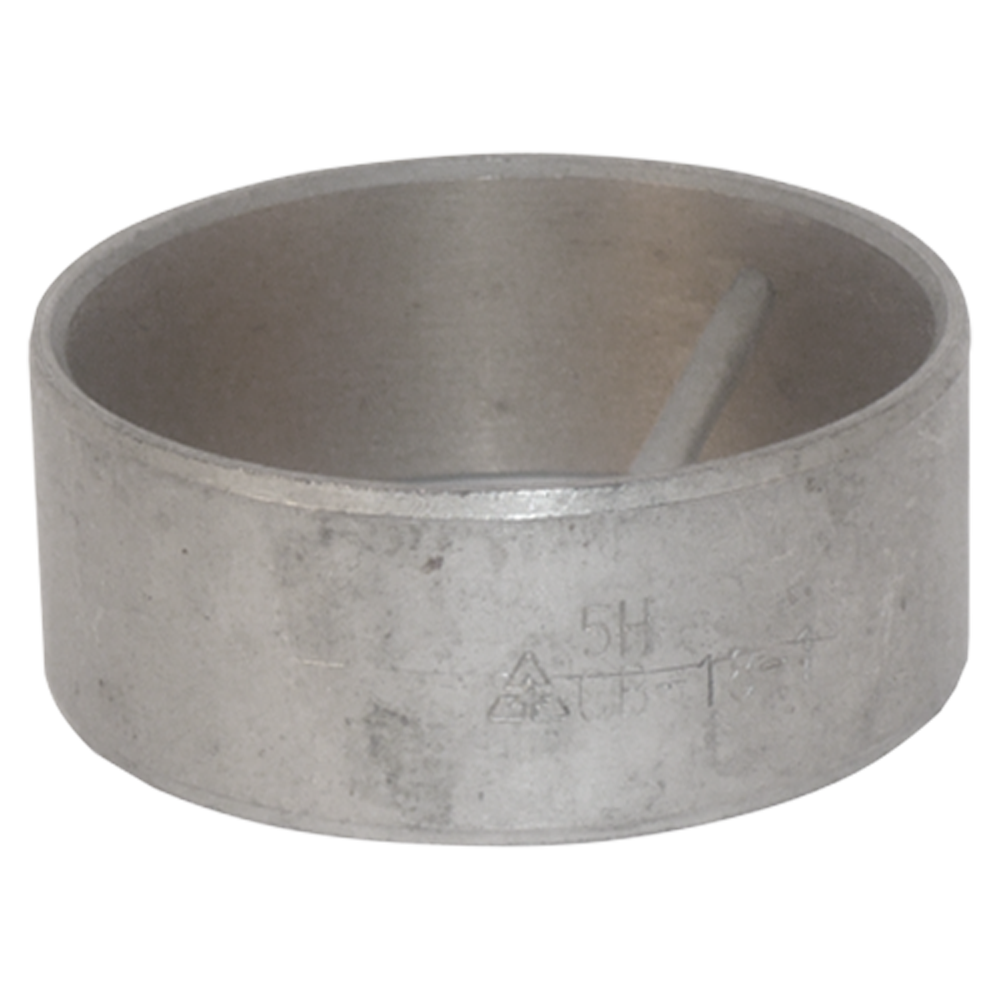

2 Bushing Converter Hub, Grooved (18001) Corvair
  • Thickness: 0.56"
  • Width: 0.56
  • Housing Bore Dia: 1.536"
  • Shaft Dia: 1.409"
  • Material: Bronze
  • Outside Dia: 1.541"
  • Inside Dia: 1.413"
 CB-18-1

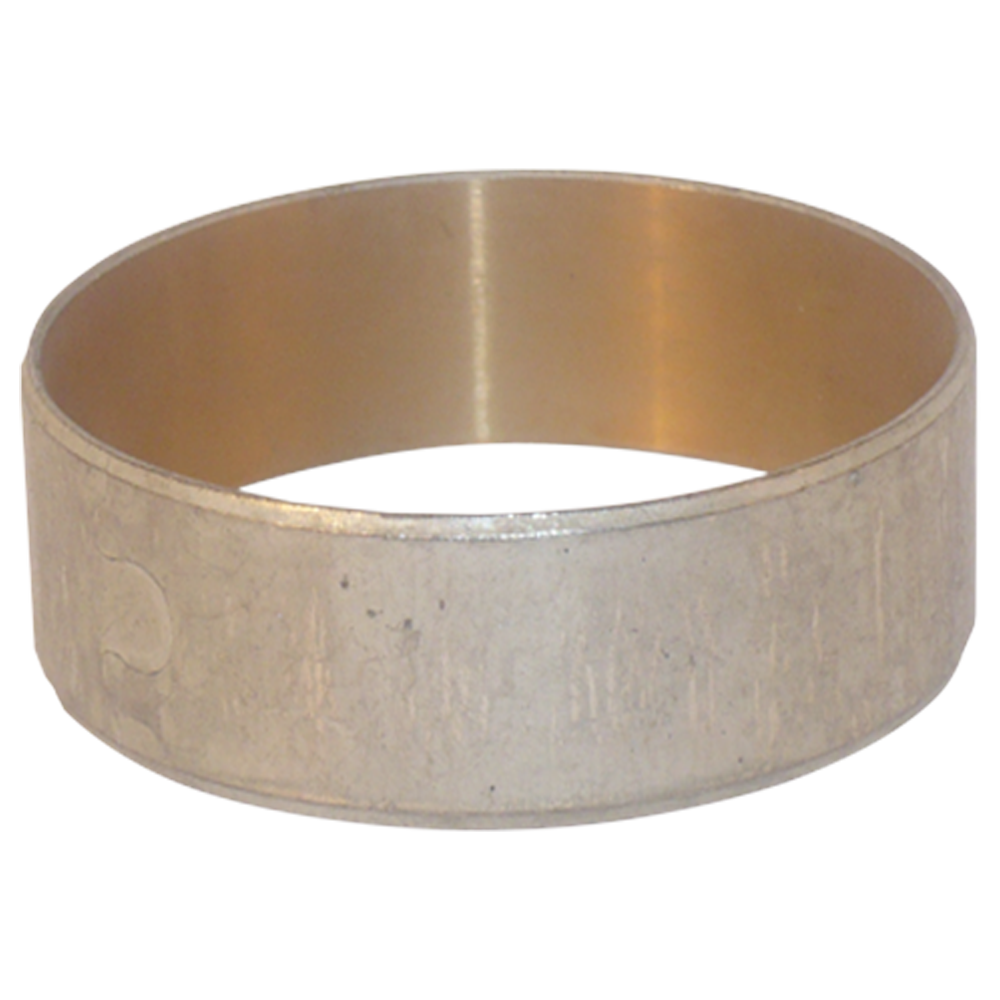

2 Bushing Converter Hub, 63 Tempest Tempest
  • Thickness: 0.56"
  • Width: 0.56
  • Housing Bore Dia: 1.771"
  • Shaft Dia: 1.686"
  • Material: Bronze
 CB-18-2

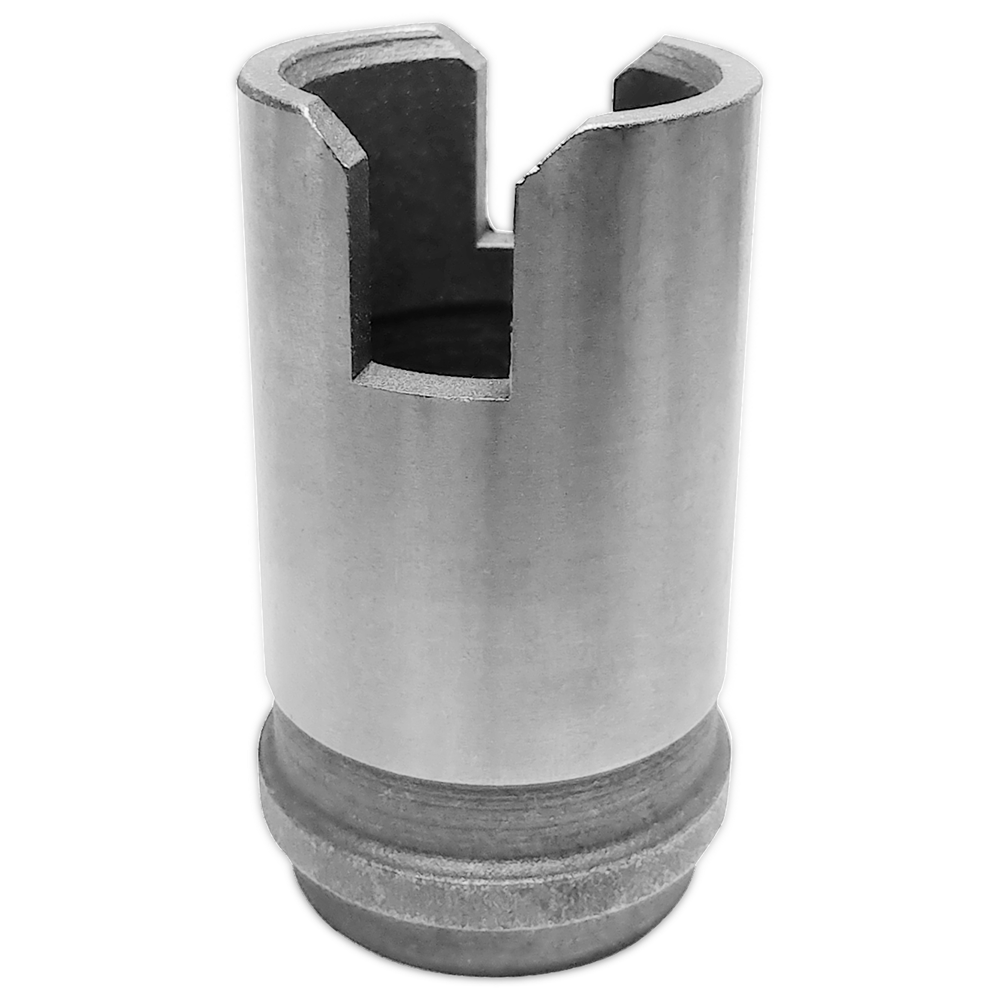

3 Impeller Hub Chrysler Torqueflite
  • Journal Dia: 1.498"
  • Installed Height: 2.375"
  • Height: 2.620"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
 CH-1-30TG
3 Impeller Hub Opel & Others. 9" Dia. Turbine
  • Journal Dia: 1.874"
  • Installed Height: 2.620"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
 CH-1-8G
3 Bushing HYDRAMATIC CENTER GEAR
  • Outside Dia: 1.6271
  • Inside Dia: 1.5060
 8618136

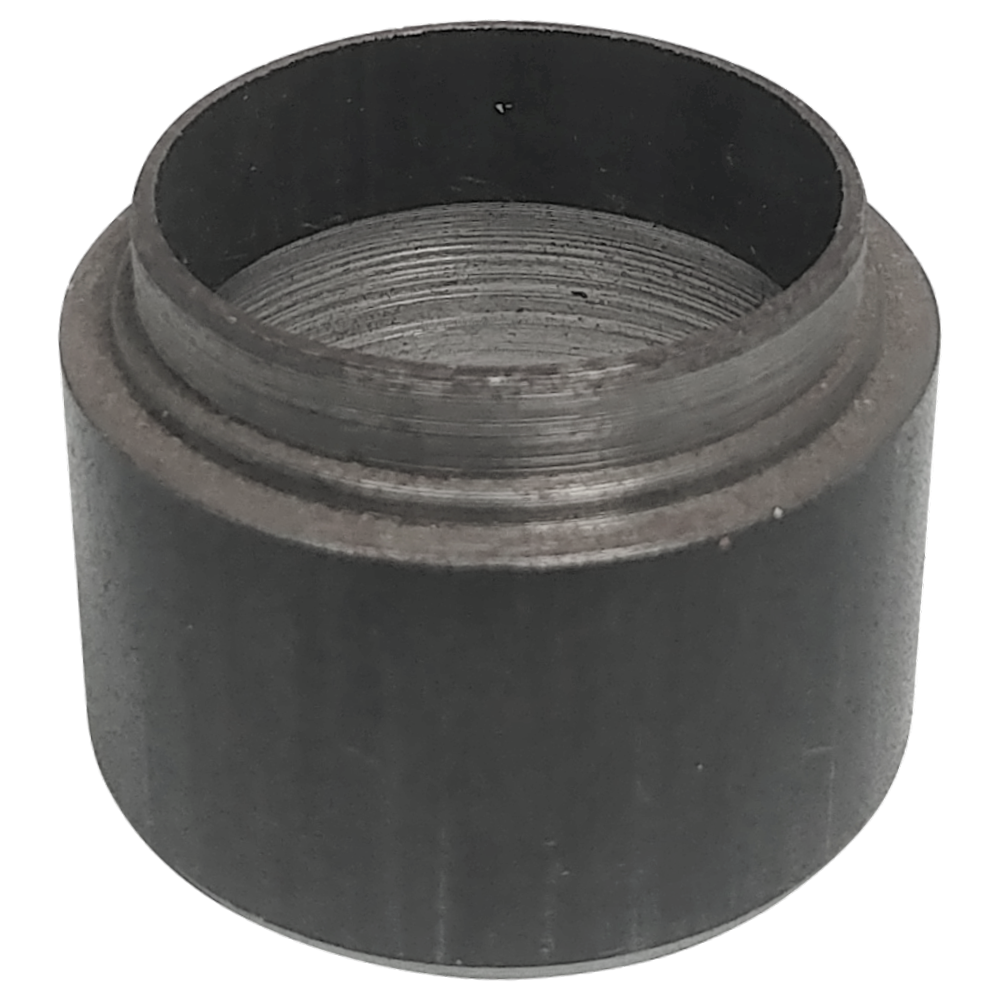

3 Impeller Hub Unfinished, Renault Renault. Use with Bushing RB-18 CH-1-20R

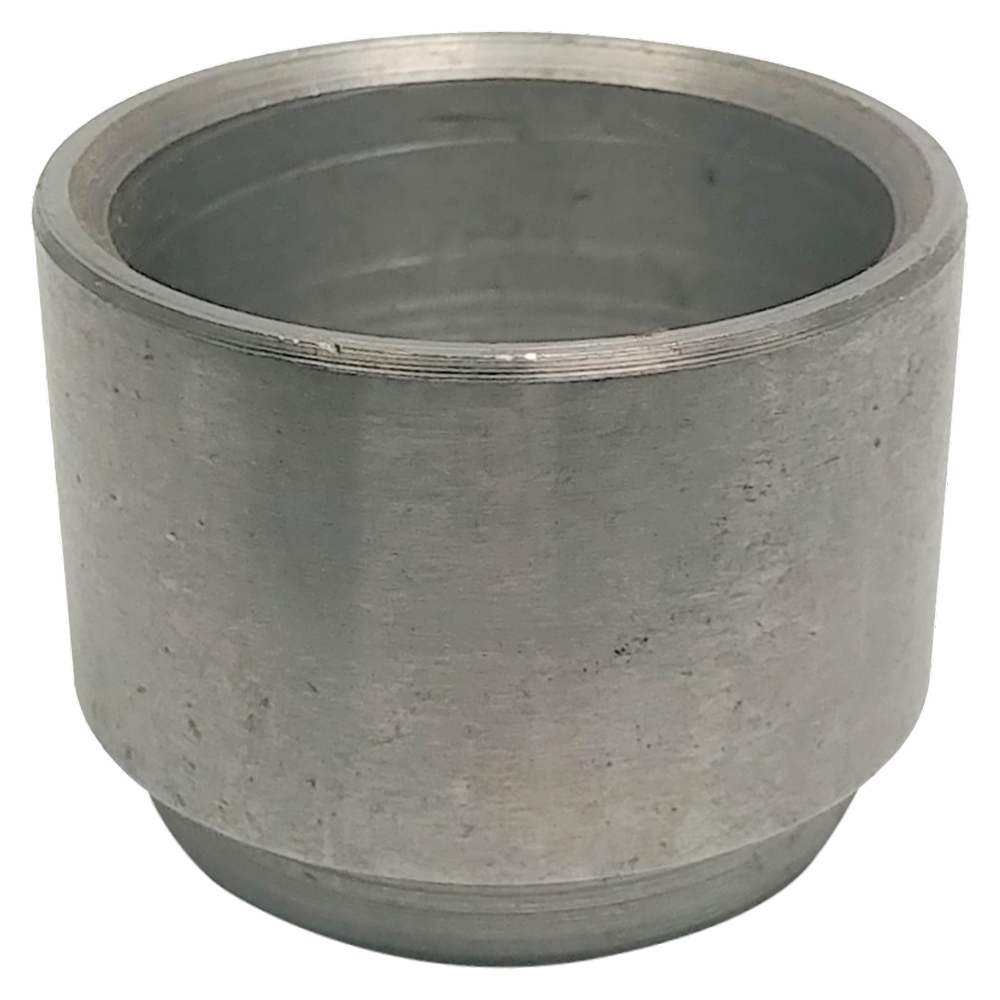

3 Impeller Hub Renault. Use with Bushing RB-18 CH-1-20RG
3 Bushing Use with Renault hub CH-1-20RG
  • Thickness: 0.624"
  • Width: 0.624
  • Housing Bore Dia: 1.623"
  • Shaft Dia: 1.5"
  • Material: Bronze
  • Outside Dia: 1.6271
  • Inside Dia: 1.5060
 RB-18
3 Impeller Hub
  • Journal Dia: 1.874"
  • Height: 1.930"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
 SH-1-36G

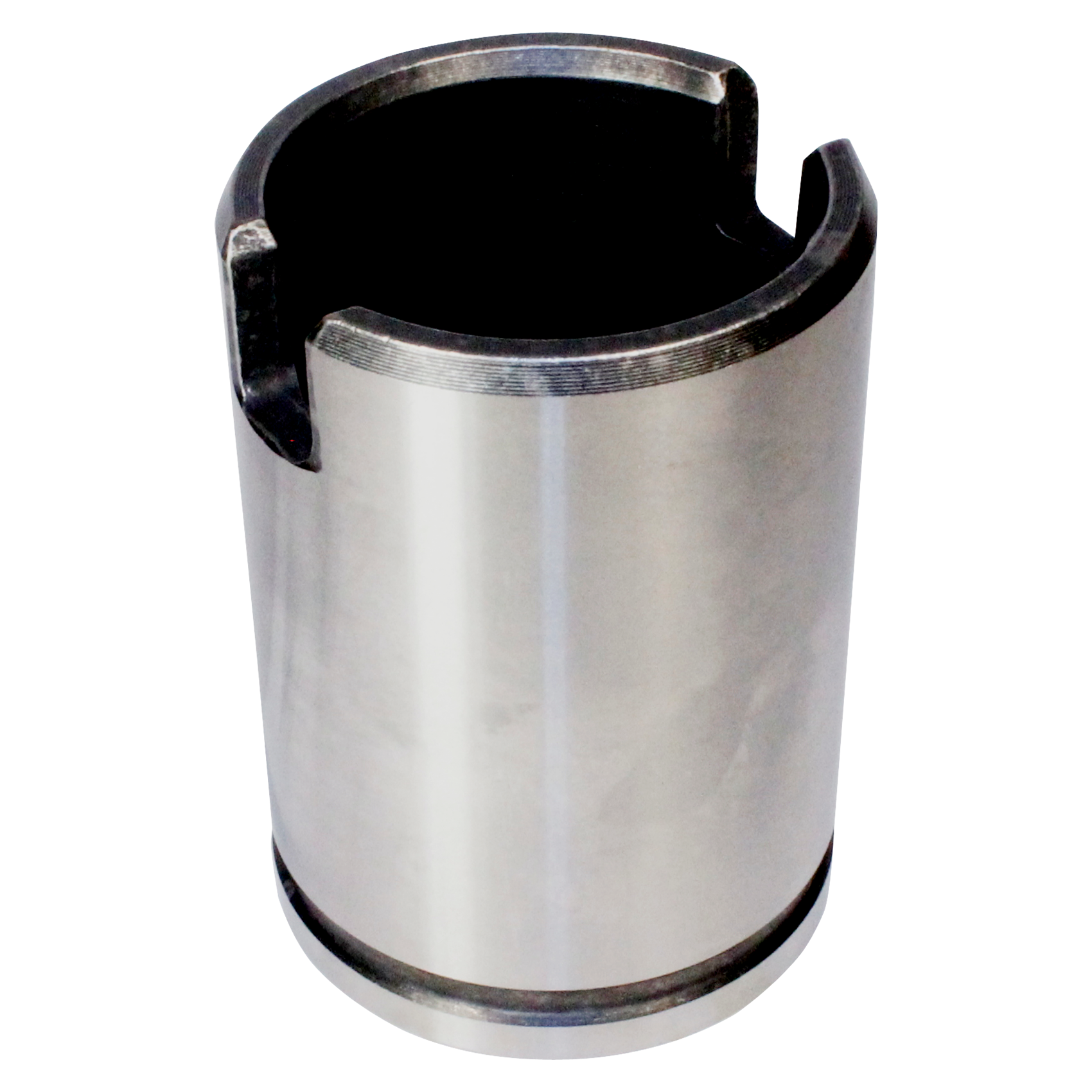

3 Impeller Hub Opel & Others. 9" Dia. Turbine
  • Journal Dia: 1.874"
  • Height: 2.625"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 CH-1-8TGRC
3 Impeller Hub Opel, Holden & Others. 10" Dia. Turbine
  • Journal Dia: 1.874"
  • Installed Height: 2.345"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
 CH-1-7G
3 Impeller Hub Opel & Others. 9" Dia. Turbine
  • Journal Dia: 1.874"
  • Installed Height: 2.620"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 CH-1-8GRC
3 Impeller Hub
  • Journal Dia: 1.874"
  • Height: 1.930"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-36GRC
4 Impeller NPN-1-26-4
5 Washer
  • Material: Steel
  • Tab Count: 3 Internal Tabs
 CW-2-2
5 Washer Tempest
  • Material: Steel
 CW-2-3
6 Snap Ring 2 Pieces Required.
  • Outside Dia: 3.40"
 CX-20
7 Stator Cap Passenger
  • Material: Aluminum
  • Outside Dia: 3.24"
  • Inside Dia: 1.78"
 CW-4-1

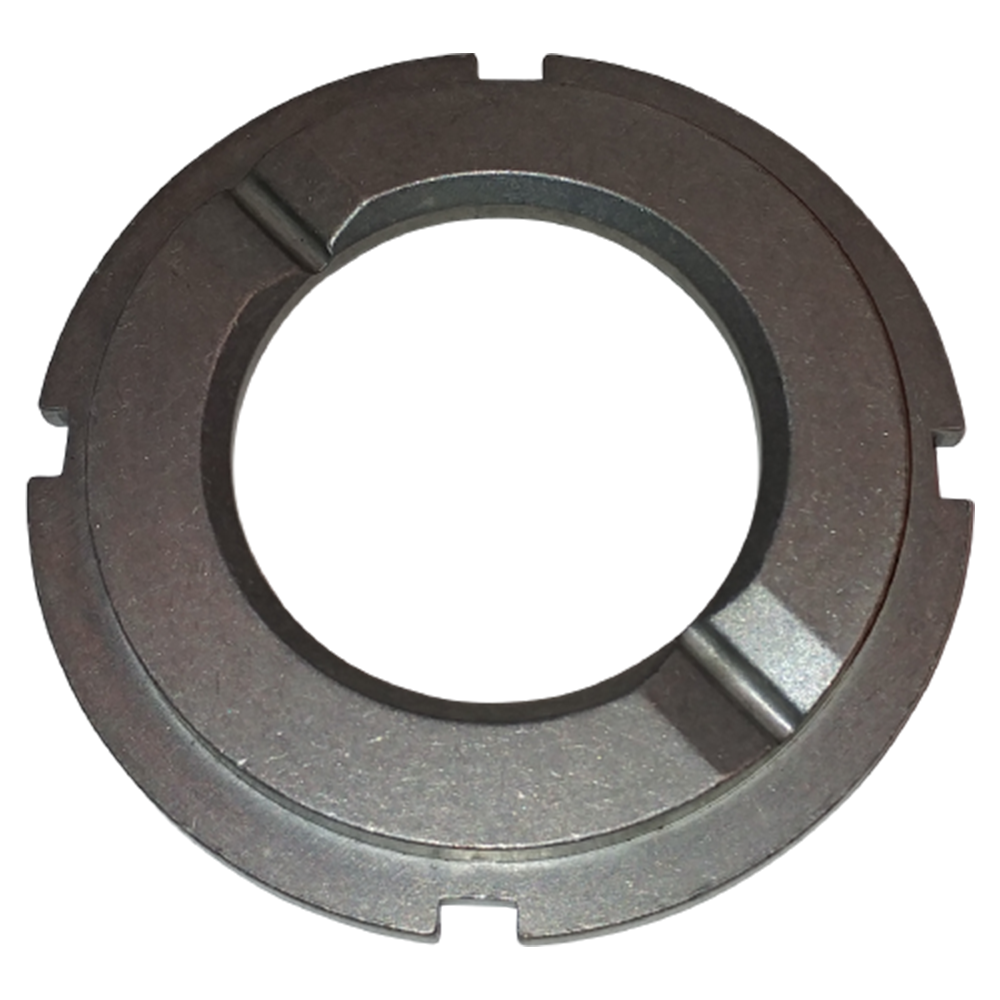

7 Stator Cap With Recess To Pilot CX-14 High Performance
  • Outside Dia: 3.24"
  • Inside Dia: 1.78"
 CW-4-1A

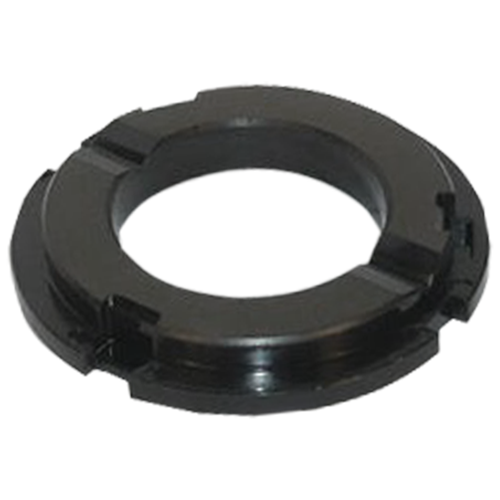

7 Stator Cap Passenger
  • Material: Phenolic
  • Outside Dia: 3.24"
  • Inside Dia: 1.78"
 CW-4-1P

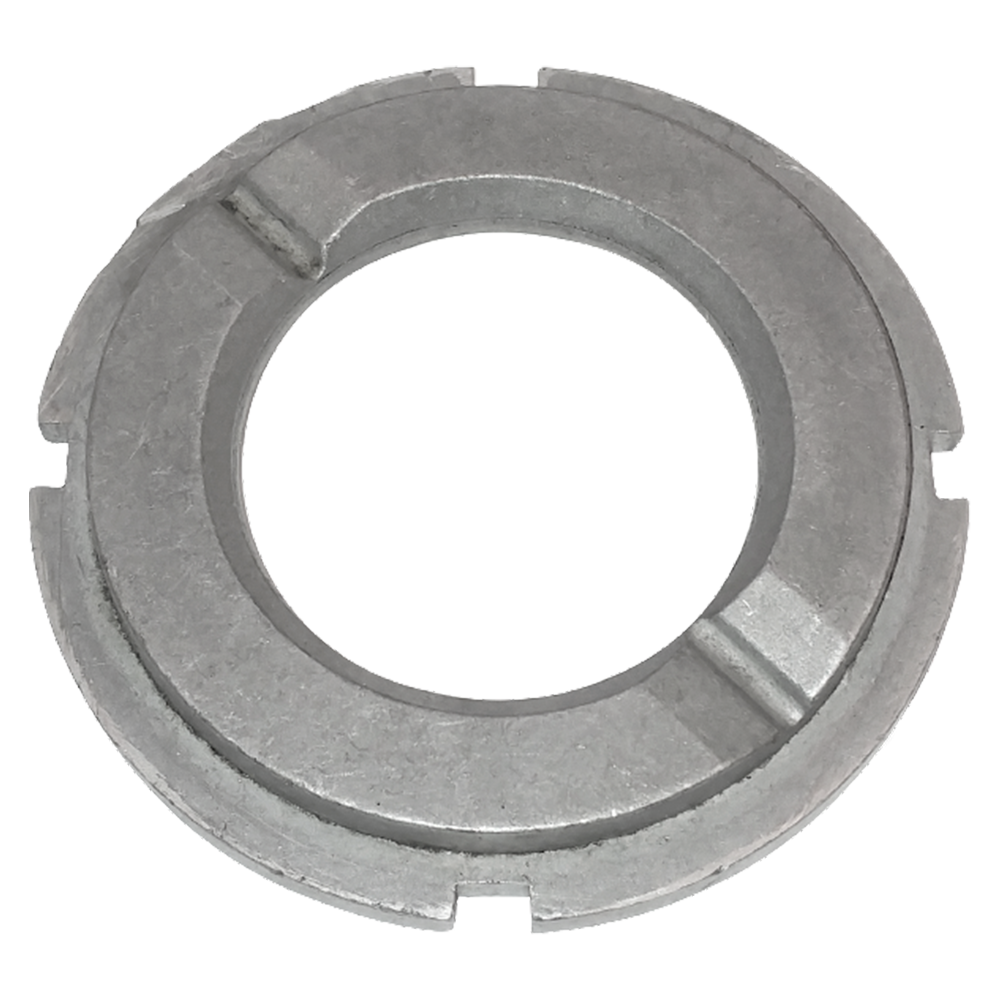

7 Stator Cap High Performance
  • With Recess To Pilot CX-14
 CW-4-1B

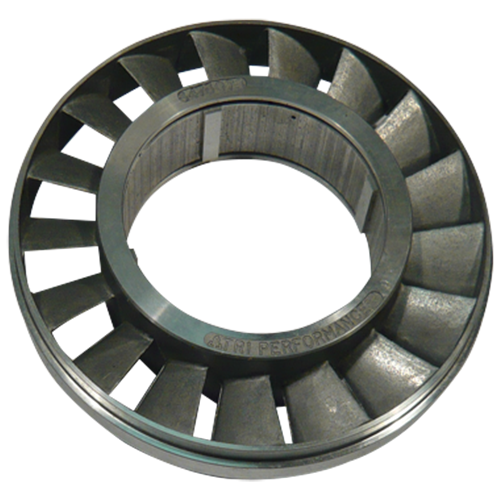

8 Stator It´s An Exact Duplicate Of OE 3473073, With The Exception Of The Reinforcing Radius At The Blade Anchor Points. Use (2) VH-337 Snap Rings Low Stall CX-5-12
8 Stator High Performance CX-5-12HD

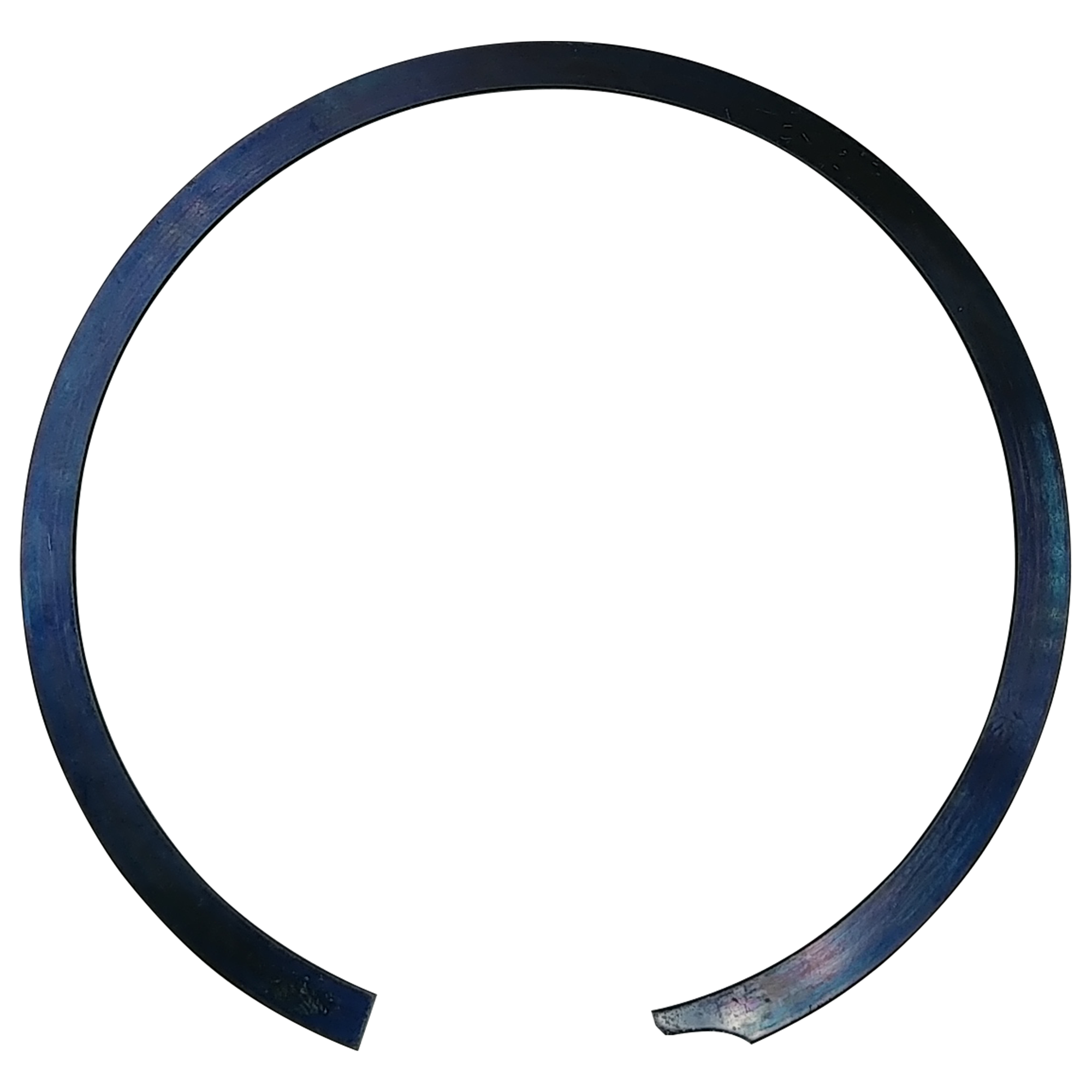

8 Snap Ring VH-337
8 Stator Medium Stall
  • O.E. #347016
 CX-5-13
8 Stator High Stall
  • O.E., #3473063
 CX-5-9
8_N.I. Vane CX-8-29L

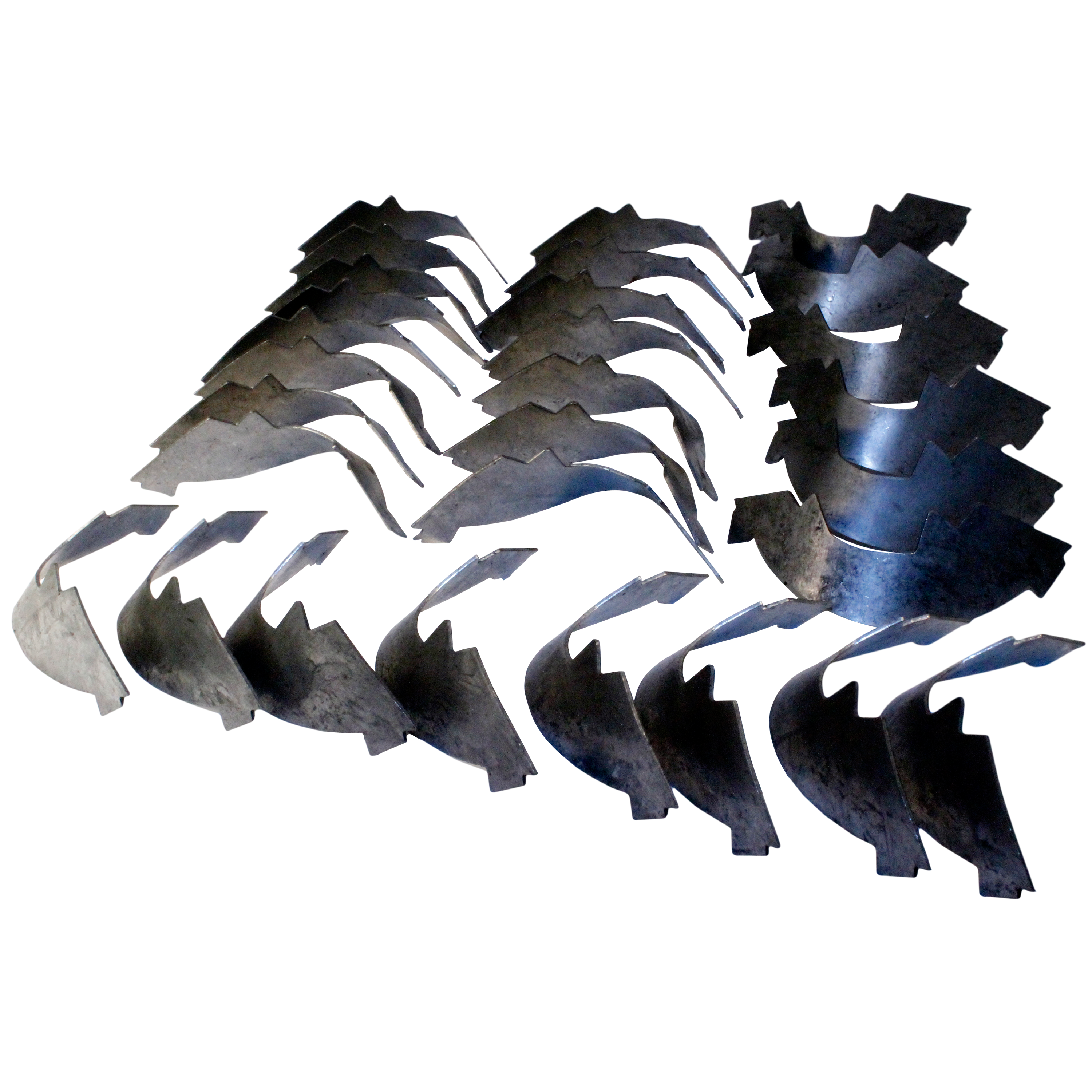

8_N.I. Kit Vane, 29Pcs, GM Opel, Holden, Corvair, Tempest, Etc. CX-8-29LK
9 Outer Race (Cam) Stator
  • Thickness: 0.563
 CX-15-2
10 Accordion Spring 8 Pieces Required.
  • Height: 0.28"
  • Width: 0.504"
  • Folds: 4
 CS-6-1
11 Roller 8 Pieces Required.
  • Dia: 0.314"
  • Length: 0.54"
 32960R
11 Roller 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.5"
 CR-7-1
12 Inner Race Stator, splined High Performance
  • Height: 0.938"
  • Internal Teeth: 27
  • Outside Dia: 2.188"
 CX-14
12 Inner Race Stator Passenger
  • Height: 0.560"
  • Internal Teeth: 27
  • Outside Dia: 2.188"
  • Inside Dia: 1.310"
 CX-14-1
12 Inner Race For Opel Stators Spline or Chrysler A 904 Chrysler
  • Height: 0.560"
  • BE SURE INNER RACES ARE PROPERLY PILOTED IN END WASHERS AND RUNNING TRUE TO OUTER RACE
 CX-14T
13 Rivet 8 Pieces Required.
  • Length: 0.31"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet head dia: 0.312"
 WX-12A
14 Turbine Hub
  • Internal Teeth: 22
  • Outside Dia: 3.65"
 CX-13-2
14 Turbine Hub Opel, Holden, Corvair, Tempest, Etc.
  • Internal Teeth: 22
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.65"
 CX-13-2HT
14 Turbine Hub
  • Internal Teeth: 22
 SX-13-8
14 Turbine Hub Peugeot, Fiat
  • Internal Teeth: 22
  • Hardness: Heat-Treated (hardened)
 SX-13-8HT
15 Turbine NPN-1-26-15
15_N.I. Vane CX-8-29
15_N.I. Vane Kit
  • 29 Pieces
 CX-8-29K
16 Turbine Washer
  • Material: Fiber
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
  • Replaces Bronze
 CW-9-1F
16 Turbine Washer
  • Material: Plastic
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
  • Replaces Bronze
 CW-9-1P
16 Turbine Washer
  • Thickness: .14"
  • Material: Fiber
  • Outside Dia: 2.12"
  • Inside Dia: 1.26"
 TW-9-7A
16 Turbine Washer
  • Thickness: 0.125"
  • Material: Fiber
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
 TW-9-7AF
16 Turbine Washer
  • Thickness: .16"
  • Material: Plastic
  • Outside Dia: 2.12"
  • Inside Dia: 1.26"
 TW-9-7B
16 Turbine Washer
  • Thickness: 0.156"
  • Material: Fiber
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
  • Oversized
 TW-9-7BF
16 Turbine Washer
  • Thickness: .07"
  • Material: Fiber
  • Outside Dia: 2.12"
  • Inside Dia: 1.26"
 TW-9-7C
16 Turbine Washer
  • Thickness: 0.062"
  • Material: Fiber
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
 TW-9-7CF
16 Turbine Washer
  • Thickness: .094"
  • Material: Fiber
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
 TW-9-7DF
17 Bushing Output shaft pilot
  • Outside Dia: 0.628
  • Inside Dia: 0.5030
 8004
17 Bushing Cover Opel
  • Thickness: 0.495"
  • Width: 0.495
  • Housing Bore Dia: 0.625"
  • Shaft Dia: 0.495"
  • Material: Babbit
  • Outside Dia: 0.628
  • Inside Dia: 0.5030
 CB-18-3
17 Bushing cover, Precision
  • Thickness: 0.437"
  • Width: 0.437
  • Housing Bore Dia: 1.375"
  • Shaft Dia: 1.246"
  • Material: Babbit
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
 CB-18
17 Bushing Sintered
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
 CB-18P
17 Bushing Cover Chrysler
  • Thickness: 0.44"
  • Width: 0.447
  • Housing Bore Dia: 1.375"
  • Shaft Dia: 1.245"
  • Material: Bronze
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
 TB-18-9
18 Front Cover NPN-1-26-18
19 Pilot CX-17-2
19_N.I. Ring Gear Corvair
  • External teeth: 147
  • Outside Dia: 12.36"
  • Inside Dia: 10.713"
 RG-147

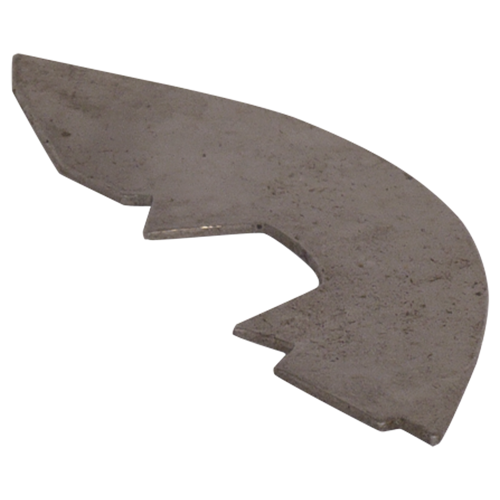

21_N.I. Vane For Kit CX-21-27K CX-21-27
