Torque Converter | GM | Powerglide | General Motors

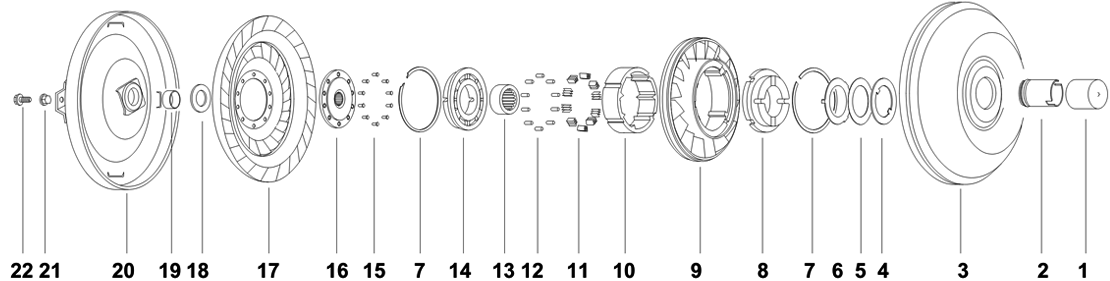

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
Ring Kit Mount, TH350/TH400,10" HP SX-22-28KHP
Ring Kit SX-22-28KHP
Mount, TH350/TH400,10" HP &
Impeller Hub Without Groove
  • Journal Dia: 1.874"
  • Installed Height: 2.075"
  • Pump Drive Type: Slots
 SH-1-6G
Impeller Hub SH-1-6G
Without Groove &
  • Journal Dia: 1.874"
  • Installed Height: 2.075"
  • Pump Drive Type: Slots
Impeller Hub
  • Journal Dia: 1.874"
  • Height: 2.080"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-16GRC
Impeller Hub SH-1-16GRC
&
  • Journal Dia: 1.874"
  • Height: 2.080"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.075"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-6GRC
Impeller Hub SH-1-6GRC
&
  • Journal Dia: 1.874"
  • Installed Height: 2.075"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
 MHC-YB
Hubcap MHC-YB
Fits 1-7/8" (47.6mm). Length: 1" &
  • Color: Yellow
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-Y
Hubcap MHC-Y
Fits 1-7/8" (47.6mm). Length: 1-3/4" &
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.010"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
 CH-1-4G
Impeller Hub CH-1-4G
&
  • Journal Dia: 1.874"
  • Installed Height: 2.010"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
2 Impeller Hub CH-1-2GHT
Impeller Hub CH-1-2GHT
&

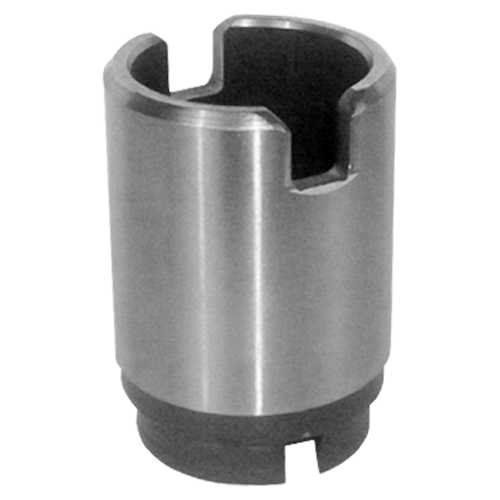

2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.07"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 CH-1-3GRC
Impeller Hub CH-1-3GRC
&
  • Journal Dia: 1.874"
  • Installed Height: 2.07"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.460"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 CH-1-10GRC
Impeller Hub CH-1-10GRC
&
  • Journal Dia: 1.874"
  • Installed Height: 2.460"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.010"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 CH-1-4GRC
Impeller Hub CH-1-4GRC
&
  • Journal Dia: 1.874"
  • Installed Height: 2.010"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36

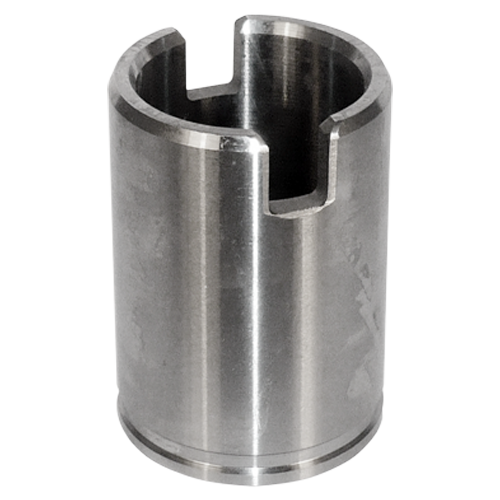

2 Impeller Hub
  • Journal Dia: 1.874"
  • Height: 2.45"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 CH-1-10TGRC
Impeller Hub CH-1-10TGRC
&
  • Journal Dia: 1.874"
  • Height: 2.45"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
2 Impeller Hub CH-1-10TG
Impeller Hub CH-1-10TG
&
2 Impeller Hub
  • Journal Dia: 1.874"
  • Height: 2.150"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • With Pilot Step
 SH-1G
Impeller Hub SH-1G
&
  • Journal Dia: 1.874"
  • Height: 2.150"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • With Pilot Step
2 Impeller Hub
  • Journal Dia: 1.874"
  • Height: 2.150"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
  • With Pilot Step
 SH-1GRC
Impeller Hub SH-1GRC
&
  • Journal Dia: 1.874"
  • Height: 2.150"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
  • With Pilot Step
2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.460"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
 CH-1-10G
Impeller Hub CH-1-10G
&
  • Journal Dia: 1.874"
  • Installed Height: 2.460"
  • Hub Mount: Thru
  • Pump Drive Type: Slots

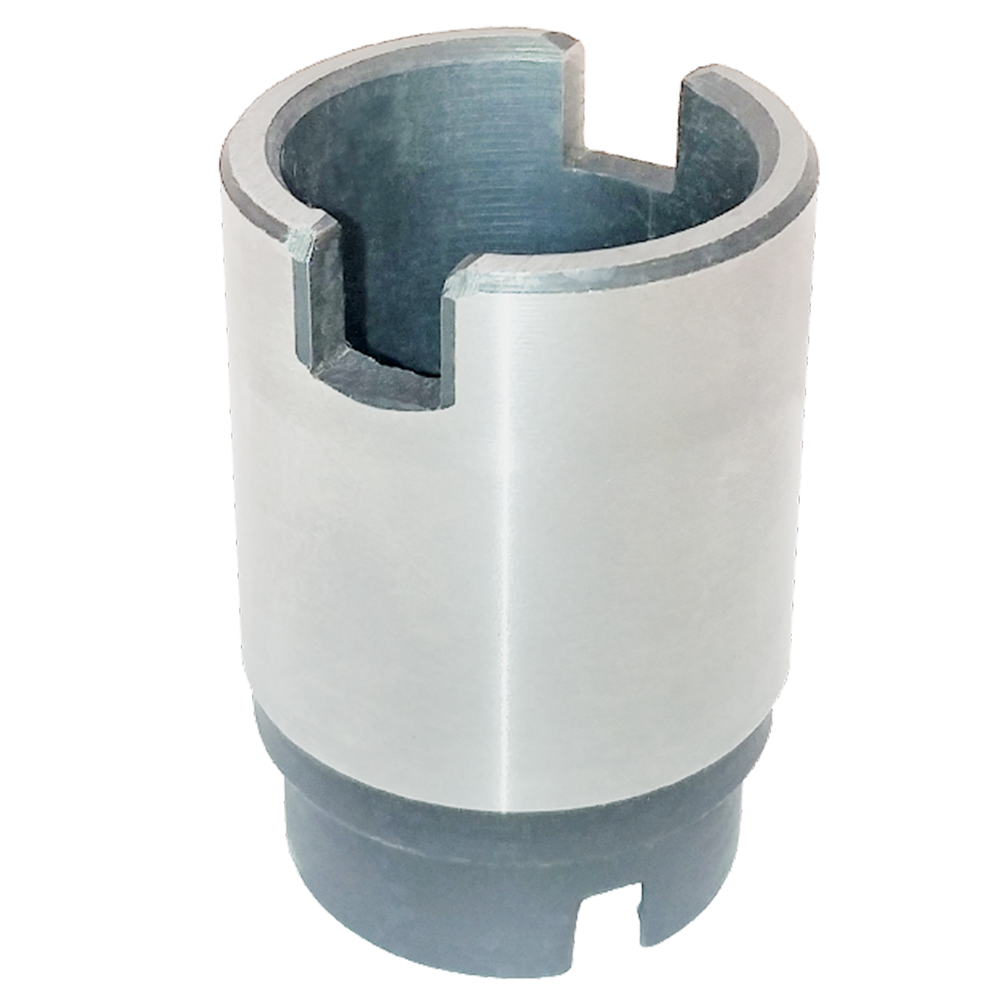

2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 1.880"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
 CH-1-2G
Impeller Hub CH-1-2G
&
  • Journal Dia: 1.874"
  • Installed Height: 1.880"
  • Hub Mount: Thru
  • Pump Drive Type: Slots

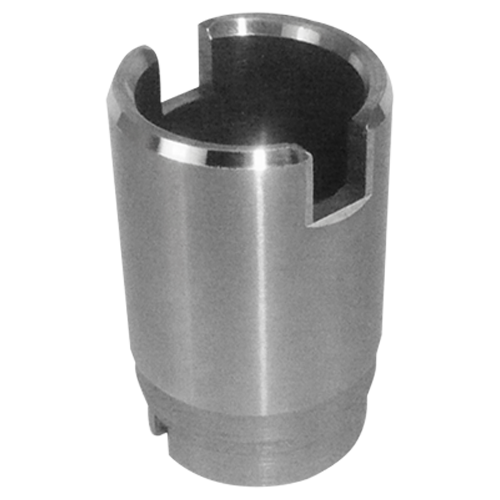

2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 1.930"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
 CH-1G
Impeller Hub CH-1G
&
  • Journal Dia: 1.874"
  • Installed Height: 1.930"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
3 Impeller NPN-1-40-3
Impeller NPN-1-40-3
&

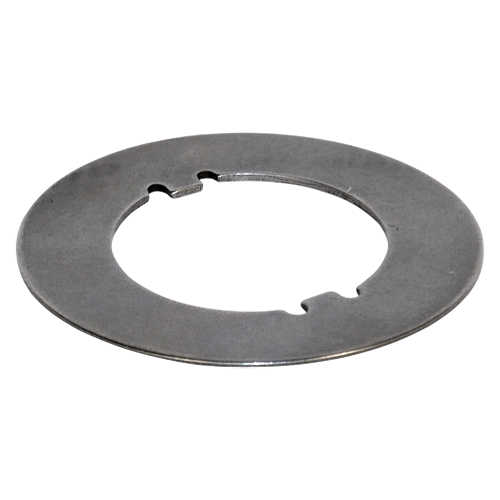

4 Washer
  • Thickness: .06"
  • Material: Steel
  • Lug Count: 2
  • Outside Dia: 2.86"
  • Inside Dia: 1.69"
 CW-2
Washer CW-2
&
  • Thickness: .06"
  • Material: Steel
  • Lug Count: 2
  • Outside Dia: 2.86"
  • Inside Dia: 1.69"

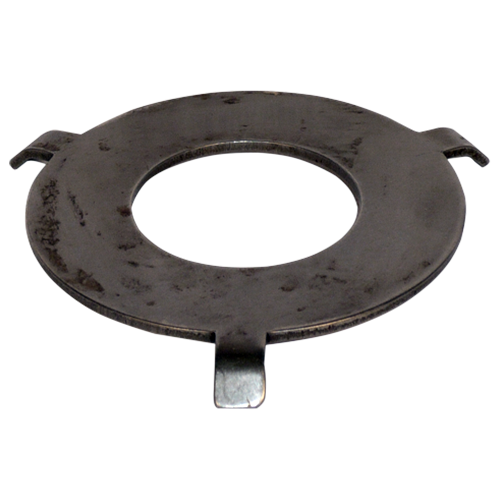

4 Washer steel, 3 lugs
  • Material: Steel
  • Tang Count: 3 External
 CW-2-1
Washer CW-2-1
steel, 3 lugs &
  • Material: Steel
  • Tang Count: 3 External

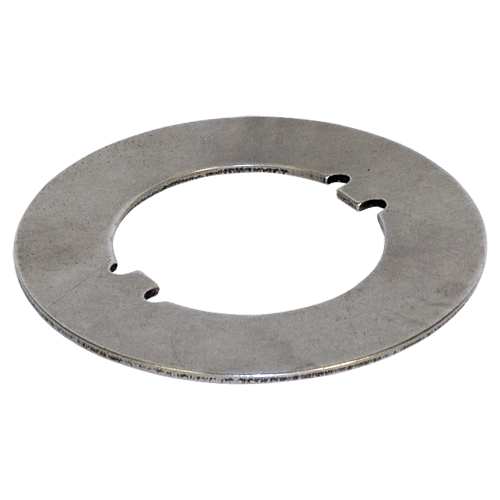

4 Washer HD
  • Thickness: .06"
  • Material: Steel
  • Lug Count: 2
  • Outside Dia: 2.86"
  • Inside Dia: 1.62"
 CW-2-4
Washer CW-2-4
HD &
  • Thickness: .06"
  • Material: Steel
  • Lug Count: 2
  • Outside Dia: 2.86"
  • Inside Dia: 1.62"
5 Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-10
Shim MW-2-10
&
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
5 Shim
  • Thickness: 0.02"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-20
Shim MW-2-20
&
  • Thickness: 0.02"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
5 Shim
  • Thickness: .030"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-30
Shim MW-2-30
&
  • Thickness: .030"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
5 Shim
  • Thickness: 0.05"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-50
Shim MW-2-50
&
  • Thickness: 0.05"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
6 Washer 3 Tangs
  • Thickness: .08"
  • Material: Bronze
  • Outside Dia: 2.56"
  • Inside Dia: 1.8"
 CW-3
Washer CW-3
3 Tangs &
  • Thickness: .08"
  • Material: Bronze
  • Outside Dia: 2.56"
  • Inside Dia: 1.8"
6 Washer
  • Outside Dia: 2.56"
  • Inside Dia: 1.8"
 WW-4-2
Washer WW-4-2
&
  • Outside Dia: 2.56"
  • Inside Dia: 1.8"
6 Stator Cap
  • Thickness: .46"
  • Material: Aluminum
  • Outside Dia: 3.19"
  • Inside Dia: 1.73"
 WW-4-6
Stator Cap WW-4-6
&
  • Thickness: .46"
  • Material: Aluminum
  • Outside Dia: 3.19"
  • Inside Dia: 1.73"
7 Snap Ring 2 Pieces Required.
  • Outside Dia: 3.40"
 CX-20
Snap Ring CX-20
& 2 Pieces Required.
  • Outside Dia: 3.40"
7 Snap Ring 2 Pieces Required.
  • Outside Dia: 3.65"
 CX-20-1
Snap Ring CX-20-1
& 2 Pieces Required.
  • Outside Dia: 3.65"
8 Stator Cap aluminum 2 Pieces Required.
  • Material: Aluminum
  • Outside Dia: 3.23"
  • Inside Dia: 1.75"
 CW-4
Stator Cap CW-4
aluminum & 2 Pieces Required.
  • Material: Aluminum
  • Outside Dia: 3.23"
  • Inside Dia: 1.75"

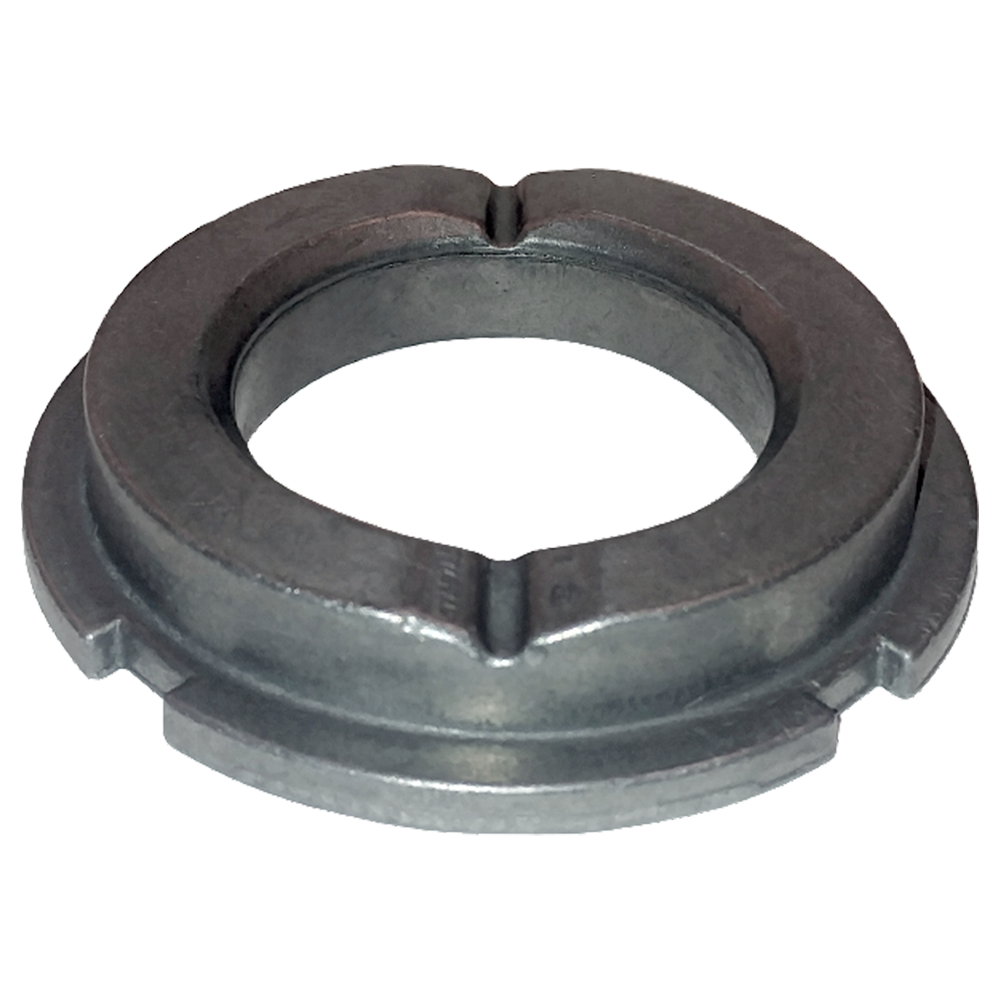

8 Stator Cap 2 Pieces Required.
  • Outside Dia: 3.23"
  • Inside Dia: 1.78"
 CW-4A
Stator Cap CW-4A
& 2 Pieces Required.
  • Outside Dia: 3.23"
  • Inside Dia: 1.78"

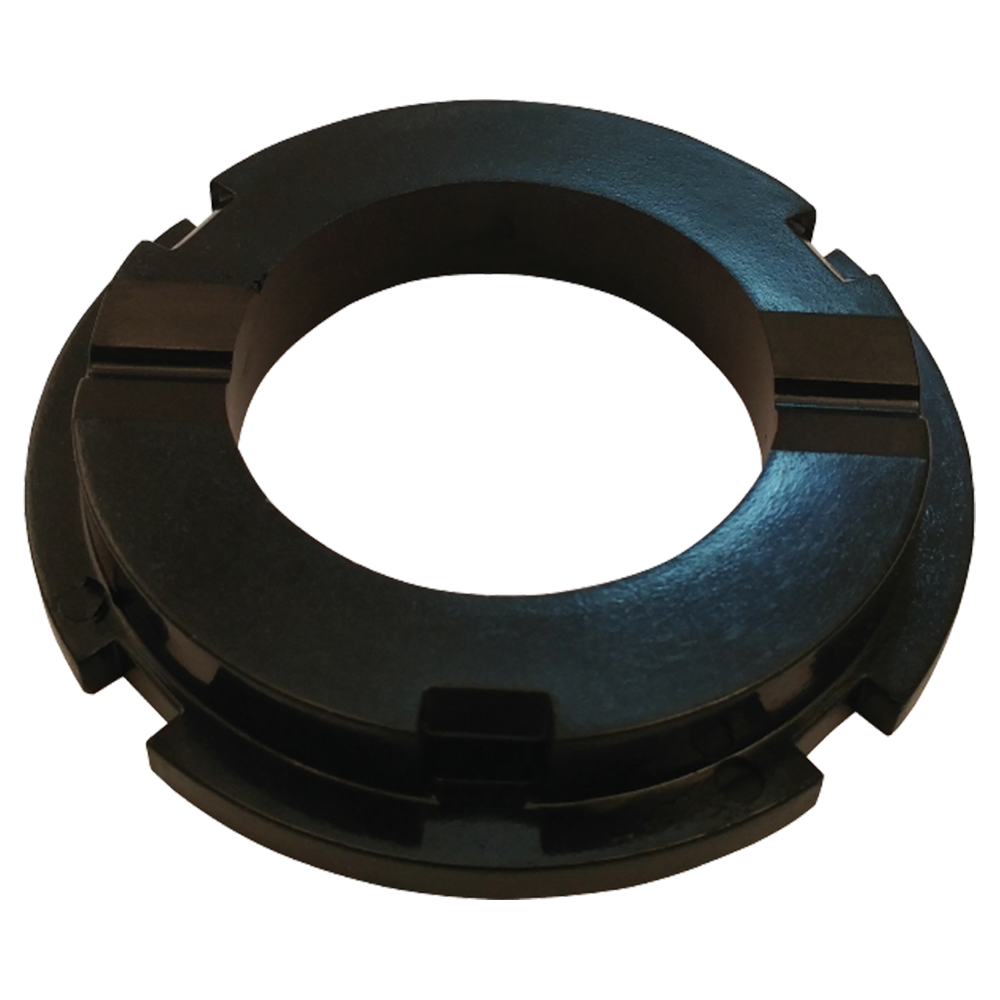

8 Stator Cap
  • Thickness: 0.47"
  • Material: Aluminum
  • Outside Dia: 3.22"
  • Inside Dia: 1.87"
  • Casting # 3831525, 6264946. Use With CW-3 Bronze Washer
 CW-4-2
Stator Cap CW-4-2
&
  • Thickness: 0.47"
  • Material: Aluminum
  • Outside Dia: 3.22"
  • Inside Dia: 1.87"
  • Casting # 3831525, 6264946. Use With CW-3 Bronze Washer
8 Stator Cap
  • Outside Dia: 3.4"
  • Inside Dia: 1.77"
 CW-4-3
Stator Cap CW-4-3
&
  • Outside Dia: 3.4"
  • Inside Dia: 1.77"

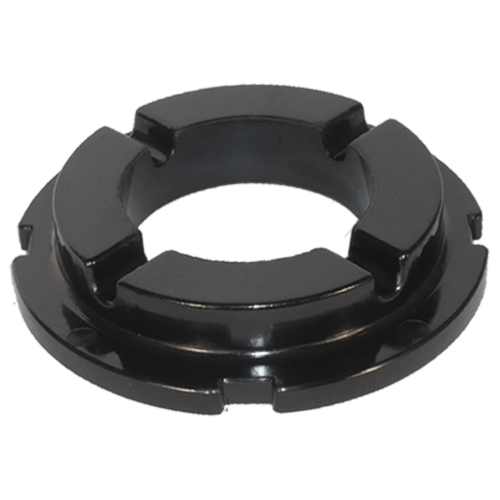

8 Stator Cap
  • Thickness: 0.59"
  • Material: Phenolic
  • Outside Dia: 3.4"
  • Inside Dia: 1.77"
  • Casting#: 6264946
 CW-4-3P
Stator Cap CW-4-3P
&
  • Thickness: 0.59"
  • Material: Phenolic
  • Outside Dia: 3.4"
  • Inside Dia: 1.77"
  • Casting#: 6264946

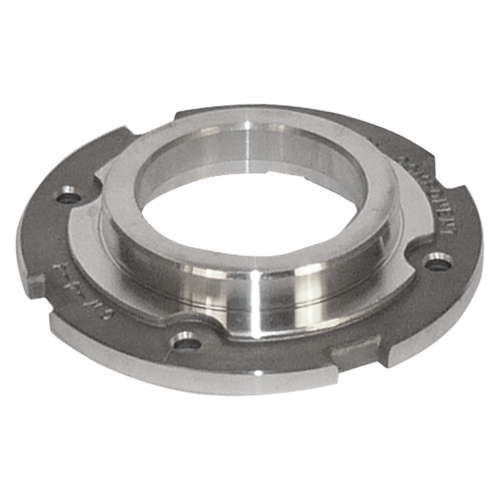

8 Stator Cap
  • Thickness: 0.500"
  • Material: Aluminum
  • Outside Dia: 3.245"
  • Inside Dia: 1.560"
  • Total Thickness: 0.500". Outer Notch Count: 4. Casting # 3924724
 CW-4-4
Stator Cap CW-4-4
&
  • Thickness: 0.500"
  • Material: Aluminum
  • Outside Dia: 3.245"
  • Inside Dia: 1.560"
  • Total Thickness: 0.500". Outer Notch Count: 4. Casting # 3924724

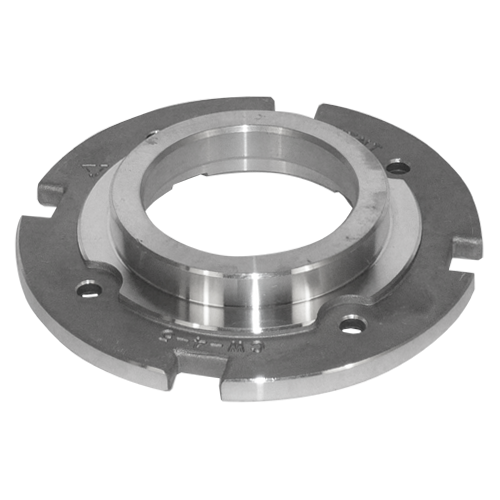

8 Stator Cap
  • Thickness: 0.560"
  • Material: Aluminum
  • Outside Dia: 3.447"
  • Inside Dia: 1.560"
  • OE# 3924723
 CW-4-5
Stator Cap CW-4-5
&
  • Thickness: 0.560"
  • Material: Aluminum
  • Outside Dia: 3.447"
  • Inside Dia: 1.560"
  • OE# 3924723
9 Stator NPN-1-40-9
Stator NPN-1-40-9
&
10 Outer Race (Cam) Stator
  • Outside Dia: 3.250"
 CX-15
Outer Race (Cam) CX-15
Stator &
  • Outside Dia: 3.250"
10 Outer Race (Cam) Stator
  • Outside Dia: 3.450"
 CX-15-1
Outer Race (Cam) CX-15-1
Stator &
  • Outside Dia: 3.450"
11 Accordion Spring 8 Pieces Required.
  • Width: 0.812"
  • Relaxed Length: 0.45"
  • Folds: 4
  • Relaxed Height: 0.3"
 CS-6
Accordion Spring CS-6
& 8 Pieces Required.
  • Width: 0.812"
  • Relaxed Length: 0.45"
  • Folds: 4
  • Relaxed Height: 0.3"
12 Roller stator 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.86"
 CR-7
Roller CR-7
stator & 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.86"

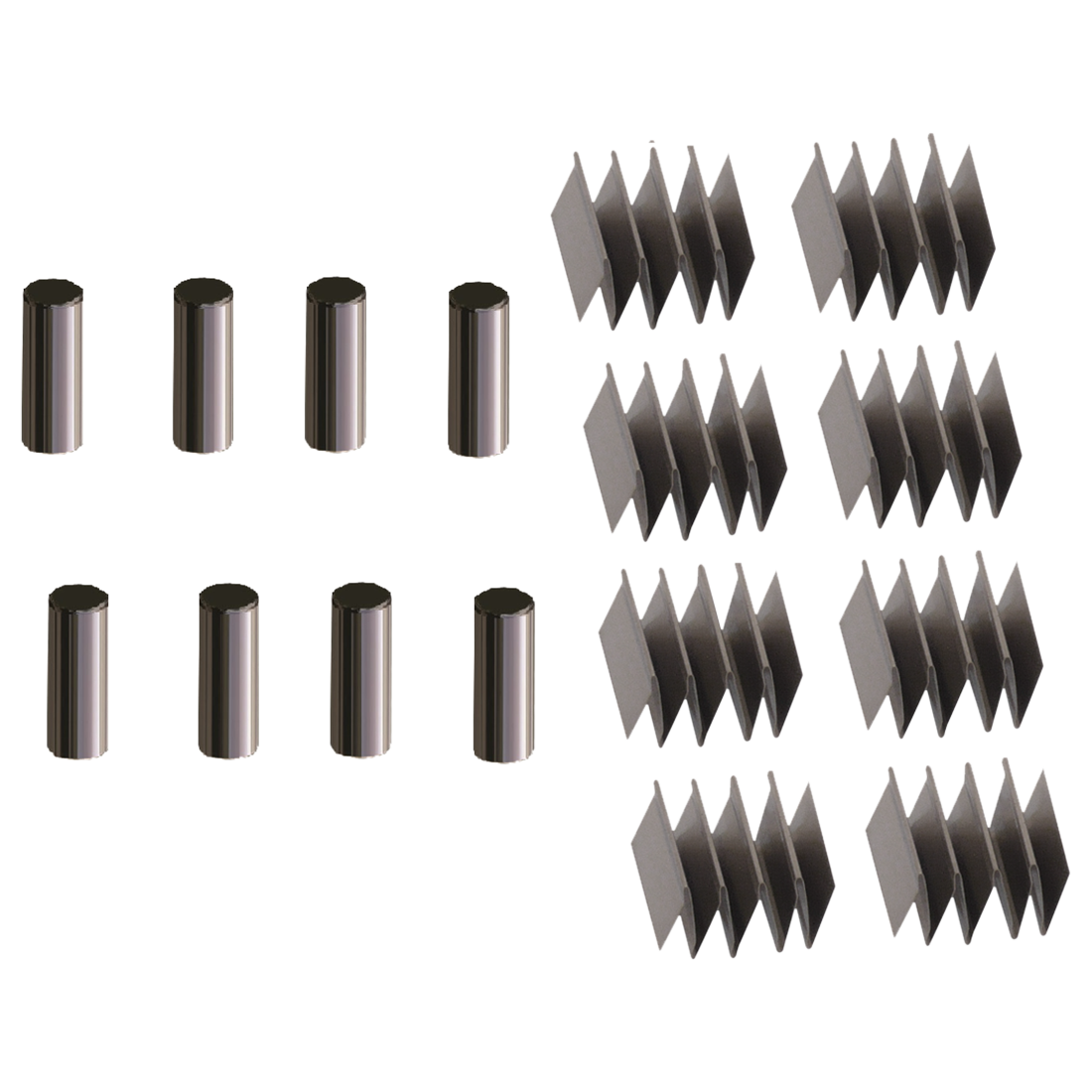

12 Kit Spring & Roller K8158
Kit K8158
Spring & Roller &
13 Inner Race Stator, splined
  • Height: 0.938"
  • Internal Teeth: 27
  • Outside Dia: 2.188"
 CX-14
Inner Race CX-14
Stator, splined &
  • Height: 0.938"
  • Internal Teeth: 27
  • Outside Dia: 2.188"
13 Inner Race For Opel Stators To Adapt To Borg-Warner Transmission
  • Height: .780"
  • Internal Teeth: 32
 CX-14F
Inner Race CX-14F
For Opel Stators & To Adapt To Borg-Warner Transmission
  • Height: .780"
  • Internal Teeth: 32

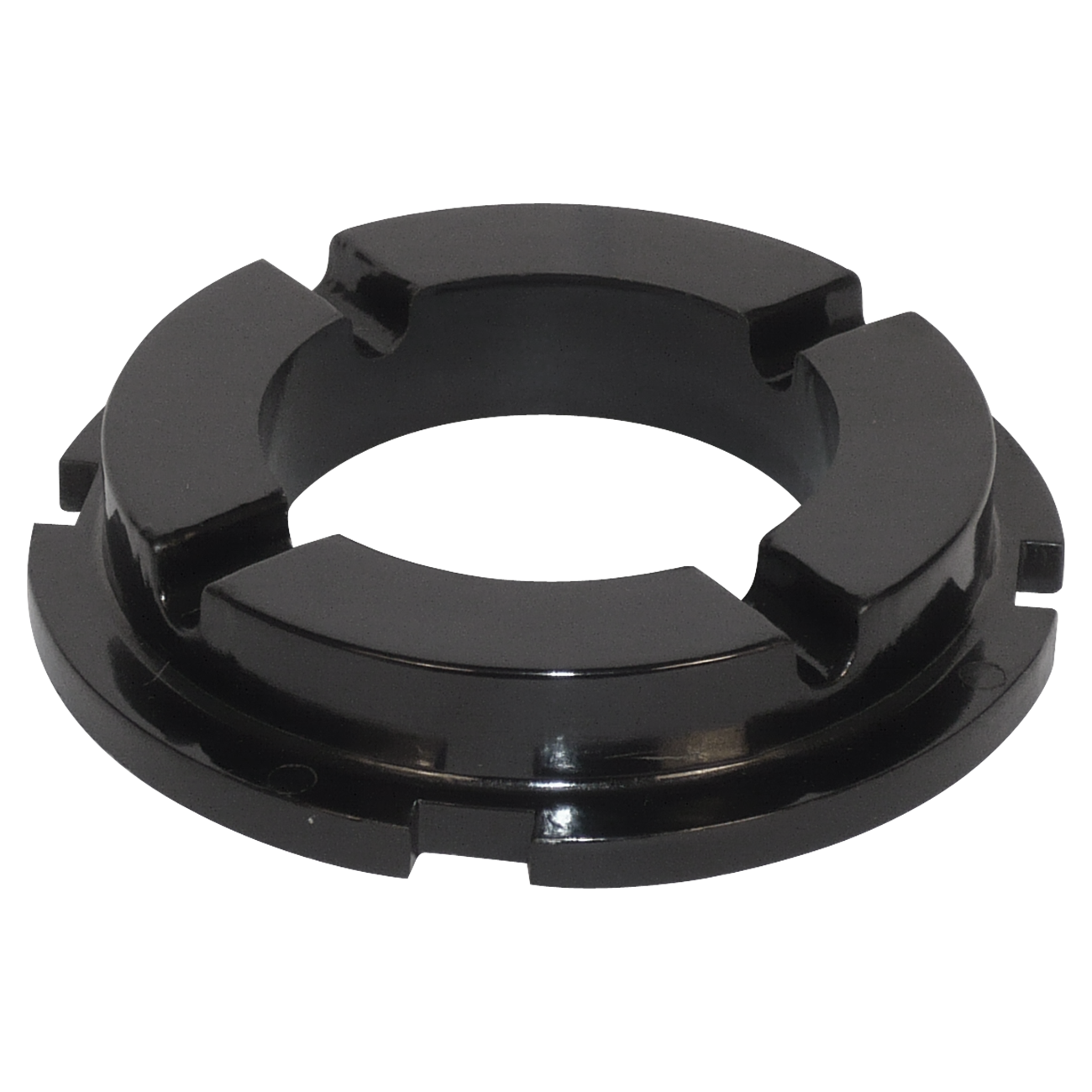

14 Stator Cap 2 Pieces Required.
  • Thickness: .59"
  • Material: Phenolic
  • Outside Dia: 3.23"
  • Inside Dia: 1.78"
  • Casting# 3735785, 6264945
 CW-4P
Stator Cap CW-4P
& 2 Pieces Required.
  • Thickness: .59"
  • Material: Phenolic
  • Outside Dia: 3.23"
  • Inside Dia: 1.78"
  • Casting# 3735785, 6264945

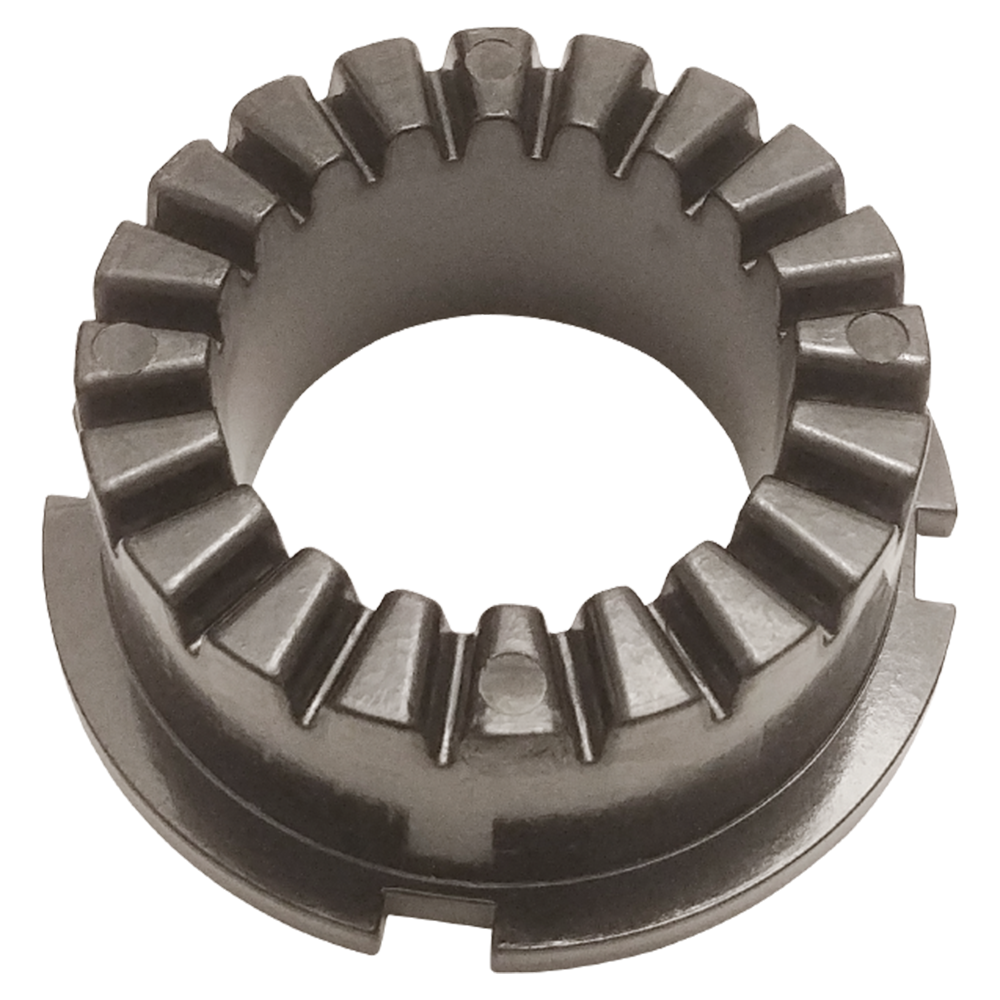

14 Stator Cap Conversion Converts Powerglide stators for use in Buick, Oldsmobile and Pontiac TH350 Converters Converts PG stator to BOP TH350
  • Thickness: 1.200"
  • Material: Phenolic
  • Outside Dia: 3.235"
  • Inside Dia: 1.780"
  • Total Thickness: 1.200". Outer Notch Count: 4. Adapts Powerglide Stator To Fit TH350 Buick, Oldsmobile,-Pontiac TH350 Convertors
 CW-4-300
Stator Cap CW-4-300
Conversion & Converts Powerglide stators for use in Buick, Oldsmobile and Pontiac TH350 Converters Converts PG stator to BOP TH350
  • Thickness: 1.200"
  • Material: Phenolic
  • Outside Dia: 3.235"
  • Inside Dia: 1.780"
  • Total Thickness: 1.200". Outer Notch Count: 4. Adapts Powerglide Stator To Fit TH350 Buick, Oldsmobile,-Pontiac TH350 Convertors
15 Rivet 10 Pieces Required.
  • Length: 0.31"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12A
Rivet WX-12A
& 10 Pieces Required.
  • Length: 0.31"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"

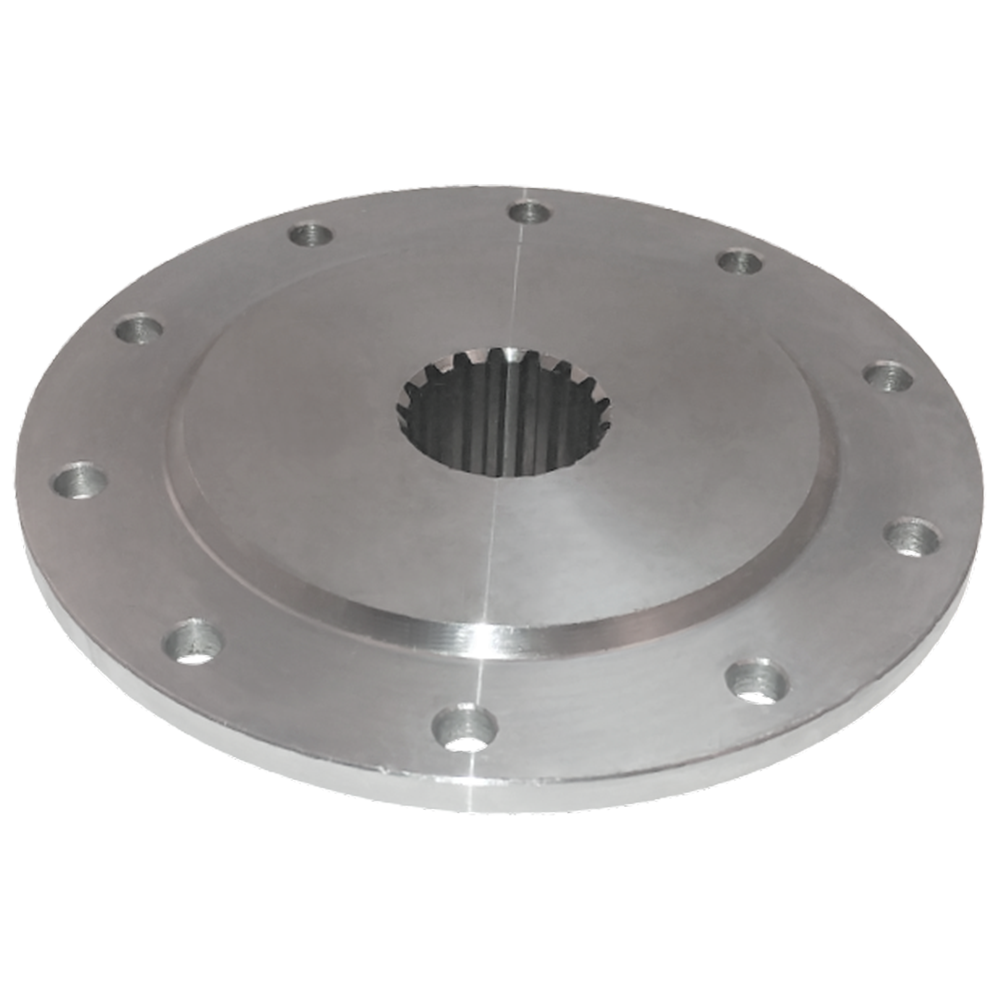

16 Turbine Hub See "C.D." Catalog For Entire High Performance Series
  • Height: 0.96"
  • Internal Teeth: 17 (Powerglide)
  • Material: STEEL
 CX-13S
Turbine Hub CX-13S
& See "C.D." Catalog For Entire High Performance Series
  • Height: 0.96"
  • Internal Teeth: 17 (Powerglide)
  • Material: STEEL

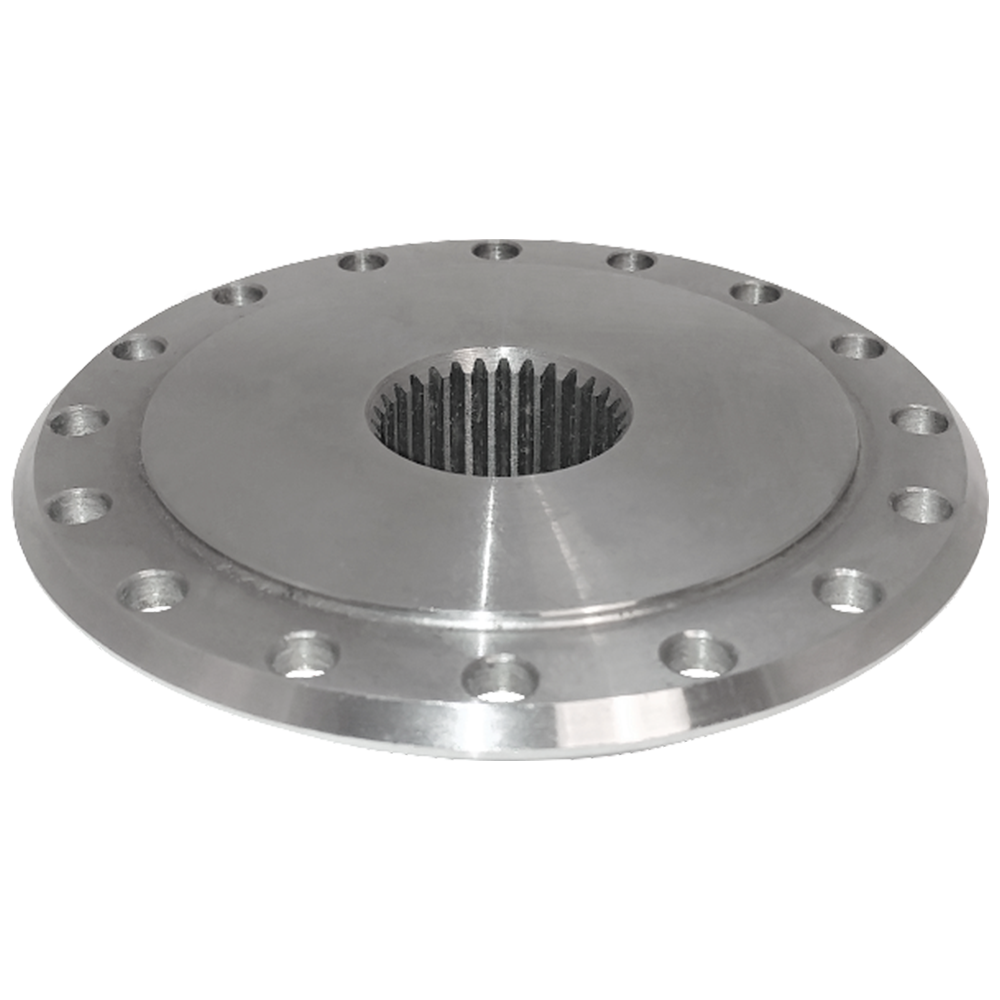

16 Turbine Hub
  • Height: 1.125
  • Internal Teeth: 30 (GM)
  • Material: STEEL
  • Outside Dia: 3.72
 CX-13-30
Turbine Hub CX-13-30
&
  • Height: 1.125
  • Internal Teeth: 30 (GM)
  • Material: STEEL
  • Outside Dia: 3.72
16 Turbine Hub
  • Internal Teeth: 30 (GM)
  • Material: STEEL
 MX-13-30
Turbine Hub MX-13-30
&
  • Internal Teeth: 30 (GM)
  • Material: STEEL
16 Turbine Hub Converts Opel 8" to Powerglide
  • Internal Teeth: 30
 MX-13-30HT
Turbine Hub MX-13-30HT
& Converts Opel 8" to Powerglide
  • Internal Teeth: 30
17 Turbine NPN-1-40-17
Turbine NPN-1-40-17
&
18 Turbine Washer
  • Thickness: .062"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.255"

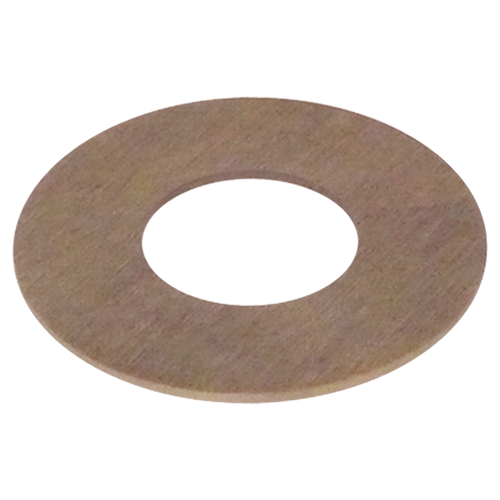

 CW-9-062
Turbine Washer CW-9-062
&
  • Thickness: .062"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.255"
18 Turbine Washer
  • Thickness: .094"
  • Material: Fiber
  • Outside Dia: 2.750"
  • Inside Dia: 1.380"
 CW-9-094
Turbine Washer CW-9-094
&
  • Thickness: .094"
  • Material: Fiber
  • Outside Dia: 2.750"
  • Inside Dia: 1.380"
18 Turbine Washer
  • Thickness: 0.14"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.25"
 CW-9A
Turbine Washer CW-9A
&
  • Thickness: 0.14"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.25"
18 Turbine Washer
  • Material: Fiber
  • Outside Dia: 2.360"
  • Inside Dia: 1.255"
 CW-9
Turbine Washer CW-9
&
  • Material: Fiber
  • Outside Dia: 2.360"
  • Inside Dia: 1.255"
18 Turbine Washer
  • Thickness: 0.136"
  • Material: Bronze
  • Outside Dia: 2.360"
  • Inside Dia: 1.255"

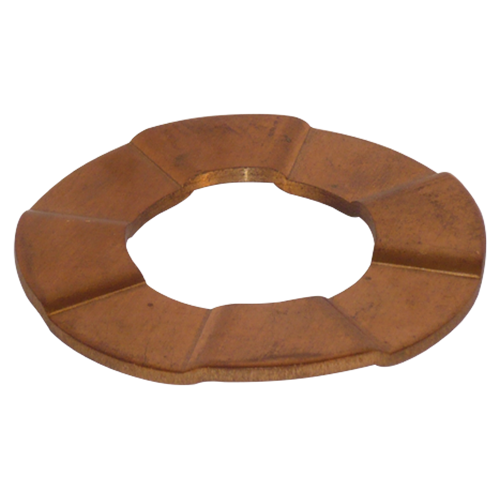

 CW-9B
Turbine Washer CW-9B
&
  • Thickness: 0.136"
  • Material: Bronze
  • Outside Dia: 2.360"
  • Inside Dia: 1.255"
18 Turbine Washer
  • Thickness: 0.12"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.25"
 CW-9F
Turbine Washer CW-9F
&
  • Thickness: 0.12"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.25"
19 Bushing cover
  • Thickness: 0.437"
  • Housing Bore Dia: 1.375"
  • Shaft Dia: 1.246"
  • Material: Babbit
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
  • Type: Precision
 CB-18
Bushing CB-18
cover &
  • Thickness: 0.437"
  • Housing Bore Dia: 1.375"
  • Shaft Dia: 1.246"
  • Material: Babbit
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
  • Type: Precision
19 Bushing Sintered
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
 CB-18P
Bushing CB-18P
Sintered &
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
19 Bushing Cover
  • Thickness: 0.44"
  • Housing Bore Dia: 1.375"
  • Shaft Dia: 1.245"
  • Material: Bronze
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
 TB-18-9
Bushing TB-18-9
Cover &
  • Thickness: 0.44"
  • Housing Bore Dia: 1.375"
  • Shaft Dia: 1.245"
  • Material: Bronze
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
20 Front Cover NPN-1-40-20
Front Cover NPN-1-40-20
&
20_N.I. Seal Ring Square-Cut, Large Cover
  • Height: 0.125
  • Thickness: 0.126"
  • Width: 0.125
  • Thickness metric: 3.2mm
  • Material: Fluorocarbon
  • Height Metric: 3.175
  • Seal Type: Square-Cut
  • Outside Dia: 12.25
  • Inside Dia: 11.752
  • Outside Dia Metric: 311.15
 FO-1-21
Seal Ring FO-1-21
Square-Cut, Large Cover &
  • Height: 0.125
  • Thickness: 0.126"
  • Width: 0.125
  • Thickness metric: 3.2mm
  • Material: Fluorocarbon
  • Height Metric: 3.175
  • Seal Type: Square-Cut
  • Outside Dia: 12.25
  • Inside Dia: 11.752
  • Outside Dia Metric: 311.15
21 Nut Converter 3 Pieces Required. 26761
Nut 26761
Converter & 3 Pieces Required.
21 Nut Special Locking 6 Pieces Required.
  • Height: .34"
  • Dimensions: 3/8"-24
  • Length: 0.330"
 FX-10-7
Nut FX-10-7
Special Locking & 6 Pieces Required.
  • Height: .34"
  • Dimensions: 3/8"-24
  • Length: 0.330"
21 Nut & Studcap Kit 4 Pieces Each FX-10-7K4STD
Nut & Studcap Kit FX-10-7K4STD
4 Pieces Each &
21 Nut Hex 3 Pieces Required.
  • Dimensions: 3/8"- 24
  • Length: 0.330"
 N-63
Nut N-63
Hex & 3 Pieces Required.
  • Dimensions: 3/8"- 24
  • Length: 0.330"
22 Bolt Hex Head 3 Pieces Required.
  • Dimensions: 3/8" x 24
  • Length: 9/16"
  • OE# 3799830
 B-63
Bolt B-63
Hex Head & 3 Pieces Required.
  • Dimensions: 3/8" x 24
  • Length: 9/16"
  • OE# 3799830
