Torque Converter | GM | 6L90 Captive Clutch | General Motors

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.125"
  • Inside Dia: 9.125"
 NX-23-5
Lining (Friction Ring,Wafer) NX-23-5
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.125"
  • Inside Dia: 9.125"
Turbine Hub
  • Internal Teeth: 36
  • External Teeth: 55
  • Material: Steel
 SX-13-41HT
Turbine Hub SX-13-41HT
&
  • Internal Teeth: 36
  • External Teeth: 55
  • Material: Steel
Turbine Hub Stepped, Chamfered Nose
  • Internal Teeth: 36
  • External Teeth: 55
  • Material: Steel
 SX-13-45HT
Turbine Hub SX-13-45HT
Stepped, Chamfered Nose &
  • Internal Teeth: 36
  • External Teeth: 55
  • Material: Steel
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
Hubcap MHC-BU
Fits 1-3/4" (44.4mm). Length: 1-1/2" &
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
2 Impeller Hub
  • Journal Dia: 1.834"
  • Installed Height: 2.527"
  • Height: 2.830"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.193"
  • Hardness: Rc 32-36
  • Material: Hardened Steel
 SH-1-64GRC
Impeller Hub SH-1-64GRC
&
  • Journal Dia: 1.834"
  • Installed Height: 2.527"
  • Height: 2.830"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.193"
  • Hardness: Rc 32-36
  • Material: Hardened Steel
3 Bearing Impeller Side
  • Thickness: 0.159
  • Thickness metric: 4.04
  • Bearing type: Semi-Enclosed
  • Material: Hardened Steel
  • Outside Dia: 3.583
  • Inside Dia: 2.502
  • Outside Dia Metric: 91.01
  • Inside Dia metric: 63.55
  • Race: SW-2-41
 SW-2-39
Bearing SW-2-39
& Impeller Side
  • Thickness: 0.159
  • Thickness metric: 4.04
  • Bearing type: Semi-Enclosed
  • Material: Hardened Steel
  • Outside Dia: 3.583
  • Inside Dia: 2.502
  • Outside Dia Metric: 91.01
  • Inside Dia metric: 63.55
  • Race: SW-2-41
4 Bearing Race 3 I.D. Tangs Impeller Side, Use with SW-2-39
  • Thickness: 0.077"
  • Material: Hardened Steel
  • Tang Count: 3 Internal
  • Outside Dia: 3.420"
  • Inside Dia: 2.600"
 SW-2-41
Bearing Race SW-2-41
3 I.D. Tangs & Impeller Side, Use with SW-2-39
  • Thickness: 0.077"
  • Material: Hardened Steel
  • Tang Count: 3 Internal
  • Outside Dia: 3.420"
  • Inside Dia: 2.600"
5 Outer Race (Cam) Stator, 10 Pocket Converts for Chrysler BW 310mm LU (A618), TH-400 (3L80), AT-540 & Buick TH-350
  • Length: 0.591"
  • Outside Dia: 3.602"
 SX-15A
Outer Race (Cam) SX-15A
Stator, 10 Pocket & Converts for Chrysler BW 310mm LU (A618), TH-400 (3L80), AT-540 & Buick TH-350
  • Length: 0.591"
  • Outside Dia: 3.602"
6 Accordion Spring 10 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.438"
  • Folds: 3
  • Material: Steel
  • Relaxed Height: 0.22"
 SS-6
Accordion Spring SS-6
& 10 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.438"
  • Folds: 3
  • Material: Steel
  • Relaxed Height: 0.22"
6 Accordion Spring 10 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.43"
  • Folds: 5
  • Relaxed Height: 0.24"
 SS-6-6
Accordion Spring SS-6-6
& 10 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.43"
  • Folds: 5
  • Relaxed Height: 0.24"
7 Roller 10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
 SR-7
Roller SR-7
& 10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
8 Inner Race Stator
  • Height: 0.875"
  • Internal Teeth: 36
  • Material: Hardened Steel
  • Outside Dia: 2.156"
 SX-14-10

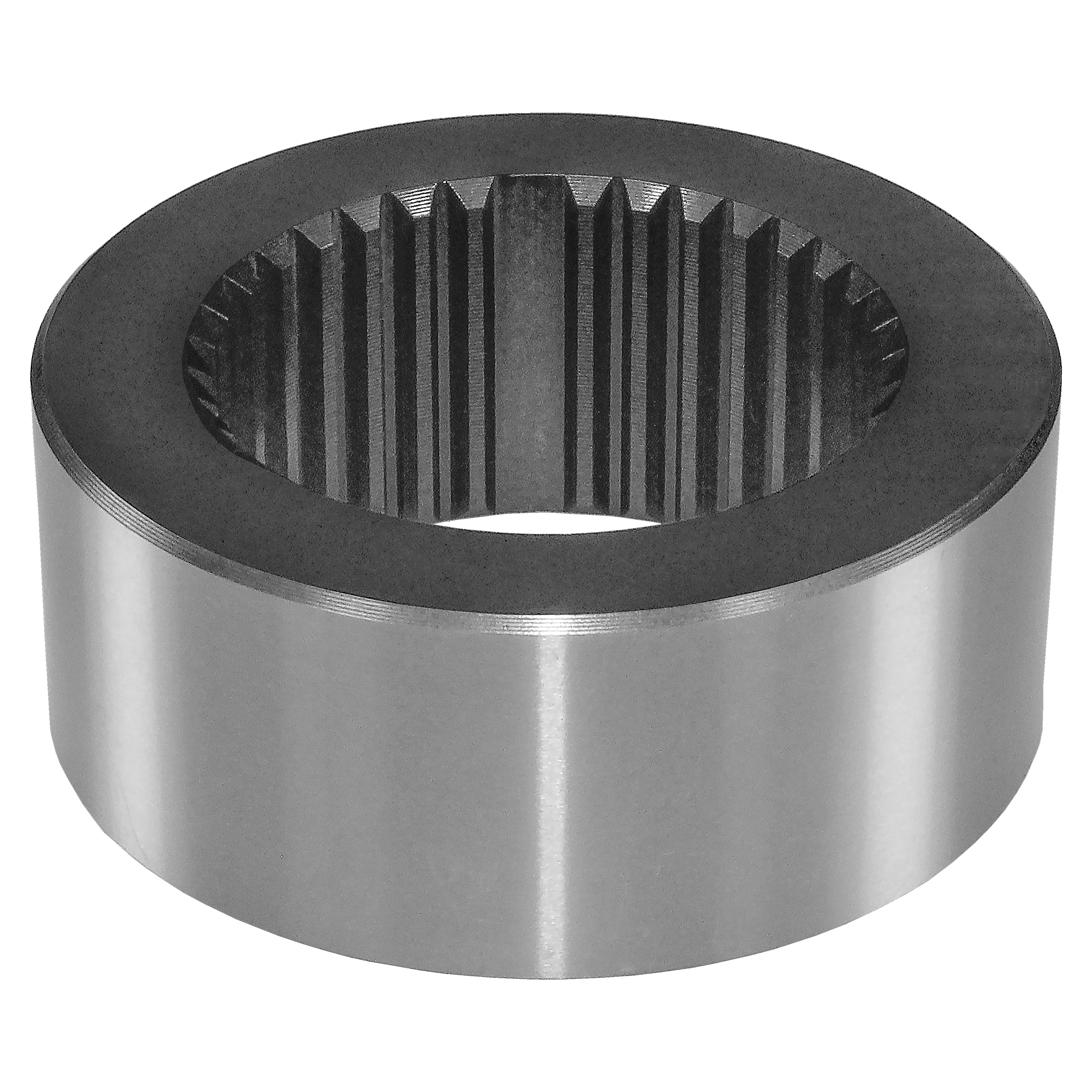

Inner Race SX-14-10
Stator &
  • Height: 0.875"
  • Internal Teeth: 36
  • Material: Hardened Steel
  • Outside Dia: 2.156"
9 Stator Cap Turbine-Side
  • Thickness: 0.430"
  • Material: Aluminum
  • Outside Dia: 4.265"
  • Inside Dia: 1.930"
 SW-4-31
Stator Cap SW-4-31
& Turbine-Side
  • Thickness: 0.430"
  • Material: Aluminum
  • Outside Dia: 4.265"
  • Inside Dia: 1.930"
10 Bearing Turbine Side
  • Thickness: 0.239
  • Thickness metric: 6.07
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 3.577
  • Inside Dia: 2.517
  • Outside Dia Metric: 90.86
  • Inside Dia metric: 63.93
 SW-2-40
Bearing SW-2-40
& Turbine Side
  • Thickness: 0.239
  • Thickness metric: 6.07
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 3.577
  • Inside Dia: 2.517
  • Outside Dia Metric: 90.86
  • Inside Dia metric: 63.93
11 Rivet 10 Pieces Required.
  • Length: 0.500"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.333"
  • Rivet Head: Flat
 SX-12-16
Rivet SX-12-16
& 10 Pieces Required.
  • Length: 0.500"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.333"
  • Rivet Head: Flat
12 Turbine Washer 4 Inner Notches 6L80, 6L90 (300mm), 6L90 (Captive Clutch
  • Thickness: 0.047"
  • Material: Plastic
  • Outside Dia: 3.150"
  • Inside Dia: 2.557"
 SW-9-23
Turbine Washer SW-9-23
4 Inner Notches & 6L80, 6L90 (300mm), 6L90 (Captive Clutch
  • Thickness: 0.047"
  • Material: Plastic
  • Outside Dia: 3.150"
  • Inside Dia: 2.557"
13 Seal Ring Solid 6L90, Captive Clutch converters
  • Height: 0.081
  • Width: 0.113
  • Color: Black
  • Material: PTFE
  • Height Metric: 2.0574
  • Seal Type: Solid
  • Outside Dia: 2.586
  • Outside Dia Metric: 65.6844
 SO-23-43
Seal Ring SO-23-43
Solid & 6L90, Captive Clutch converters
  • Height: 0.081
  • Width: 0.113
  • Color: Black
  • Material: PTFE
  • Height Metric: 2.0574
  • Seal Type: Solid
  • Outside Dia: 2.586
  • Outside Dia Metric: 65.6844
14 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.170
  • Inside Dia: 9.055"
 FX-23-65
Lining (Friction Ring,Wafer) FX-23-65
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.170
  • Inside Dia: 9.055"
15 Rivet Front Cover 6 Pieces Required.
  • Length: 0.296"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.196"
  • Rivet Head Dia: 0.310"
  • Rivet Head: Flat
 SX-12-15
Rivet SX-12-15
& Front Cover 6 Pieces Required.
  • Length: 0.296"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.196"
  • Rivet Head Dia: 0.310"
  • Rivet Head: Flat
16 Bolt Hex Head, Flanged
  • Dimensions: M10-1.50mm
  • Length: 15mm
 B-78
Bolt B-78
Hex Head, Flanged &
  • Dimensions: M10-1.50mm
  • Length: 15mm
