Torque Converter | GM | 6L80 (258mm) | General Motors

Ill.# Image Description Specification Part #
Misc NPN-SPL

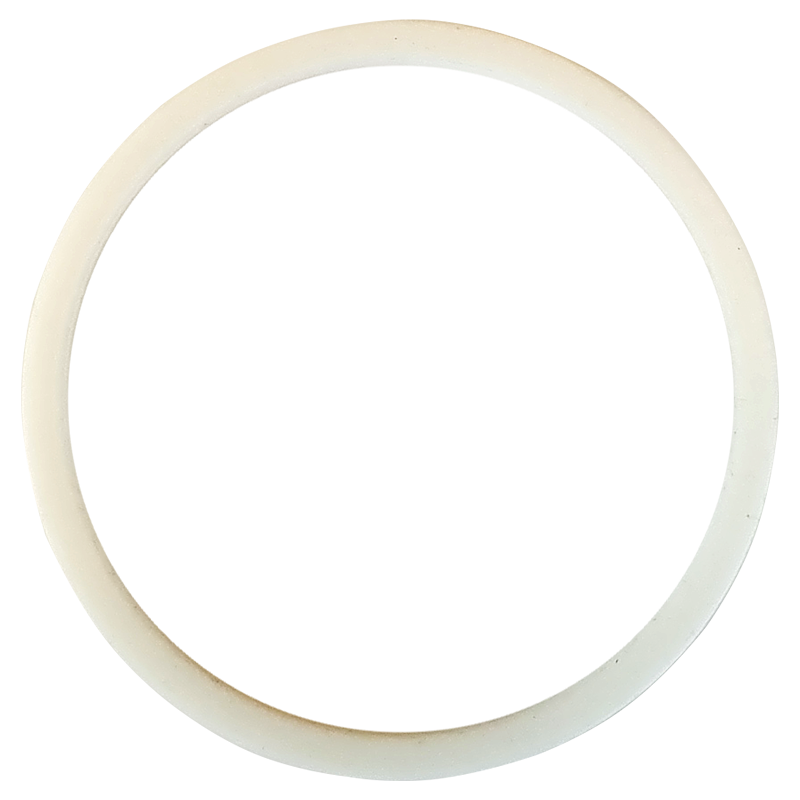

Seal Ring Solid Style
  • Height: 0.128"
  • Width: 0.098"
  • Material: PTFE
  • Seal Type: Solid
  • Outside Dia: 2.393"
 SO-23-30
Roller
  • Dia: 0.312"
  • Length: .480"
 SR-7-6
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
 MHC-YB
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-Y
2 Bearing Turbine & Impeller-side
  • Thickness: 0.150"
  • Thickness metric: 3.81
  • Bearing type: Enclosed
  • Outside Dia: 3.380"
  • Inside Dia: 2.500"
  • Outside Dia Metric: 85.85
  • Inside Dia metric: 63.5
 SW-2-11
3 Accordion Spring 4L60-E (280mm) 10 Pieces Required.
  • Width: 0.47"
  • Relaxed Length: 0.45"
  • Folds: 3
  • Relaxed Height: 0.23"
 SS-6-7
4 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.875
  • Inside Dia: 8.75
 JX-23-22
4 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.813"
  • Inside Dia: 8.813"
 JX-23-32
