Torque Converter | GM | 6L45 / 6L50 | General Motors

Ill.# Image Description Specification Part #
Seal Ring Piston, Solid-Type
  • Height: 0.128"
  • Width: 0.093
  • Seal Type: Solid
  • Outside Dia: 1.572"
 SO-23-47
Seal Ring SO-23-47
Piston, Solid-Type &
  • Height: 0.128"
  • Width: 0.093
  • Seal Type: Solid
  • Outside Dia: 1.572"
Lining (Friction Ring,Wafer) 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.307"
  • Inside Dia: 7.165"
 SX-23-80
Lining (Friction Ring,Wafer) SX-23-80
& 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.307"
  • Inside Dia: 7.165"
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
 MHC-YB
Hubcap MHC-YB
Fits 1-7/8" (47.6mm). Length: 1" &
  • Color: Yellow
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-Y
Hubcap MHC-Y
Fits 1-7/8" (47.6mm). Length: 1-3/4" &
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
2 Misc NPN-SPL
Misc NPN-SPL
&
4 Bearing Turbine-side & impeller-side
  • Thickness: 0.150"
  • Thickness metric: 3.81
  • Bearing type: Enclosed
  • Outside Dia: 3.380"
  • Inside Dia: 2.500"
  • Outside Dia Metric: 85.85
  • Inside Dia metric: 63.5
 SW-2-11
Bearing SW-2-11
& Turbine-side & impeller-side
  • Thickness: 0.150"
  • Thickness metric: 3.81
  • Bearing type: Enclosed
  • Outside Dia: 3.380"
  • Inside Dia: 2.500"
  • Outside Dia Metric: 85.85
  • Inside Dia metric: 63.5

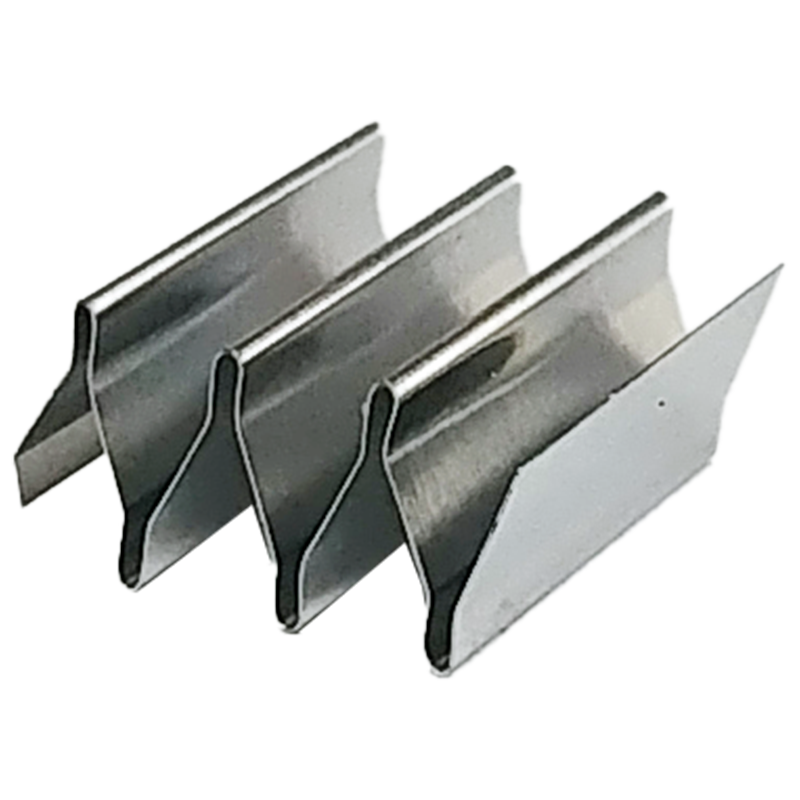

8 Accordion Spring 10 Pieces Required.
  • Width: 0.47"
  • Relaxed Length: 0.45"
  • Folds: 3
  • Relaxed Height: 0.23"
 SS-6-7
Accordion Spring SS-6-7
& 10 Pieces Required.
  • Width: 0.47"
  • Relaxed Length: 0.45"
  • Folds: 3
  • Relaxed Height: 0.23"
9 Roller 10 Pieces Required.
  • Dia: 0.312"
  • Length: .480"
 SR-7-6
Roller SR-7-6
& 10 Pieces Required.
  • Dia: 0.312"
  • Length: .480"
10 Inner Race Stator
  • Height: 0.875"
  • Internal Teeth: 27
  • Outside Dia: 2.156"
 SX-14-2
Inner Race SX-14-2
Stator &
  • Height: 0.875"
  • Internal Teeth: 27
  • Outside Dia: 2.156"
10 Inner Race Stator
  • Height: 0.875"
  • Internal Teeth: 27 (3 Removed)
  • Outside Dia: 2.156"
 SX-14-3
Inner Race SX-14-3
Stator &
  • Height: 0.875"
  • Internal Teeth: 27 (3 Removed)
  • Outside Dia: 2.156"
