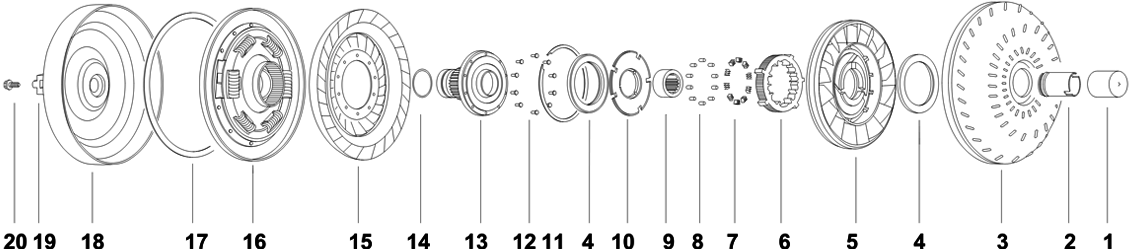

Torque Converter | GM | 300mm Lockup, TH700-R4 (4L60E) | General Motors

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
Front Cover 4L60E TMBX ONLY Fits TMBX Units SX-22-13
Front Cover SX-22-13
4L60E TMBX ONLY & Fits TMBX Units
Impeller Hub
  • Journal Dia: 1.748"
  • Height: 2.600"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-61GRC
Impeller Hub SH-1-61GRC
&
  • Journal Dia: 1.748"
  • Height: 2.600"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
Impeller Hub
  • Journal Dia: 1.748"
  • Height: 2.250"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-19GRC
Impeller Hub SH-1-19GRC
&
  • Journal Dia: 1.748"
  • Height: 2.250"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
Hubcap MHC-BU
Fits 1-3/4" (44.4mm). Length: 1-1/2" &
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
2 Impeller Hub
  • Journal Dia: 1.748"
  • Installed Height: 2.175"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-32GRC
Impeller Hub SH-1-32GRC
&
  • Journal Dia: 1.748"
  • Installed Height: 2.175"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
2 Impeller Hub SH-1-12
Impeller Hub SH-1-12
&
2 Impeller Hub
  • Journal Dia: 1.748"
  • Height: 2.175"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-12GRC
Impeller Hub SH-1-12GRC
&
  • Journal Dia: 1.748"
  • Height: 2.175"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
2 Impeller Hub TH200C, TH700-R4(S-10)
  • Journal Dia: 1.748"
  • Installed Height: 2.175"
  • Height: 2.488"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-37GRC
Impeller Hub SH-1-37GRC
& TH200C, TH700-R4(S-10)
  • Journal Dia: 1.748"
  • Installed Height: 2.175"
  • Height: 2.488"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.748"
  • Installed Height: 2.350"
  • Height: 2.500"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.910"
  • Hardness: Rc 32-36
  • Inside Dia: 3.910"
 SH-1-62GRC
Impeller Hub SH-1-62GRC
&
  • Journal Dia: 1.748"
  • Installed Height: 2.350"
  • Height: 2.500"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.910"
  • Hardness: Rc 32-36
  • Inside Dia: 3.910"
3 Impeller NPN-1-18-3
Impeller NPN-1-18-3
&
4 Bearing 2 Pieces Required.
  • Thickness: 0.155
  • Thickness metric: 3.94
  • Bearing type: Enclosed
  • Outside Dia: 3.655
  • Inside Dia: 2.6
  • Outside Dia Metric: 92.84
  • Inside Dia metric: 66.04
 SW-2-24
Bearing SW-2-24
& 2 Pieces Required.
  • Thickness: 0.155
  • Thickness metric: 3.94
  • Bearing type: Enclosed
  • Outside Dia: 3.655
  • Inside Dia: 2.6
  • Outside Dia Metric: 92.84
  • Inside Dia metric: 66.04
4 Bearing 2 Pieces Required.
  • Thickness: 0.156
  • Outside Dia: 3.65"
  • Inside Dia: 2.6"
 SW-2-24T
Bearing SW-2-24T
& 2 Pieces Required.
  • Thickness: 0.156
  • Outside Dia: 3.65"
  • Inside Dia: 2.6"
4 Bearing Upgrade. Replaces SW-2-24 Bearing on impeller side
  • Thickness: 0.179
  • Thickness metric: 4.55
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 3.661
  • Inside Dia: 2.598
  • Outside Dia Metric: 93
  • Inside Dia metric: 65.99
 SW-2-33
Bearing SW-2-33
& Upgrade. Replaces SW-2-24 Bearing on impeller side
  • Thickness: 0.179
  • Thickness metric: 4.55
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 3.661
  • Inside Dia: 2.598
  • Outside Dia Metric: 93
  • Inside Dia metric: 65.99
4 Bearing
  • Thickness: .18"
  • Bearing type: Enclosed
  • Outside Dia: 3.65"
  • Inside Dia: 2.60"
  • Impeller Side
 SW-2-33T
Bearing SW-2-33T
&
  • Thickness: .18"
  • Bearing type: Enclosed
  • Outside Dia: 3.65"
  • Inside Dia: 2.60"
  • Impeller Side
4.1 Shim
  • Thickness: .010"
  • Outside Dia: 3.44"
  • Inside Dia: 2.59"
 SW-2-410
Shim SW-2-410
&
  • Thickness: .010"
  • Outside Dia: 3.44"
  • Inside Dia: 2.59"
4.1 Shim
  • Thickness: .020"
  • Outside Dia: 3.44"
  • Inside Dia: 2.59"
 SW-2-420
Shim SW-2-420
&
  • Thickness: .020"
  • Outside Dia: 3.44"
  • Inside Dia: 2.59"
4.1 Shim
  • Thickness: .030"
  • Outside Dia: 3.44"
  • Inside Dia: 2.59"
 SW-2-430
Shim SW-2-430
&
  • Thickness: .030"
  • Outside Dia: 3.44"
  • Inside Dia: 2.59"
5 Stator NPN-1-18-5
Stator NPN-1-18-5
&
6 Cam NPN-1-18-6
Cam NPN-1-18-6
&
6 Outer Race (Cam) Stator, 10 Pocket Converts for Chrysler BW 310mm LU (A618), TH-400 (3L80), AT-540 & Buick TH-350
  • Length: 0.591"
  • Outside Dia: 3.602"
 SX-15A
Outer Race (Cam) SX-15A
Stator, 10 Pocket & Converts for Chrysler BW 310mm LU (A618), TH-400 (3L80), AT-540 & Buick TH-350
  • Length: 0.591"
  • Outside Dia: 3.602"
7 Accordion Spring 10 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.438"
  • Folds: 3
  • Material: Steel
  • Relaxed Height: 0.22"
 SS-6
Accordion Spring SS-6
& 10 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.438"
  • Folds: 3
  • Material: Steel
  • Relaxed Height: 0.22"
7 Accordion Spring 10 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.43"
  • Folds: 5
  • Relaxed Height: 0.24"
 SS-6-6
Accordion Spring SS-6-6
& 10 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.43"
  • Folds: 5
  • Relaxed Height: 0.24"
8 Roller 10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
 SR-7
Roller SR-7
& 10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
9 Inner Race Stator
  • Height: 0.875"
  • Internal Teeth: 27
  • Outside Dia: 2.156"
 SX-14-2
Inner Race SX-14-2
Stator &
  • Height: 0.875"
  • Internal Teeth: 27
  • Outside Dia: 2.156"
9 Inner Race Stator
  • Height: 0.875"
  • Internal Teeth: 27 (3 Removed)
  • Outside Dia: 2.156"
 SX-14-3
Inner Race SX-14-3
Stator &
  • Height: 0.875"
  • Internal Teeth: 27 (3 Removed)
  • Outside Dia: 2.156"
10 Stator Cap NPN-1-18-10
Stator Cap NPN-1-18-10
&
10 Stator Cap
  • Thickness: 0.302"
  • Material: Aluminum
  • Outside Dia: 4.261"
  • Inside Dia: 1.940"
 SW-4-30
Stator Cap SW-4-30
&
  • Thickness: 0.302"
  • Material: Aluminum
  • Outside Dia: 4.261"
  • Inside Dia: 1.940"
11 Snap Ring NPN-1-18-11
Snap Ring NPN-1-18-11
&
12 Rivet 10 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12B
Rivet WX-12B
& 10 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
12 Rivet 10 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12BS
Rivet WX-12BS
& 10 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
13 Turbine Hub
  • Internal Teeth: 30
  • External Teeth: 55
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.66"
 SX-13-35HT
Turbine Hub SX-13-35HT
&
  • Internal Teeth: 30
  • External Teeth: 55
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.66"
13 O-Ring Oversized, For viscous damper
  • Thickness: 0.079
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
  • Inside Dia: 1.496
  • Inside Dia metric: 37.9984
  • Oversized
 SO-23-39
O-Ring SO-23-39
& Oversized, For viscous damper
  • Thickness: 0.079
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
  • Inside Dia: 1.496
  • Inside Dia metric: 37.9984
  • Oversized
14 O-Ring
  • Thickness: 0.065
  • Thickness metric: 1.651
  • Color: Black/Brown/White
  • Material: Fluorocarbon, PTFE Coating
  • Inside Dia: 1.489
  • Inside Dia metric: 37.8206
 SO-23-28
O-Ring SO-23-28
&
  • Thickness: 0.065
  • Thickness metric: 1.651
  • Color: Black/Brown/White
  • Material: Fluorocarbon, PTFE Coating
  • Inside Dia: 1.489
  • Inside Dia metric: 37.8206
15 Turbine NPN-1-18-15
Turbine NPN-1-18-15
&

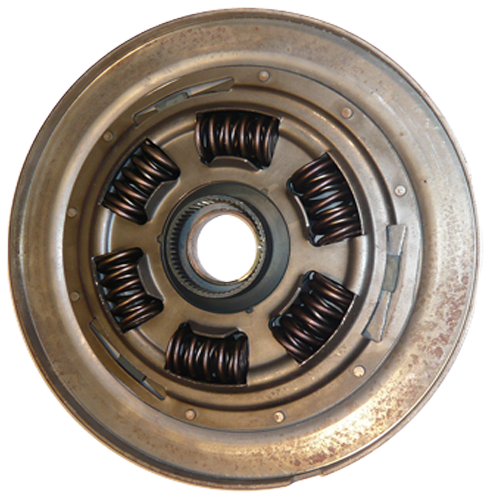

16 Clutch Plate Assembly 6 Springs SX-23-37
Clutch Plate Assembly SX-23-37
6 Springs &
16.1 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12
Rivet JX-12
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
16.1 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12S
Rivet JX-12S
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
16.1 Rivet 12 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
 SX-12-14
Rivet SX-12-14
& 12 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
17 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.125"
  • Inside Dia: 10"
 SX-23-4
Lining (Friction Ring,Wafer) SX-23-4
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.125"
  • Inside Dia: 10"
18 Front Cover NPN-1-18-18
Front Cover NPN-1-18-18
&
19 Mounting Pad NPN-1-18-19
Mounting Pad NPN-1-18-19
&
20 Bolt Hex Head, Flanged 3 Pieces Required.
  • Dimensions: M10-1.50mm
  • Length: 15mm
 B-78
Bolt B-78
Hex Head, Flanged & 3 Pieces Required.
  • Dimensions: M10-1.50mm
  • Length: 15mm
