Torque Converter | GM | 298mm Lockup, TH700-R4 (4L60E), TH200-4R, TH250C, TH350C, | General Motors

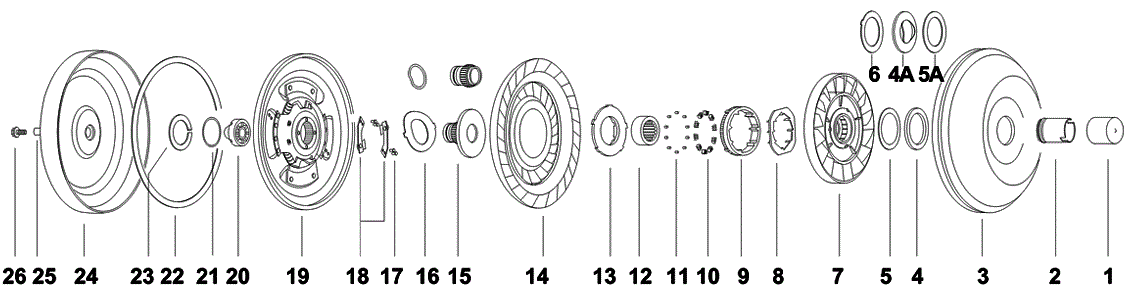

Ill.# Image Description Specification Part #
0 Misc NPN-SPL
0 Impeller Hub
  • Journal Dia: 1.748"
  • Height: 2.600"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
SH-1-61GRC
0 Stator Cap
  • Outer Dia: 3.738"
  • Inner Dia: 1.690"
  • Thickness: 0.305"
  • Material: Plastic
SW-4-27

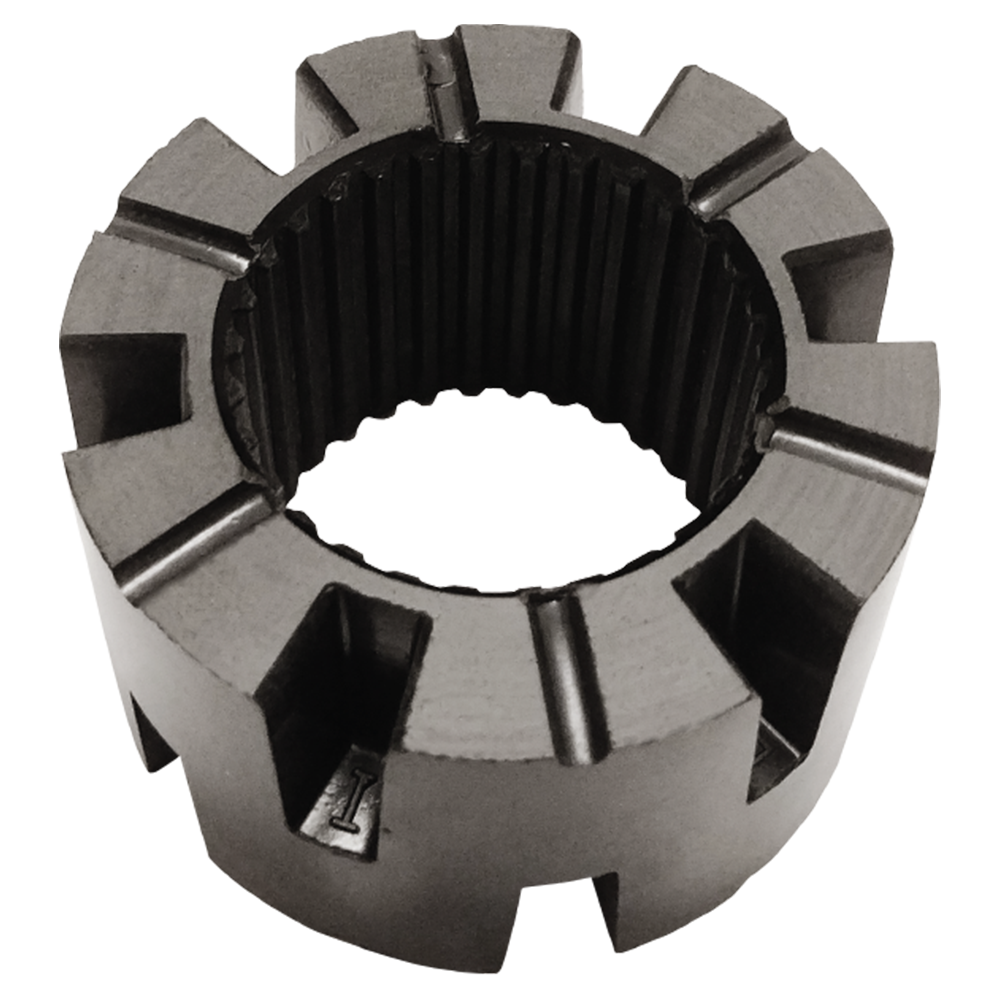

0 Spacer Lockup-Eliminator (converts L/U to non L/U)
  • Height: 1.050"
  • Internal Teeth: 30
  • Material: Aluminum
SW-9-105
0 Pilot
  • Outer Dia: 1.500"
SX-23R
1 Hubcap Fits 1-3/4" (44.4mm)
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
MHC-BU
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
MHC-Y
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
MHC-YA
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
MHC-YB
2 Impeller Hub For TH200C, TH200-4R, TH700-R4 SH-1-2040GRC
2 Impeller Hub For TH200C, TH200-4R, TH700-R4
  • Journal Dia: 1.748"
  • Installed Height: 2.000"
  • Pump Drive Type: slots
  • Hardness: Rc 32-36
  • Narrow Weld Groove
SH-1-2GRC
2 Impeller Hub For TH200C, TH200-4R, TH700-R4
  • Journal Dia: 1.748"
  • Installed Height: 2.000"
  • Pump Drive Type: slots
SH-1-2GRCT
2 Impeller Hub For TH200C, TH200-4R, TH700-R4
  • Journal Dia: 1.748"
  • Height: 1.890"
  • Hub Mount: Butt
  • Pump Drive Type: slots

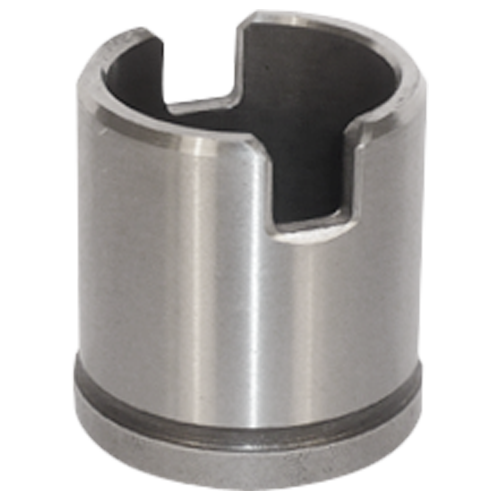

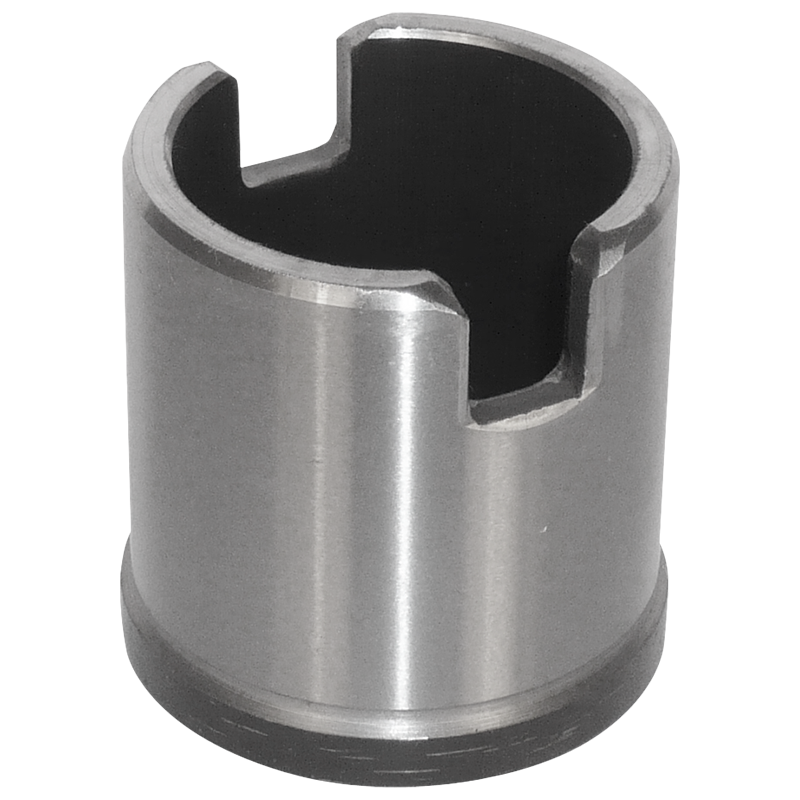

SH-1-15G
2 Impeller Hub For TH200C, TH200-4R, TH700-R4
  • Journal Dia: 1.750"
  • Height: 1.890"
  • Hub Mount: Butt
  • Pump Drive Type: slots
  • Hardness: Rc 32-36
SH-1-15GRC
2 Impeller Hub
  • Journal Dia: 1.748"
  • Height: 2.075"
  • Hub Mount: Butt
  • Pump Drive Type: slots
SH-1-18G
2 Impeller Hub For TH200C, TH200-4R, TH700-R4
  • Journal Dia: 1.750"
  • Height: 2.075"
  • Hub Mount: Butt
  • Pump Drive Type: slots
  • Hardness: Rc 32-36

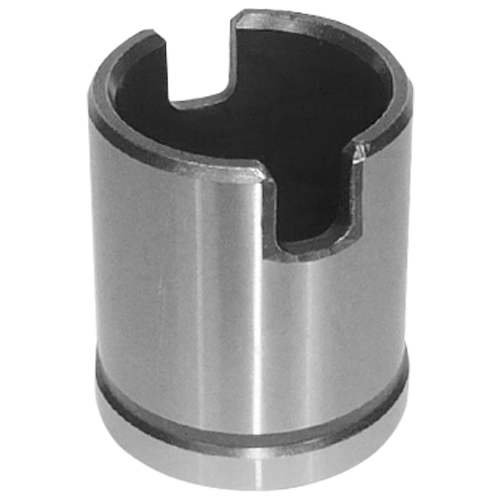

SH-1-18GRC
2 Impeller Hub For TH200C, TH200-4R, TH700-R4
  • Journal Dia: 1.748"
  • Installed Height: 1.950"
  • Hub Mount: Flanged
  • Pump Drive Type: slots
  • Hardness: Rc 32-36

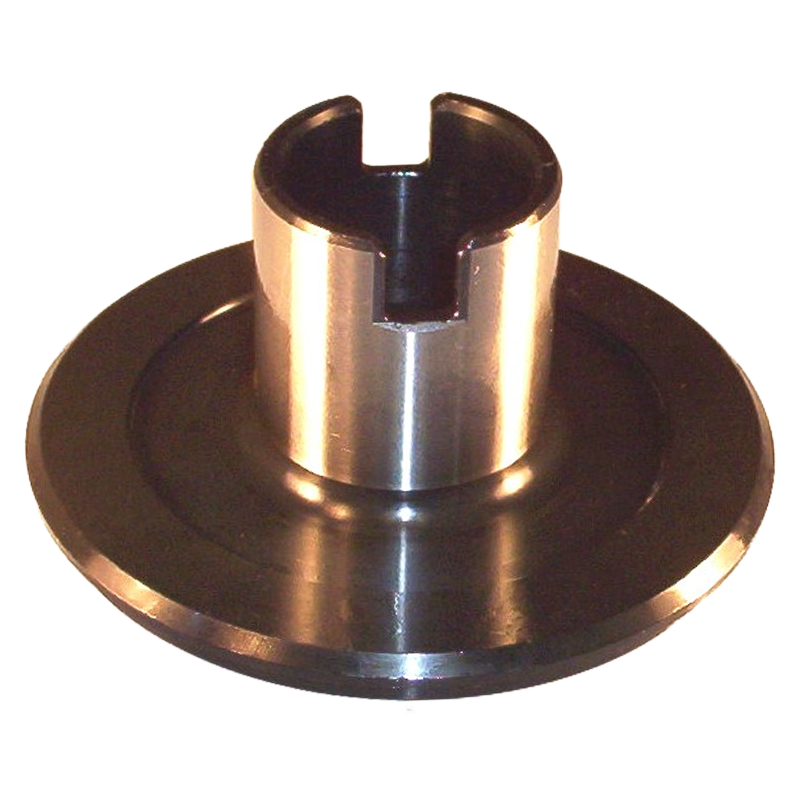

SH-1-24GRC
2 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.375"
  • Pump Drive Type: slots
  • Hardness: Rc 32-36
SH-1-31GRC
2 Impeller Hub Wide Weld Groove TH200C, TH700-R4(S-10)
  • Journal Dia: 1.997"
  • Height: 2.010"
  • Hub Mount: Butt
  • Pump Drive Type: slots
  • Hardness: Rc 32-36
SH-1-38GRC
2 Impeller Hub SH-1-2
2 Impeller Hub Narrow Weld Groove
  • Journal Dia: 1.748"
  • Installed Height: 2.000"
  • Pump Drive Type: slots
SH-1-2G
2 Impeller Hub
  • Journal Dia: 1.748"
  • Height: 2.000"
  • Hub Mount: Butt
  • Pump Drive Type: slots
  • Wide Weld Groove
SH-1-41G
2 Impeller Hub For TH200C, TH200-4R, TH700-R4
  • Journal Dia: 1.748"
  • Height: 2.000"
  • Hub Mount: Butt
  • Pump Drive Type: slots
  • Hardness: Rc 32-36
  • Wide Weld Groove
SH-1-41GRC
2 Impeller Hub
  • Journal Dia: 1.874"
  • Height: 2.150"
  • Hub Mount: Butt
  • Pump Drive Type: slots
  • With Pilot Step
SH-1G
2 Impeller Hub For TH250C, TH-325-4L, 200C, 700-R4, S-10
  • Journal Dia: 1.874"
  • Height: 2.150"
  • Hub Mount: Butt
  • Pump Drive Type: slots
  • Hardness: Rc 32-36
  • With Pilot Step
SH-1GRC
2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.200"
  • Hub Mount: Butt
  • Pump Drive Type: slots
SH-1-5G
2 Impeller Hub For TH250C, TH-325-4L
  • Journal Dia: 1.874"
  • Installed Height: 2.200"
  • Hub Mount: Butt
  • Pump Drive Type: slots
  • Hardness: Rc 32-36
SH-1-5GRC
3 Impeller NPN-1-14-3
3_N.I. Vane Impeller SX-21-31-3
4 Bearing Late-Type
  • Outer Dia: 3.28
  • Inner Dia: 2.388
  • Thickness: 0.255
  • Outer Dia Metric: 83.31
  • Inner Dia metric: 60.66
  • Thickness metric: 6.48
  • Bearing type: Enclosed
SW-2-12
4 Bearing Timken
  • Outer Dia: 3.28"
  • Inner Dia: 2.39"
  • Thickness: 0.25"
  • Bearing type: Enclosed
SW-2-12T
4 Bearings BULK-PACK (1 BOX 200PCS) KOYO
  • Outer Dia: 3.28"
  • Inner Dia: 2.39"
SW-2-12T-BOX200
4A Bearing Early
  • Outer Dia: 2.842
  • Inner Dia: 1.435
  • Thickness: 0.155
  • Outer Dia Metric: 72.19
  • Inner Dia metric: 36.45
  • Thickness metric: 3.94
  • Bearing type: Semi- Enclosed
  • Race: SW-2-9
SW-2-8
4A Bearing
  • Outer Dia: 2.84"
  • Inner Dia: 1.44"
  • Thickness: 0.156
SW-2-8T
4A_N.I. Washer (Plate)
  • Outer Dia: 3"
  • Inner Dia: 1.82"
SX-15-3

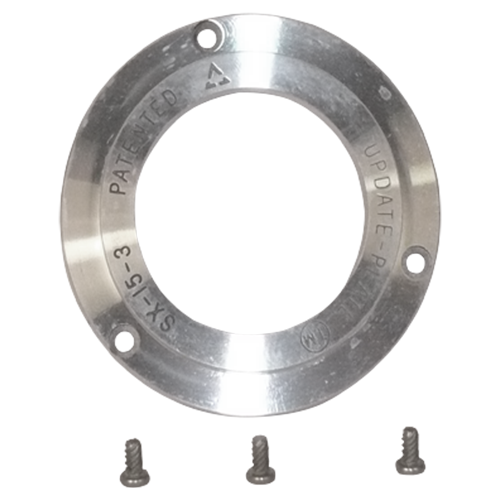

4A_N.I. Kit Plate. Update™, Adapter
  • Outer Dia: 3"
  • Inner Dia: 1.82"
  • Thickness: 0.25"
  • Permits Retrofit Of Bearing SW-2-12 , Patented
SX-15-3K
5 Shim
  • Outer Dia: 2.95"
  • Inner Dia: 2.4"
  • Thickness: .02"
SW-2-17
5 Shim Late-style, End Play, Use Under SW-2-12
  • Outer Dia: 2.95"
  • Inner Dia: 2.40"
  • Thickness: .010"
SW-2-210
5 Washer Hub Bearing Adapter
  • Outer Dia: 2.95"
  • Inner Dia: 2.4"
  • Use With SH-1-26GRC to Accept SW-2-14 Bearing
SW-2-23
5 Shim Late-style, End Play, Use Under SW-2-12
  • Outer Dia: 2.95"
  • Inner Dia: 2.40"
  • Thickness: .020"
SW-2-220
5 Shim Late-style, End Play, Use Under SW-2-12
  • Outer Dia: 2.95"
  • Inner Dia: 2.40"
  • Thickness: .030"
SW-2-230
5A Shim End Play, Use Under SW-2-8
  • Outer Dia: 2.75"
  • Inner Dia: 1.585"
  • Thickness: .010"
SW-2-010

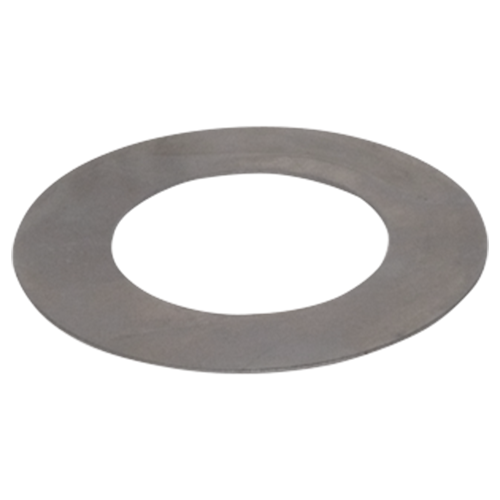

5A Shim End Play, Use Under SW-2-8
  • Outer Dia: 2.75"
  • Inner Dia: 1.585"
  • Thickness: .020"
SW-2-020

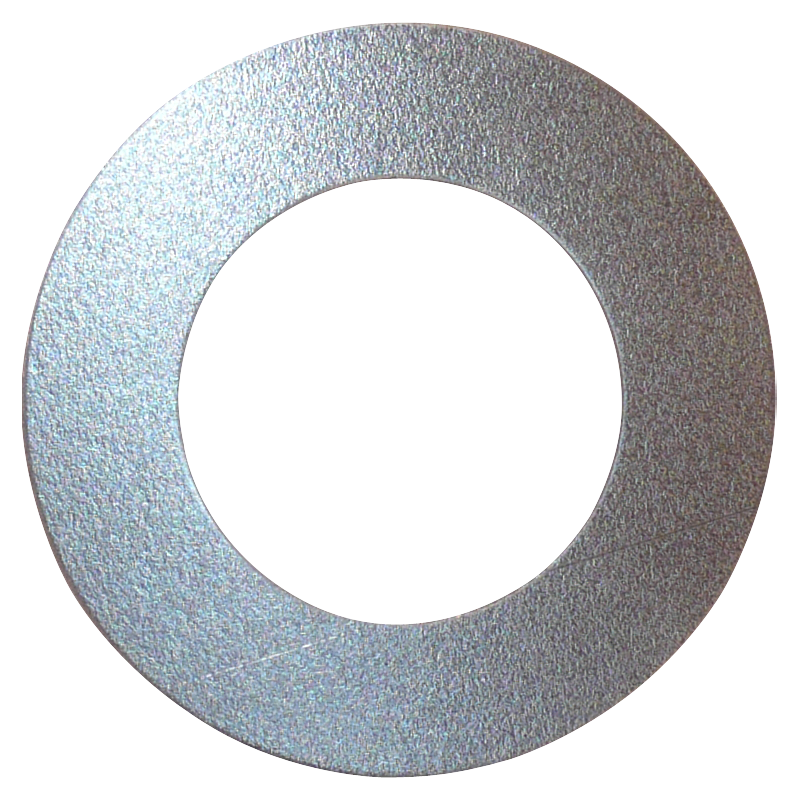

5A Shim Early. End Play, Use Under SW-2-8
  • Outer Dia: 2.75"
  • Inner Dia: 1.585"
  • Thickness: .030"
SW-2-030
5A Shim End Play, Use Under SW-2-8
  • Outer Dia: 2.75"
  • Inner Dia: 1.585"
  • Thickness: .050"

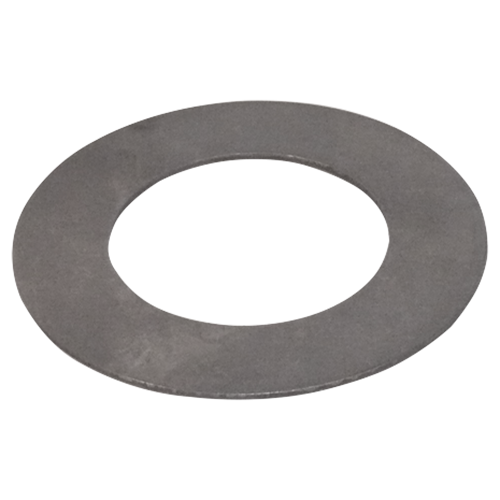

SW-2-050
6 Bearing Race Early Type
  • Outer Dia: 3"
  • Inner Dia: 1.76"
  • Thickness: 0.045"
  • Material: Steel
SW-2-9

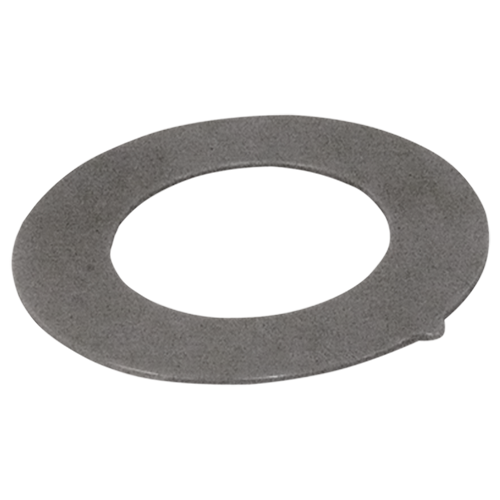

6 Plate Heavy Duty Early
  • Outer Dia: 3.00"
  • Inner Dia: 1.756"
  • Thickness: 0.063"
  • Material: Hardened Steel
SW-2-9HD
7 Stator
  • OE# 8630505
SX-5-88
8 Spring Retainer Stator
  • For .444" Long, Rollers
SX-15-2
9 Outer Race (Cam) Stator SX-15-1
10 Accordion Spring 10 Pieces Required.
  • Height: 0.225"
  • Width: 0.43"
  • Folds: 3
SS-6-1
11 Roller
  • Dia: 0.31"
  • Length: 0.437"
35724R
11 Roller
  • Dia: 0.312"
  • Length: 0.432"
FR-7-1
11 Roller 10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.444"
SR-7-1
12 Inner Race Stator
  • Height: 0.875"
  • Outer Dia: 2.156"
  • Internal Teeth: 27
SX-14-2
12 Inner Race Stator Adapts GM 245mm and 298mm converters for use with Chrysler 904 transmissions.
  • Height: 0.875"
  • Outer Dia: 2.156"
  • Internal Teeth: 27 (3 Removed)
SX-14-3
13 Stator Cap
  • Outer Dia: 3.74"
  • Inner Dia: 1.67"
  • Thickness: .27"
  • Material: Phenolic
  • Upgrade, 12 Grooves, O.E.#24204224
SW-4-16
13 Washer
  • Outer Dia: 3.64"
  • Inner Dia: 1.58"
SW-4-6
13 Stator Cap
  • Outer Dia: 3.64"
  • Inner Dia: 1.58"
  • Thickness: 0.24"
  • Material: Phenolic
SW-4-8
13 Stator Cap Used with SW-2-11
  • Outer Dia: 3.745"
  • Inner Dia: 1.690"
  • Thickness: 0.263"
  • Material: Aluminum
  • Functional Thickness: 0.130".

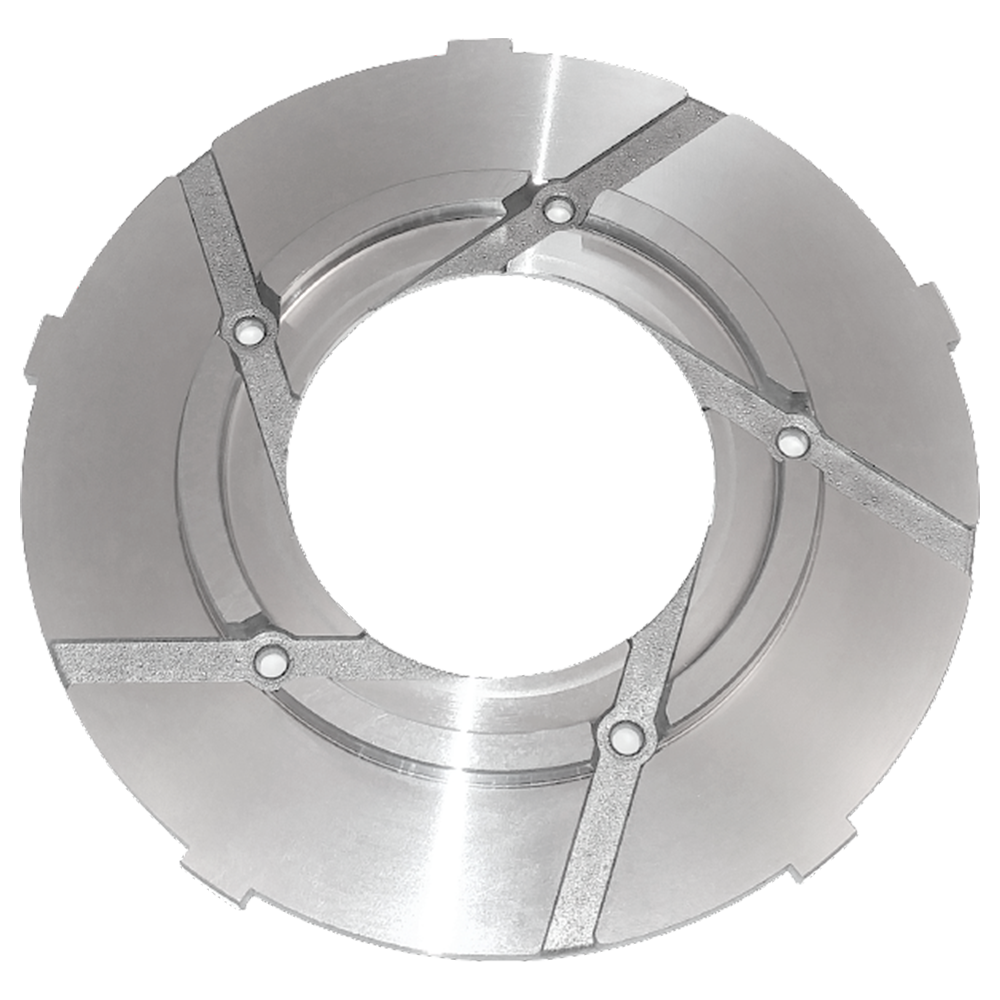

SW-4-15
13.1 Bearing Used with SW-4-15
  • Outer Dia: 3.380"
  • Inner Dia: 2.500"
  • Thickness: 0.150"
  • Outer Dia Metric: 85.85
  • Inner Dia metric: 63.5
  • Thickness metric: 3.81
  • Bearing type: Enclosed
SW-2-11

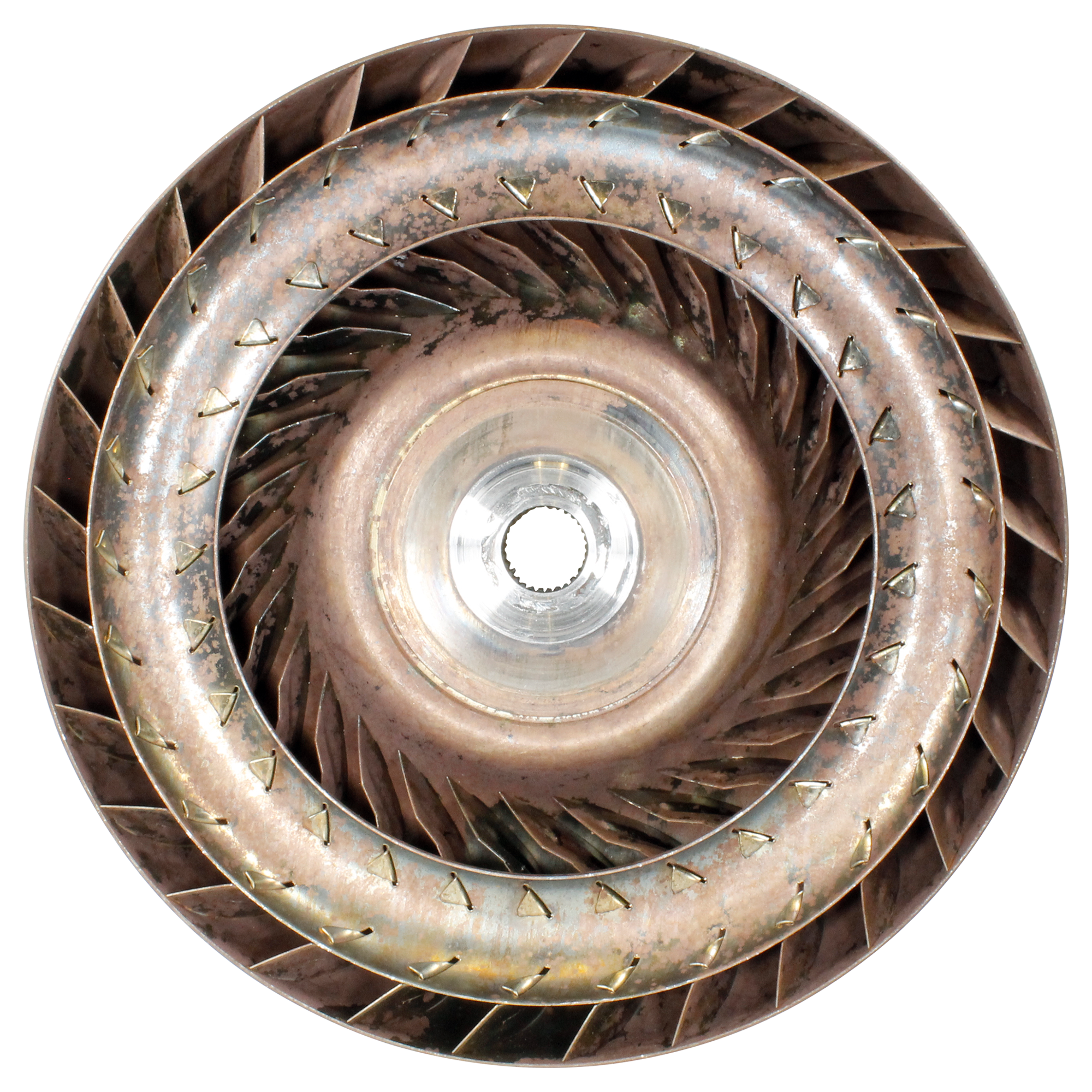

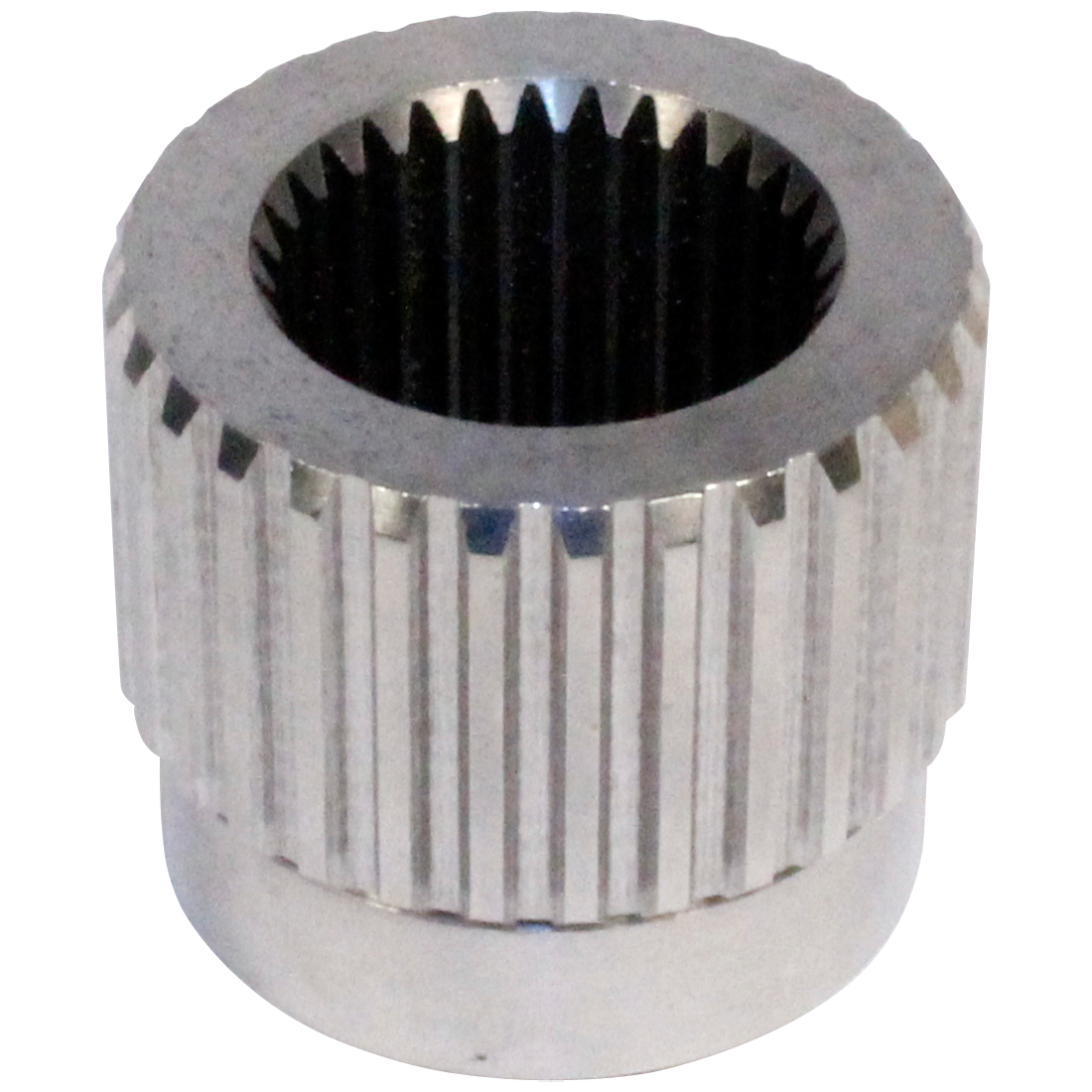

14 Turbine 30 Spline SX-8-30
14 Turbine
  • Internal Teeth: 27
SX-8-27
15 Turbine Hub (Reshaping Of Turbine Necessary In Most Cases) For TH200 Non-Lockup Turbines NPN-1-14-15
15 Turbine Hub
  • Internal Teeth: 30
  • Hardness: Heat Treated
  • For O.E.Turbines, Weld-In, .084" Thick Flange
SX-13-30WHT

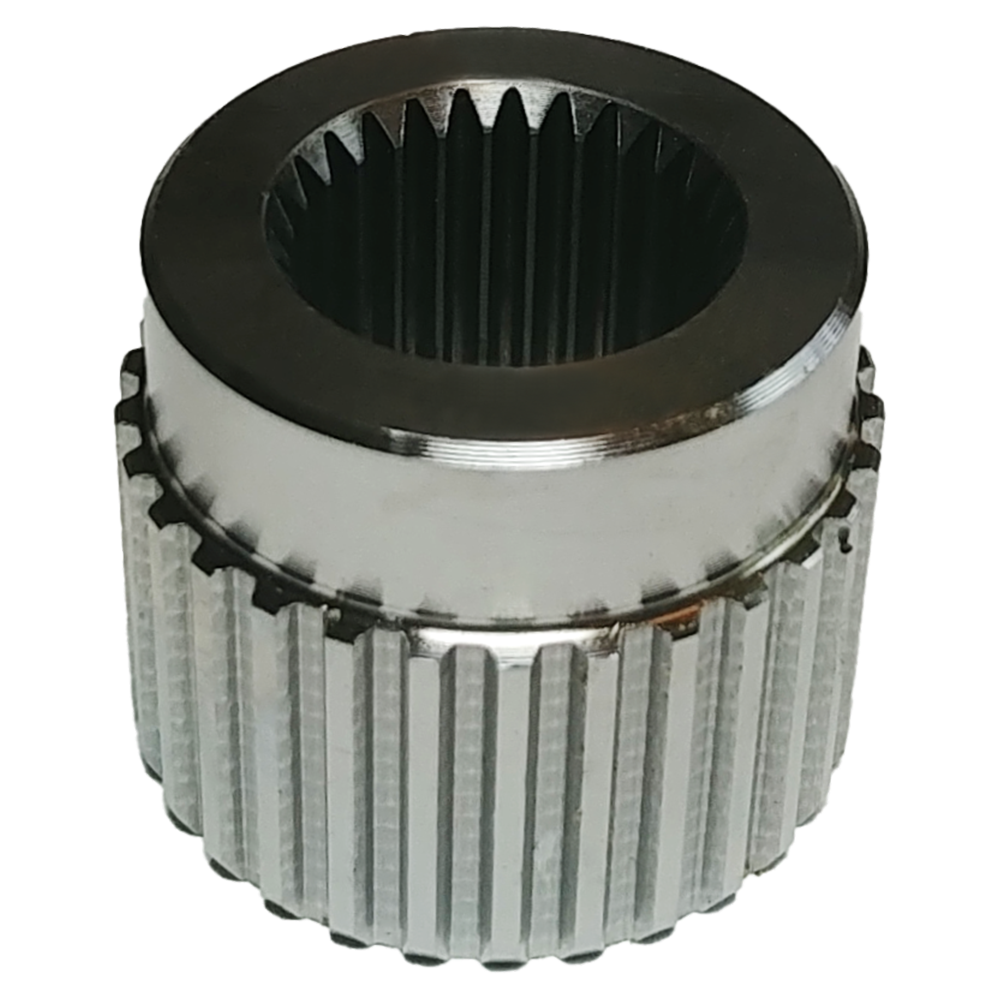

15 Insert Weld-In, O.E. Style For O.E. Turbines
  • Height: 1.200
  • Outer Dia: 1.53"
  • Internal Teeth: 27
  • External teeth: 30
SX-13-27
15 Turbine Hub Weld-In, O.E. Style For O.E. Turbines
  • Height: 1.200
  • Outer Dia: 1.53"
  • Internal Teeth: 27
  • External teeth: 30
  • Hardness: Heat Treated
  • For O.E.Turbines, Weld-In, O.E. Style
SX-13-27HT
15 Turbine Hub
  • Height: 1.200
  • Outer Dia: 1.53"
  • Internal Teeth: 30
  • External teeth: 30
  • For O.E.Turbines, Weld-In, O.E. Style, 30 Spline
SX-13-30
15 Turbine Hub Weld-In, Tapered Flange For O.E. Turbines
  • Height: 1.120
  • Outer Dia: 2.25"
  • Internal Teeth: 27
  • External teeth: 30
  • For O.E.Turbines, Weld-In, Tapered Flange
SX-13-27FF
15 Turbine Hub Weld-In, Tapered Flange For O.E. Turbines
  • Height: 1.120
  • Outer Dia: 2.25"
  • Internal Teeth: 27
  • External teeth: 30
  • Hardness: Heat Treated
  • For O.E.Turbines, Weld-In, Tapered Flange
SX-13-27FFHT
15 Insert Weld-In, Tapered Flange For O.E. Turbines
  • Height: 1.120
  • Outer Dia: 2.25"
  • Internal Teeth: 30
  • External teeth: 30
  • For O.E.Turbines, Weld-In, Tapered Flange

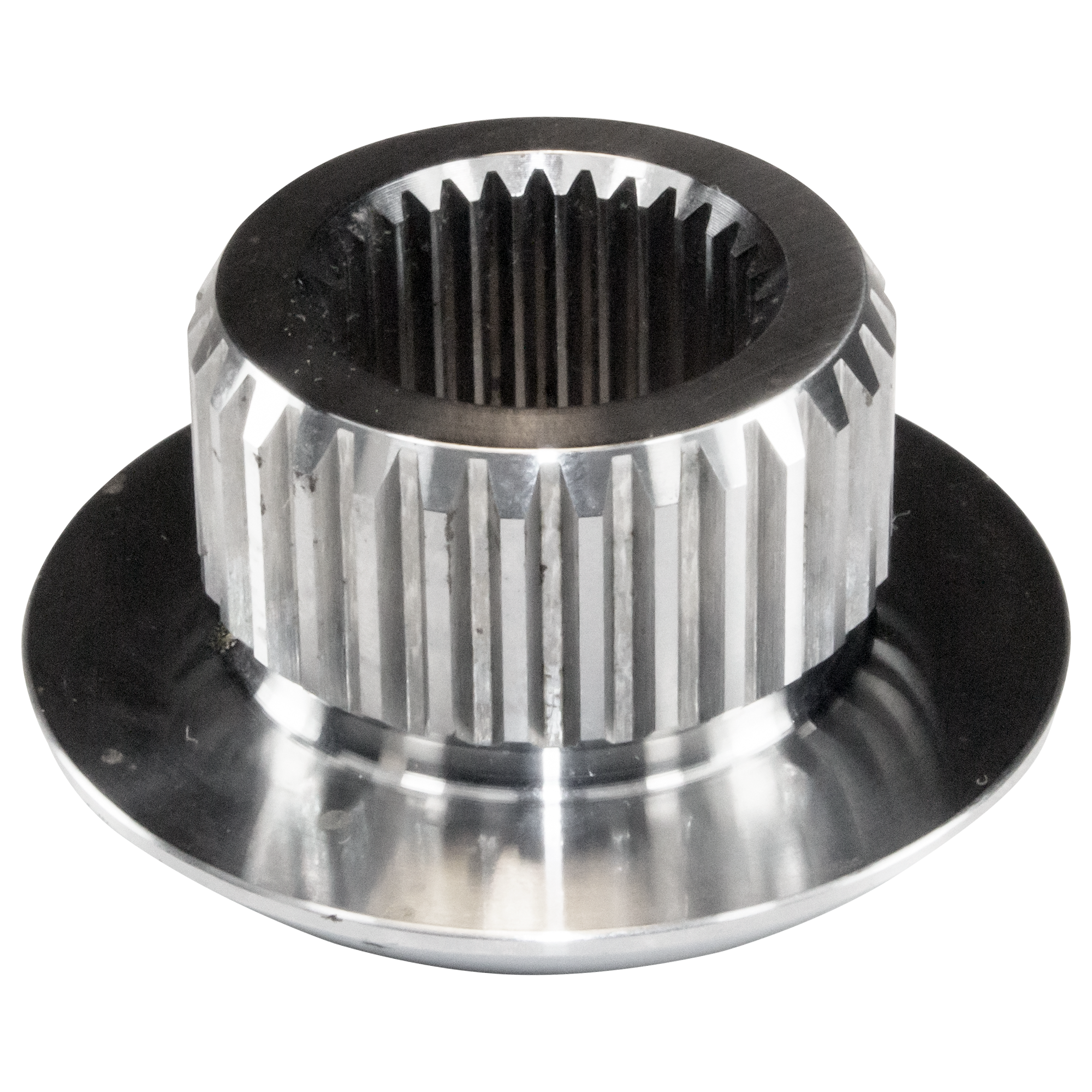

SX-13-30FF
15 Turbine Hub Weld-In, Tapered Flange For O.E. Turbines
  • Height: 1.120
  • Outer Dia: 2.25"
  • Internal Teeth: 30
  • External teeth: 30
  • Hardness: Heat Treated
  • For O.E.Turbines, Weld-In, Tapered Flange
SX-13-30FFHT
15 Turbine Hub Flanged
  • Height: 1.120
  • Internal Teeth: 30
SX-13-30F
15 Turbine Hub
  • Internal Teeth: 30
  • Hardness: Heat Treated
  • For O.E.Turbines, Weld-In, Straight Flange
SX-13-30FHT
15 Turbine Hub
  • Internal Teeth: 27
  • External teeth: 30
SX-13-27W
15 Turbine Hub Weld-In
  • Internal Teeth: 27
  • Hardness: Heat Treated
  • For O.E.Turbines, Weld-In, .084" Thick Flange
SX-13-27WHT
15 Turbine Hub
  • Internal Teeth: 30
  • For O.E.Turbines, Weld-In, .084" Thick Flange
SX-13-30W
15 Turbine Hub
  • Outer Dia: 4.5"
  • Internal Teeth: 27
  • External teeth: 30
  • Hardness: Heat Treated
  • For O.E.Turbines, Weld-In, .22" Thick Flange
SX-13-31HT
15 Turbine Hub
  • Outer Dia: 4.5"
  • Internal Teeth: 30
  • For O.E.Turbines, Weld-In, .22" Thick Flange
SX-13-16
15 Turbine Hub
  • Outer Dia: 4.5"
  • Internal Teeth: 30
  • Hardness: Heat Treated
  • For O.E.Turbines, Weld-In, .22" Thick Flange
SX-13-16HT
15 Turbine Hub
  • Outer Dia: 3.3"
SX-13-27JF
15 Turbine Hub
  • Outer Dia: 3.3"
  • Internal Teeth: 27
  • External teeth: 30
  • Hardness: Heat Treated
  • For O.E.Turbines, Weld-In, E-Z Weld Flange, , Fastest Installation
SX-13-27JFHT
15 Turbine Hub For O.E.Turbines Weld-In
  • Outer Dia: 1.38"
  • Internal Teeth: 27
  • Flange Dia: 1.75"
  • .20" Thick Flange
SX-13-27P
15 Turbine Hub
  • Internal Teeth: 30
  • External teeth: 30
  • Hardness: Heat Treated
  • For O.E.Turbines, Weld-In, E-Z Weld Flange, Fastest Installation

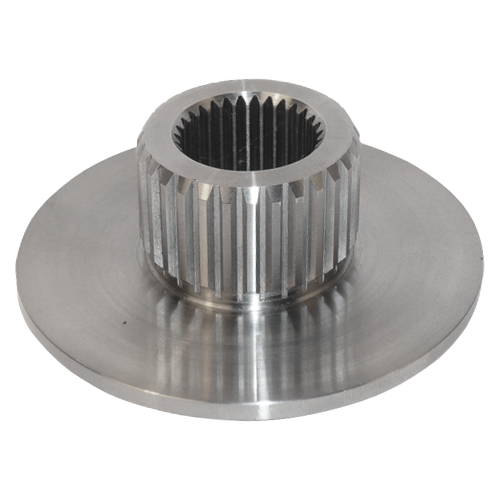

SX-13-30JF

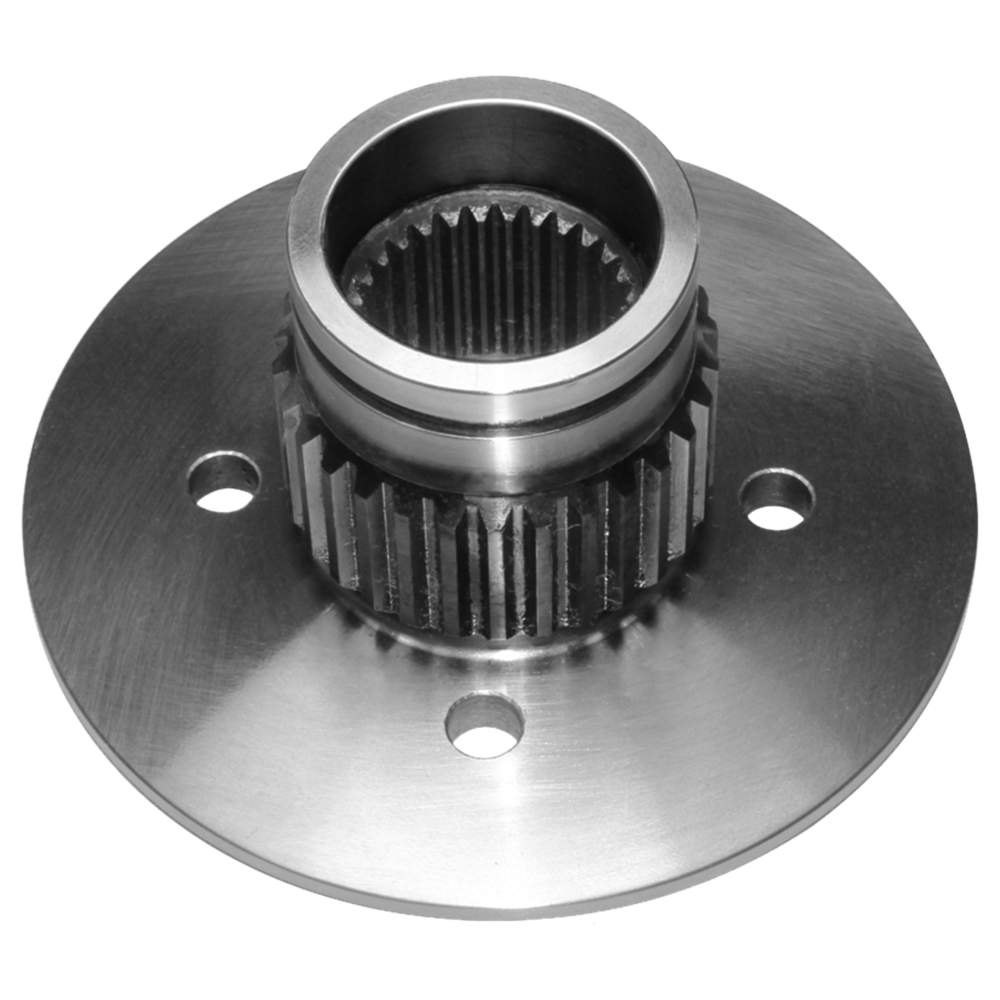

15 Turbine Hub High Performance, GM 298mm
  • Height: 1.700
  • Outer Dia: 3.448"
  • Internal Teeth: 30
  • External teeth: 30
SX-13-44HP
15 Turbine Hub
  • Outer Dia: 1.38"
  • Internal Teeth: 30
  • Flange Dia: 1.75"
  • For O.E.Turbines, Weld-In, .20" Thick Flange
SX-13-30P

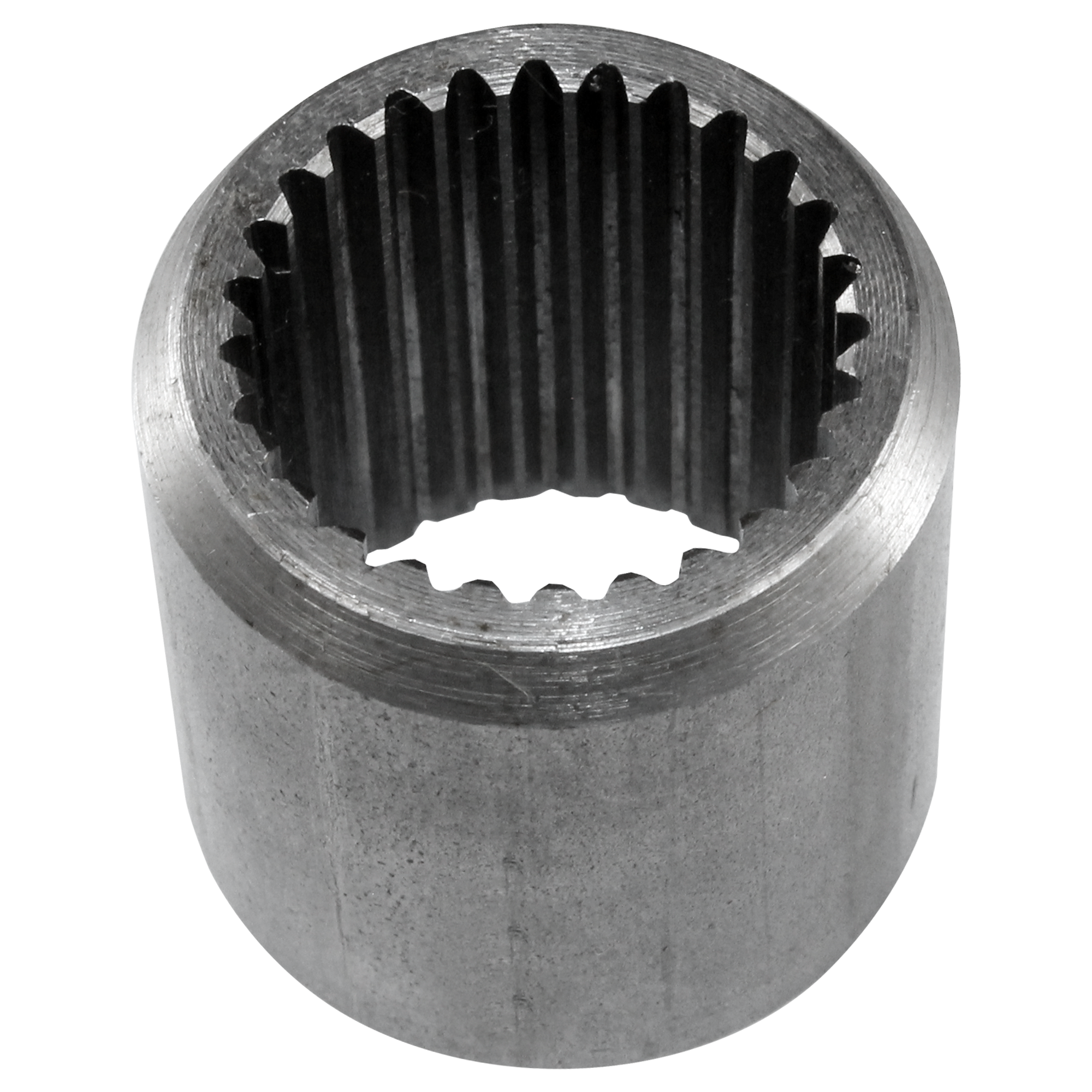

15 Insert
  • Height: 1.190
  • Outer Dia: 1.19"
  • Internal Teeth: 30
SX-13-30X
15 Turbine Hub
  • Internal Teeth: 27
  • External teeth: 30
  • Use with rivets SX-12-4
SX-13-3
15 Turbine Hub
  • Hardness: Heat Treated
  • For O.E.Turbines, Rivet-In, 27 Splines, Use SX-12-4 Rivet
SX-13-3HT
15 Rivet
  • Length: 0.353"
  • Rivet solid or tubular: S
  • Rivet Shank Dia: 0.183"
  • Rivet head dia: 0.341"
SX-12-4
15 Turbine Hub
  • For O.E.Turbines, Rivet-In, 30 Splines, Use SX-12-4 Rivet
SX-13-4
15 Turbine Hub
  • Hardness: Heat Treated
  • For O.E.Turbines, Rivet-In, 30 Splines, Use SX-12-4 Rivet
SX-13-4HT
15 Turbine Hub For TH200 Non-Lockup Turbines. (Reshaping Of Turbine Necessary In Most Cases)
  • Internal Teeth: 27
  • External teeth: 30
SX-13-5
15 Turbine Hub For TH200 Non-Lockup Turbines. (Reshaping Of Turbine Necessary In Most Cases)
  • Internal Teeth: 27
  • External teeth: 30
  • Hardness: Heat Treated
  • Retains Lockup Function, 27 Splines, Use FX-12 Rivets
SX-13-5HT
15 Turbine Hub For TH200 Non-Lockup Turbines
  • Height: 1.197"
  • Outer Dia: 4.500"
  • Internal Teeth: 30
  • Retains Lockup Function, Uses FX-12 Rivets
SX-13-6
15 Turbine Hub SX-13-6A
15 Turbine Hub For TH200 Non-Lockup Turbines
  • Internal Teeth: 30
  • Lockup Eliminator, Uses FX-12 Rivets
SX-13-7
15 Turbine Hub For TH200 Non-Lockup Turbines
  • Hardness: Heat Treated
  • Lockup Eliminator, , Uses FX-12 Rivets
SX-13-7HT
15 Turbine Hub Relieves The Shortage Of TH350 Lockup Cores
  • Outer Dia: 4.51"
  • Internal Teeth: 30
  • Converts TH200 To TH350 Non-Lockup, Use With Fiber Or Plastic Washer
SX-13-350
15 Turbine Hub Relieves The Shortage Of TH350 Lockup Cores
  • Outer Dia: 4.51"
  • Internal Teeth: 30
  • Hardness: Heat Treated
  • Converts TH200 To TH350 Non-Lockup, Use With Fiber Or Plastic Washer
SX-13-350HT
15 Insert Straight Flange, 30 Spline
  • Height: 1.120
  • Internal Teeth: 30
  • External teeth: 30
SX-13-30FS
15_N.I. Insert Salvage Type
  • Height: 1.190
  • Outer Dia: 1.187"
  • Internal Teeth: 27
  • 4.33"
SX-13-27X

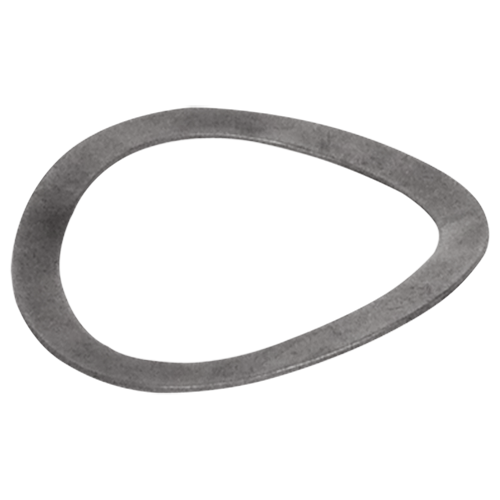

16 Spring Wave, First Type
  • Outer Dia: 2.01"
  • Inner Dia: 1.6"
SW-9-6
16 Spring Wave, Heavy Duty
  • Outer Dia: 3.16"
  • Inner Dia: 1.59"
  • Thickness: .02"
SW-9-10
17 Rivet Pressure Plate
  • Length: 0.44"
  • Rivet solid or tubular: S
  • Rivet Shank Dia: 0.323"
  • Rivet head dia: 0.5"
SX-12-2
18 Rivet
  • Length: 0.22"
  • Rivet solid or tubular: S
  • Rivet Shank Dia: 0.156"
  • Rivet head dia: 0.356"
SX-12-6
18 Poppet Valve Assembly
  • Uses 4 Rivets (SX-12-5)
SX-23-8
18_N.I. Plug Poppet Eliminator
  • Length: 0.25"
  • Rivet solid or tubular: S
  • Rivet Shank Dia: 0.486"
  • Rivet head dia: 0.625"
SX-12-9

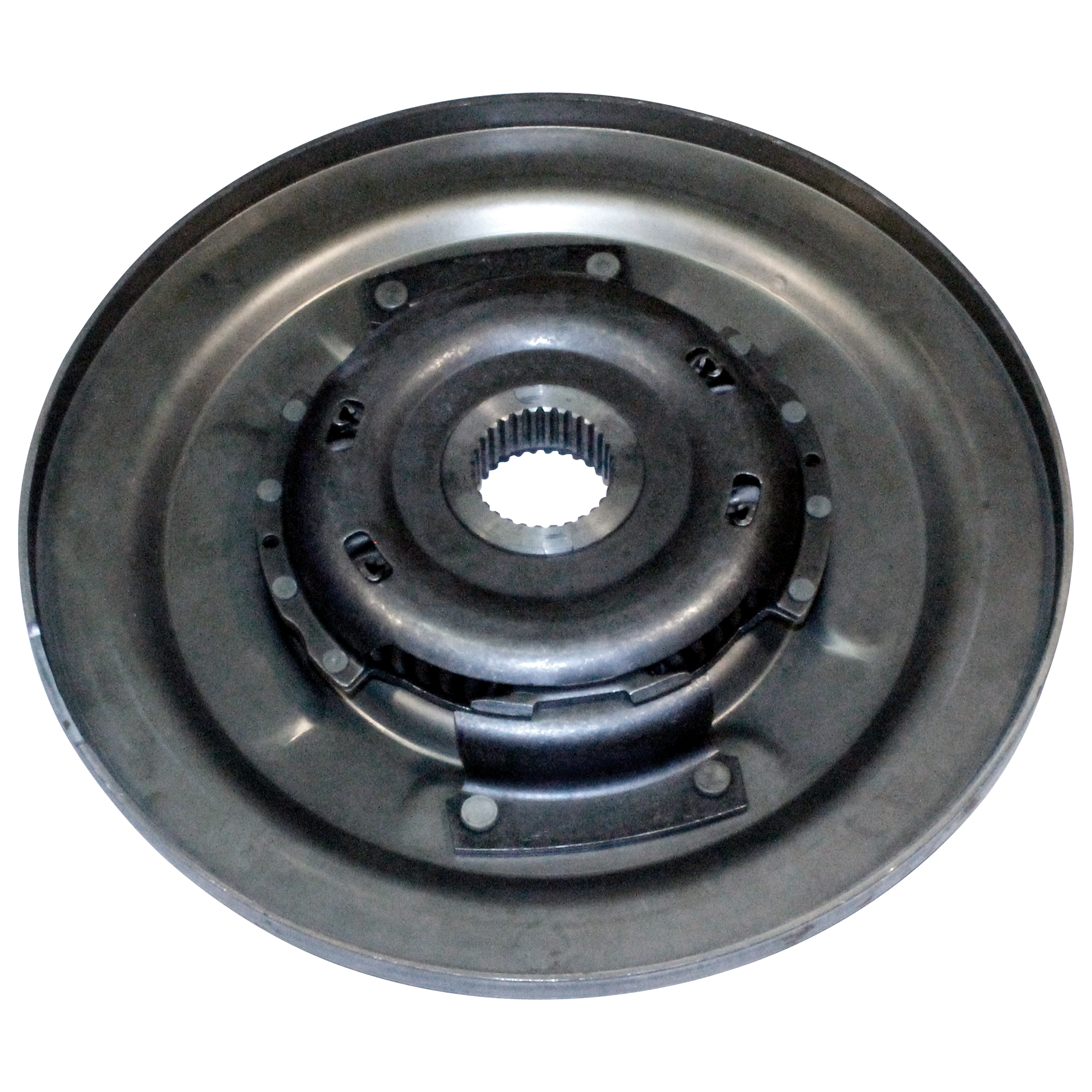

19 Damper & Pressure Plate Assembly, Non-Poppet SX-23-3E
19 Damper Assembly No Press.Plt SX-23-6
20 Conical Washer
  • Outer Dia: 2.24"
  • Inner Dia: 0.625"
  • Thickness: A=.57"
  • Material: Plastic
  • Casting #2
SW-9-52
20 Conical Washer
  • Outer Dia: 2.24"
  • Inner Dia: 0.625"
  • Thickness: A=.59"
  • Material: Plastic
  • Casting #3
SW-9-53
20 Conical Washer
  • Outer Dia: 2.24"
  • Inner Dia: 0.625"
SW-9-50
20 Conical Washer
  • Outer Dia: 2.24"
  • Inner Dia: 0.625"
  • Thickness: A=.61"
  • Material: Plastic
  • Casting #4
SW-9-54
20 Conical Washer
  • Outer Dia: 2.24"
  • Inner Dia: 0.625"
  • Thickness: A=.63"
  • Material: Plastic
  • Casting #5
SW-9-55
20 Conical Washer
  • Outer Dia: 2.24"
  • Inner Dia: 0.625"
  • Thickness: A=.64"
  • Material: Plastic
  • Casting #6
SW-9-56

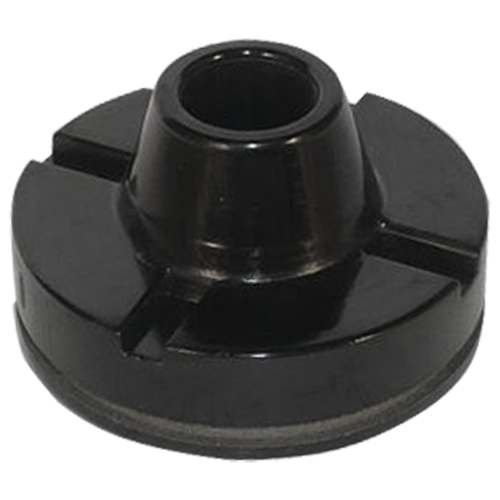

20 Conical Washer
  • Outer Dia: 2.24"
  • Inner Dia: 0.625"
  • Thickness: A=.66"
  • Material: Plastic
  • Casting #7
SW-9-57
20_N.I. Spacer Lockup-Eliminator (converts L/U to non L/U)
  • Height: 1.515"
  • Outer Dia: 2.51"
  • Inner Dia: 1.46"
  • Thickness: 1.52"
  • Internal Teeth: 30
SW-9-150
20_N.I. Spacer Lockup-Eliminator (converts L/U to non L/U)
  • Height: 1.515"
  • Outer Dia: 2.51"
  • Inner Dia: 1.46"
  • Internal Teeth: 30
SW-9-150DA
21 O-Ring
  • Inner Dia: 2.114
  • Thickness: 0.07
  • Inner Dia metric: 53.7972
  • Thickness metric: 1.778
  • Color: Orange
  • Material: Fluorocarbon
  • With PTFE Coating
SO-23-1
21 O-Ring
  • Inner Dia: 2.114
  • Thickness: 0.075
  • Inner Dia metric: 53.6956
  • Thickness metric: 1.905
  • Color: Green
  • Material: Fluorocarbon
  • Oversized, Salvages Clutch Plate
SO-23-1A
23 Snubber Friction, Kevlar®
  • Outer Dia: 2.875
  • Inner Dia: 2.375
SX-23-LS45K
23 Snubber Friction
  • Outer Dia: 2.875"
  • Inner Dia: 2.375"
  • Thickness: 0.045"
SX-23-LS45

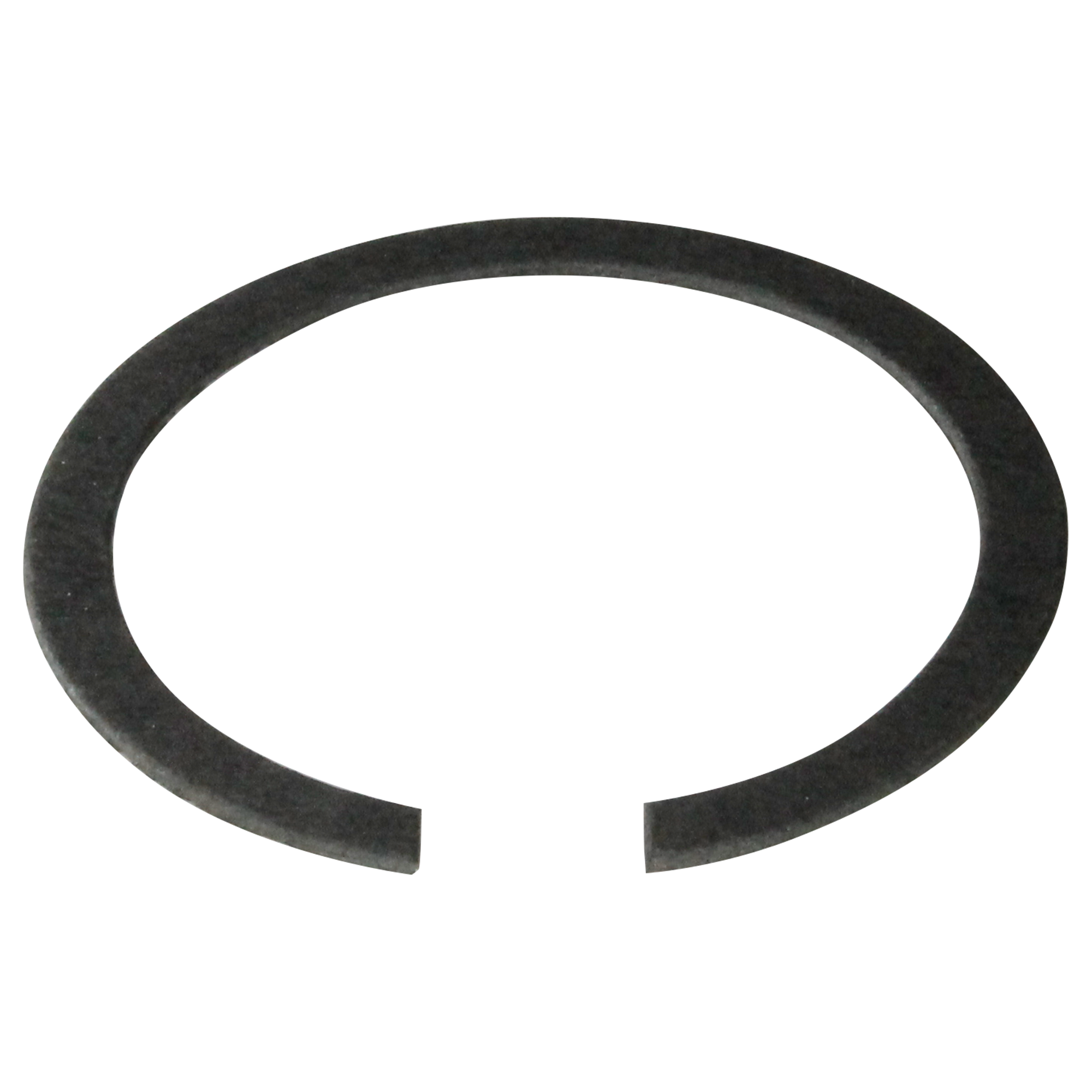

23 Snubber Friction
  • Outer Dia: 2.875"
  • Inner Dia: 2.375"
  • Thickness: .045"
  • Material: Carbon
SX-23-LS45C
23 Snubber Friction
  • Outer Dia: 2.875
  • Inner Dia: 2.375
  • Thickness: .070"
SX-23-LS70
23 Snubber Friction, Kevlar®
  • Outer Dia: 2.875
  • Inner Dia: 2.375
SX-23-LS70K
23 Snubber Friction, Kevlar®
  • Outer Dia: 2.875"
  • Inner Dia: 2.375"
SX-23-LSX70K
23_N.I Rivet Use with SX-23-12 6 Pieces Required.
  • Length: 0.34"
  • Rivet solid or tubular: S
  • Rivet Shank Dia: 0.17"
  • Rivet head dia: 0.281"
SX-12-5
23_N.I Actuator Plate Use on damper. Use with 6 pieces of SX-12-5 Rivet. NOTE: ANY NON-POPPET VALVE CONVERTER CAN BE CHANGED OVER BY REPLACING THE PRESSURE PLATE WITH SX-23-7 AND ADDING THE SX-23-12 ACTUATOR PLATE 2 Pieces Required. SX-23-12
23_N.I. Sleeve Sleeve, Requires Machining, Press-On (Restores Pilot Diameter) SX-22-10
23_N.I. Pilot
  • Button, Unfinished, OE Style
SX-23
23_N.I. Pilot Button, E-Z Weld™
  • No Machining, Weld-On (Restores Pilot Diameter)
SX-23B
23_N.I. Pilot Button, E-Z Weld™, Unfinished SX-23BX
23_N.I. Pilot Button
  • Outer Dia: 1.703"
  • Thickness: 0.187"
  • Unfinished, But O.D. To Finish Size, OE Style
SX-23F
23_N.I. Pilot Button, Self Centering See Page 1-42 For Pilot Program
  • Outer Dia: 1.703"
  • Inner Dia: 1.250"
  • Thickness: 0.083"
SX-23C
24 Front Cover SX-22-9

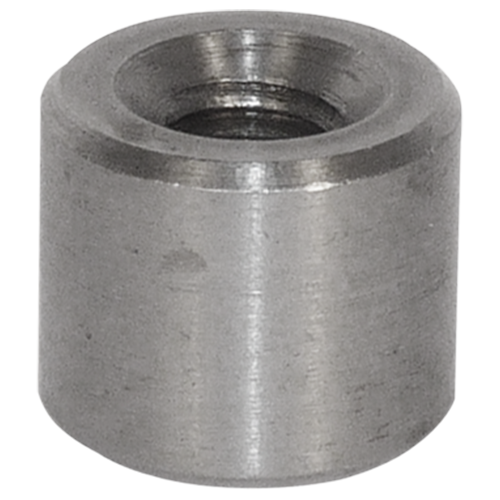

25 Mounting Pad Threaded M10 - 1.5 SX-10
26 Bolt Hex Head, Flanged
  • Dimensions: M10-1.50 x 15mm
B-78
26_N.I. Salvage Ring™ Core Saver™, Restores Matching Step
  • Outer Dia: 12.45"
  • Width: 0.375"
SX-21-972
26_N.I. Salvage Ring™
  • Outer Dia: 12.45"
  • Width: 0.250"
SX-21-972NR
